1.5-Inch Door Hinges for Cabinets & Small Applications
1.5-inch hinges provide a compact hardware option for cabinetry and other compatible applications where a full-size residential door hinge would be unnecessarily large. The current Coastal Hardware Store collection includes Deltana solid-brass cabinet hinges with square corners and decorative ball-tip finials.
Current options include a 1-1/2" x 1-1/2" hinge and a 2" x 1-1/2" hinge. Both have a 1-1/2-inch dimension, but their overall proportions and mounting-hole configurations differ. Deltana classifies both products as cabinet hinges, so shoppers should not assume they are substitutes for hinges intended for standard full-size interior or exterior doors. For larger sizes and additional configurations, browse our door hinges.
Why Choose 1.5-Inch Hinges?
Compact hinges can be useful when cabinetry or another compatible installation requires hardware with a smaller footprint. The current Deltana options combine solid-brass construction with traditional ball-tip detailing and a broad selection of architectural finishes.
- Compact dimensions: Both current products include a 1-1/2-inch dimension for applications requiring relatively small hinge hardware.
- Solid-brass construction: Deltana specifies both current hinge models as solid brass.
- Decorative ball-tip finials: Ball-tip finials are standard on both Deltana cabinet hinges in the collection.
- Square-corner design: Current models use square-corner hinge leaves for compatible square-corner preparations.
- Two proportions: Shoppers can compare a square 1-1/2" x 1-1/2" hinge with a taller 2" x 1-1/2" configuration.
- Multiple finish options: The current collection includes brass, nickel, chrome, bronze, PVD, and unlacquered finish choices depending on the model.
Types of 1.5-Inch Hinges Available

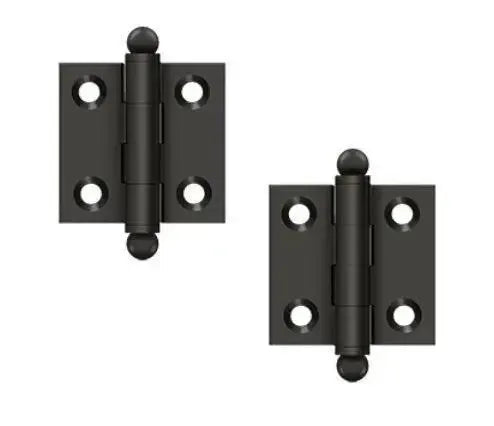

1-1/2" x 1-1/2" Hinges
The Deltana 1-1/2" x 1-1/2" Hinge with Ball Tips has equal height and width dimensions and is manufactured from solid brass. Deltana specifies square corners, four hinge holes, .093-inch thickness, and #7 x 3/4-inch wood screws. It is sold by the pair.

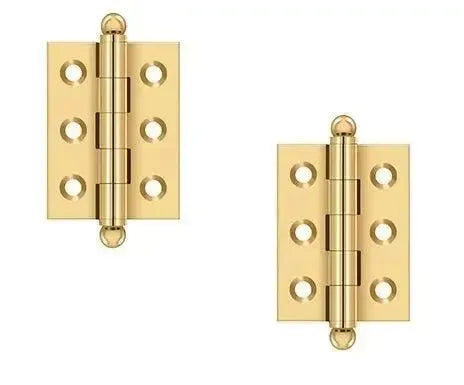

2" x 1-1/2" Hinges
The Deltana 2" x 1-1/2" Hinge with Ball Tips retains a 1-1/2-inch width while increasing the height to 2 inches. It is also solid brass with square corners and .093-inch thickness, but this model uses six hinge holes rather than four. It is likewise sold by the pair and uses #7 x 3/4-inch wood screws.
Solid-Brass Ball-Tip Cabinet Hinges
Both products currently represented in this collection belong to Deltana's specialty solid-brass cabinet-hinge family. Their ball-tip finials add a decorative detail that distinguishes them from plain utilitarian hinges. Because Deltana identifies these products specifically as cabinet hinges, use the manufacturer's intended application and exact dimensions when determining whether they are appropriate for a project.
How to Choose the Right 1.5-Inch Hinge
Start by measuring the existing hinge or determining the exact dimensions required for a new installation. A 1.5-inch designation alone does not establish compatibility because the height, width, screw pattern, and intended application can still differ.
- Measure both dimensions: Determine whether you need a 1-1/2" x 1-1/2" hinge or a taller 2" x 1-1/2" configuration.
- Confirm the application: The current Deltana products are manufacturer-classified cabinet hinges rather than standard residential door hinges.
- Check the corner style: Both current models use square corners. Match the hinge to the existing preparation or account for any modification required.
- Compare the screw pattern: The 1-1/2" x 1-1/2" hinge has four hinge holes, while the 2" x 1-1/2" version has six.
- Verify thickness: Both current models are .093 inch thick. An incorrect leaf thickness can affect how a replacement hinge sits in an existing mortise.
- Select the finish carefully: Use Deltana's exact finish designation when coordinating the hinges with knobs, pulls, catches, or other visible hardware.
Materials, Styles & Finishes
The two current Deltana hinges in this collection are manufactured from solid brass and use square-corner leaves with decorative ball-tip finials. Both models are .093 inch thick and use #7 x 3/4-inch wood screws. The 1-1/2" x 1-1/2" model has four mounting holes, while the taller 2" x 1-1/2" model has six.
Current Coastal Hardware Store collection filters include Antique Brass, Antique Nickel, Brushed Chrome, Brushed Nickel, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Polished Nickel, PVD Polished Brass, and Unlacquered Brass. Brushed Chrome is currently shown on only one of the two products. Finish availability can change, so confirm the selected variant before ordering.
Featured 1.5-Inch Hinge Options
The current collection is intentionally focused, with two Deltana solid-brass cabinet hinges that share the same 1-1/2-inch width but provide different overall proportions.
- Deltana 1-1/2" x 1-1/2" Hinge: A square solid-brass cabinet hinge with ball-tip finials, four mounting holes, and .093-inch thickness.
- Deltana 2" x 1-1/2" Hinge: A taller solid-brass cabinet hinge with ball-tip finials, six mounting holes, and the same .093-inch thickness.
For additional Deltana sizes, browse our Deltana hinges. If your project requires a larger residential, architectural, or heavy-duty hinge, compare the options in our complete door hinge collection.
Installation & Compatibility
Before installing or replacing a compact hinge, compare the complete dimensions, leaf thickness, corner shape, mounting-hole arrangement, and intended application. Two hinges can share a 1-1/2-inch dimension without being interchangeable.
The current 1-1/2" x 1-1/2" and 2" x 1-1/2" Deltana hinges are both .093 inch thick and use #7 x 3/4-inch wood screws. The smaller model has four hinge holes, while the taller model has six. For replacement work, compare the existing hole locations and mortise dimensions before drilling or modifying the cabinet.
These products are identified by Deltana as cabinet hinges. If your project involves a full-size passage, entry, or other door, select a hinge whose manufacturer specifications are appropriate for that opening rather than choosing a compact hinge based on dimensions or appearance alone.
Shipping & Warranty Information
- Shipping: Both current Deltana hinge product pages list an estimated fulfillment time of approximately 2-3 business days. Fulfillment can vary by finish or availability. Free ground shipping is available on qualifying orders over $99.99. View Shipping Policy.
- Warranty: Deltana's current general-products warranty provides a 1-year mechanical warranty against mechanical defects from the original purchase date when the product is properly installed and used for the manufacturer's specified purpose. Deltana also publishes one-year finish coverage for its CR003 PVD finish under stated environmental and maintenance conditions. Review Deltana's complete current warranty terms and exclusions for the exact product and finish.
Frequently Asked Questions About 1.5-Inch Hinges
What does 1.5-inch hinge mean?
In this Coastal Hardware Store collection, the current products have at least one 1-1/2-inch dimension. One measures 1-1/2" x 1-1/2", while the other measures 2" x 1-1/2". Check both height and width rather than relying on the collection size alone.
Are these 1.5-inch hinges made from solid brass?
Yes. Deltana specifies both current hinges in this collection as solid brass.
Are 1.5-inch hinges suitable for standard interior doors?
The current products are classified by Deltana as cabinet hinges. They should not automatically be treated as substitutes for hinges designed for full-size residential or commercial doors. Select hardware according to the manufacturer's intended application and the requirements of the opening.
What is the difference between the 1-1/2" x 1-1/2" and 2" x 1-1/2" hinges?
The first model measures 1-1/2 inches in both height and width and has four hinge holes. The second is 2 inches high by 1-1/2 inches wide and has six hinge holes. Both are .093 inch thick, solid brass, square corner, and use ball-tip finials.
What finishes are available for 1.5-inch hinges?
Current collection filters include Antique Brass, Antique Nickel, Brushed Chrome, Brushed Nickel, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Polished Nickel, PVD Polished Brass, and Unlacquered Brass. Availability varies by model.
Are these compact Deltana hinges sold individually or in pairs?
Deltana specifies both current models as being sold by the pair. Always confirm the unit of measure on the individual product page when calculating quantities for a project.
