Square Corner Hinges

Square Corner Door Hinges

Square corner hinges use hinge leaves with straight 90-degree corners rather than the rounded corners found on radius hinges. They are designed to match doors and frames prepared with square-corner hinge mortises and are available for a range of residential, exterior, heavy-duty, and other supported door applications.

Coastal Hardware Store carries square corner door hinges from Emtek, Deltana, and Baldwin Estate. The current collection includes residential and heavy-duty designs, plain-bearing and ball-bearing hinges, spring hinges, and multiple material and finish options. Sizes represented in the current assortment range from 3" hinges to larger 4-1/2" models. For rounded preparations, browse our radius corner hinges.

Why Choose Square Corner Hinges?

Square corner hinges are a practical choice when the door and jamb already have square-corner mortises or when a traditional square preparation is specified for a new door. The right hinge depends on the existing preparation, door size and weight, frequency of use, material, bearing type, pin configuration, and finish.

• Square-corner preparation: The hinge leaves have straight corners designed to fit a corresponding square mortise in the door and frame.
• Residential and heavy-duty options: The current collection includes hinges for typical residential doors along with heavier-duty models intended for more demanding applications.
• Plain and ball-bearing designs: Shoppers can choose conventional plain-bearing hinges or ball-bearing hinges designed to reduce friction and provide smoother operation.
• Multiple sizes: Current products include 3", 3-1/2", 4", and 4-1/2" square corner hinge options depending on manufacturer and model.
• Multiple materials: The assortment includes steel, solid brass, stainless steel, and other manufacturer-specific constructions.
• Spring hinge options: Select Emtek square corner spring hinges are UL listed and provide an adjustable self-closing function.
• Extensive finish selection: Available finishes span brass, nickel, chrome, black, bronze, and additional manufacturer-specific choices.

Types of Square Corner Hinges Available

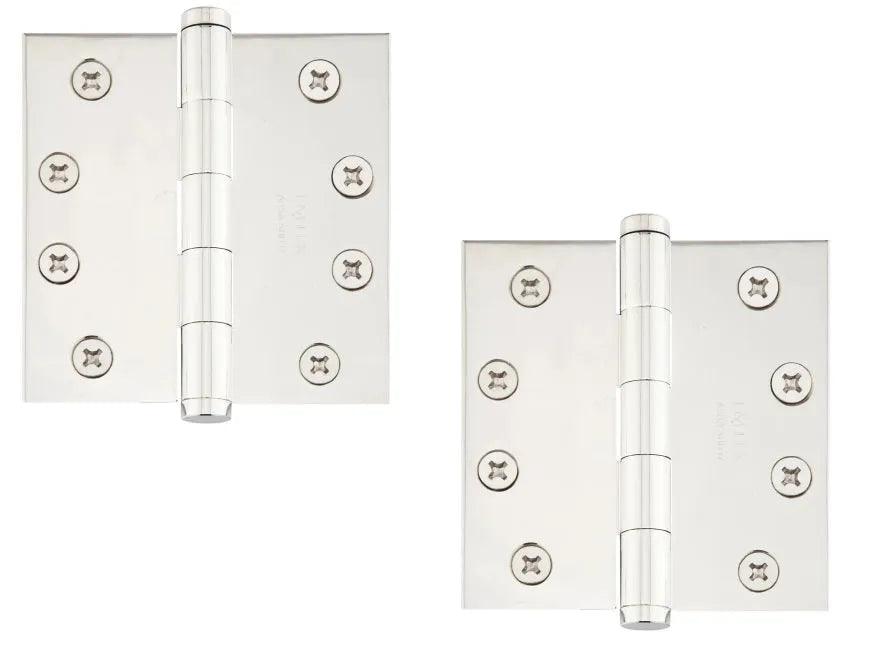

Residential Duty Hinges

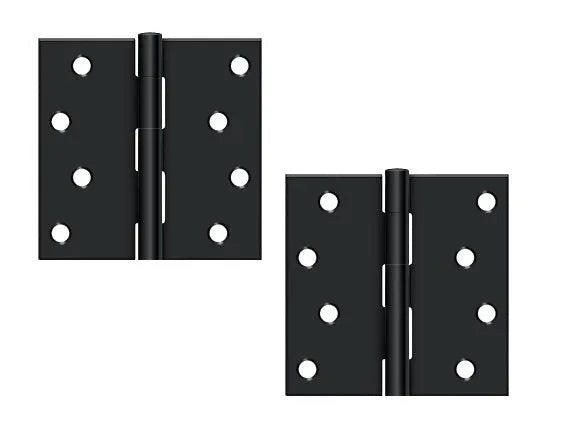

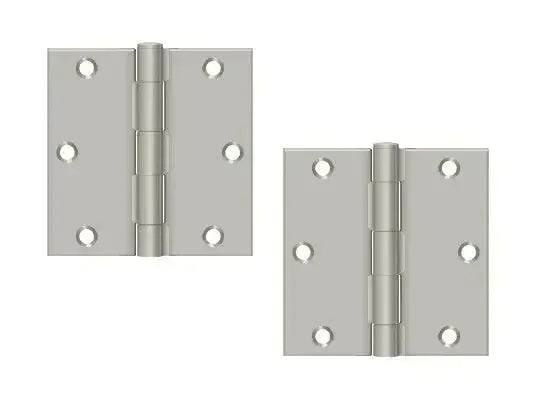

Residential duty hinges are intended for typical doors that do not require the additional capacity of a heavy-duty hinge. The current collection includes residential square corner options from Emtek and Deltana in several sizes and finishes. Emtek offers residential plain-bearing hinges in steel and solid brass, while Deltana offers additional residential square-corner configurations.

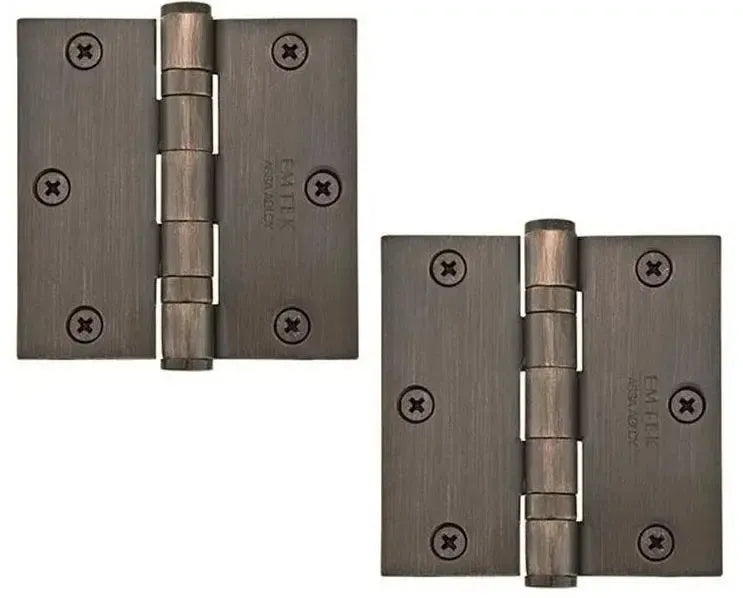

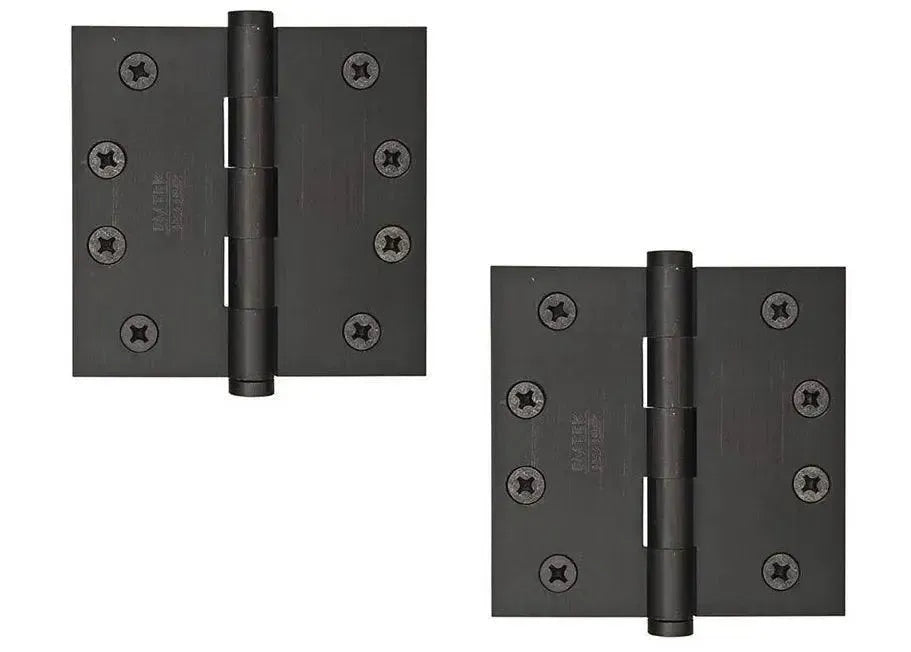

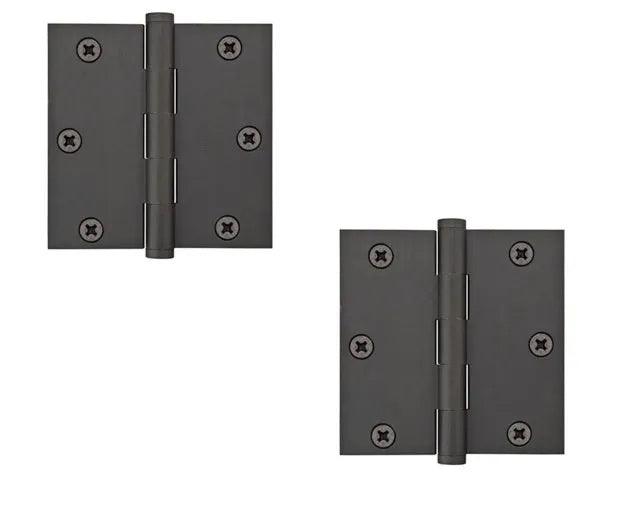

Heavy-Duty Square Corner Hinges

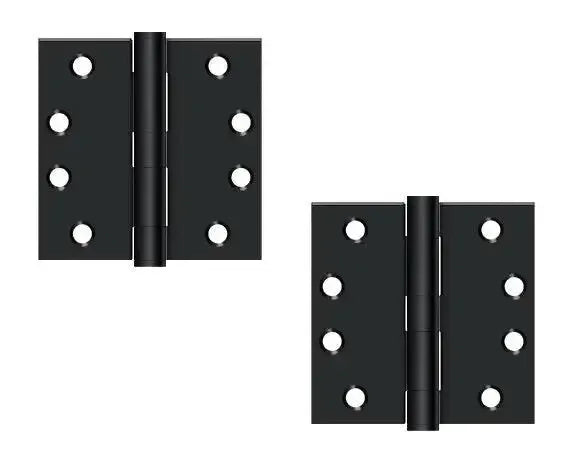

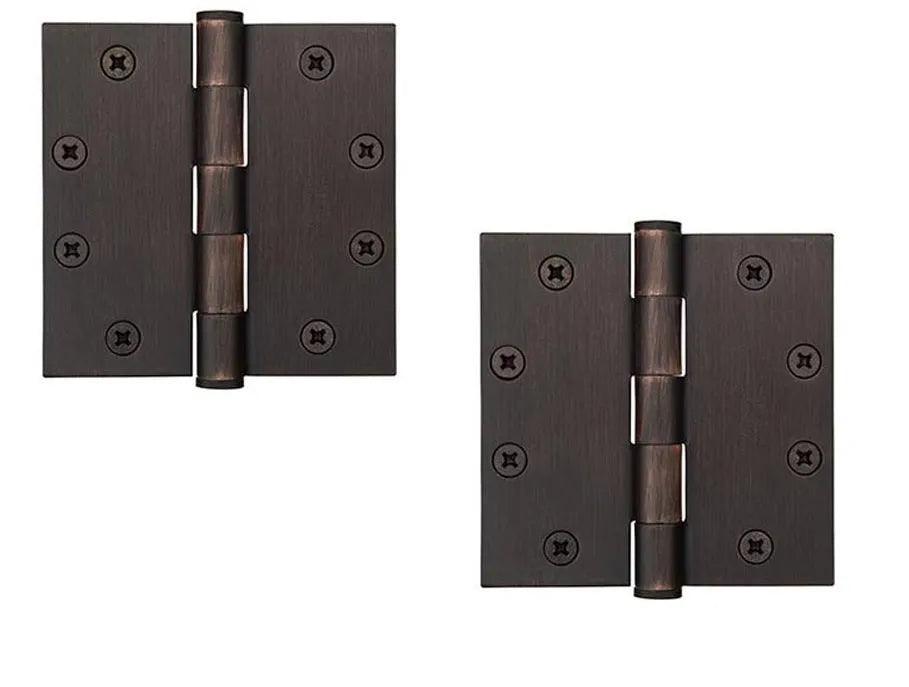

Heavy-duty hinges are designed for applications involving greater door weight, more frequent operation, or other conditions that call for a more substantial hinge. The current assortment includes heavy-duty steel and solid-brass Emtek hinges as well as heavy-duty Deltana products. Size, thickness, bearing type, and intended application vary by model, so use the manufacturer's specifications rather than hinge size alone when selecting hardware for a heavier door.

Plain-Bearing Hinges

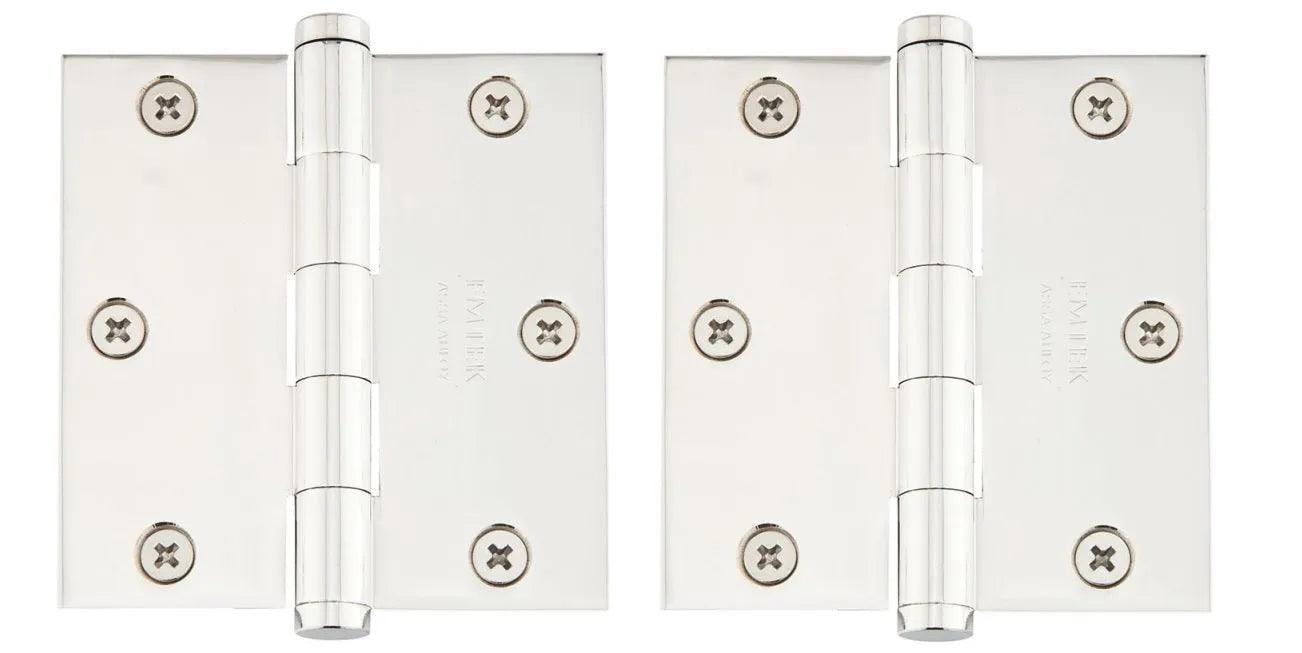

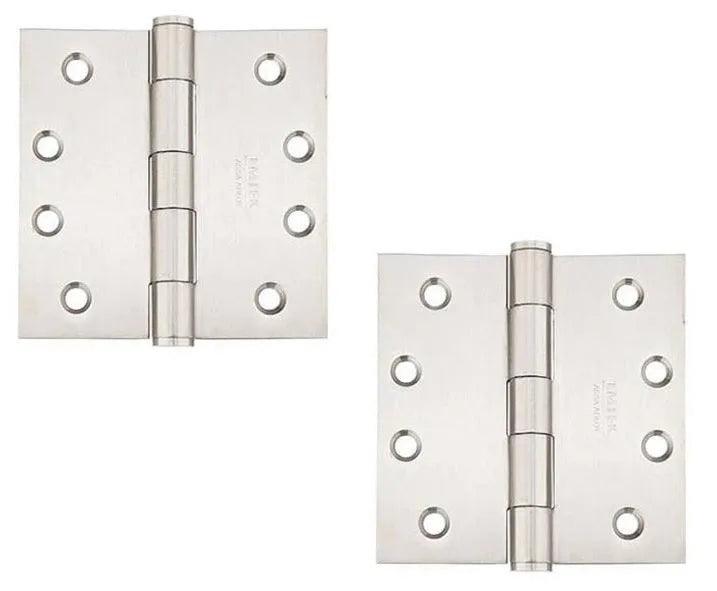

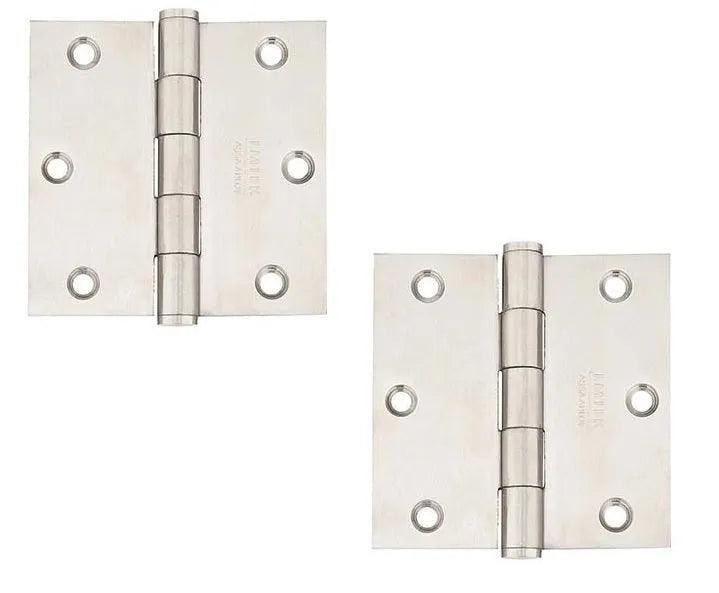

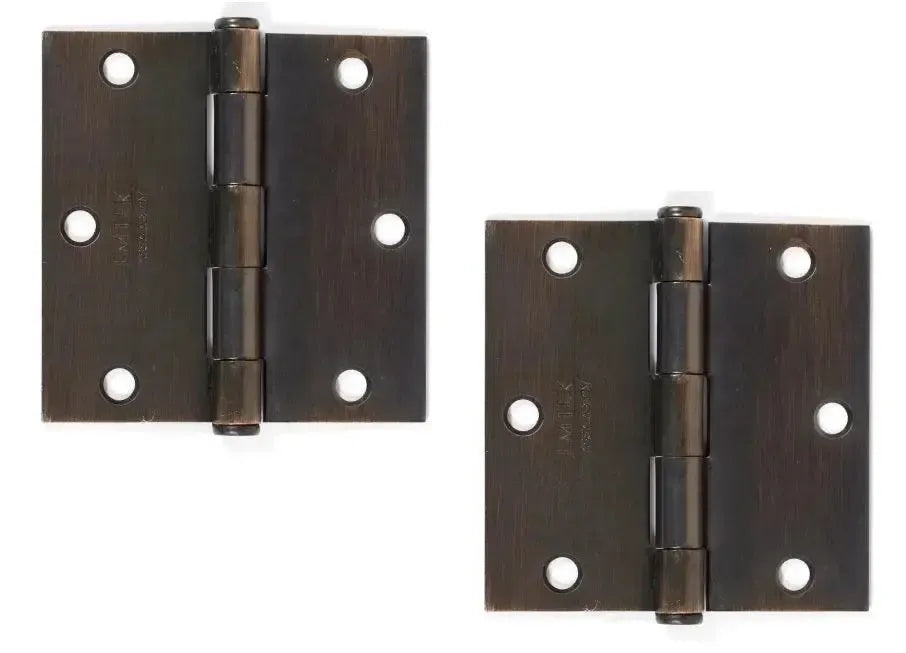

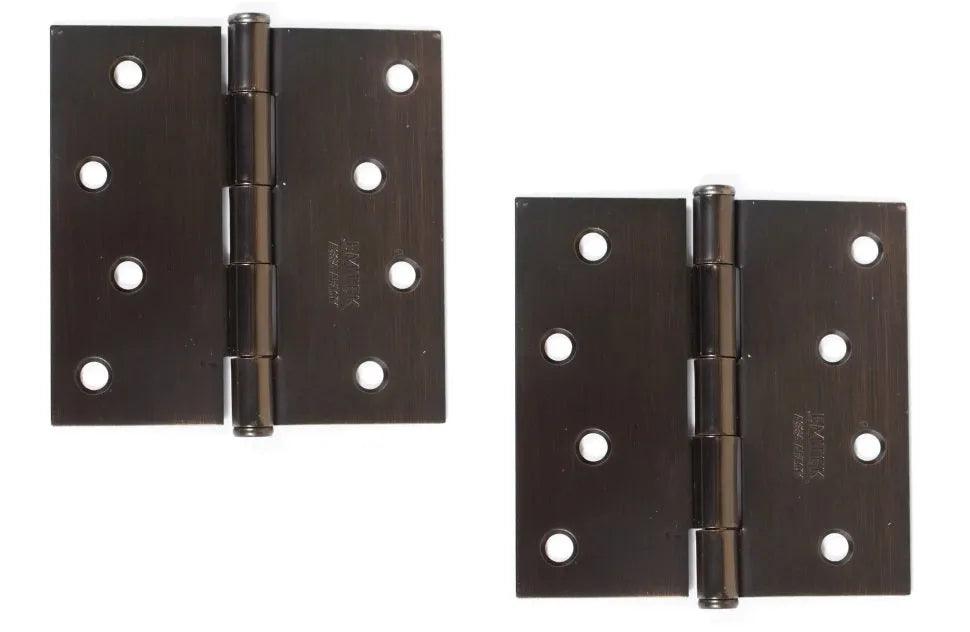

Plain-bearing hinges use the hinge pin and knuckles without additional ball bearings. Emtek identifies these hinges as appropriate for standard-weight doors and typical residential or light-duty use. They provide a straightforward option when the door does not require the reduced friction or additional durability associated with a ball-bearing design.

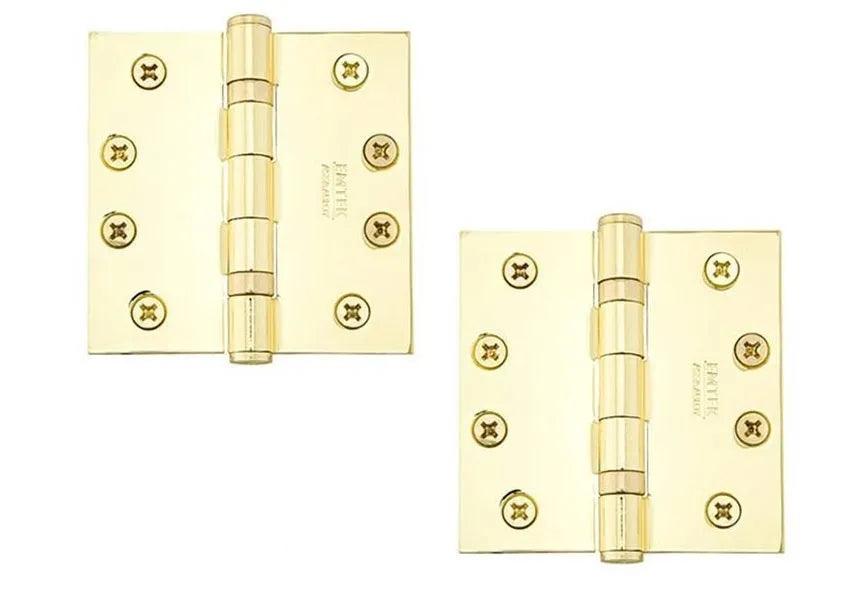

Ball-Bearing Hinges

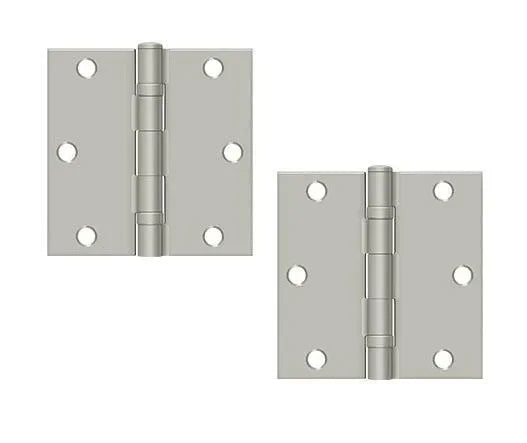

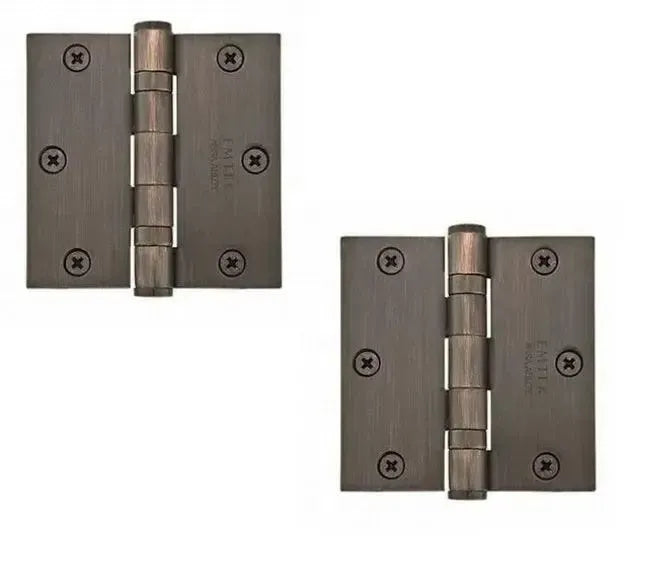

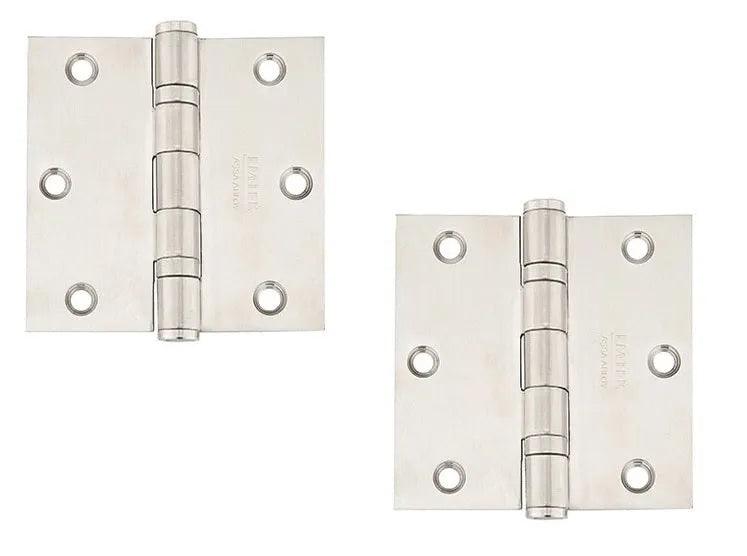

Ball-bearing hinges incorporate bearings within the hinge knuckles to reduce friction at the pivot point. Emtek recommends this style for heavier doors and more frequently used openings because the bearings provide smoother operation and improved durability compared with a plain-bearing hinge. The current Coastal Hardware collection includes ball-bearing square corner hinges from both Emtek and Deltana.

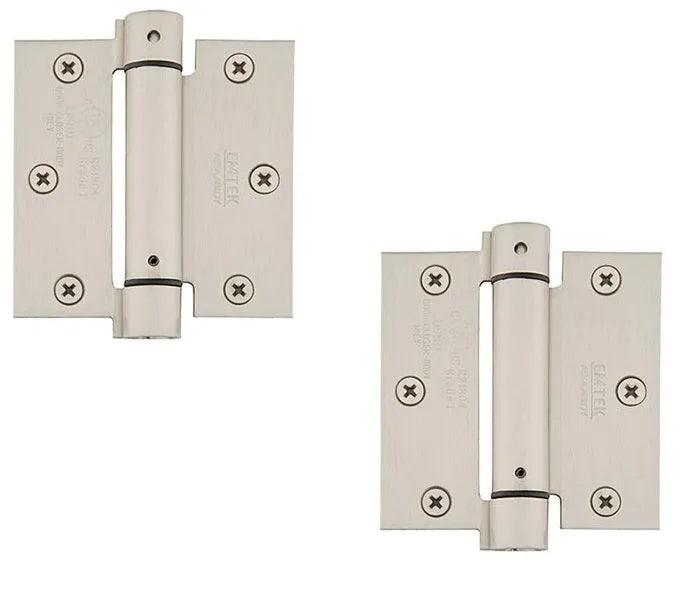

Square Corner Spring Hinges

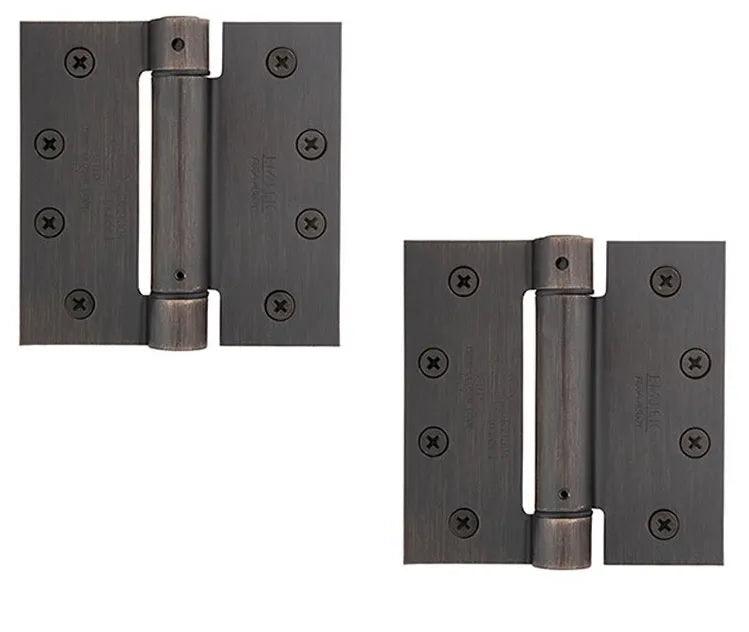

The current collection also includes Emtek plated-steel UL-listed spring hinges with square corners. Emtek describes these hinges as adjustable so the spring tension can be increased or decreased to control how the door closes. They are commonly used where a self-closing door is required or preferred. A UL listing on one spring-hinge product should not be assumed to apply to other hinges in the collection, so verify the exact listing required for your project.

Square Corner vs. Radius Corner Hinges

The difference is the shape of the hinge-leaf corners and the corresponding mortise in the door and frame. Square corner hinges have straight 90-degree corners, while radius hinges have rounded corners. Common radius options include 1/4" and 5/8", depending on the manufacturer.

When replacing existing hinges, match the corner shape already prepared in the door whenever possible. Installing a square corner hinge in a rounded mortise generally requires modifying the mortise so the square leaf sits properly. Likewise, a radius hinge may not fill an existing square-corner mortise cleanly without additional preparation.

If you are unsure which style you have, remove or inspect an existing hinge and look at the corners of the recessed hinge leaf. A visibly rounded mortise indicates a radius preparation, while straight corners indicate a square-corner preparation.

How to Choose the Right Square Corner Hinge

Begin by matching the existing hinge size and corner preparation, then compare door application, material, bearing type, hinge thickness, screw-hole pattern, pin type, and finish. Similar-looking hinges are not necessarily interchangeable.

• Match the hinge size: Measure both the height and width of the existing hinge leaf. Common products in this collection include 3", 3-1/2", 4", and 4-1/2" sizes.
• Confirm square corners: Make sure the existing mortise has straight corners rather than a 1/4" or 5/8" radius preparation.
• Consider the door weight and use: Standard residential doors may use a residential-duty hinge, while heavier or frequently used doors may require a heavy-duty model.
• Choose plain or ball bearing: Plain-bearing hinges work well for many standard residential applications. Ball-bearing designs reduce friction and are commonly selected for heavier or higher-use doors.
• Check the screw-hole pattern: Hinges of the same overall size can use different hole patterns. Compare the manufacturer's dimensional drawing when replacing existing hardware.
• Review the hinge pin: Some applications may call for a removable pin, while an exterior door with exposed hinge pins may benefit from a manufacturer-supported non-removable-pin configuration.
• Verify special requirements: If the opening requires a spring hinge, UL listing, fire-door component, or another specific designation, verify the exact product documentation rather than assuming every hinge meets the same requirements.
• Coordinate the finish: Match the hinge finish with nearby levers, knobs, deadbolts, handlesets, flush bolts, and other visible door hardware.

Materials, Styles & Finishes

The square corner hinge collection includes several material and construction options. Emtek currently offers square-corner hinges in residential and heavy-duty steel, solid brass, and stainless steel configurations, with both plain-bearing and ball-bearing designs depending on the product. Deltana offers square corner hinges across residential, heavy-duty, ball-bearing, and solid-brass product families. Baldwin Estate's square-corner hinges are part of its architectural hardware collection.

Current Coastal Hardware finish filters include Antique Brass, Antique Nickel, Brushed Brass, Brushed Chrome, Brushed Nickel, Flat Black, French Antique, Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Medium Bronze Patina, Oil Rubbed Bronze, Paint Black, Pewter, Polished Brass, Polished Chrome, Polished Nickel, Satin Black, Satin Brass, Satin Nickel, Tumbled White Bronze, Unlacquered Brass, Venetian Bronze, and Vintage Brass.

Finish availability varies considerably by manufacturer, material, size, and hinge type. Finish names from different brands should not automatically be assumed to match in color, sheen, texture, or aging characteristics. Living finishes such as certain unlacquered or aged brass options can also change naturally over time.

Featured Square Corner Hinge Brands

The current collection includes thirty products from Emtek, Deltana, and Baldwin Estate, with each manufacturer offering different combinations of material, bearing type, size, and finish.

• Emtek: Emtek represents the largest portion of the collection, with residential-duty and heavy-duty hinges in steel, solid brass, and stainless steel configurations. Available designs include plain-bearing, ball-bearing, square-barrel, and UL-listed spring hinges.

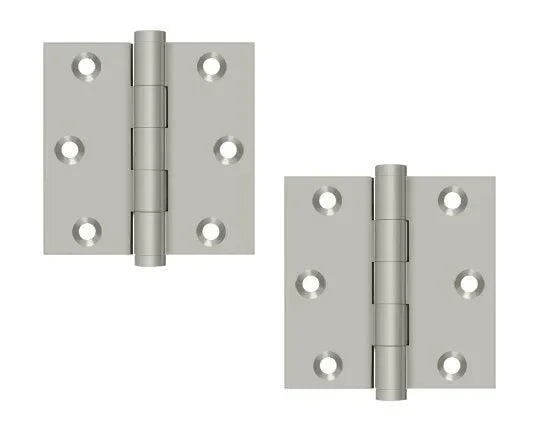

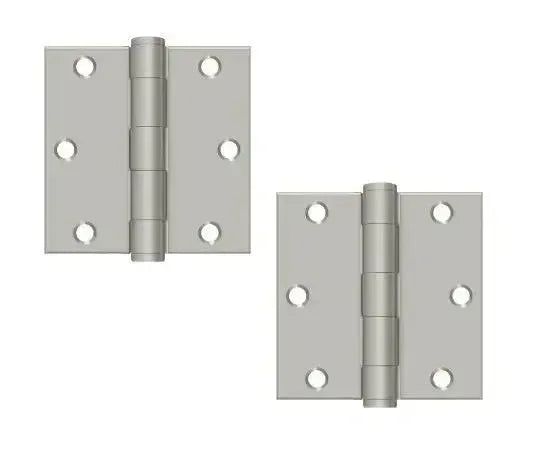

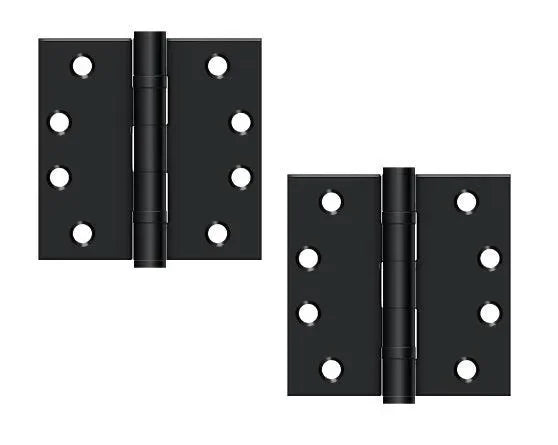

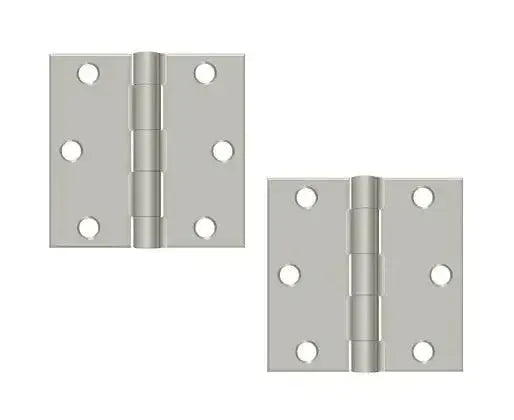

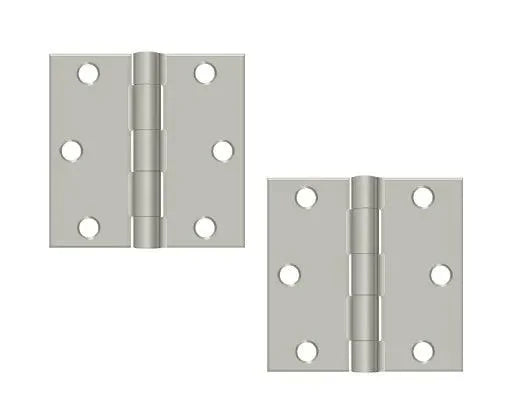

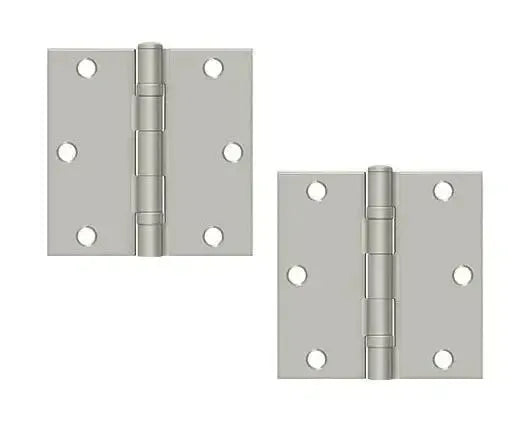

• Deltana: Deltana offers residential, heavy-duty, and ball-bearing square corner hinges in several sizes. Deltana's broader hinge catalog also includes solid-brass square hinges and other architectural configurations.
• Baldwin Estate: Baldwin's square-corner hinge program includes architectural hinges in multiple sizes and finishes. Baldwin also offers selected non-removable-pin versions intended for applications such as exterior doors where the hinge pins are exposed from outside.

Installation & Compatibility

Before ordering replacement hinges, compare the existing hardware with the complete product specifications. Important measurements include hinge height and width, leaf thickness, corner style, screw-hole pattern, screw size, mortise depth, pin configuration, and the number and placement of hinges used on the door.

Square corner hinges should sit properly within a square-corner mortise so the leaf does not project above the surface of the door or jamb. If the existing mortise has rounded corners, installing a square hinge may require carefully squaring the mortise. Conversely, replacing an existing square hinge with a differently sized model can require additional door and frame preparation.

For heavier doors, exterior openings, self-closing applications, or doors with specific code or listing requirements, do not choose a hinge based only on dimensions or finish. Confirm the manufacturer's intended application and any applicable architectural, fire-door, or project specifications before installation.

Shipping & Warranty Information

• Shipping: Quick Ship products usually leave the warehouse within 2-3 business days. Other products average 5-7 business days unless otherwise stated on the product page. Orders of $100 or more qualify for free standard ground shipping within the contiguous United States and District of Columbia. View Shipping Policy.
• Warranty: Warranty coverage varies by manufacturer, hinge type, material, and finish. Review the individual product page and current Emtek, Deltana, or Baldwin manufacturer warranty information for the terms applicable to the exact hinge and finish you are considering.

Frequently Asked Questions About Square Corner Hinges

What is a square corner door hinge?

A square corner hinge has hinge leaves with straight 90-degree corners rather than rounded radius corners. It is designed to fit a corresponding square-corner mortise in the door and frame.

What is the difference between square corner and radius corner hinges?

Square corner hinges have straight corners, while radius corner hinges have rounded corners such as a 1/4" or 5/8" radius. When replacing hinges, match the existing door and jamb preparation whenever possible to avoid unnecessary modification.

Can I replace a radius hinge with a square corner hinge?

It may be possible, but the existing rounded mortise generally needs to be modified so the square hinge leaf fits properly. Compare the hinge dimensions and mortise before making changes to the door or frame.

What is the difference between plain-bearing and ball-bearing hinges?

A plain-bearing hinge uses the hinge pin and knuckles without additional ball bearings. A ball-bearing hinge places bearings within the knuckles to reduce friction, providing smoother operation and greater durability for heavier or frequently used doors.

What sizes of square corner hinges are available?

The current Coastal Hardware collection includes products in 3", 3-1/2", 4", and 4-1/2" sizes depending on the manufacturer and hinge type. Size alone does not determine compatibility, so also compare thickness, screw pattern, bearing type, and intended application.

Can square corner hinges be used on exterior doors?

Some can. Exterior suitability depends on the specific hinge material, construction, pin configuration, finish, door weight, and environmental exposure. Some manufacturers also offer non-removable-pin configurations for exterior doors with exposed hinges. Review the specifications for the exact product before selecting it for an exterior opening.

Shop Square Corner Hinges at Coastal Hardware Store

Coastal Hardware Store offers square corner hinges from Emtek, Deltana, and Baldwin Estate for a range of residential, exterior, heavy-duty, and specialty door applications. Compare hinge size, material, bearing type, corner preparation, screw pattern, pin configuration, finish, and any required listings to choose the appropriate hinge for your door.

If you need help matching an existing hinge, determining whether your door has square or radius corners, or comparing residential, heavy-duty, ball-bearing, spring, or finish options, our team can help you review the available choices. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
