Linnea Round Pocket Door Locks
Linnea round pocket door locks combine low-profile sliding-door hardware with contemporary styling and 304 stainless-steel construction. The current Coastal Hardware Store collection includes compact PL66R hardware along with larger PL160R designs, giving shoppers privacy, full-dummy, and accessibility-oriented options for modern pocket door installations.
The current assortment includes five Linnea products in Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. The PL66R family uses compact 66mm circular trim, while the PL160R family uses a larger elongated round or oval profile measuring 160mm x 48mm. For additional brands and shapes, browse our round pocket door locks or explore our complete pocket door hardware.
Why Choose Linnea Round Pocket Door Locks?
Linnea pocket door hardware is a practical option when low-profile operation, stainless-steel construction, contemporary design, and specialized privacy or accessibility functions are important. The correct model depends on the required function, trim size, lock type, door thickness, preparation, and preferred finish.
- 304 stainless-steel construction: Linnea specifies the current PL66R and PL160R pocket door hardware as corrosion-resistant 304 stainless steel.
- Privacy and dummy configurations: The current collection includes three Privacy products and two Full Dummy products.
- ADA-oriented privacy option: The current PL160R assortment includes an ADA privacy model that Linnea identifies as an ADA-approved design.
- Two hardware sizes: Choose between compact 66mm circular trim and larger 160mm x 48mm hardware depending on the desired appearance, grip, and door preparation.
- Tubular and mortise lock options: The PL66R privacy hardware uses a tubular lock, while PL160R privacy models use a mortise lock with a butterfly latch.
- Four coordinated finishes: Every current product is represented in Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass.
Types of Linnea Round Pocket Door Hardware Available

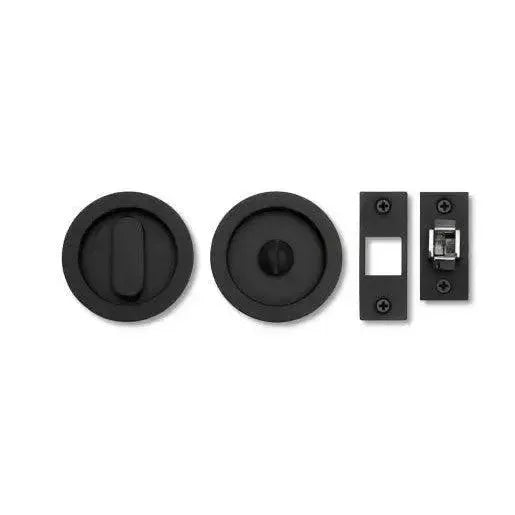

PL66R Round Privacy Pocket Door Locks
The Linnea PL66R privacy design uses compact 66mm round trim for a clean, low-profile appearance. Linnea specifies this model with a privacy turn piece, exterior emergency release, 2-3/8-inch backset, and tubular lock. The manufacturer lists a minimum door thickness of 1-3/8 inches for the current privacy configuration.

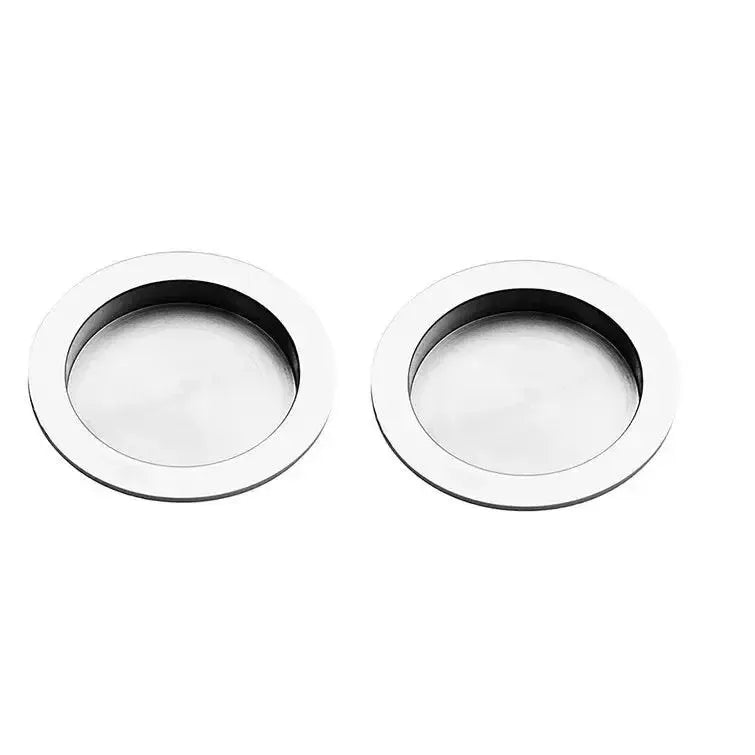

PL66R Full-Dummy Pocket Door Hardware
The PL66R Full Dummy set provides matching 66mm round trim without a working privacy-locking mechanism. It is intended for applications where a coordinated pull is needed without an active lock, such as a compatible inactive or companion sliding door. Linnea pairs this round design with its EP400R edge-pull format.

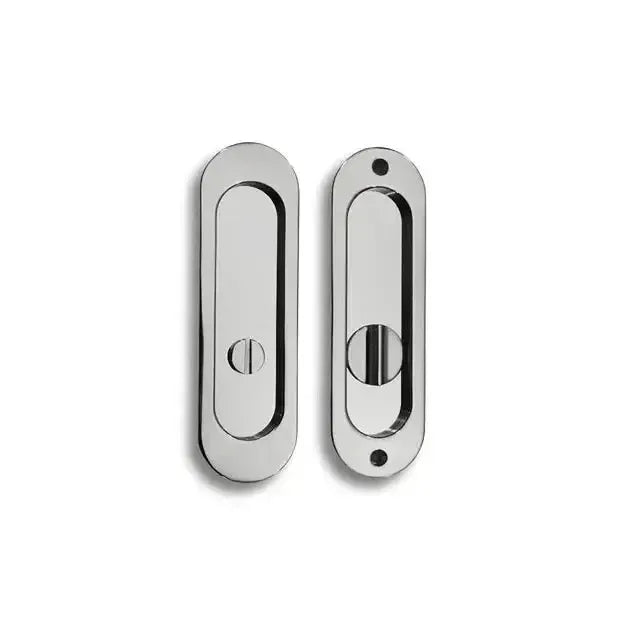

PL160R Privacy Pocket Door Locks
The PL160R privacy design uses larger 160mm x 48mm trim with an extended straight pull for a more substantial gripping surface. Linnea specifies the current privacy model with a mortise lock, butterfly latch, interior turn piece, exterior emergency release, and built-in T-shaped pop-out edge pull. It is designed for doors from 1-3/8 inches to 2-1/4 inches thick.
PL160R ADA Privacy Pocket Door Locks
The current PL160R ADA Privacy model combines the larger 160mm x 48mm profile with an accessibility-oriented turn piece. Linnea identifies this configuration as an ADA-approved design and specifies a mortise butterfly latch, emergency release, and built-in T-shaped pop-out edge pull.

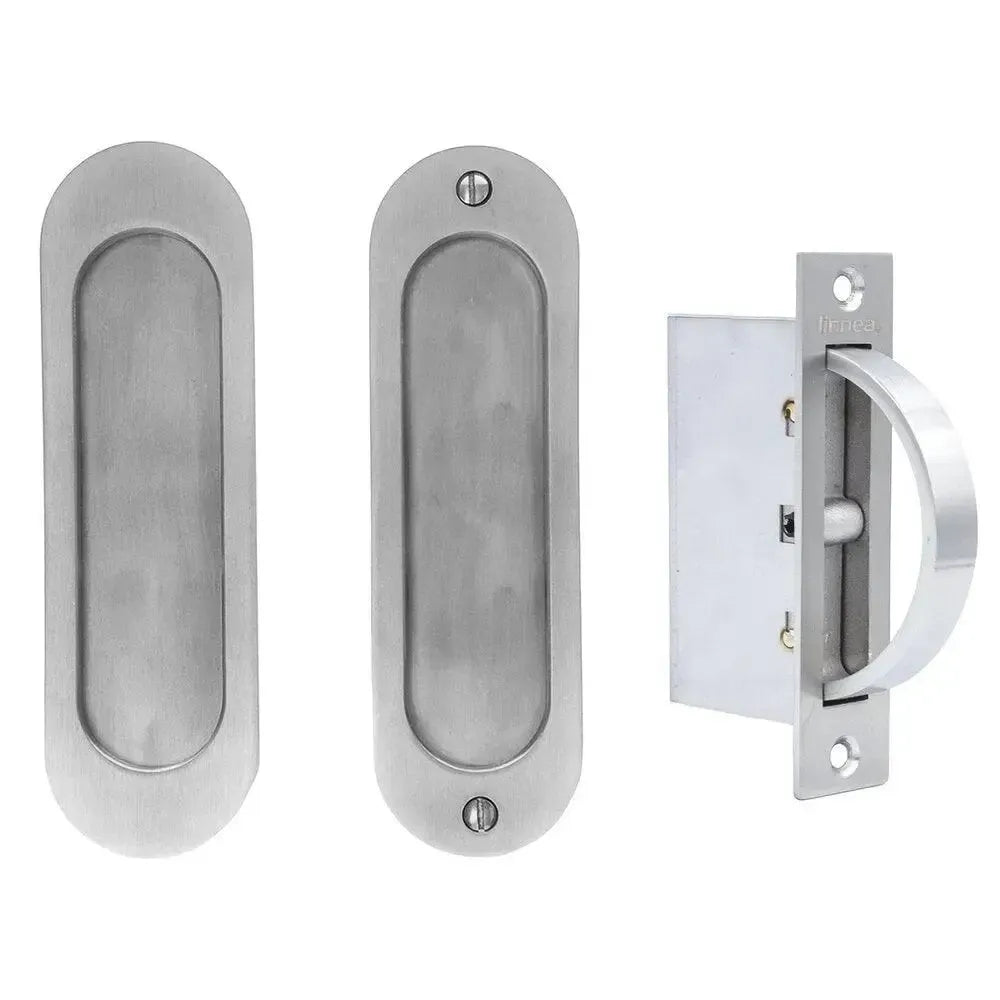

PL160R Full-Dummy Pocket Door Pulls
The PL160R Full Dummy design provides matching non-locking trim with the larger elongated profile and integrated pull format. It can be considered for inactive or companion pocket doors where a working privacy lock is not required but visual coordination with PL160R locking hardware is preferred.
How to Choose the Right Linnea Round Pocket Door Lock
Start with the required function, then compare the trim size, lock type, gripping style, accessibility needs, door thickness, preparation, and finish. The PL66R and PL160R families use different hardware formats and installation requirements, so the exact model should be selected before the door is prepared.
- Select Privacy or Dummy: Choose Privacy when an interior locking function and emergency release are needed, or Full Dummy when matching non-locking trim is required.
- Choose the trim size: PL66R models use compact 66mm circular trim, while PL160R models use larger 160mm x 48mm trim.
- Compare tubular and mortise locks: The current PL66R privacy model uses a tubular lock with a 2-3/8-inch backset, while the PL160R privacy models use a mortise butterfly latch.
- Consider accessibility: The current collection includes a PL160R privacy model with an ADA turn piece that Linnea identifies as an ADA-approved design.
- Verify door thickness: The PL66R privacy model requires a minimum 1-3/8-inch door thickness, while current PL160R privacy models accommodate 1-3/8-inch to 2-1/4-inch doors.
- Coordinate the finish: Use Linnea's exact finish designation when matching the pocket door lock with edge pulls, door pulls, or other visible architectural hardware.
Materials, Styles & Finishes
The Linnea pocket door hardware currently represented in this collection is manufactured from corrosion-resistant 304 stainless steel. The PL66R series uses a compact circular profile with a round bucket, while the PL160R family provides a larger elongated round or oval profile with a deeper bucket and more substantial gripping area.
Current collection filters include Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. Linnea identifies Satin Black and Satin Brass as PVD finish options, while Polished Stainless Steel and Satin Stainless Steel retain the appearance of stainless steel. All five current products are represented in each of these four finish families.
Featured Linnea Round Pocket Door Lock Series
The current collection centers on two Linnea product families that offer different sizes, lock formats, and gripping styles.
- Linnea PL66R Privacy: A compact 66mm round privacy lock with a tubular lock, turn piece, exterior emergency release, and 2-3/8-inch backset.
- Linnea PL66R Full Dummy: Matching 66mm round non-locking trim for compatible inactive or companion sliding-door applications.
- Linnea PL160R Straight-Pull Privacy: Larger 160mm x 48mm privacy hardware with a straight pull, mortise butterfly latch, emergency release, and built-in pop-out edge pull.
- Linnea PL160R ADA Privacy: The larger PL160R format with an accessibility-oriented ADA turn piece and emergency release.
- Linnea PL160R Full Dummy: A coordinated non-locking pull in the larger PL160R format for compatible dummy applications.
If you prefer geometric trim with straight edges, browse our Linnea square pocket door locks. For additional manufacturers and sizes, compare the complete round pocket door lock collection.
Installation & Compatibility
Linnea PL66R and PL160R hardware require different door preparations, so select the exact product before drilling, cutting, or mortising the door. Compare the manufacturer's installation template, trim dimensions, lock type, door thickness, backset when applicable, and edge-pull requirements with the planned opening.
The current PL66R privacy design uses a tubular lock with a 2-3/8-inch backset and requires a minimum door thickness of 1-3/8 inches. The PL160R privacy models use a mortise butterfly latch and are specified for doors from 1-3/8 inches to 2-1/4 inches thick. Linnea notes that PL160 trim cannot be recessed on a 1-3/8-inch-thick door.
The PL160R series also uses a different door preparation from the compact PL66R family. For replacement projects, compare the existing bore, mortise preparation, trim footprint, edge-pull location, and door thickness rather than assuming that one Linnea pocket door set can directly replace another.
Shipping & Warranty Information
- Shipping: Current Linnea round pocket door products at Coastal Hardware Store list an estimated fulfillment time of approximately 5-7 business days. Fulfillment can vary by product, finish, or availability. Free ground shipping is available on qualifying orders over $99.99. View Shipping Policy.
- Warranty: Linnea's current resources page provides care and maintenance guidance but does not currently publish specific warranty durations for these pocket door products. Older Linnea documentation includes warranty periods, but those terms may no longer reflect the manufacturer's current policy. Confirm the current warranty for the exact product before relying on a specific coverage period.
Frequently Asked Questions About Linnea Round Pocket Door Locks
What functions are available for Linnea round pocket door hardware?
The current Coastal Hardware Store collection includes Privacy and Full Dummy products. Three current models provide a privacy-locking function, while two are non-locking Full Dummy configurations.
Are Linnea round pocket door locks made from stainless steel?
Yes. Linnea specifies the current PL66R and PL160R products represented in this collection as corrosion-resistant 304 stainless steel.
What is the difference between Linnea PL66R and PL160R pocket door hardware?
The PL66R uses compact 66mm circular trim and the current privacy model uses a tubular lock with a 2-3/8-inch backset. The PL160R uses larger 160mm x 48mm trim and current privacy models use a mortise butterfly latch with a built-in T-shaped pop-out edge pull. The two families require different door preparations.
Does Linnea offer an ADA round pocket door lock?
Yes. The current collection includes the PL160R ADA Privacy Pocket Door Lock. Linnea identifies this product as an ADA-approved design with an ADA turn piece and exterior emergency release.
What finishes are available for Linnea round pocket door locks?
The current collection includes Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. All five products are currently represented in these four finishes.
Can Linnea Full Dummy hardware be used on double pocket doors?
Full Dummy hardware can provide coordinated non-locking trim for an inactive or companion sliding door when the project layout is compatible. For double pocket doors, confirm the active and inactive functions, edge pulls, strike preparation, and exact Linnea models before ordering.
Shop Linnea Round Pocket Door Locks at Coastal Hardware Store
Coastal Hardware Store offers Linnea round pocket door hardware in compact PL66R and larger PL160R configurations for privacy, dummy, and accessibility-oriented applications. Compare 304 stainless-steel construction, trim size, tubular or mortise lock type, door thickness, finish, and required preparation to select the appropriate hardware for your pocket door.
If you need help comparing PL66R and PL160R hardware, choosing standard or ADA privacy hardware, planning a double pocket door opening, or coordinating Linnea finishes, our team can help you review the available choices. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
