Barn Door Hardware Kits & Sliding Track Systems
Barn door hardware kits bring together the track, rollers or hangers, mounting components, and other system-specific hardware used to support a wall-mounted sliding door. Choosing a compatible system can simplify product selection while helping ensure that the track, hangers, stops, guides, and mounting components are designed to work together.
Coastal Hardware Store carries barn door hardware kits and track systems from Sure-Loc, Schlage, and Yale Expressions. The current collection includes 72", 96", and 6'6" track configurations along with strap-mounted, top-mounted, stainless-steel, and flat-track designs. Included components, weight capacity, door-thickness requirements, and available finishes vary by system, so review the individual specifications before ordering. For additional components and accessories, browse our barn door hardware collection.
Why Choose a Barn Door Hardware Kit?
A barn door hardware kit or coordinated track system can make it easier to select components that are designed to operate together. The right system depends on the door dimensions and weight, opening width, available wall space, track length, hanger style, structural support, and desired finish.
- Coordinated components: Kits and track systems combine compatible rails, hangers, rollers, stops, guides, and mounting components according to the manufacturer's design.
- Multiple track lengths: The current collection includes 72", 96", and 6'6" systems for different door and opening dimensions.
- Different hanger styles: Choose from strap-mounted, top-mounted, J-strap, and other manufacturer-specific roller configurations.
- Track-system options: Current products include flat-track and round-rail designs as well as conventional exposed barn-door tracks.
- Multiple finishes: Available collection finishes include black, Flat Black, Satin Nickel, Satin Stainless Steel, Brushed Stainless Steel, Silver, and Aged Bronze depending on the product.
- Optional accessories: Some systems support additional components such as soft-close hardware, rail connectors, handles, or guides when compatible with the selected track system.
Types of Barn Door Hardware Kits Available

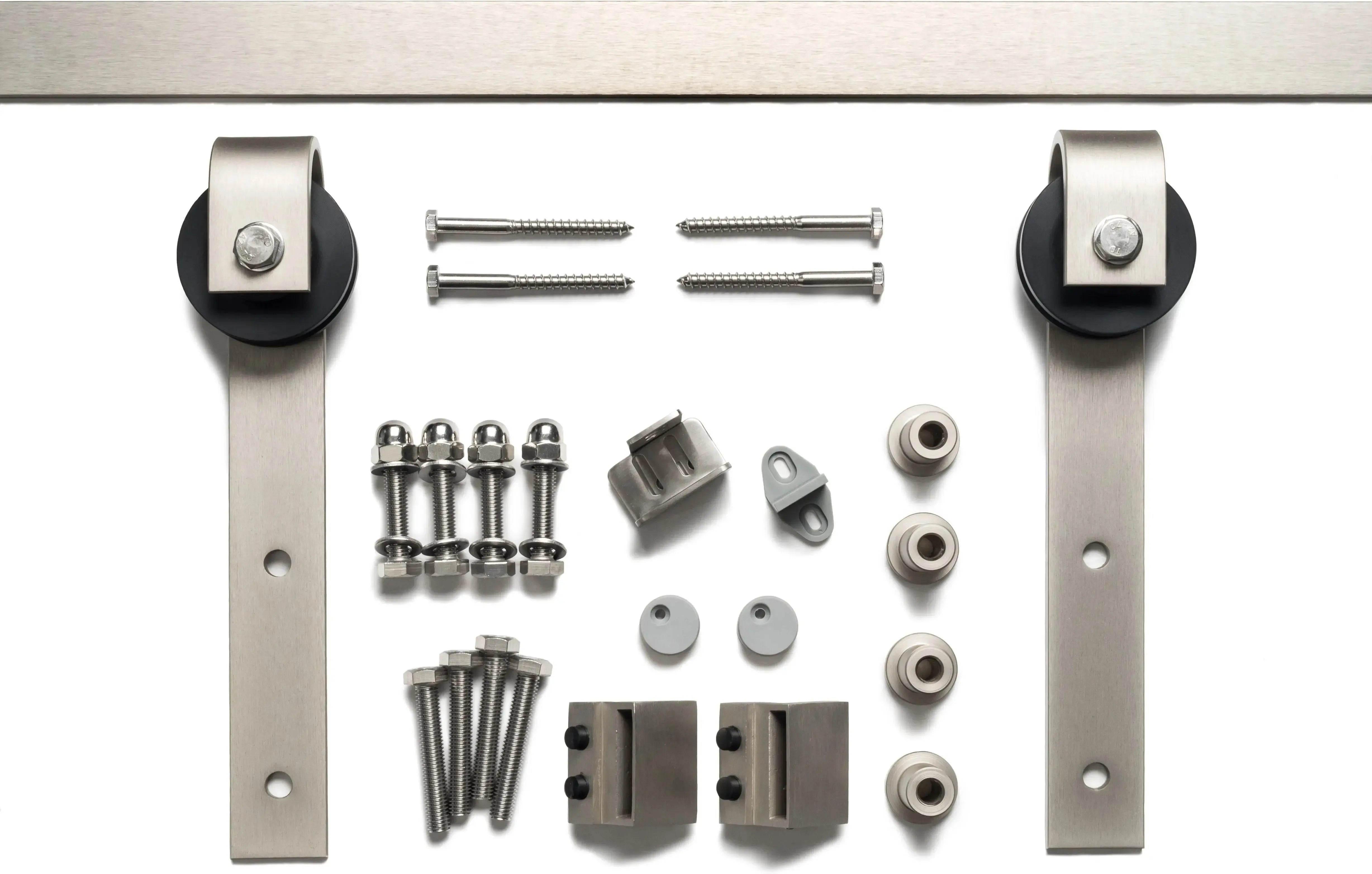

Strap Roller Barn Door Track Systems
Strap roller systems use visible hangers that extend down the face of the door and wrap around the roller above the track. The current collection includes Sure-Loc strap roller systems in 72" and 96" lengths. Sure-Loc currently offers these systems in Satin Nickel, Flat Black, and Satin Brass, depending on the specific configuration.
Sure-Loc states that its strap roller track systems include mounting hardware and system components but exclude the rail connector, soft-close hardware, and roller guide. These components should be added separately when required by the installation.

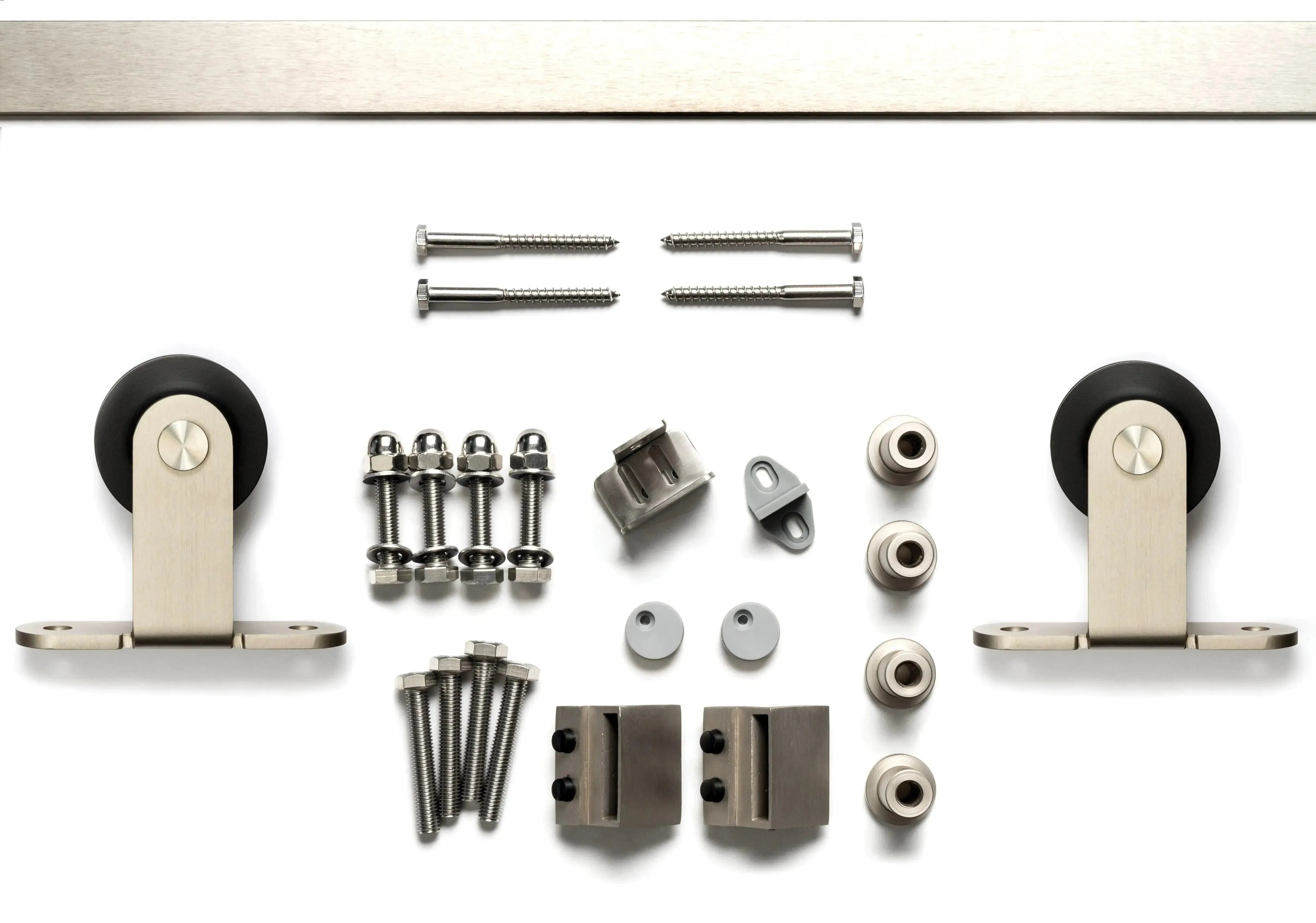

Top-Mount Barn Door Hardware Kits
Top-mount hangers attach near the upper edge of the door rather than extending down the broad face. This creates a different appearance from a traditional strap hanger while keeping the rollers and track visible above the opening.

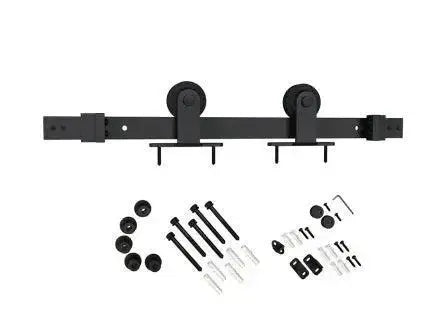

The current collection includes Sure-Loc 72" and 96" top-mounted roller systems as well as a Schlage 6'6" Top Mount Sliding Barn Door Hardware Kit. Sure-Loc's top-mount system includes a pre-drilled track, mounting hardware, spacers, guides, rollers, bumper stops, and anti-jump stops. Schlage's 6'6" kit is designed for supported single-door openings up to 36" wide.
J-Strap Barn Door Hardware Kits
J-strap hangers create a familiar exposed barn-door look, with the hanger extending upward from the face of the door and curving around the roller. The current collection includes Schlage's 6'6" Sliding Barn Door Hardware Kit with J Strap Hangers.
Schlage currently specifies its 6'6" J-strap system for doors from 1-3/8" to 1-3/4" thick and weighing up to 220 lbs. It is designed for supported single-door openings up to 36" wide. Always verify those limits against the exact door being installed.

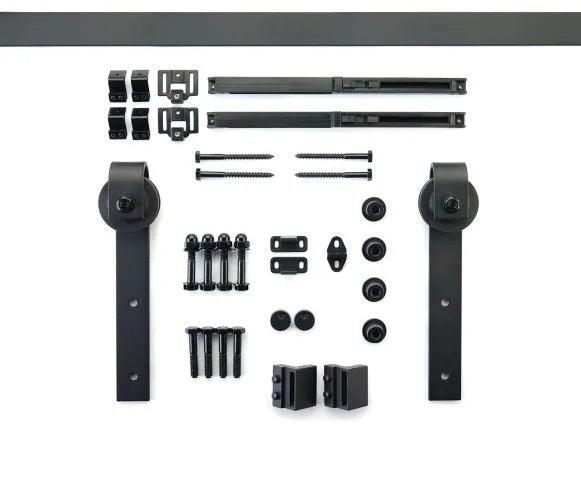

Flat Track Barn Door Hardware Kits
Yale Expressions offers flat-track barn door hardware kits in 72" and 96" lengths. The current manufacturer specification lists a 1/4" steel track, nylon wheels with ball bearings, hangers, anti-jump discs, doorstops, floor guides, and soft open-and-close units as part of the kit.
The 72" Yale Expressions system is specified for openings up to 36" wide, while the 96" system accommodates openings up to 48" wide. Both are rated by the manufacturer for doors from 1-3/8" to 1-3/4" thick and up to 200 lbs.

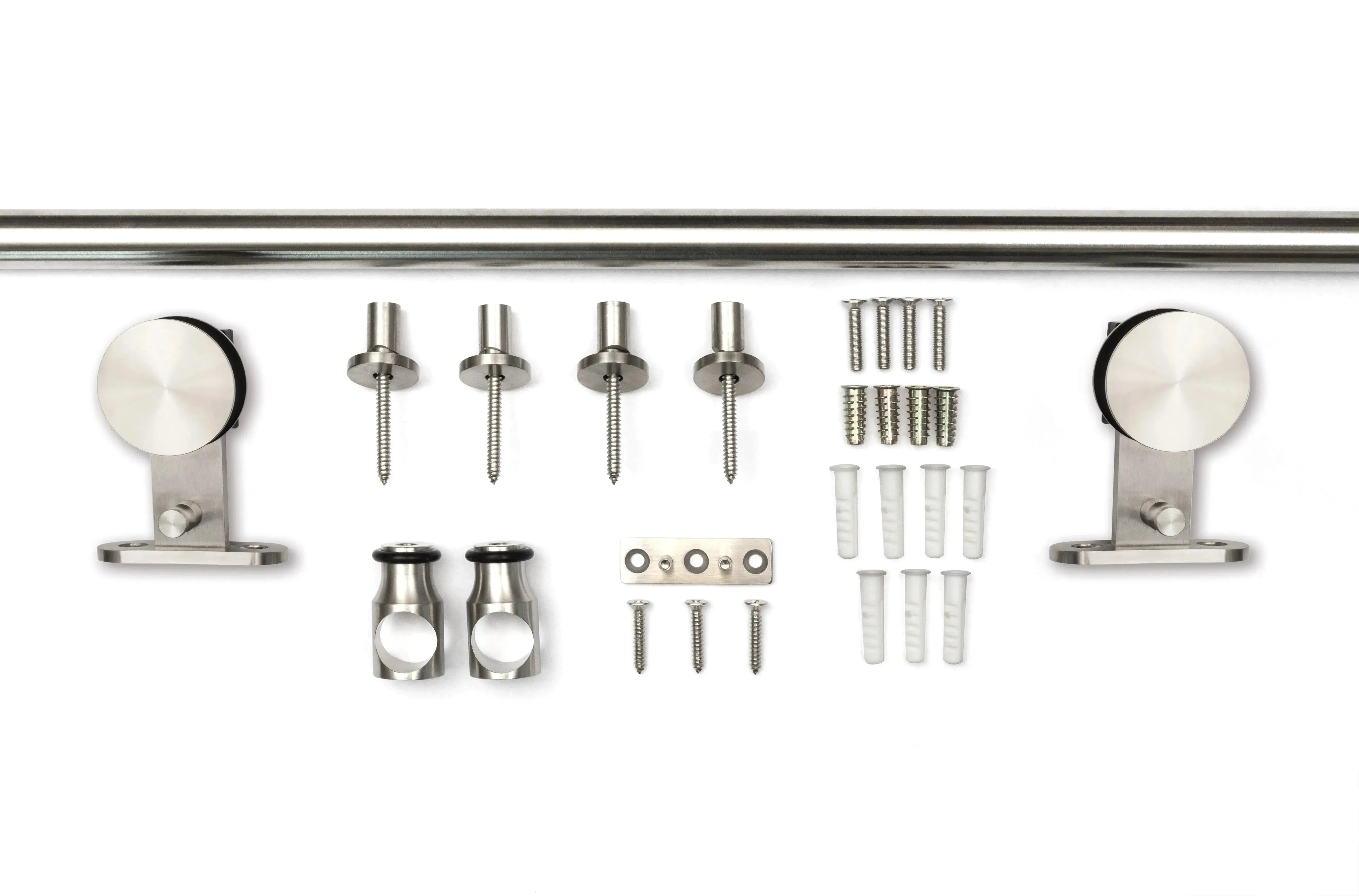

Stainless Steel Barn Door Rail Systems
Sure-Loc also offers a 72" Stainless Steel Barn Door Rail System in the current collection. Its round-rail appearance provides an alternative to conventional flat-track barn door hardware. Review the exact system specifications, included components, and installation requirements before ordering because they differ from Sure-Loc's flat-track strap and top-mounted systems.
How to Choose the Right Barn Door Hardware Kit
Start with the door and opening measurements, then compare track length, door weight, thickness, hanger style, wall clearance, structural support, and included components. A barn door system should be selected around the physical requirements of the installation rather than appearance alone.
- Measure the door: Record the width, height, thickness, and approximate weight of the door before selecting a system.
- Measure the opening: Confirm the doorway width and determine how much overlap is desired when the door is closed.
- Check track length: The track must provide enough travel for the door to move clear of the opening. Follow the manufacturer's sizing requirements rather than relying solely on a general rule of thumb.
- Confirm weight capacity: Current verified systems range up to 200 lbs for supported Yale Expressions and Sure-Loc configurations and up to 220 lbs for the current Schlage systems discussed here. Do not apply one rating to every kit.
- Check door thickness: Several current systems support 1-3/8" to 1-3/4" doors, but compatibility should be confirmed for the exact kit.
- Choose the hanger style: Strap, J-strap, top-mount, and round-rail systems create different appearances and use different attachment methods.
- Measure available wall space: The wall beside the opening must provide enough clear travel for the door when fully open.
- Confirm structural support: Track mounting must attach to suitable structural support according to the manufacturer's instructions.
- Review what is included: Soft-close mechanisms, rail connectors, guides, handles, and other accessories are included with some systems but sold separately with others.
Understanding Track Length & Door Size
Track length is one of the most important considerations when selecting barn door hardware. The door needs enough horizontal travel to uncover the opening while maintaining the overlap and positioning required by the hardware system.
A common starting point for a single barn door is a track approximately twice the width of the door, but the manufacturer's specifications should determine the final selection. For example, Yale Expressions specifies its 72" track for openings up to 36" wide and its 96" track for openings up to 48" wide. Schlage specifies its current 6'6" system for single-door openings up to 36" wide.
Also measure the clear wall area beside the doorway. Electrical switches, thermostats, artwork, intersecting walls, cabinetry, casing, and other obstructions can interfere with the track or the path of the door.
Materials, Styles & Finishes
Materials vary by manufacturer and track system. Yale Expressions currently specifies a 1/4" steel track with nylon ball-bearing wheels for its flat-track kits. Sure-Loc specifies stainless-steel construction for its current top-mounted roller system, while Schlage identifies steel construction for its sliding barn door hardware. Material information should be verified for the exact system rather than generalized across the collection.
The current Coastal Hardware collection includes Aged Bronze, Black, Brushed Stainless Steel, Flat Black, Satin Nickel, Satin Stainless Steel, and Silver finish options. Availability varies significantly by manufacturer and configuration. Sure-Loc also publishes Satin Brass as an available finish on its strap roller system.
Finish names from different manufacturers should not automatically be considered identical. If the track needs to coordinate with barn door handles, flush pulls, nearby door hardware, or cabinet hardware, use the exact manufacturer finish designation whenever possible.
Featured Barn Door Hardware Kit Brands
The current collection includes systems from Sure-Loc, Schlage, and Yale Expressions, each offering a different combination of track lengths, hanger designs, components, and finishes.
- Sure-Loc: Current options include 72" and 96" strap roller systems, 72" and 96" top-mounted roller systems, and a 72" stainless-steel rail system. A separate compatible soft-close accessory is also currently listed in this collection.
- Schlage: The collection includes 6'6" systems with Top Mount and J Strap hangers. Schlage specifies supported doors from 1-3/8" to 1-3/4" thick and up to 220 lbs for these current systems.
- Yale Expressions: Current 72" and 96" flat-track kits include the track, hangers, soft open-and-close units, anti-jump components, stops, and floor guides. Yale Expressions currently specifies a 200-lb maximum door weight for these kits.
Installation & Compatibility
Installing barn door hardware requires accurate measurement and appropriate structural support above the opening. Before mounting the track, confirm the finished door height, track position, hanger attachment points, wall clearance, floor-guide location, and available travel along the wall.
Included components vary. Sure-Loc's current top-mounted system includes the track, bolts, nuts, washers, spacers, lag bolts, floor and wall guides, rollers, bumper stops, and anti-jump stops. Yale Expressions includes soft open-and-close units with its current flat-track kits, while Sure-Loc sells soft-close hardware separately for its supported strap-mounted system.
Do not assume that components from different manufacturers or track families are interchangeable. Rollers, track profiles, stops, connectors, guides, and soft-close devices are designed around specific systems. Use only components confirmed as compatible with the selected hardware.
Barn door pulls and handles are typically selected separately from the track system. Browse our barn door handles and barn door flush pulls to complete the installation.
Shipping & Warranty Information
- Shipping: Quick Ship products usually leave the warehouse within 2-3 business days. Other products average 5-7 business days unless otherwise stated on the product page. Orders of $100 or more qualify for free standard ground shipping within the contiguous 48 states and Washington, D.C. View Shipping Policy.
- Warranty: Warranty coverage varies by manufacturer and product. Schlage, Sure-Loc, and Yale Expressions publish their own warranty terms for supported barn door hardware. Review the individual product page and current manufacturer warranty information for the exact system and finish you are considering.
Frequently Asked Questions About Barn Door Hardware Kits
What is included in a barn door hardware kit?
Included components vary by manufacturer. A kit or track system may include the rail, hangers or rollers, track mounting hardware, stops, floor guides, anti-jump components, and other system-specific parts. Soft-close hardware, connectors, handles, or additional guides may be included with some products and sold separately with others.
Do barn door hardware kits include the door?
No door panel is identified as included with the current track systems in this collection. These products provide the hardware used to hang and operate a compatible barn door. Select the door separately and make sure its width, thickness, weight, and construction meet the requirements of the chosen system.
How do I choose the correct barn door track length?
Choose a track that provides enough travel for the door to clear the opening while meeting the manufacturer's sizing requirements. A common starting point for a single door is approximately twice the door width, but exact sizing depends on the system, door overlap, stops, and available wall space.
How much weight can a barn door hardware kit support?
Weight capacity varies by model. Current Yale Expressions kits and a verified Sure-Loc top-mounted system are rated for doors up to 200 lbs, while Schlage's current 6'6" Top Mount and J Strap systems are rated up to 220 lbs. Always use the rating for the exact kit being installed.
What is the difference between a strap hanger and a top-mount hanger?
A strap hanger extends down the face of the door and becomes a visible part of the design. A top-mount hanger attaches at or near the upper edge of the door, leaving less hardware visible on the broad face. Door construction and the manufacturer's mounting requirements should help determine which style is appropriate.
Do barn door hardware kits include soft-close hardware?

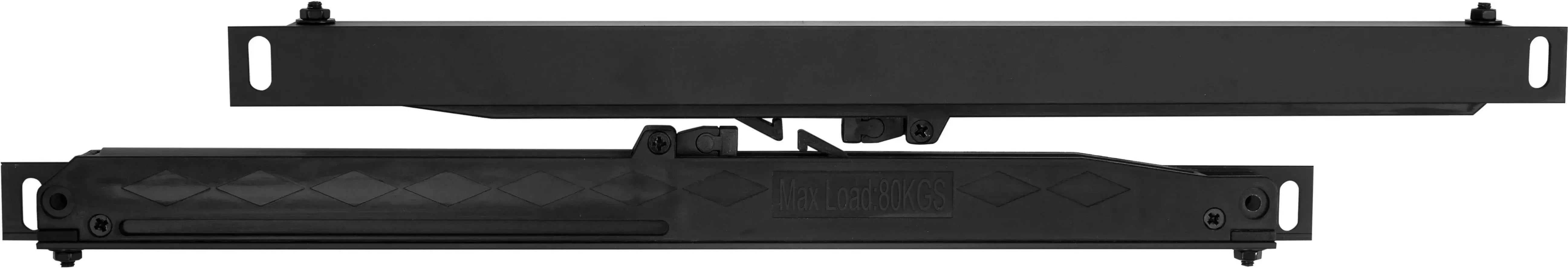

Some do, but not all. The current Yale Expressions flat-track kits include soft open-and-close units. Sure-Loc offers a separate soft-close component for its supported strap-mounted system, while other kits have their own component requirements. Check the exact product before assuming soft-close hardware is included.
Shop Barn Door Hardware Kits at Coastal Hardware Store
Coastal Hardware Store offers barn door hardware kits and sliding track systems from Sure-Loc, Schlage, and Yale Expressions. Compare 72", 96", and 6'6" tracks along with strap, J-strap, top-mount, flat-track, and stainless-steel configurations to find the right system for your sliding door.
If you need help selecting a track length, checking door weight or thickness, comparing hanger styles, or determining which components and accessories are included, our team can help you review the available options. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
