Linnea Square Pocket Door Locks
Linnea square pocket door locks combine low-profile sliding-door hardware with clean geometric styling and 304 stainless-steel construction. The current Coastal Hardware Store collection includes compact PL66S hardware along with larger PL160S designs, giving shoppers privacy, full-dummy, and ADA-oriented options for modern pocket door installations.
The current assortment includes six Linnea products in Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. The smaller PL66S series uses 66mm square trim, while the larger PL160S series uses elongated 160mm x 48mm trim with an integrated straight-pull format on current models. For additional manufacturers and configurations, browse our square pocket door hardware or explore our complete pocket door hardware.
Why Choose Linnea Square Pocket Door Locks?
Linnea pocket door hardware is a practical option when low-profile operation, stainless-steel construction, contemporary design, and specialized privacy or accessibility functions are important. The right configuration depends on the required function, trim dimensions, door preparation, door thickness, accessibility needs, and preferred finish.
- 304 stainless-steel construction: Linnea specifies the current PL66S and PL160S pocket door hardware represented in this collection as corrosion-resistant 304 stainless steel.
- Privacy and dummy options: The current collection includes four privacy products and two full-dummy configurations.
- ADA-oriented configurations: Both the PL66S and PL160S families include privacy models that Linnea identifies as ADA-approved designs.
- Two hardware proportions: Choose between compact 66mm square trim and larger 160mm x 48mm trim depending on the desired appearance, grip, and door preparation.
- Integrated pull options: Current PL160S privacy hardware incorporates an extended straight pull and a T-shaped pop-out edge pull for retrieving the door from the pocket.
- Four coordinated finishes: Every current product is represented in Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass.
Types of Linnea Square Pocket Door Hardware Available

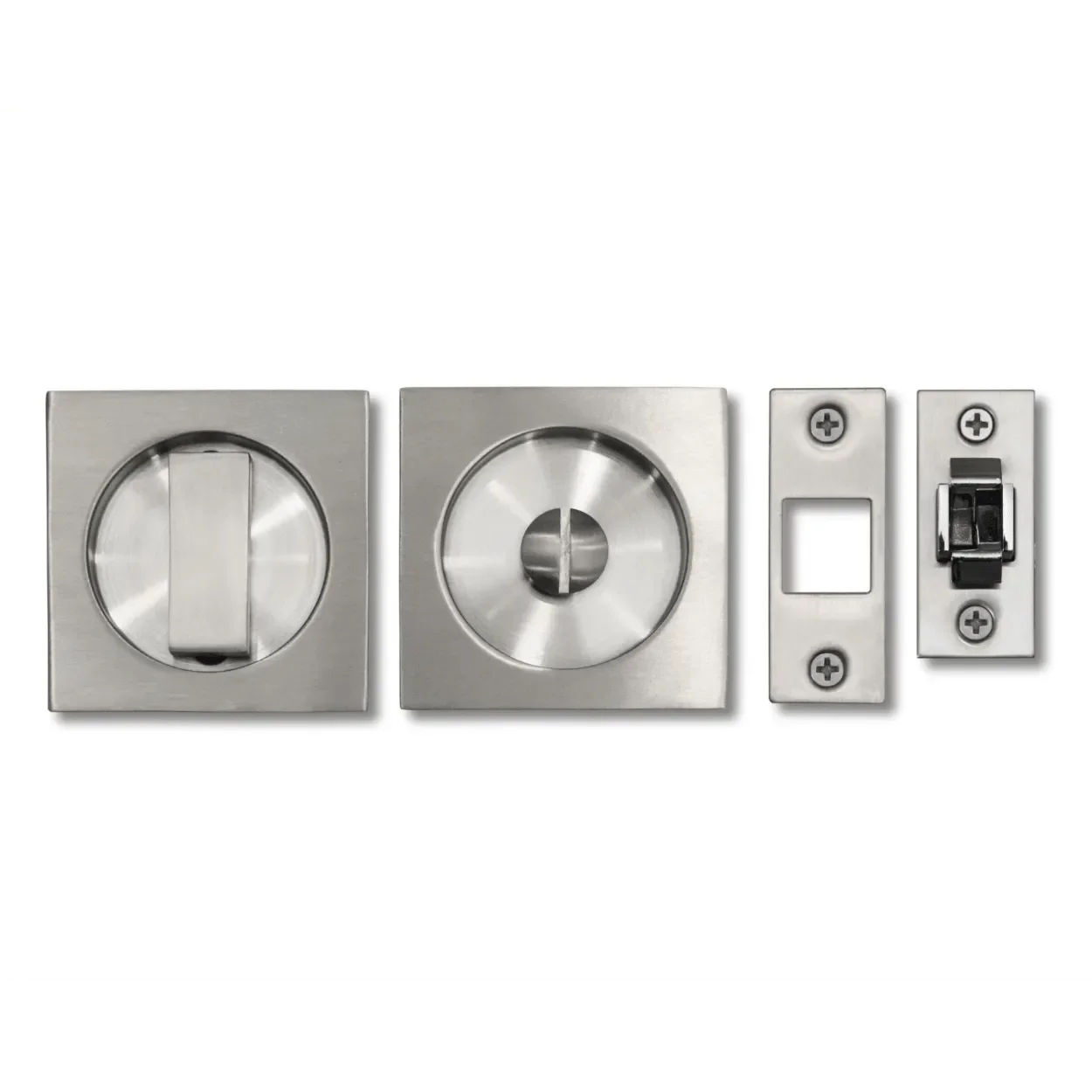

PL66S Square Privacy Pocket Door Locks
The Linnea PL66S family uses compact 66mm x 66mm square trim for a low-profile contemporary appearance. The current collection includes a standard privacy model as well as an ADA-oriented privacy version. Privacy hardware is intended for interior rooms where a locking function is needed, such as bathrooms or bedrooms, and current privacy configurations provide an exterior emergency-release provision.
PL66S ADA Privacy Pocket Door Hardware
The PL66S ADA privacy model uses the same 66mm square format while adding Linnea's larger ADA turn piece. Linnea identifies this configuration as an ADA-approved design and specifies it as a privacy tubular lock with an emergency release. It provides an option for projects where accessible operation is part of the hardware specification.

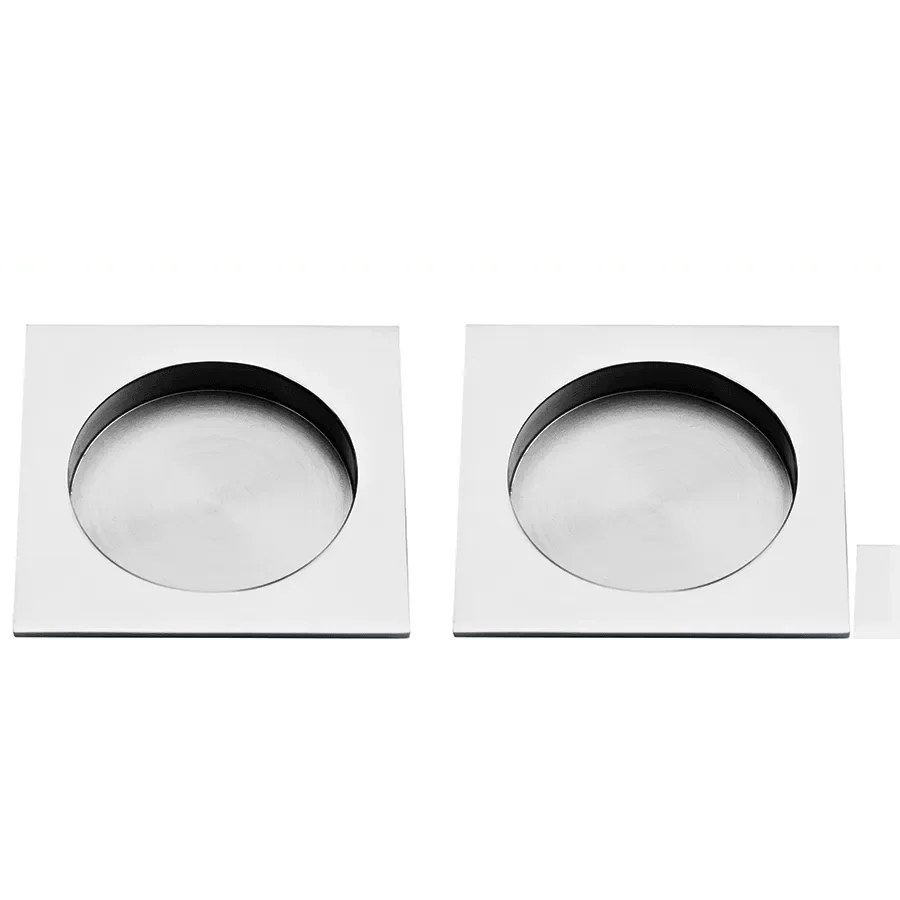

PL66S Full-Dummy Pocket Door Hardware
The PL66S Full Dummy set provides matching 66mm square trim without a working privacy-locking mechanism. Full-dummy hardware can be useful on inactive pocket doors, bypass sliders, or paired-door installations where visual coordination is desired without a functioning lock on that particular door.

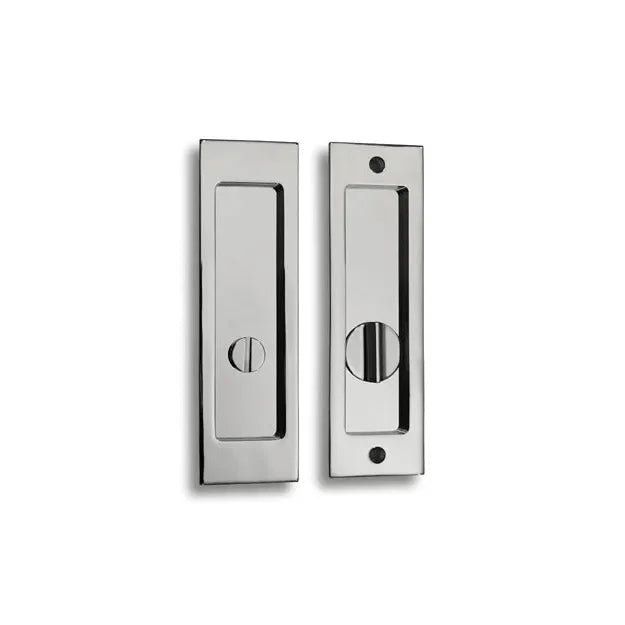

PL160S Privacy Pocket Door Locks
The PL160S privacy design uses larger 160mm x 48mm trim with an integrated straight pull for a more substantial gripping surface. Linnea specifies the current privacy model with a mortise lock, butterfly latch, and built-in T-shaped pop-out edge pull. It also includes an interior turn piece and an exterior emergency release.

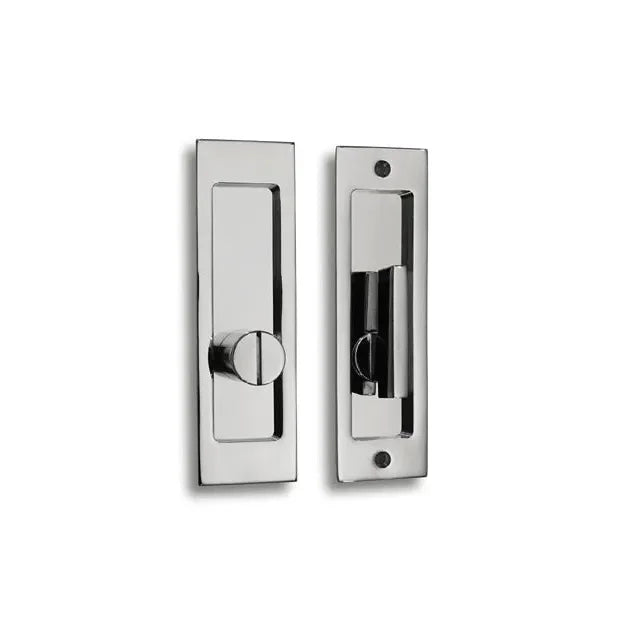

PL160S ADA Privacy Pocket Door Locks
The current PL160S ADA configuration combines the elongated trim and straight-pull format with an accessibility-oriented turn piece. Linnea identifies this model as an ADA-approved privacy design and specifies the same 304 stainless-steel construction, mortise lock format, and T-shaped pop-out edge pull used within the PL160S family.

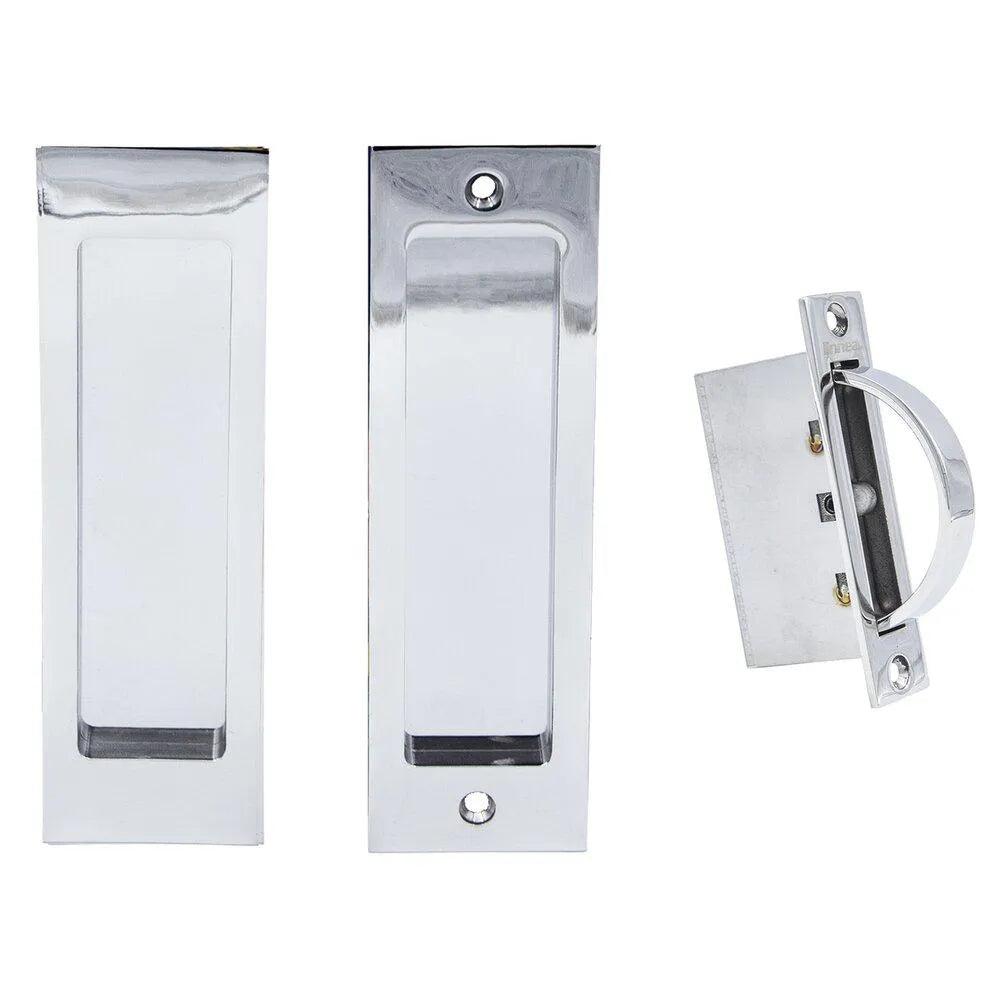

PL160S Full-Dummy Pocket Door Hardware
The PL160S Full Dummy set provides matching elongated trim and an integrated straight pull without a working privacy-locking function. It can be used when a non-locking companion set is needed for an inactive door or coordinated sliding-door installation.
How to Choose the Right Linnea Pocket Door Lock
Start with the required door function, then compare the trim size, operating style, accessibility requirements, door thickness, installation preparation, and finish. The PL66S and PL160S families use different hardware formats and should not be treated as interchangeable simply because both appear in the same collection.
- Select privacy or dummy: Choose privacy when the door needs an interior locking function and emergency release, or full dummy when matching trim is needed without a functional lock.
- Choose the trim size: PL66S models use compact 66mm x 66mm trim, while PL160S models use larger 160mm x 48mm trim.
- Consider accessibility: Linnea offers ADA-oriented privacy configurations in both the PL66S and PL160S families with larger turn pieces designed for accessible operation.
- Verify door thickness: Door-thickness requirements vary by series and configuration. Current PL160S privacy hardware is specified for doors from 1-3/8 inches to 2-1/4 inches thick.
- Confirm the door preparation: PL66 and PL160 hardware use different locking and installation formats, so select the exact model before cutting or preparing the door.
- Choose the exact finish: Coordinate the lock with nearby edge pulls, door hardware, or architectural trim using Linnea's specific finish designation.
Materials, Styles & Finishes
The Linnea pocket door hardware currently represented in this collection is manufactured from corrosion-resistant 304 stainless steel. The PL66S series uses compact square trim, while the PL160S series provides a larger elongated profile with a deeper gripping area and integrated straight-pull design on current configurations.
Current collection filters include Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. Linnea identifies Satin Black and Satin Brass as PVD finish options, while Polished Stainless Steel and Satin Stainless Steel retain the appearance of the underlying stainless-steel material. Availability should still be confirmed on the exact product being ordered.
Featured Linnea Pocket Door Lock Series
The current collection is divided primarily between two Linnea hardware families, each serving a different dimensional and operating preference.
- Linnea PL66S: Compact 66mm x 66mm square hardware available in standard privacy, ADA privacy, and full-dummy configurations.
- Linnea PL160S: Larger 160mm x 48mm hardware with an integrated straight-pull format, available in standard privacy, ADA privacy, and full-dummy configurations.
- ADA Privacy Options: Both families currently include privacy hardware with accessibility-oriented turn pieces that Linnea identifies as ADA-approved designs.
- Full-Dummy Options: Matching non-locking trim is available in both sizes for compatible inactive or paired-door applications.
For additional shapes and brands, browse our square pocket door hardware. If you need a separate pull for retrieving a recessed door from its edge, compare our pocket door edge pulls.
Installation & Compatibility
Linnea PL66S and PL160S hardware require different door preparations, so the exact model should be selected before drilling, mortising, or modifying the door. Compare the manufacturer's installation template, trim dimensions, lock type, door thickness, and edge hardware requirements with the planned opening.
Linnea specifies the PL160S privacy models for doors from 1-3/8 inches to 2-1/4 inches thick. The manufacturer also notes that the PL160 trim cannot be recessed on a 1-3/8-inch-thick door. Its privacy versions use a mortise lock with a butterfly latch and built-in T-shaped pop-out edge pull.
The PL66S family uses a much smaller 66mm square trim configuration and is not simply a compact version of the PL160 mortise preparation. For replacement projects in particular, compare the existing bore, edge preparation, trim footprint, and door thickness rather than assuming that one Linnea pocket door set can directly replace another.
Shipping & Warranty Information
- Shipping: Current Linnea products in this collection list an estimated fulfillment time of approximately 5-7 business days. Fulfillment can vary by product, finish, or availability. Free ground shipping is available on qualifying orders over $99.99. View Shipping Policy.
- Warranty: Linnea's current manufacturer resources provide maintenance guidance for its stainless-steel hardware but do not currently display specific warranty durations. Because older Linnea catalogs publish warranty periods that may no longer reflect current terms, confirm the current warranty for the selected pocket door hardware before relying on a specific coverage period.
Frequently Asked Questions About Linnea Square Pocket Door Locks
What functions are available for Linnea square pocket door hardware?
The current Coastal Hardware Store collection includes Privacy and Full Dummy products. Four current models provide a privacy-locking function, while two are full-dummy sets without a working privacy lock.
Are Linnea pocket door locks made from stainless steel?
Yes. Linnea specifies the current PL66S and PL160S products represented in this collection as corrosion-resistant 304 stainless steel.
What is the difference between Linnea PL66S and PL160S pocket door hardware?
The PL66S uses compact 66mm x 66mm square trim. The PL160S uses larger 160mm x 48mm trim and current models incorporate an extended straight-pull format. PL160S privacy versions also use a mortise lock with a butterfly latch and built-in T-shaped pop-out edge pull. The two families require different door preparation.
Does Linnea offer ADA pocket door locks?
Yes. The current collection includes ADA-oriented privacy models in both the PL66S and PL160S families. Linnea identifies these products as ADA-approved designs with larger turn pieces intended for accessible operation.
What finishes are available for Linnea square pocket door locks?
The current collection includes Polished Stainless Steel, Satin Stainless Steel, Satin Black, and Satin Brass. All six products are currently represented in these four finishes.
Can Linnea full-dummy pocket door hardware be used with double pocket doors?
A full-dummy set can be used as matching non-locking trim on an inactive or companion door when the project layout is compatible. Before ordering hardware for a double pocket door, confirm the active and inactive door functions, edge hardware, strike preparation, and exact Linnea models needed for the opening.
Shop Linnea Square Pocket Door Locks at Coastal Hardware Store
Coastal Hardware Store offers Linnea pocket door hardware in compact PL66S and larger PL160S configurations for privacy, dummy, and accessibility-oriented applications. Compare 304 stainless-steel construction, trim dimensions, lock type, grip style, door thickness, finish, and required preparation to find the appropriate hardware for your sliding door.
If you need help comparing PL66S and PL160S hardware, choosing an ADA or standard privacy configuration, planning hardware for double pocket doors, or coordinating Linnea finishes, our team can help you review the available choices. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
