Emtek Door Hinges

Emtek Door Hinges for Interior & Entry Doors

Emtek door hinges provide the mechanical support that allows compatible doors to swing while giving shoppers options for door weight, usage level, bearing type, corner preparation, material, size, and finish. The current collection includes residential-duty and heavy-duty hinges for a range of interior and entry-door applications, along with plain-bearing, ball-bearing, spring, and decorative square-barrel configurations.

Coastal Hardware Store is an official retailer of Emtek hardware. Current Emtek hinge options include 3-1/2-inch, 4-inch, and 4-1/2-inch sizes with square, 1/4-inch radius, and 5/8-inch radius corners depending on the product. Materials represented in Emtek's hinge program include steel, solid brass, and stainless steel, while finish and material availability vary by hinge family. For additional coordinating products, browse our Emtek door levers, Emtek door knobs, and complete Emtek hardware collection.

Why Choose Emtek Door Hinges?

Emtek hinges are especially useful when shoppers want the functional hinge specification and the visible finish to coordinate with the rest of an Emtek door-hardware package. The correct hinge depends first on the door and frame preparation, weight, frequency of use, and application—not simply the preferred finish.

• Residential and heavy-duty choices: The current assortment includes hinges designed for typical residential doors as well as heavier-duty products for more demanding compatible openings.
• Plain- and ball-bearing options: Shoppers can choose a conventional plain-bearing design or selected ball-bearing hinges where reduced friction is preferred.
• Several hinge materials: Emtek's current hinge program includes steel, solid-brass, and stainless-steel product families, depending on the model.
• Multiple corner preparations: Current Coastal Hardware Store products include square corners as well as 1/4-inch and 5/8-inch radius-corner options.
• Spring-hinge options: The collection includes selected plated-steel UL-listed spring hinges in multiple sizes and corner preparations.
• Finish coordination: Emtek hinges are offered in many of the same finish families used throughout compatible Emtek knobs, levers, handlesets, deadbolts, and accessories.

Types of Emtek Door Hinges Available

Residential-Duty Plain-Bearing Hinges

Emtek residential-duty plain-bearing hinges are intended for compatible doors with typical residential weight and usage requirements. Current Coastal Hardware Store products include steel and solid-brass residential-duty hinges in several sizes and corner preparations. Emtek describes plain-bearing hinges as a straightforward design in which the pin rotates within the hinge knuckles without additional bearings. Review the selected material, size, thickness, and door application before ordering.

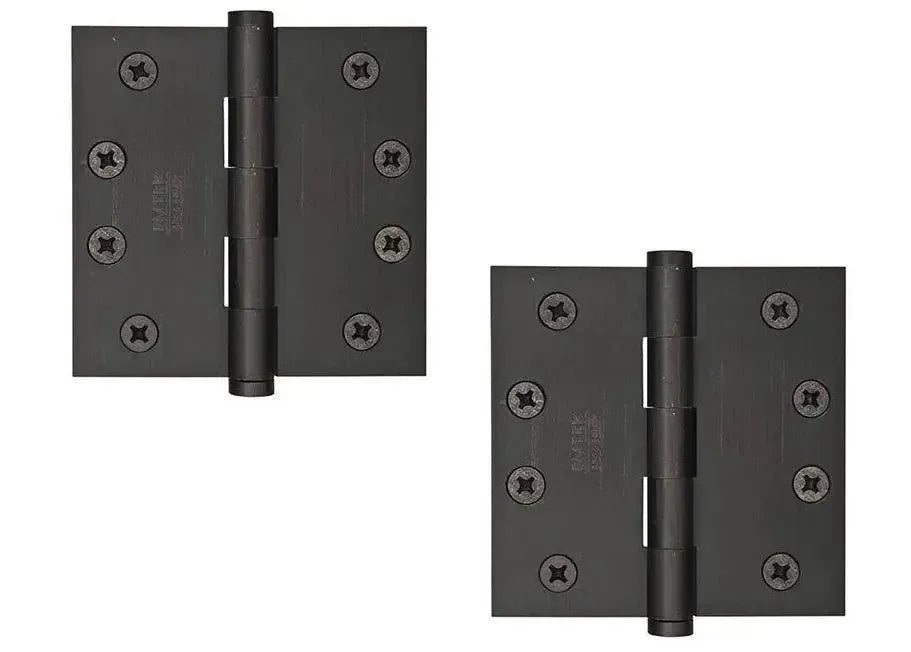

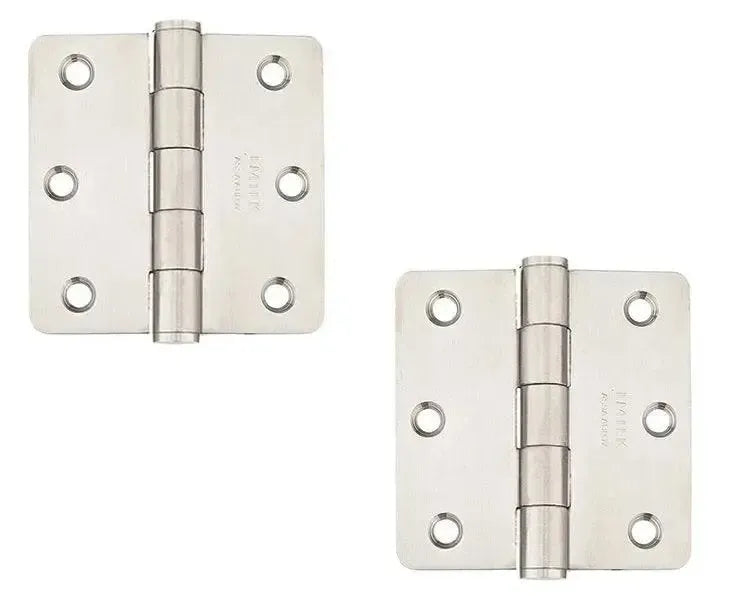

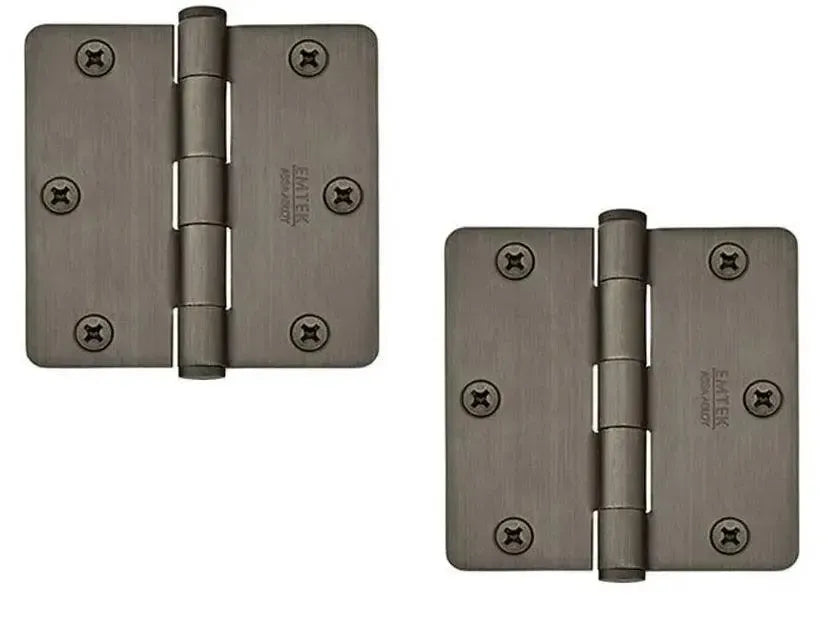

Heavy-Duty Plain-Bearing Hinges

Heavy-duty plain-bearing hinges provide a more substantial hinge configuration for applications that require greater support or encounter more frequent use than a typical light residential opening. Current Coastal listings include heavy-duty steel and solid-brass products. Because door weight, width, thickness, traffic, and hinge quantity all affect the complete installation, use the technical specifications for the exact hinge rather than selecting solely because a product is labeled heavy duty.

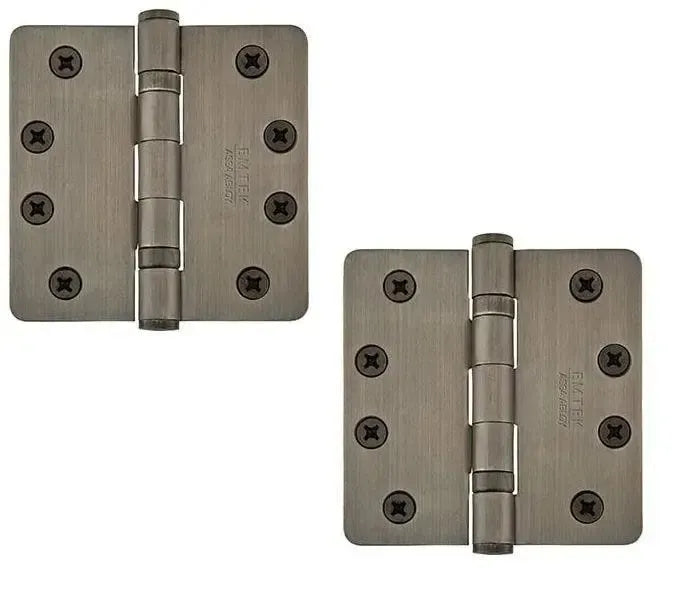

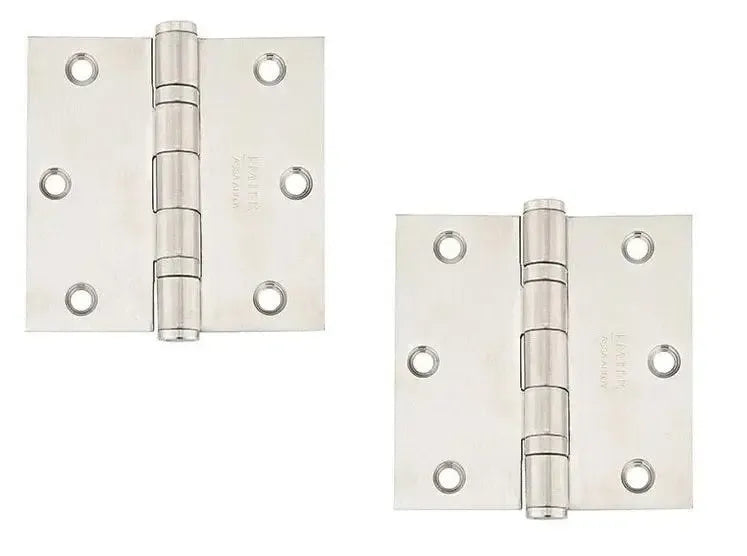

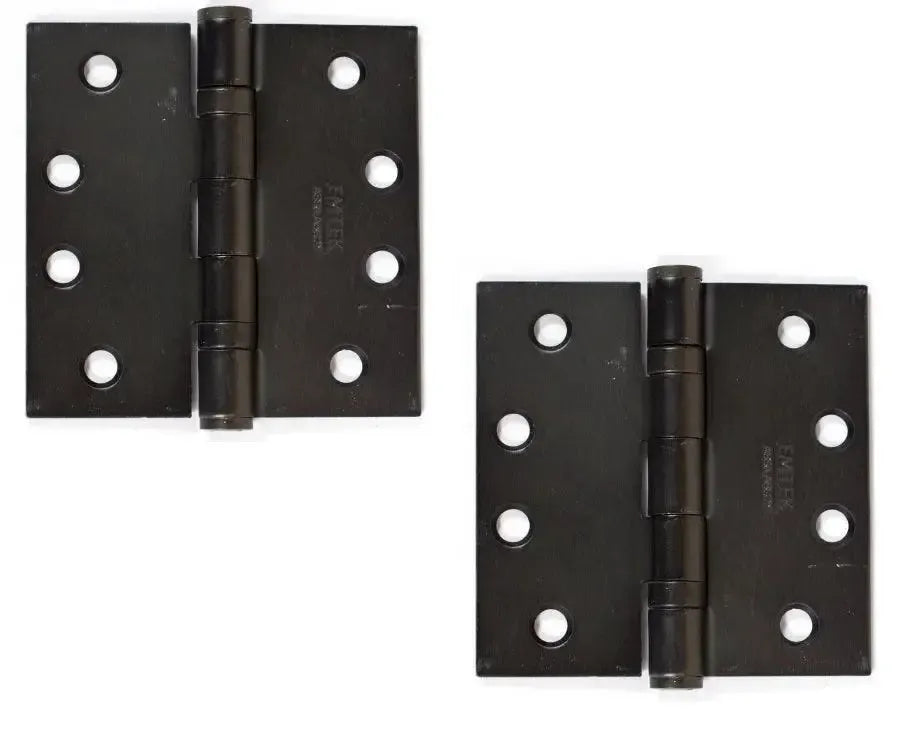

Heavy-Duty Ball-Bearing Hinges

Ball-bearing hinges incorporate bearings into the hinge knuckles to reduce friction as the door moves. The current Coastal assortment includes heavy-duty steel and solid-brass ball-bearing products in selected sizes and corner preparations. These hinges can be considered for heavier or more frequently operated doors, but the exact hinge size, material, quantity, and application should still be confirmed against the door requirements.

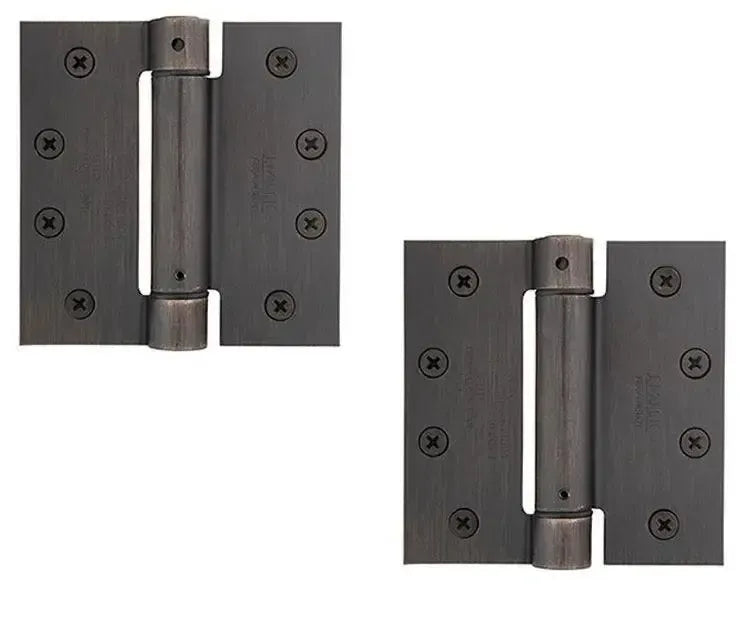

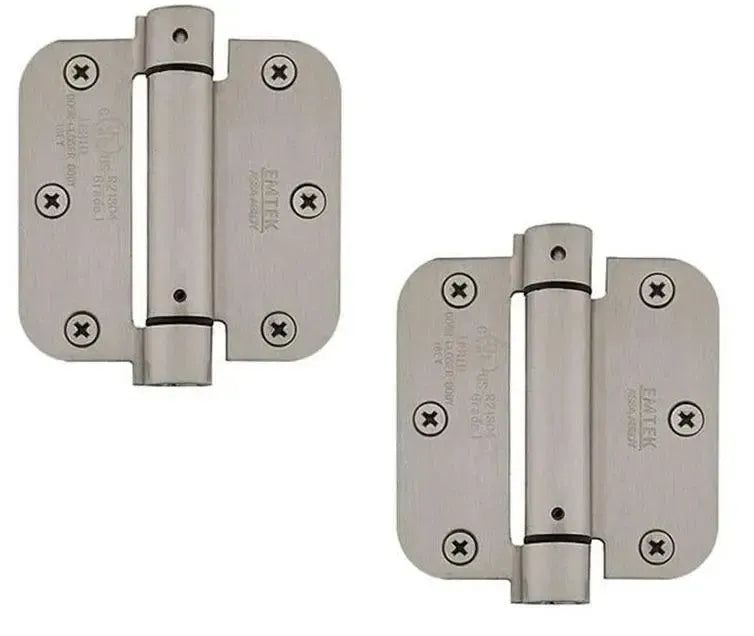

Emtek Spring Hinges

The current collection includes plated-steel UL-listed spring hinges in 3-1/2-inch and 4-inch configurations with selected square and radius corners. A spring hinge applies closing force to the door rather than functioning only as a free-swinging butt hinge. The fact that these specific products are UL listed should not be generalized to every Emtek hinge in the collection. Confirm the listing, installation requirements, adjustment procedure, and complete door assembly for the exact spring hinge.

Square-Barrel Solid-Brass Hinges

Emtek's Square Barrel Heavy Duty Solid Brass hinges provide a more distinctive visible barrel shape than a conventional hinge profile. Current Coastal Hardware Store listings include 3-1/2-inch, 4-inch, and 4-1/2-inch square-barrel models. These products can be useful when the hinge itself is intended to contribute to the architectural appearance of the door rather than simply blend into the edge.

How to Choose the Right Emtek Door Hinge

Start with the existing door and frame preparation, then determine the duty level, bearing type, size, material, corner shape, pin configuration, and finish. Replacing a hinge successfully requires more than matching its height.

• Measure both hinge dimensions: Confirm the height and width of the existing hinge, such as 3-1/2 inches by 3-1/2 inches or 4 inches by 4 inches.
• Match the corner preparation: Determine whether the existing mortise has square corners, 1/4-inch radius corners, or 5/8-inch radius corners. Choosing the wrong shape can require modifying the door and frame.
• Choose the appropriate duty level: Consider door weight, width, thickness, frequency of operation, and the complete hinge schedule when deciding between residential-duty and heavy-duty products.
• Select plain or ball bearing: Plain-bearing hinges use a simpler pin-and-knuckle arrangement, while ball-bearing hinges incorporate bearings to reduce friction. Choose according to the application and manufacturer's specifications.
• Review pin requirements: For a compatible out-swinging door where hinge-pin accessibility is a concern, determine whether the selected hinge supports Emtek's Non-Removable Pin option.
• Coordinate the exact finish: Use the complete Emtek finish name when matching hinges to knobs, levers, handlesets, deadbolts, door stops, or other visible hardware.

Materials, Styles & Finishes

Emtek's broader hinge program includes steel, solid brass, and stainless steel. Material is an important specification because different hinge families are designed for different applications and finish programs. Do not assume that two hinges shown in the same finish use the same underlying material.

Current Coastal Hardware Store products include conventional butt-hinge profiles as well as Square Barrel Heavy Duty Solid Brass hinges and plated-steel spring hinges. Bearing construction also varies between plain-bearing and ball-bearing products. These functional differences should be considered together with the door weight, preparation, and intended use.

Current collection filters include Flat Black, French Antique, Lifetime Polished Nickel, Medium Bronze Patina, Oil Rubbed Bronze, Pewter, Polished Brass, Polished Chrome, Satin Brass, Satin Nickel, Tumbled White Bronze, and Unlacquered Brass. Not every finish is offered on every hinge material, size, or style.

Finish appearance and warranty coverage also vary. Emtek currently provides lifetime limited finish coverage on designated Lifetime finishes, five-year limited coverage on many other finishes, and no finish warranty on specified patina and unlacquered finishes. Review the current Emtek warranty for the exact hinge finish you are considering.

Featured Emtek Hinge Options

The current Emtek collection can be narrowed by duty level, bearing construction, material, size, and corner shape. These distinctions are more useful than choosing a hinge from finish alone.

• Residential-Duty Steel: Plain-bearing steel hinges in common residential sizes with square and radius-corner preparations.
• Residential-Duty Solid Brass: Plain-bearing brass hinges for shoppers who want a different base material and finish selection from standard steel hardware.
• Heavy-Duty Steel: Current plain-bearing and ball-bearing configurations for more demanding compatible doors.
• Heavy-Duty Solid Brass: Plain-bearing, ball-bearing, and Square Barrel configurations for applications where heavier-duty construction and solid-brass material are desired.
• UL-Listed Spring Hinges: Plated-steel spring hinges offered in selected 3-1/2-inch and 4-inch sizes and corner styles.
• Non-Removable Pin Option: An upgrade available for supported Emtek hinges when a non-removable hinge pin is required for the application.

Installation & Compatibility

Door hinges must match the mortises in both the door and frame. Before ordering, measure the hinge height, width, thickness, corner shape, screw pattern, and existing preparation. A 4-inch hinge with square corners is not a direct dimensional match for a 4-inch hinge with radius corners even though the nominal height and width are the same.

Current representative Emtek residential hinge families are sold in pairs and include screws. Representative heavy-duty steel hinges are also sold in pairs with product-specific screws. Package contents and screw specifications should still be checked for the exact hinge because hinge size and material can affect the supplied hardware.

When changing from a plain-bearing hinge to a heavy-duty, ball-bearing, spring, or square-barrel design, compare the complete hinge thickness and technical drawing rather than assuming the new product will fit the existing mortise without modification. The number and type of hinges required also depend on the door and project requirements.

Spring hinges and other specialized installations require additional attention. Follow the manufacturer's instructions for mounting and adjustment, and do not assume that a UL listing on a hinge by itself establishes the rating or compliance of the complete door assembly. For fire-rated, commercial, institutional, oversized, or other regulated openings, confirm the complete door-and-frame hardware specification before ordering.

Shipping & Warranty Information

• Shipping: Coastal Hardware Store's current shipping policy states that Quick Ship products usually leave the warehouse in 2-3 business days, while other products average 5-7 business days unless a different estimate appears on the individual product page. Some current Emtek hinge listings show 2-3-business-day fulfillment. Orders of $100 or more qualify for free standard ground shipping within the contiguous 48 states and Washington, D.C. View Shipping Policy.
• Warranty: Emtek's current lifetime limited warranty covers defects in material and workmanship for the original consumer user while that person occupies the residential premises where the product was originally installed, subject to the complete terms and exclusions. The warranty does not apply to commercial or common-area applications under Emtek's stated terms. Finish coverage varies by finish, so review the current warranty for the exact hinge and finish before ordering.

Frequently Asked Questions About Emtek Door Hinges

What is the difference between plain-bearing and ball-bearing Emtek hinges?

A plain-bearing hinge uses a conventional pin rotating within the hinge knuckles without separate friction-reducing bearings. A ball-bearing hinge incorporates bearings into the knuckle assembly to reduce friction. Emtek offers both types, with the appropriate choice depending on door weight, use, hinge size, and the exact product specification.

What is the difference between residential-duty and heavy-duty Emtek hinges?

Emtek describes residential-duty hinges for typical residential doors and lower-stress applications, while its heavy-duty products are built for more demanding weight and usage requirements. Door size, weight, thickness, traffic, and hinge quantity should all be considered rather than selecting by the duty label alone.

How do I know whether I need square or radius-corner hinges?

Look at the hinge mortise in the door and frame. Square-corner hinges have sharp 90-degree corners, while radius-corner hinges have rounded corners. The current Emtek collection includes square, 1/4-inch radius, and 5/8-inch radius options, so match the exact existing preparation whenever possible.

What sizes of Emtek hinges are available?

The current Coastal Hardware Store collection includes products in 3-1/2-inch by 3-1/2-inch, 4-inch by 4-inch, and 4-1/2-inch by 4-1/2-inch sizes. Not every material, bearing type, or corner preparation is offered in every size.

Can I order Emtek hinges with a non-removable pin?

Yes, on supported hinges. Coastal Hardware Store currently offers an Emtek Non-Removable Pin upgrade that is added to compatible hinge selections rather than sold as a standalone hinge-pin product. Confirm availability on the exact hinge before ordering.

Do Emtek door hinges include screws?

Many current Emtek hinge families are sold in pairs and include screws. Emtek states this for representative residential steel, solid-brass, and stainless-steel hinge families, and current Coastal heavy-duty hinge listings also specify included screws. Verify package contents on the exact product because screw size and quantity can vary.

Shop Emtek Door Hinges at Coastal Hardware Store

Coastal Hardware Store offers Emtek door hinges for interior doors, entry doors, renovations, new construction, and coordinated Emtek hardware projects. Compare residential-duty, heavy-duty, plain-bearing, ball-bearing, spring, and Square Barrel hinges by size, corner preparation, material, finish, and available pin options.

As an official retailer of Emtek hardware, our team can help you match an existing hinge size and corner radius, compare residential and heavy-duty products, decide between plain and ball-bearing hinges, review the Non-Removable Pin option, or coordinate hinge finishes with the rest of your Emtek hardware. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
