Precision Lock Concealed Magnetic Door Catches

Precision Lock concealed magnetic catches provide a hidden way to hold compatible interior doors closed without the visible strike lip or mechanical action of a conventional roller or ball catch. Once installed, the magnetic components are recessed into the door and frame so the hardware remains concealed when the door is shut. This makes Precision Lock hardware especially useful for projects where quiet operation, clean sightlines, and adjustable holding force are priorities.

The current Precision Lock products verified at Coastal Hardware Store include the PLS24PRO concealed magnetic catch and the PLS24PROXHD heavy-duty concealed magnetic catch. Both are designed for applications where a roller or ball catch might otherwise be used, but their holding strength, door-thickness requirements, preparation, and installation components differ. Review the exact product before drilling or ordering. For additional door components, browse our door hardware accessories.

Why Choose Precision Lock Magnetic Catches?

Precision Lock magnetic catches are designed for doors that need to remain closed without using a conventional operating latch. Their concealed installation and adjustable magnetic hold make them a practical alternative to traditional catches in compatible interior applications.

• Concealed appearance: The magnetic assemblies are recessed into the door and jamb, leaving the catch hidden when the door is closed.
• Quiet operation: Precision Lock eliminates the characteristic latch noise associated with a roller or ball catch because there is no conventional mechanical catch engaging a strike.
• Adjustable holding force: Supported Precision Lock models use adjustment spacers or packers to change the air gap between the magnetic assemblies and fine-tune the holding strength.
• No conventional latch: The door can be pulled or pushed open without turning a knob or lever to retract a latch, provided the complete door application is designed for that type of operation.
• Standard and heavy-duty choices: Current Coastal Hardware Store listings include both a standard PLS24PRO configuration and a more powerful PLS24PROXHD option for applications requiring greater holding force.
• Useful replacement option: Precision Lock products can be considered where a roller or ball catch would normally be installed, subject to the specific preparation requirements of the selected model.

Types of Precision Lock Hardware Available

Standard Concealed Magnetic Catches

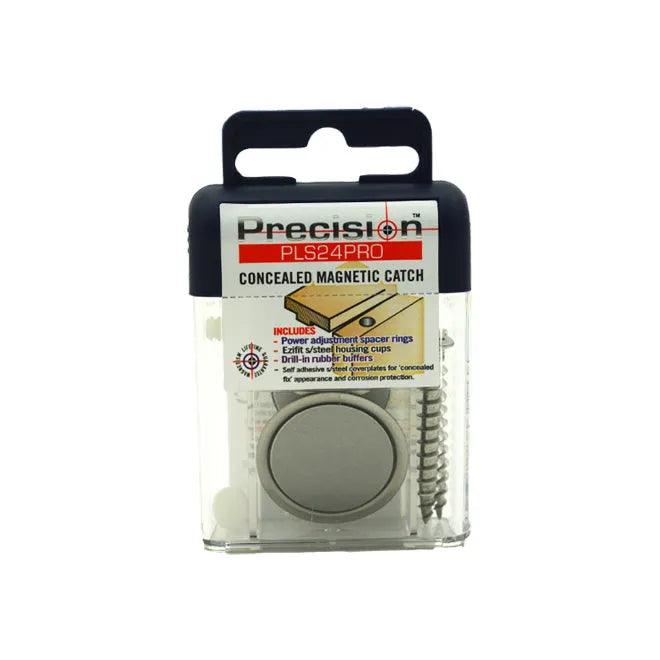

The Precision Lock PLS24PRO is a concealed magnetic catch designed for full-size interior doors and other compatible applications. Instead of using a spring-loaded ball or roller, it relies on magnetic attraction between components installed in the door and jamb. Precision Lock's documentation provides adjustment packers that allow the installer to alter the magnetic holding force by changing the distance between the assemblies.

Heavy-Duty Concealed Magnetic Catches

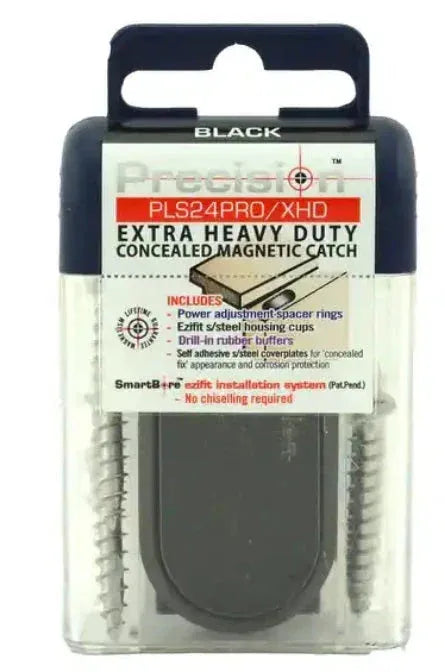

The current Coastal Hardware Store assortment also includes the PLS24PROXHD heavy-duty concealed magnetic catch. This model is intended for applications requiring greater magnetic holding force than the standard version. Because its drilling pattern, included installation components, minimum door thickness, and magnetic strength differ from the standard catch, use the installation information for the XHD model rather than assuming the two products are interchangeable.

Ball & Roller Catch Replacement Applications

Precision Lock specifically positions its concealed magnetic catches as alternatives to conventional roller and ball catches. This can be useful for closet doors, paired interior doors, wardrobes, cupboards, and other supported openings where the goal is to hold the door in its closed position without a conventional latch. A retrofit may still require new drilling or modification depending on the existing catch and selected Precision Lock model.

Double & Full-Size Interior Door Applications

Precision Lock documentation identifies full-size doors, wardrobes, cupboards, double interior doors, and other compatible openings among the applications for its magnetic catches. The catch can be especially useful where a clean edge and quieter closing action are preferred. Door size alone does not determine the correct model, however; holding requirements, alignment, door thickness, and preparation should also be considered.

Adjustable Magnetic Holding Systems

One of the distinguishing features of the Precision Lock system is the ability to adjust magnetic holding strength. Manufacturer documentation describes power-adjustment packers or spacer rings that reduce or increase the air gap between the magnetic assemblies. Smaller gaps generally provide greater holding force. Follow the adjustment procedure for the exact model rather than placing the magnets as close together as possible without reference to the instructions.

How to Choose the Right Precision Lock Magnetic Catch

Start with the door type and the amount of holding force required, then compare the selected catch's dimensions, preparation, door-thickness requirements, adjustment system, and installation components. Precision Lock products are related, but they are not one universal catch.

• Choose standard or heavy-duty: Determine whether a conventional concealed magnetic catch provides sufficient hold or whether the application calls for the stronger PLS24PROXHD configuration.
• Confirm the door thickness: Minimum thickness requirements vary by model. The current Coastal PLS24PROXHD listing, for example, specifies a 1-1/8-inch minimum door thickness.
• Review the existing catch: If replacing a roller or ball catch, compare the existing bore, strike preparation, location, and available material with the Precision Lock installation instructions.
• Determine whether the door also needs a lock: A magnetic catch holds a door shut but does not provide keyed security or access control. Select separate locking hardware when the opening must be secured.
• Check alignment and air gap: Magnetic holding performance depends on proper alignment and spacing between the door and jamb components. Use the manufacturer-supplied adjustment system and installation guide.
• Consider the complete door system: Door closers, pulls, hinges, weather conditions, door weight, double-door arrangements, and other hardware can affect how the catch performs in the finished opening.

Materials, Styles & Finishes

Precision Lock magnetic catches are primarily functional architectural components rather than decorative door trim. The hardware is designed to sit within the door and jamb, which means most of the catch is not visible after the door closes. Product construction and included components vary by model, so review the specifications when steel, stainless steel, magnetic material, or another specific construction is required.

The two current Coastal Hardware Store product pages I was able to verify include a PLS24PRO listing identified as a silver-finish catch and a PLS24PROXHD listing in black. Precision Lock manufactures additional finish variants within its broader product line, but availability on this Coastal collection should be confirmed before referencing those finishes in the collection description.

Because the hardware is concealed, finish selection typically has less visual impact than it would with a visible knob, lever, hinge, or surface bolt. Finish can still matter where cover plates or portions of the installation remain visible when the door is open, so choose the exact available product finish for the project.

Featured Precision Lock Products & Applications

The current verified Coastal Hardware Store Precision Lock assortment centers on the PLS24PRO family of concealed magnetic catches. The most important distinction is the level of holding force and the installation requirements of the specific model.

• PLS24PRO: Precision Lock's standard concealed magnetic catch is designed for full-size interior doors and similar applications where a roller or ball catch could otherwise be used. Its magnetic holding strength can be adjusted using supplied packers.
• PLS24PROXHD: The heavy-duty version provides greater magnetic holding force for more demanding compatible openings and uses its own installation procedure and hardware.
• Closet and wardrobe doors: Concealed catches provide a clean alternative where the door needs to stay closed without an operating tubular latch.
• Double interior doors: Magnetic catches can be used on compatible paired-door arrangements where the door system does not require the catch itself to provide security.
• Problem-door applications: Precision Lock documentation also discusses using the magnetic hold to assist compatible doors that have difficulty remaining seated in the closed position. The catch should be viewed as a holding device rather than a substitute for required locking or life-safety hardware.

Installation & Compatibility

Precision Lock concealed magnetic catches require accurately positioned magnetic assemblies in the door and jamb. The exact drilling method varies by model. Precision Lock's PLS24PRO documentation describes bored installation into the door and frame and states that conventional chiseling is not required for that model. The PLS24PROXHD uses a different drilling template and preparation.

Correct alignment is essential. The magnetic components should be positioned according to the manufacturer's instructions so they remain properly aligned when the door closes. Precision Lock uses adjustment packers or spacer rings to alter the air gap and holding force. Too much magnetic force can make the door harder to open, while too little may not hold the door reliably closed.

Take care when handling the magnetic assemblies before installation. Precision Lock's XHD installation guide warns that the magnets are powerful and should be kept apart until they are secured in the door and jamb. Follow the safety and installation instructions supplied with the exact product.

For replacement projects, do not assume that a concealed magnetic catch will drop directly into the preparation for every existing ball or roller catch. Precision Lock offers product families intended for different preparations, and the PLS24PRO, PLS24PROXHD, and manufacturer ball-catch-replacement designs use different dimensions. Measure first and use the exact installation template for the selected SKU.

Shipping & Warranty Information

• Shipping: The current Coastal Hardware Store Precision Lock product pages I was able to verify list an estimated fulfillment time of 5-7 business days. Coastal Hardware Store's general policy states that Quick Ship items usually leave the warehouse in 2-3 business days and other products average 5-7 business days unless a different estimate appears in the product description. Orders of $100 or more qualify for free standard ground shipping within the contiguous 48 states and Washington, D.C. View Shipping Policy.
• Warranty: Precision Lock publishes a Limited Lifetime Warranty for the PLS24PRO covering defects in material and workmanship for the life of the product, subject to installation, intended-use, and other stated conditions and exclusions. Warranty coverage for other Precision Lock products should be confirmed from the documentation supplied for the exact model.

Frequently Asked Questions About Precision Lock Magnetic Catches

What is a Precision Lock concealed magnetic catch?

A Precision Lock concealed magnetic catch is a door-holding device installed within the door and jamb. Magnetic attraction holds the door in its closed position without using the moving ball or roller found in a conventional mechanical catch. The catch remains concealed when the door is closed.

What is the difference between a magnetic catch and a ball catch?

A conventional ball catch uses a spring-loaded ball that mechanically engages a strike. A Precision Lock concealed magnetic catch uses magnetic attraction instead. This removes the conventional ball-and-strike engagement and can provide quieter operation with less visible hardware when the door is closed.

Does a Precision Lock magnetic catch lock the door?

No. A magnetic catch is designed to hold a compatible door closed; it is not a keyed lock or security device. If the opening needs to prevent unauthorized access, use appropriate separate locking hardware designed for that purpose.

Can the magnetic holding strength be adjusted?

Yes, on supported Precision Lock models. Products such as the PLS24PRO use adjustment packers or spacers to change the gap between the magnetic assemblies. Reducing the gap increases the magnetic holding force. Follow the manufacturer's adjustment instructions for the exact model.

Can Precision Lock catches replace a roller or ball catch?

Precision Lock specifically designs several concealed magnetic catches for applications where roller or ball catches are normally used. However, existing preparation varies, so replacement may require additional drilling or a model designed for the particular catch being replaced. Compare the dimensions before ordering.

Do all Precision Lock magnetic catches install the same way?

No. Precision Lock offers different models for different door thicknesses, holding requirements, and existing preparations. The PLS24PRO and PLS24PROXHD, for example, use different installation details. Always use the instructions and template supplied for the exact model.

Shop Precision Lock at Coastal Hardware Store

Coastal Hardware Store offers Precision Lock concealed magnetic catches for compatible closets, wardrobes, interior doors, double doors, renovations, replacement projects, and other applications where a hidden magnetic door-holding solution is preferred. Compare the available products by holding strength, door-thickness requirements, dimensions, finish, and installation method.

If you need help deciding between the standard and heavy-duty Precision Lock catch, replacing an existing ball or roller catch, confirming door thickness, or reviewing the required preparation before drilling, our team can help you compare the available options. Contact us at support@coastalhardwarestore.com or call us at 561-808-2588.
