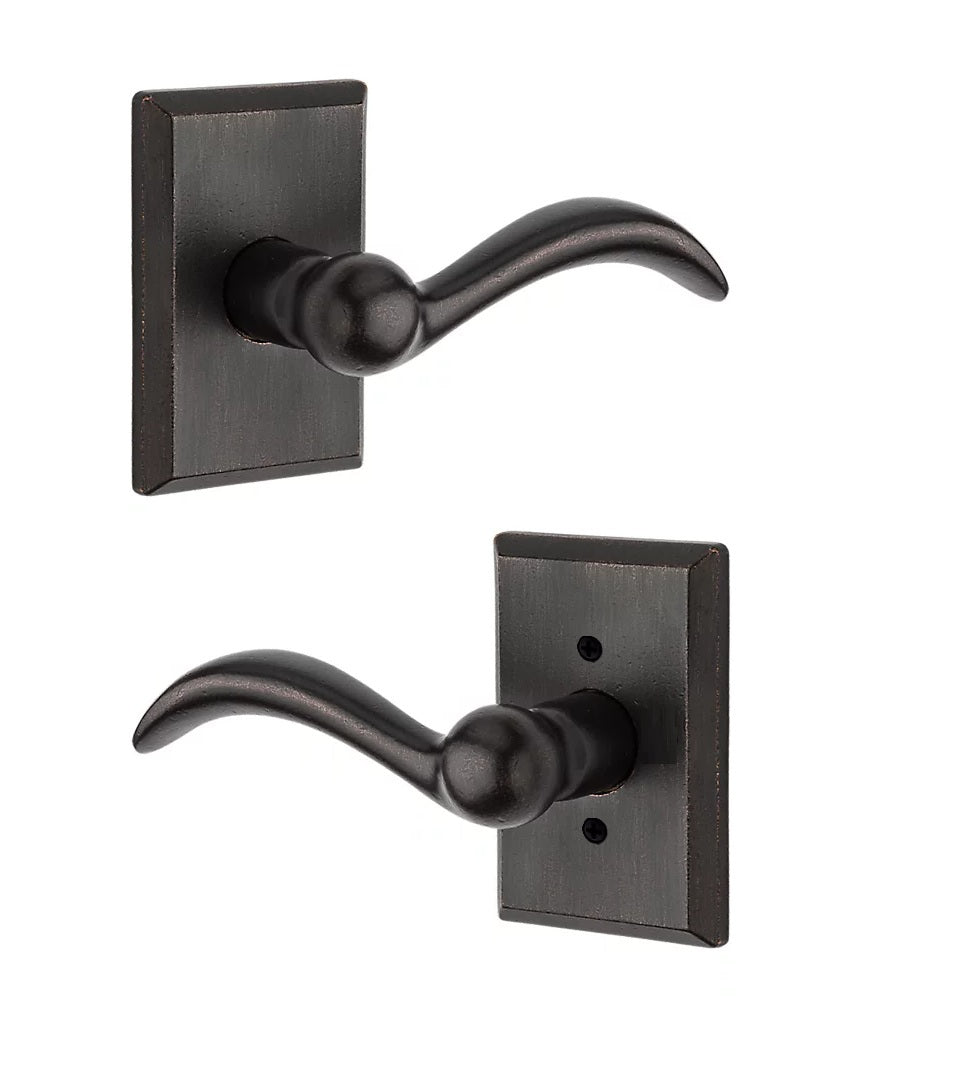

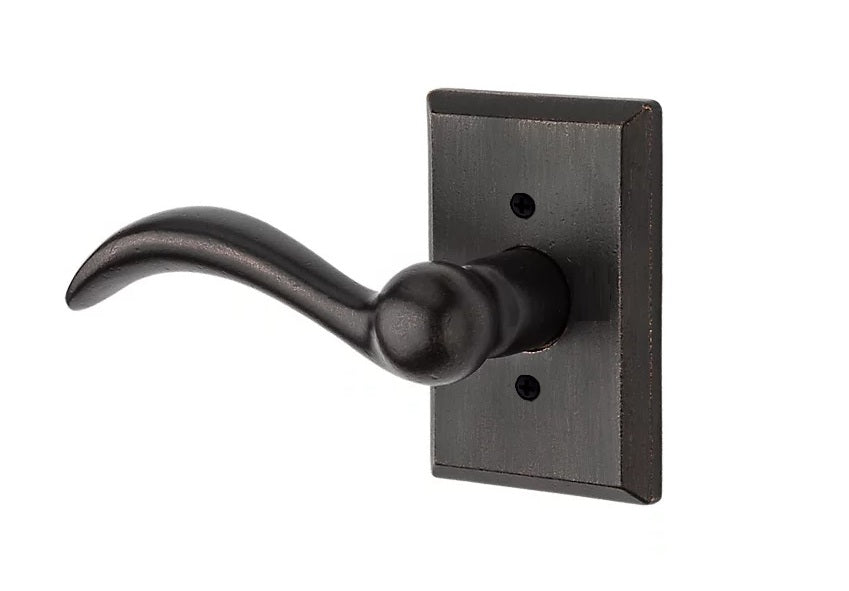

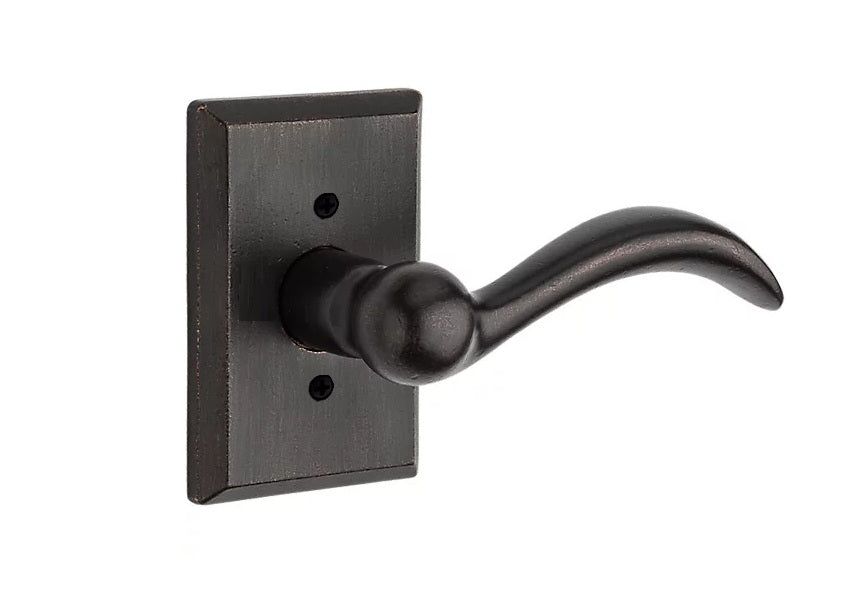

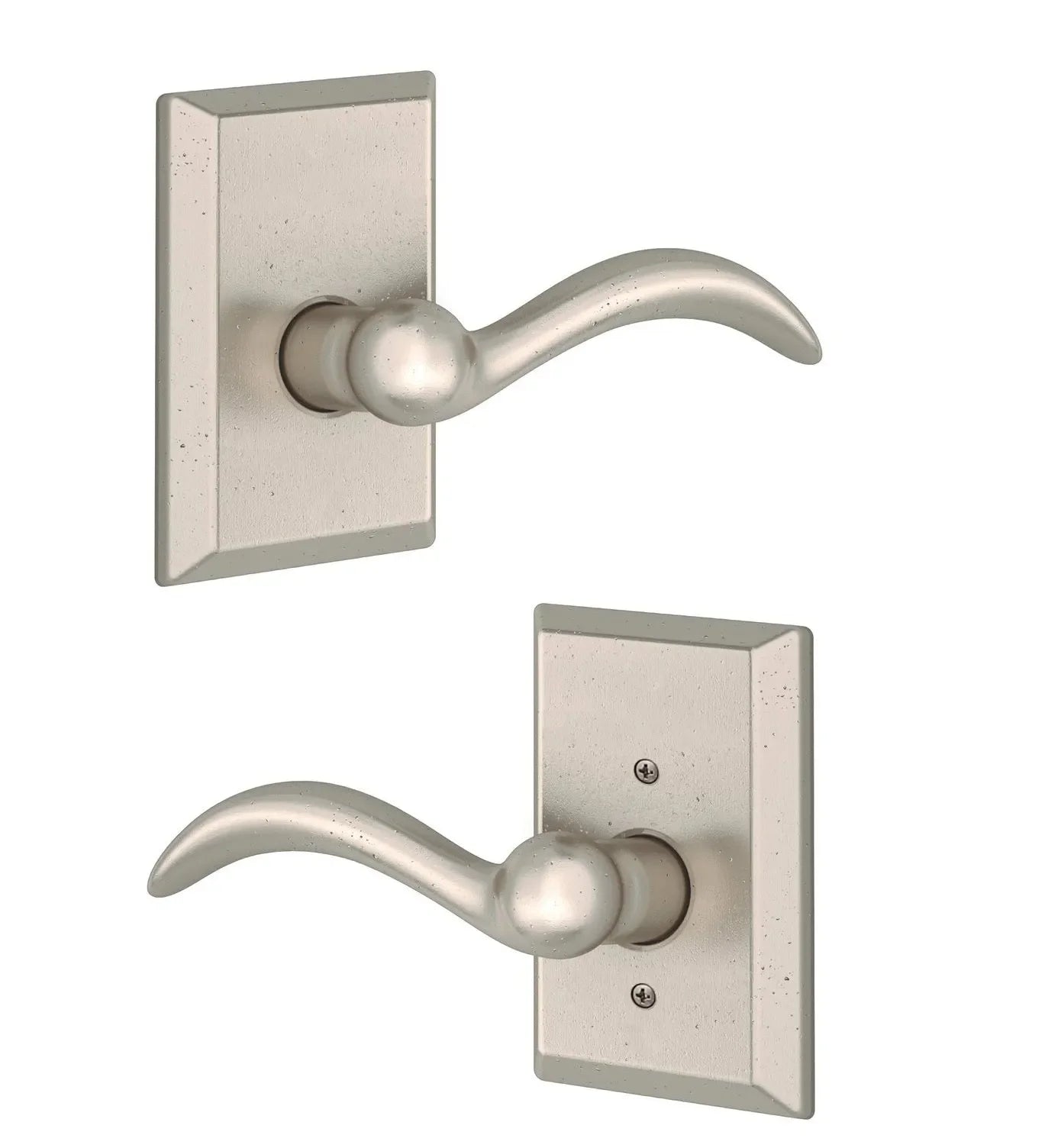

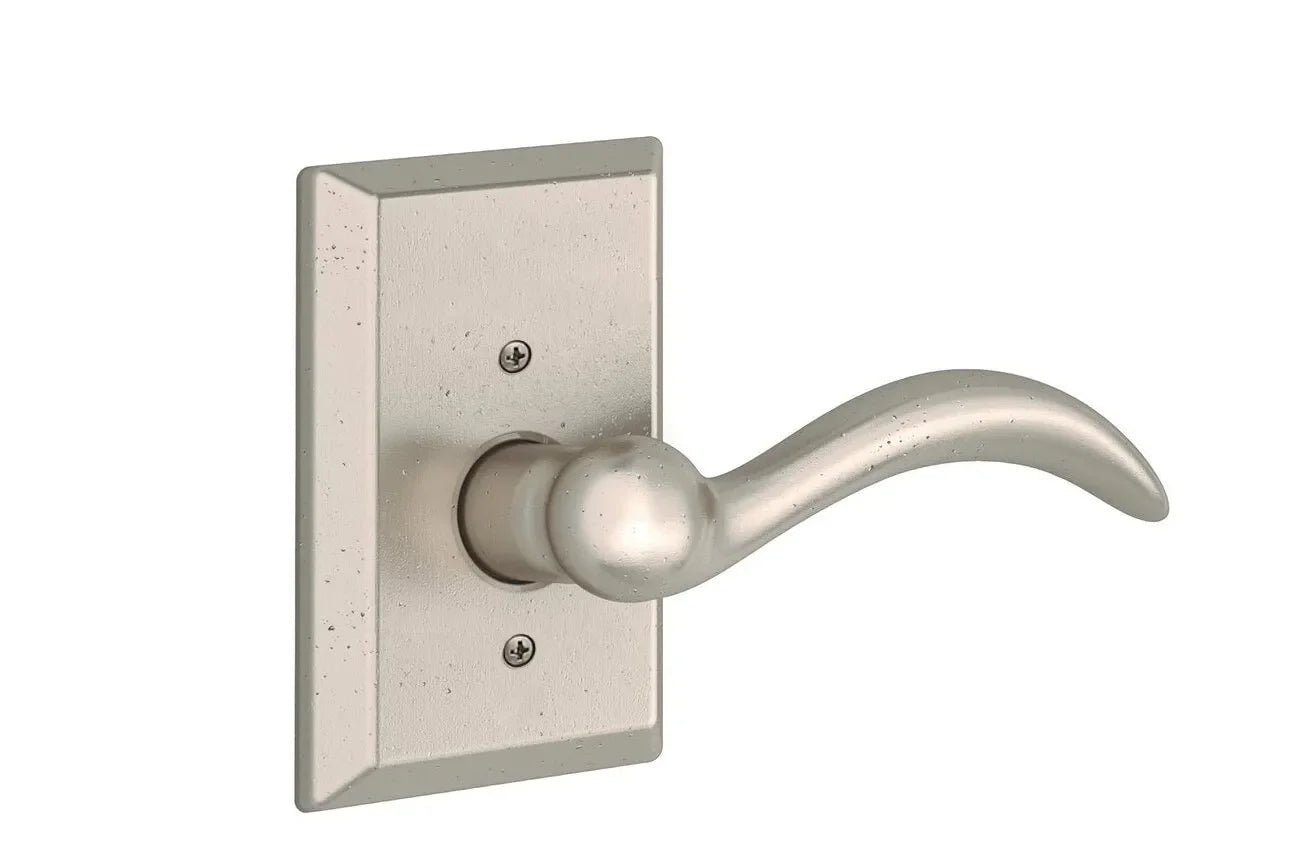

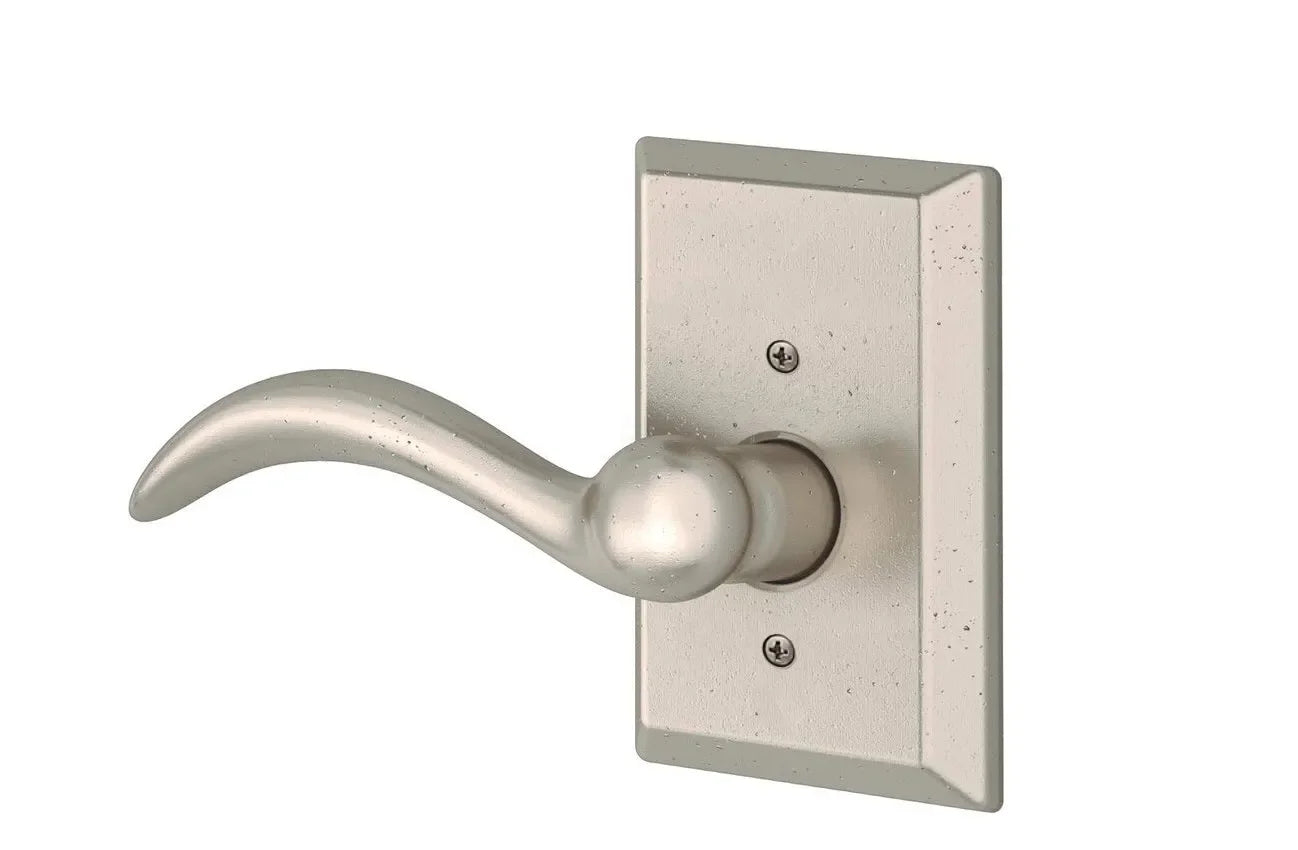

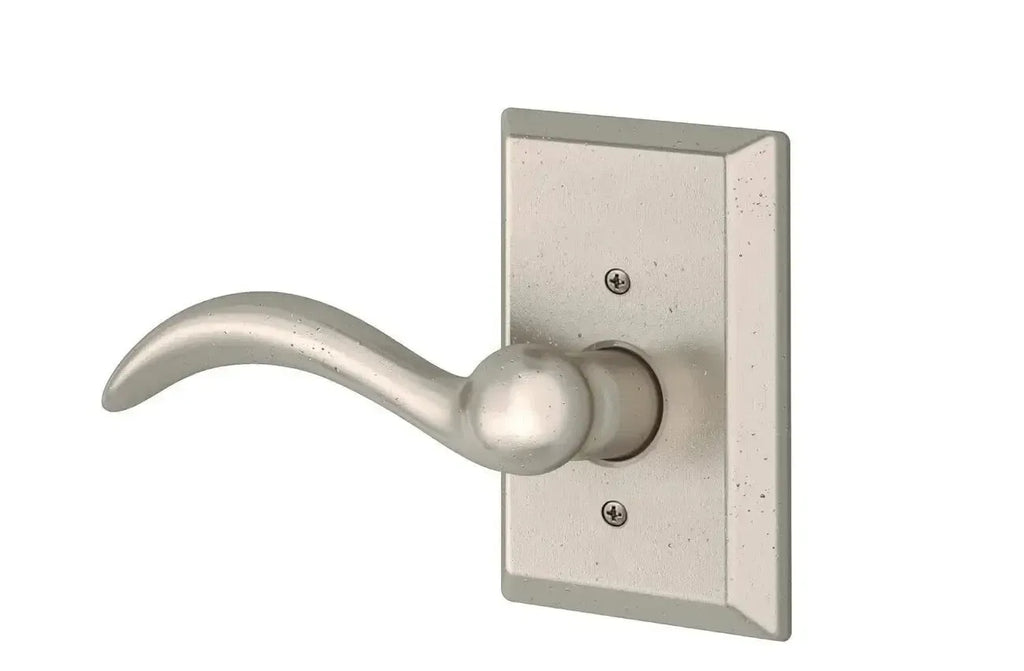

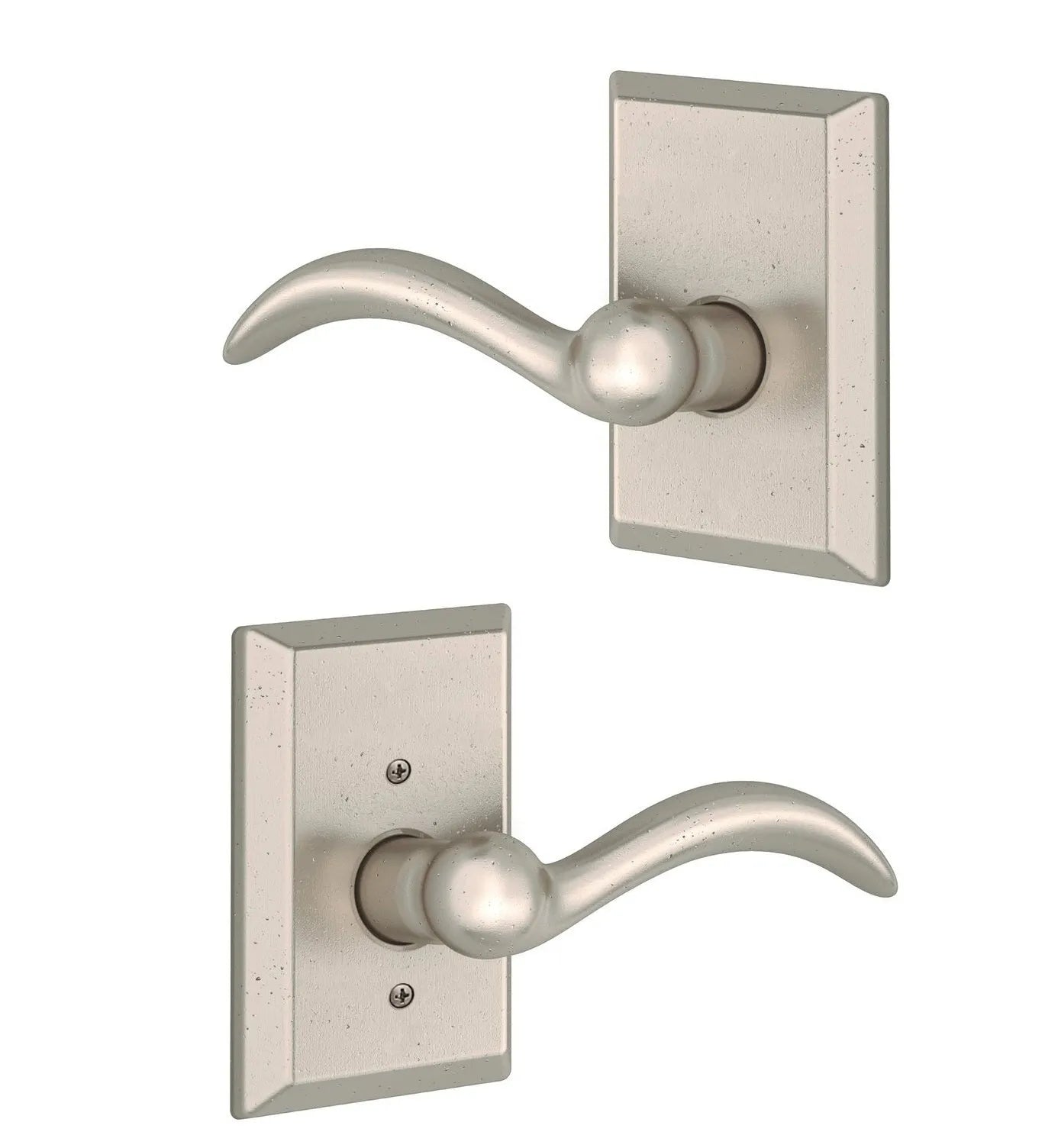

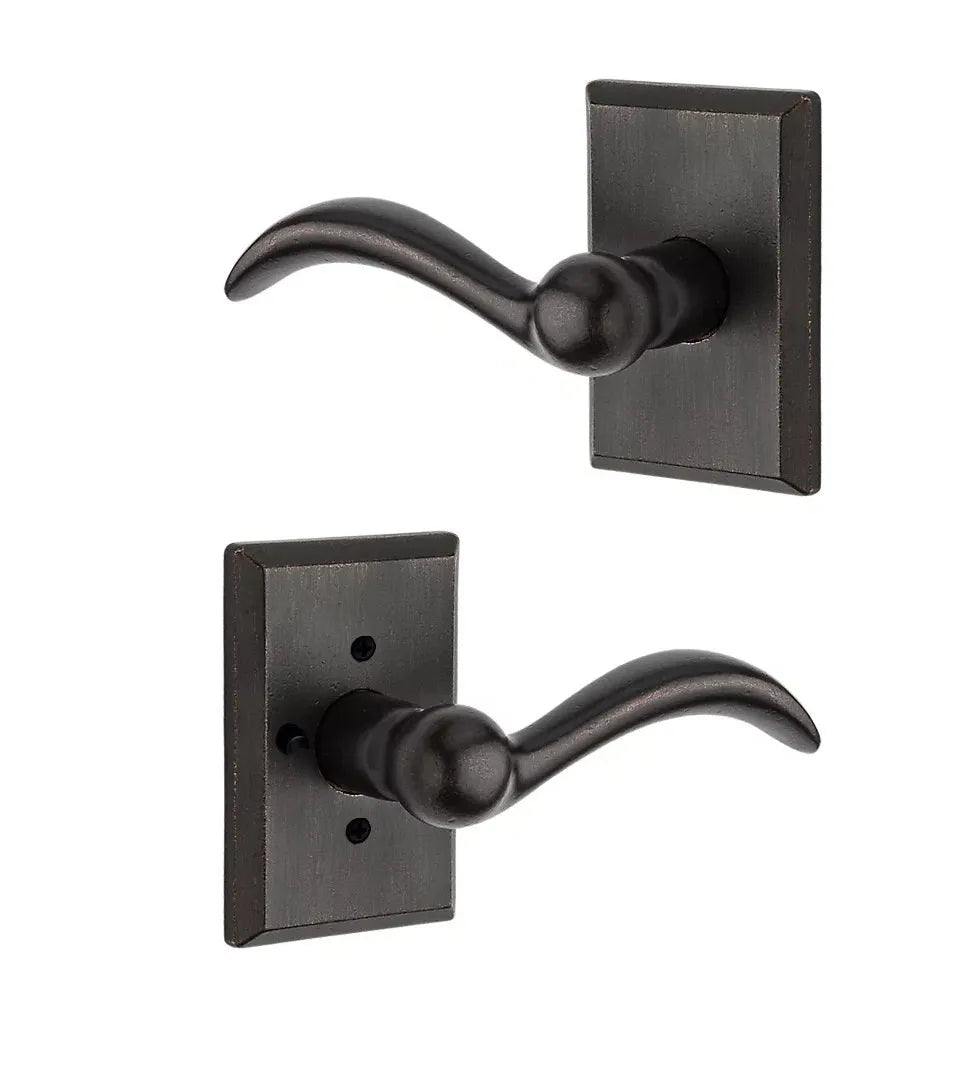

Give your doors a unique, rustic feel with the Baldwin Reserve Arch Lever. This elegant lever features a comfortable, gracefully curved design and is paired with a striking rustic square rosette. Crafted from solid brass, this lever provides a substantial feel and lasting durability, making it an excellent choice for a traditional or rustic home.
Passage Features
- Lever set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Select Right or Left Handed
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Privacy Features
- Lever set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Select Right or Left Handed
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Select Right or Left Handed
Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Select Right or Left Handed
Specifications
- Projection: 2 9/16"
- Lever Grip: 4 1/2"
- Rosette Dimensions: 2 5/8" x 4"
