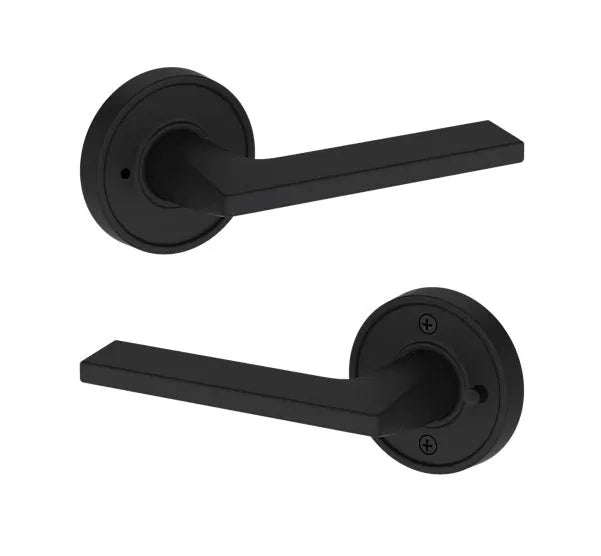

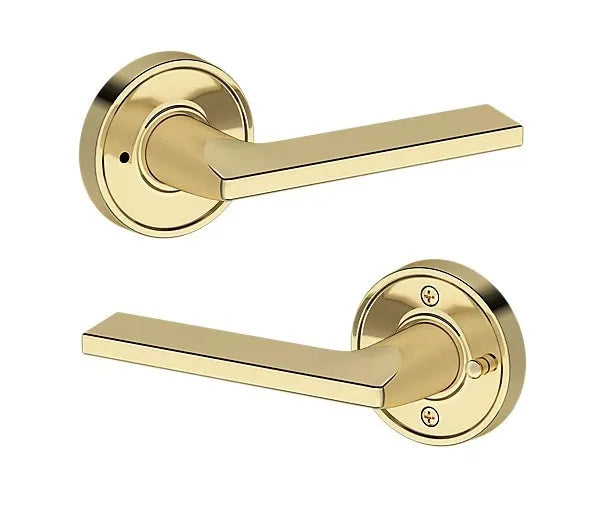

Crafted from solid brass and built to last, Reserve is made for real life. With premium finishes, this is hardware that holds up and stands out. High performance meets high style, made to live as boldly as you do. Minimal in form, bold in effect, Anaheim Hills features a sleek, squared-off profile with a subtle curve that feels modern, fluid, and unmistakably refined. This lever is an elegant and durable choice for any modern home.

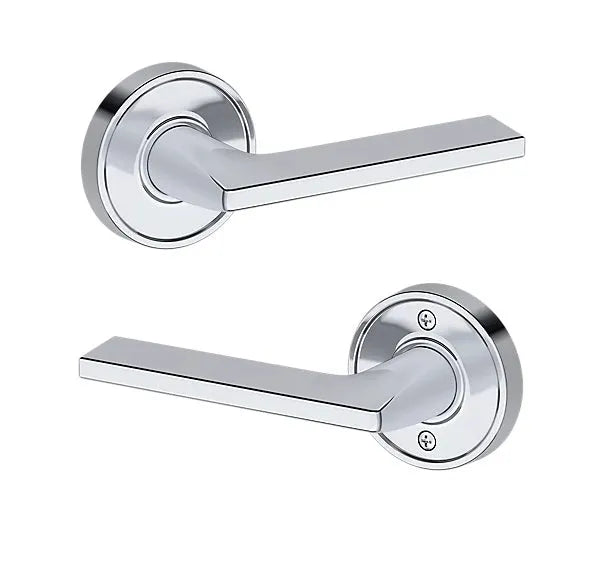

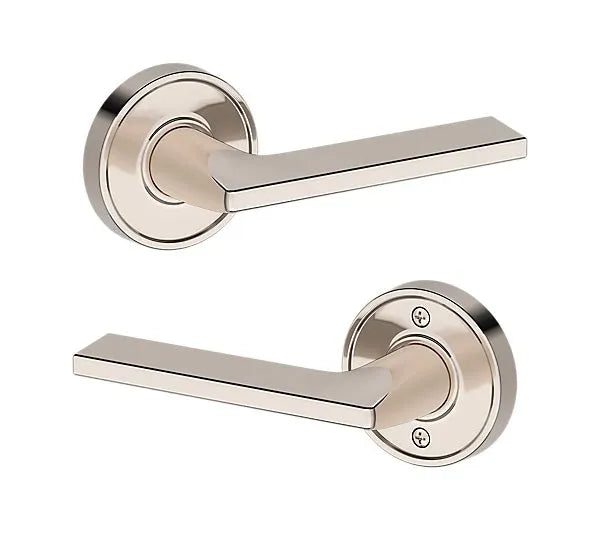

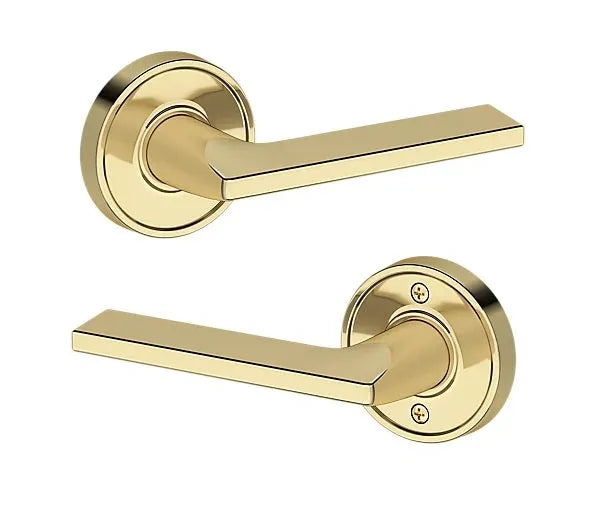

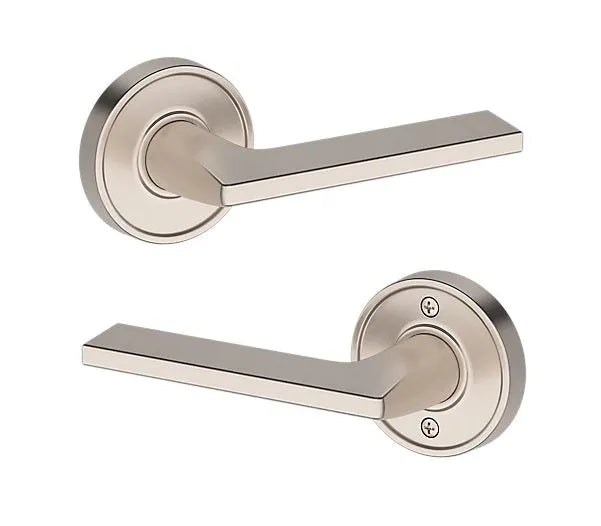

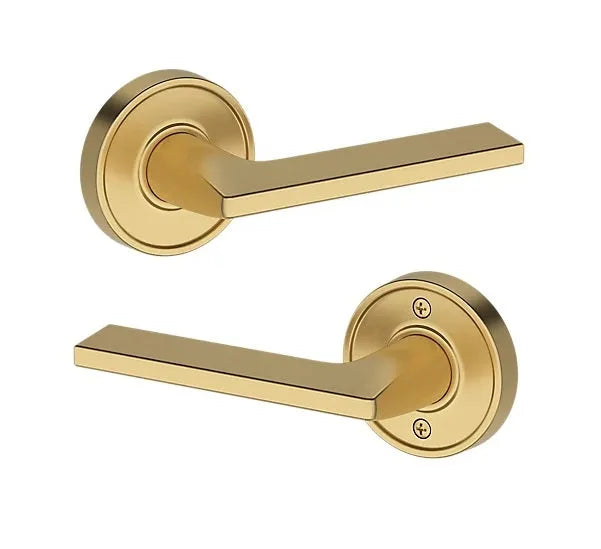

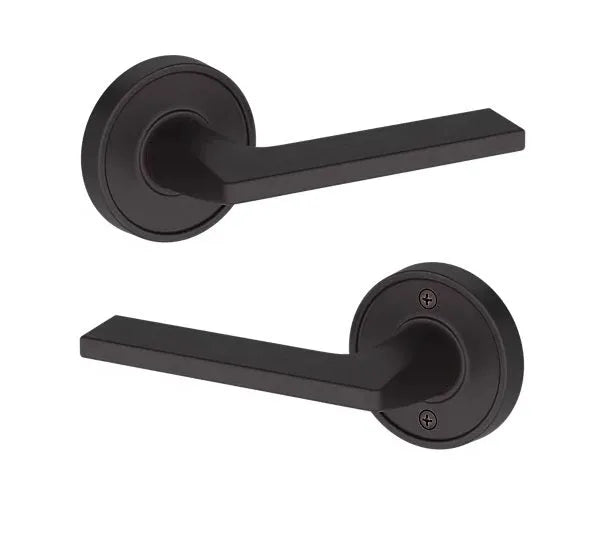

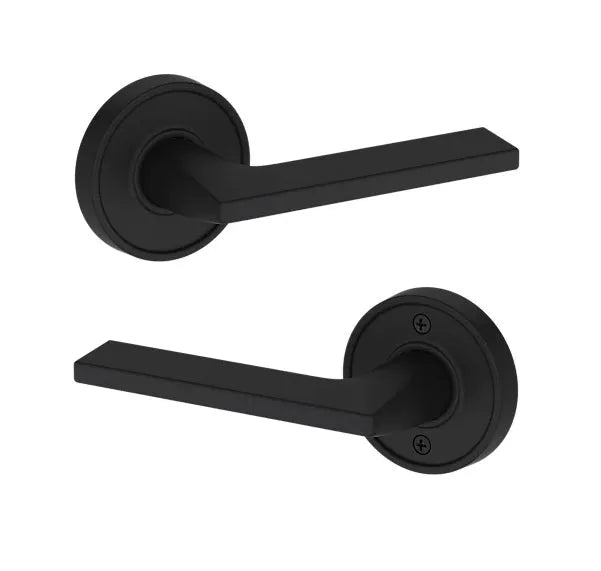

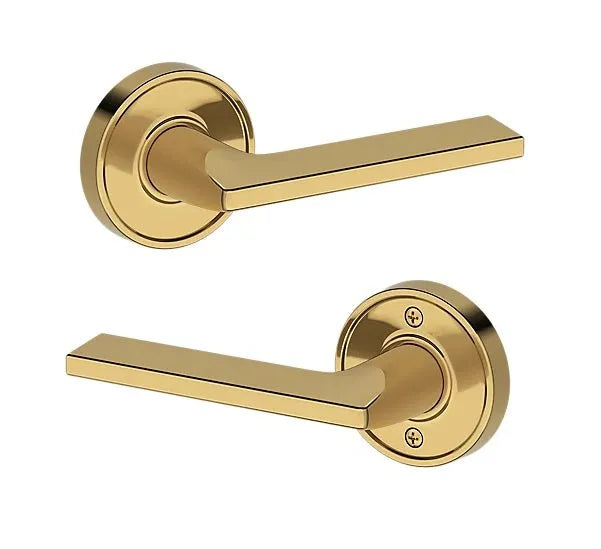

Passage Features
- Lever set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

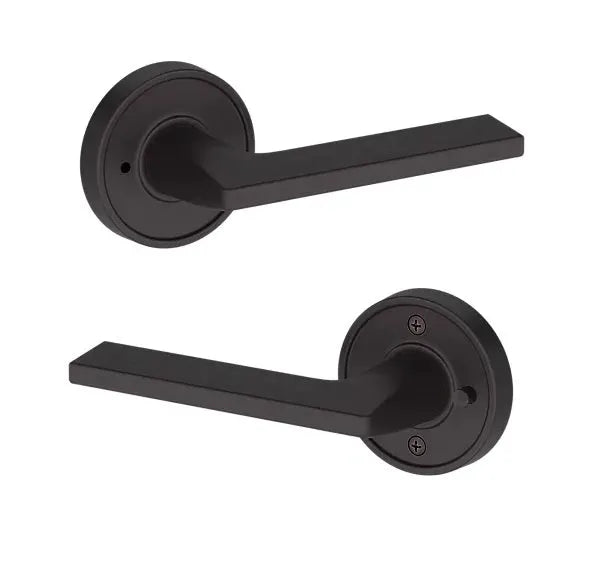

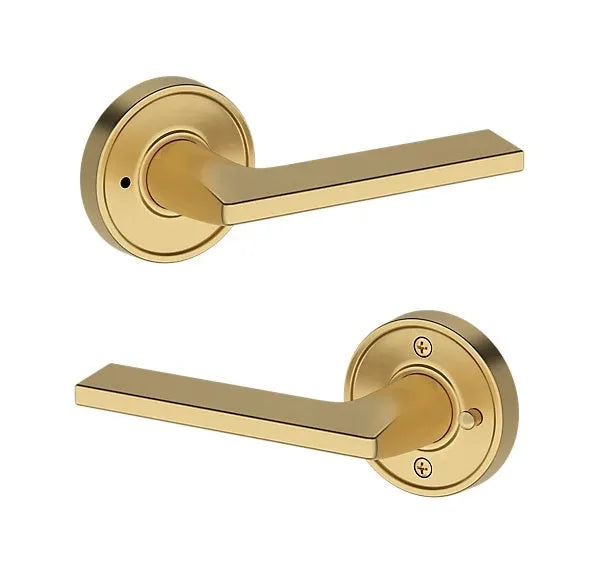

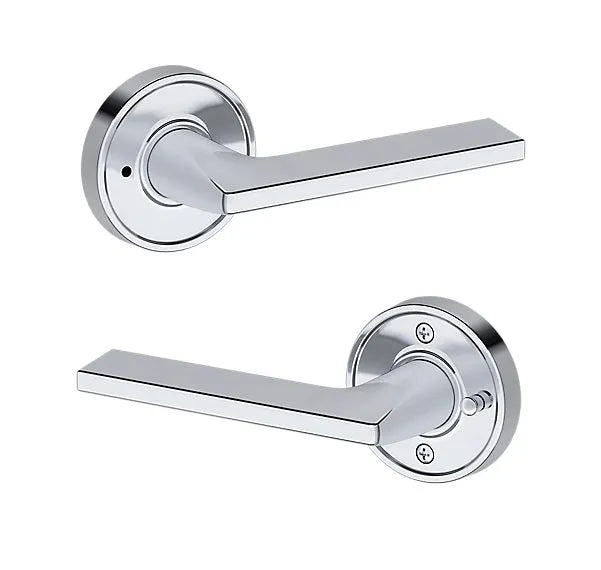

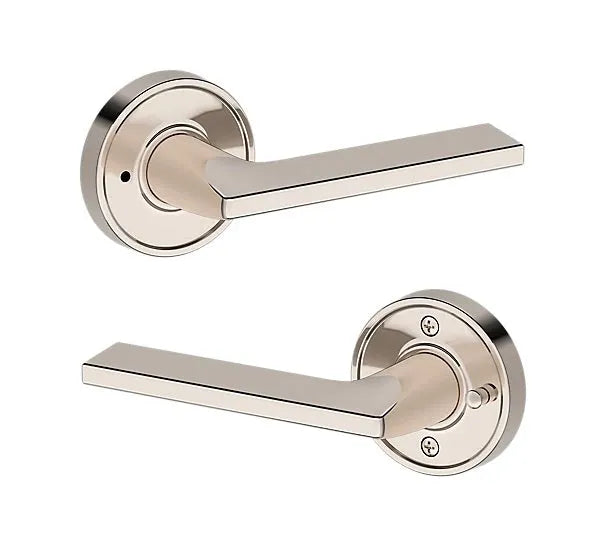

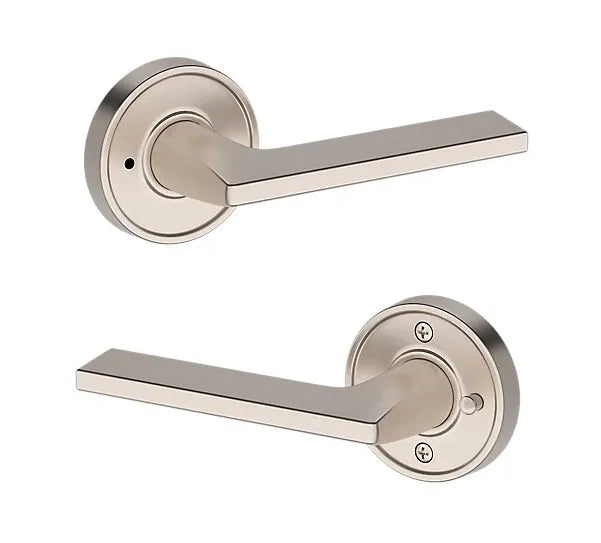

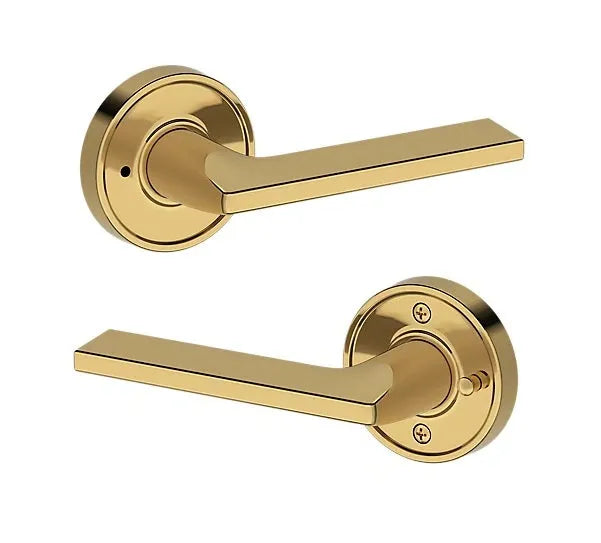

Privacy Features
- Lever set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Reversible Handing

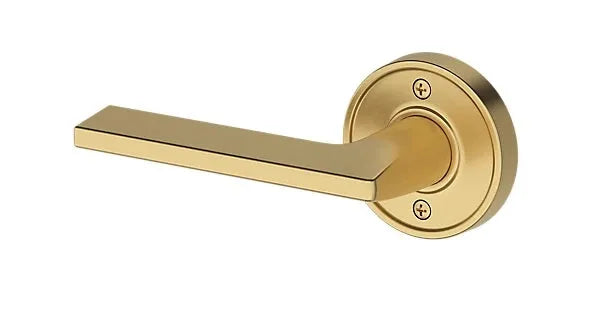

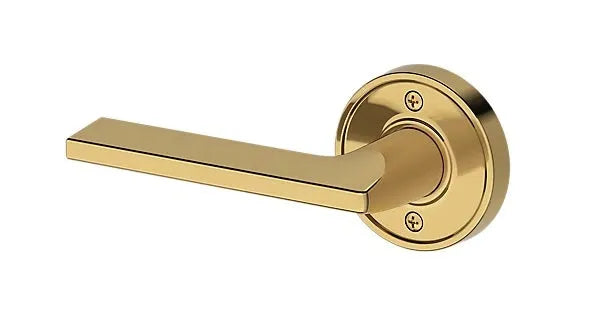

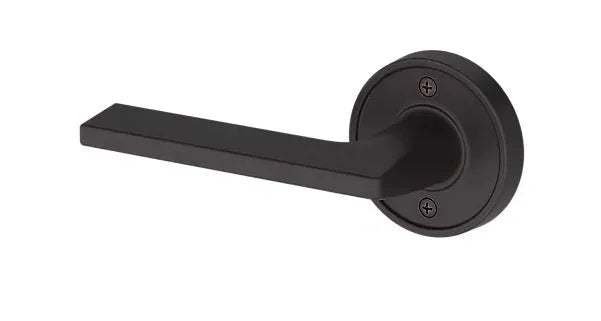

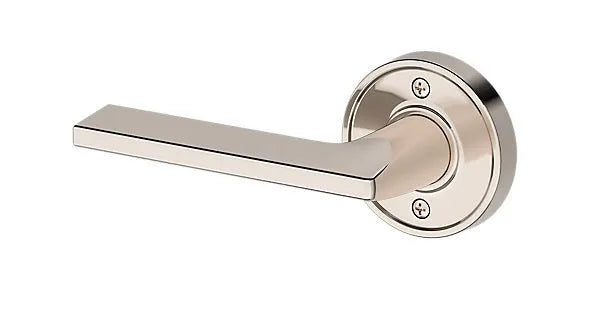

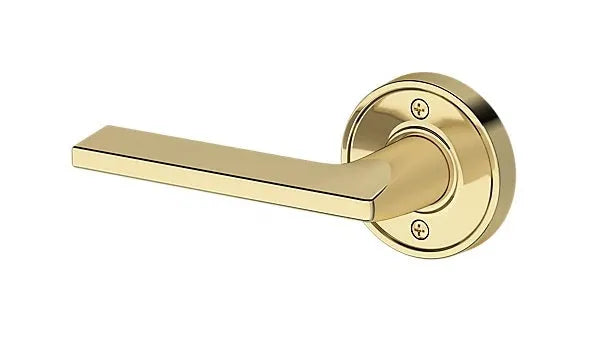

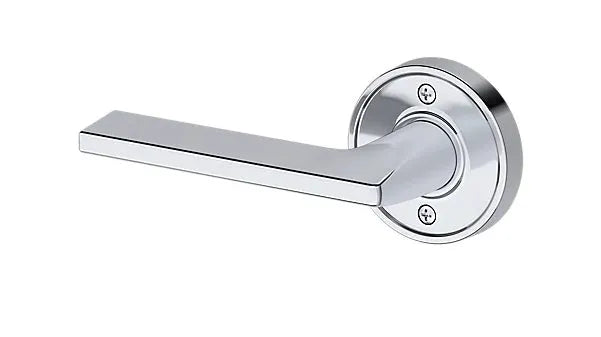

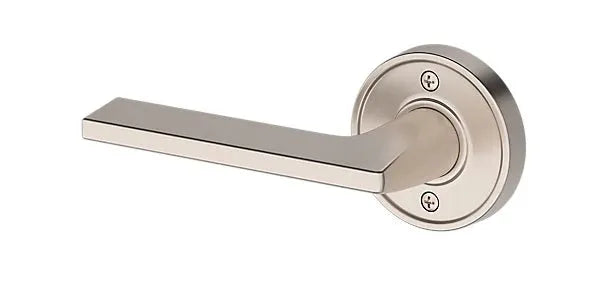

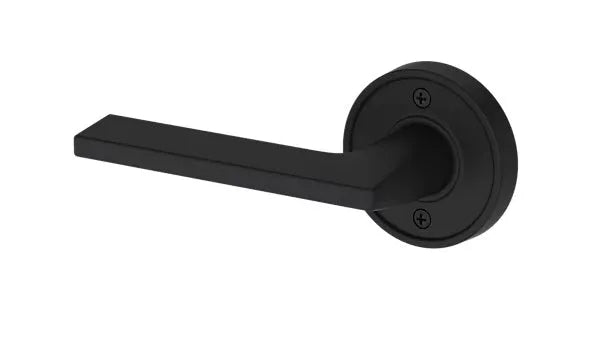

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Reversible Handing

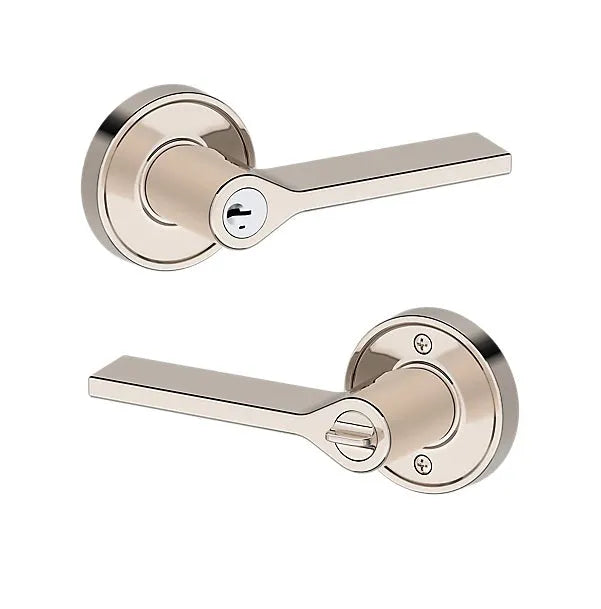

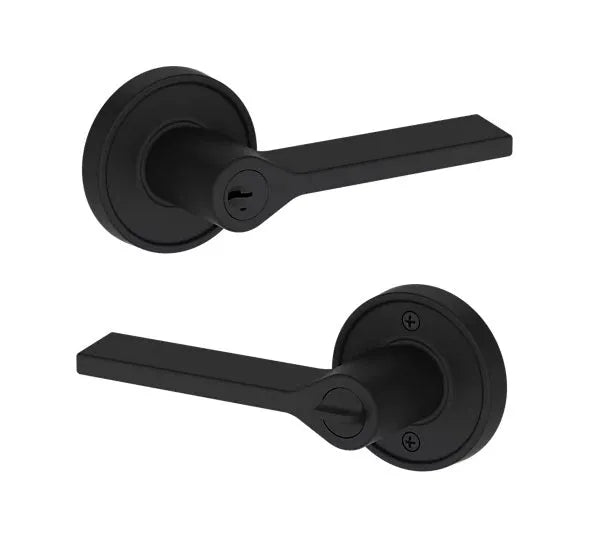

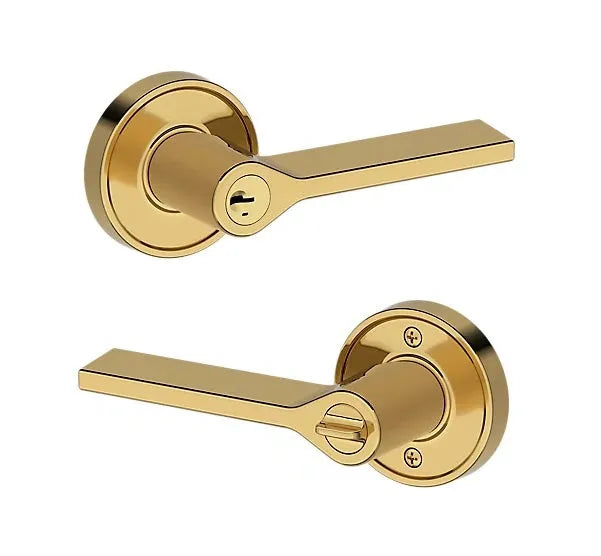

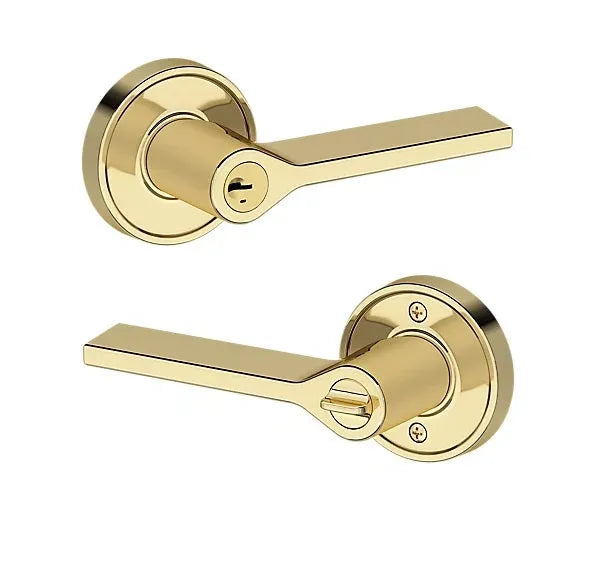

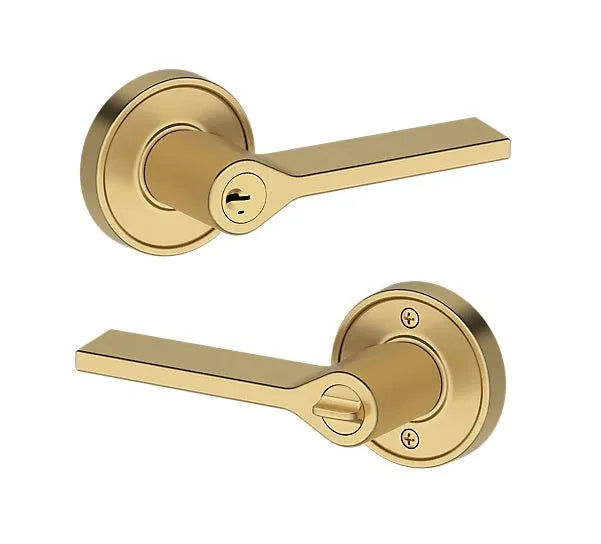

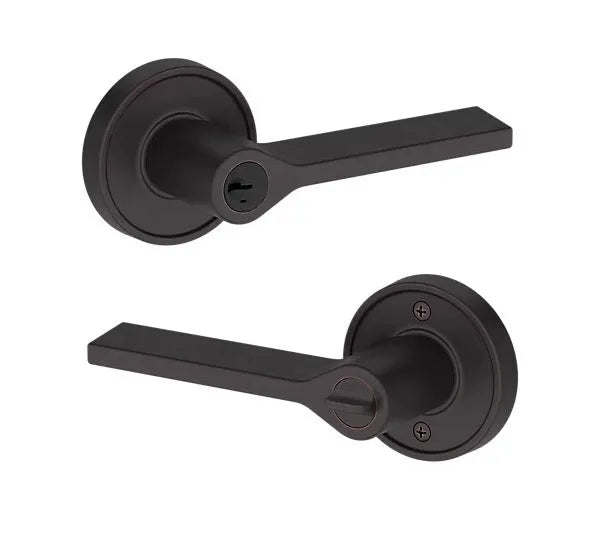

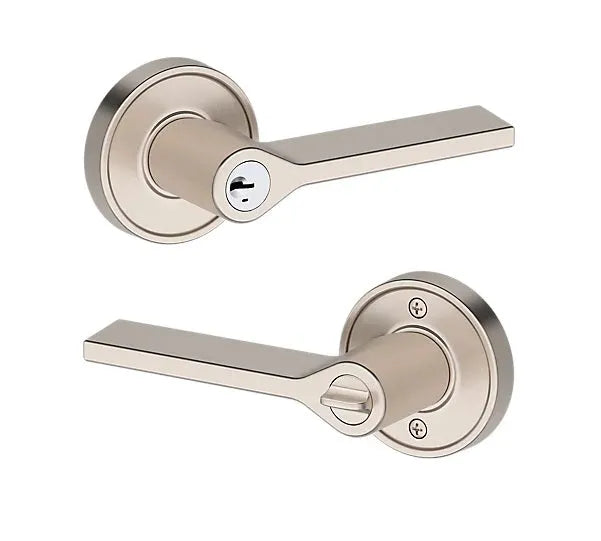

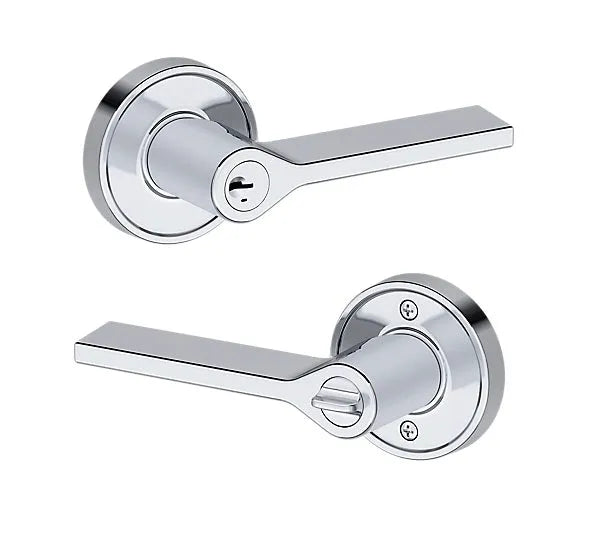

Keyed Entry Features
- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 9/16"
- Keyed Lever Interior Projection: 2 1/2"
- Keyed Lever Exterior Projection: 2 1/4"
- Lever Grip: 4 1/2"
- Rosette Diameter: 2 5/8"
