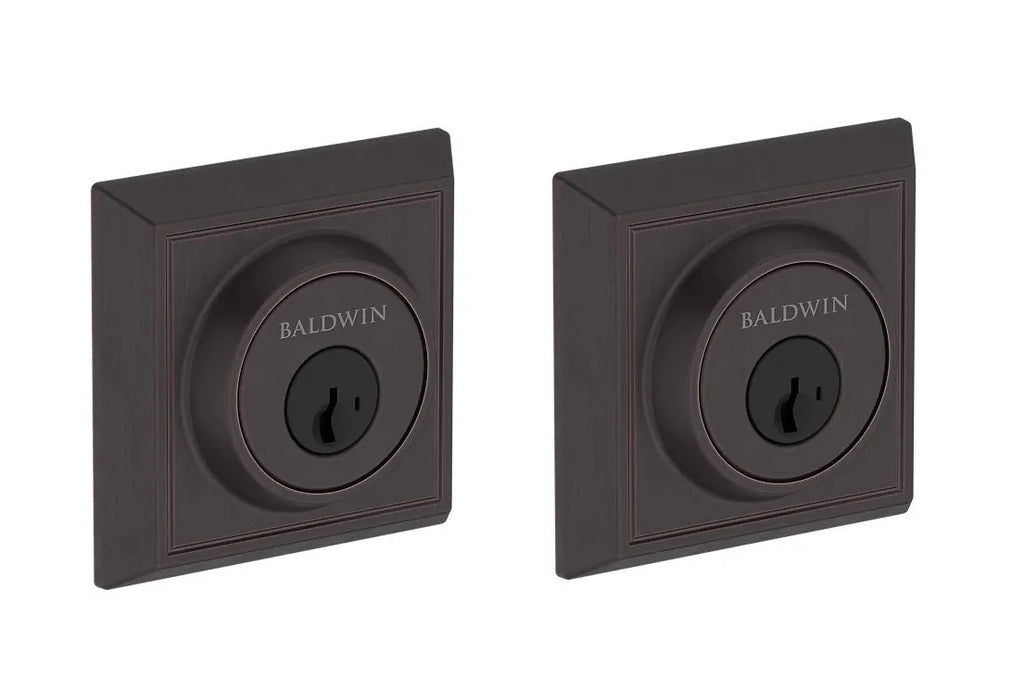

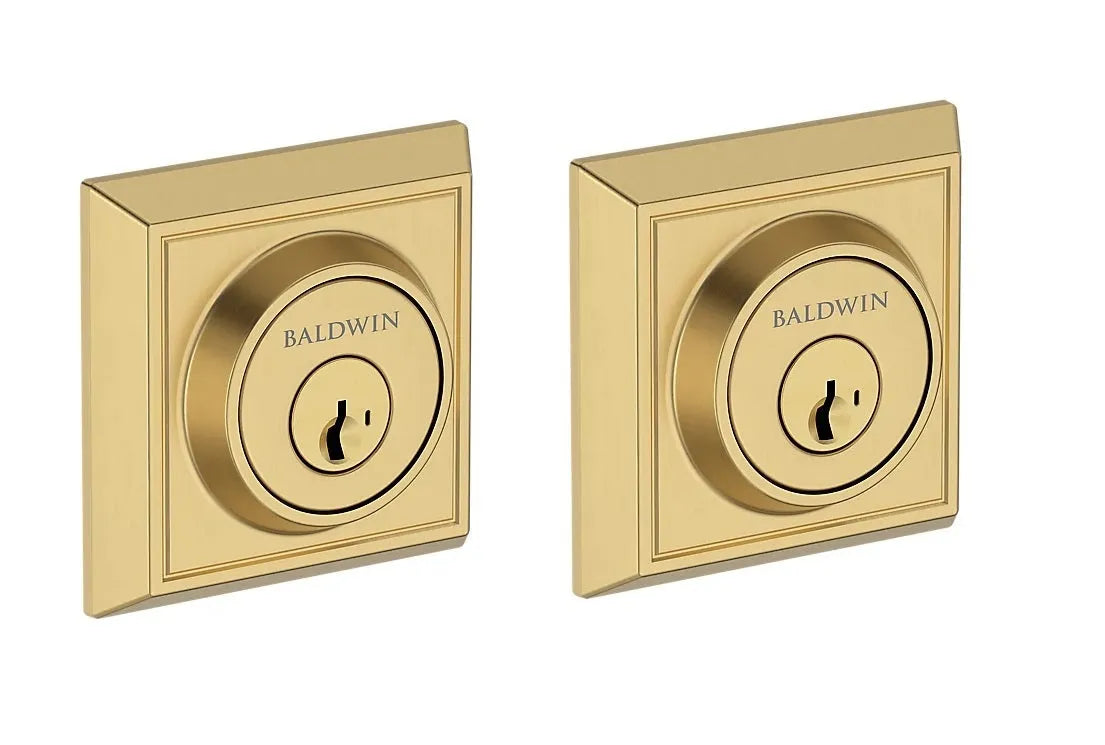

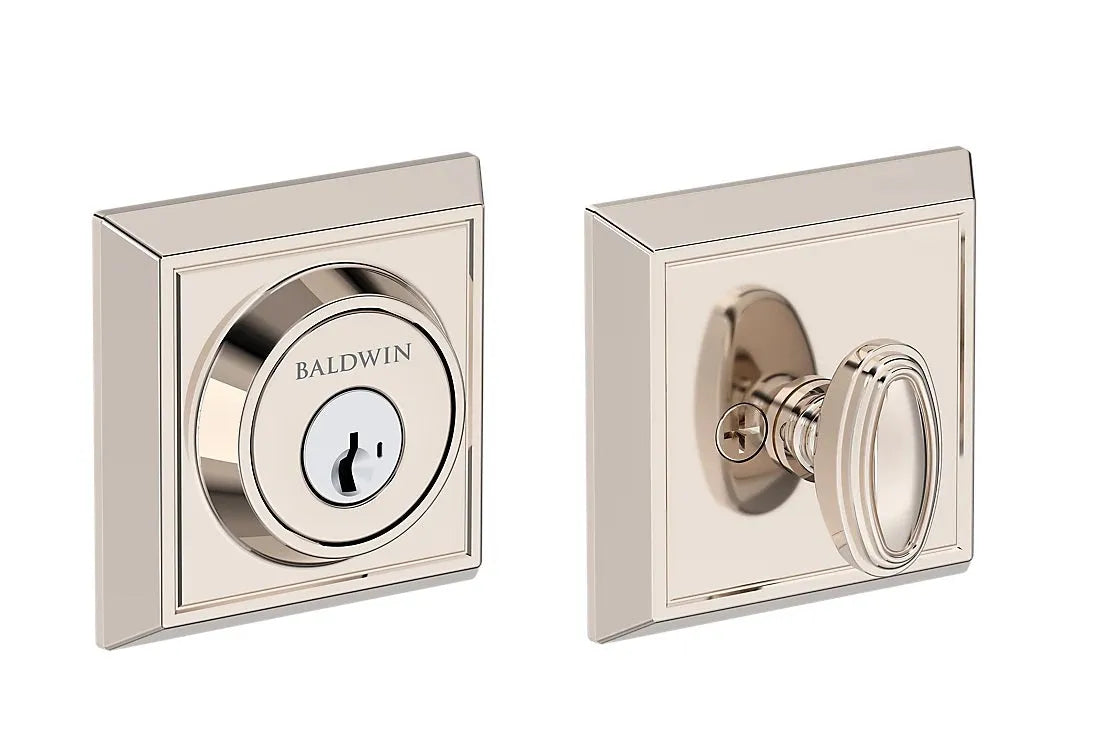

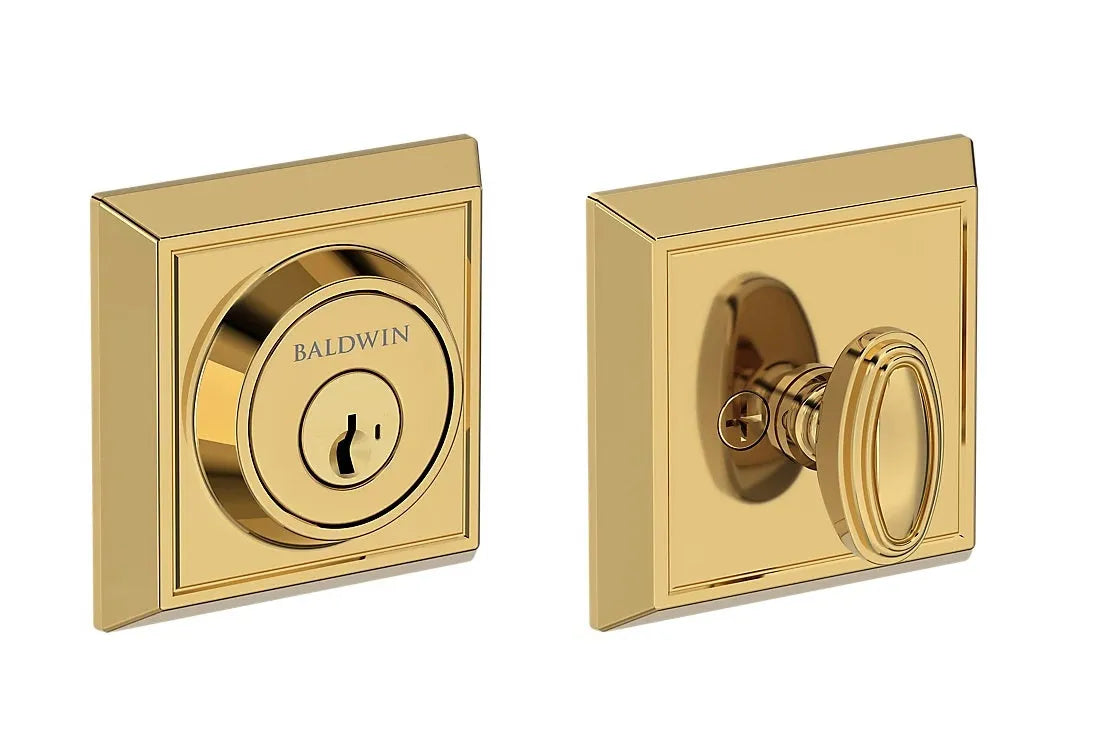

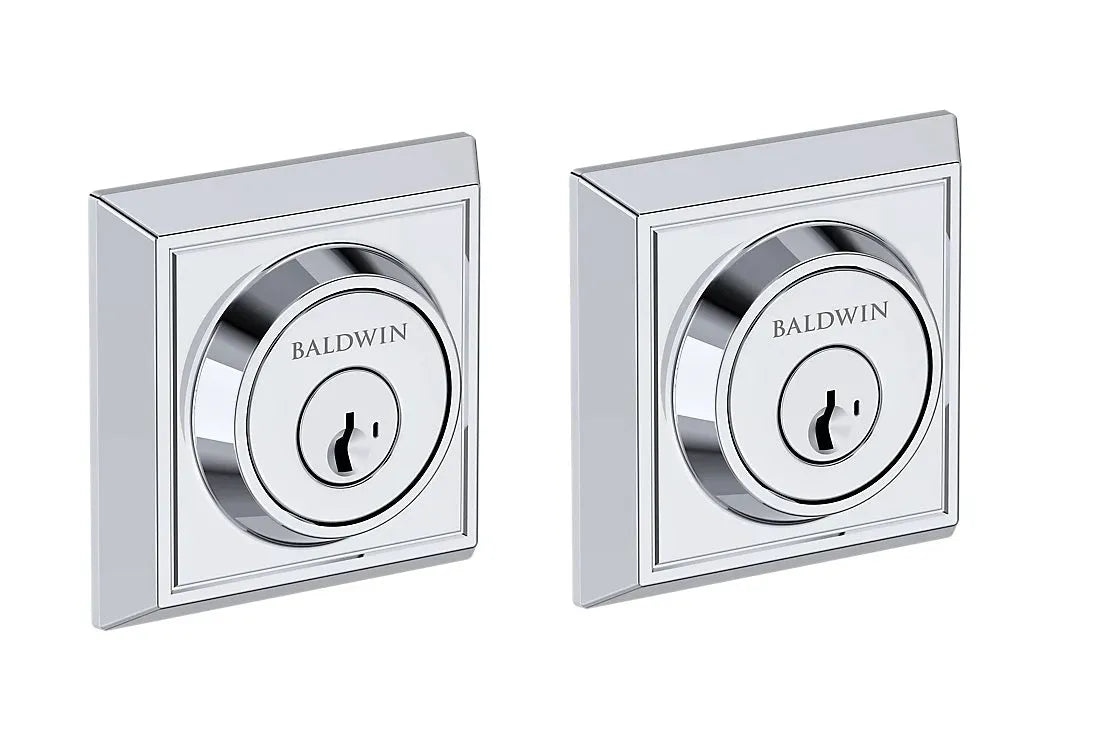

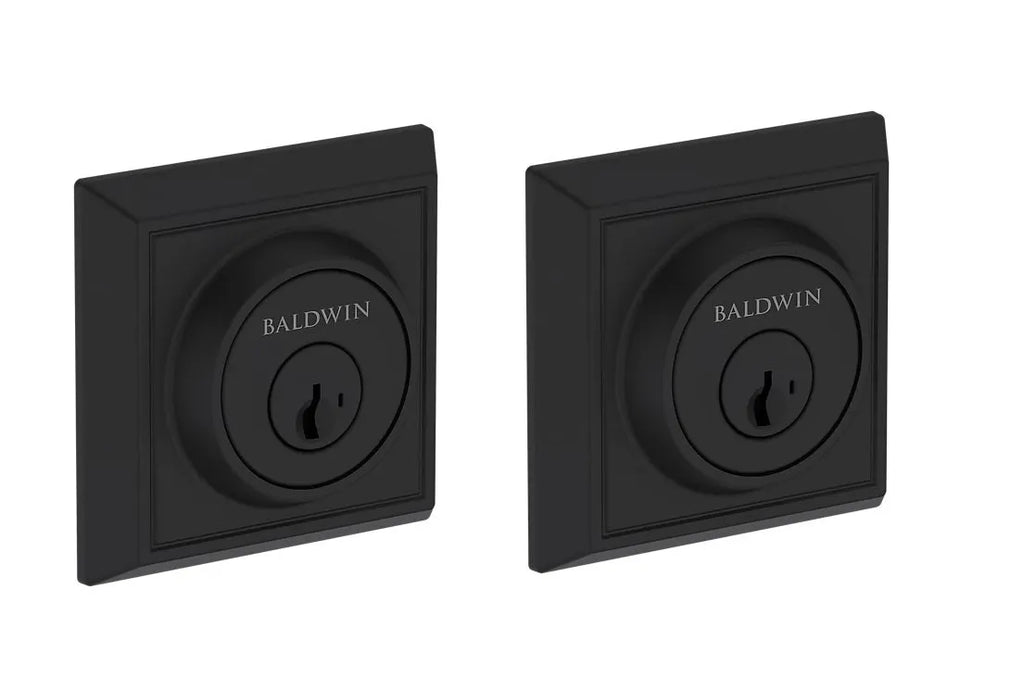

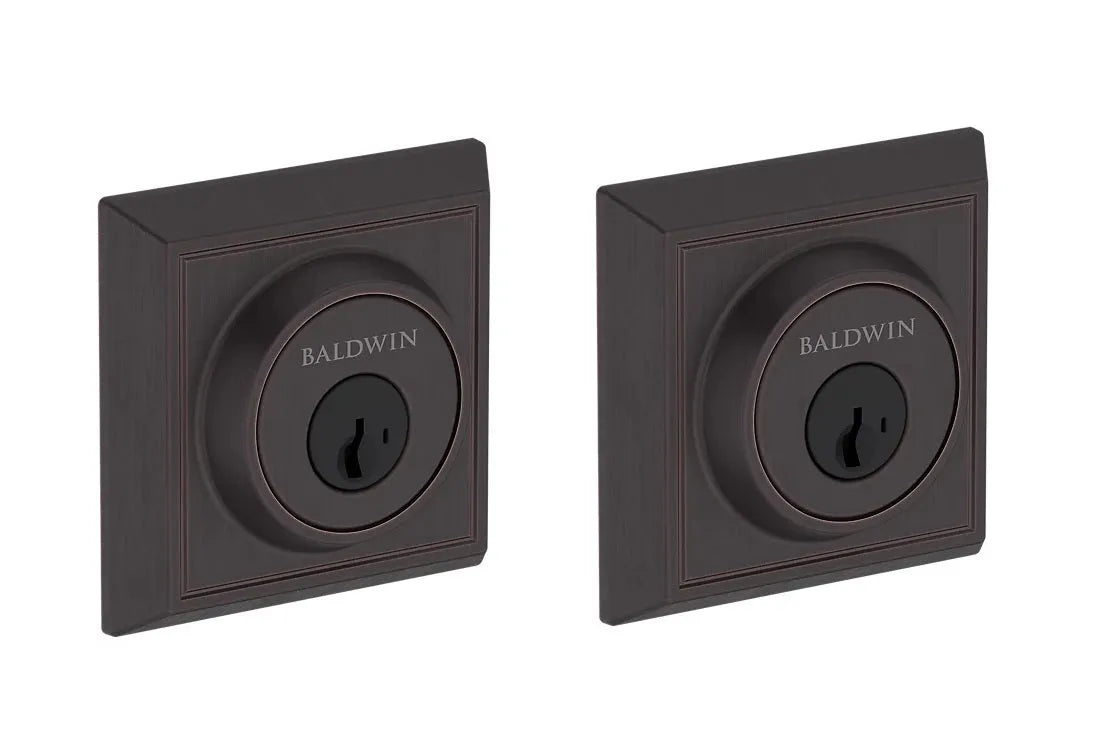

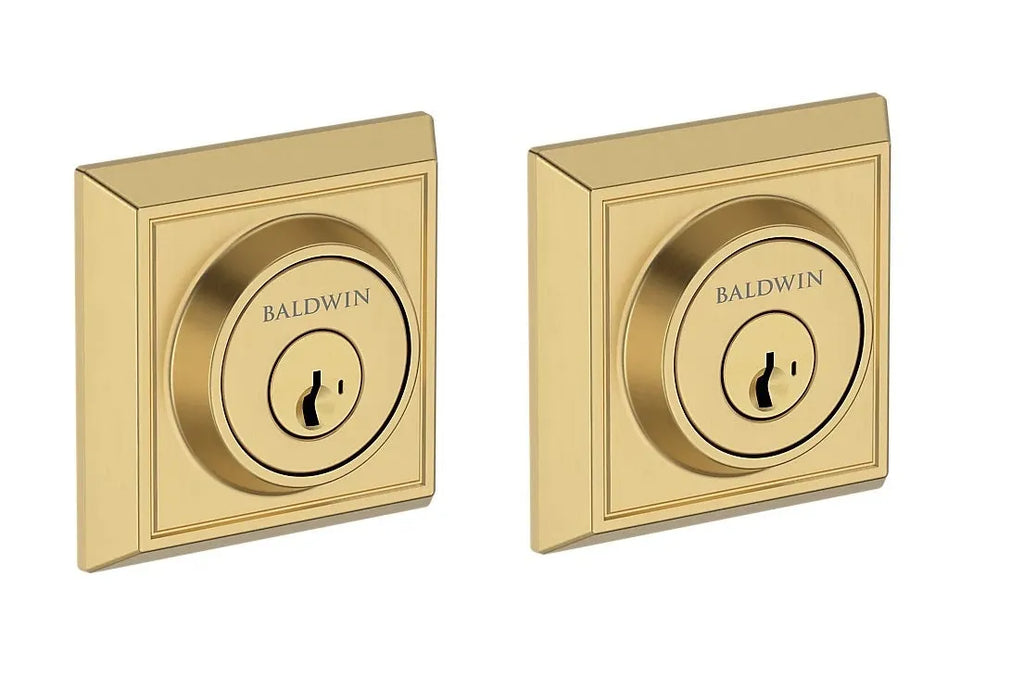

The Baldwin Chamfered Square Deadbolt is a masterclass in geometric precision. Unlike flat modern hardware, its edges are precision-angled to create a faceted "chamfered" border that adds sophisticated detail to any door. Forged from solid brass, this deadbolt offers the substantial weight and smooth mechanical operation that Baldwin is known for. It is engineered for maximum security, featuring a reinforced steel bolt and high-quality internal components that resist tampering. Available in several hand-polished finishes, this low-profile deadbolt is the perfect architectural accent for contemporary homes seeking a bold, upscale look.
Features
- The combination of Reserve style and the security of a keyed cylinder

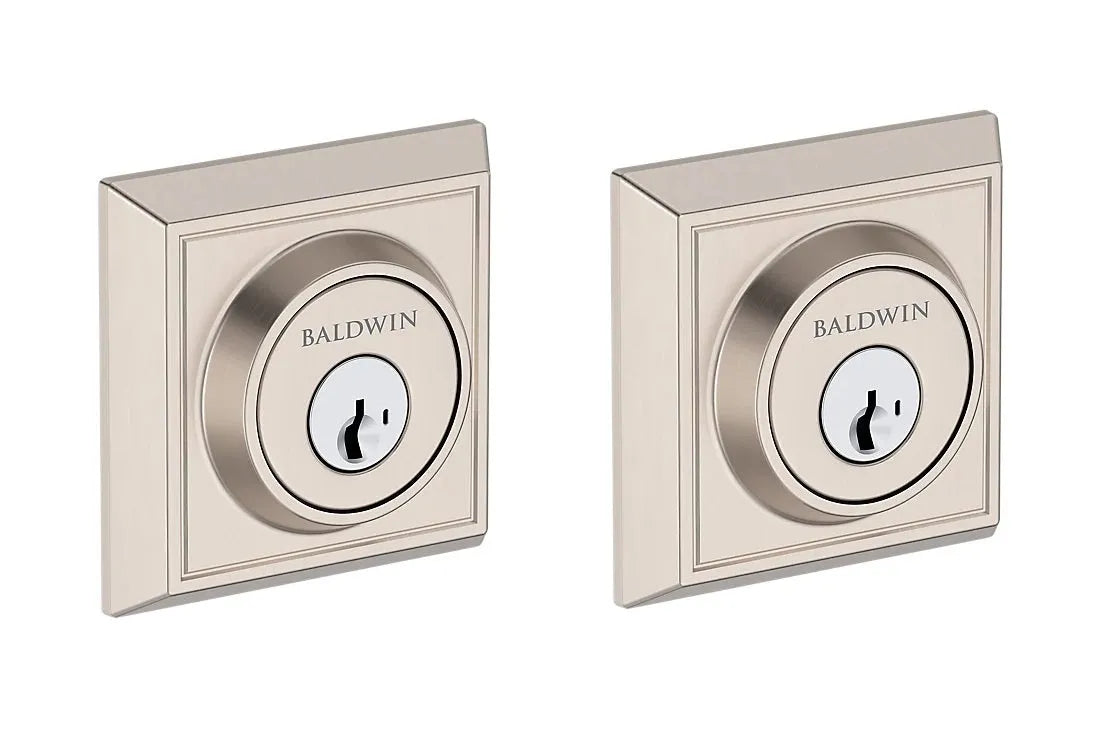

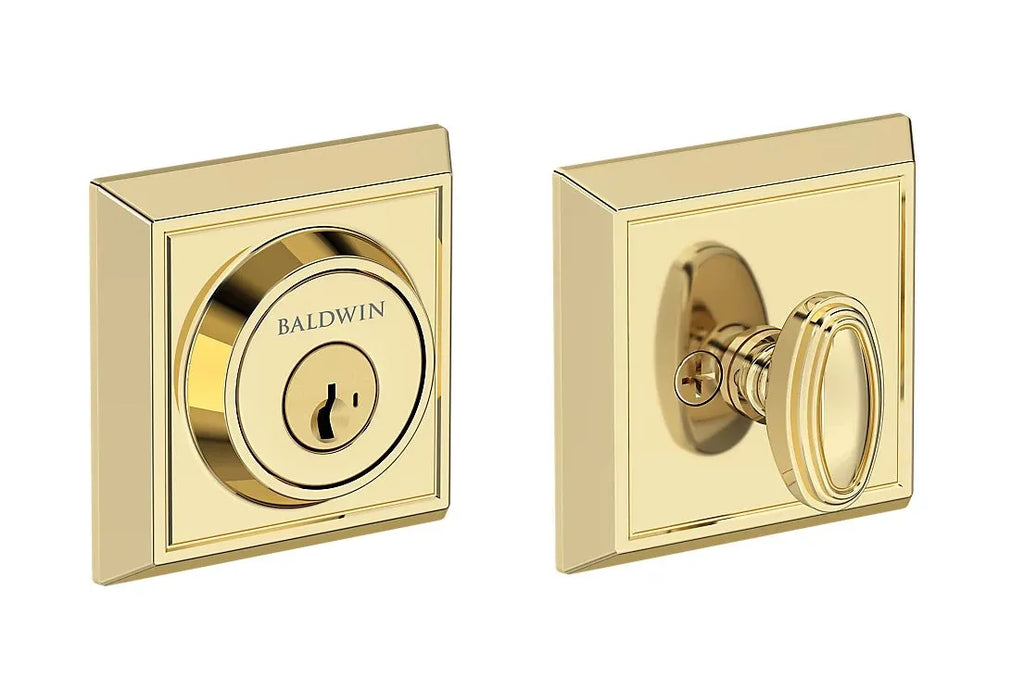

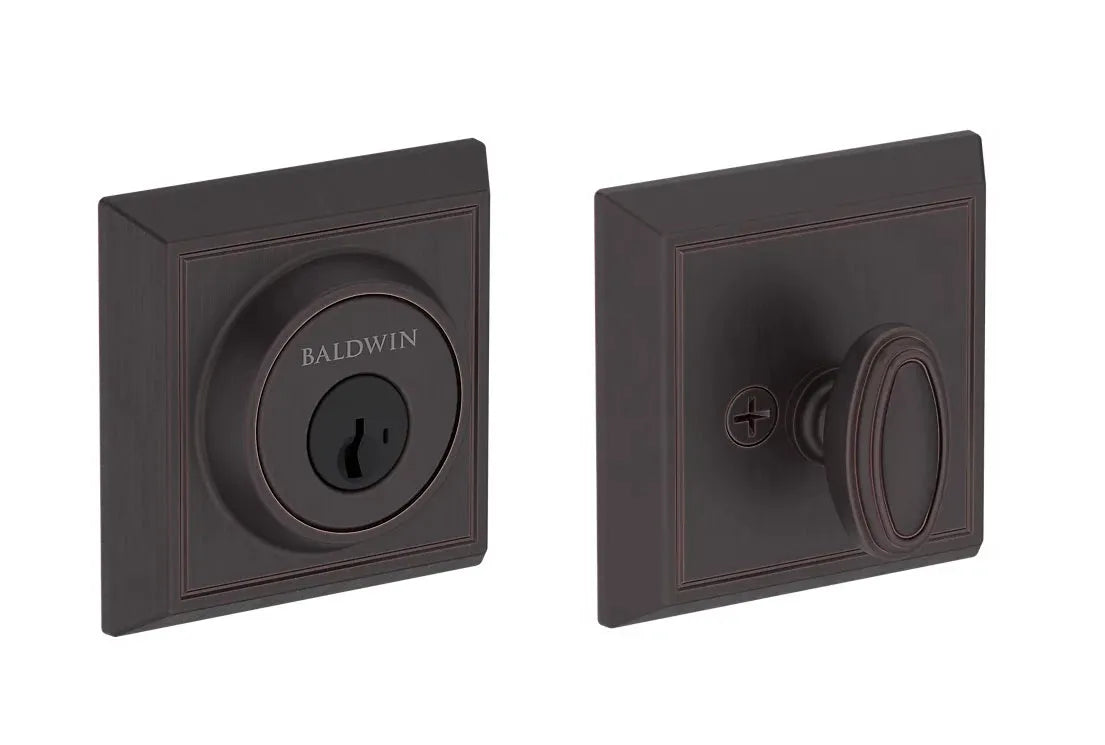

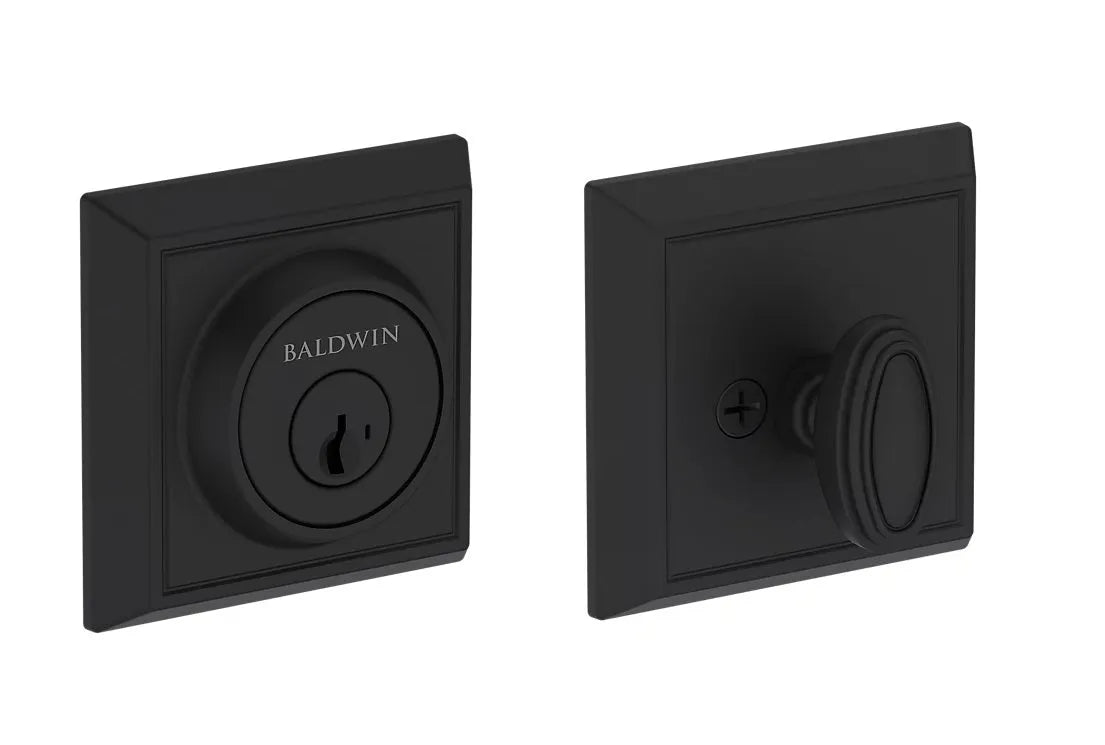

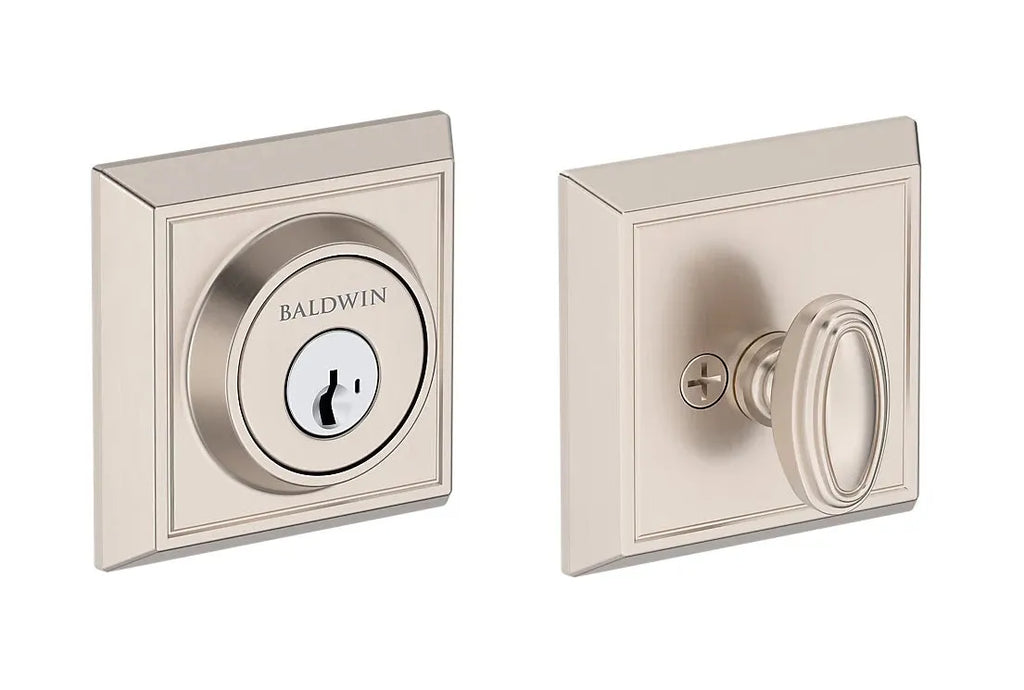

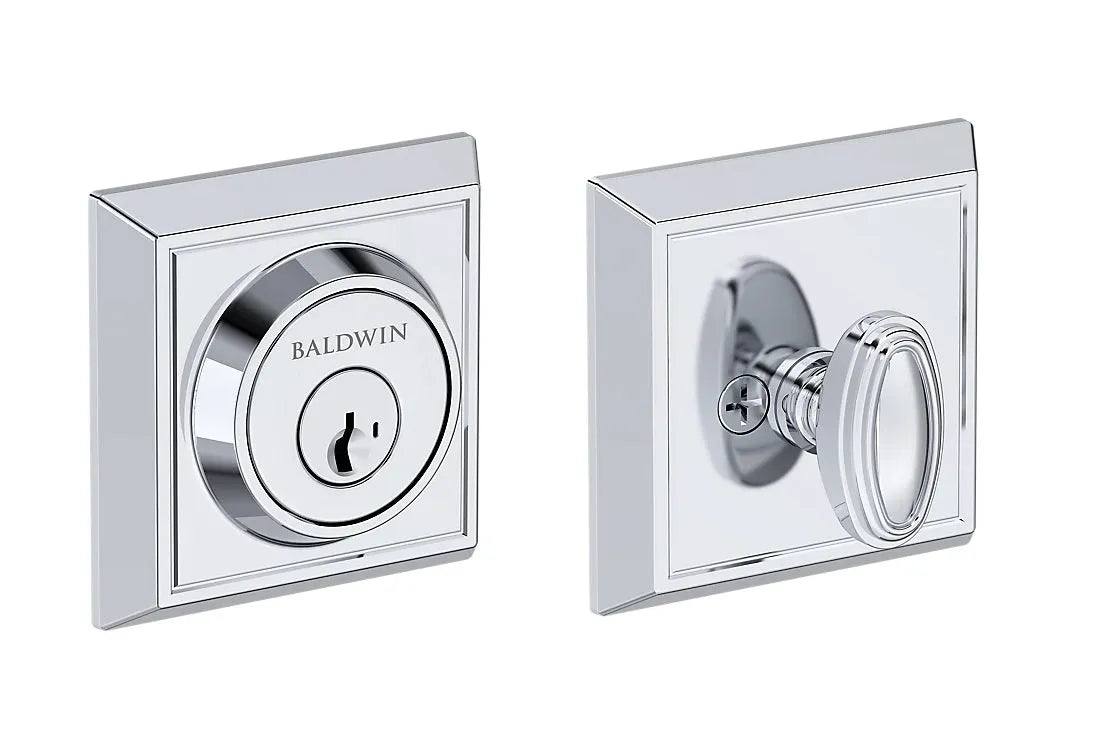

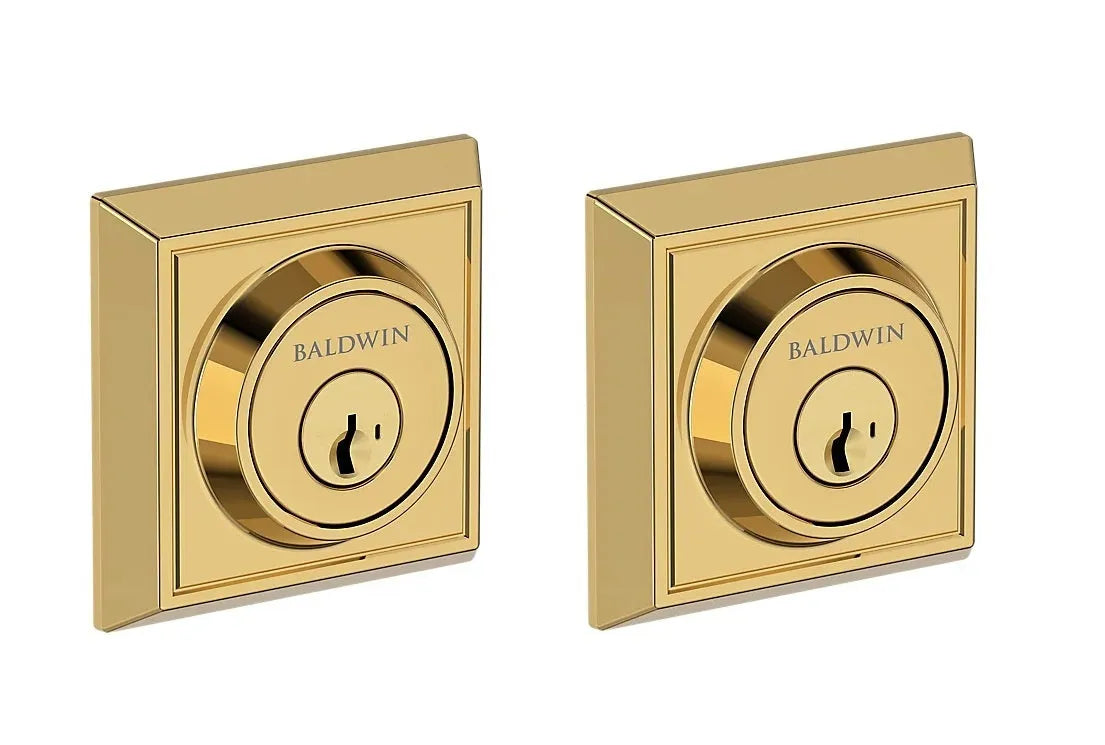

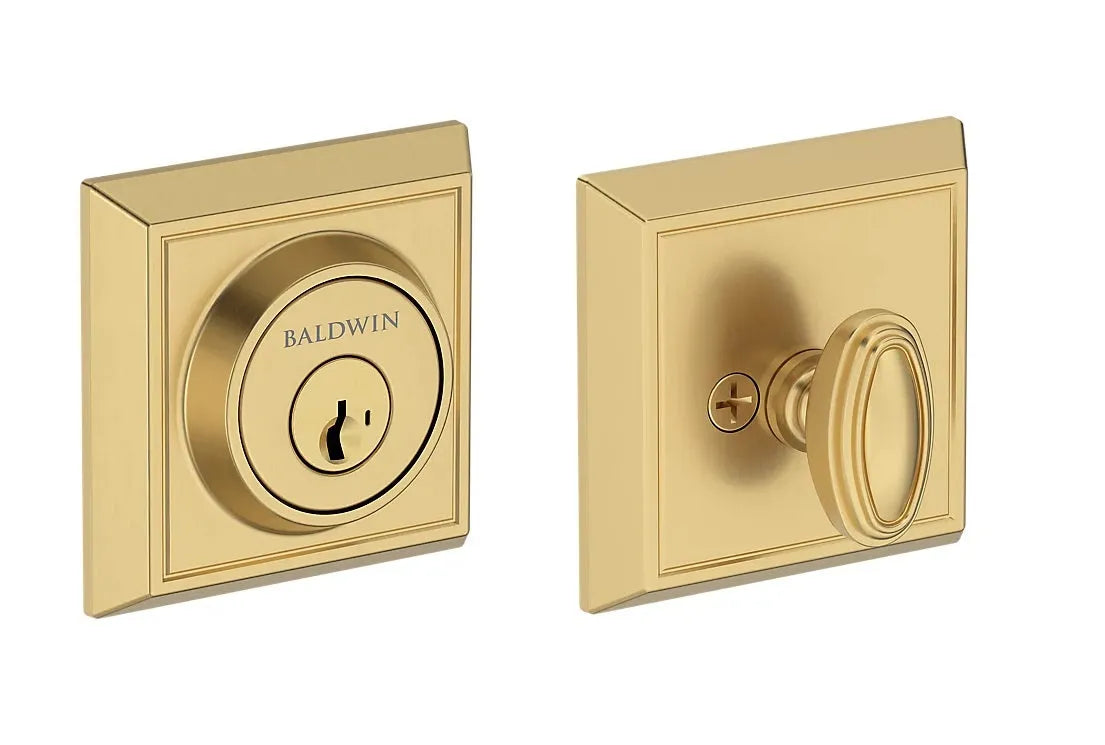

- Single Cylinder locking mechanism functions with turn piece on the interior of the lock. Double Cylinder is keyed on both sides.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit. 1 3/8" to 1 3/4" doors available through Thin Door Service Part Kit.
- Complete deadbolt set includes everything needed to install the lock onto your door.
- Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
- 2 Keys Included with deadbolt
- Tested to exceed ANSI/BHMA Grade 2 security
- Note: Interior roses have exposed fasteners
Specifications
- Exterior Dimensions: 2 11/16" x 2 11/16"
- Exterior Projection: 3/4"
- Interior Dimensions: 2 11/16" x 2 11/16"
- Single Cylinder Interior Projection: 1 7/16"
- Double Cylinder Interior Projection: 3/4"
