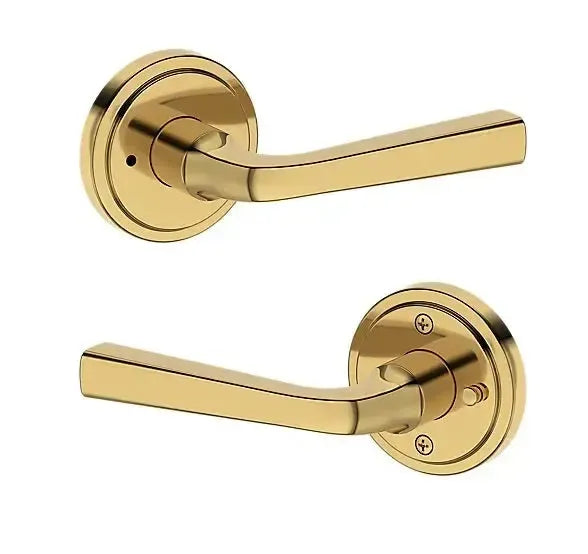

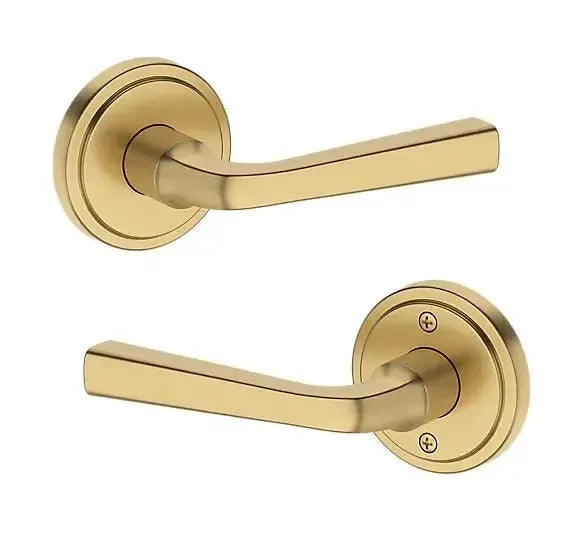

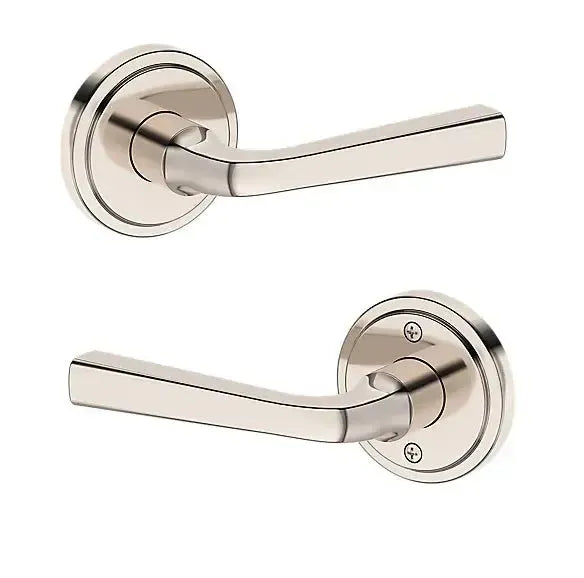

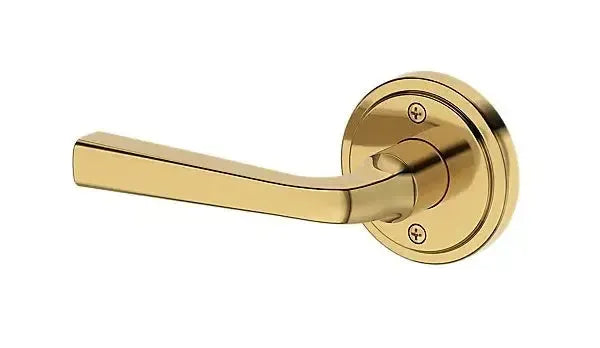

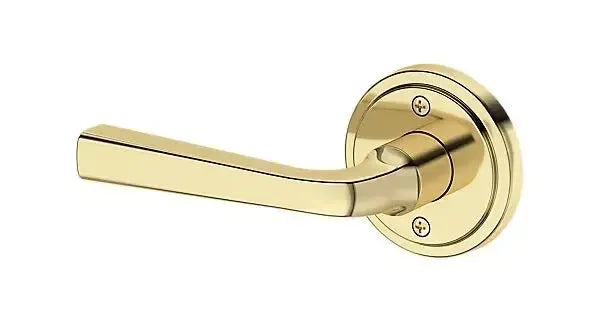

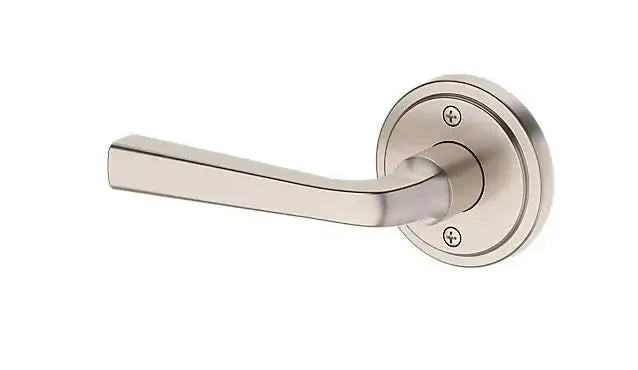

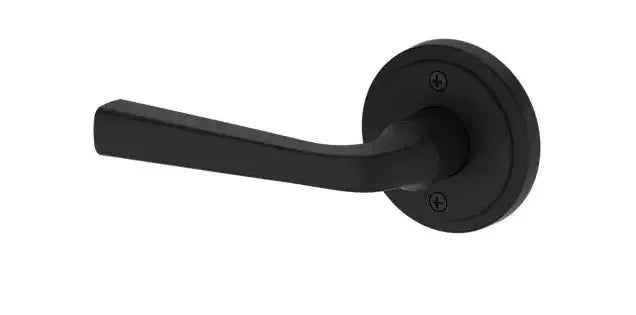

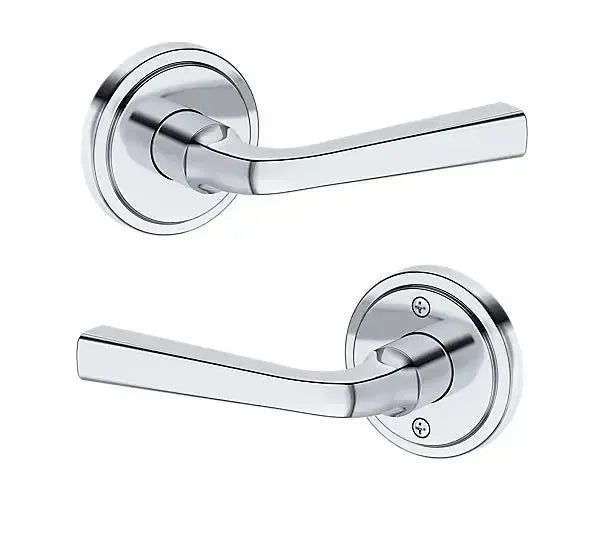

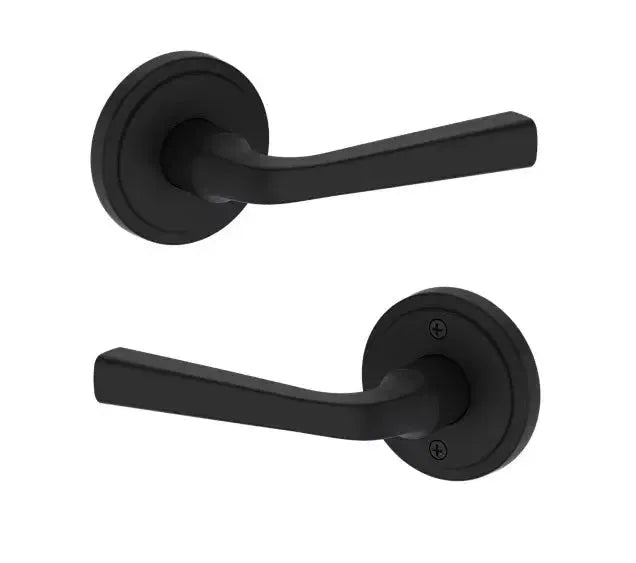

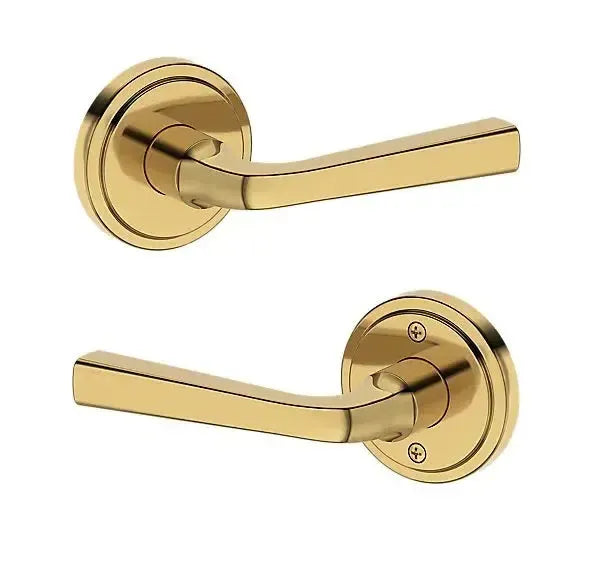

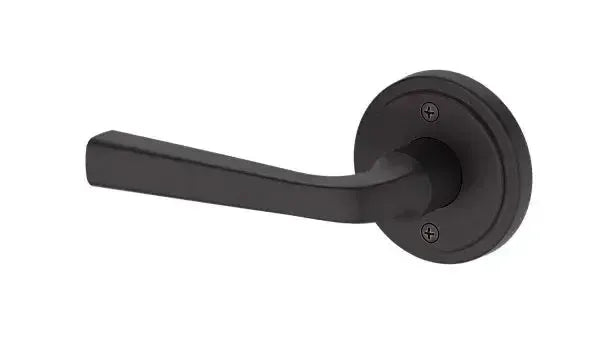

The Baldwin Reserve Kingvale Lever with Stepped Round Rosette is understated and confident. Kingvale’s gentle curve and flat edge strike a modern balance that feels sleek, simple, and ready to elevate any space with quiet strength. A perfect choice for transitional spaces with a touch of traditional flair.

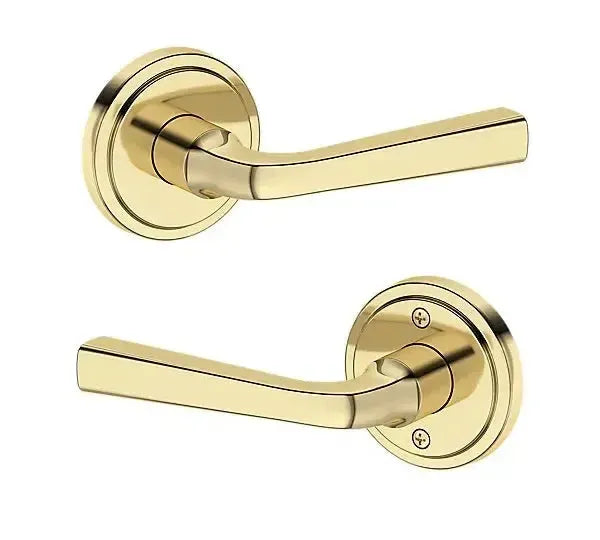

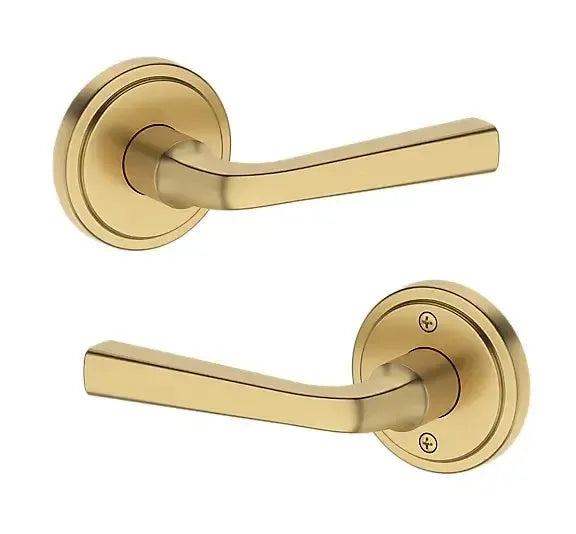

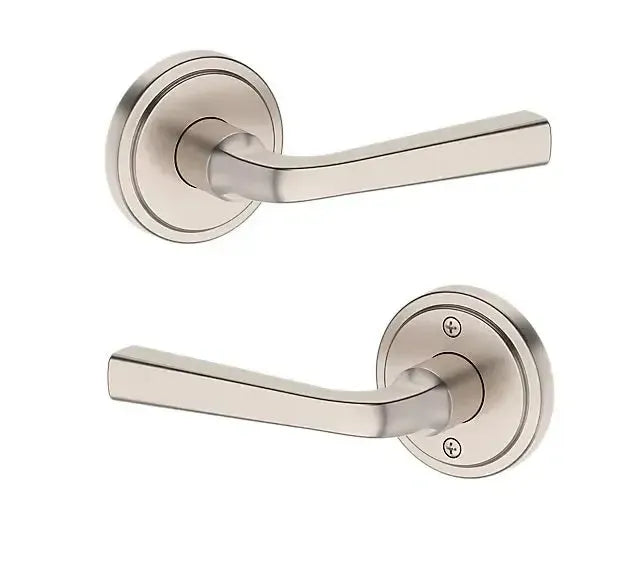

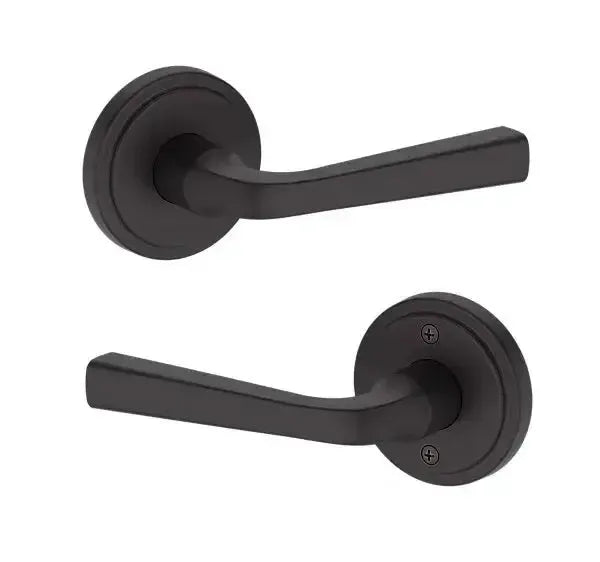

Passage Features
- Lever set paired with roses without a privacy lock.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

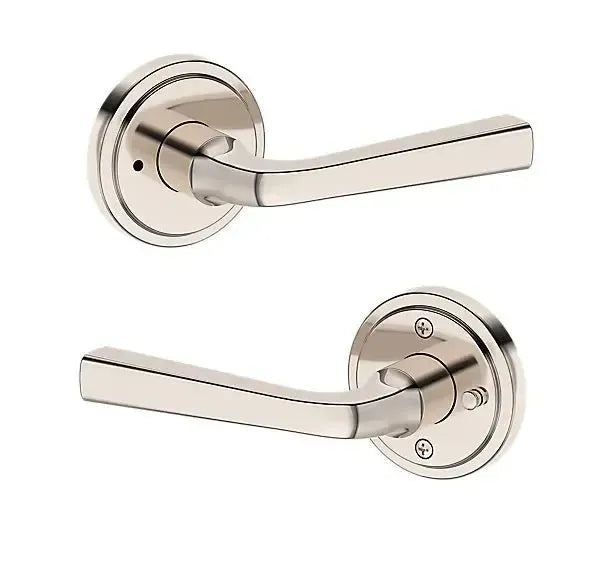

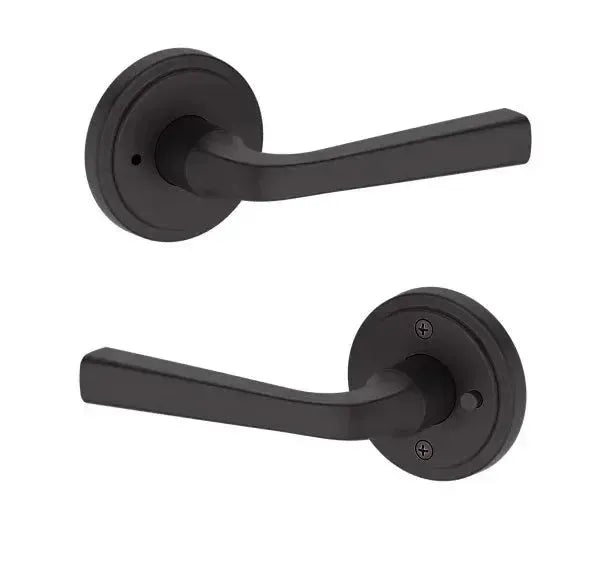

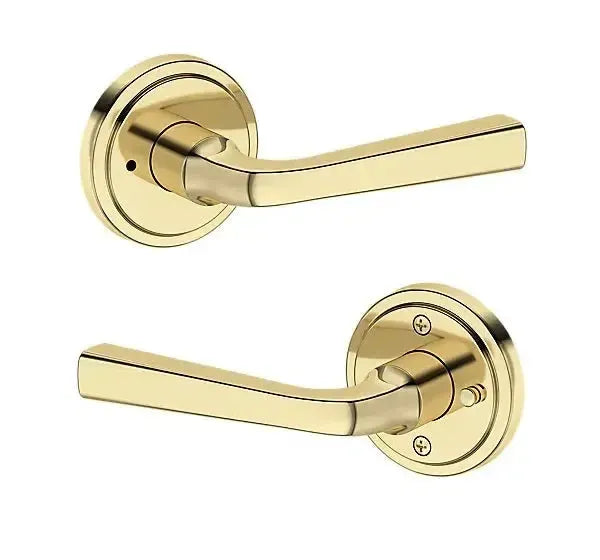

Privacy Features

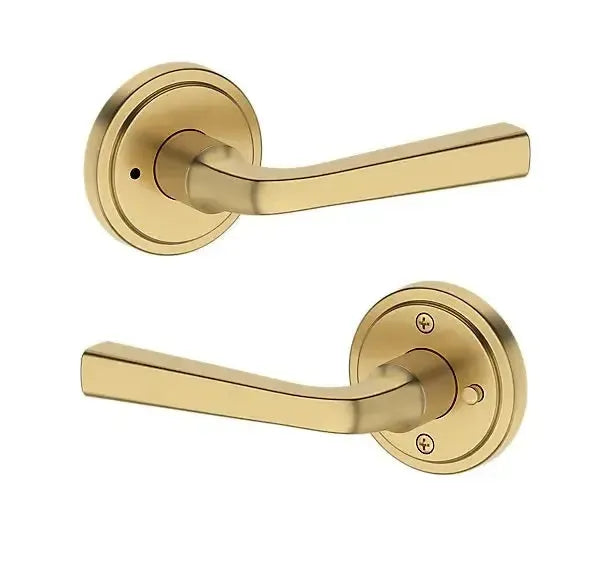

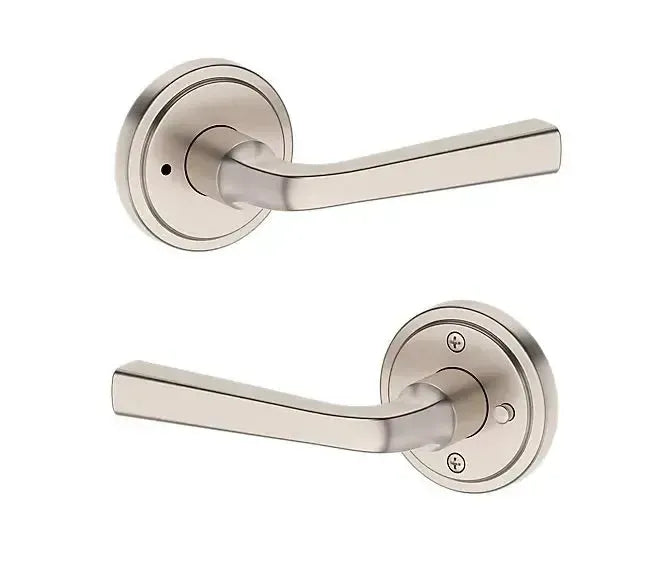

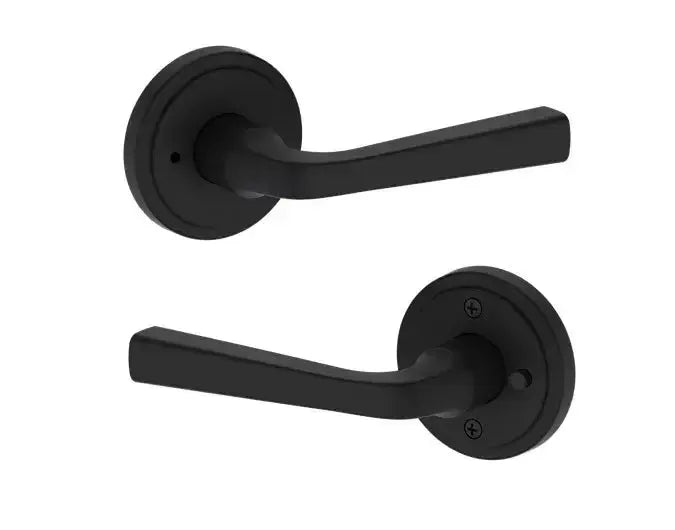

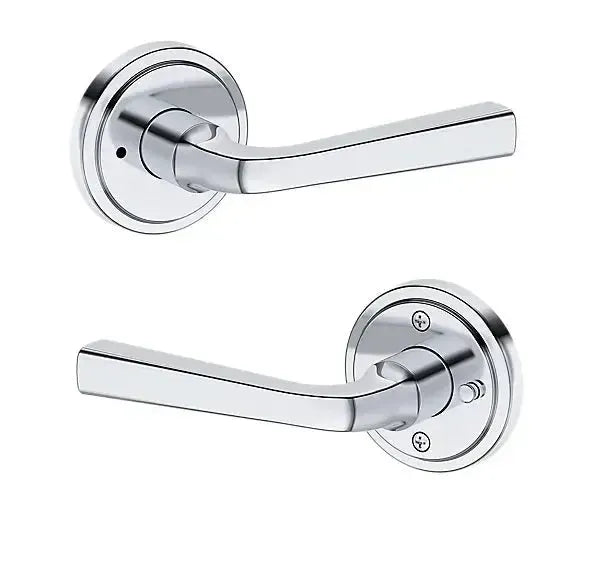

- Lever set paired with roses with a push button privacy locking feature.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Reversible Handing

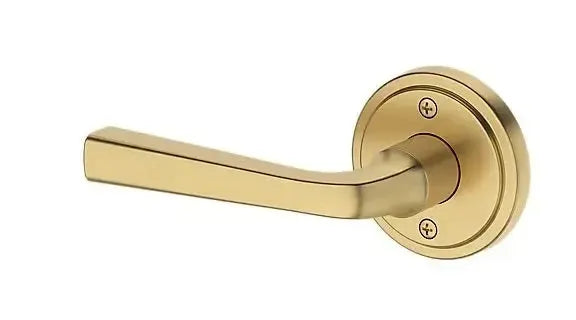

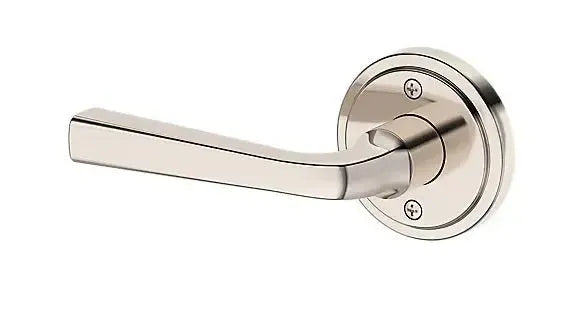

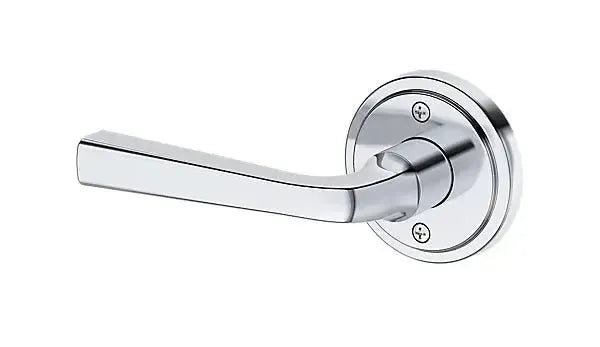

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Reversible Handing
Specifications
- Projection: 2 3/4"
- Lever Grip: 4 3/8"
- Rosette Diameter: 2 3/4"
