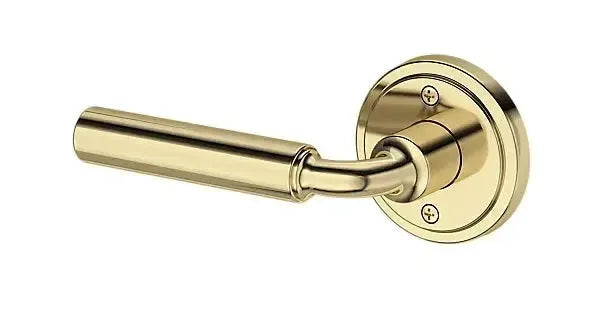

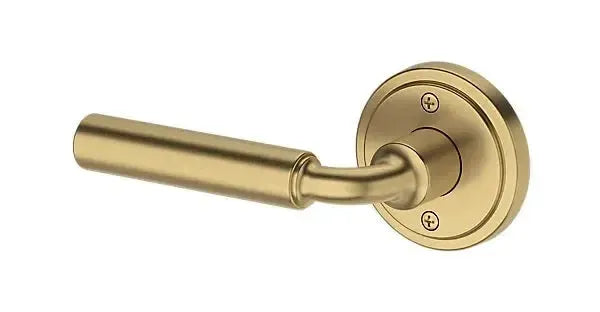

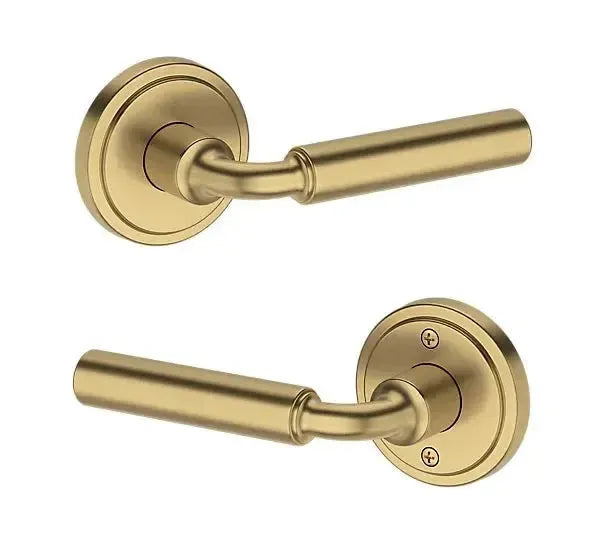

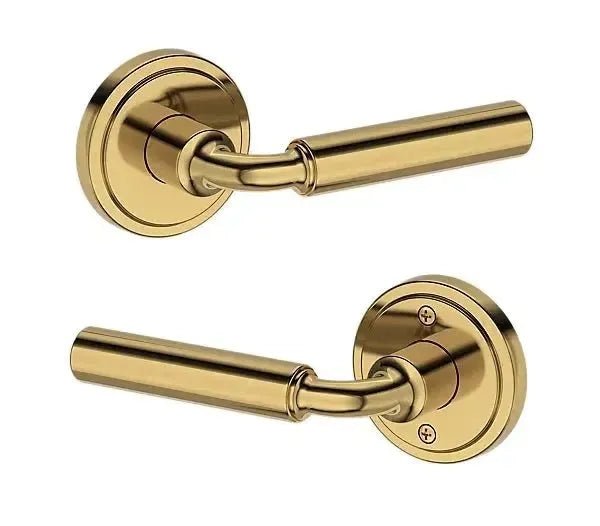

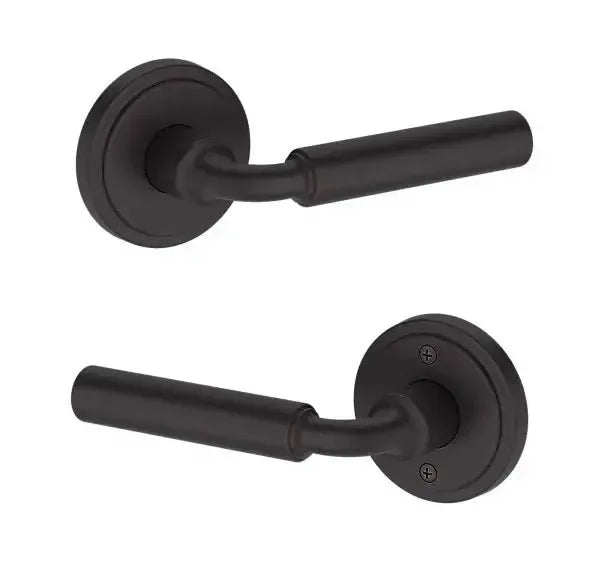

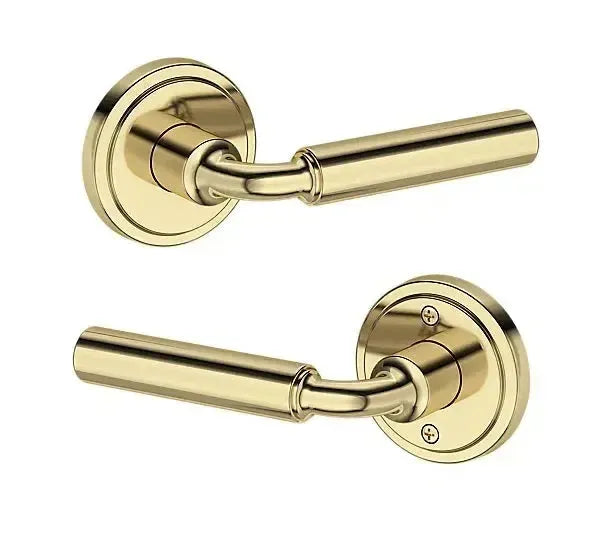

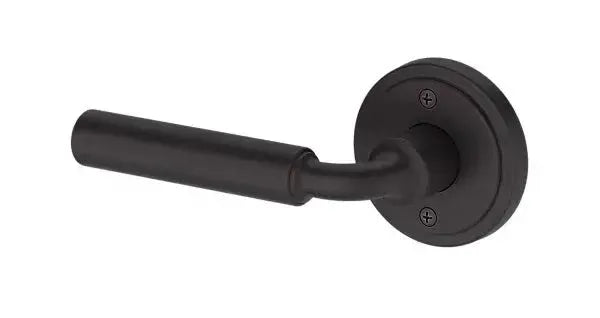

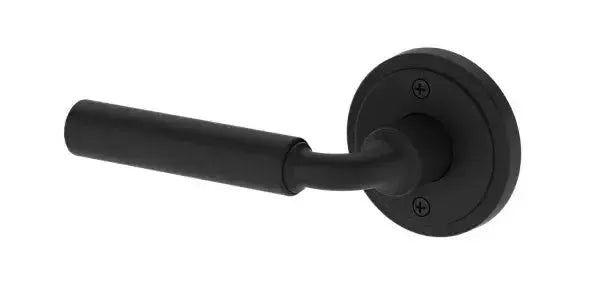

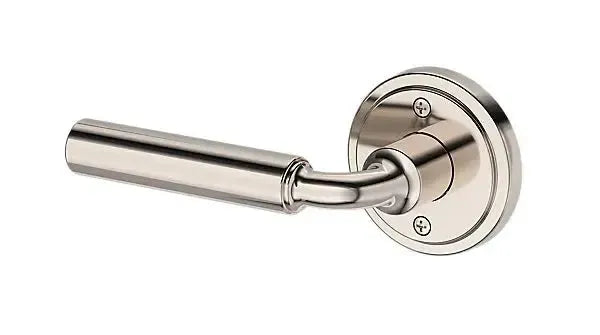

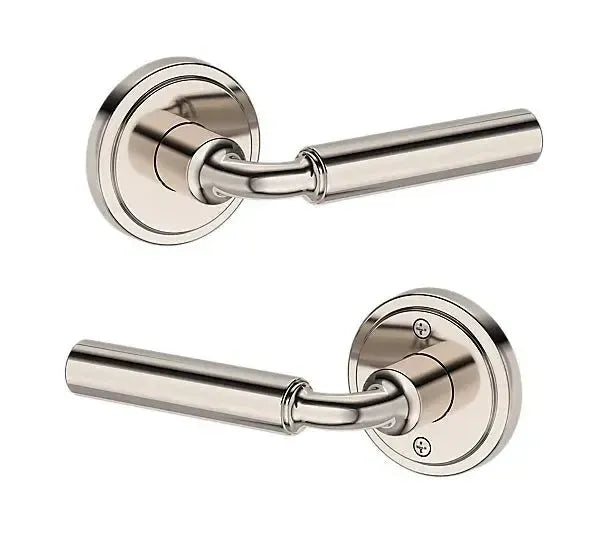

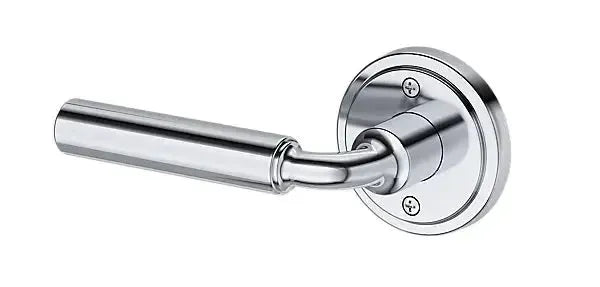

Crafted from solid brass and built to last, the Baldwin Reserve La Connor lever is made for real life. Refined with a modern twist, La Conner features a clean cylindrical shape and thoughtful detailing that brings just the right amount of edge to a timeless form.

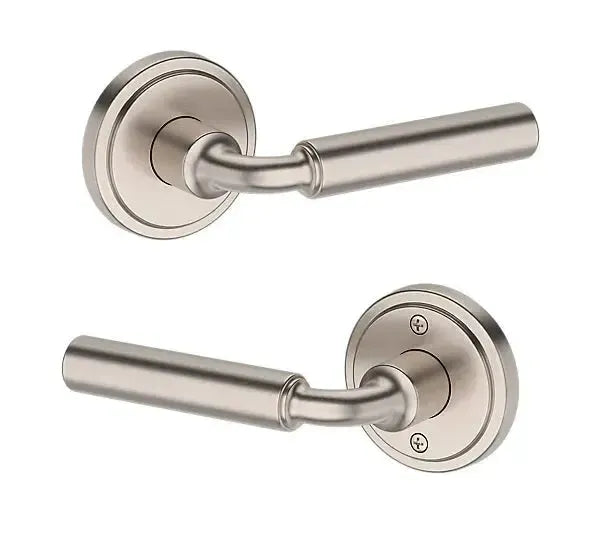

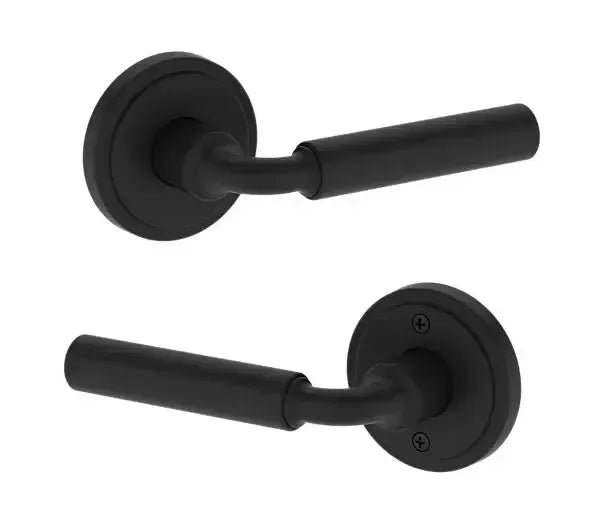

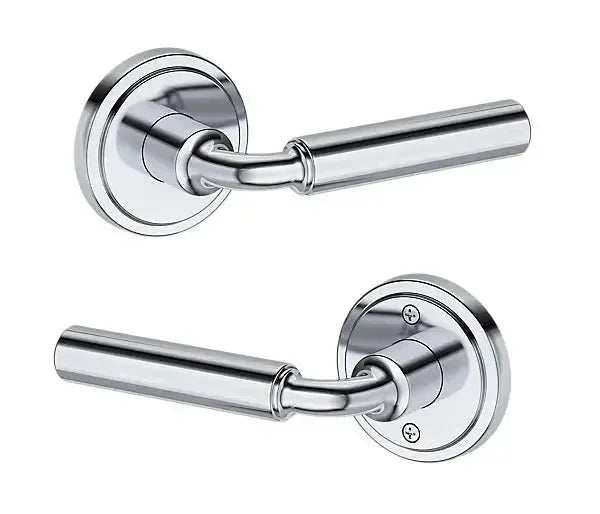

Passage Features
- Lever set paired with roses without a privacy lock.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

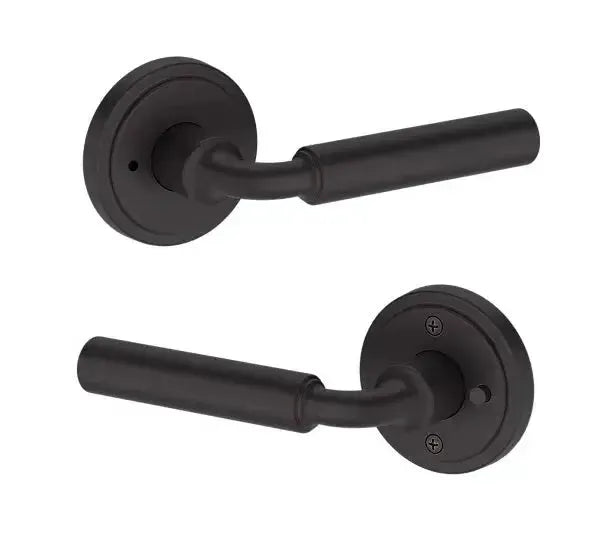

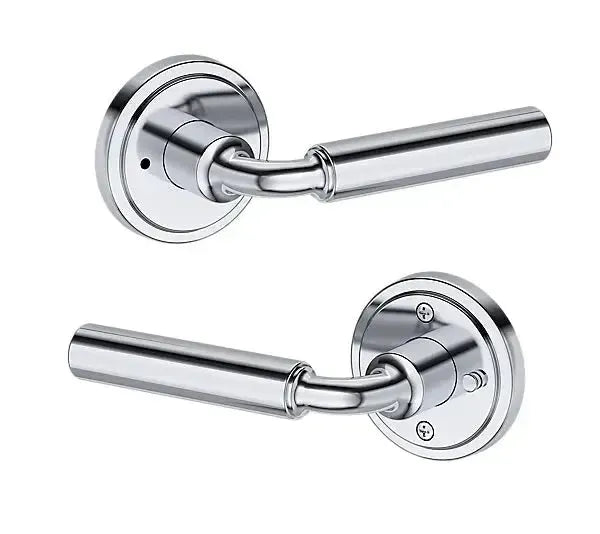

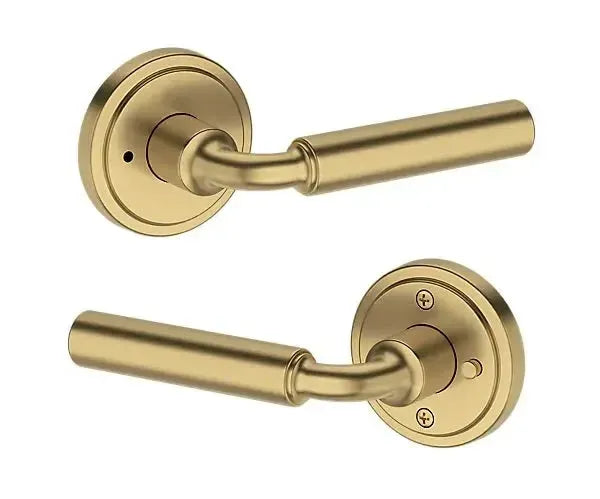

Privacy Features

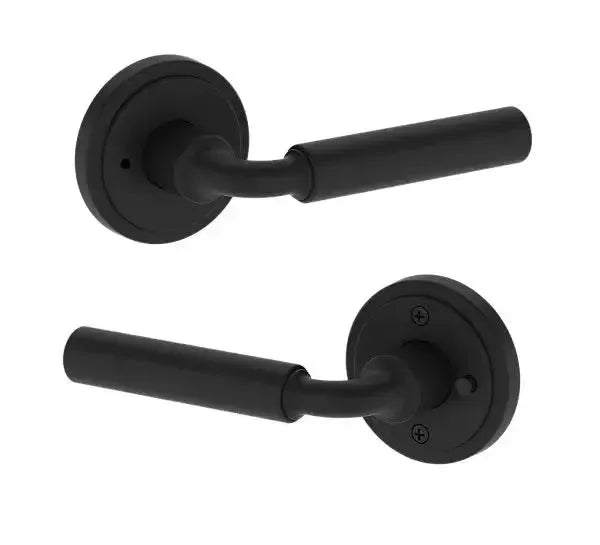

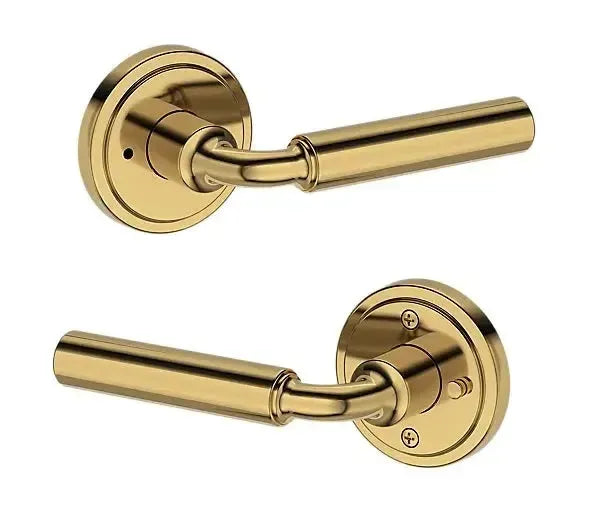

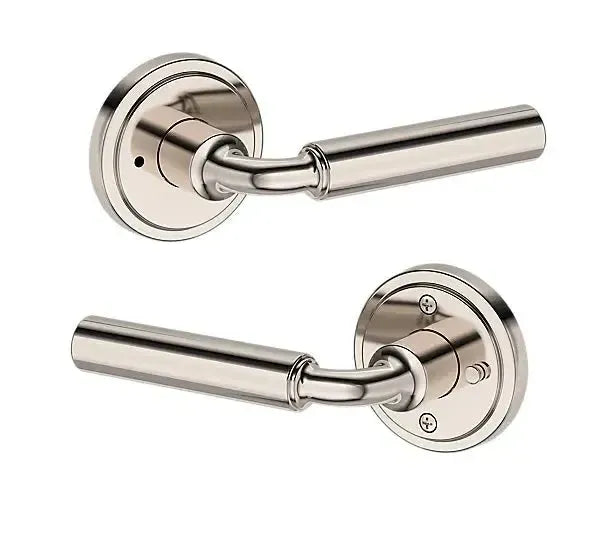

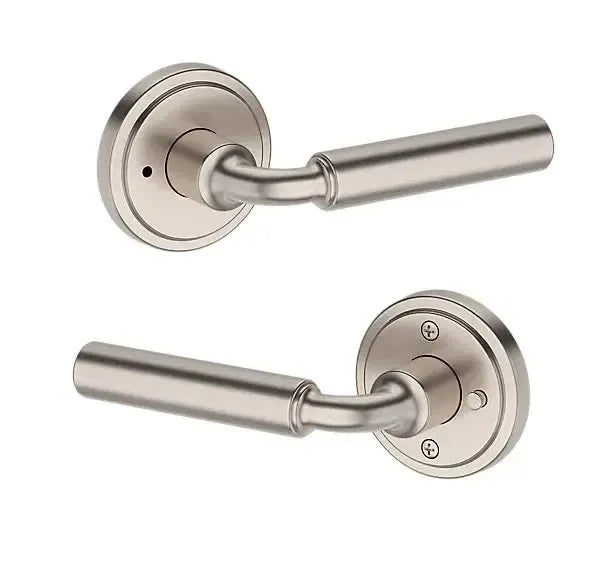

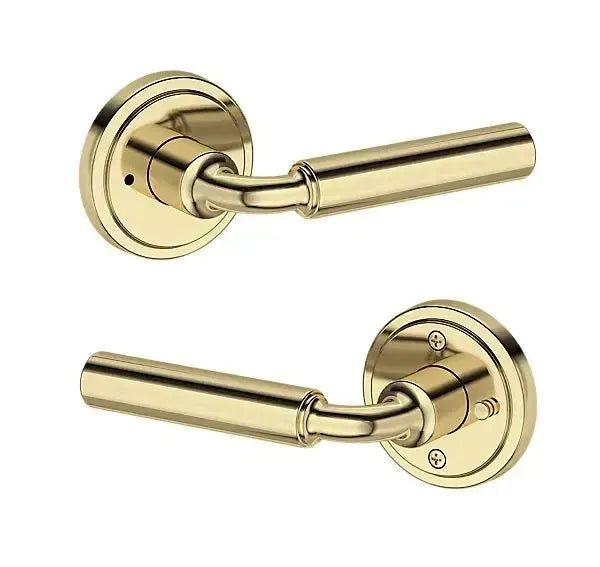

- Lever set paired with roses with a privacy push button locking feature.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Reversible Handing

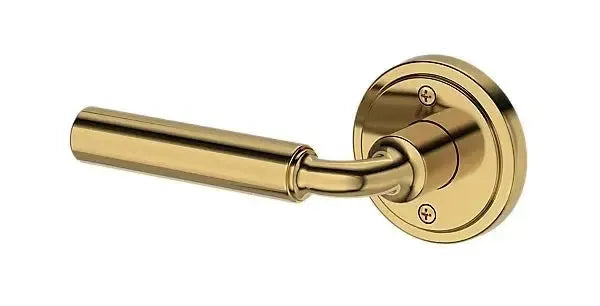

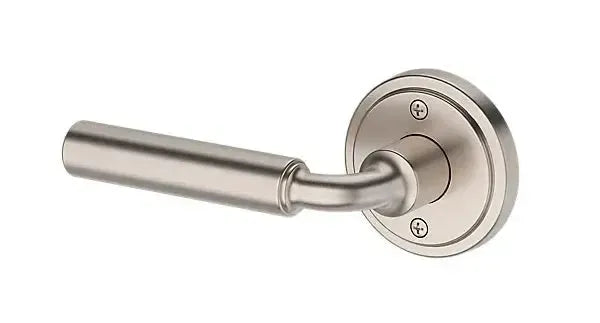

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Reversible Handing
Specifications
- Projection: 2 5/8"
- Lever Grip: 4 13/16"
- Rosette Diameter: 2 3/4"
