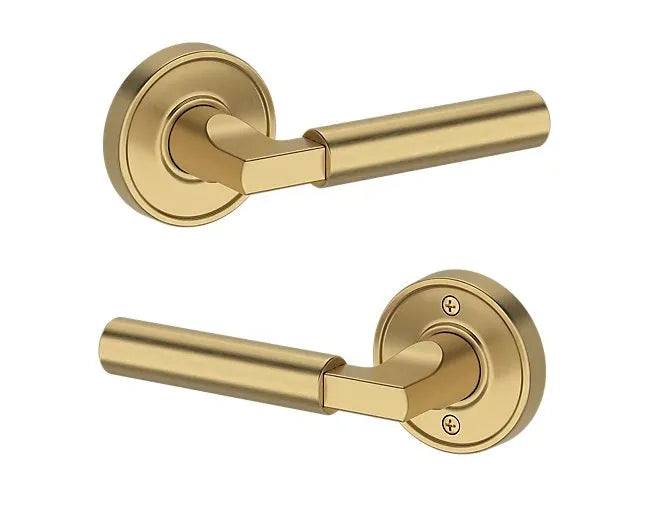

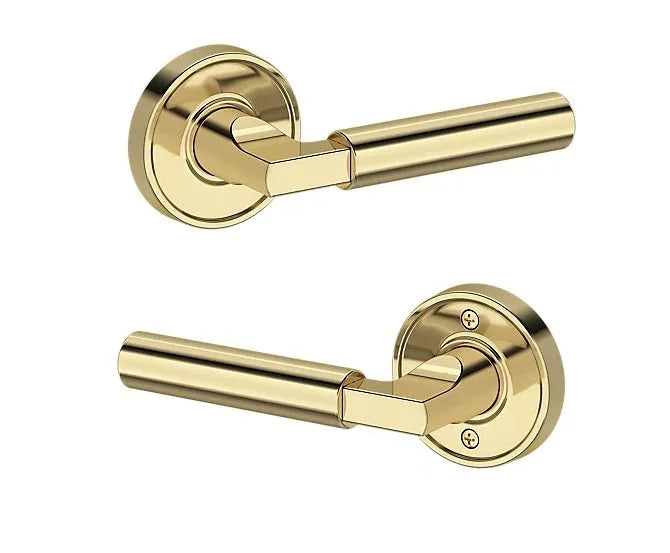

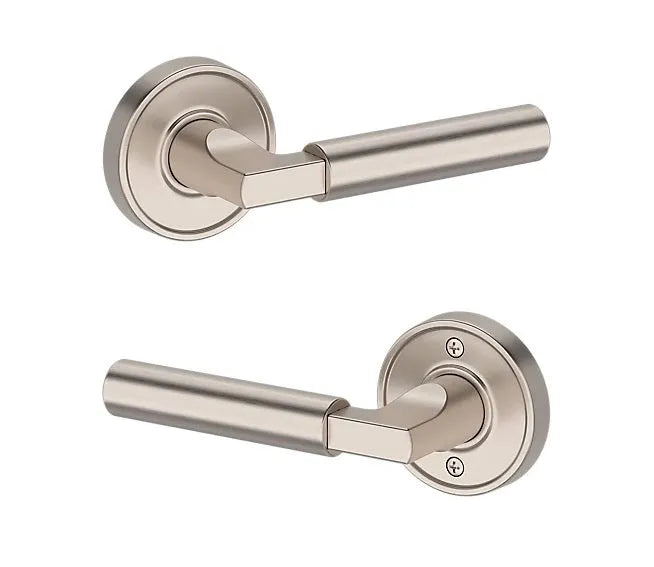

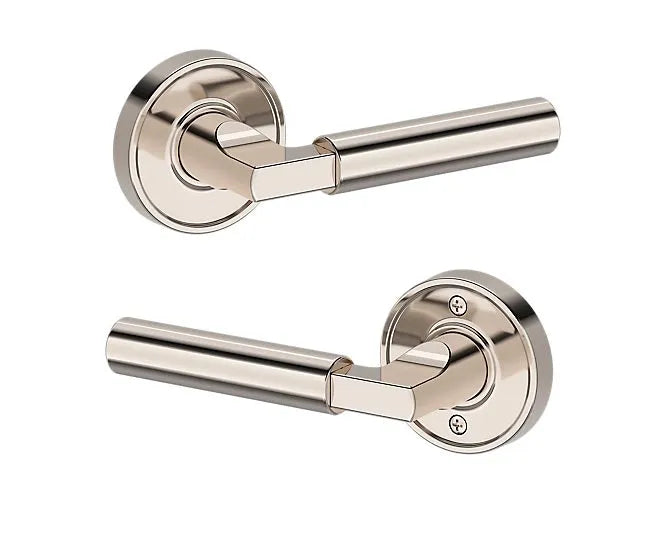

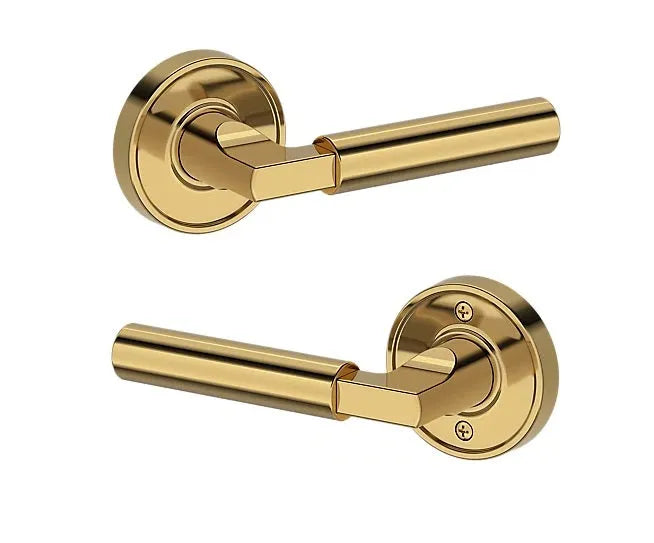

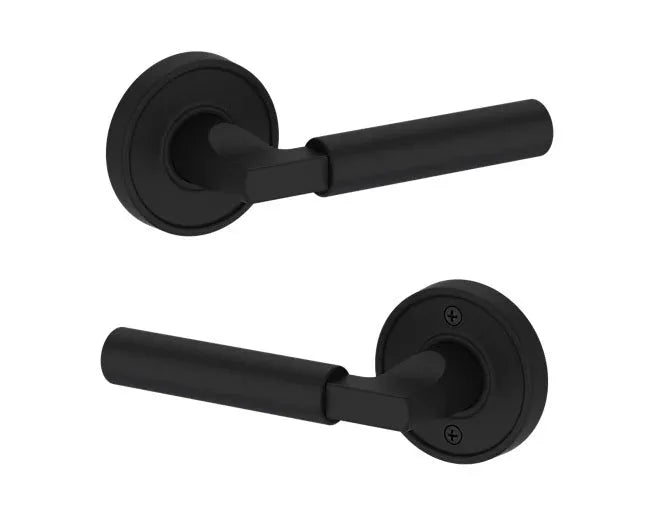

The Baldwin Reserve Lake Forest Lever is crafted from solid brass and built to last. Bold and architectural, the Lake Forest Lever blends crisp geometry with a strong cylindrical form for a look that feels structured, modern, and unapologetically sleek.

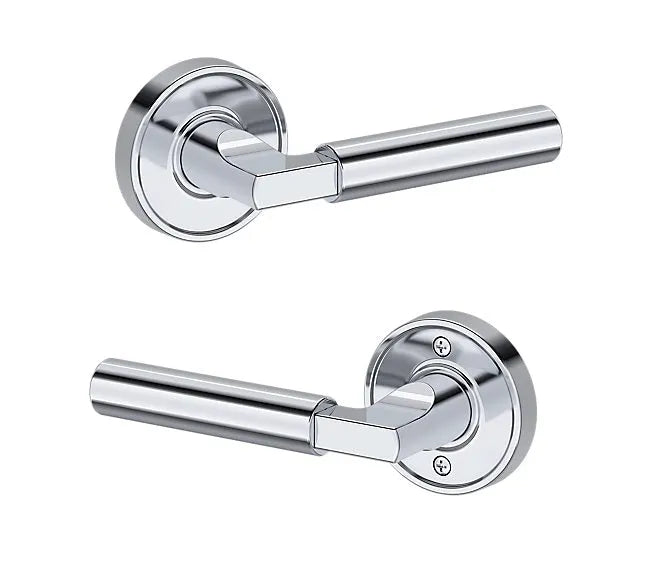

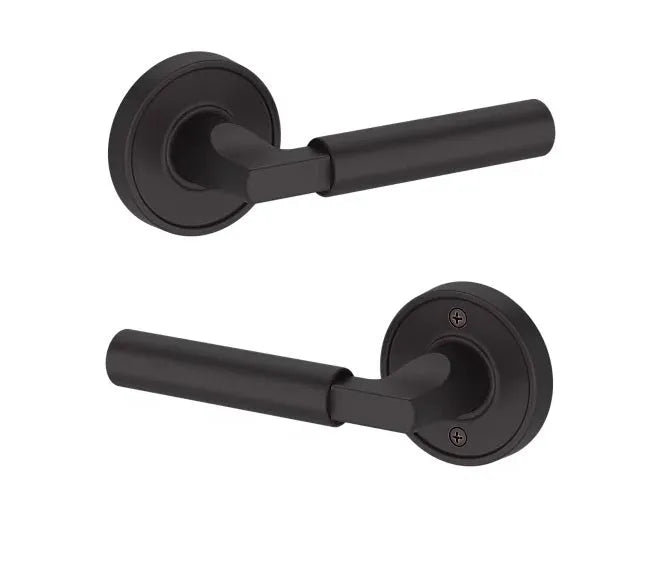

Passage Features
- Lever set paired with roses without a privacy lock.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

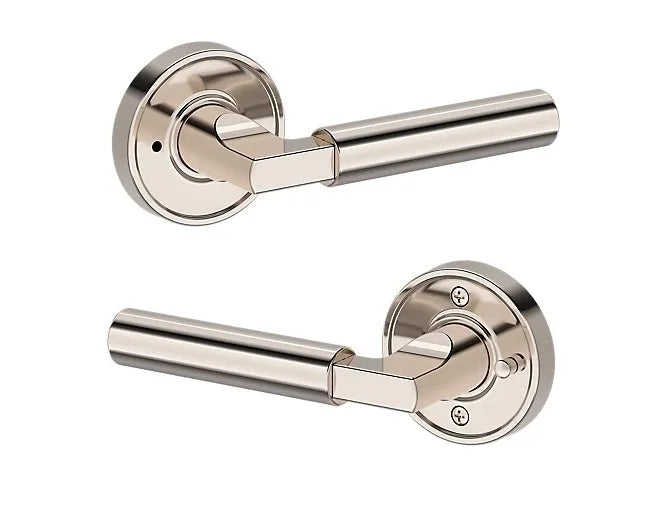

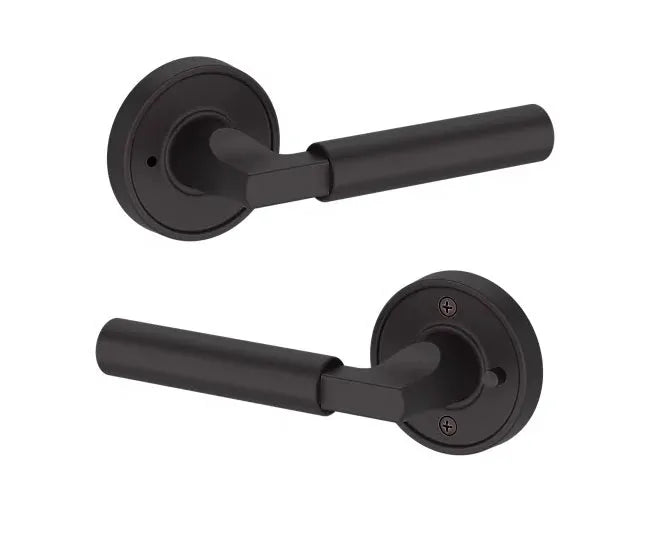

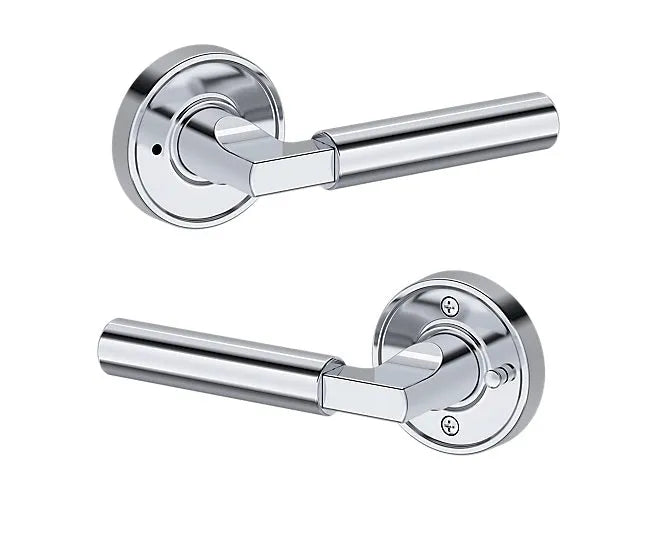

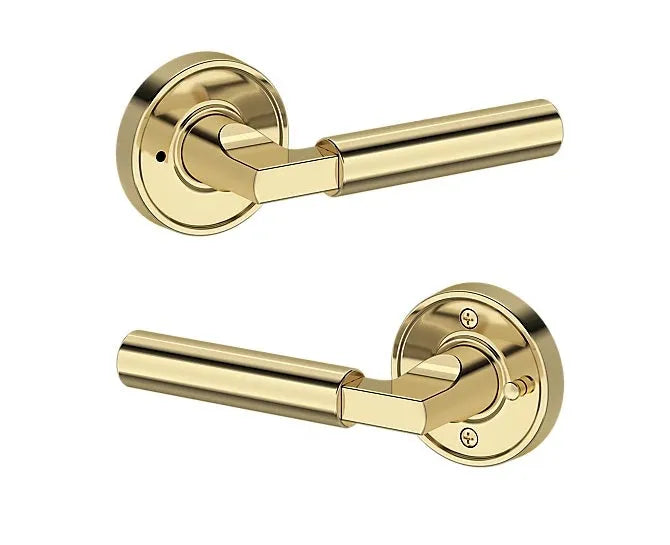

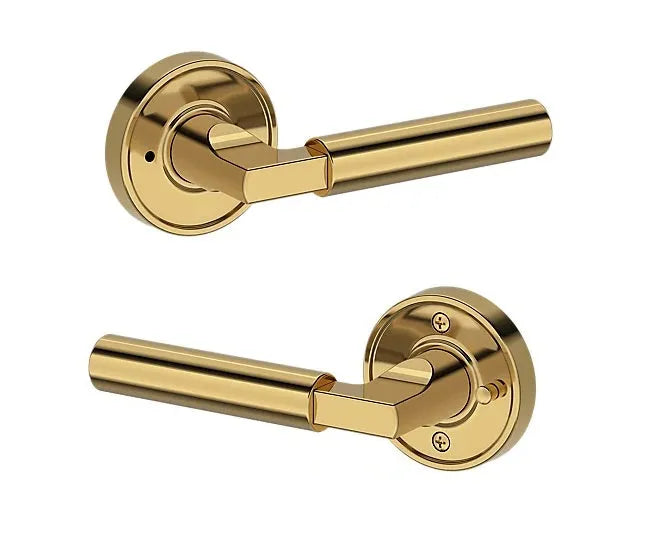

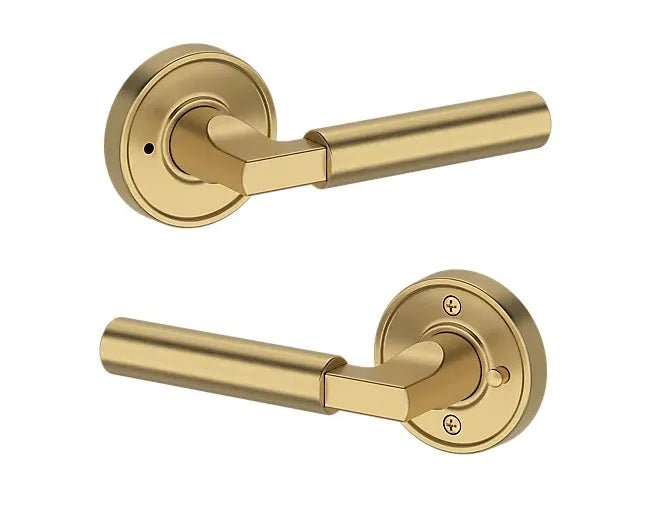

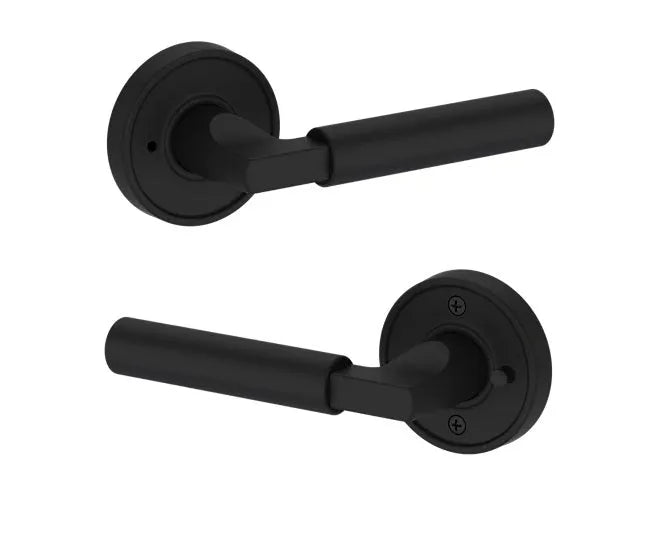

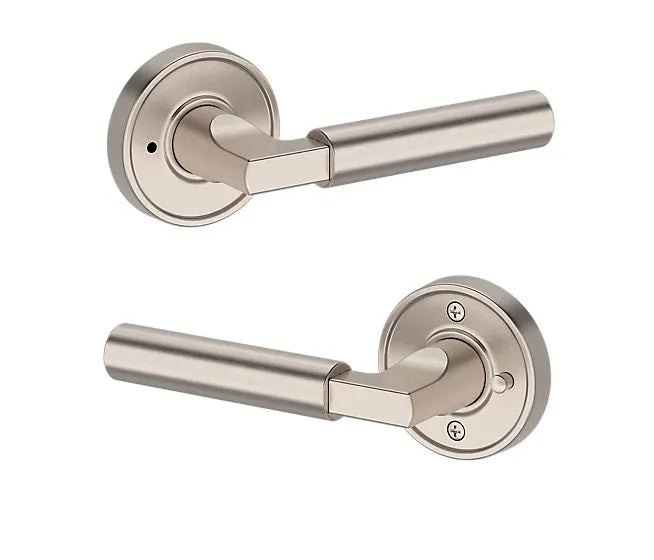

Privacy Features
- Lever set paired with roses with a push button privacy locking feature.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Reversible Handing

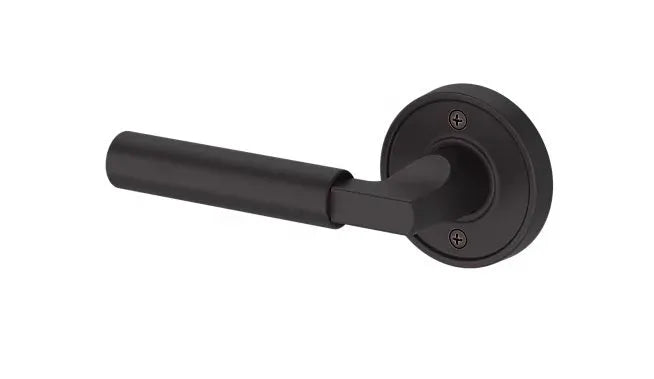

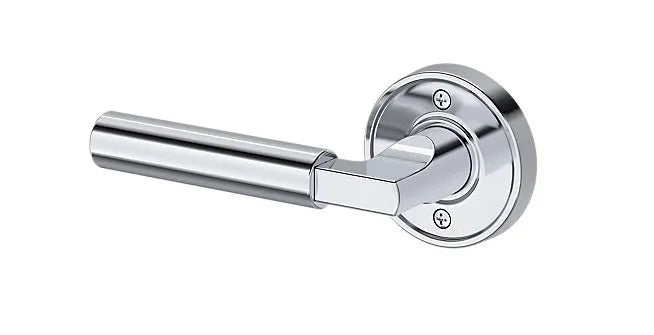

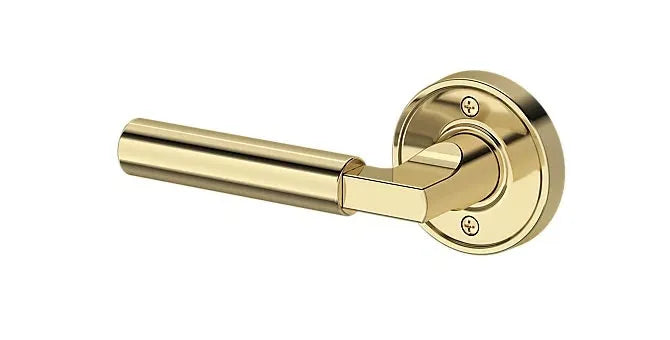

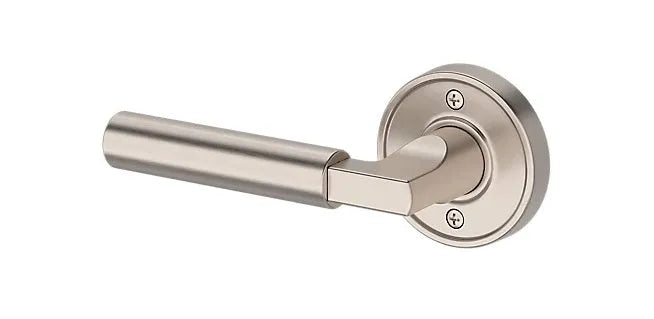

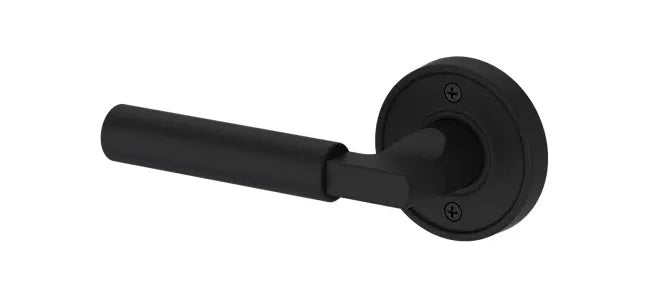

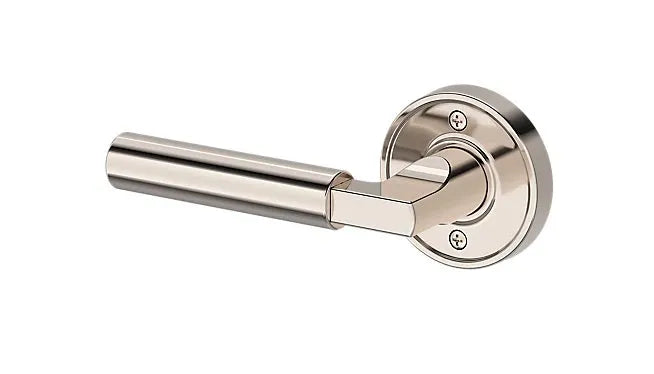

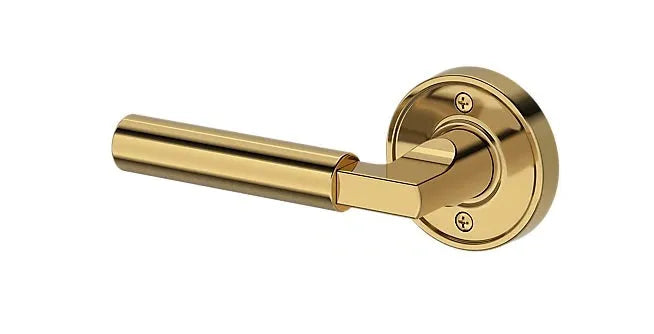

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Reversible Handing

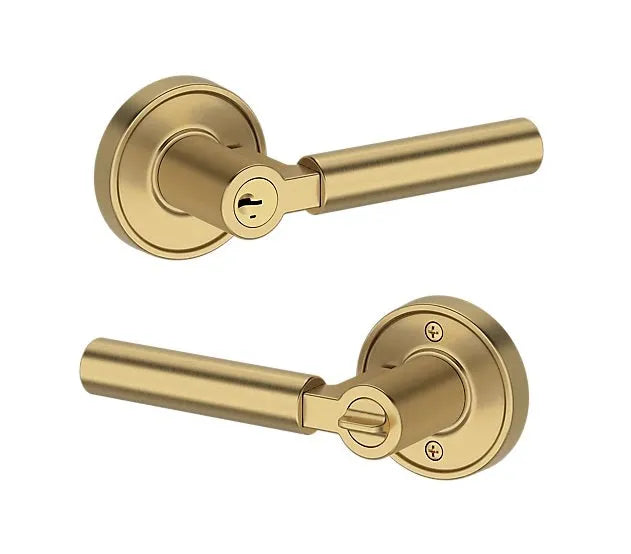

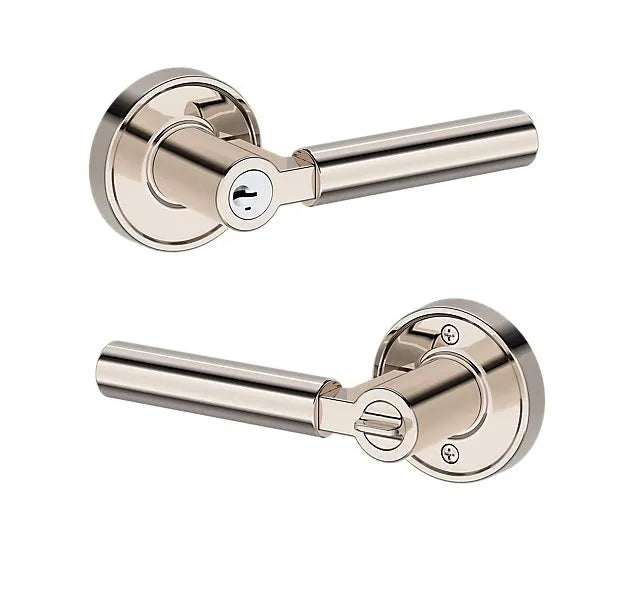

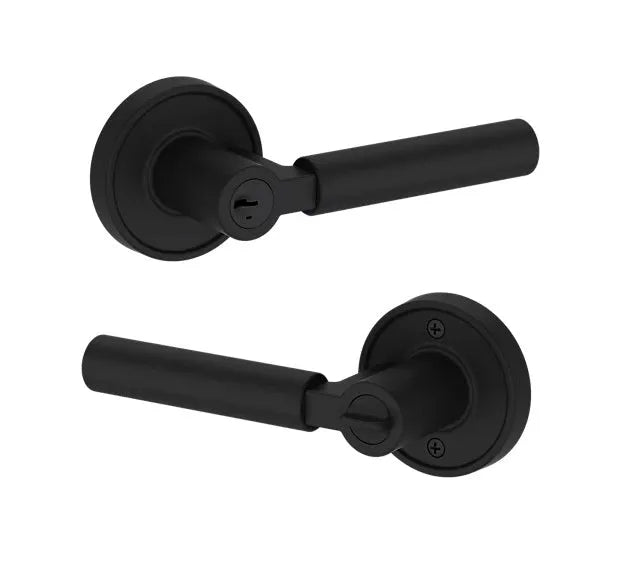

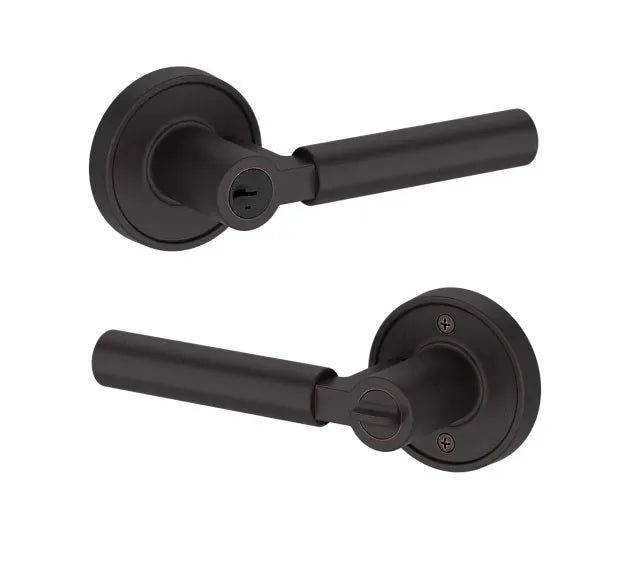

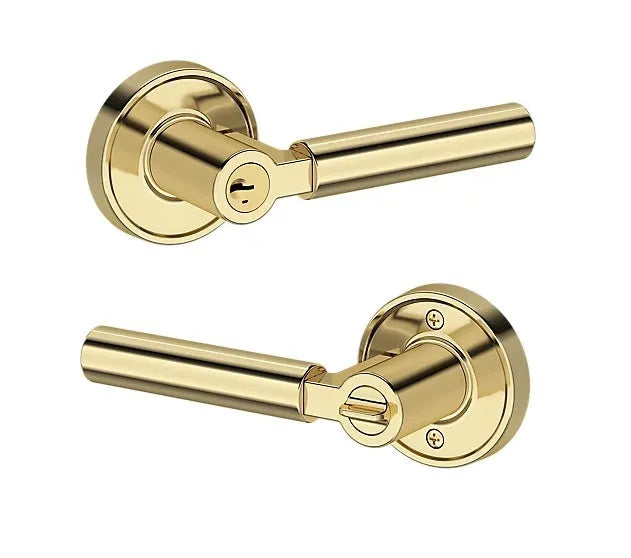

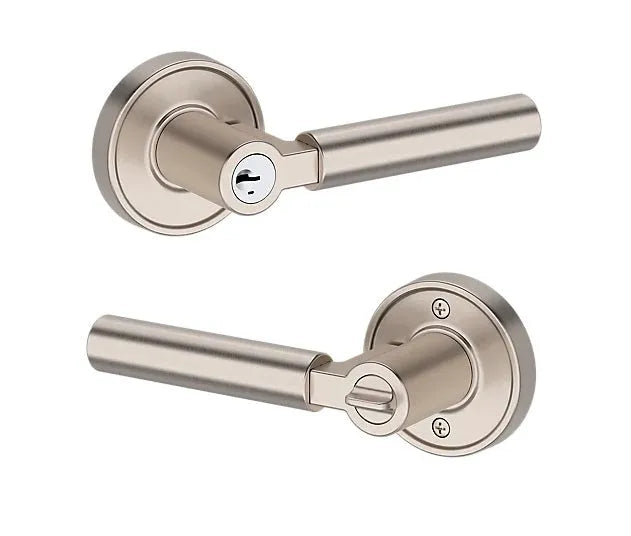

Keyed Entry Features
- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 9/16"
- Keyed Entry Interior Projection: 2 1/2"
- Keyed Entry Exterior Projection: 2 5/16"
- Lever Grip: 4 5/8"
- Rosette Diameter: 2 5/8"
