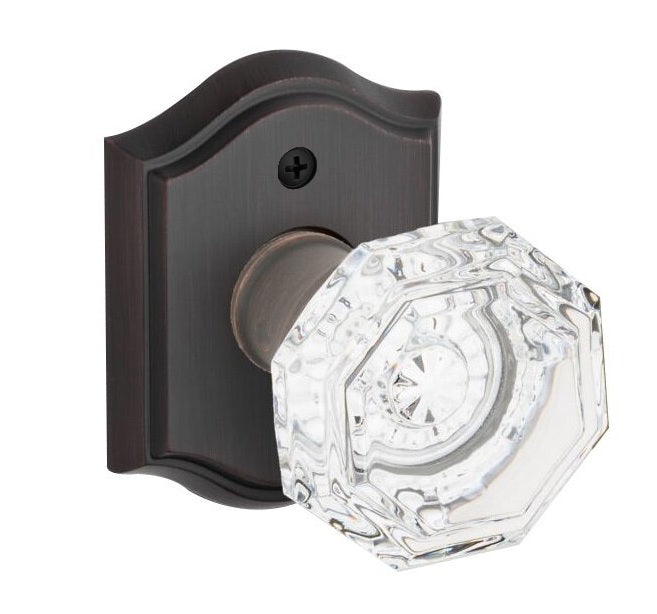

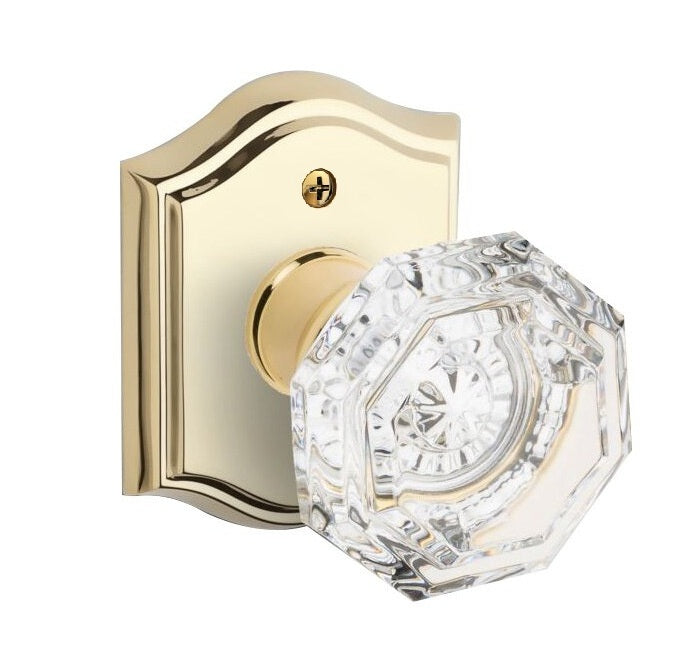

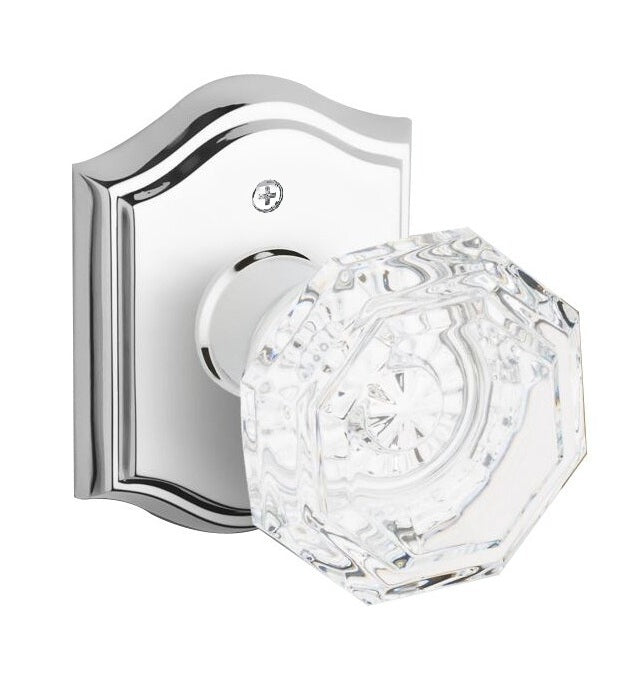

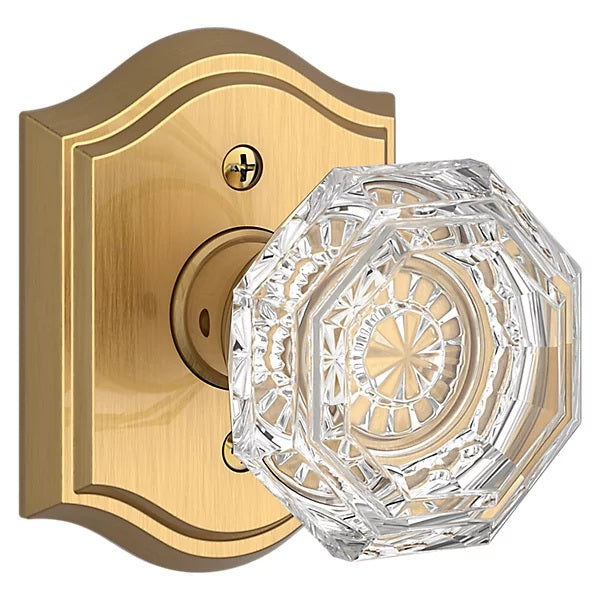

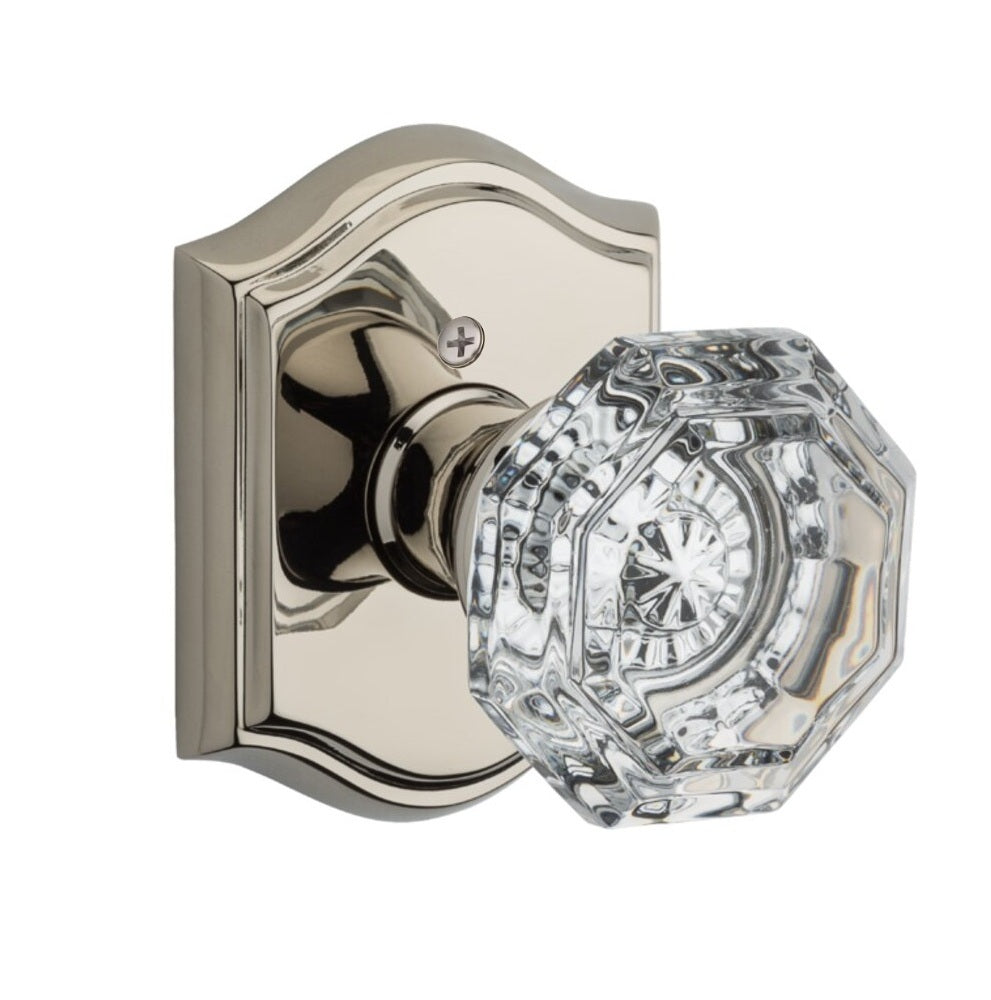

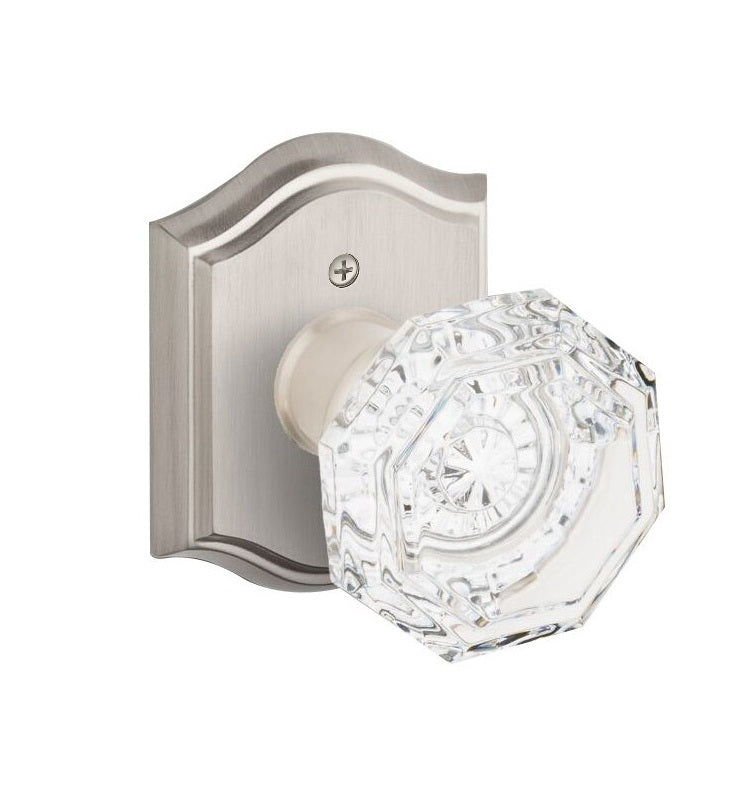

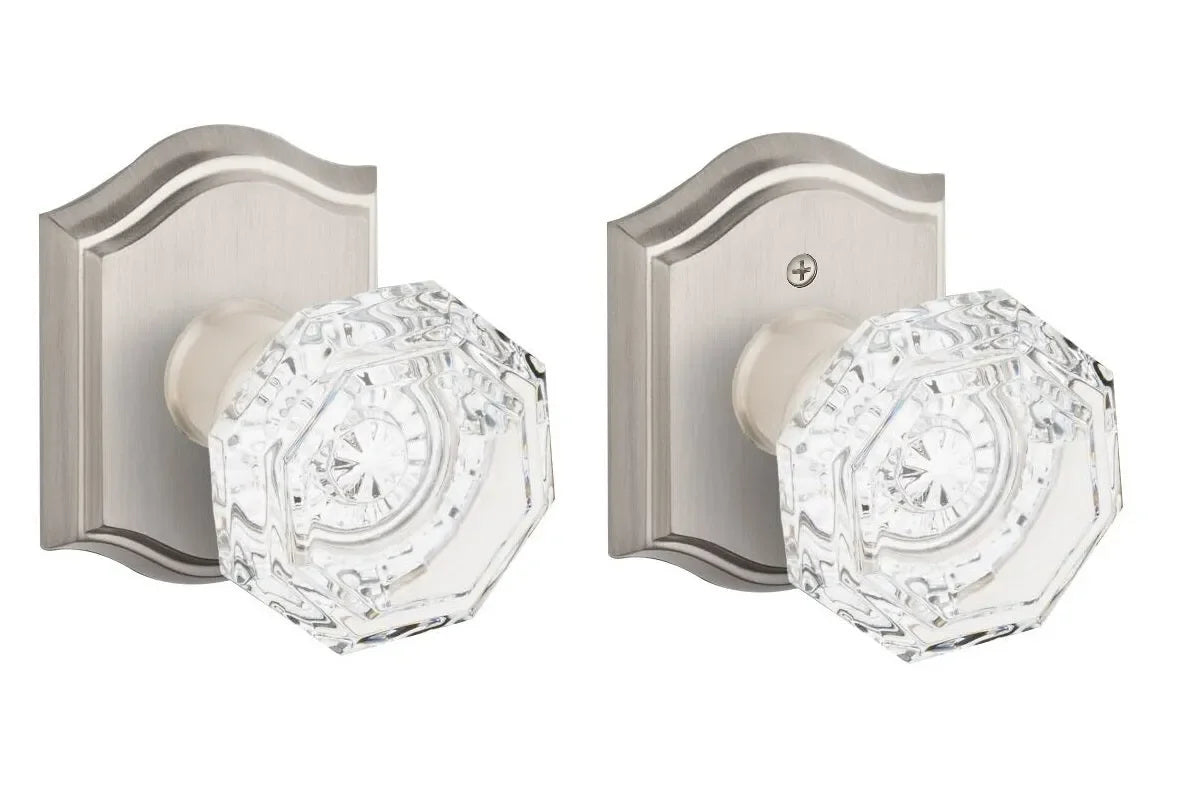

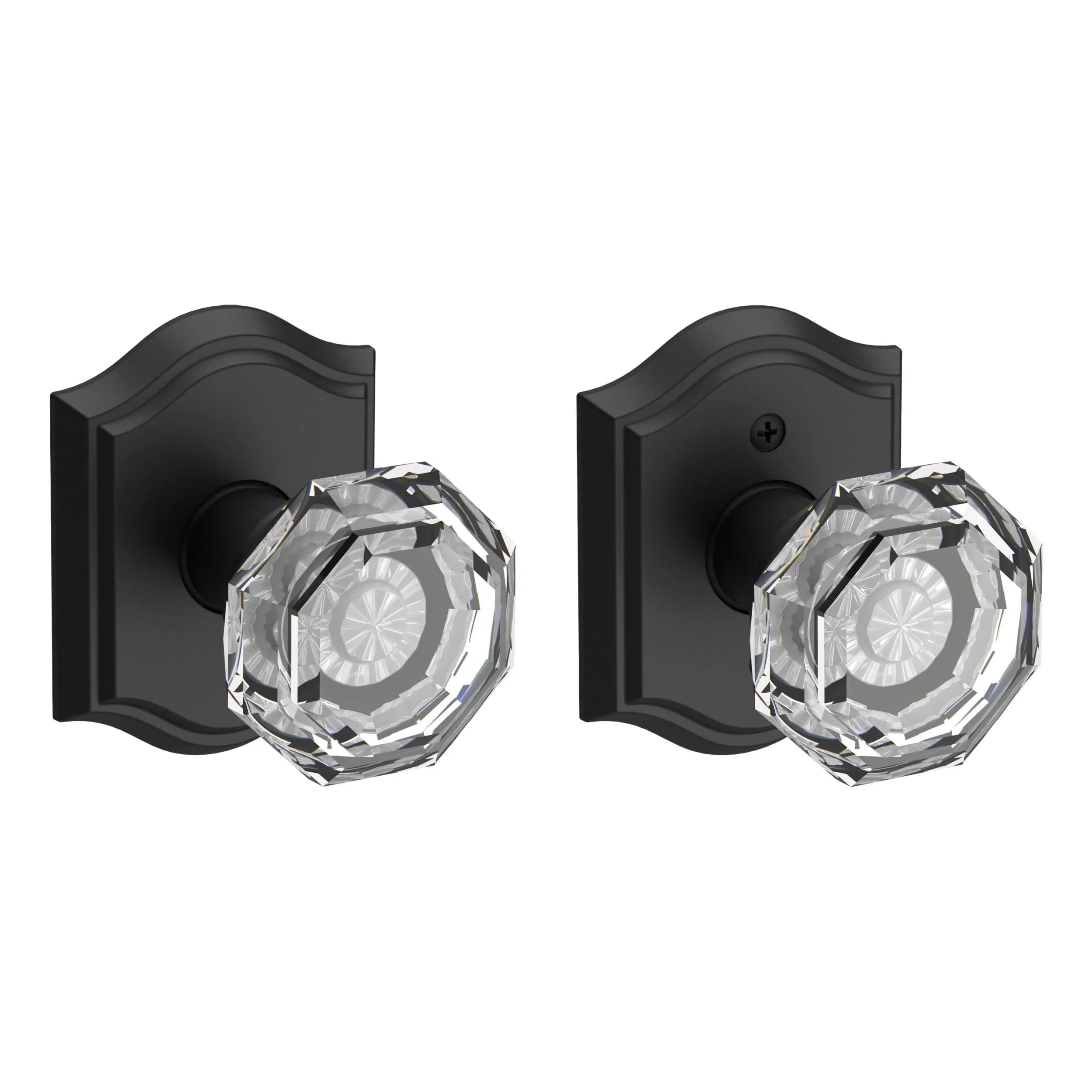

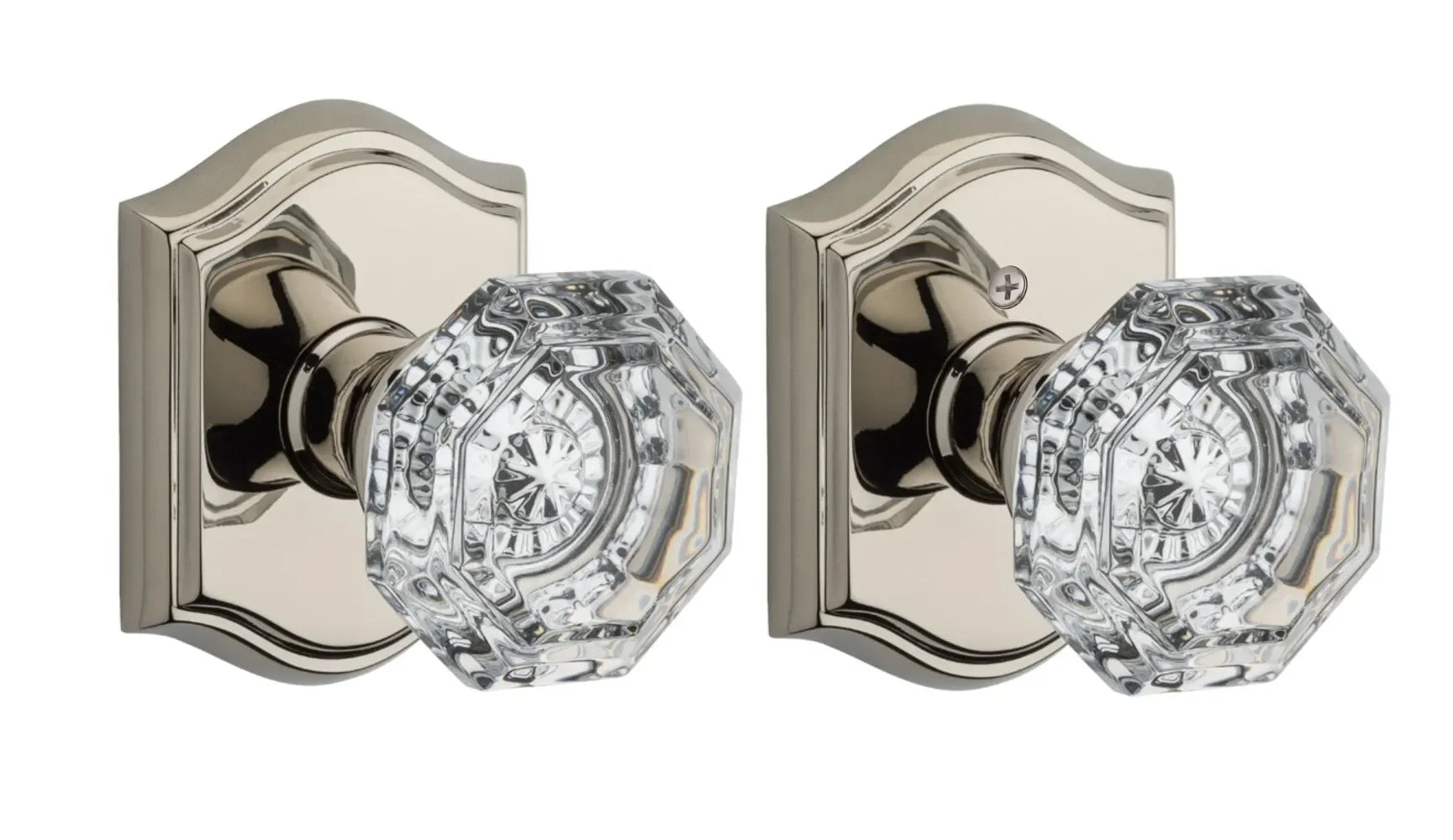

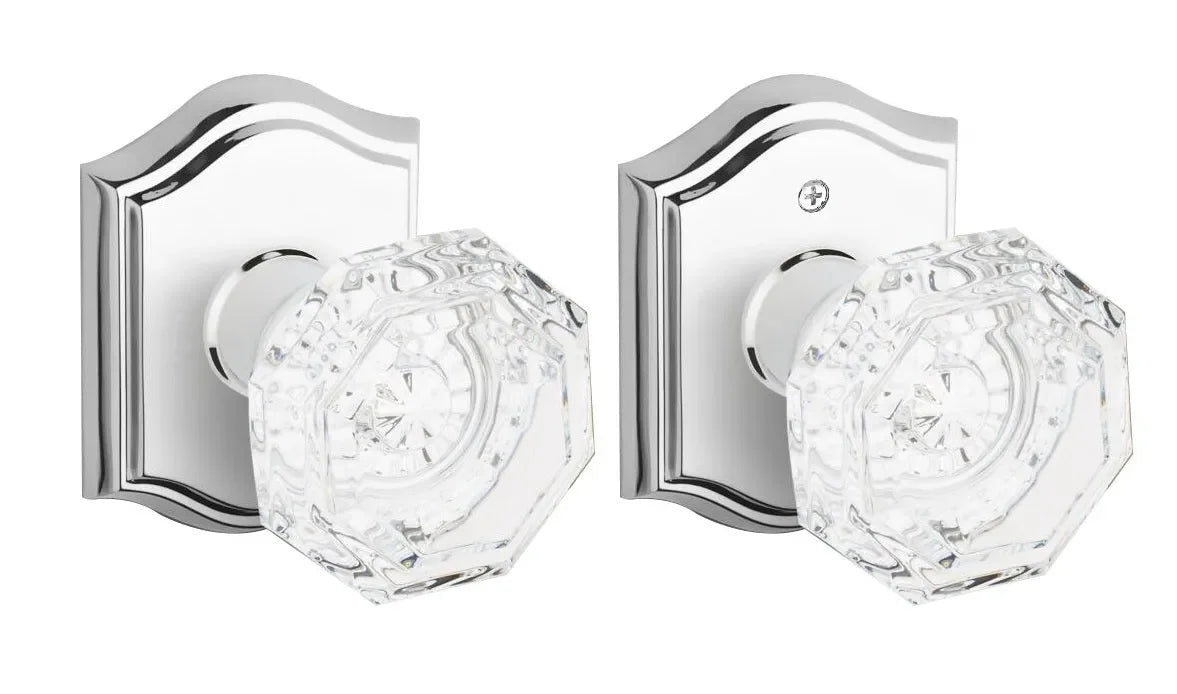

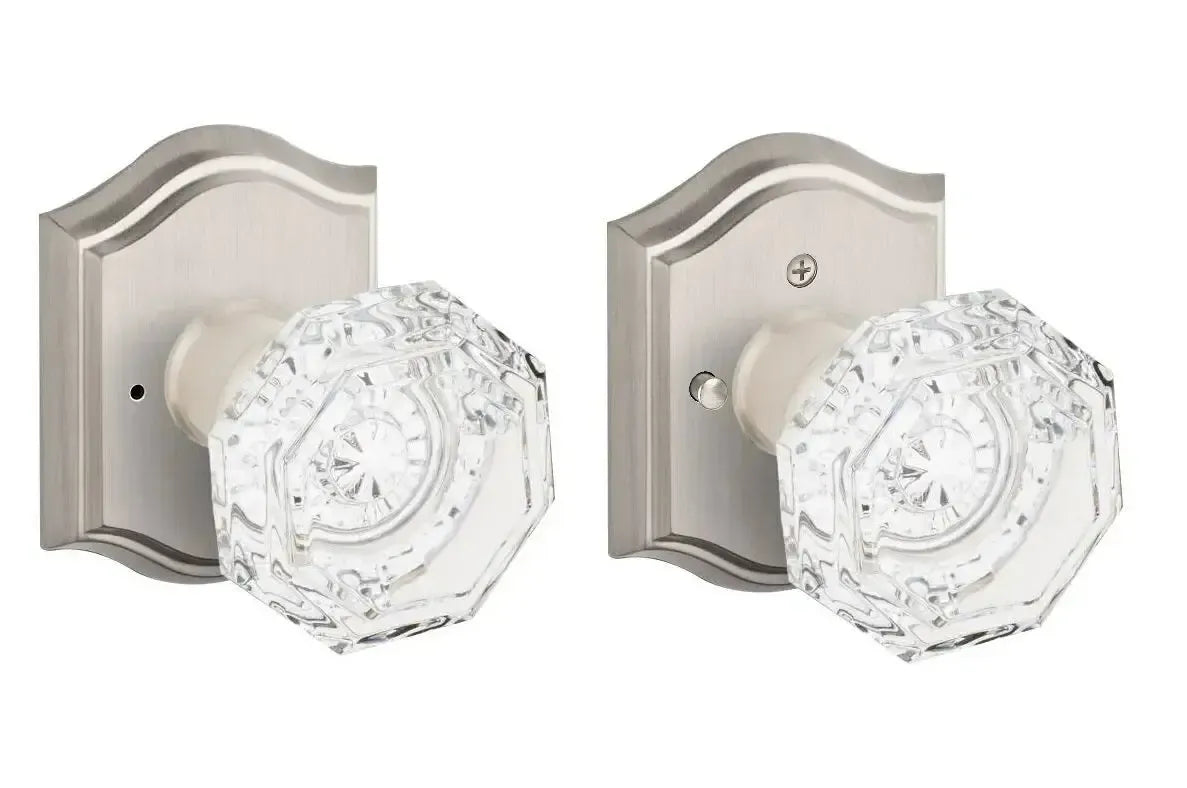

Baldwin Crystal Knob with Traditional Arch Rosette

The Baldwin Reserve Crystal Knob with Traditional Arch Rosette brings vintage elegance to your doors with its faceted glass and graceful arched base. It’s a sophisticated detail that adds sparkle and timeless charm to any traditional space.

Passage Features

• Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Passage sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

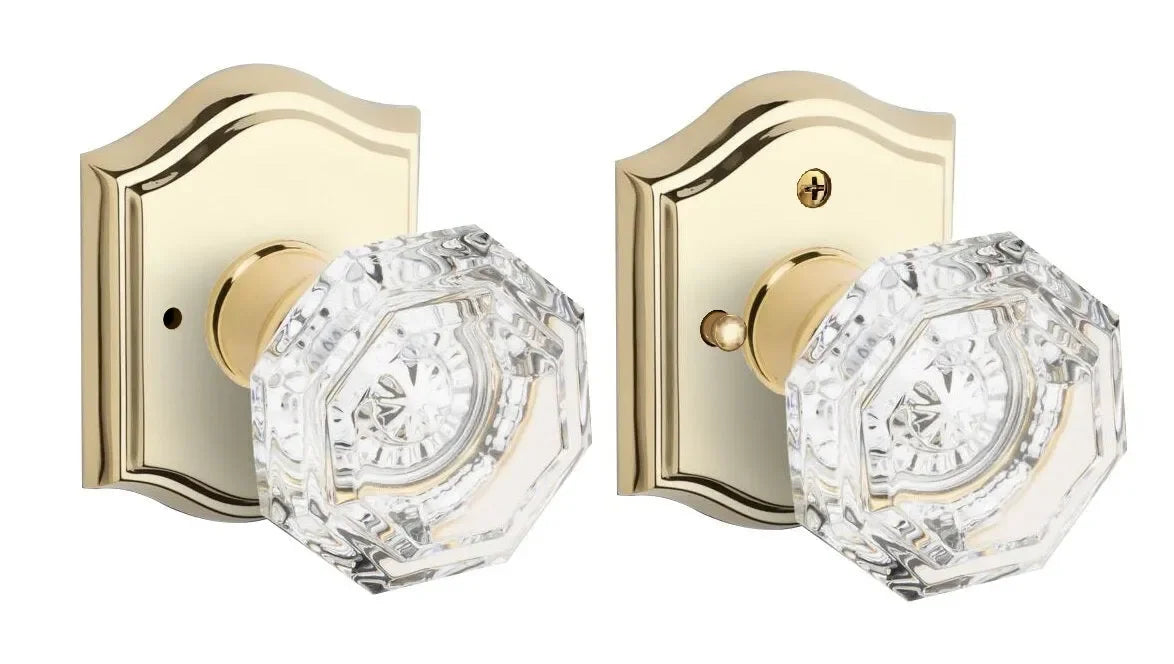

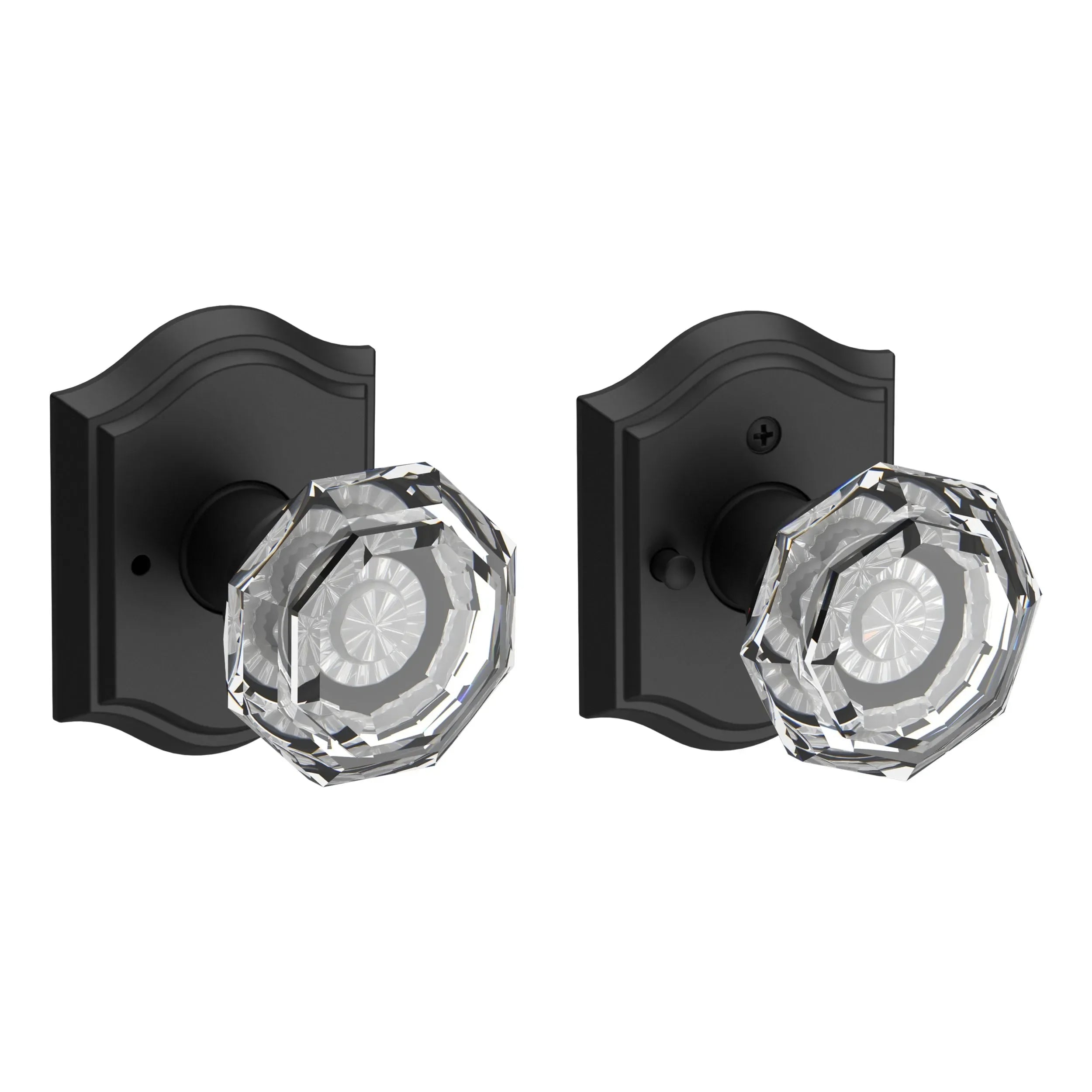

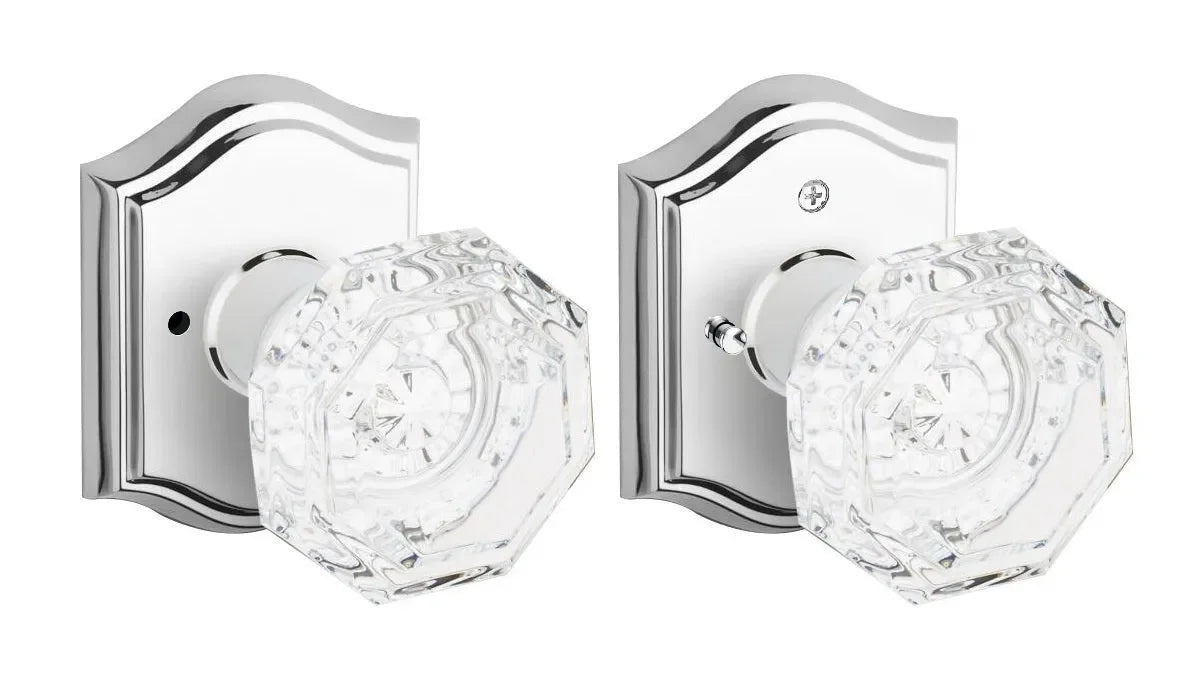

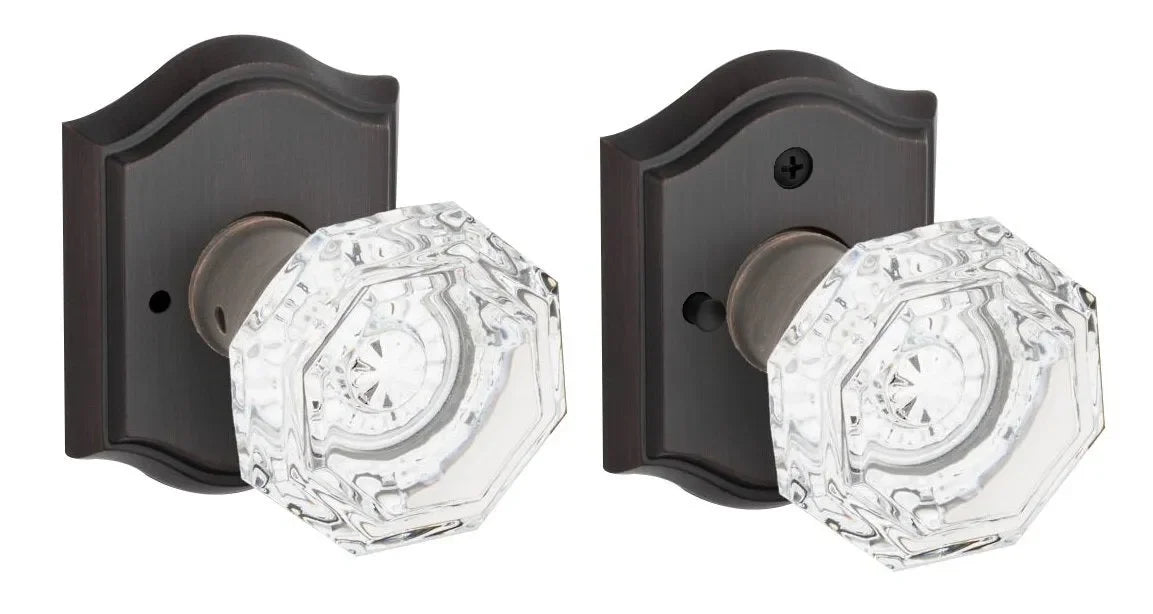

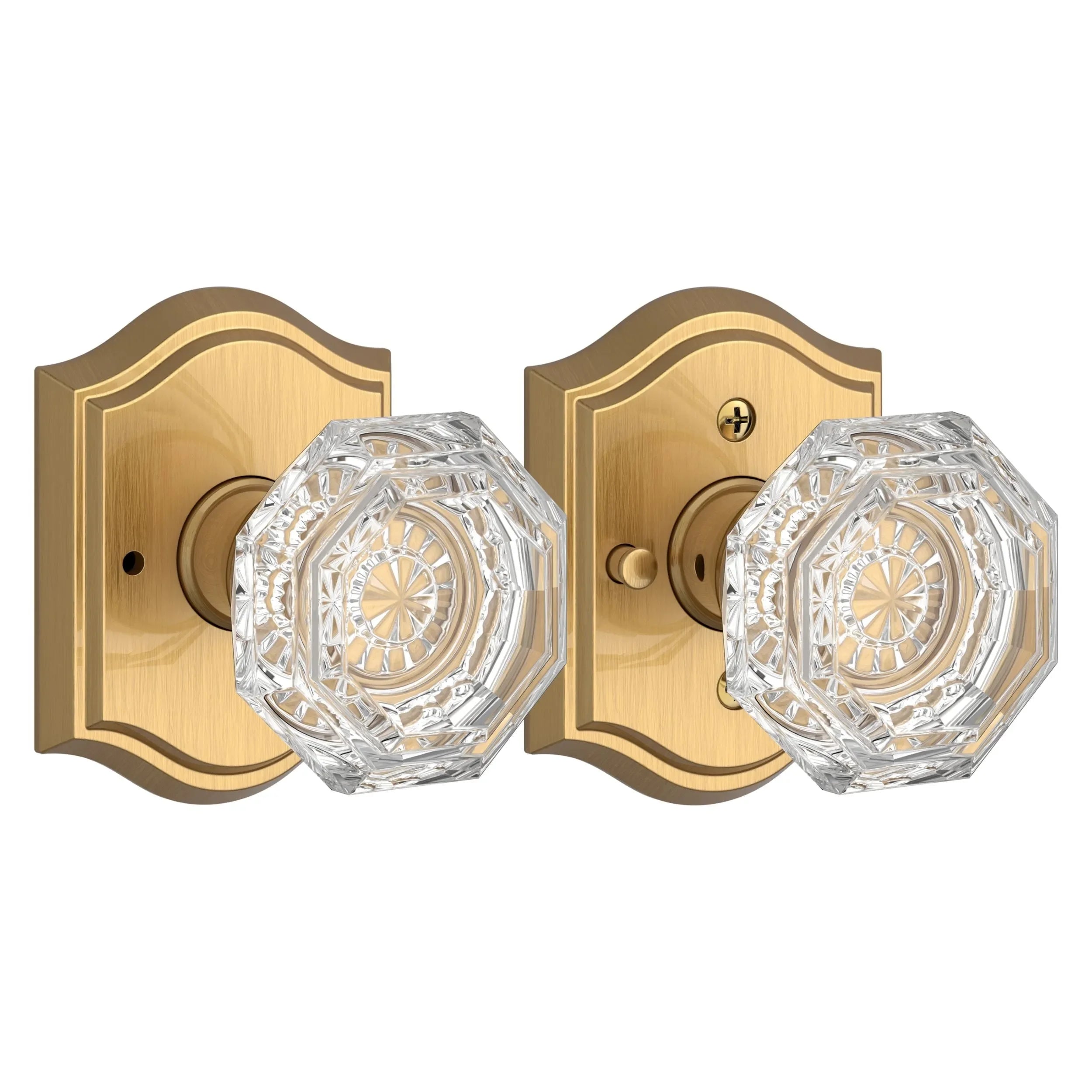

Privacy Features

• Knob set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Privacy sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Full Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Note: Interior roses have exposed fasteners
• Handing not required

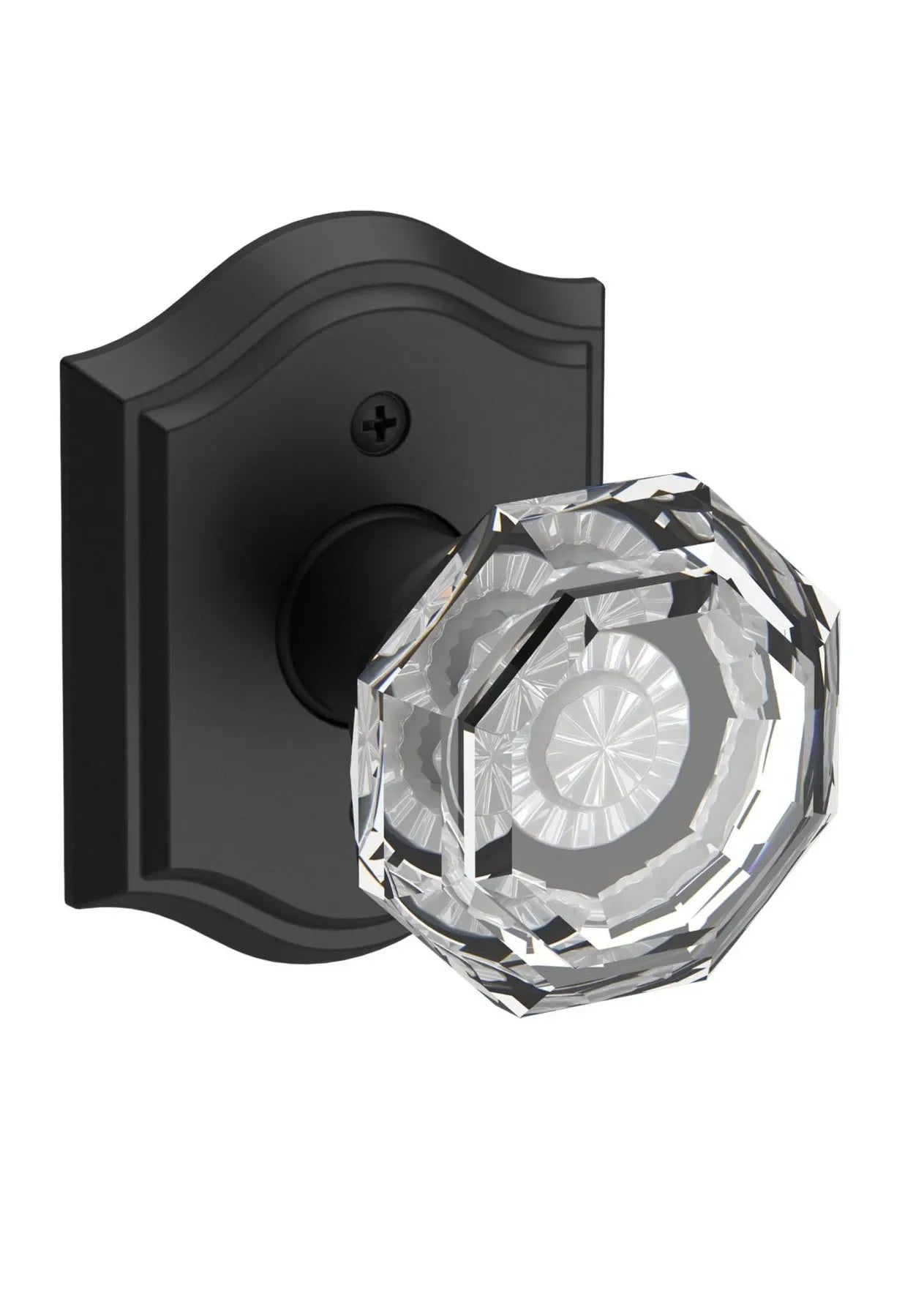

Half Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
• Note: Half Dummy roses are surface mounted and have exposed fasteners

Specifications

• Projection: 2 29/32"
• Knob Diameter: 2 3/16"
• Rosette Dimensions: 2 21/32" x 3 7/16"
