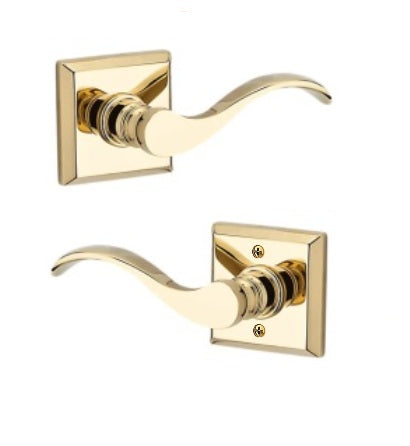

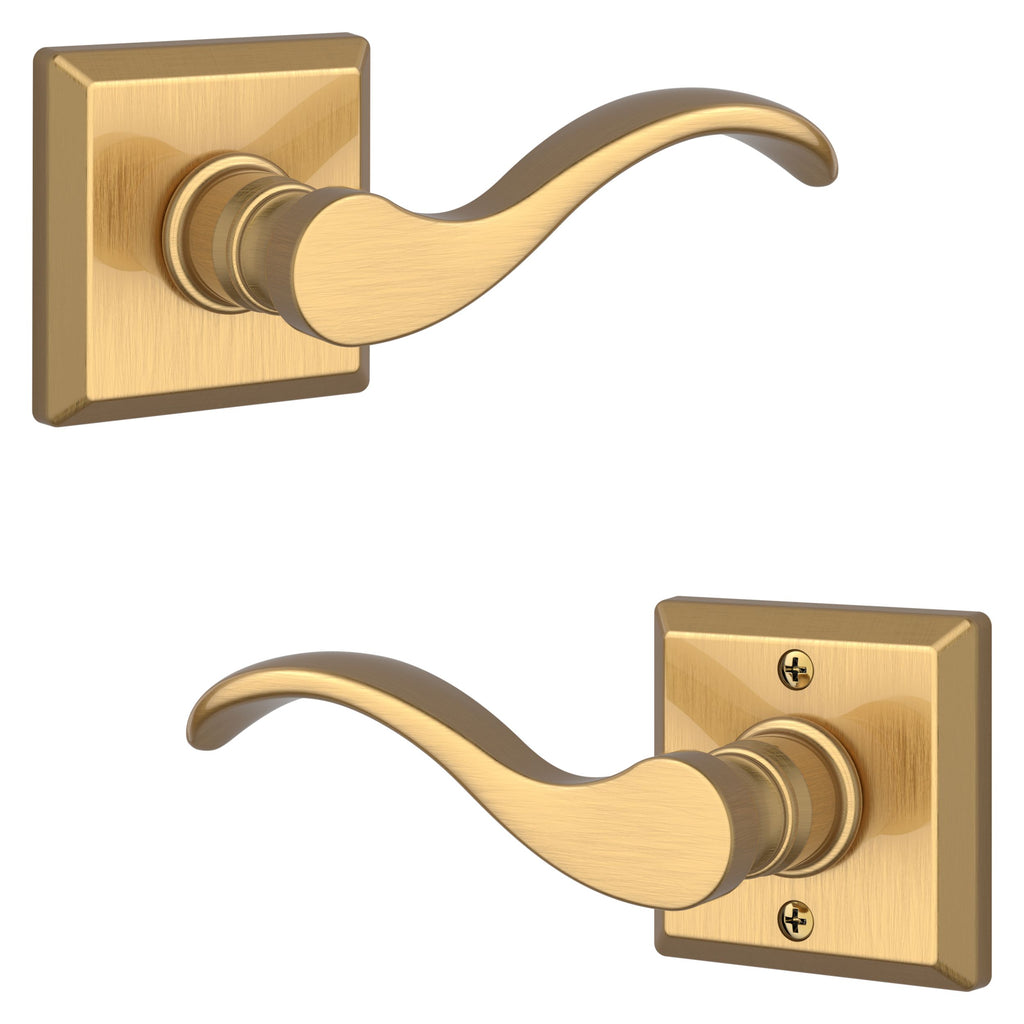

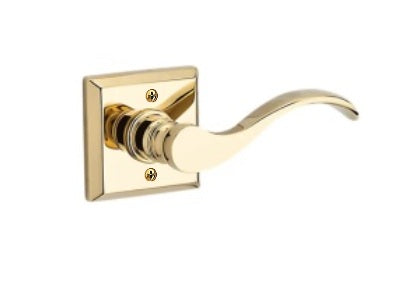

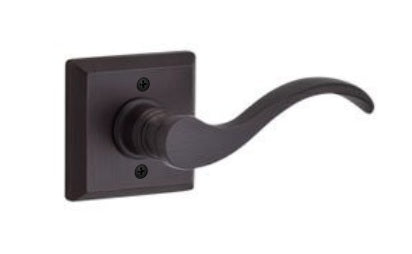

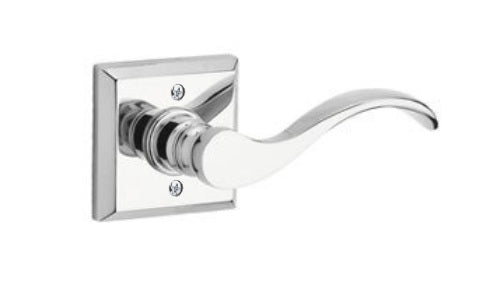

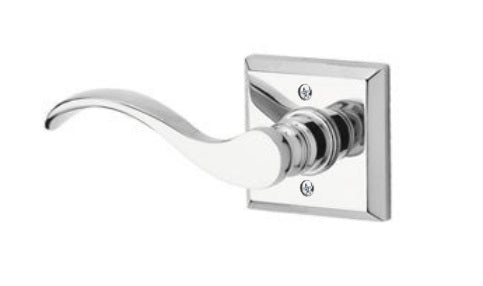

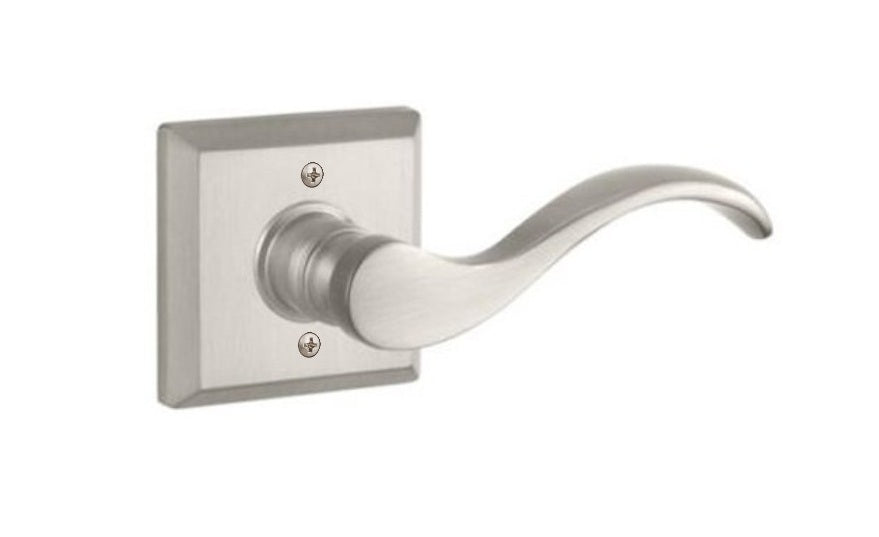

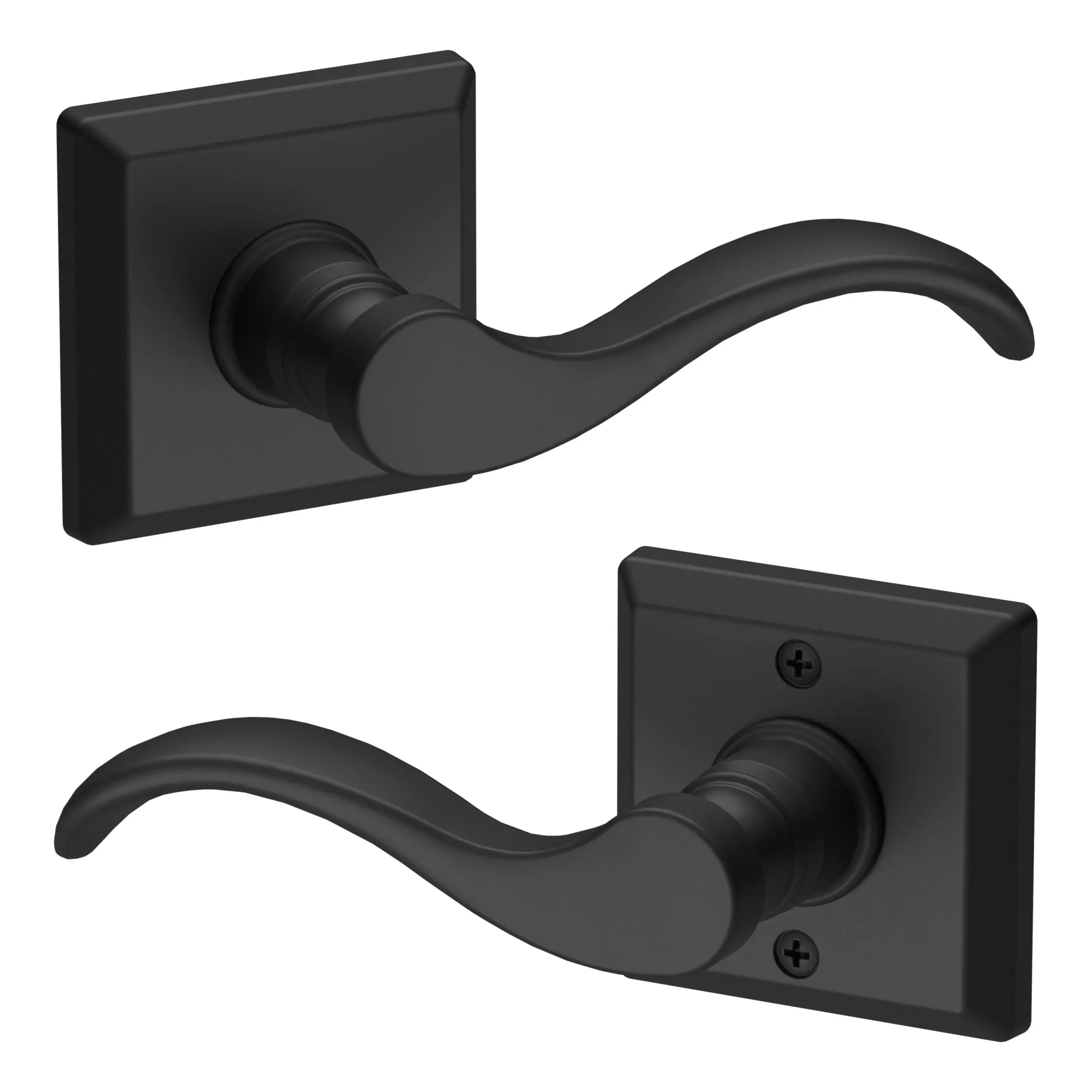

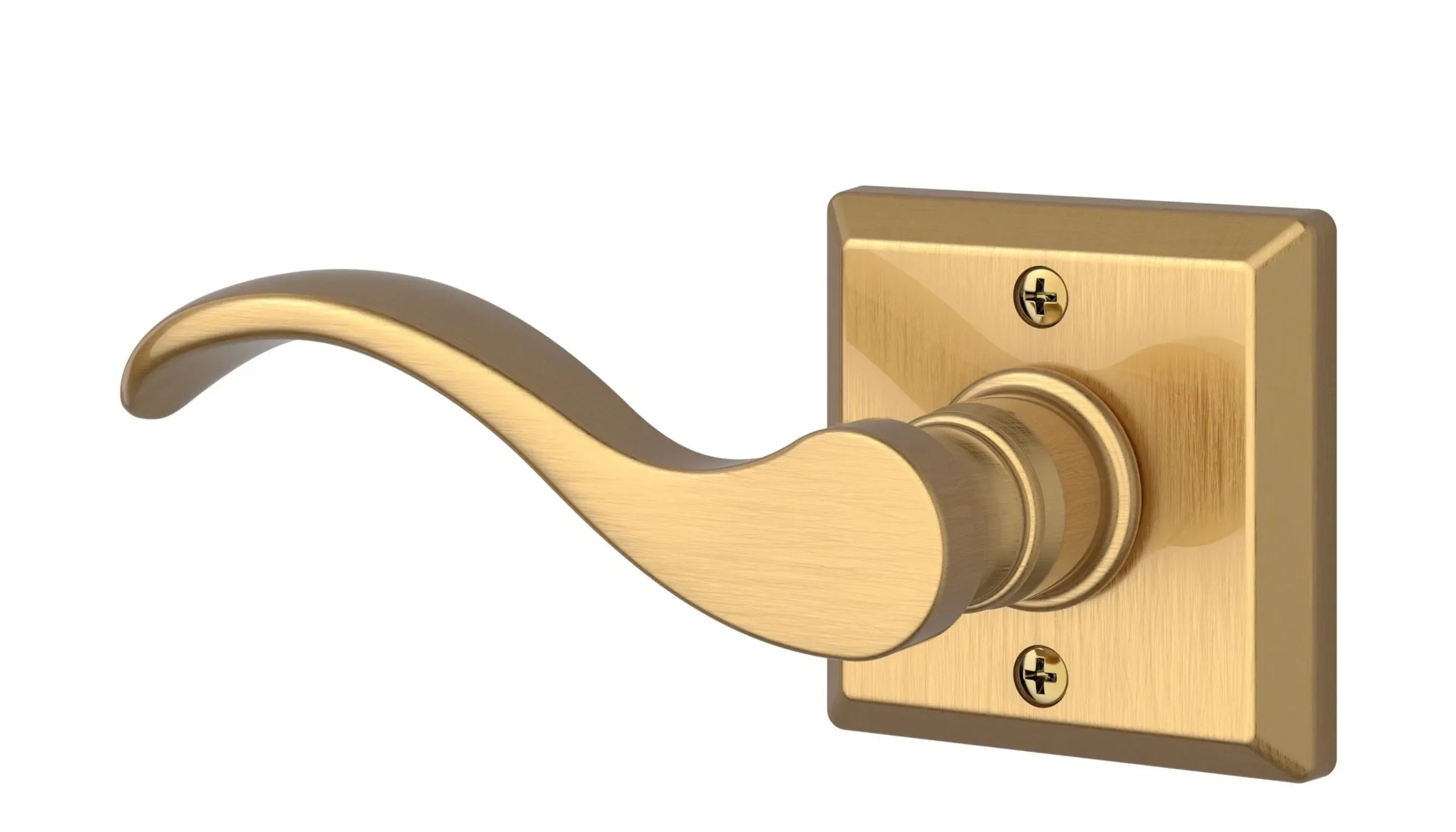

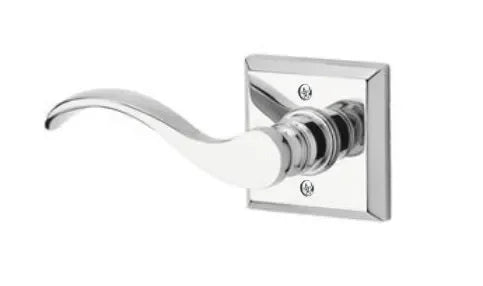

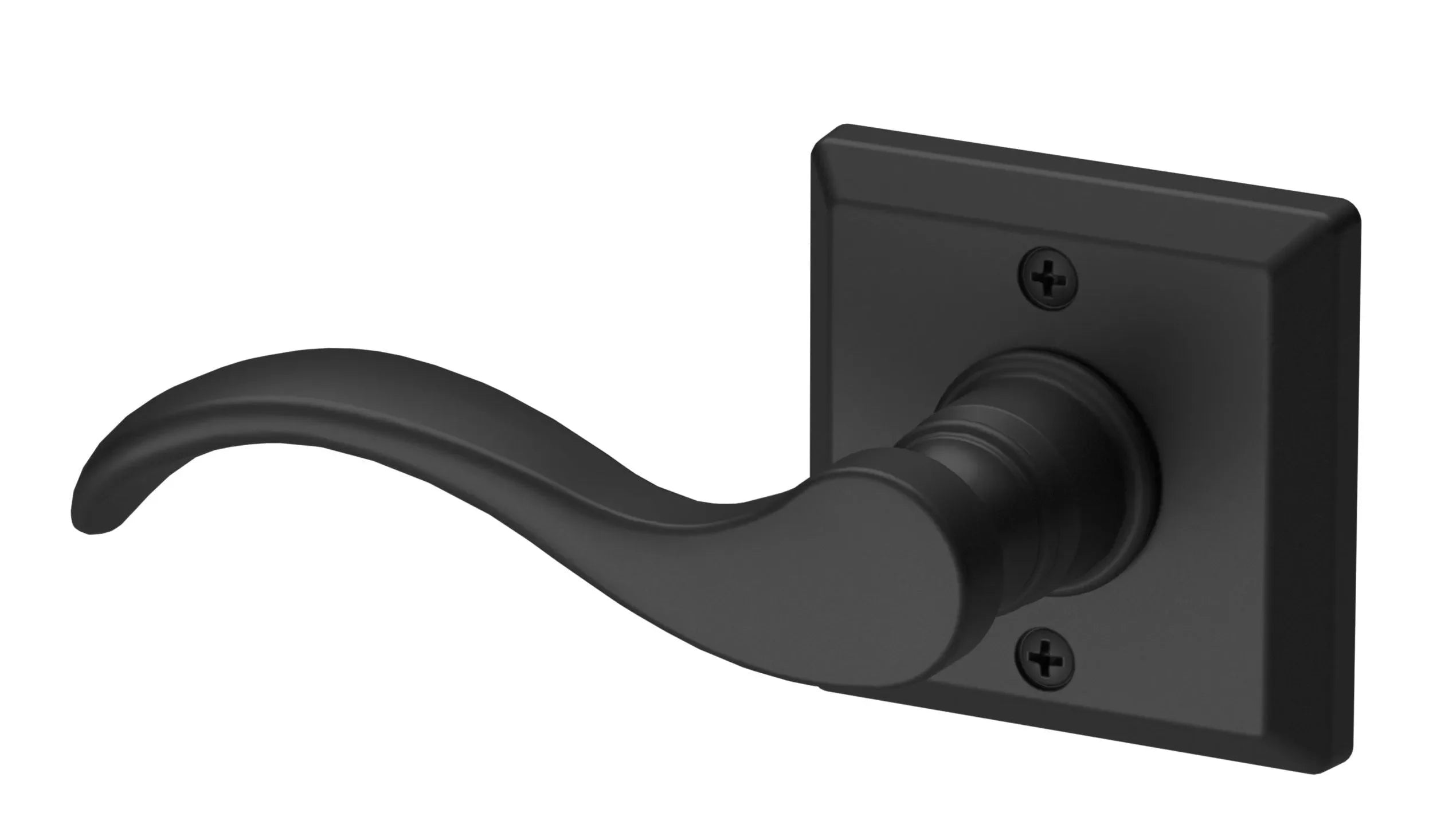

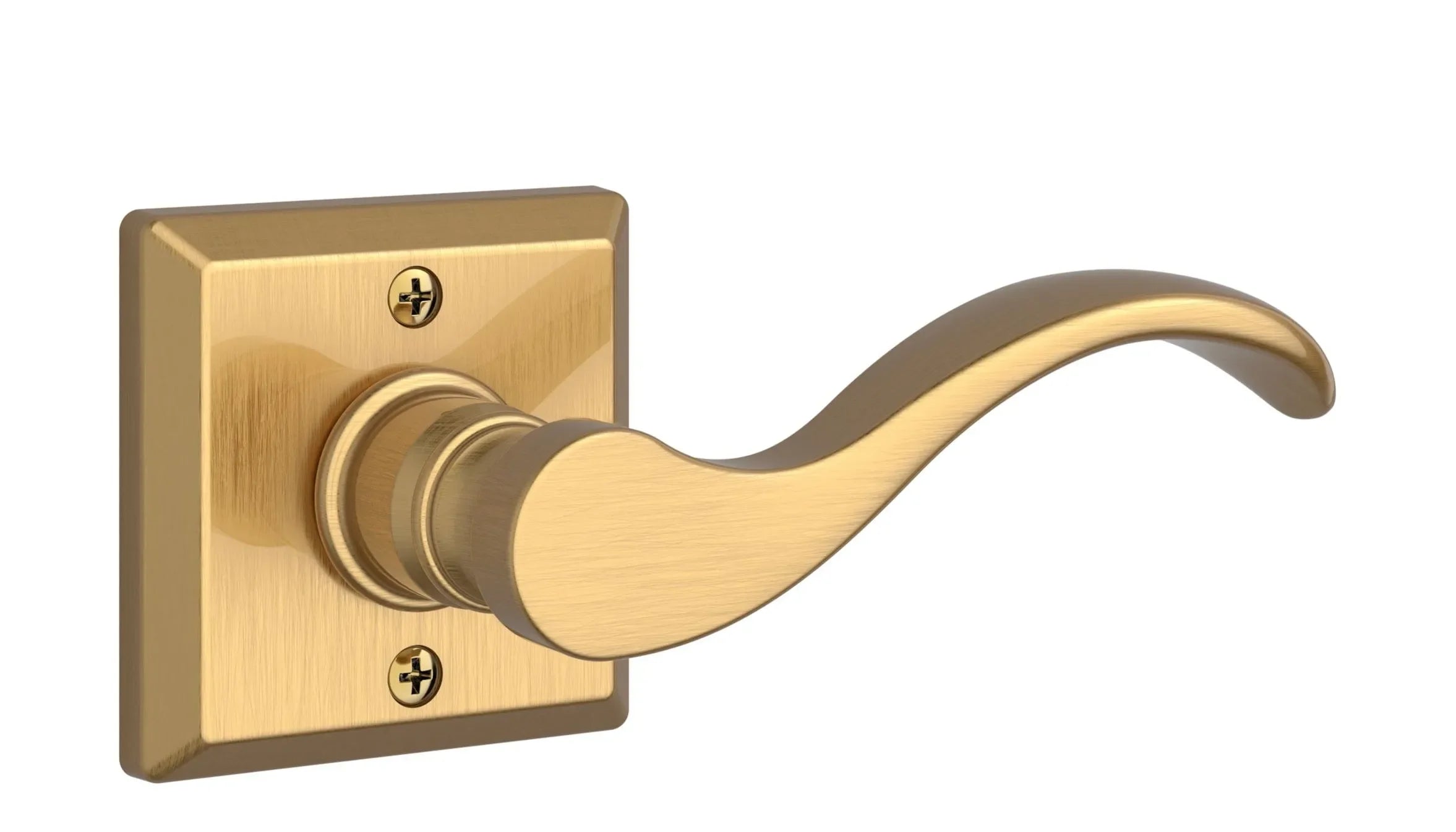

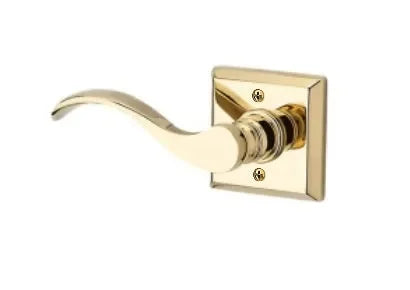

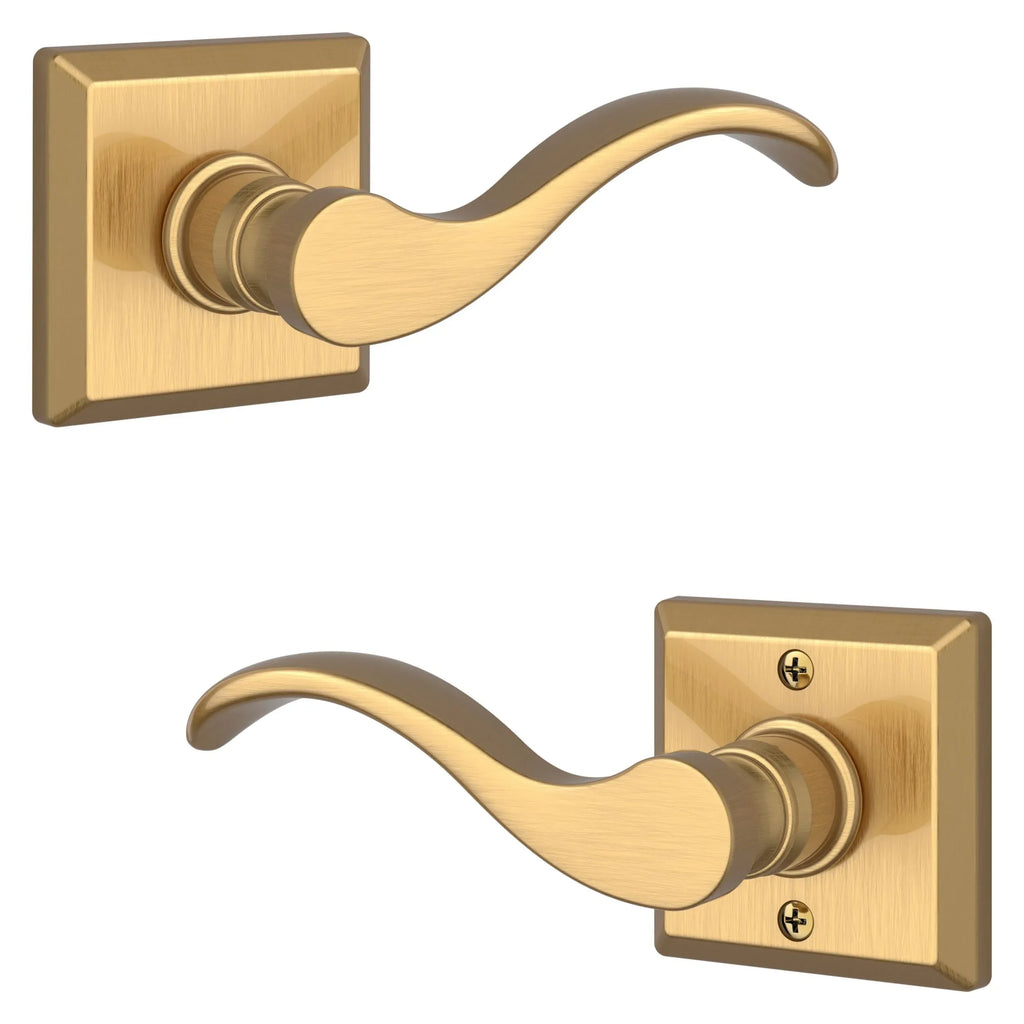

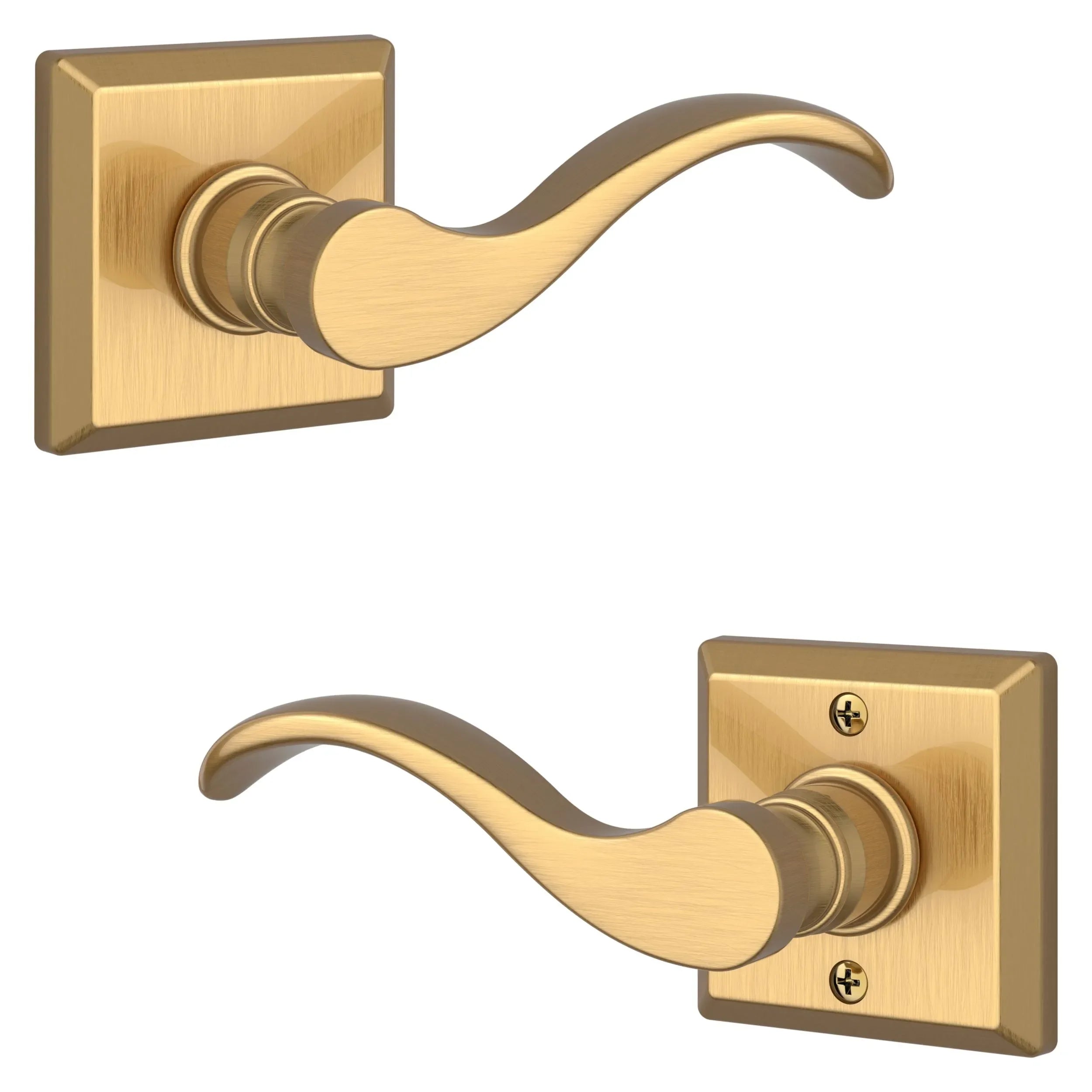

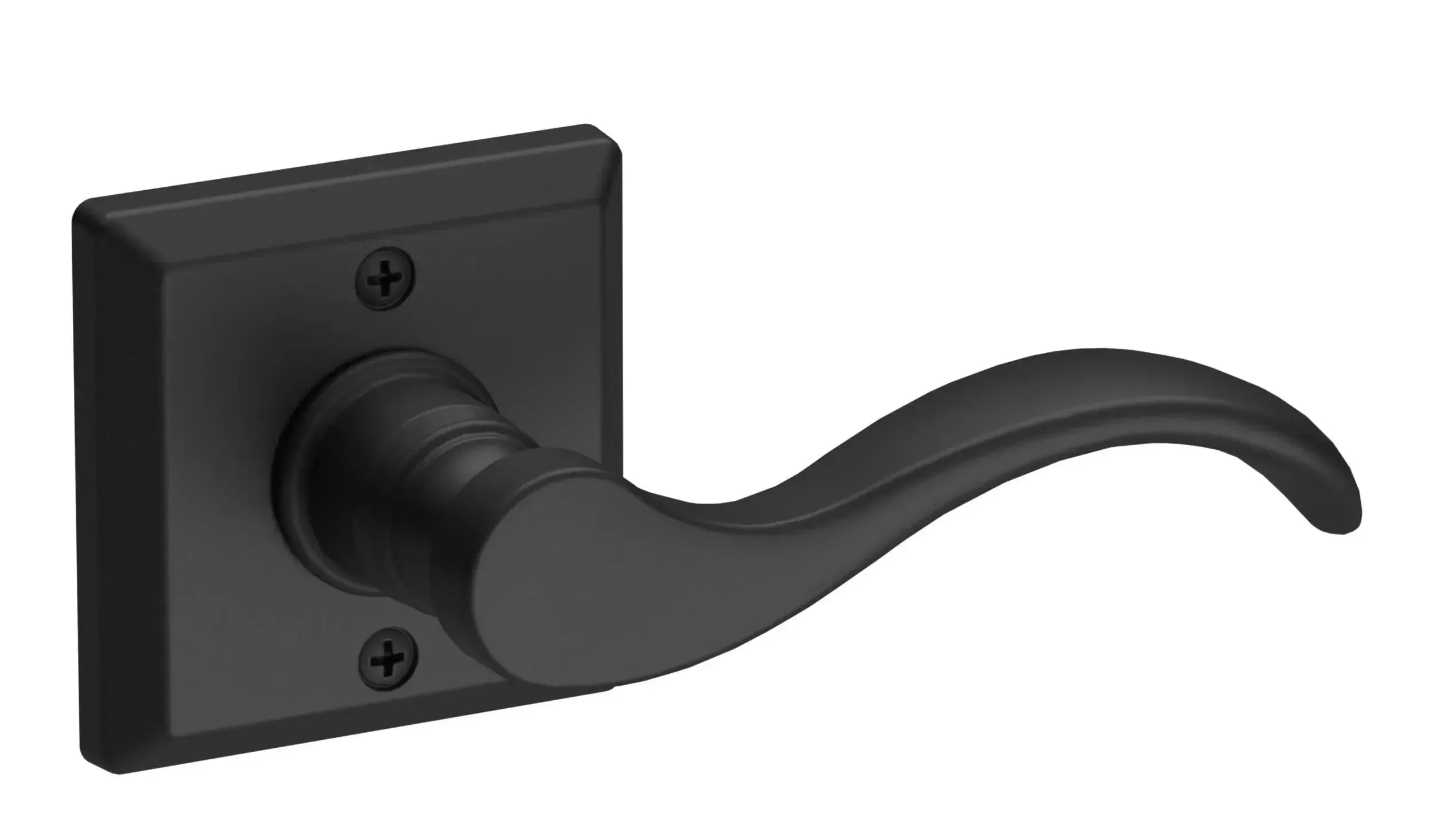

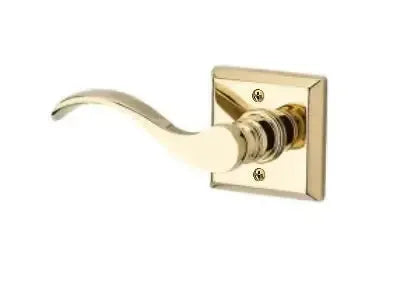

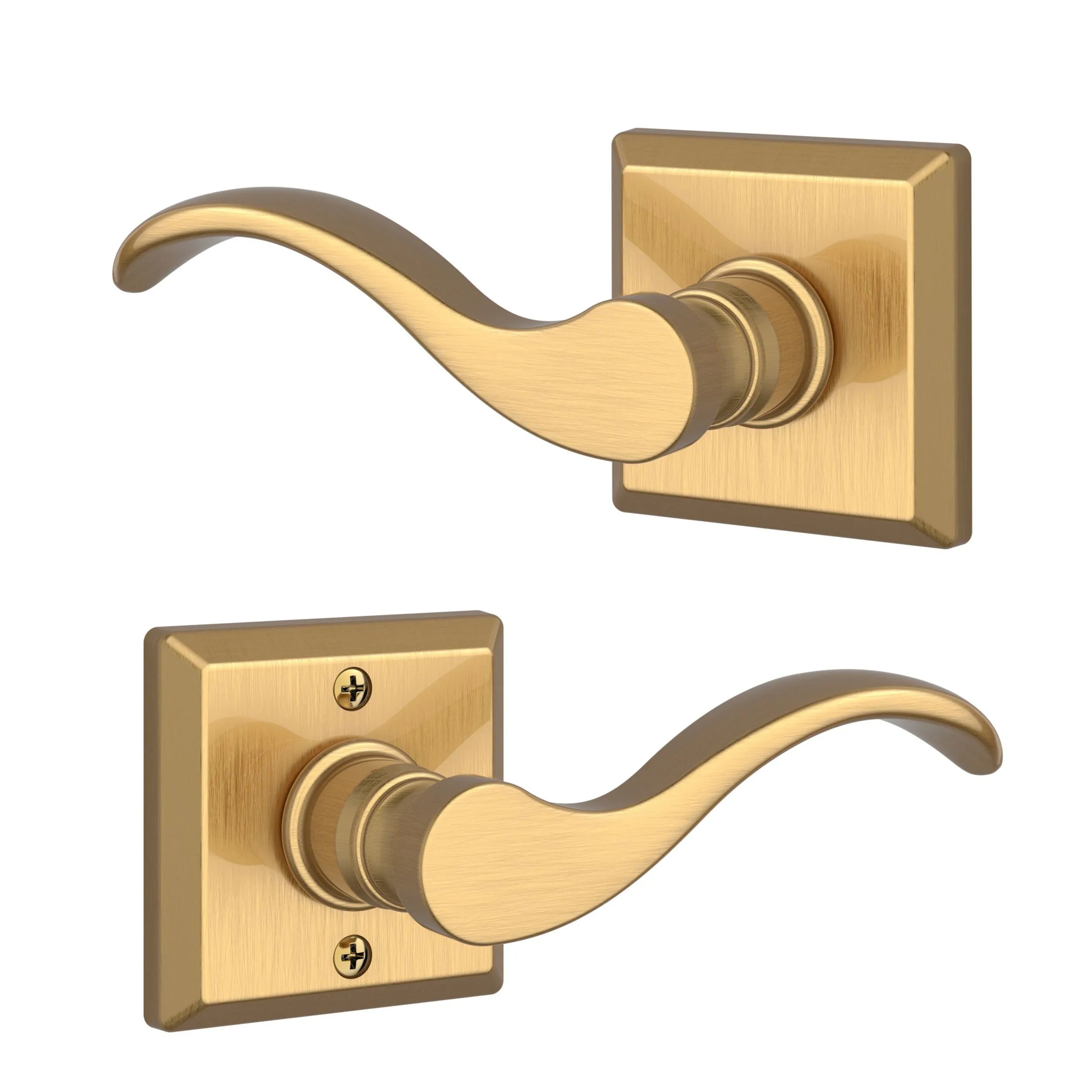

Curve Lever with Traditional Square Rosette

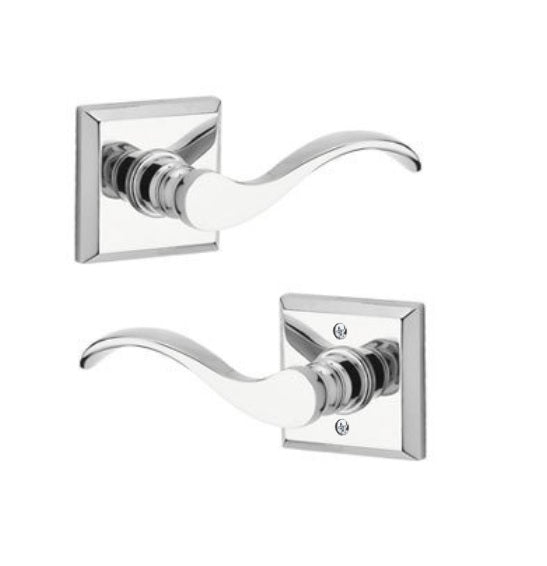

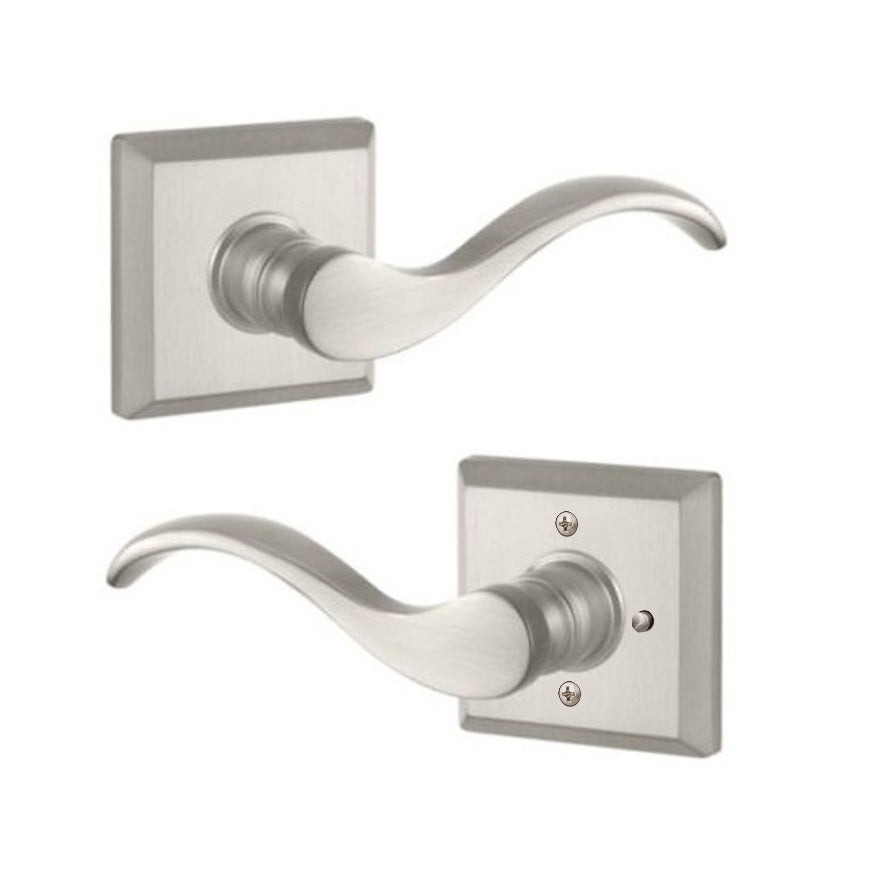

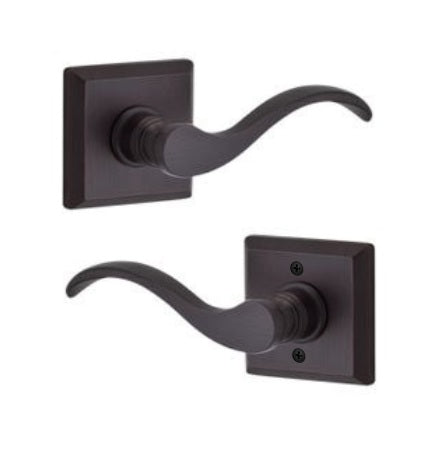

Enhance your home’s style with the Baldwin Reserve Curve Lever paired with the Traditional Square Rosette, a sophisticated combination of graceful design and durable craftsmanship. Featuring a gently arched lever and clean, angular rosette, this set offers a refined aesthetic that complements both traditional and transitional interiors. Made from solid brass for long-lasting strength and a premium feel, the Curve Lever is available in a range of elegant finishes, including Satin Nickel, Venetian Bronze, and Polished Chrome. Designed for versatility, it suits entry, privacy, passage, and dummy functions, and installs easily on standard doors. With its timeless design and superior quality, the Baldwin Reserve Curve Lever with Traditional Square Rosette adds a touch of luxury to any room.

Passage Features

• Lever set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Passage sets include everything needed to install the lock onto your door.
• Reversible Handing
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

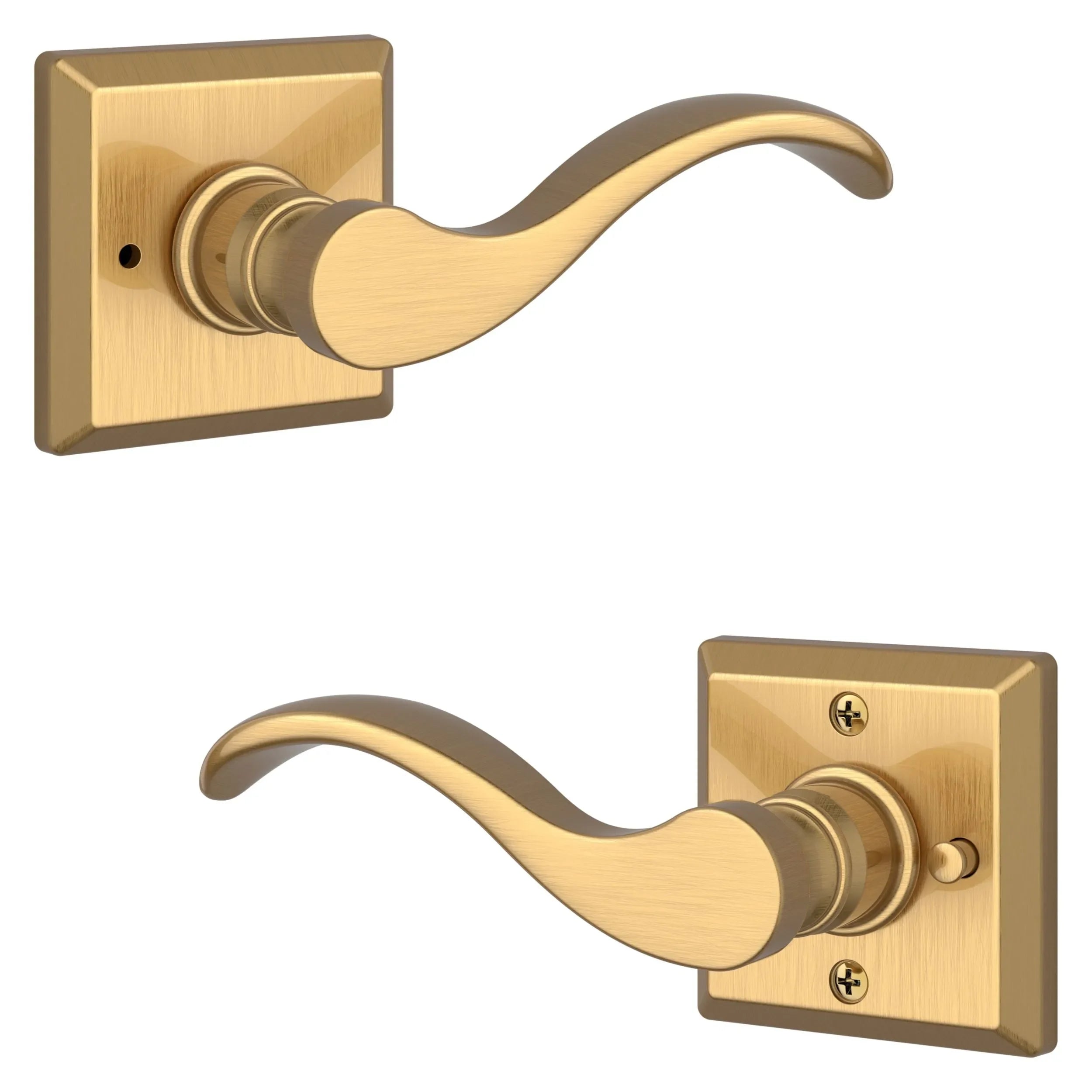

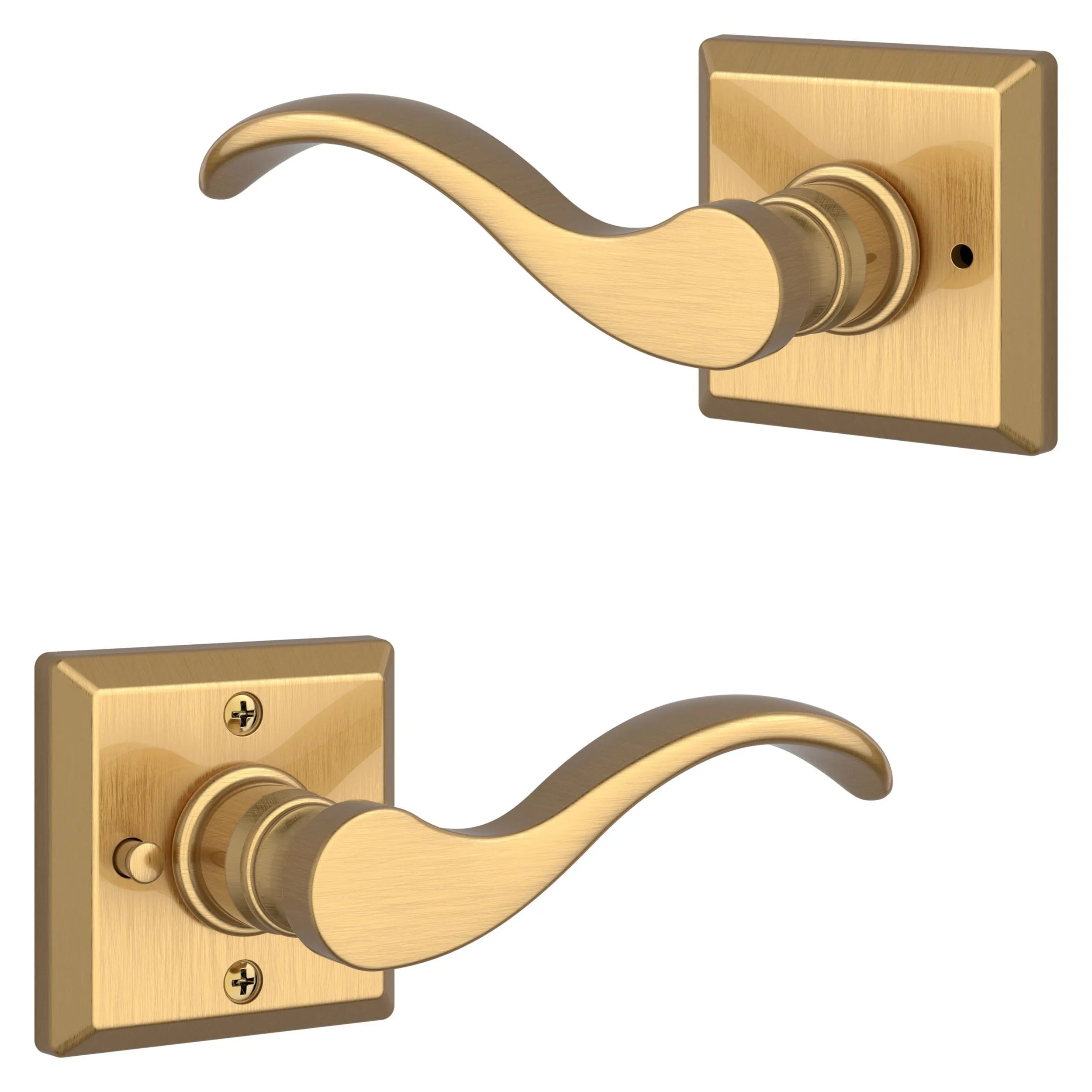

Privacy Features

• Lever set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Privacy sets include everything needed to install the lock onto your door.
• Reversible Handing
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Full Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Note: Interior roses have exposed fasteners
• Reversible Handing

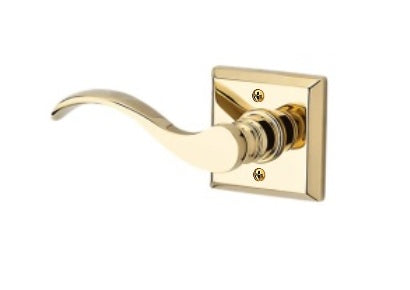

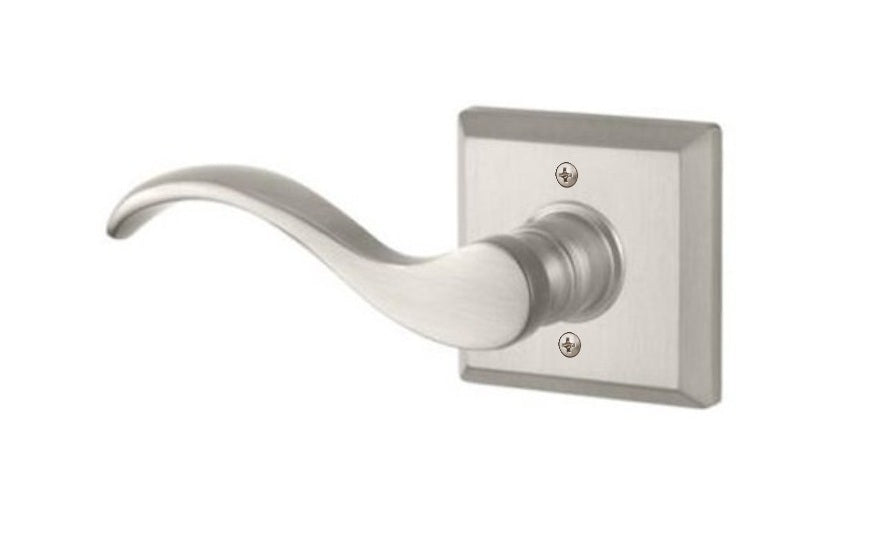

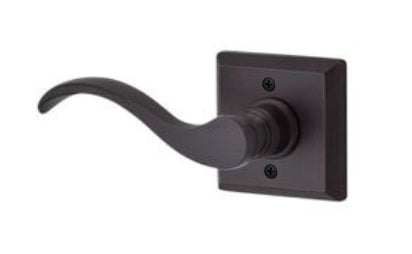

Half Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
• Note: Half Dummy roses are surface mounted and have exposed fasteners
• Select Right or Left Handed

Specifications

• Projection: 2 17/32"
• Lever Grip: 3 31/32"
• Rosette Dimensions: 2 19/32" x 2 19/32"
