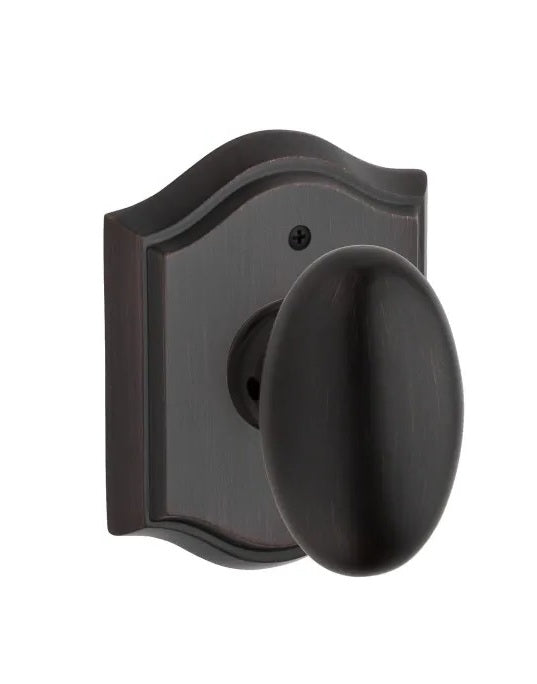

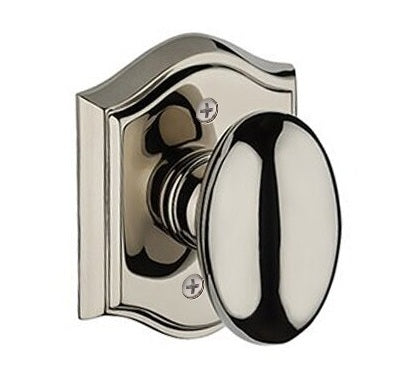

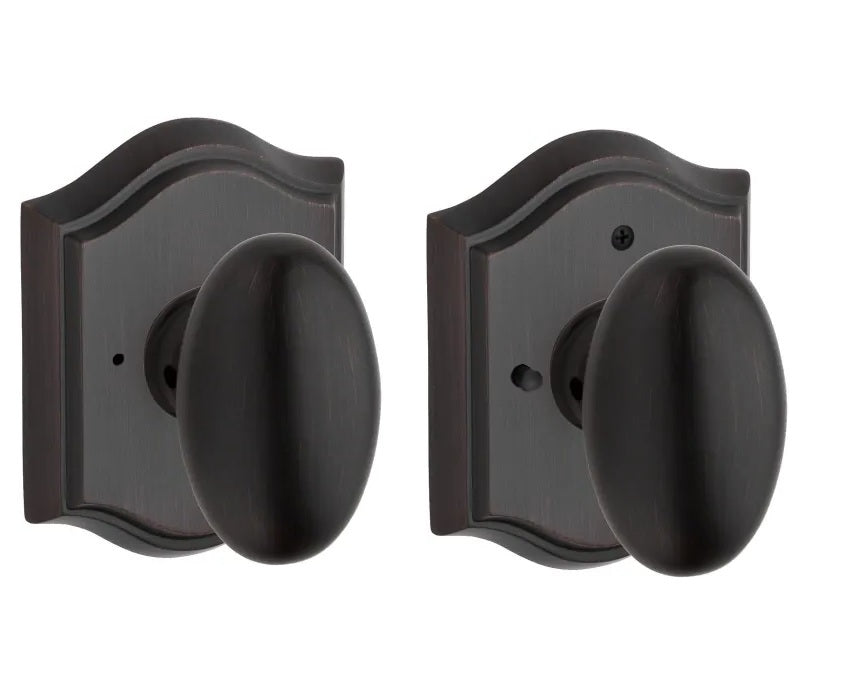

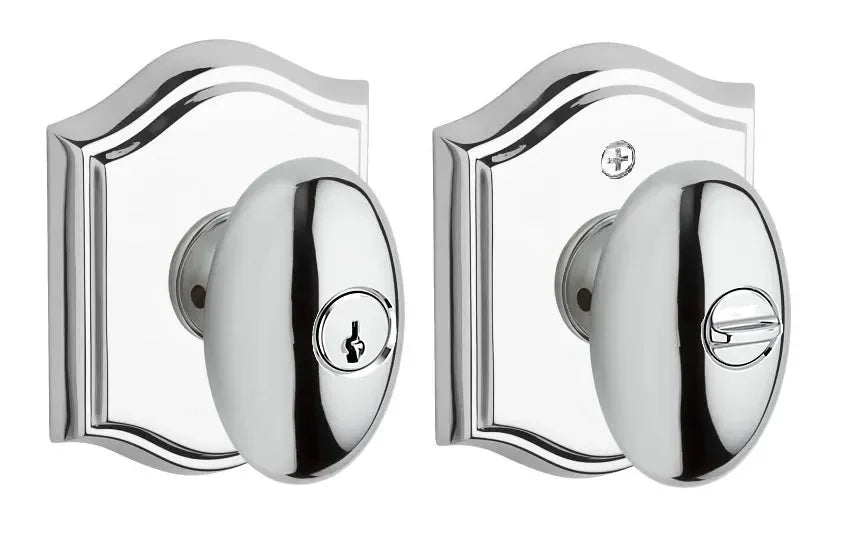

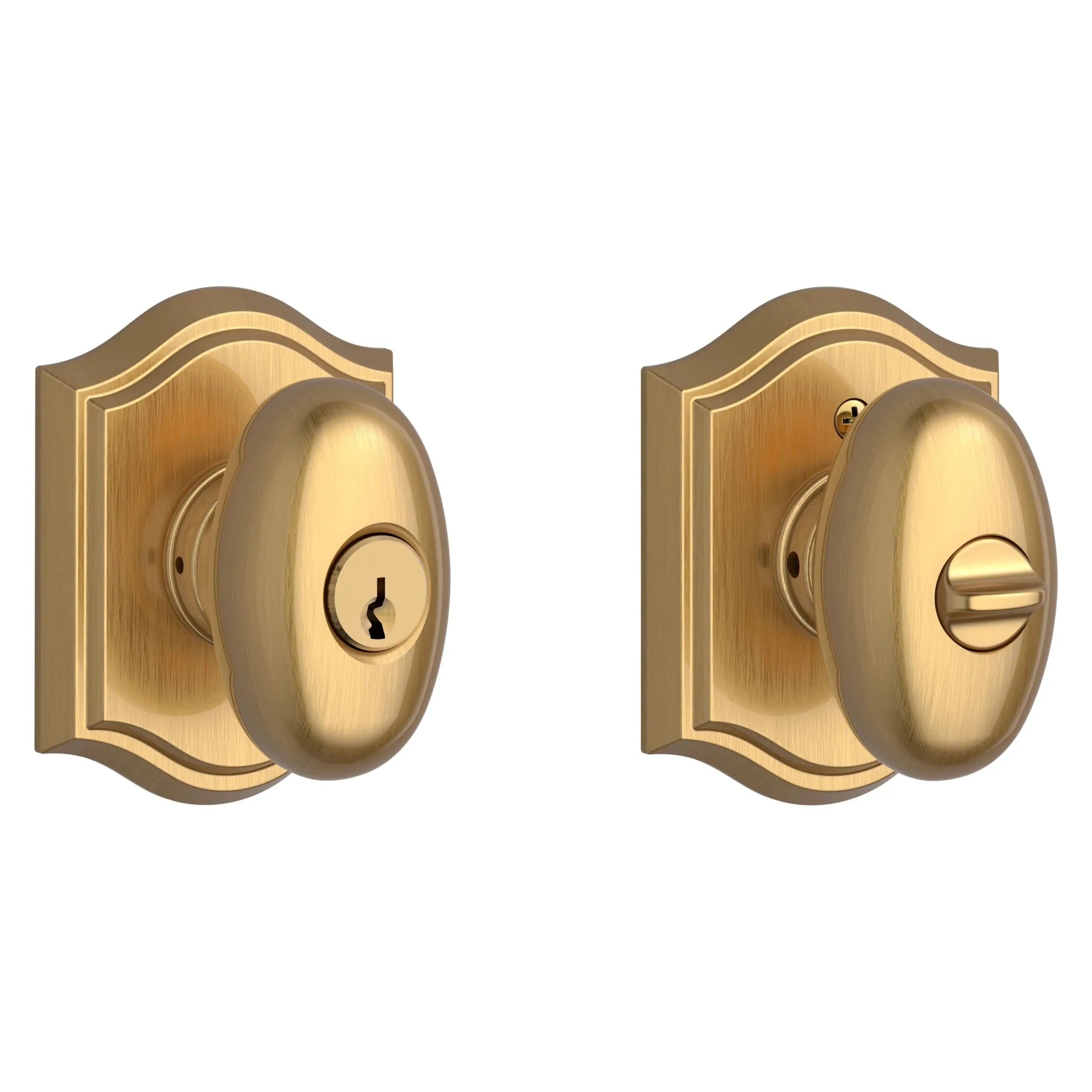

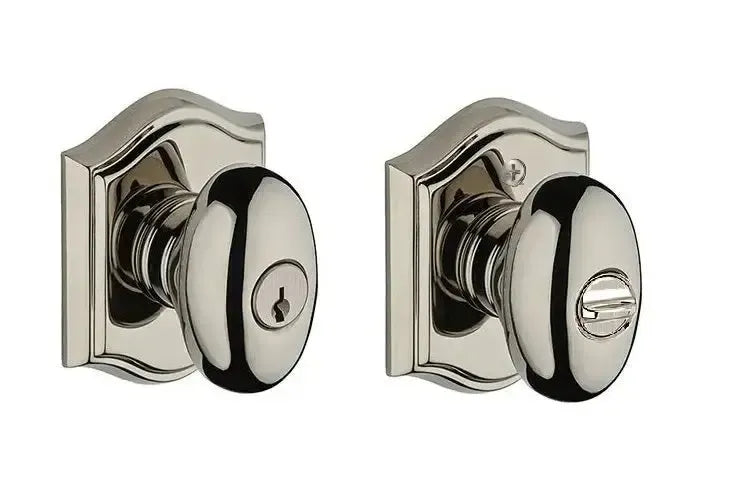

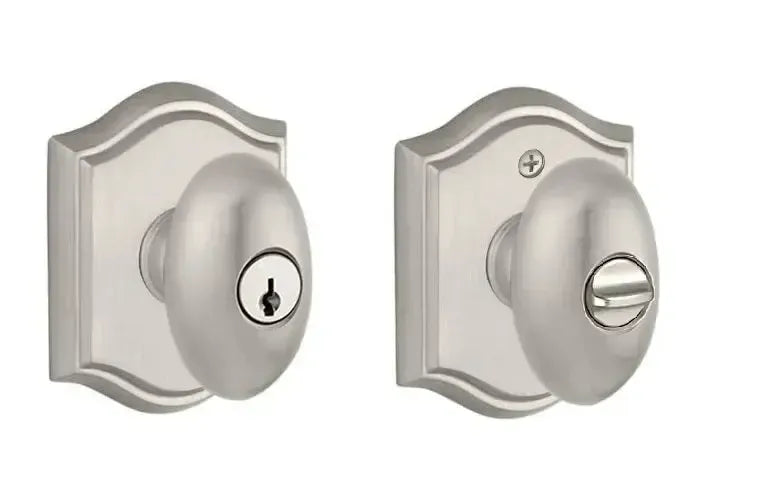

Add a unique and elegant touch to your doors with the Baldwin Ellipse Knob. Its ergonomic oval shape is both comfortable to the hand and visually striking, while the classic arch rosette provides a graceful, traditional detail. Crafted from solid brass, this knob is a durable and stylish choice that perfectly bridges modern and traditional design.

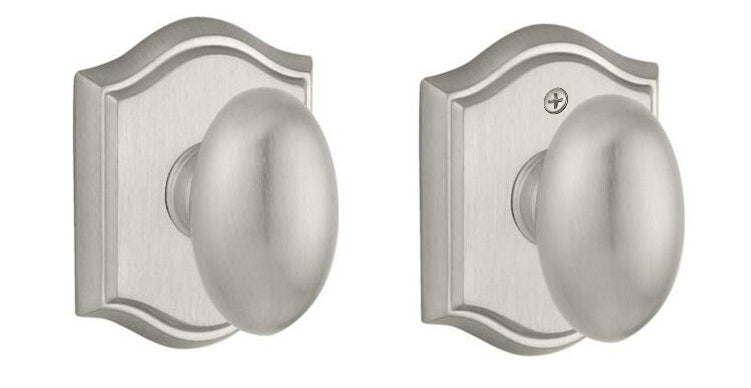

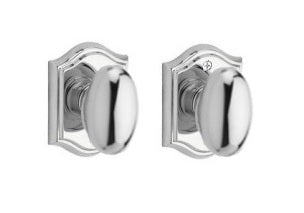

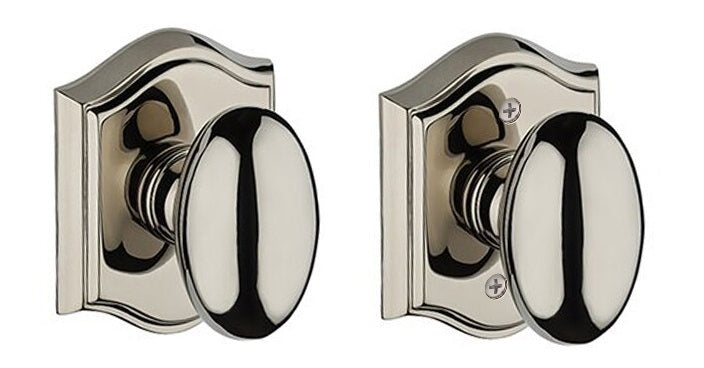

Passage Features
- Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

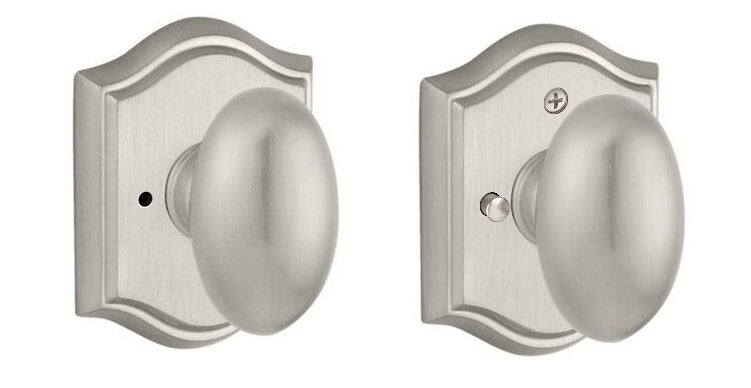

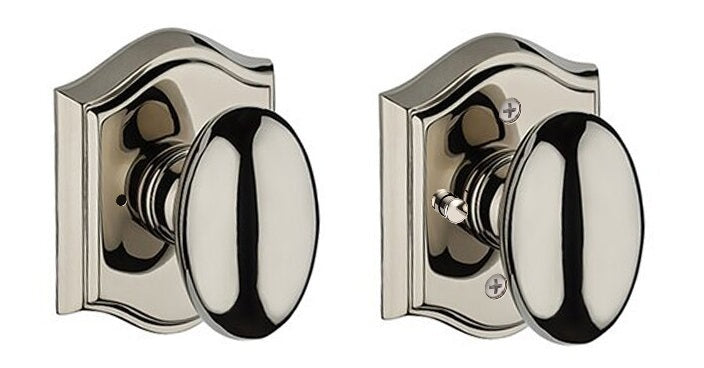

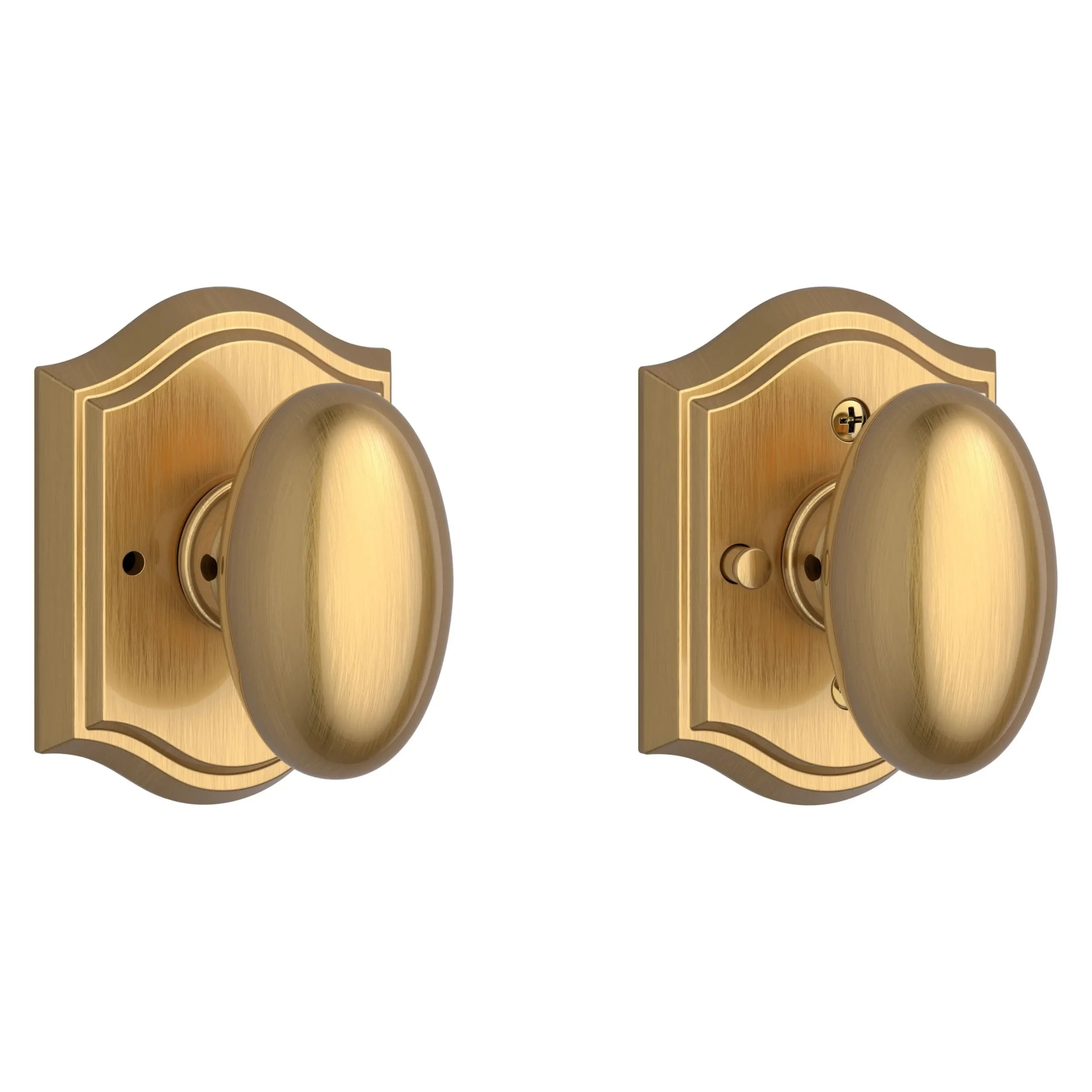

Privacy Features
- Knob set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Handing not required

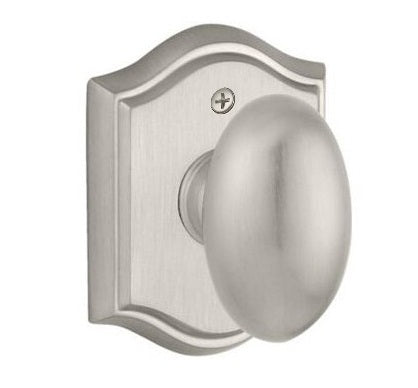

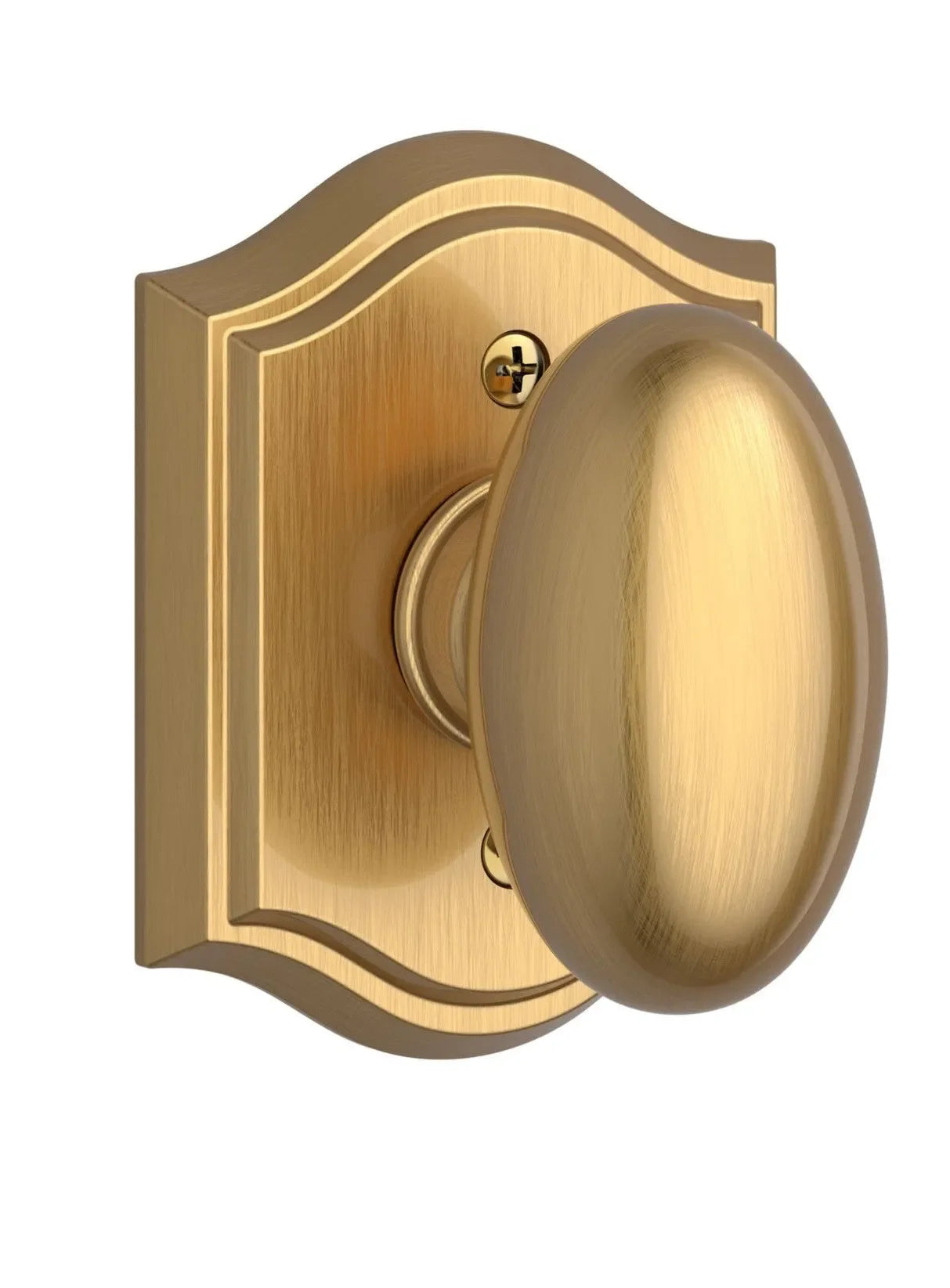

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners

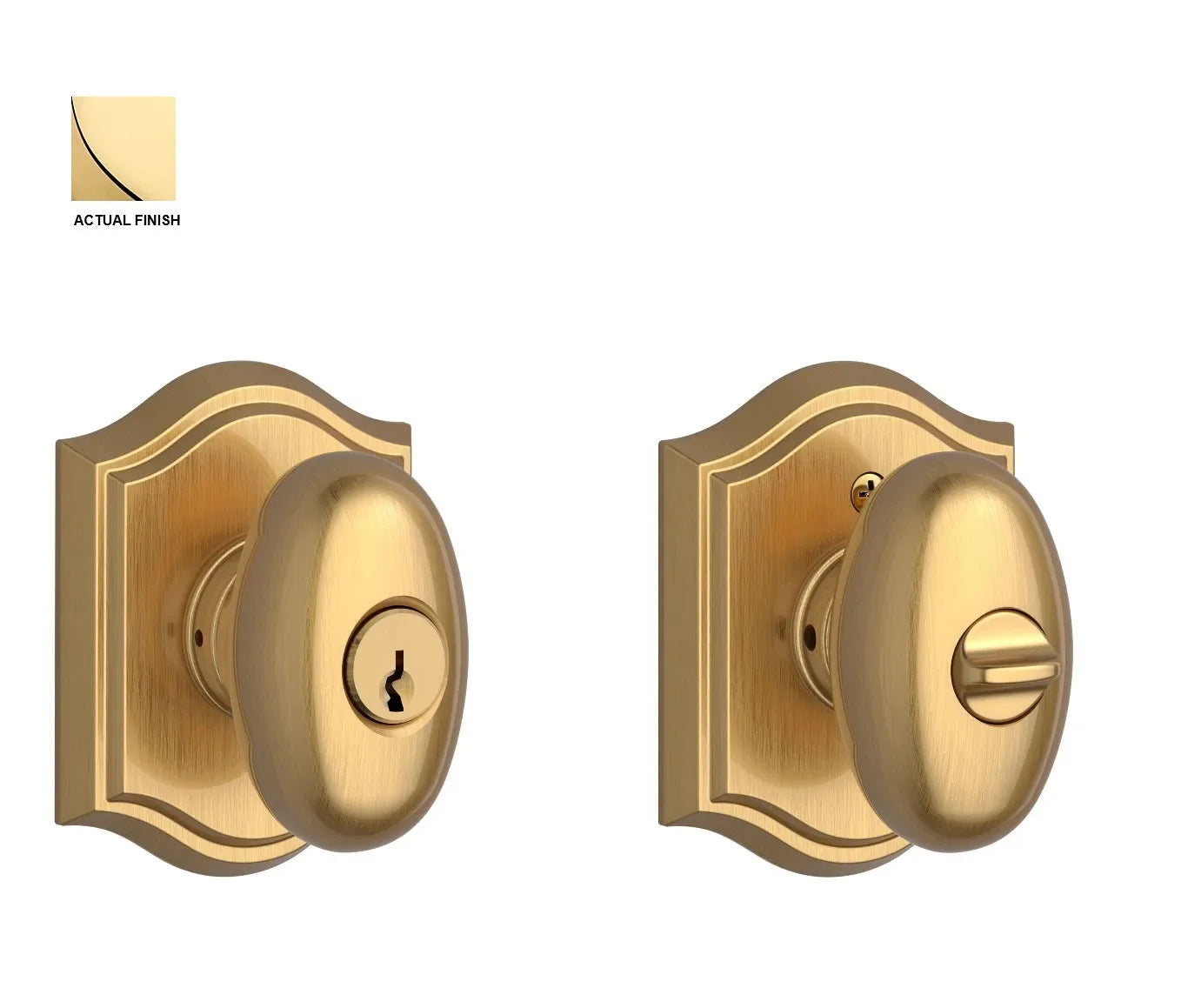

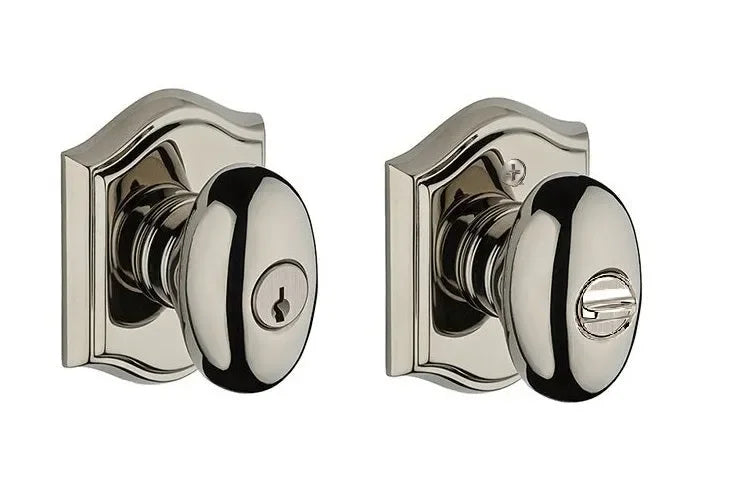

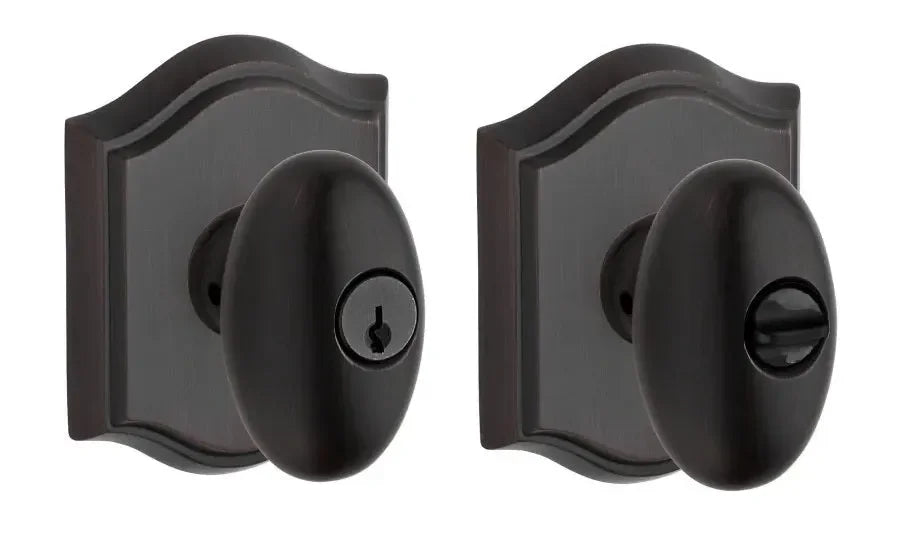

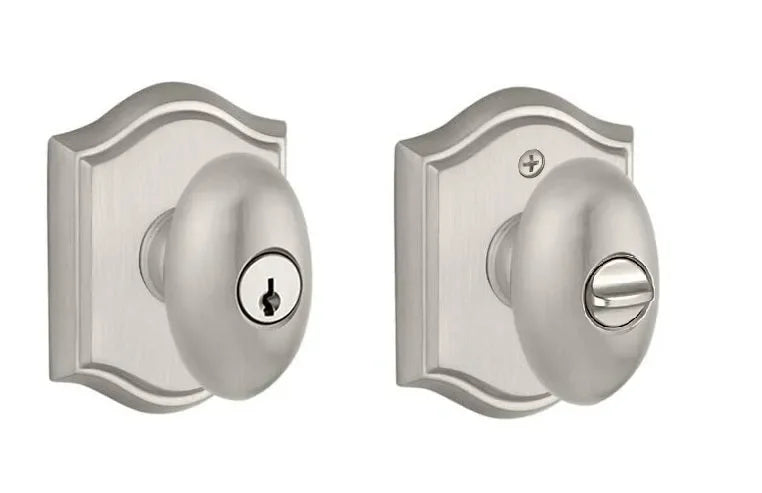

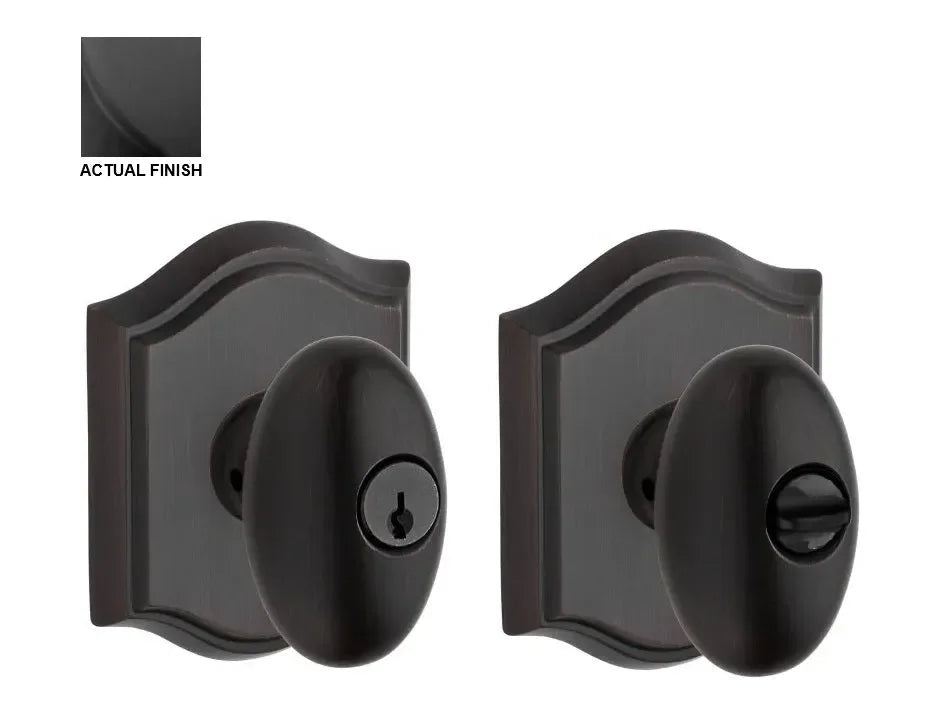

Keyed Entry Features
- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 11/32"
- Keyed Knob Projection: 2 3/16"
- Knob Height: 2 7/16"
- Rosette Dimensions: 2 21/32" x 3 7/16"
