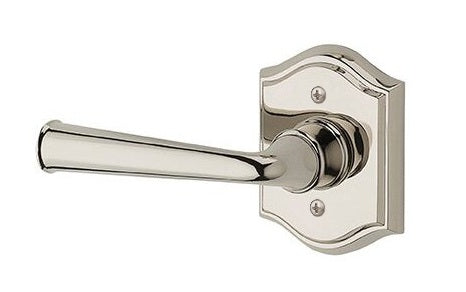

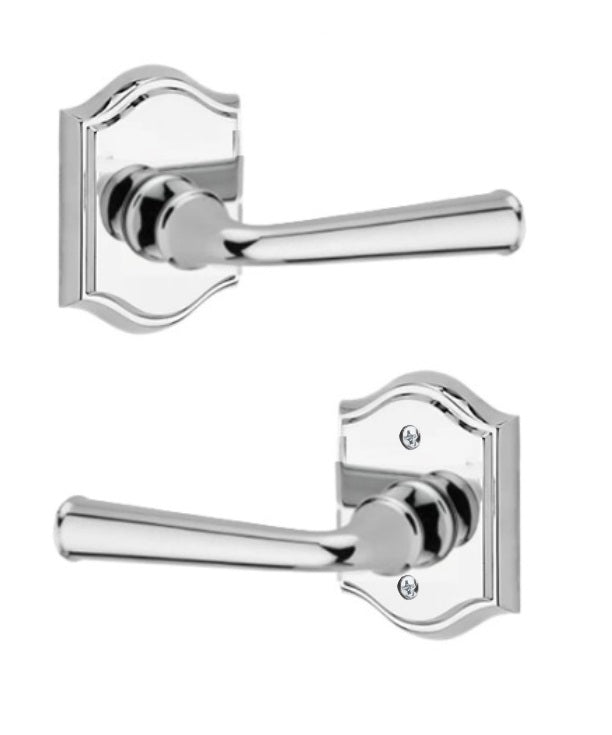

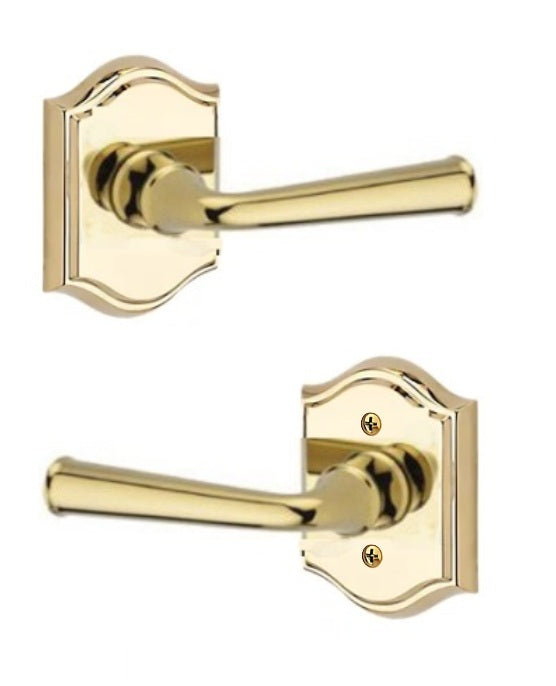

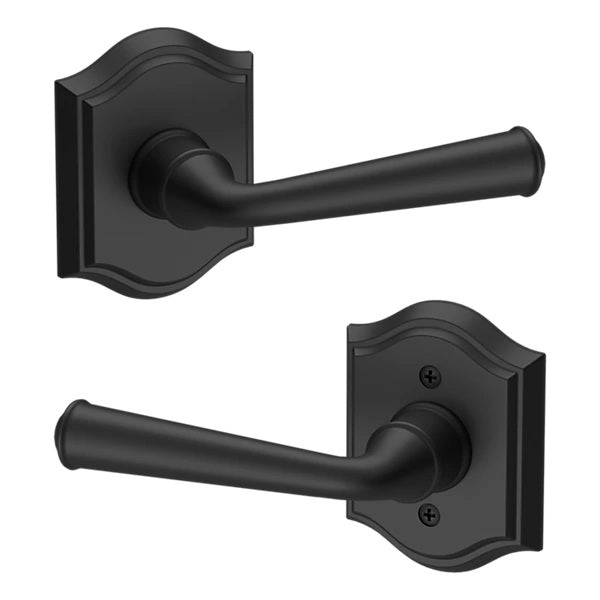

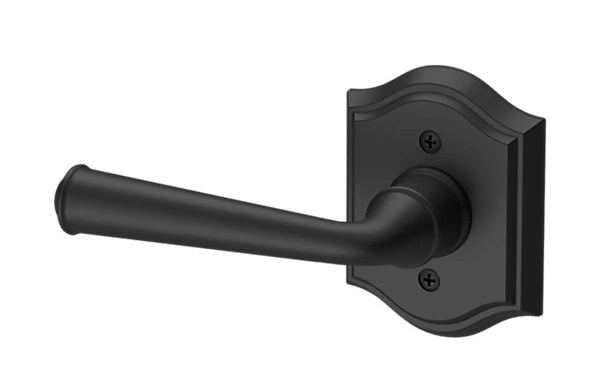

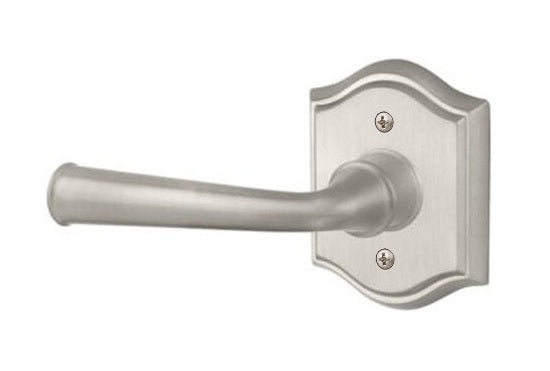

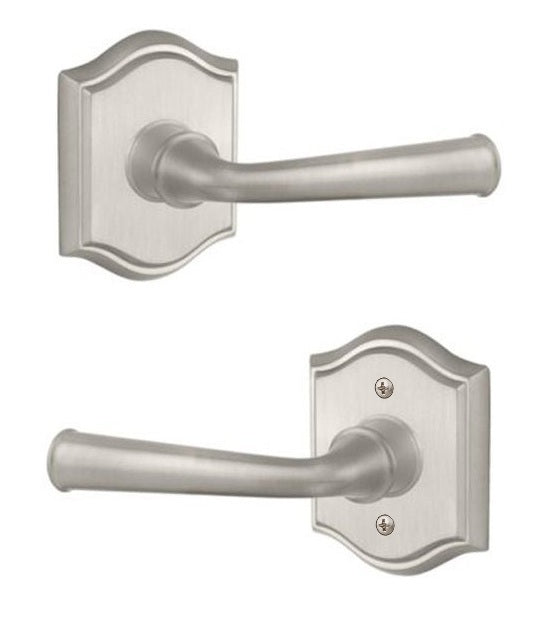

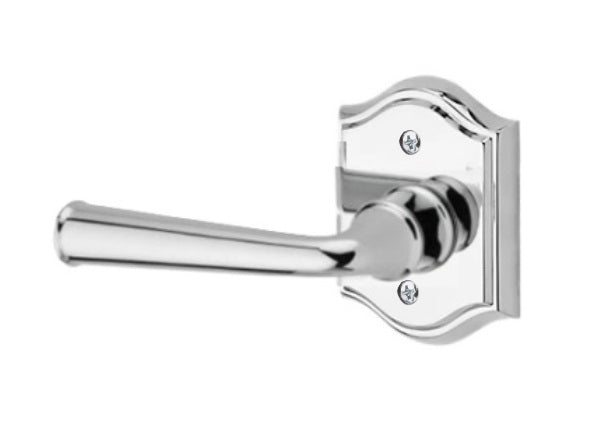

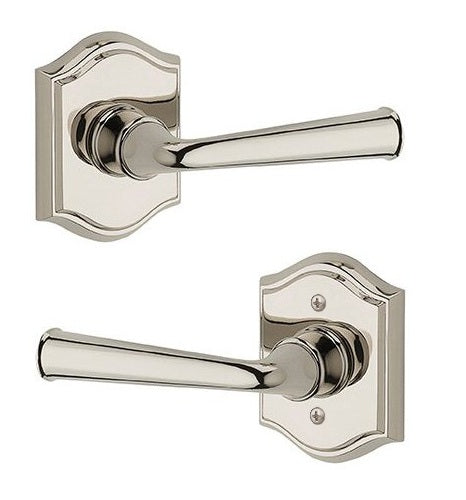

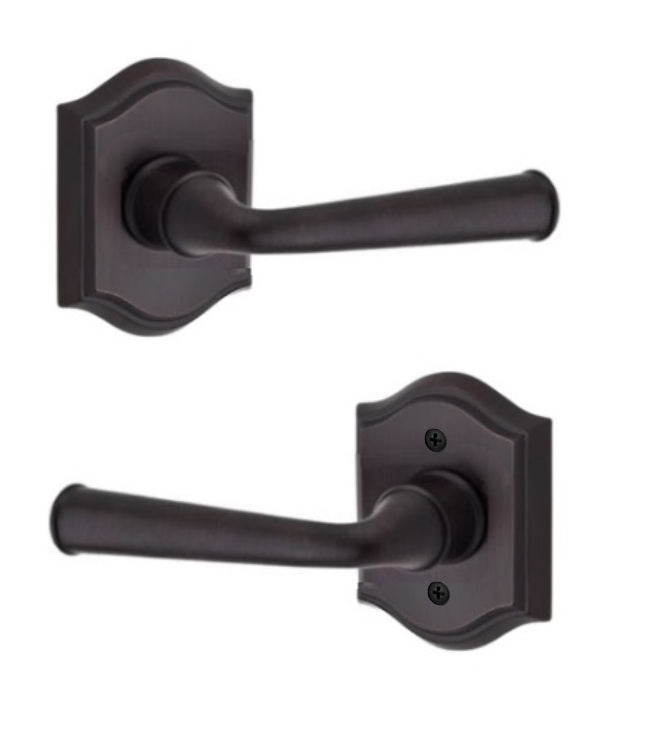

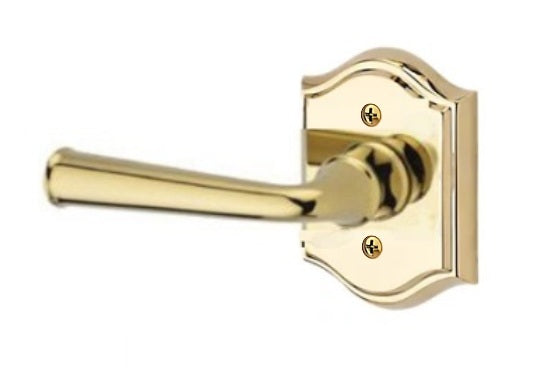

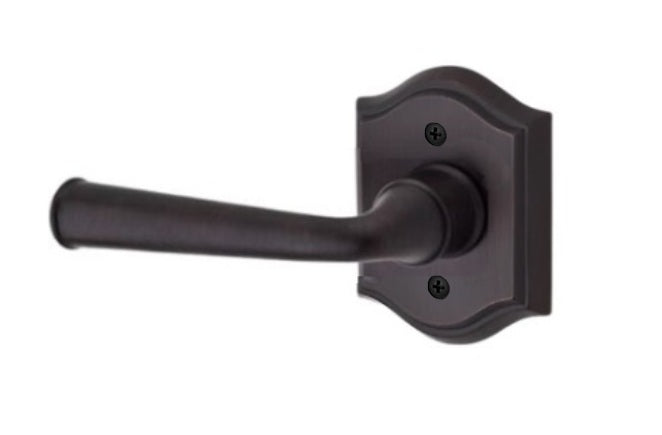

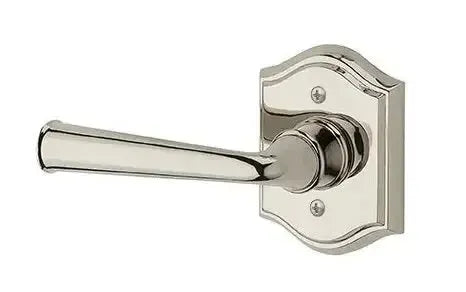

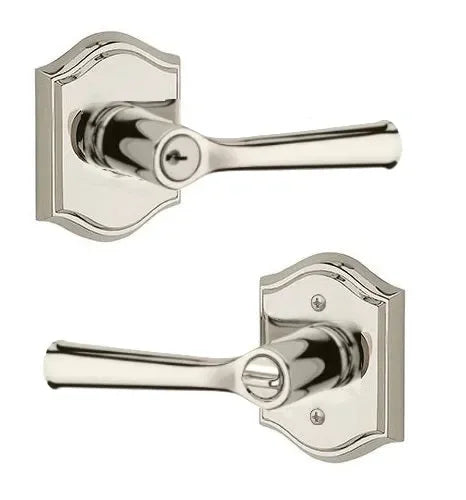

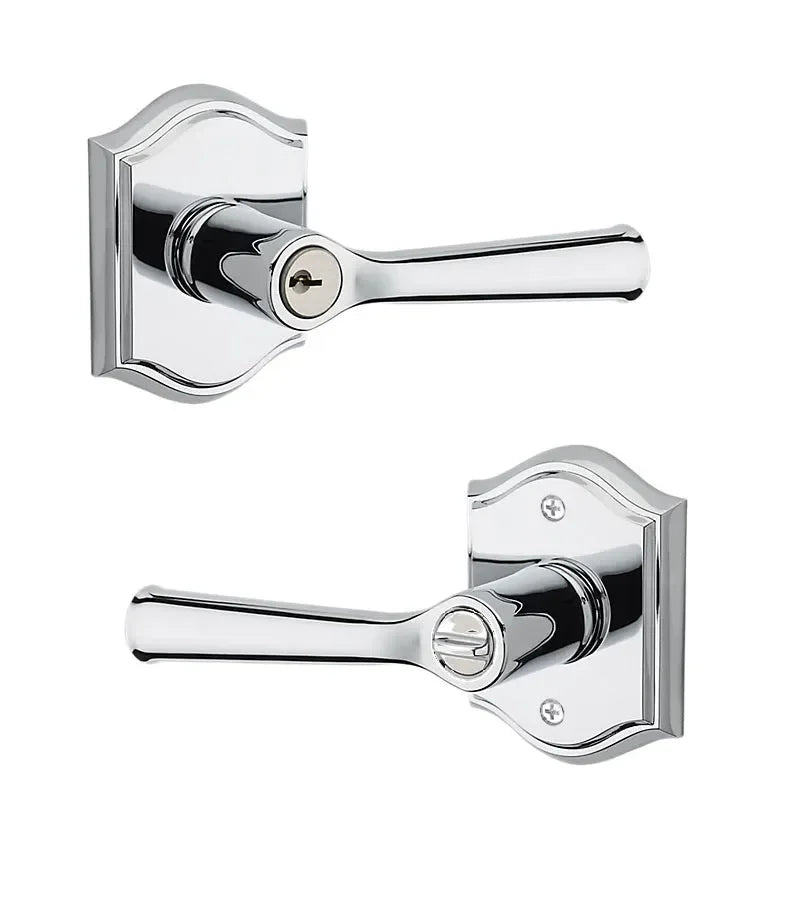

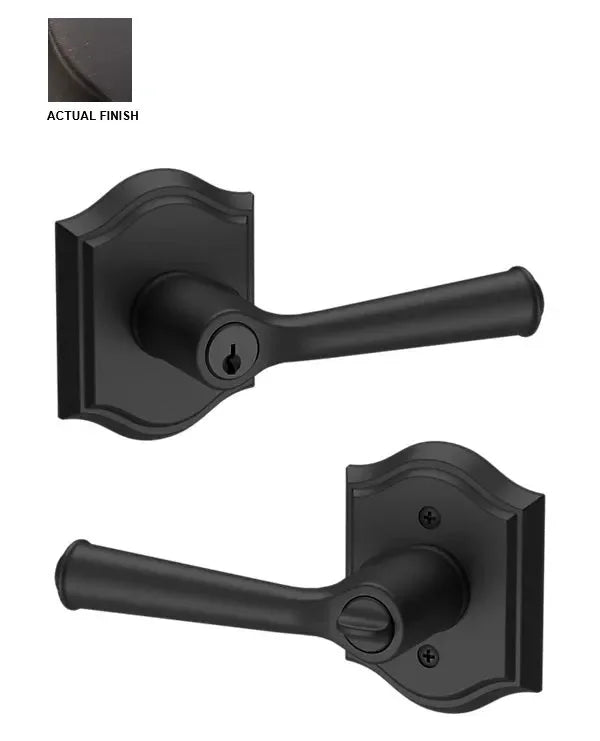

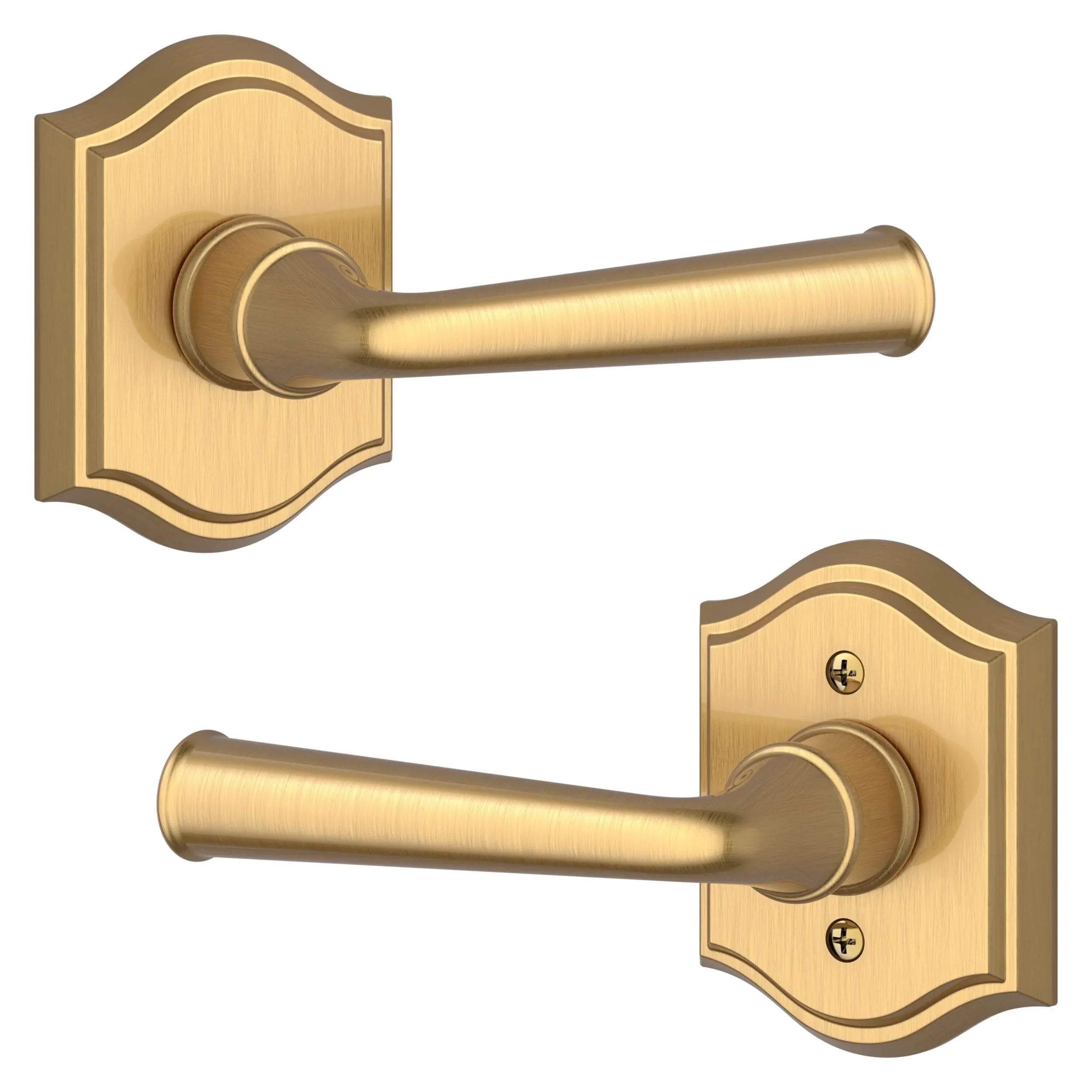

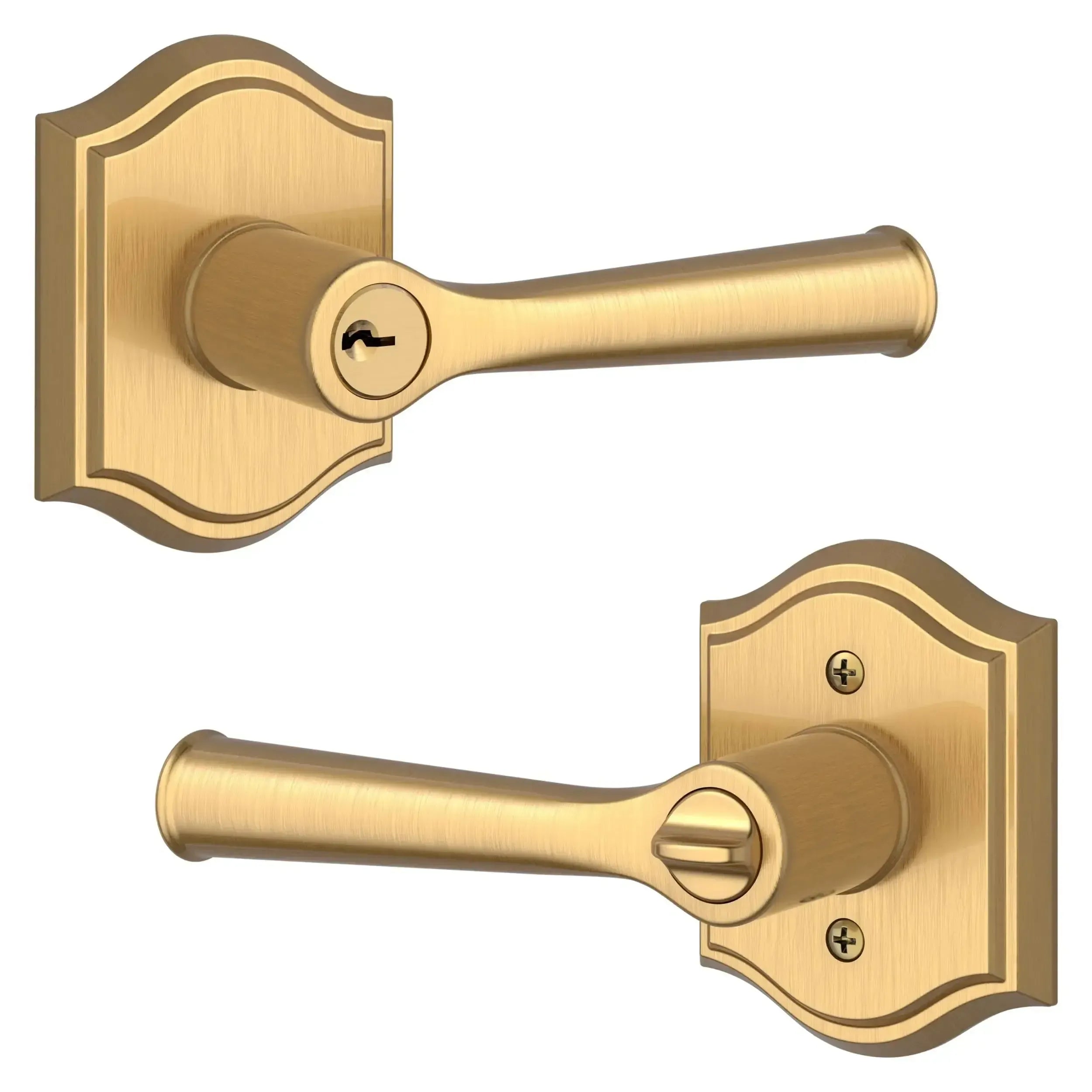

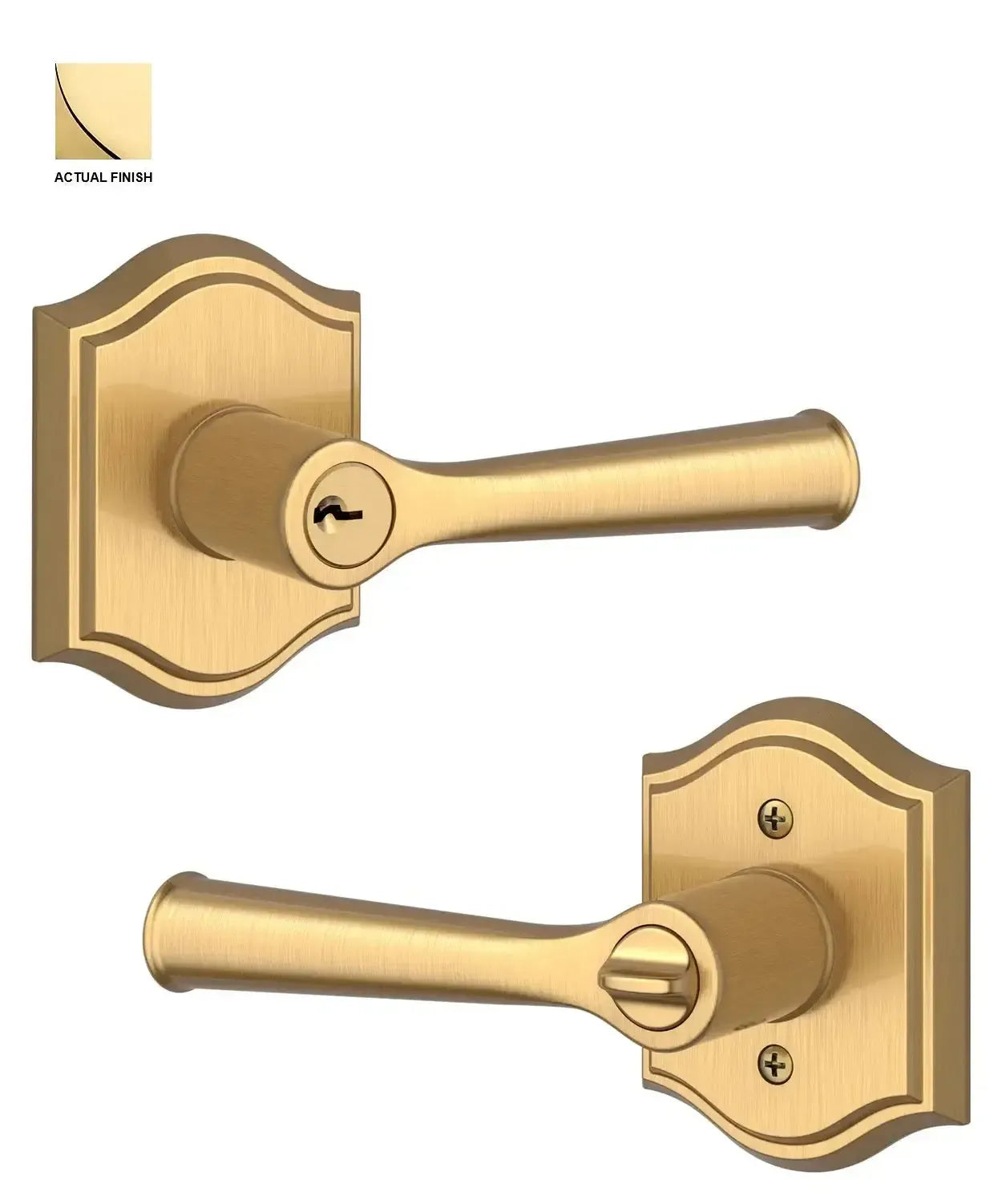

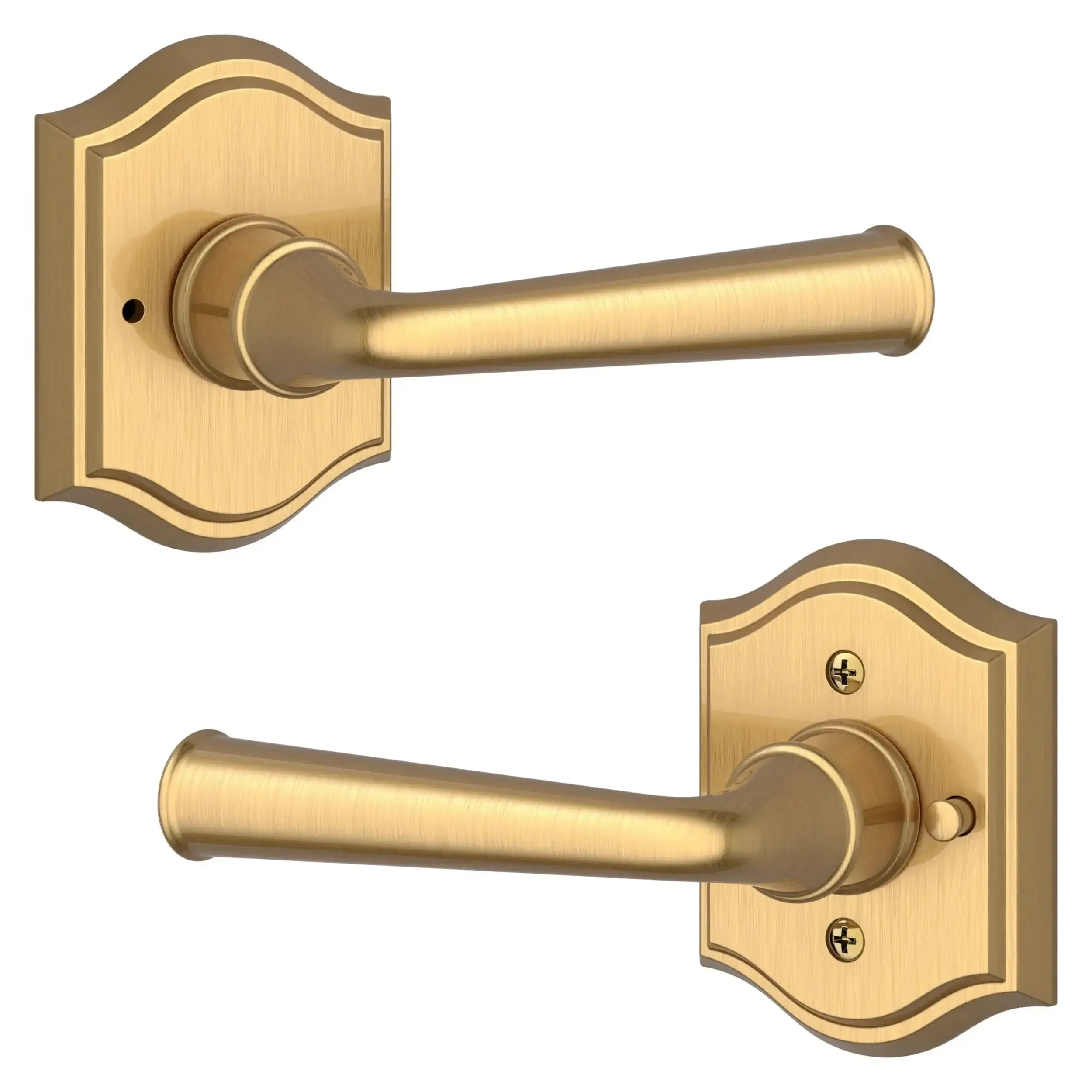

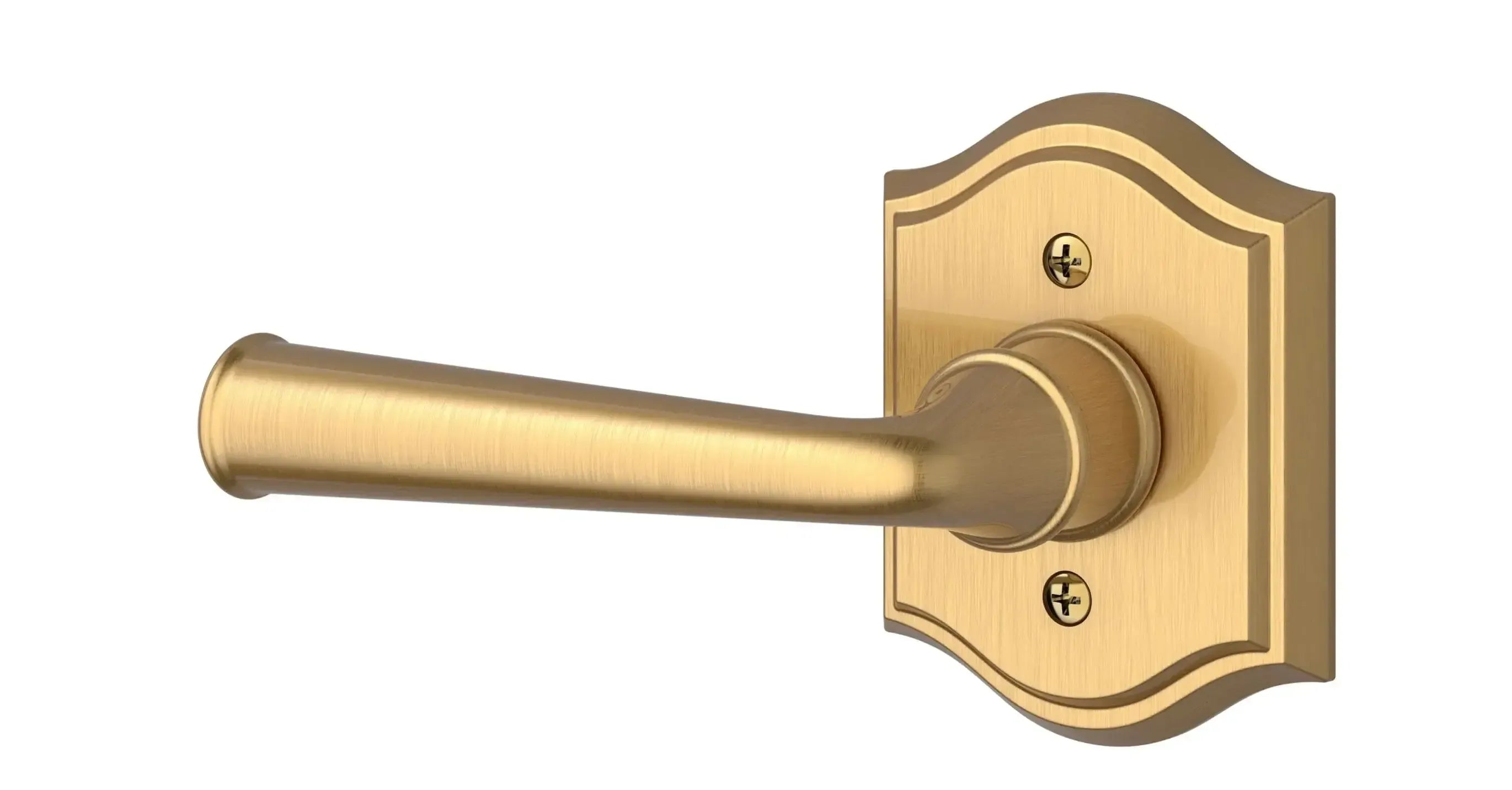

Federal Lever with Traditional Arch Rosette

Elevate your home's style with the Baldwin Reserve Federal Lever with Traditional Arch Rosette, a perfect blend of timeless design and modern durability. The Federal Lever features a sleek, straight-line design with gentle curves, offering a comfortable and sophisticated grip. Paired with the gracefully curved traditional arch rosette, this set adds a refined, classic look to any interior. Expertly crafted from solid brass, it ensures lasting strength, smooth operation, and a premium feel. Available in a variety of luxurious finishes, this lever and rosette combination is ideal for both traditional and transitional spaces, making it the perfect upgrade for your doors.

Passage Features

• Lever set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Passage sets include everything needed to install the lock onto your door.
• Reversible Handing
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

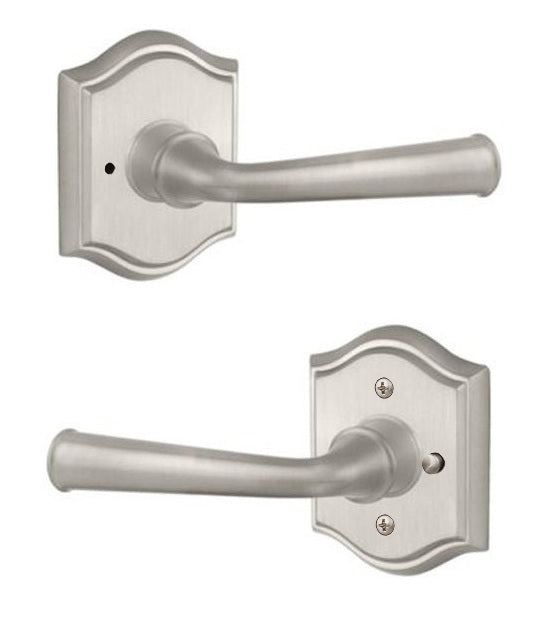

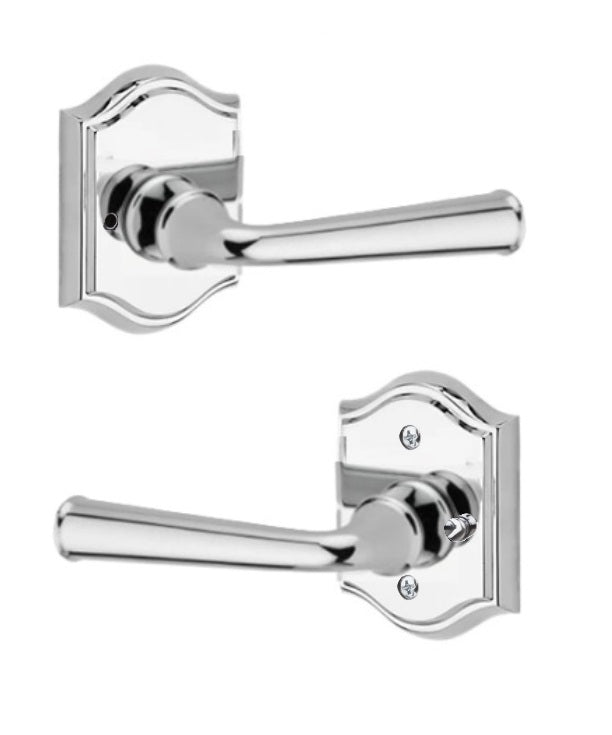

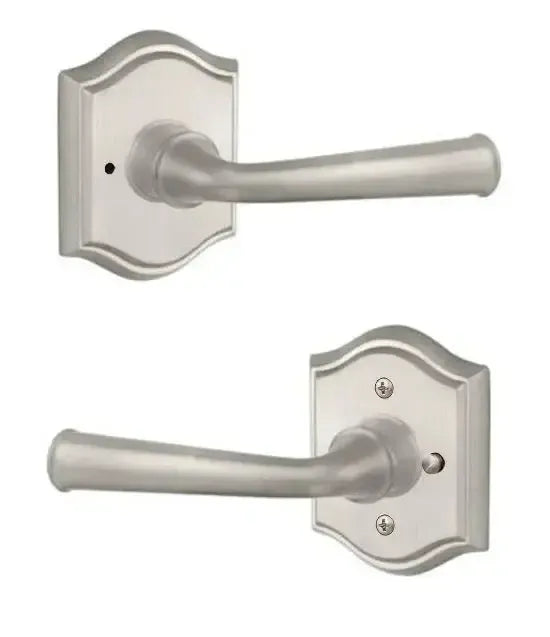

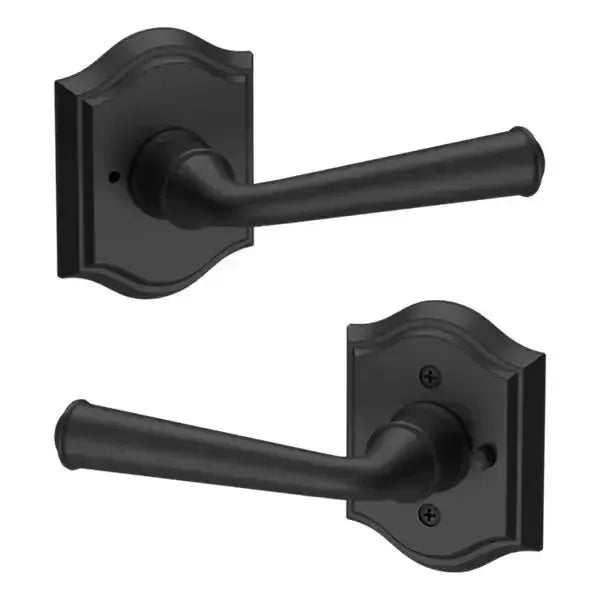

Privacy Features

• Lever set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
• Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Privacy sets include everything needed to install the lock onto your door.
• Reversible Handing
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Full Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
• Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
• Note: Interior roses have exposed fasteners
• Reversible Handing

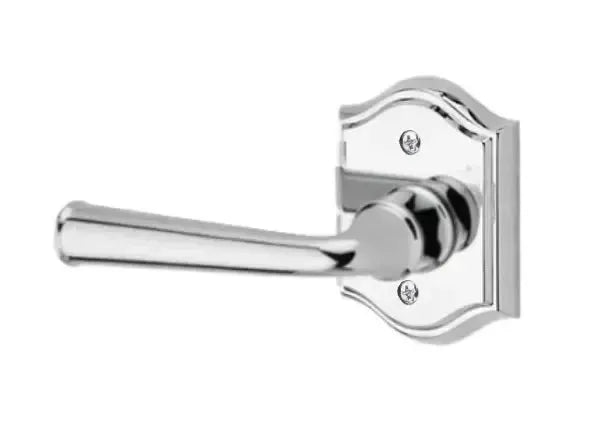

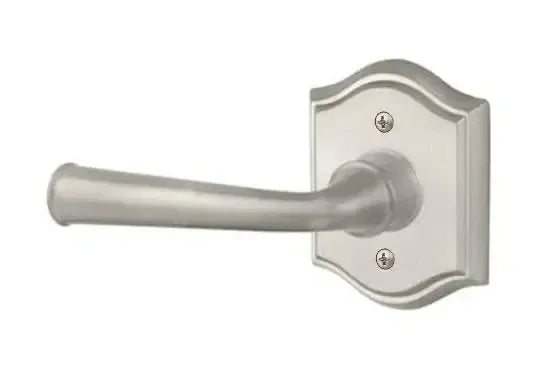

Half Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
• Note: Half Dummy roses are surface mounted and have exposed fasteners
• Reversible Handing

Specifications

• Projection: 2 1/2"
• Lever Grip: 4 1/4"
• Rosette Dimensions: 2 21/32" x 3 7/16"
