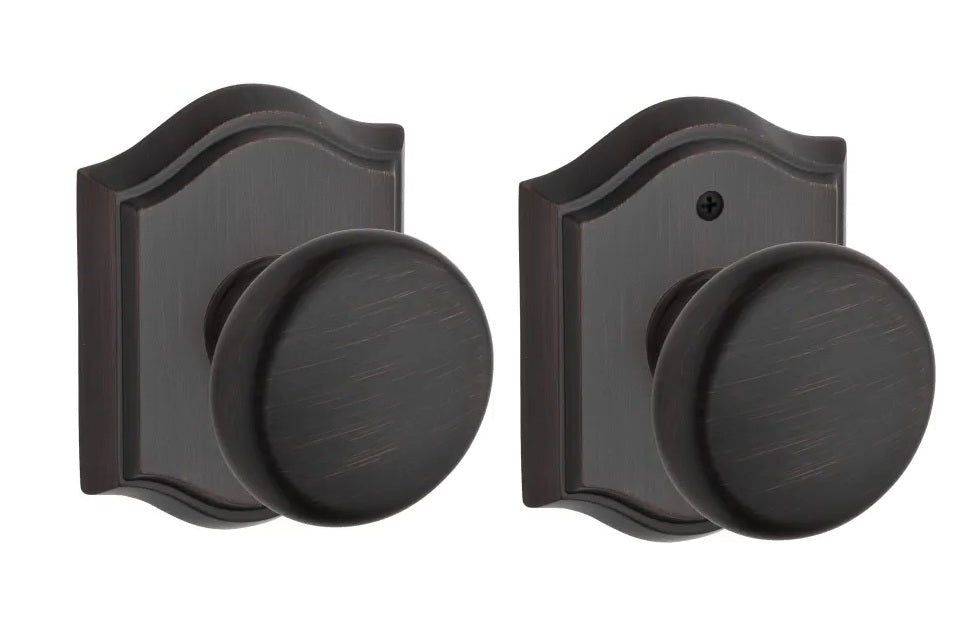

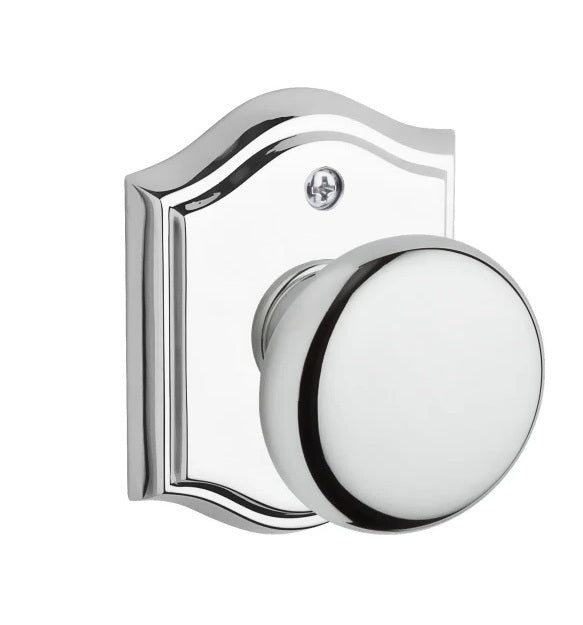

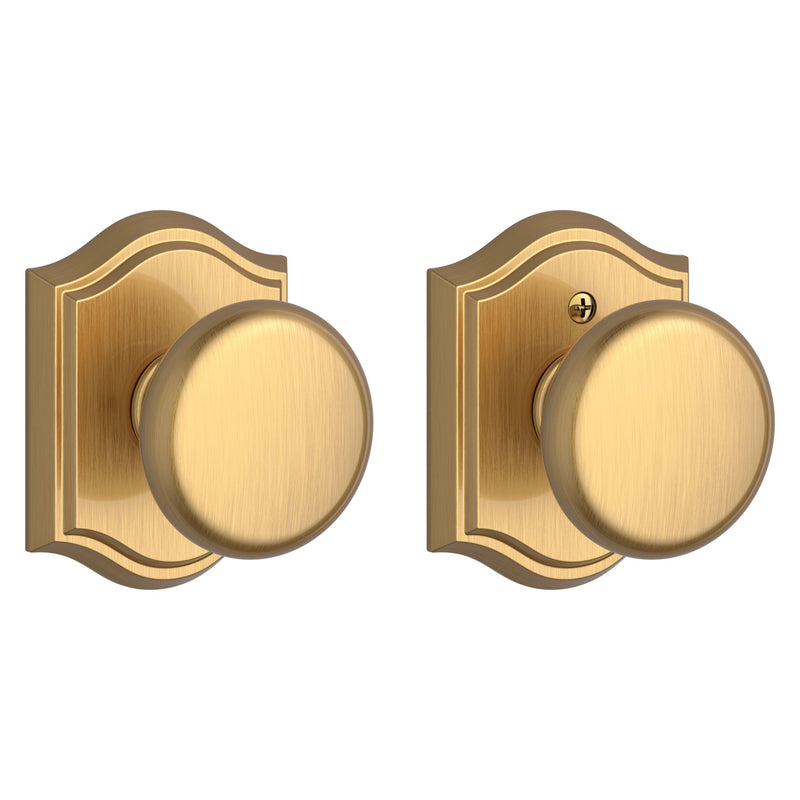

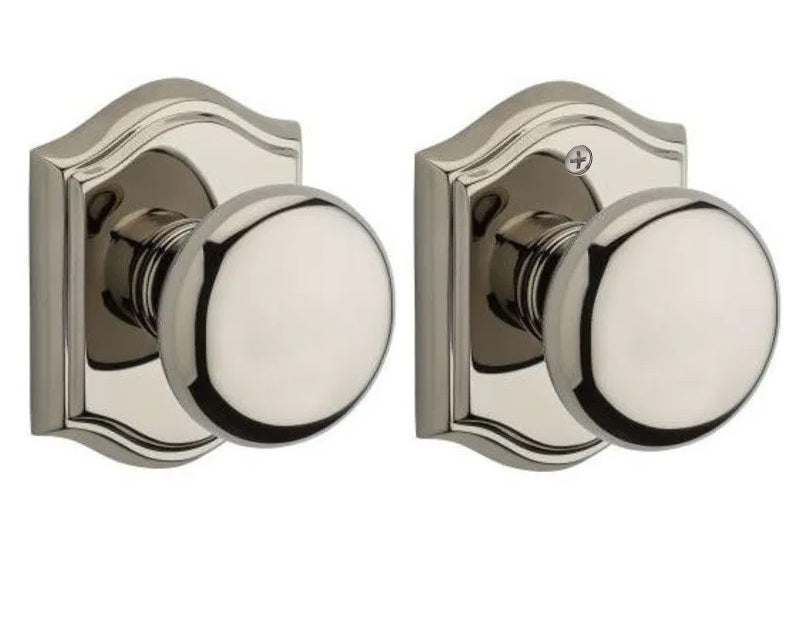

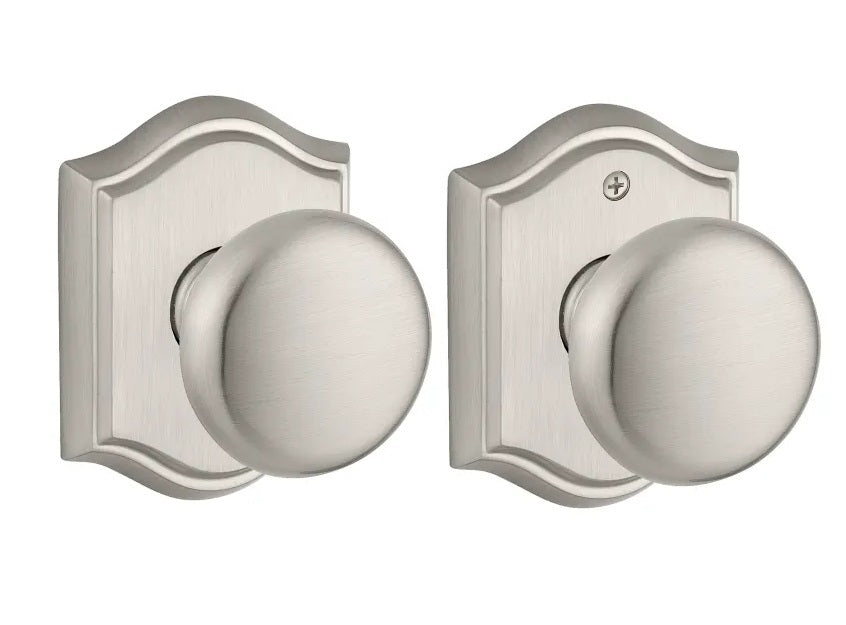

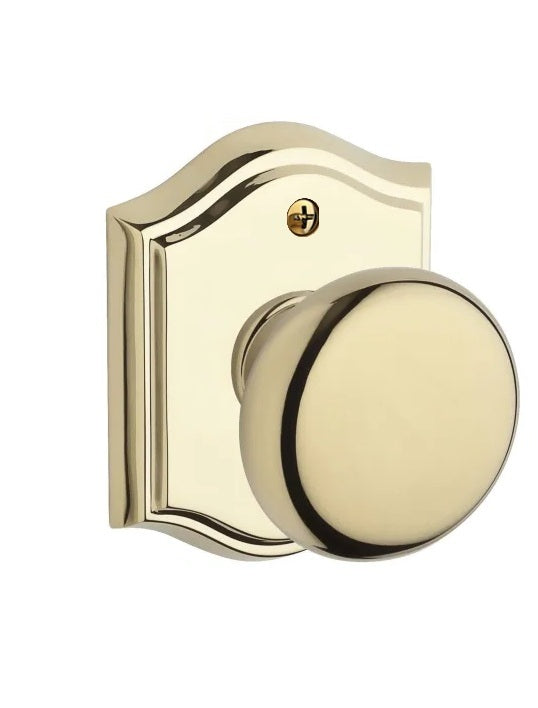

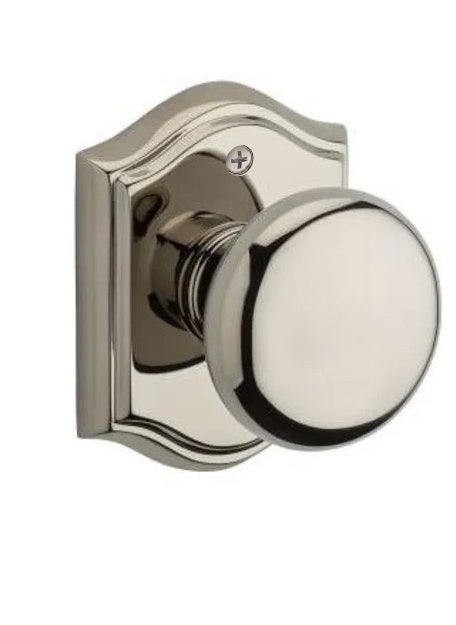

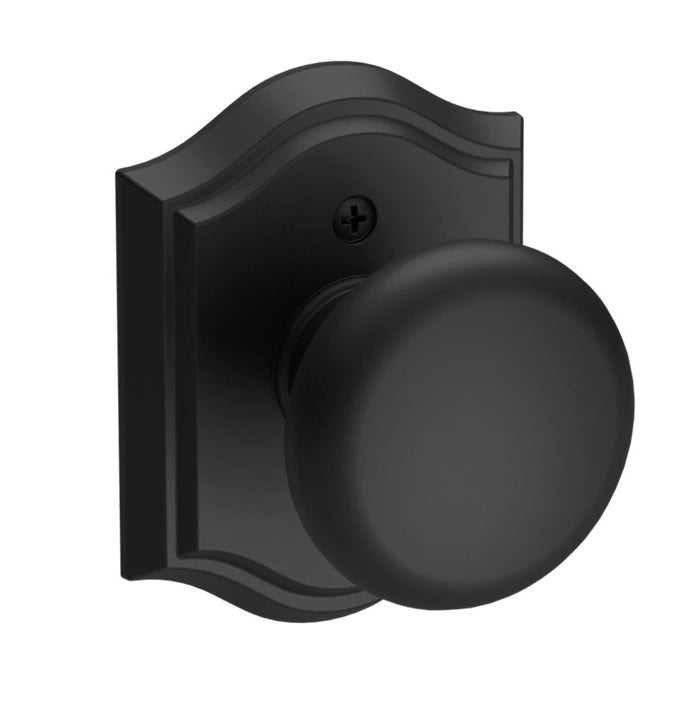

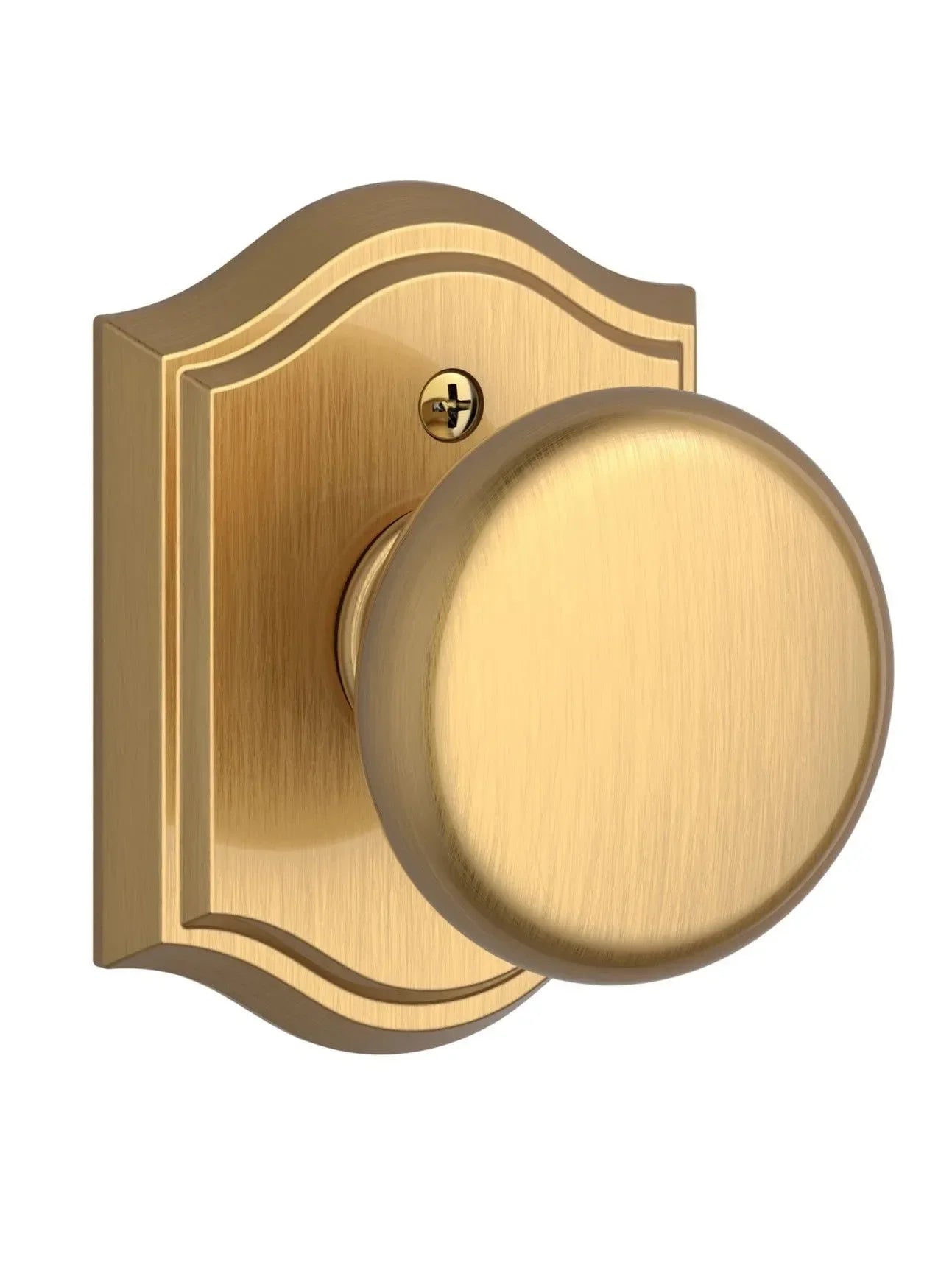

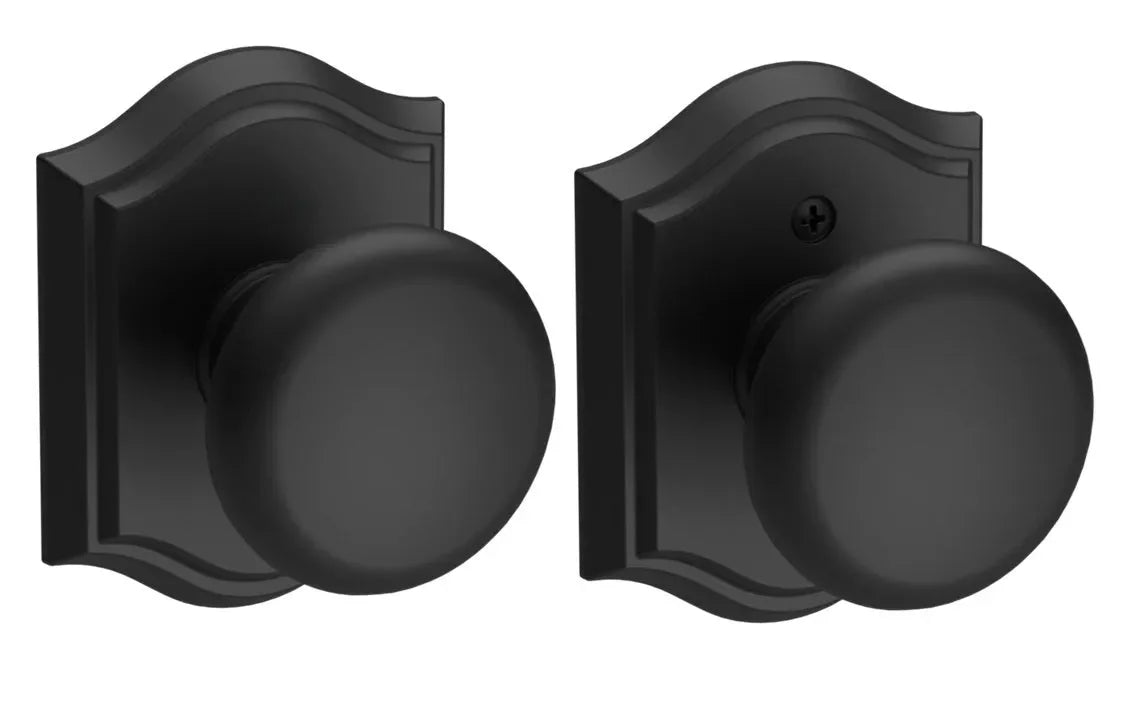

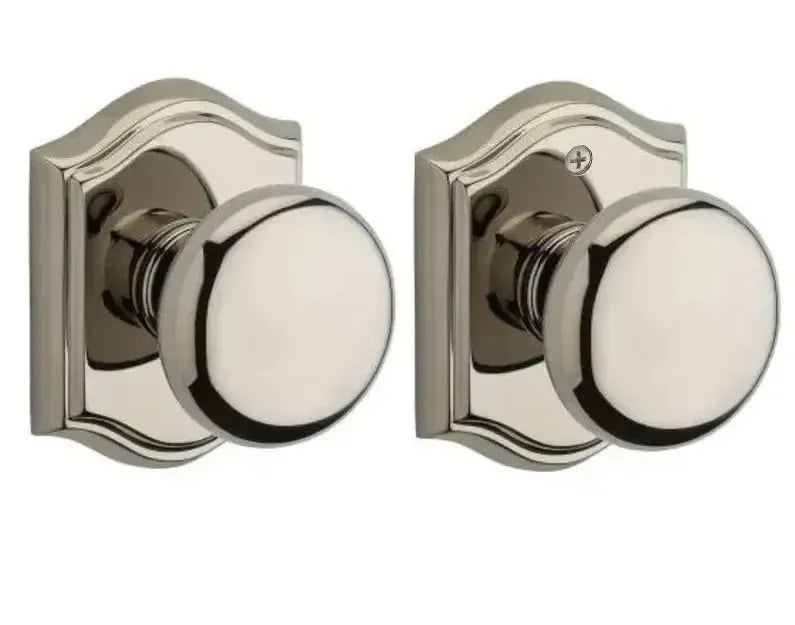

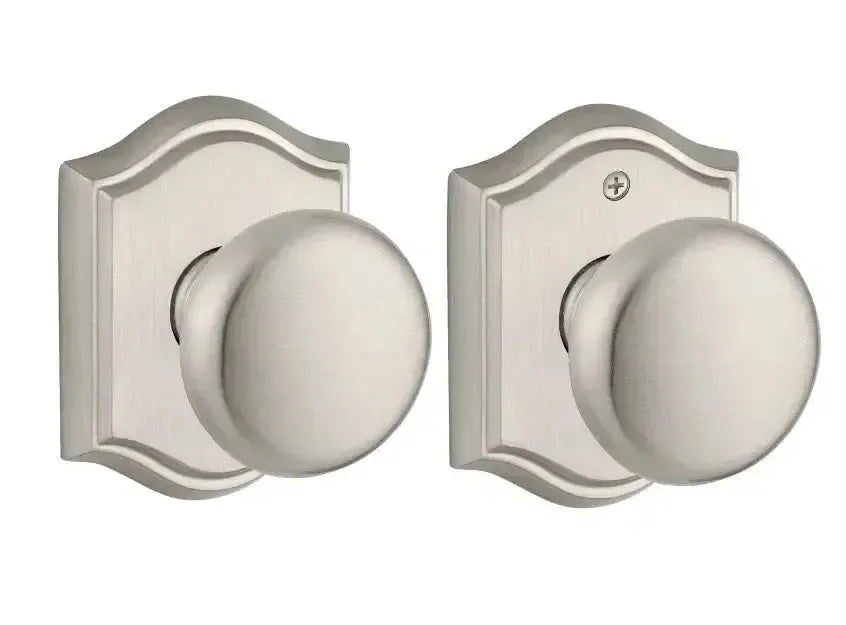

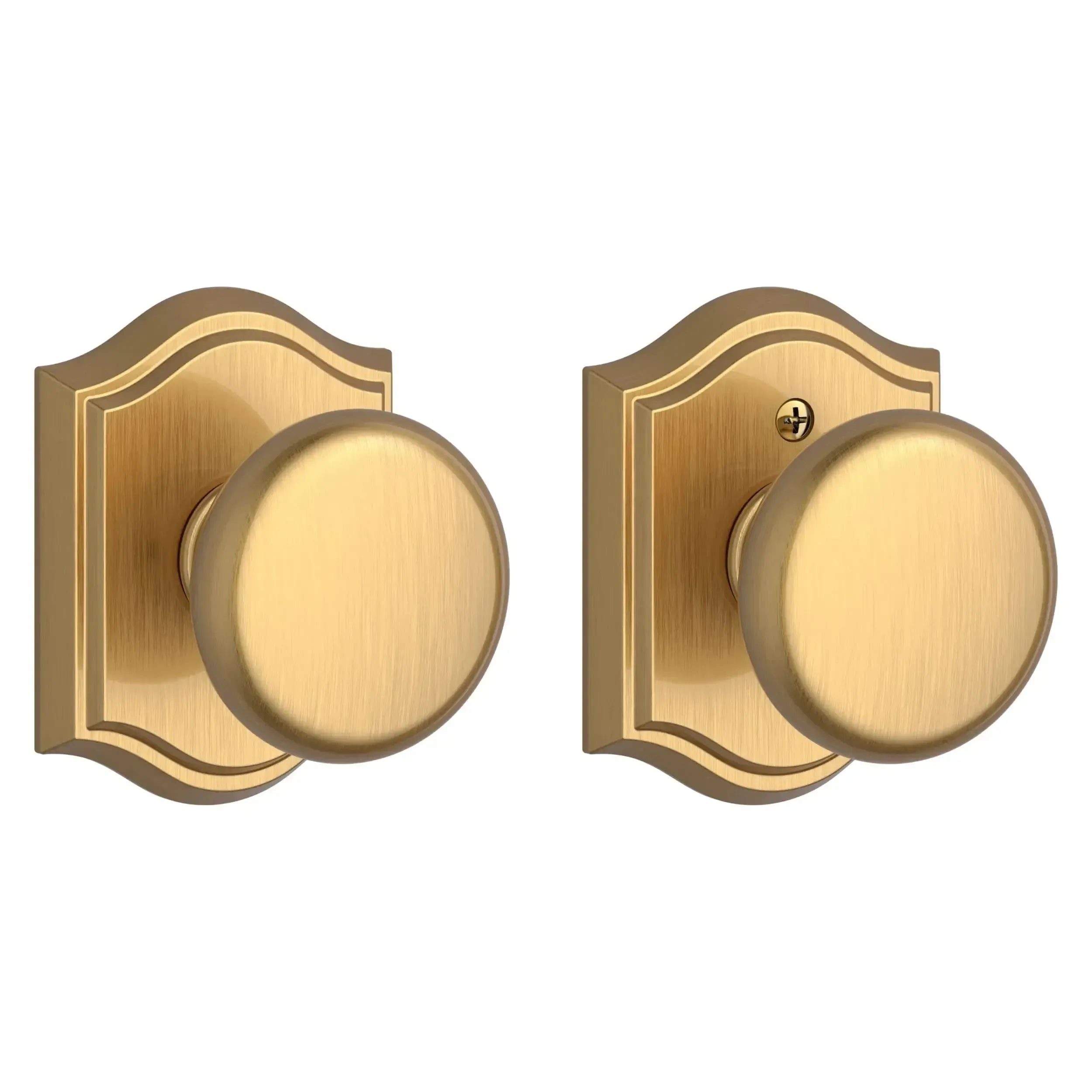

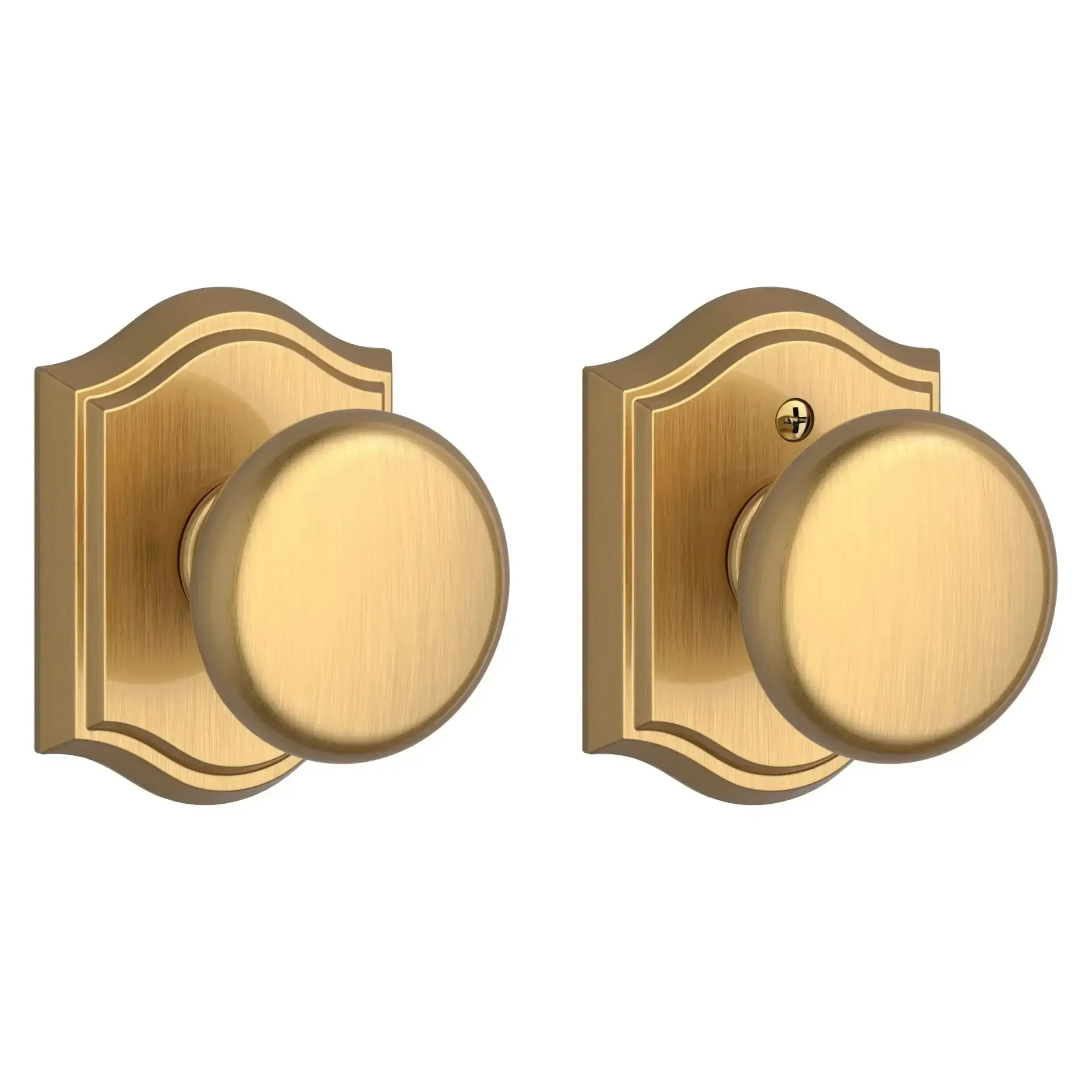

The Baldwin Reserve Round Knob with Traditional Arch Rosette combines classic style with lasting durability, perfect for both traditional and transitional home designs. Made from solid forged brass, this knob offers a sturdy, premium feel. Its smooth round design paired with the elegant arch-shaped rosette adds a refined touch to any door. Available in a range of finishes including Polished Brass, Satin Nickel, Venetian Bronze, Polished Chrome, Polished Nickel, and Satin Black, it fits various décor styles effortlessly. This versatile knob comes in multiple functions such as passage, privacy, keyed entry, full dummy, and half dummy to suit different door needs. Designed for standard door preparations with adjustable backsets and compatibility with door thicknesses from 1-3/8" to 2" (extendable to 2-1/2" with an additional kit), it ensures easy installation. Backed by Baldwin’s Limited Lifetime Mechanical Warranty and a 25-Year Finish Warranty, it promises both beauty and reliable performance for years to come.

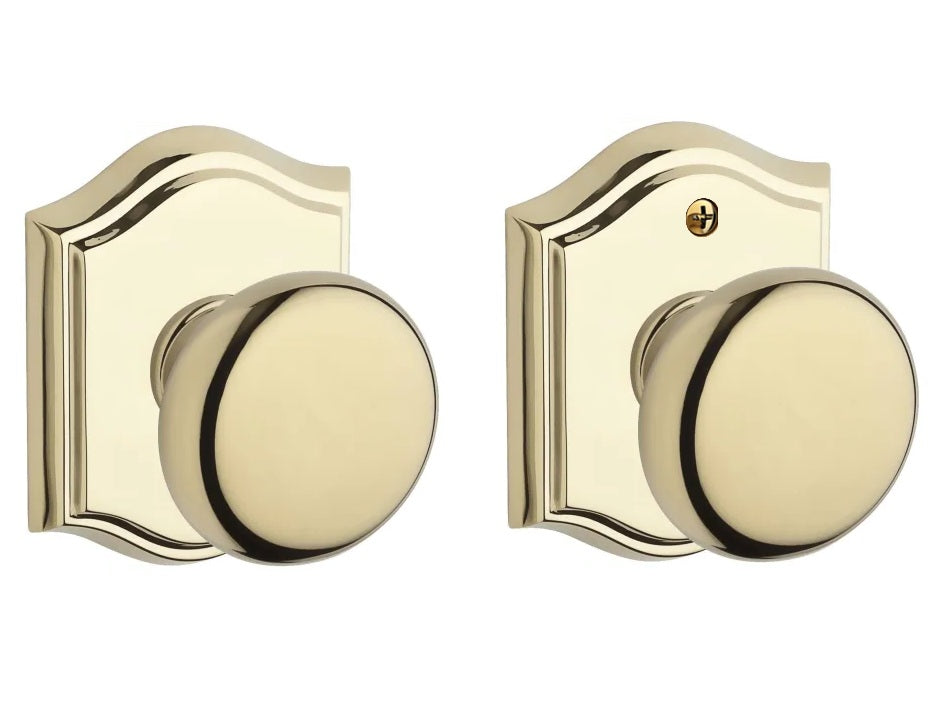

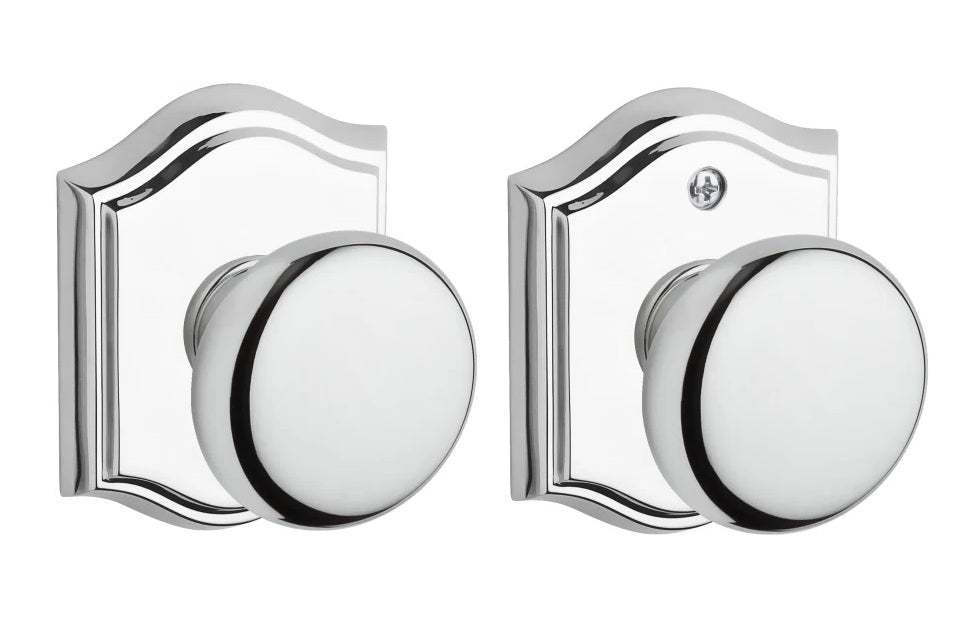

Passage Features

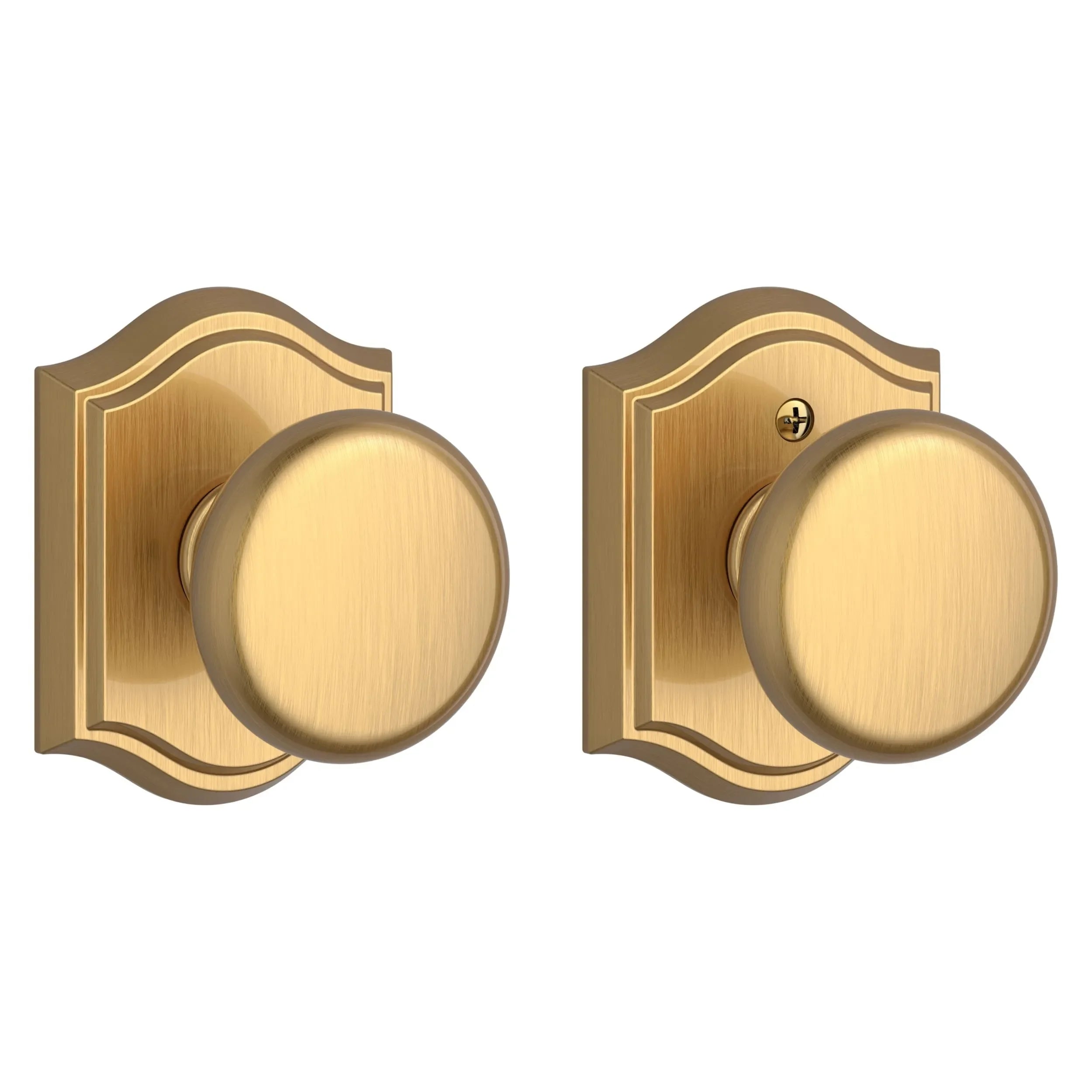

- Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

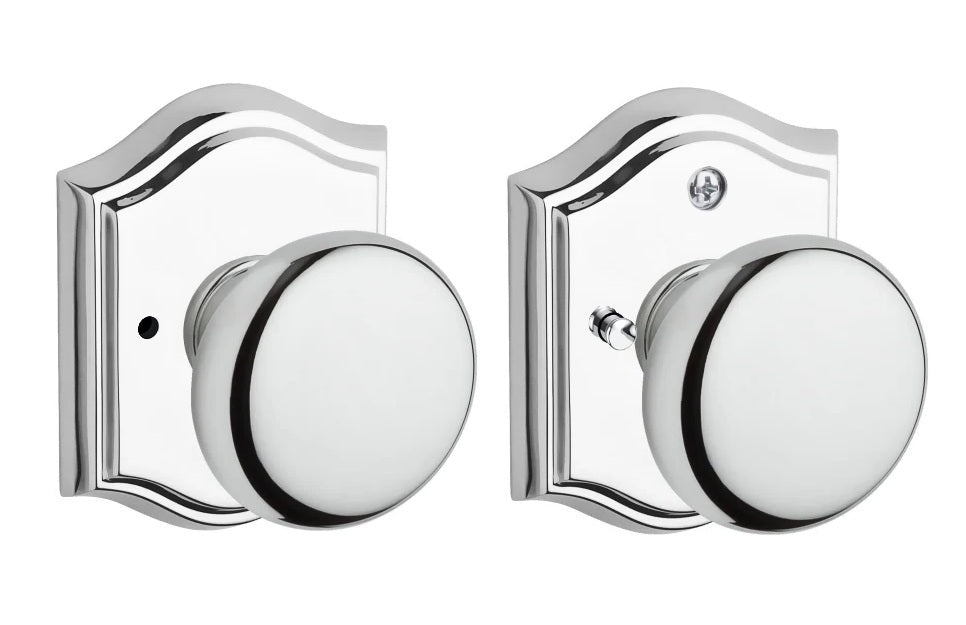

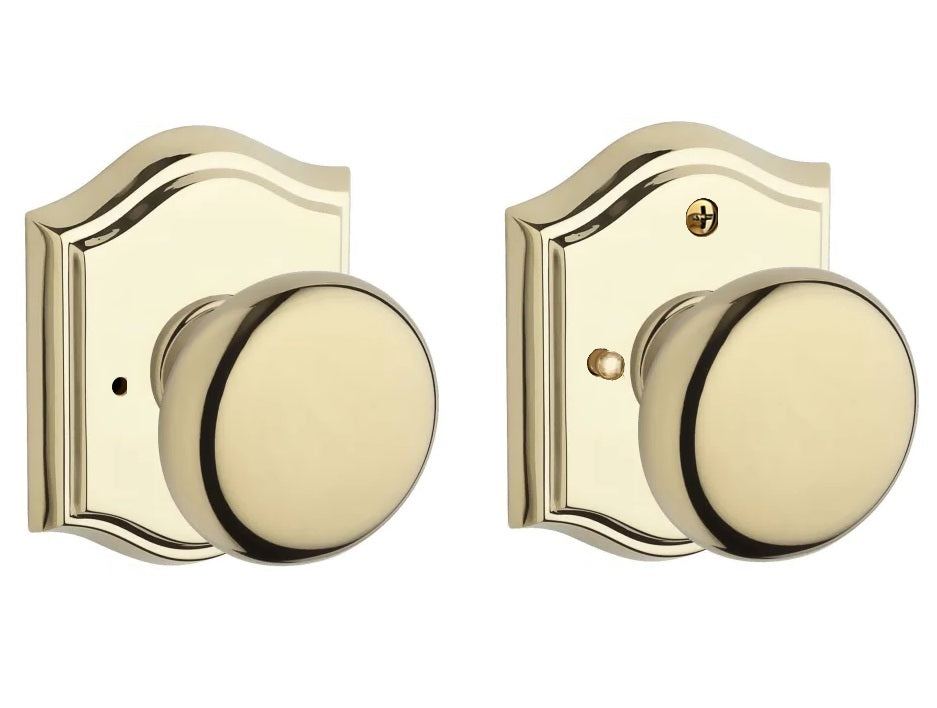

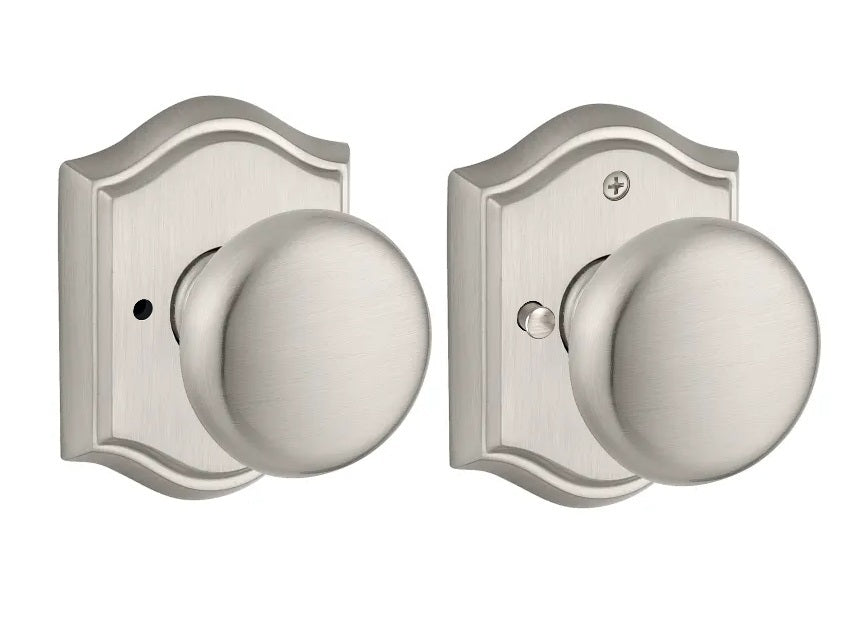

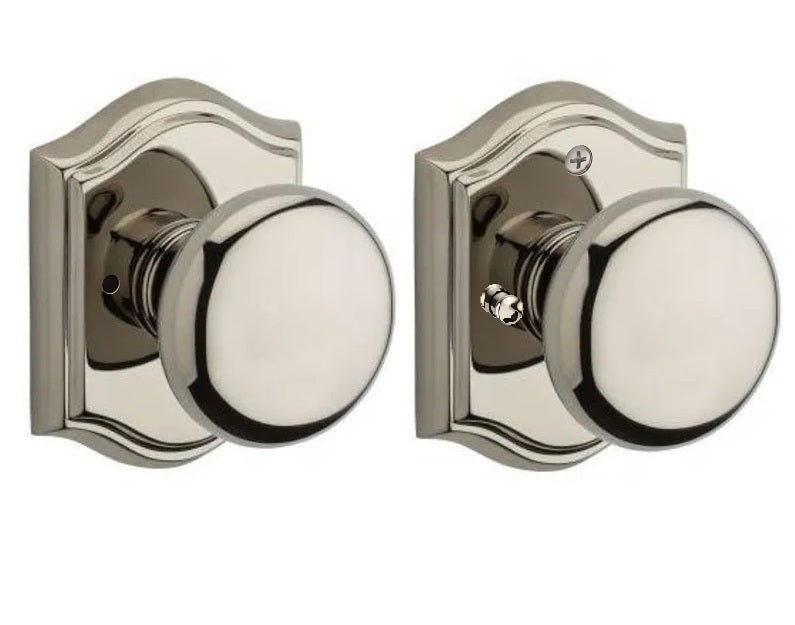

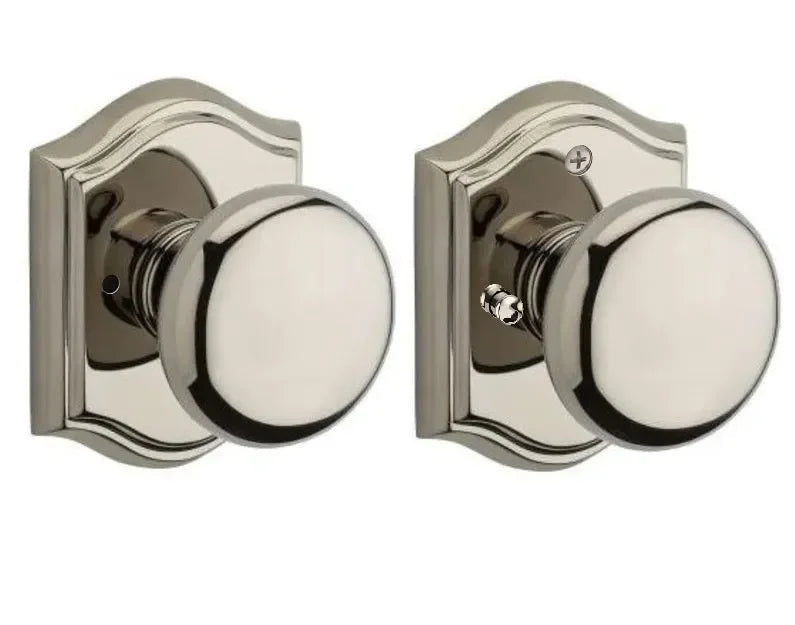

Privacy Features

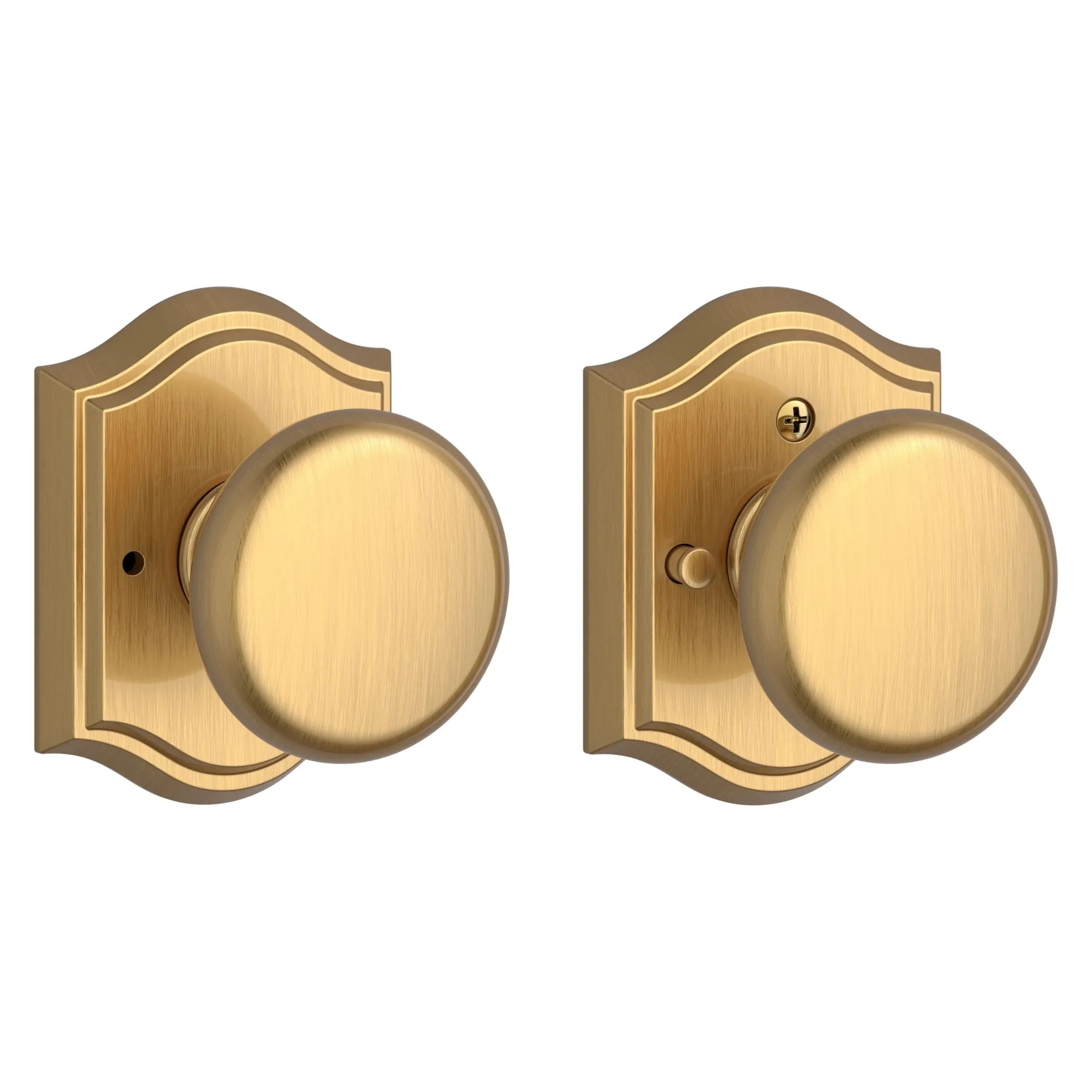

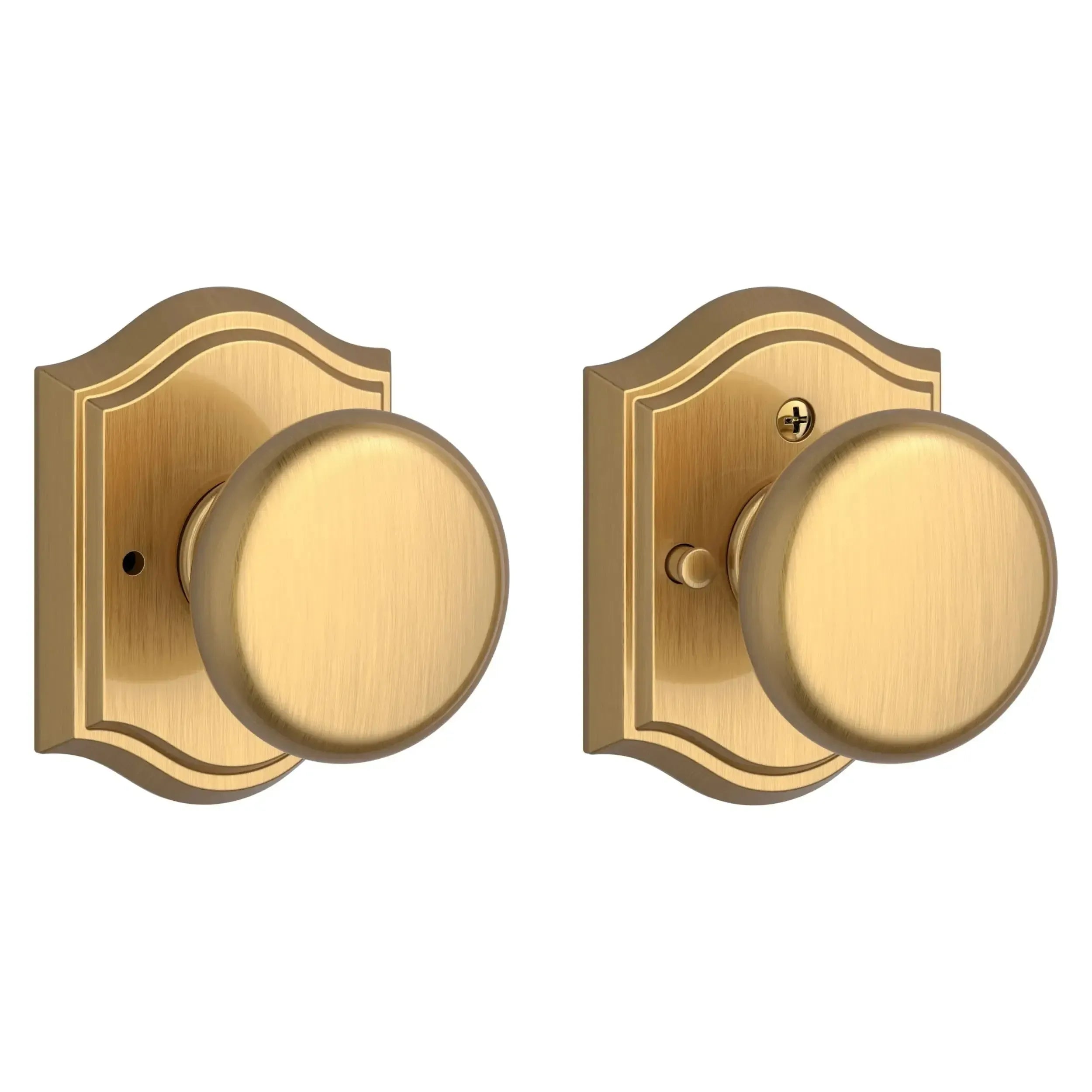

- Knob set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Handing not required
Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.

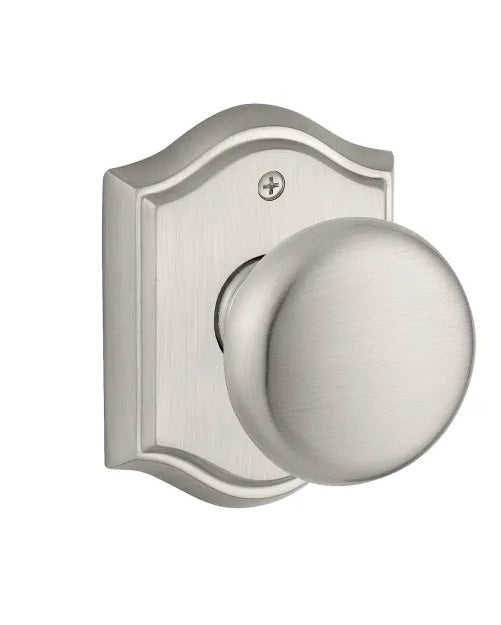

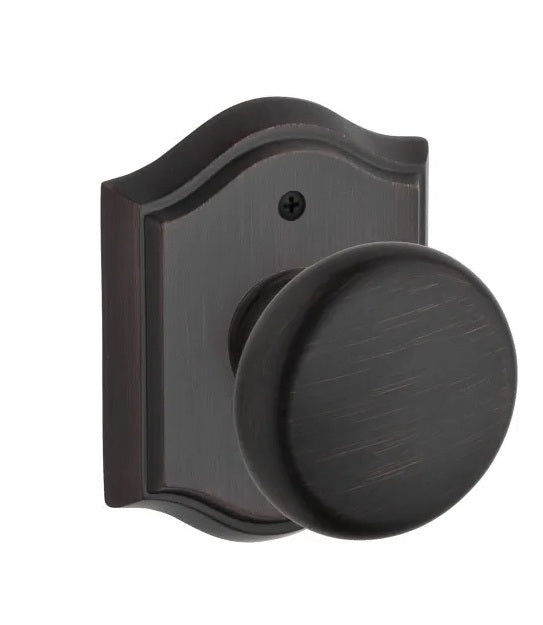

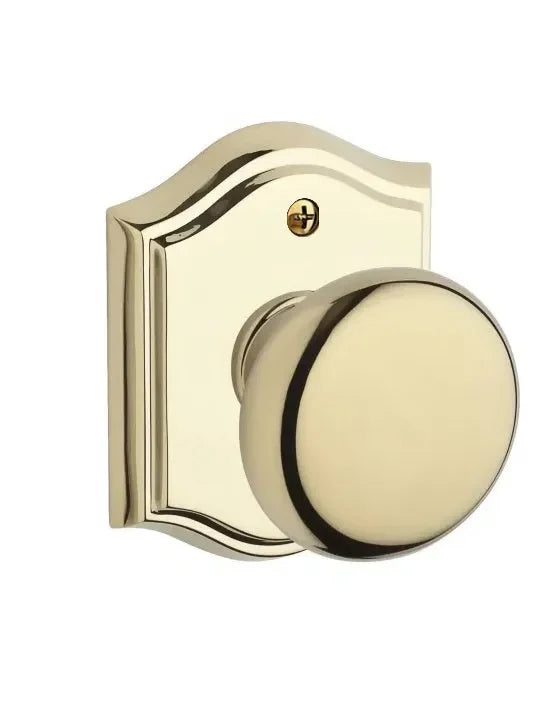

- Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners

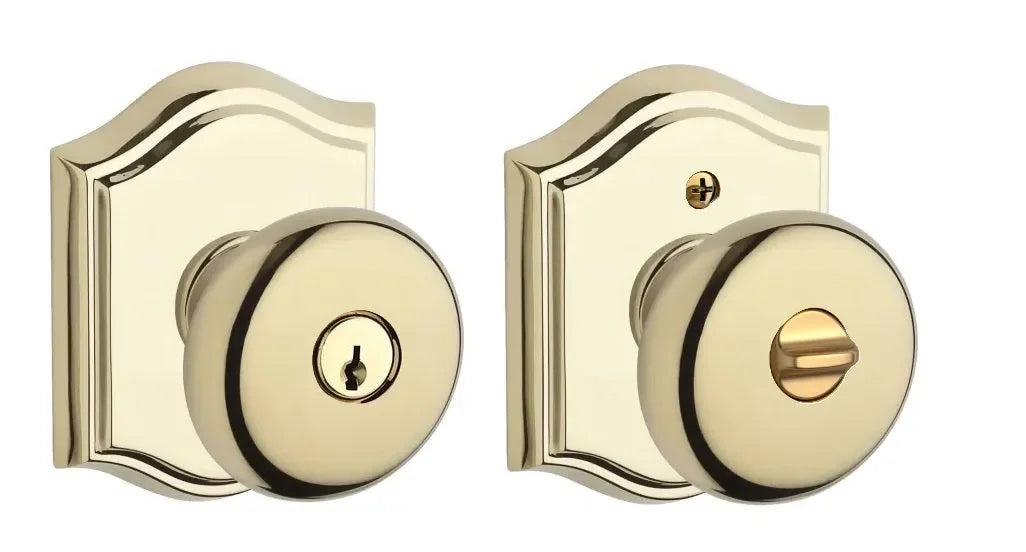

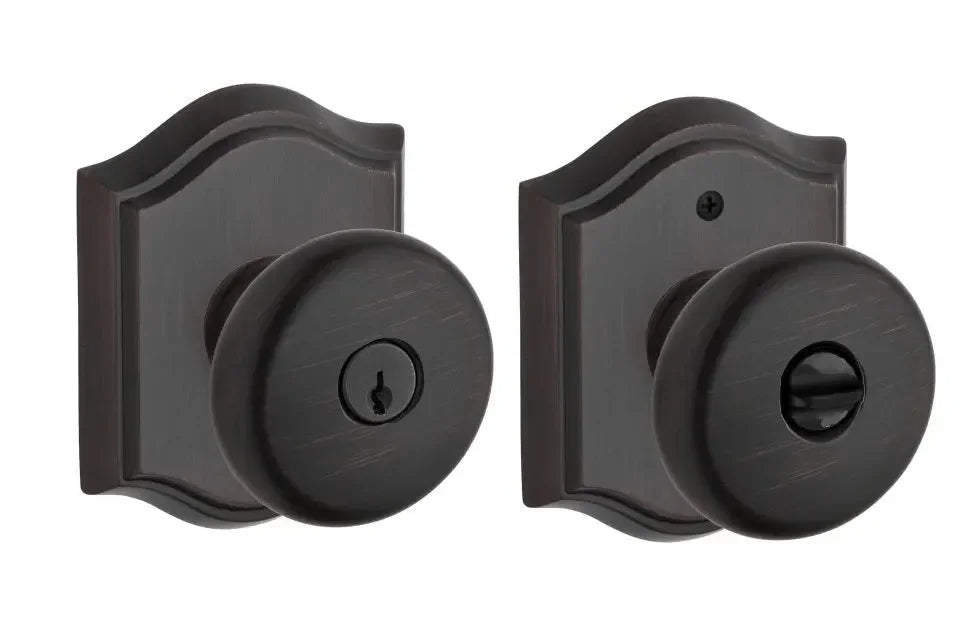

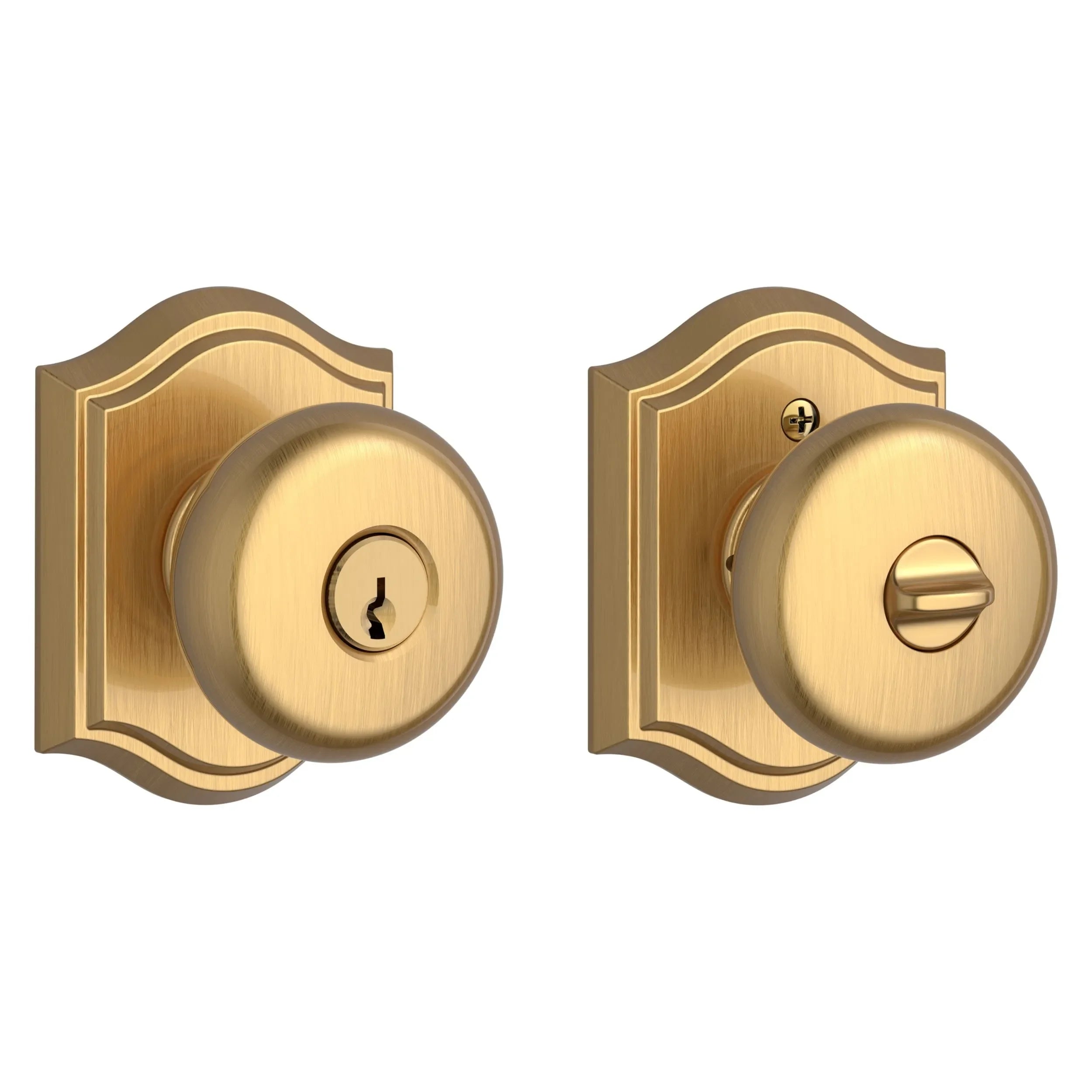

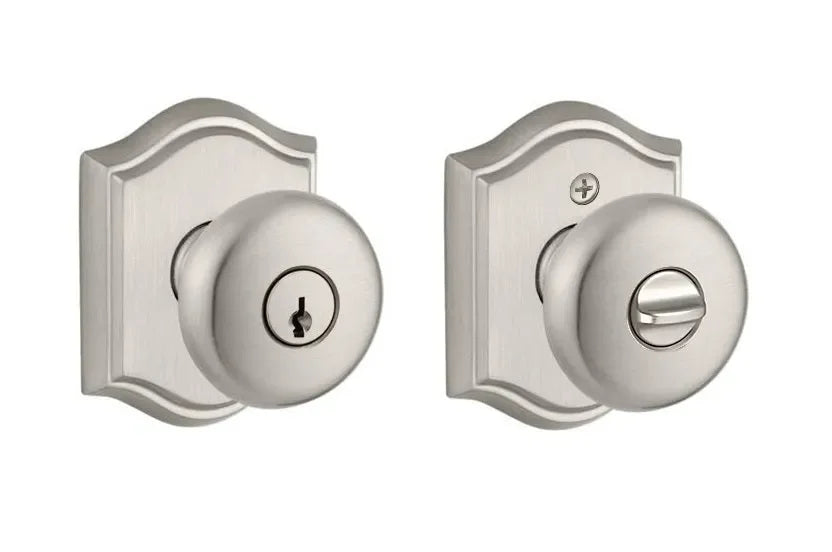

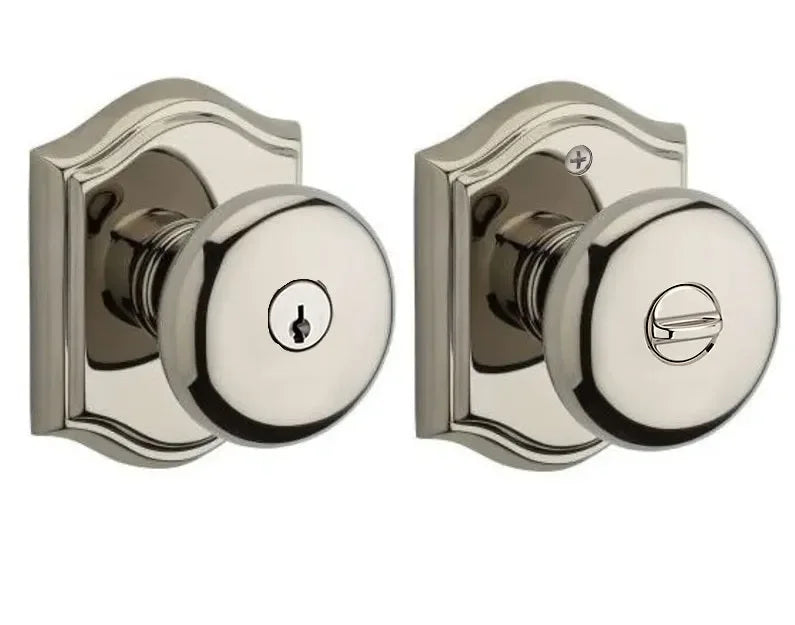

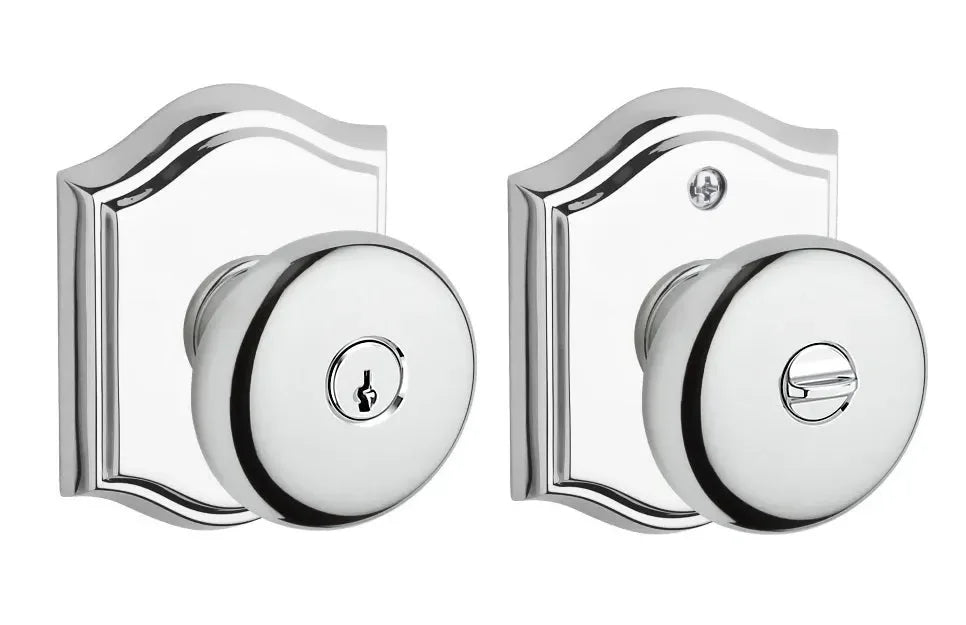

Keyed Entry Features

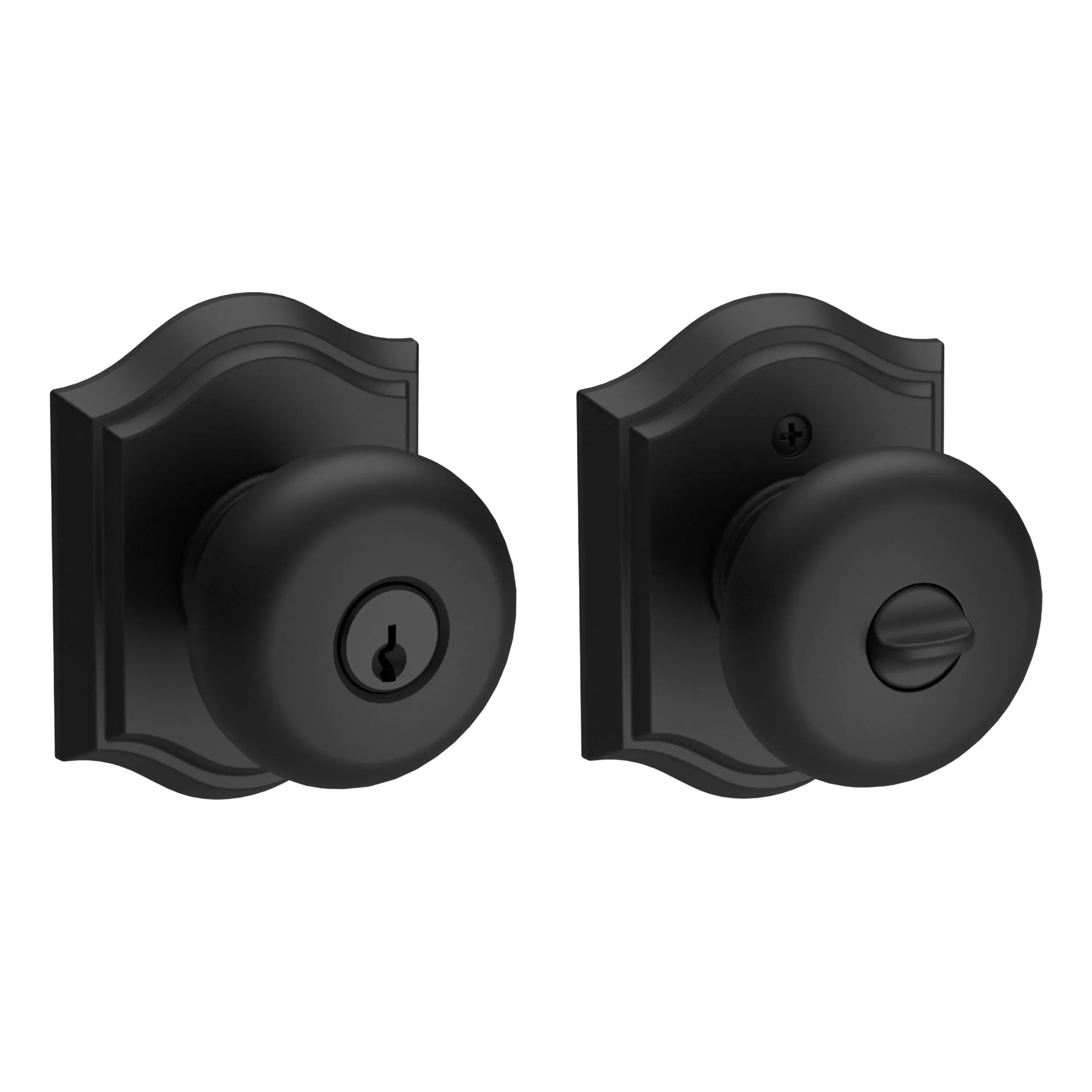

- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 7/32"
- Keyed Knob Projection: 2 3/16"
- Knob Diameter: 2 3/16"
- Rosette Dimensions: 2 21/32" x 3 7/16"
