The Baldwin Soft Square Deadbolt delivers smooth lines and a classic profile for unique look. It pairs perfectly with contemporary doors, adding both style and security in one refined package. Crafted from solid brass, it’s built to perform while making a subtle yet sophisticated statement.
Features
- The combination of Reserve style and the security of a keyed cylinder

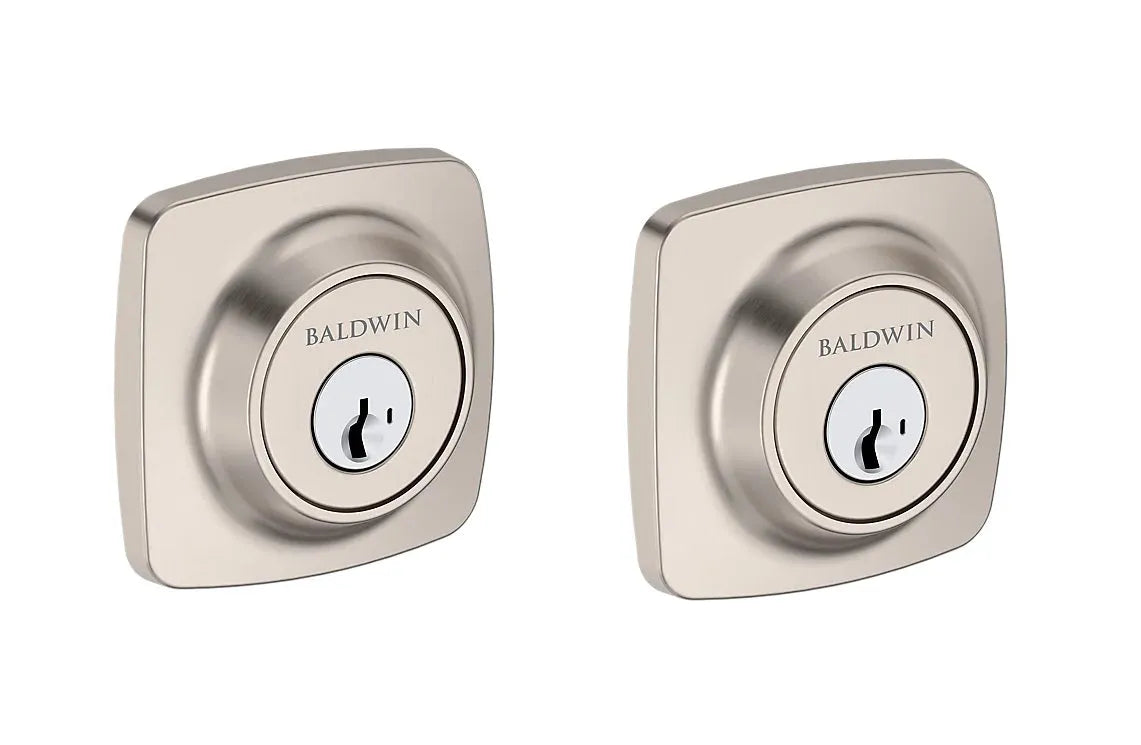

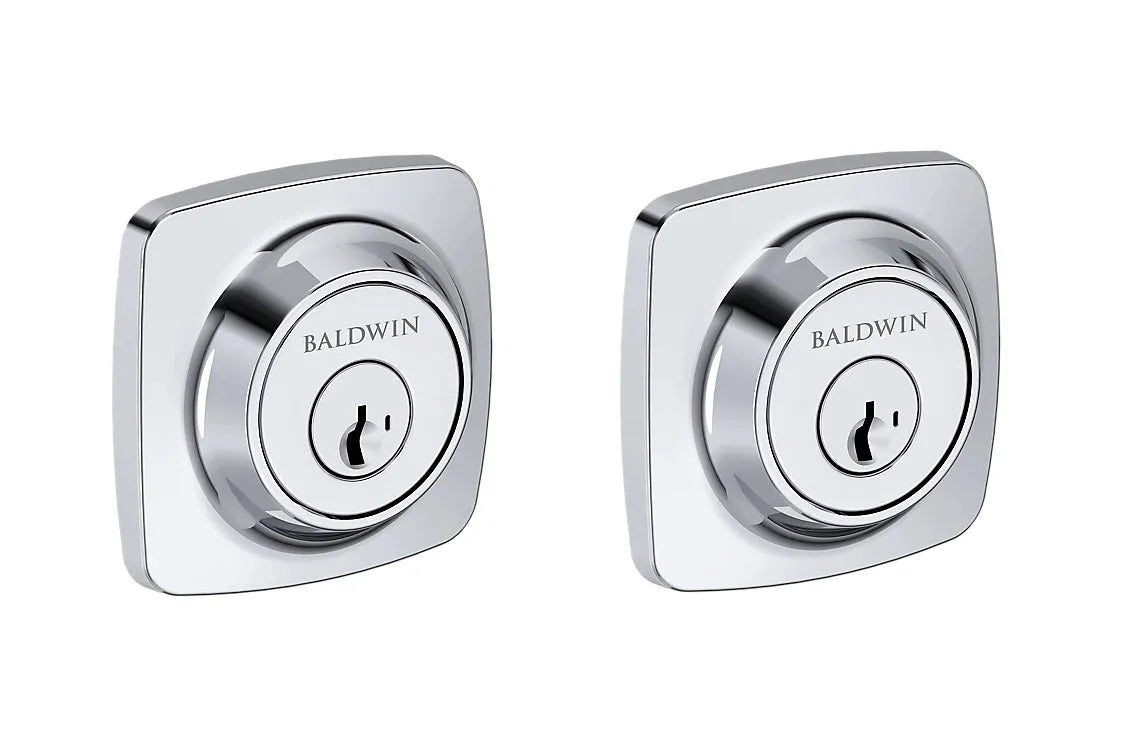

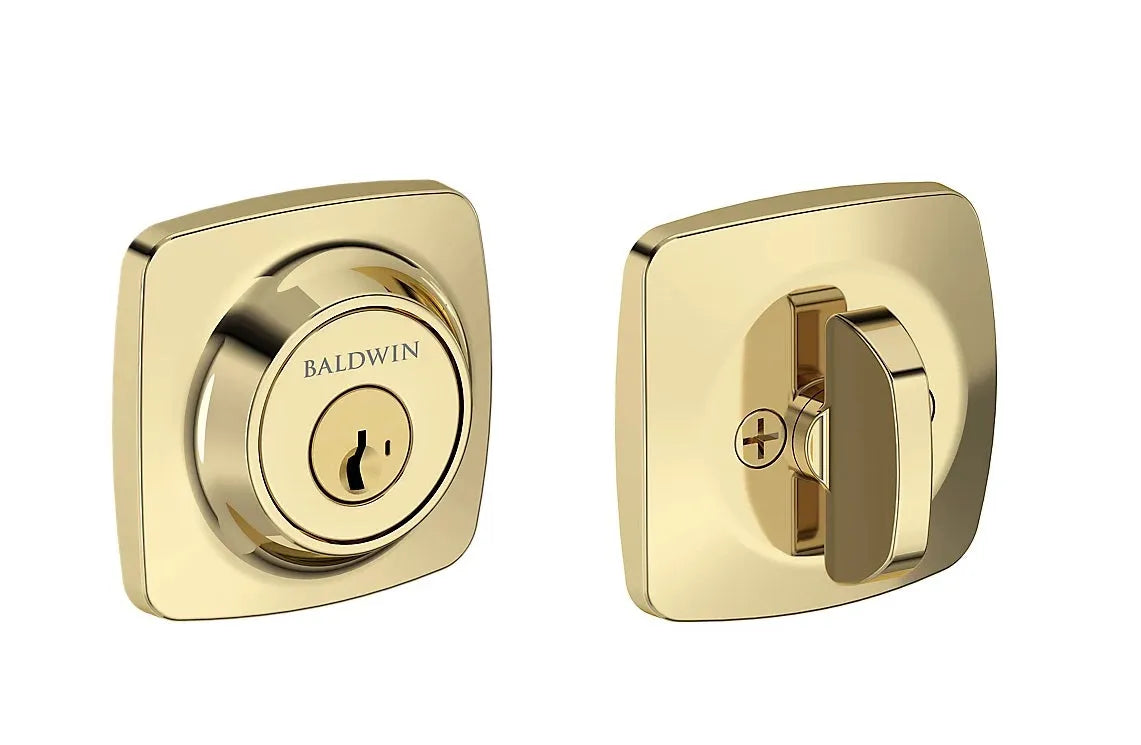

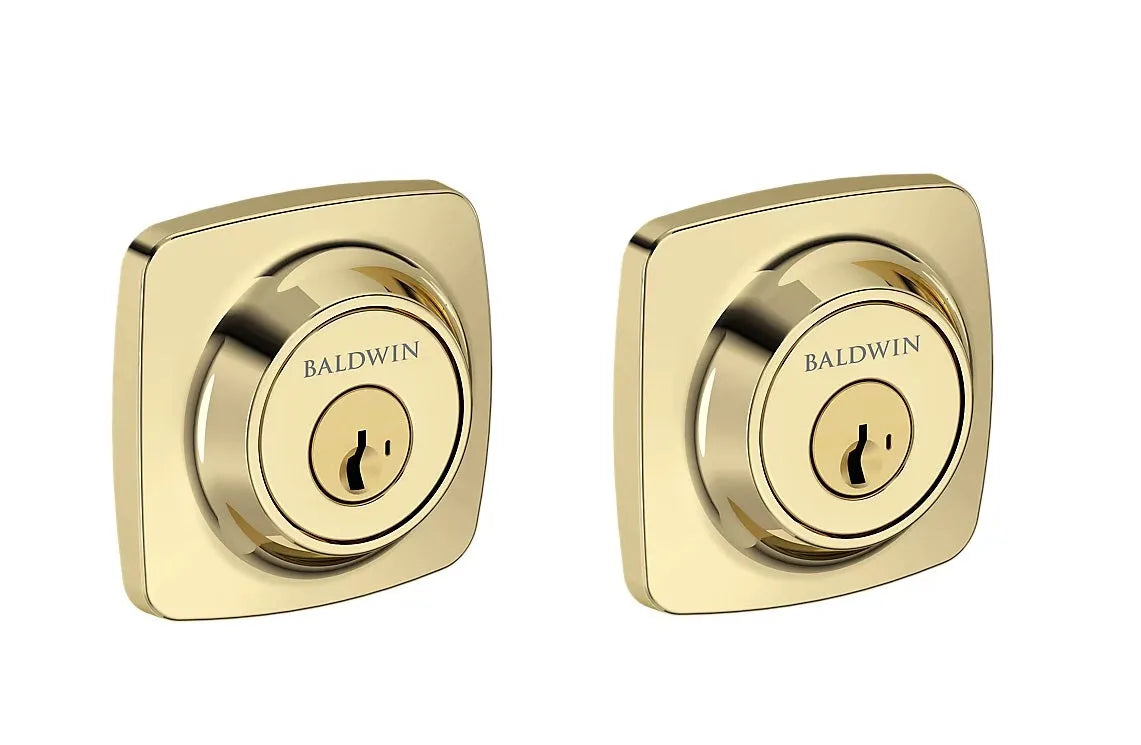

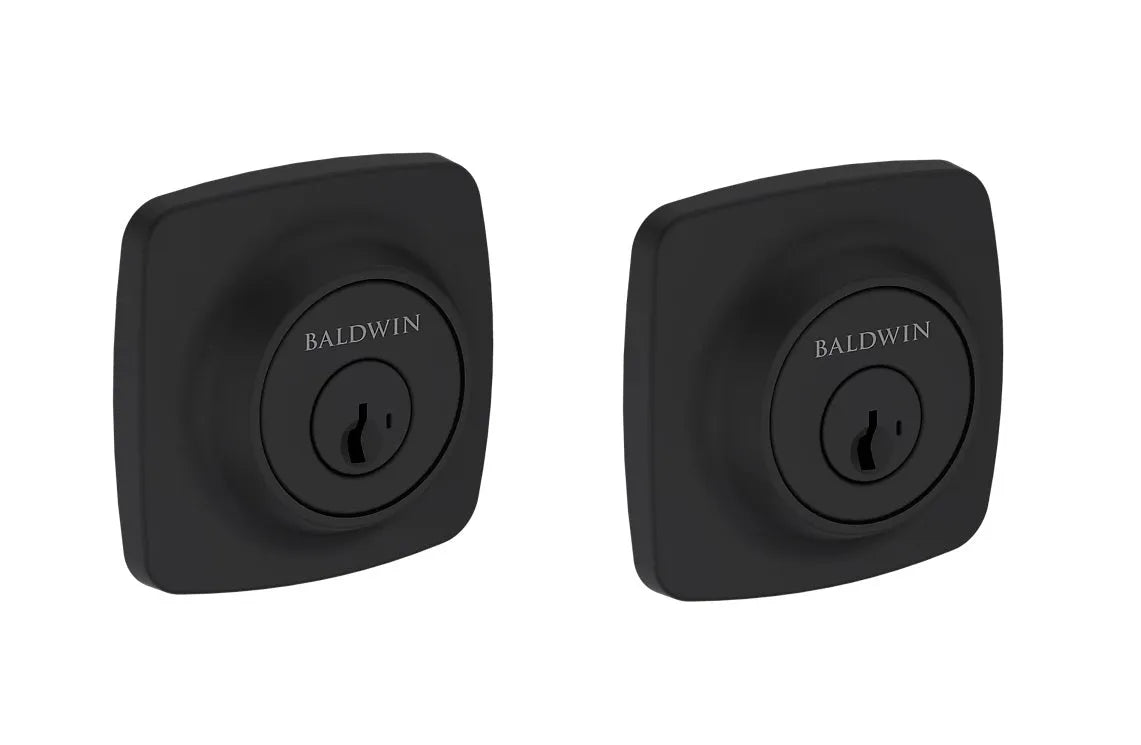

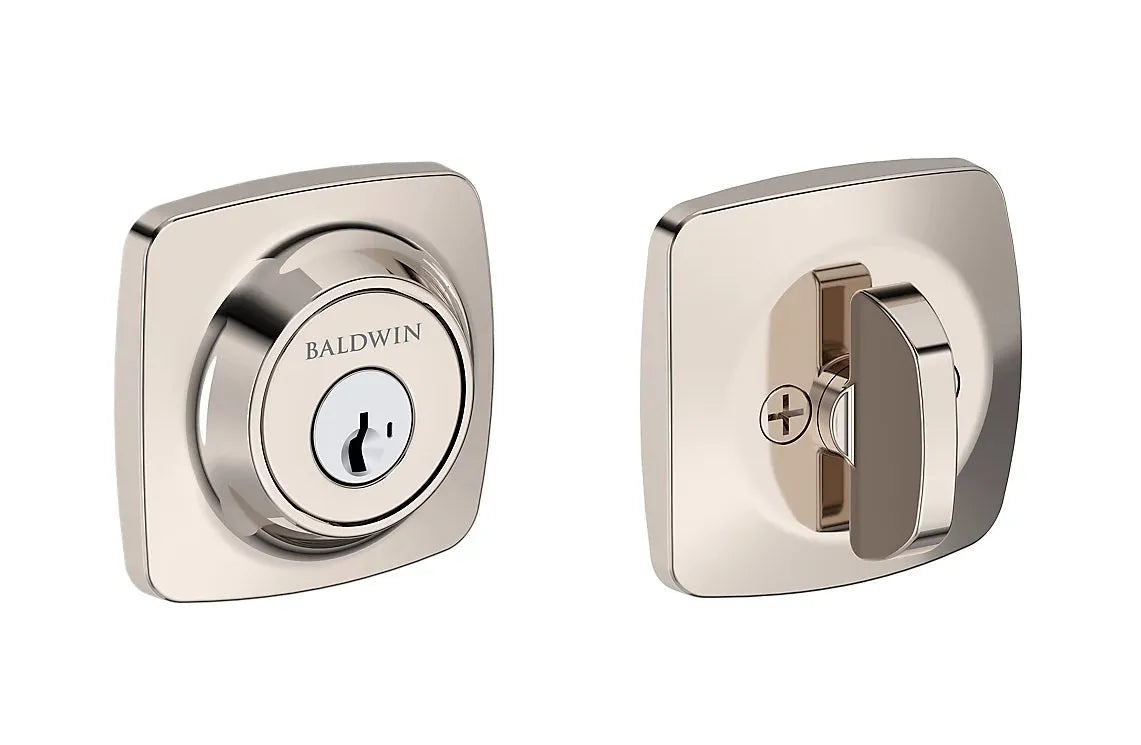

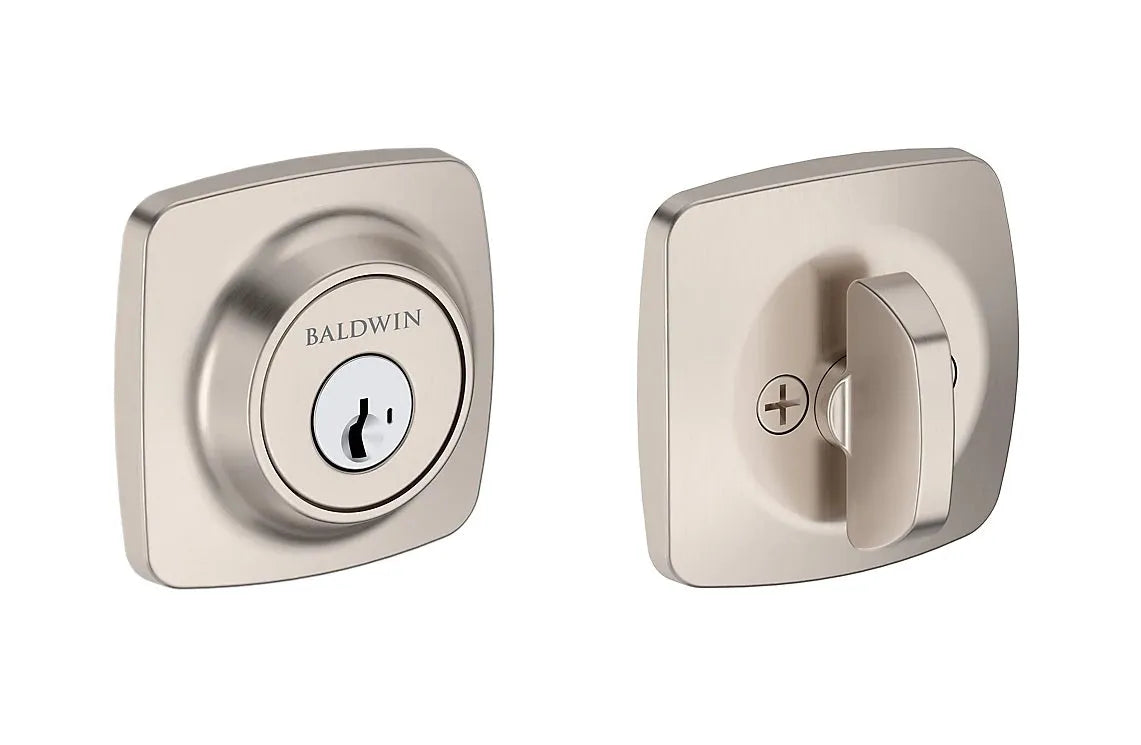

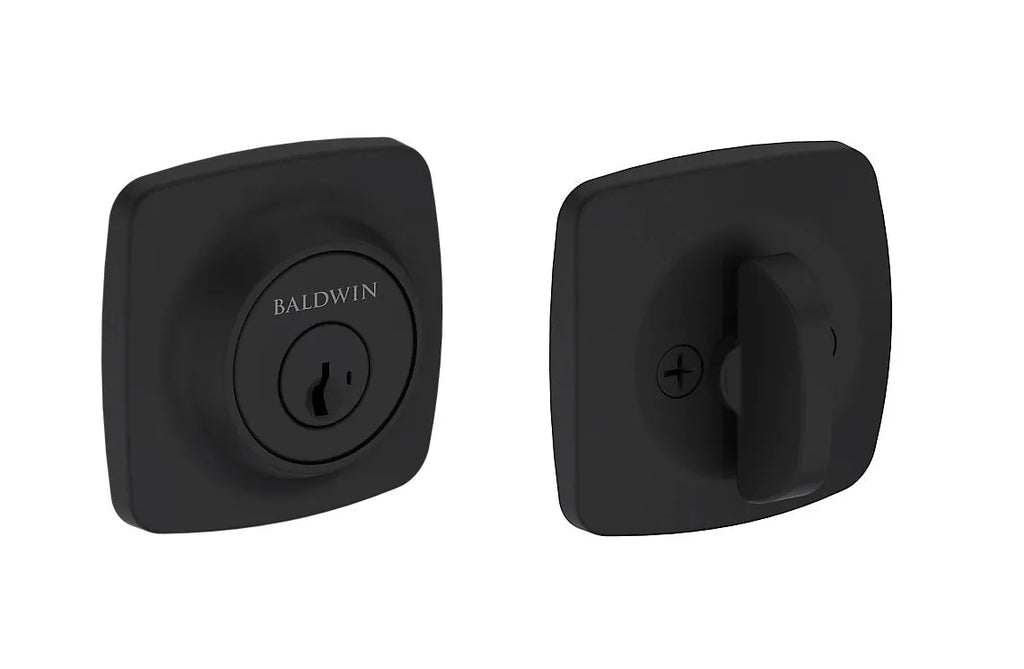

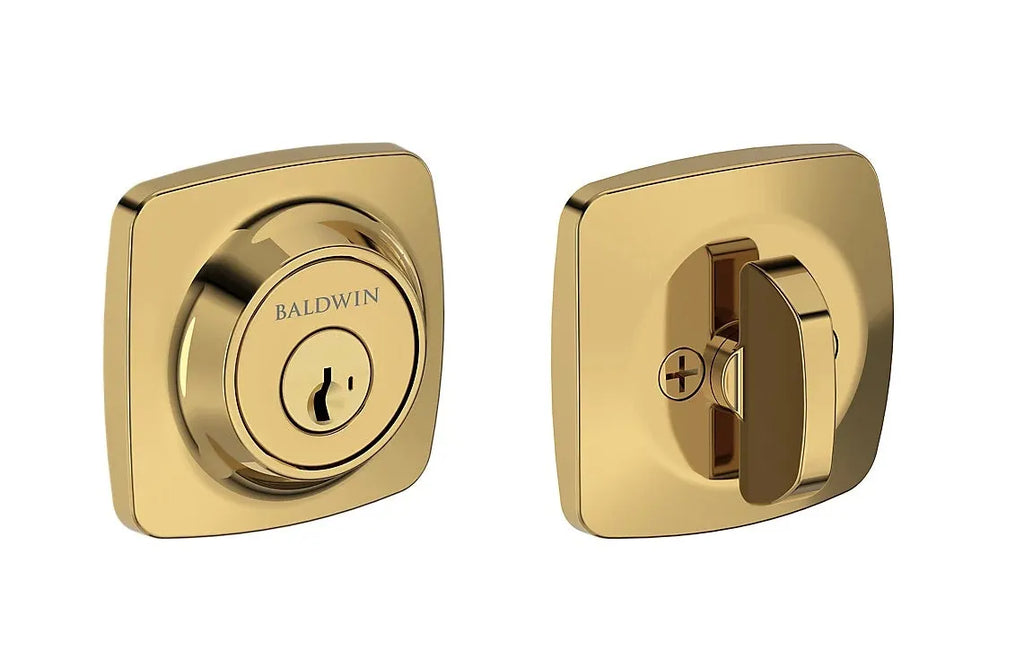

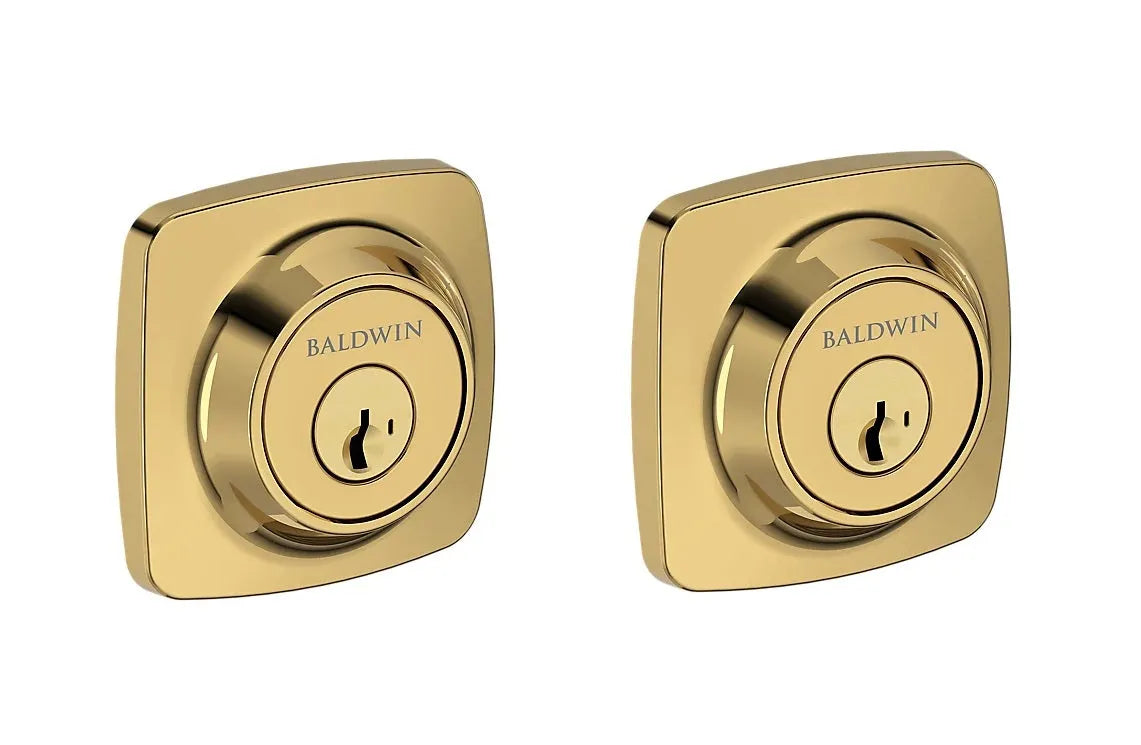

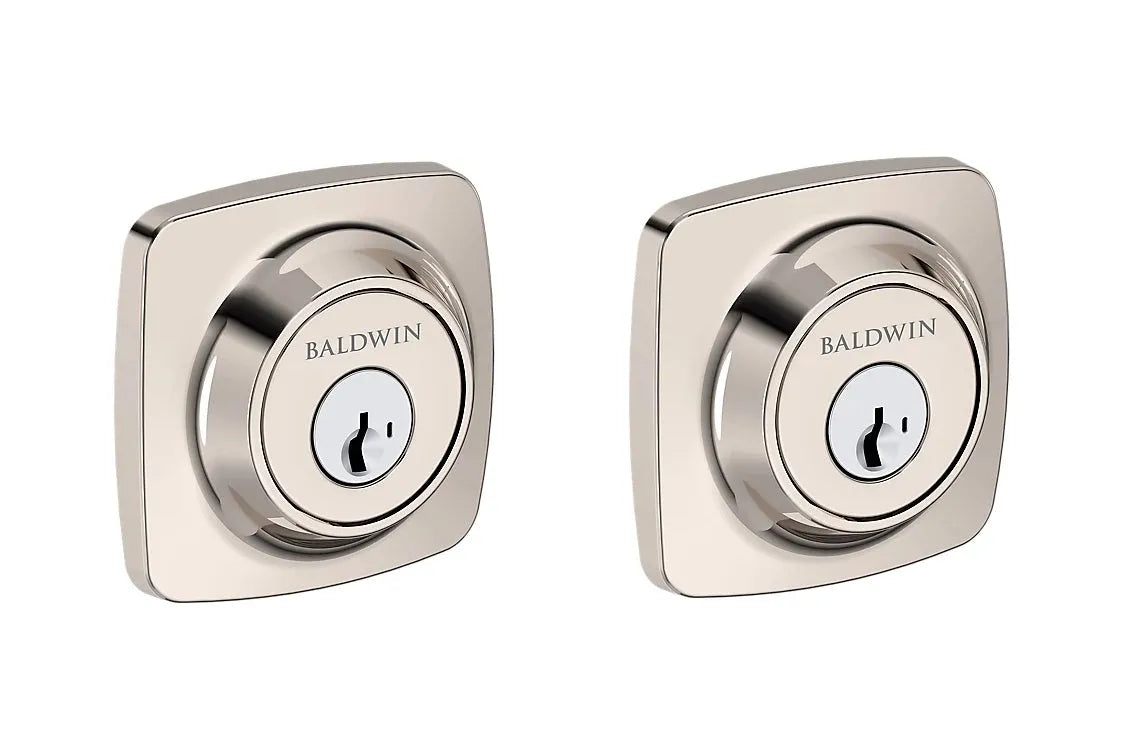

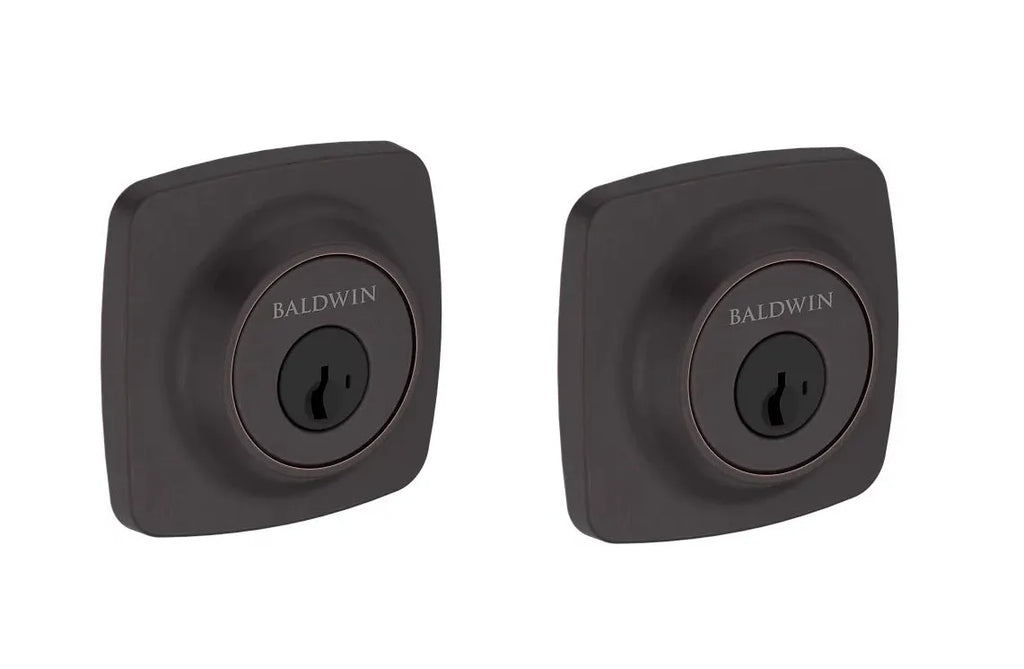

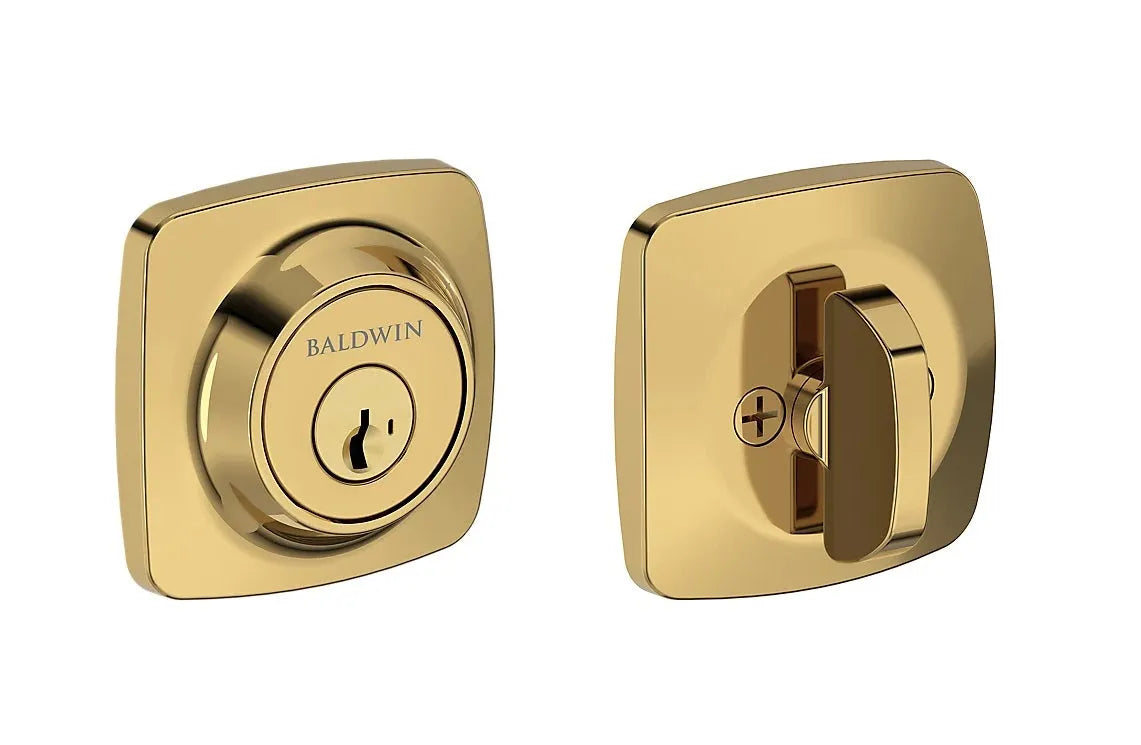

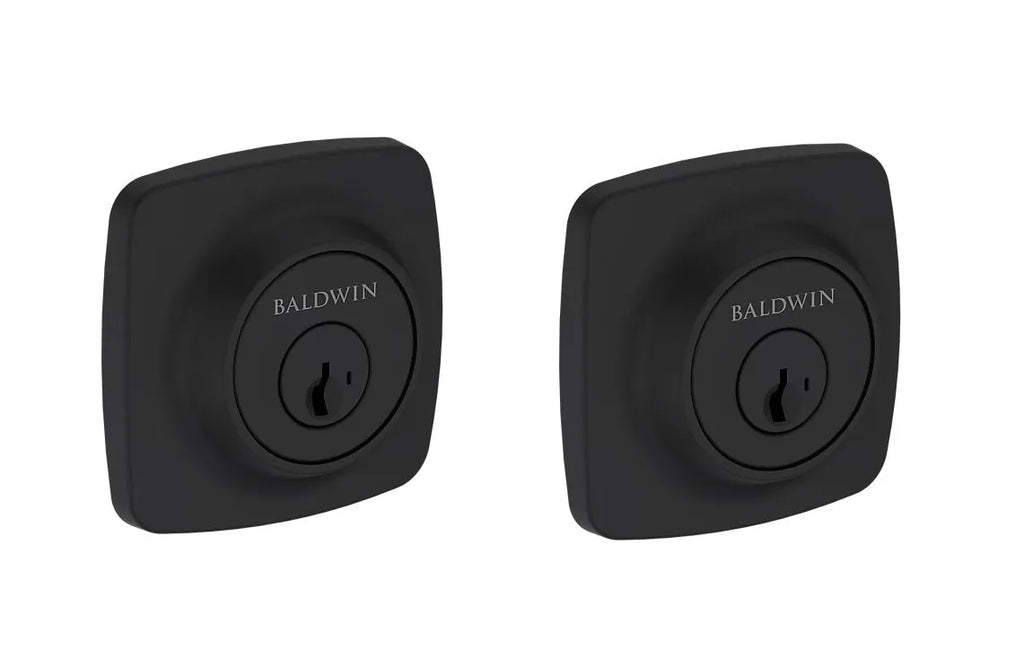

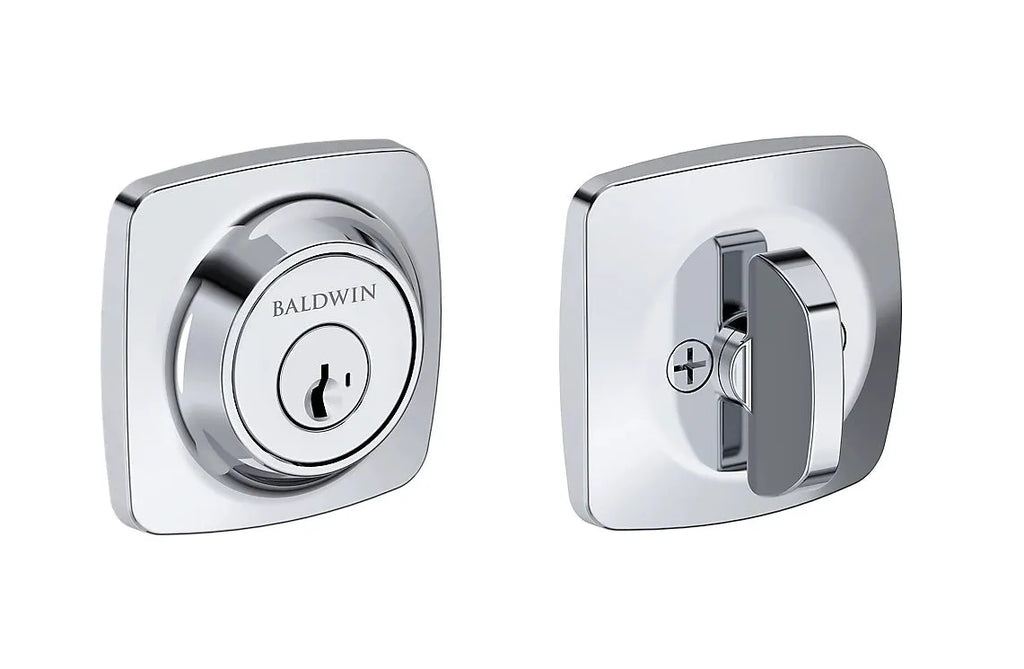

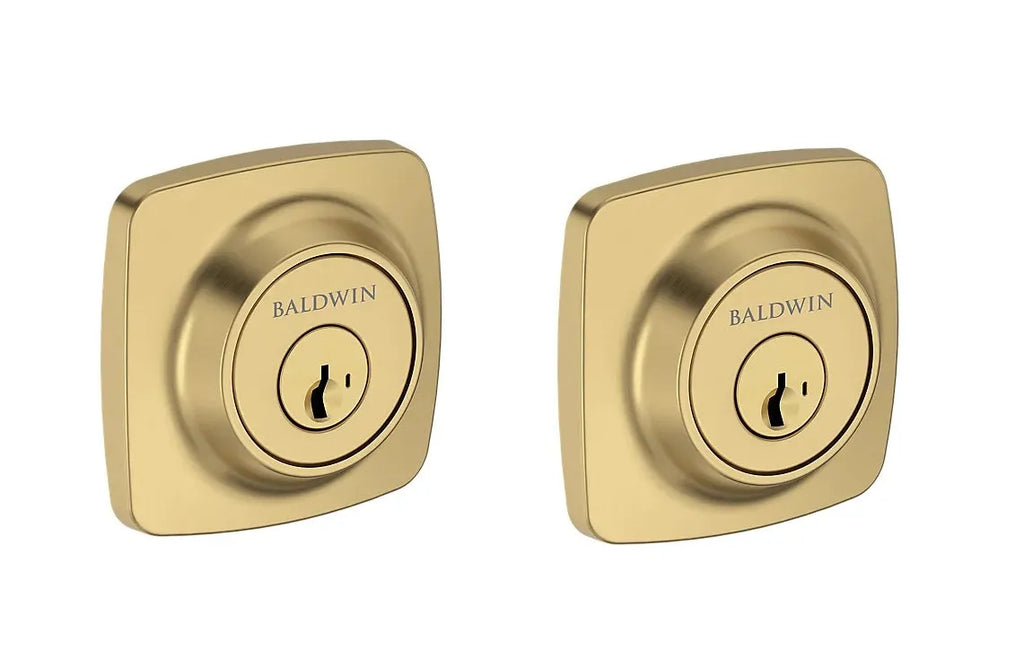

- Single Cylinder locking mechanism functions with turn piece on the interior of the lock. Double Cylinder is keyed on both sides.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit. 1 3/8" to 1 3/4" doors available through Thin Door Service Part Kit.
- Complete deadbolt set includes everything needed to install the lock onto your door.
- Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
- 2 Keys Included with deadbolt
- Tested to exceed ANSI/BHMA Grade 2 security
- Note: Interior roses have exposed fasteners
Specifications
- Exterior Dimensions: 2 9/16" x 2 9/16"
- Exterior Projection: 3/4"
- Interior Dimensions: 2 9/16" x 2 9/16"
- Single Cylinder Interior Projection: 1 5/16"
- Double Cylinder Interior Projection: 3/4"
