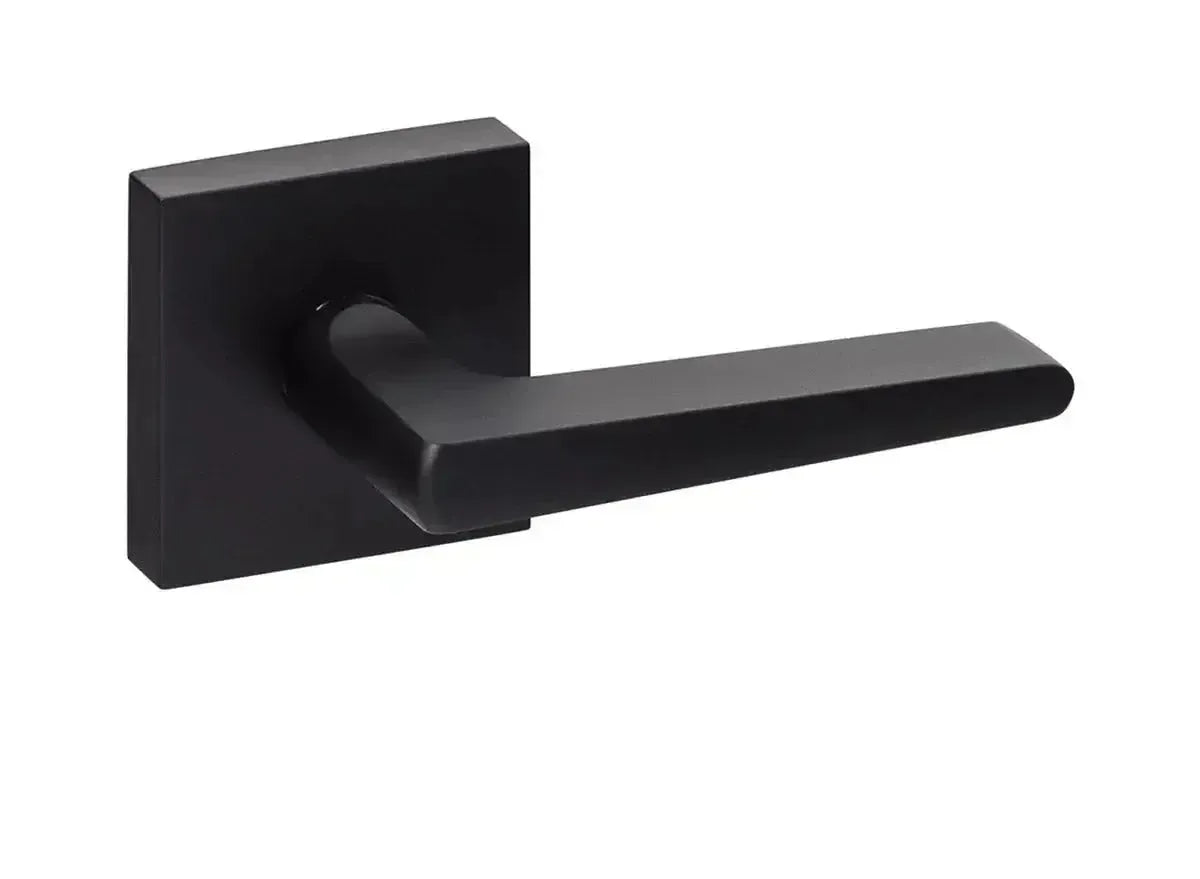

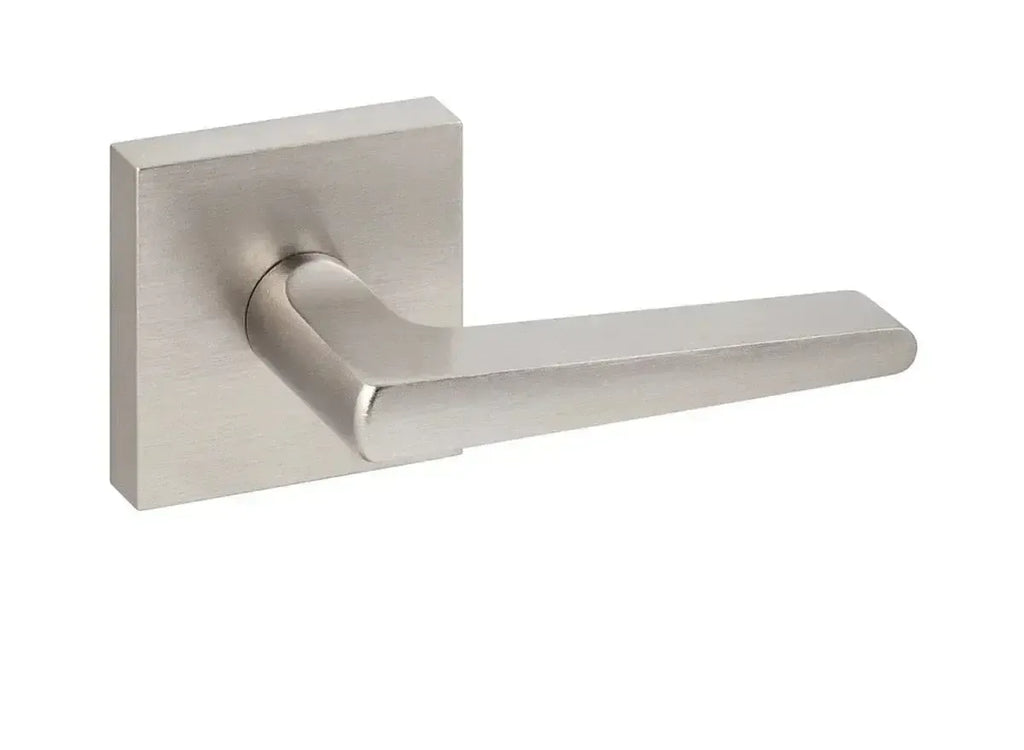

Complete your home with the Basel Lever and discover the beauty of modern door hardware. With a quality that you can feel, this hardware will lift your home to a higher level.
Passage Features
- Passage levers are ideal for closet doors, with both sides always free
- Pair passage with Modern Deadbolt for locking function
- 28° lever turn radius
- Reversible Handing
- Solid metal construction, zinc and all-metal parts
- Specify 2 3/8 or 2 3/4" (60-70mm) backset - non adjustable
- 2 1/4" x 1 3/4" full-lip radius corner strike plate
- Fits doors 1 3/8" - 2" (35-50mm) thick, with standard 2 1/8" crossbore and 1" edgebore
Privacy Features

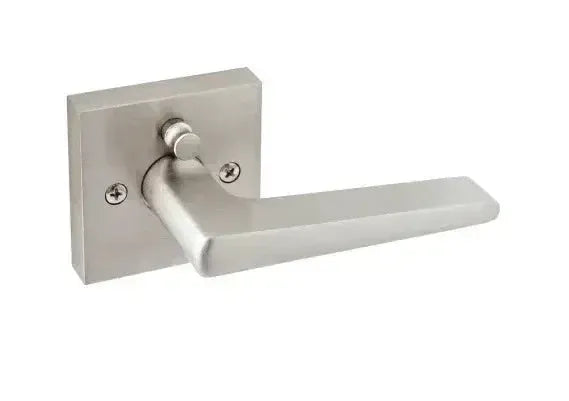

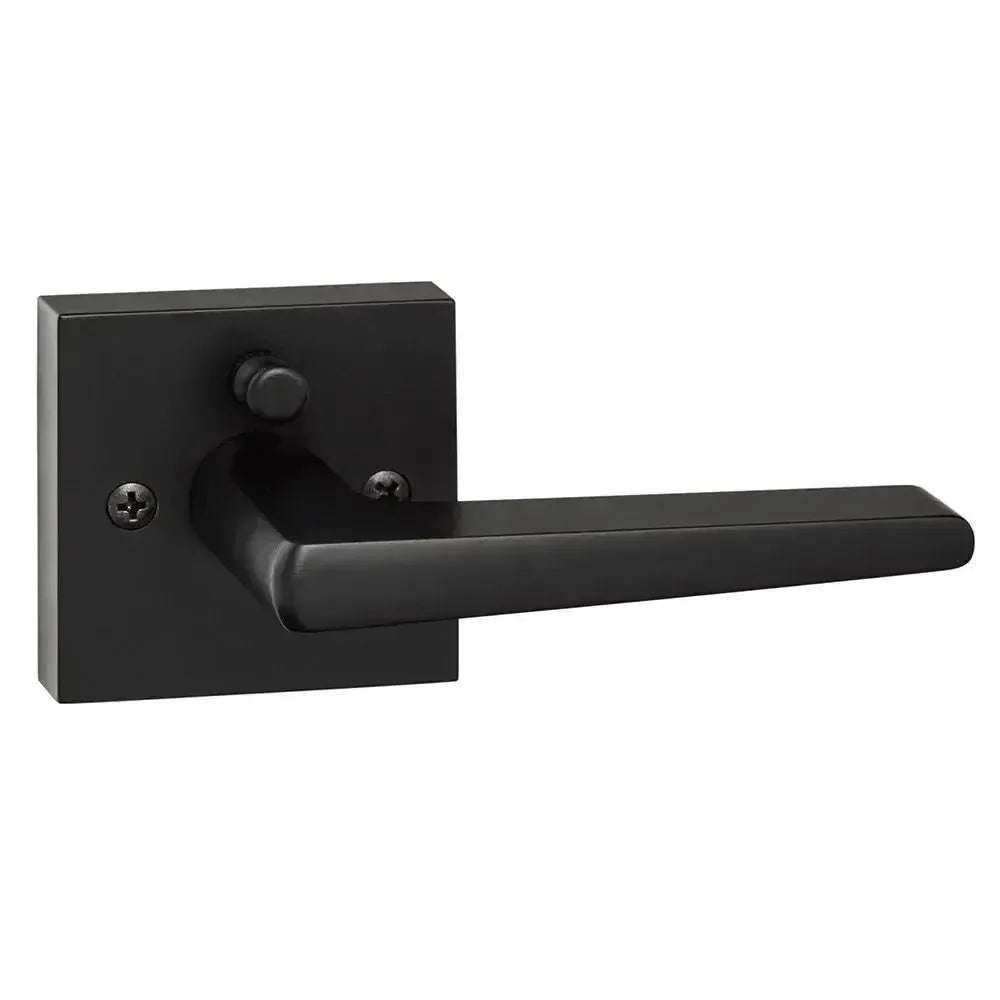

- Privacy levers are ideal for bed/bath. Locked by push pin. Unlocked by push pin, lever turn, or emergency pin outside
- 28° lever turn radius
- Reversible Handing
- Solid metal construction, zinc and all-metal parts
- Specify 2 3/8 or 2 3/4" (60-70mm) backset - non adjustable
- 2 1/4" x 1 3/4" full-lip radius corner strike plate
- Fits doors 1 3/8" - 2" (35-50mm) thick, with standard 2 1/8" crossbore and 1" edgebore
Specifications
- Projection: 2 9/16"
- Lever Length: 4 11/16"
