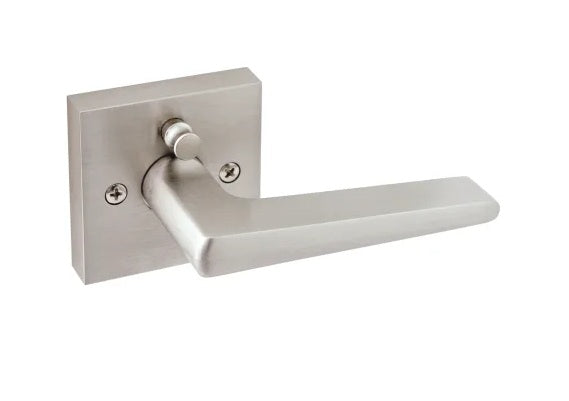

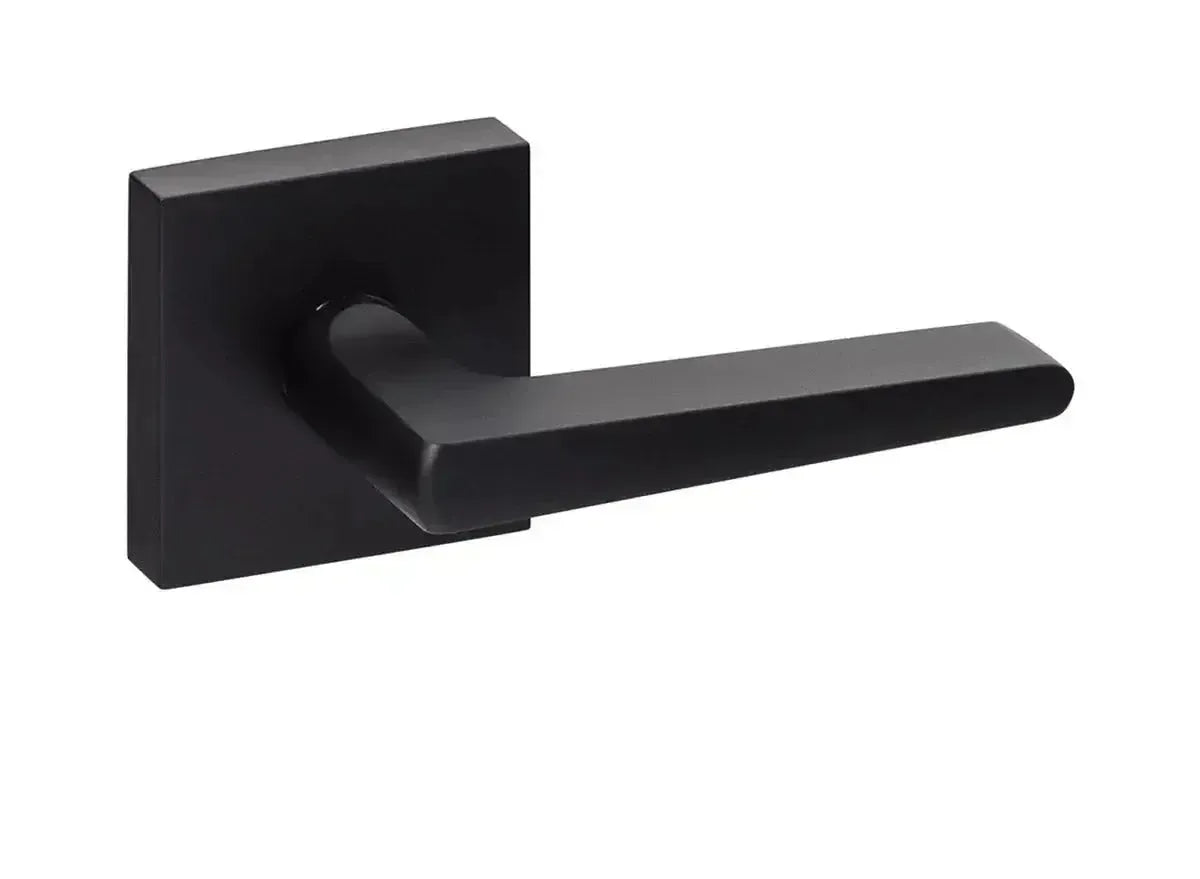

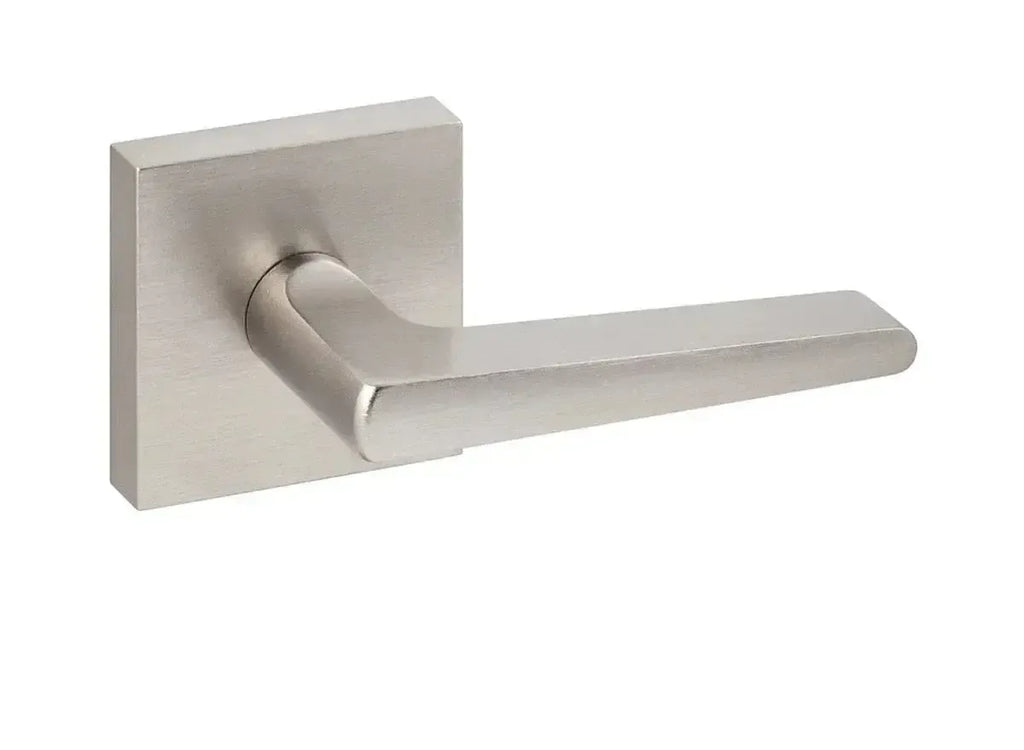

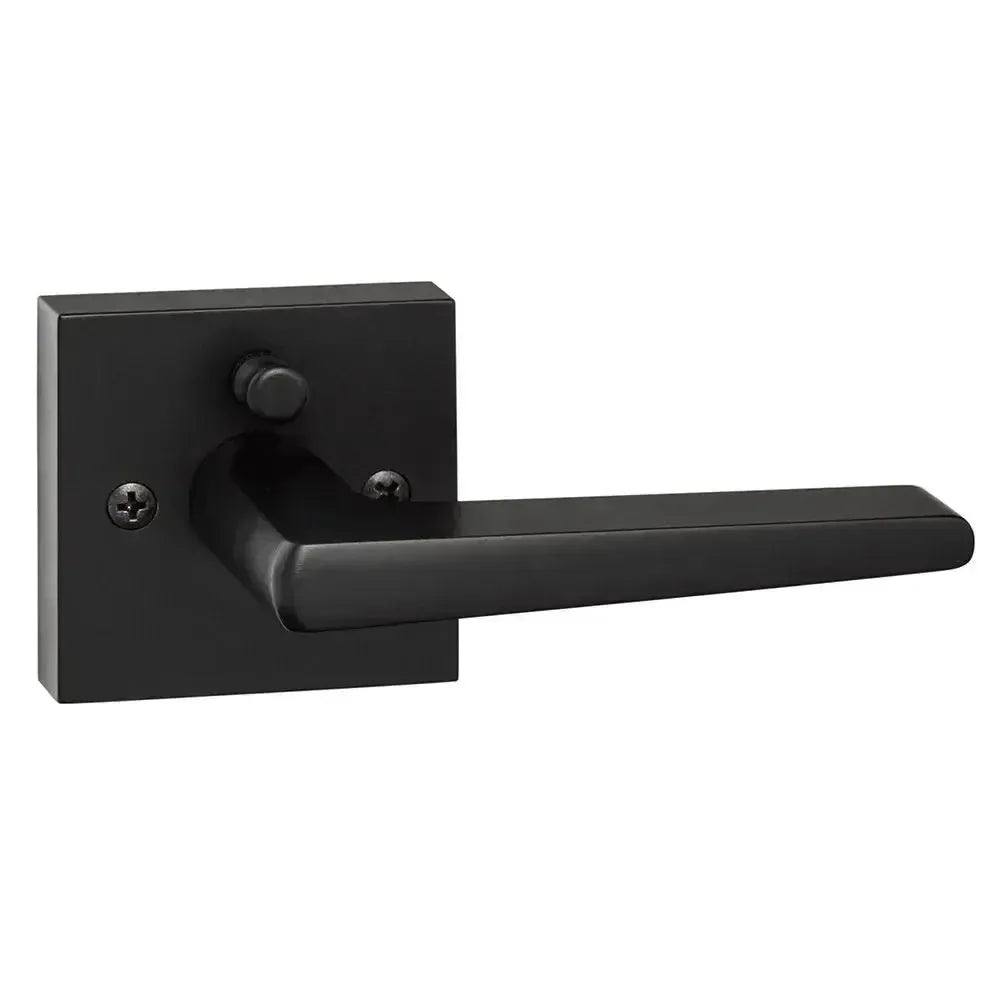

Basel 28 Degree Lever

Complete your home with the Basel Lever and discover the beauty of modern door hardware. With a quality that you can feel, this hardware will lift your home to a higher level.

Passage Features

Passage levers are ideal for closet doors, with both sides always free

Pair passage with Modern Deadbolt for locking function

28° lever turn radius

Reversible Handing

Solid metal construction, zinc and all-metal parts

Specify 2⅜″ or 2¾″ (60-70mm) backset – non adjustable

2 1/4" x 1 3/4" full-lip radius corner strike plate

Fits doors 1⅜″– 2″ (35-50mm) thick, with standard 2 1/8" crossbore and 1" edgebore

Privacy Features

Privacy levers are ideal for bed/bath. Locked by push pin. Unlocked by push pin, lever turn, or emergency pin outside

28° lever turn radius

Reversible Handing

Solid metal construction, zinc and all-metal parts

Specify 2⅜″ or 2¾″ (60-70mm) backset – non adjustable

2 1/4" x 1 3/4" full-lip radius corner strike plate

Fits doors 1⅜″– 2″ (35-50mm) thick, with standard 2 1/8" crossbore and 1" edgebore

Specifications

• Projection: 2 9/16"
• Lever Length: 4 11/16"

Backset is non adjustable. Please specify 2 3/8" or 2 3/4" (60-70mm) backset in comment field
