Description

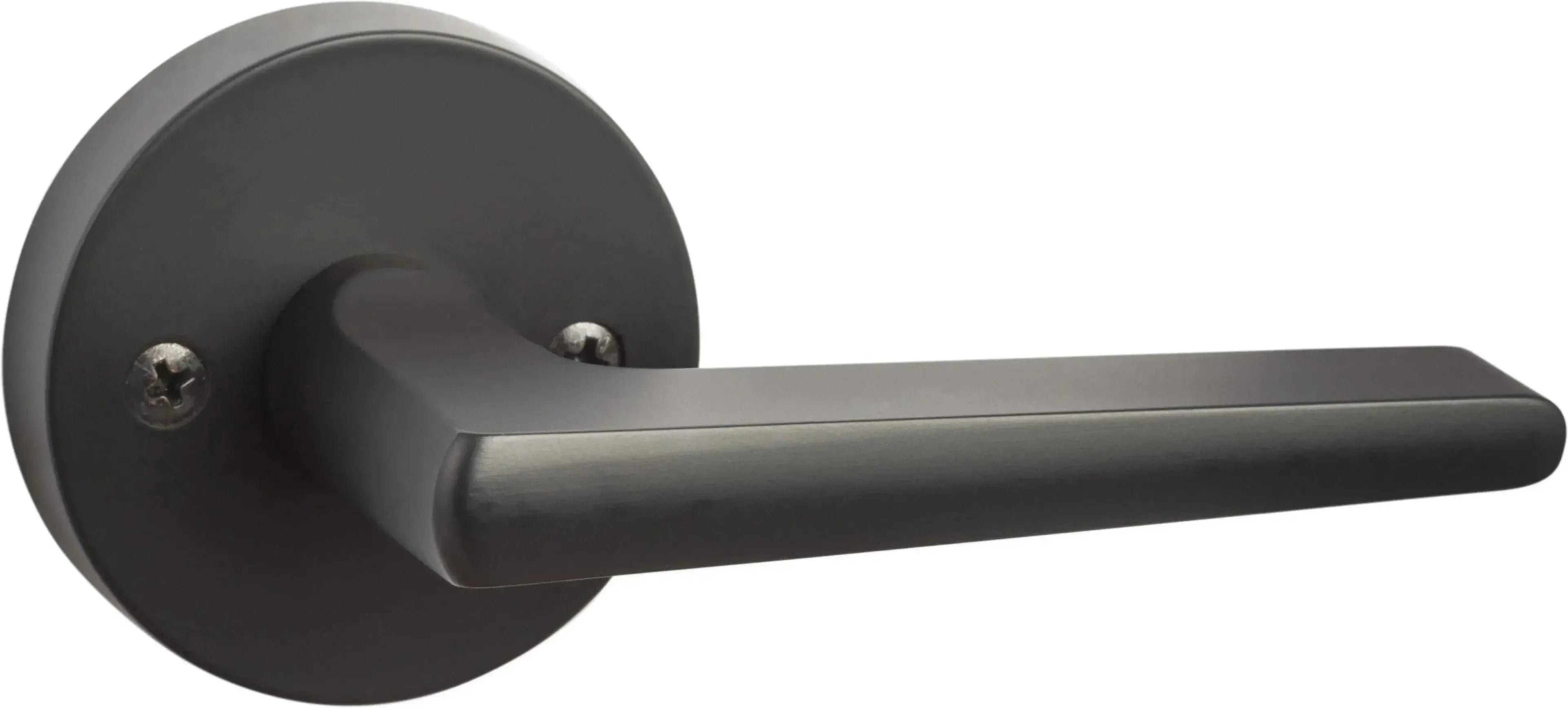

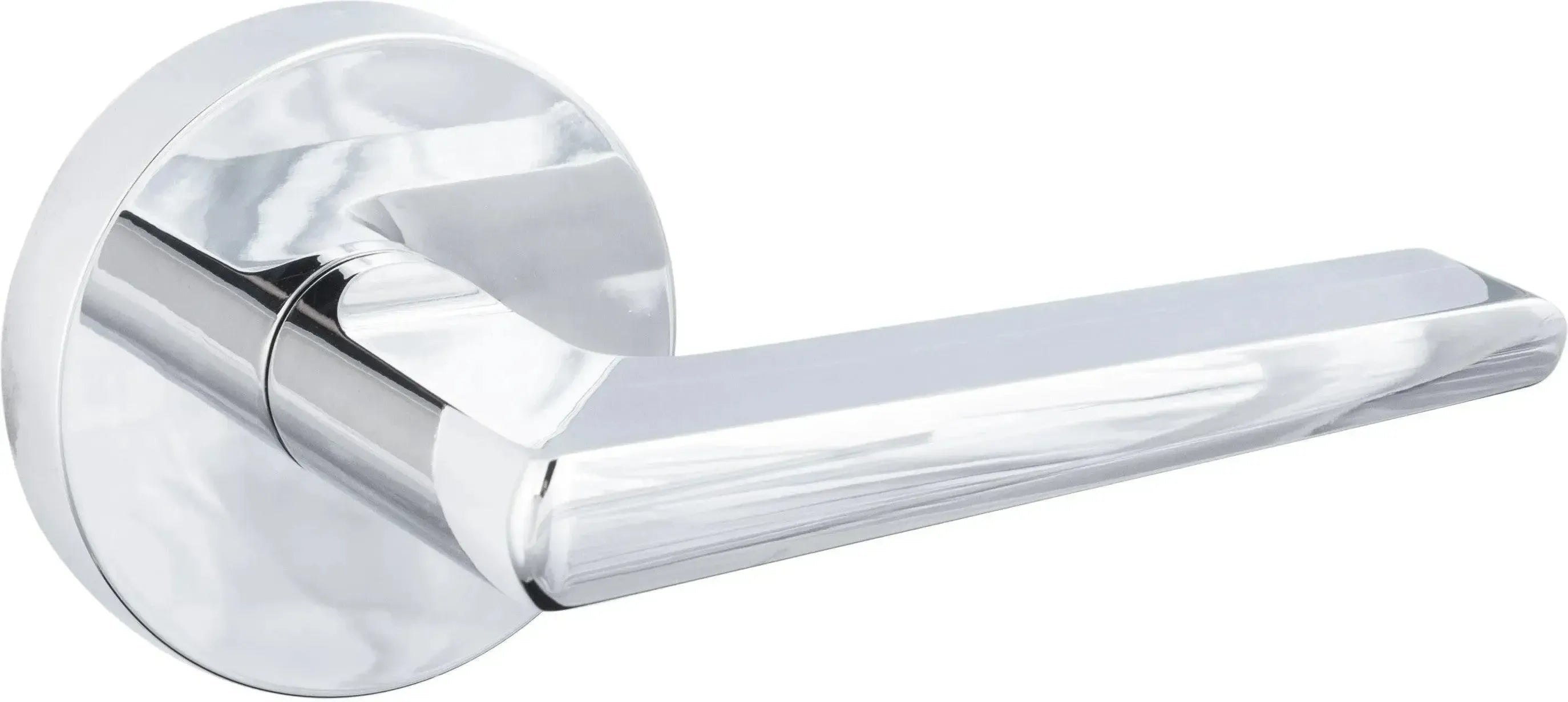

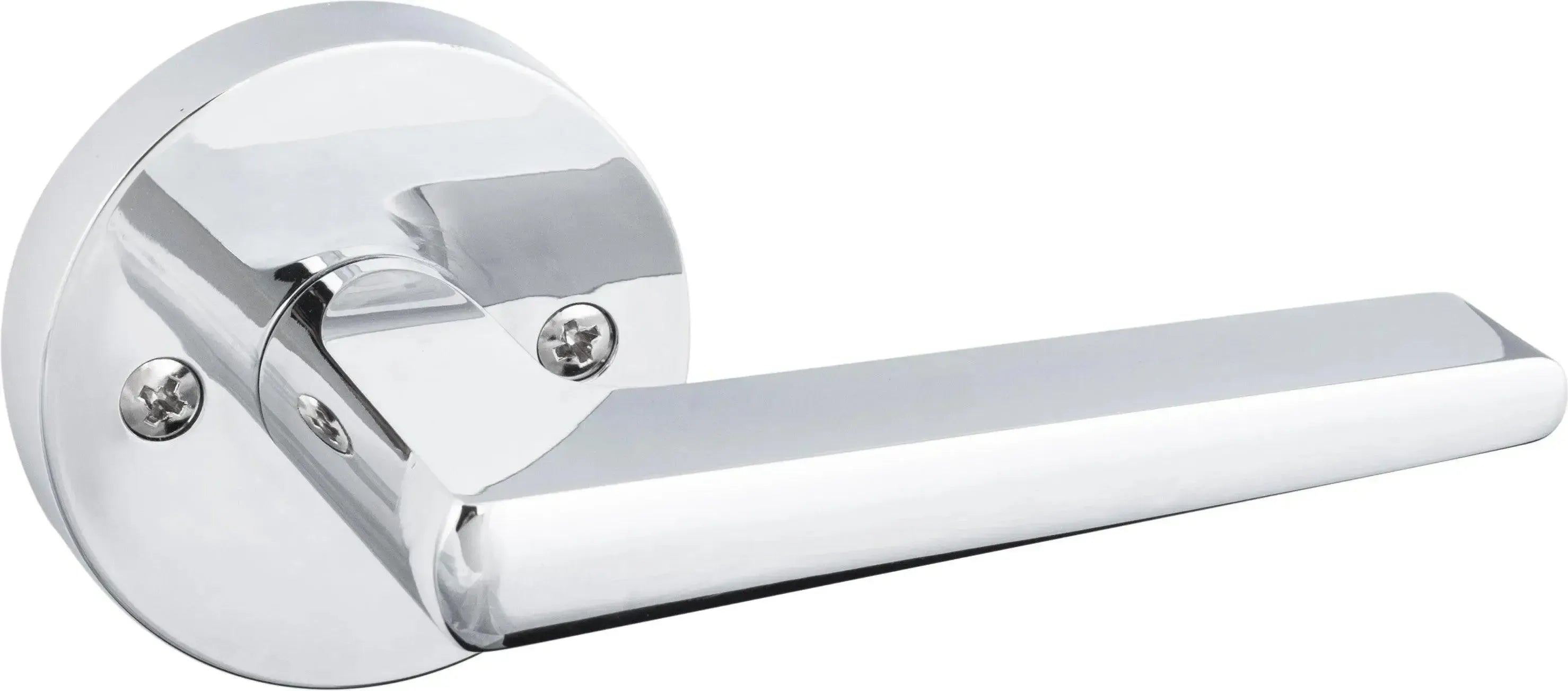

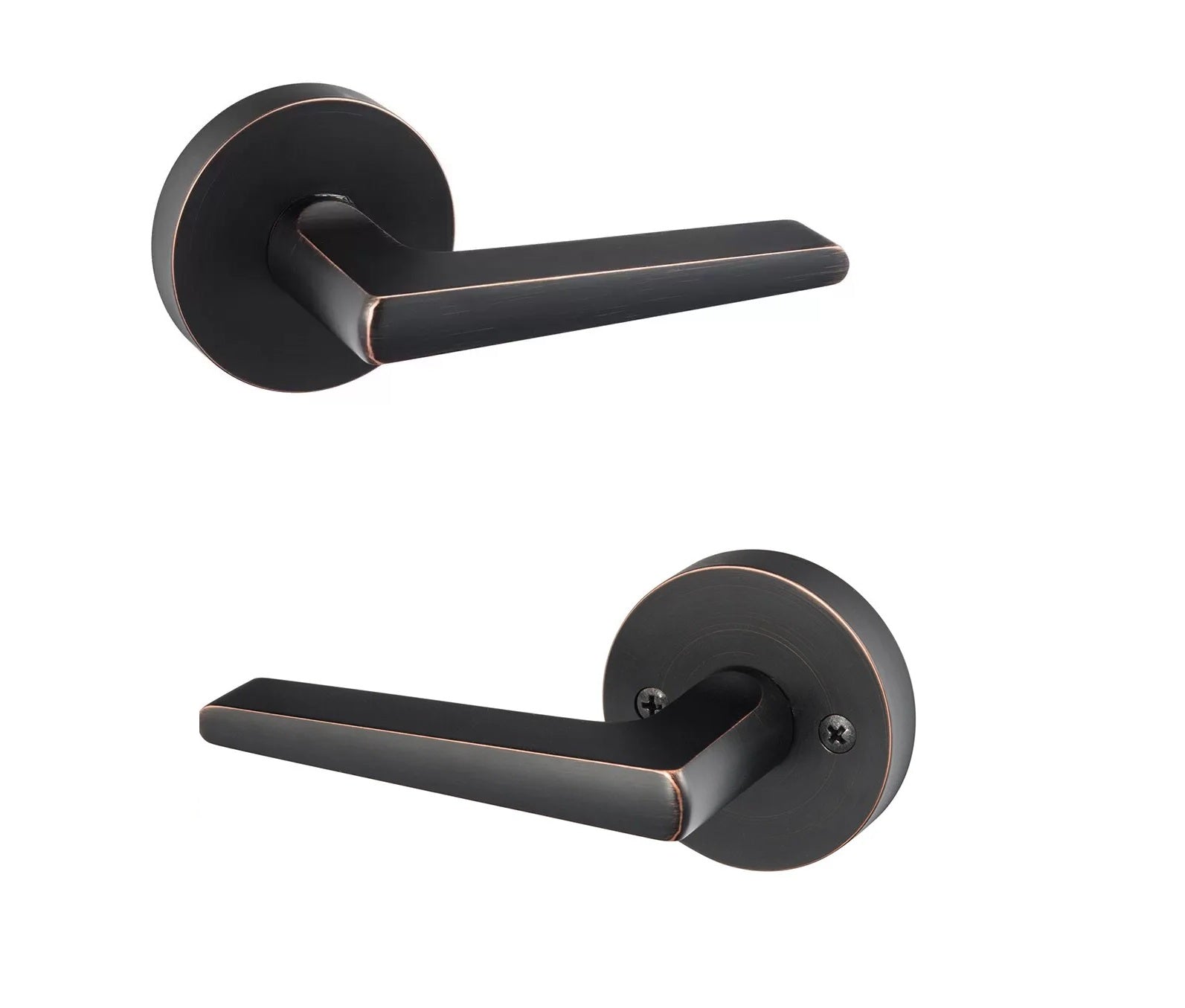

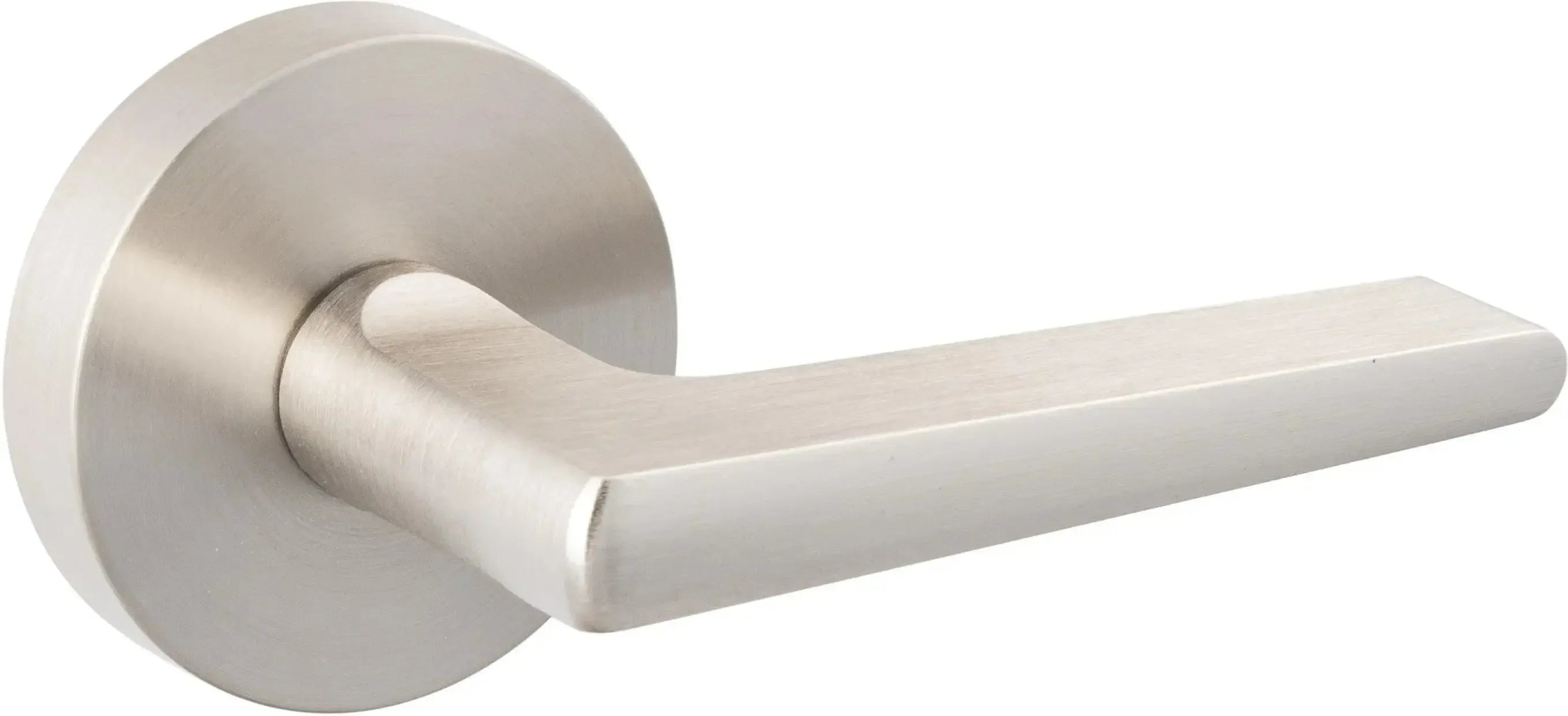

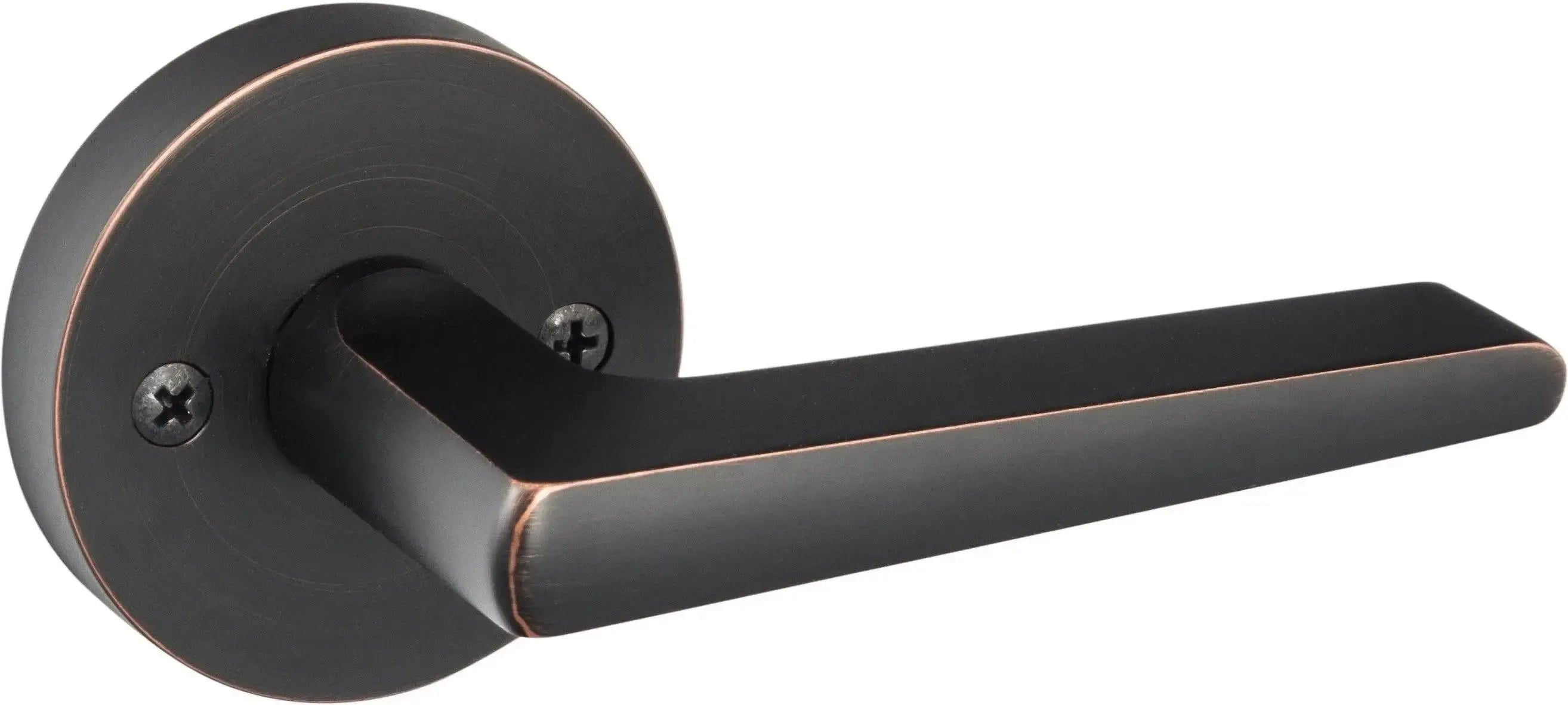

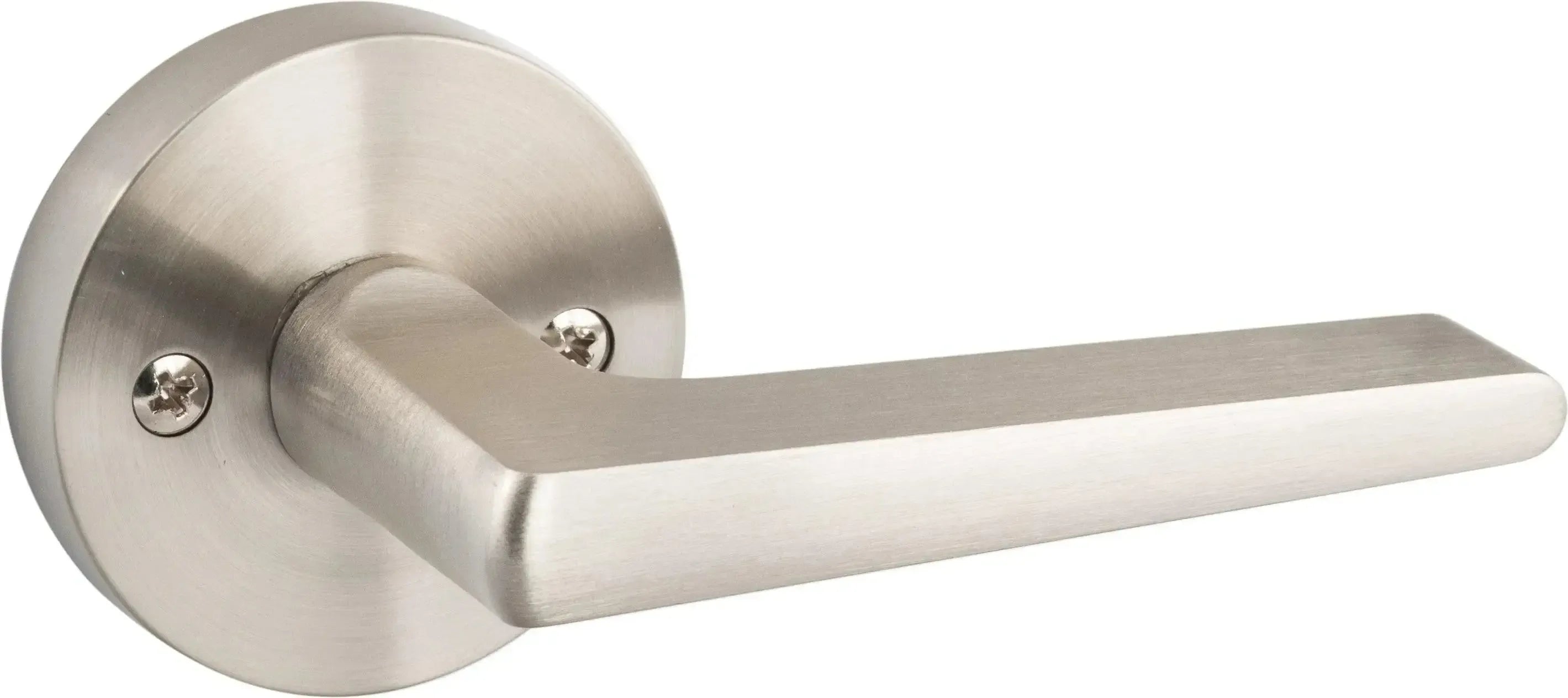

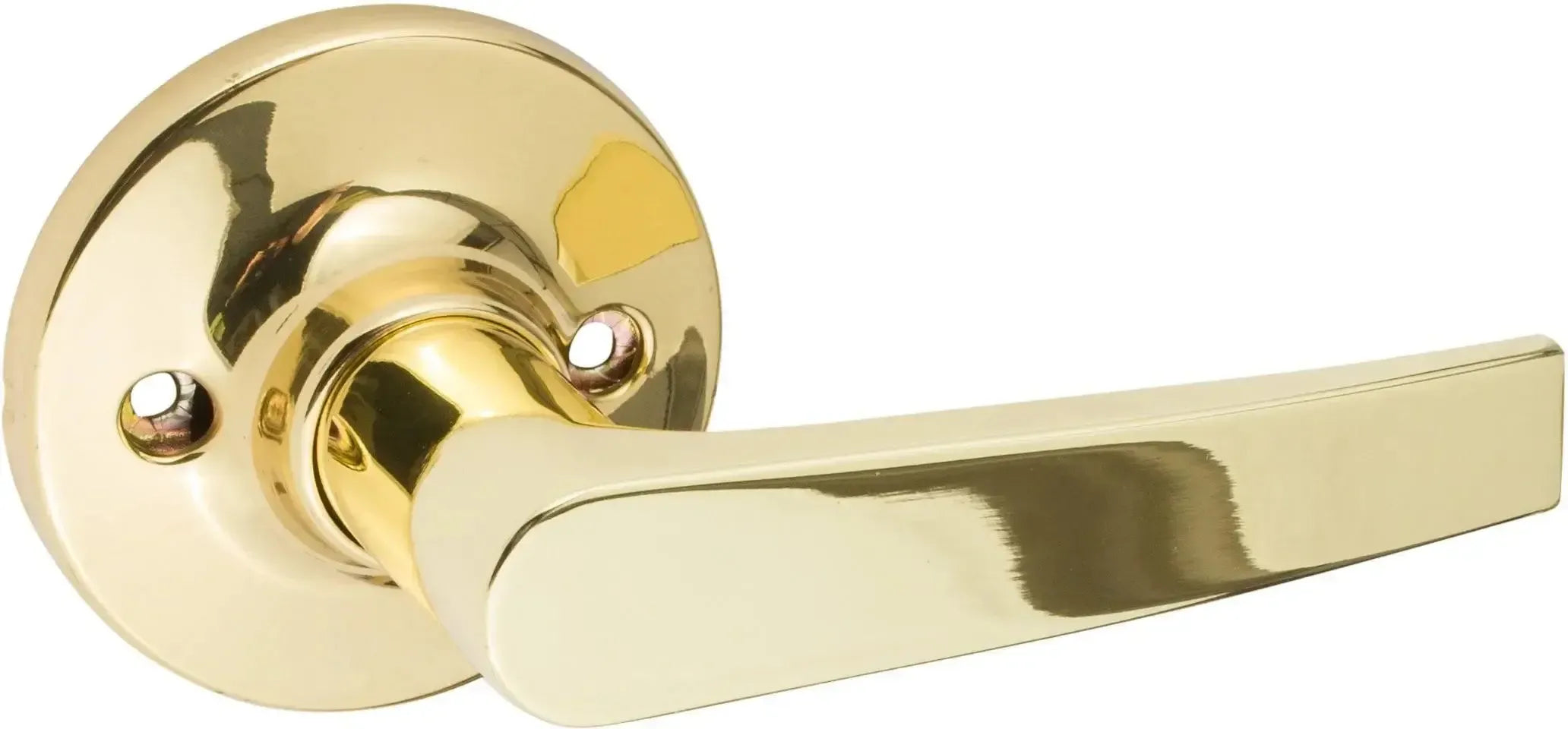

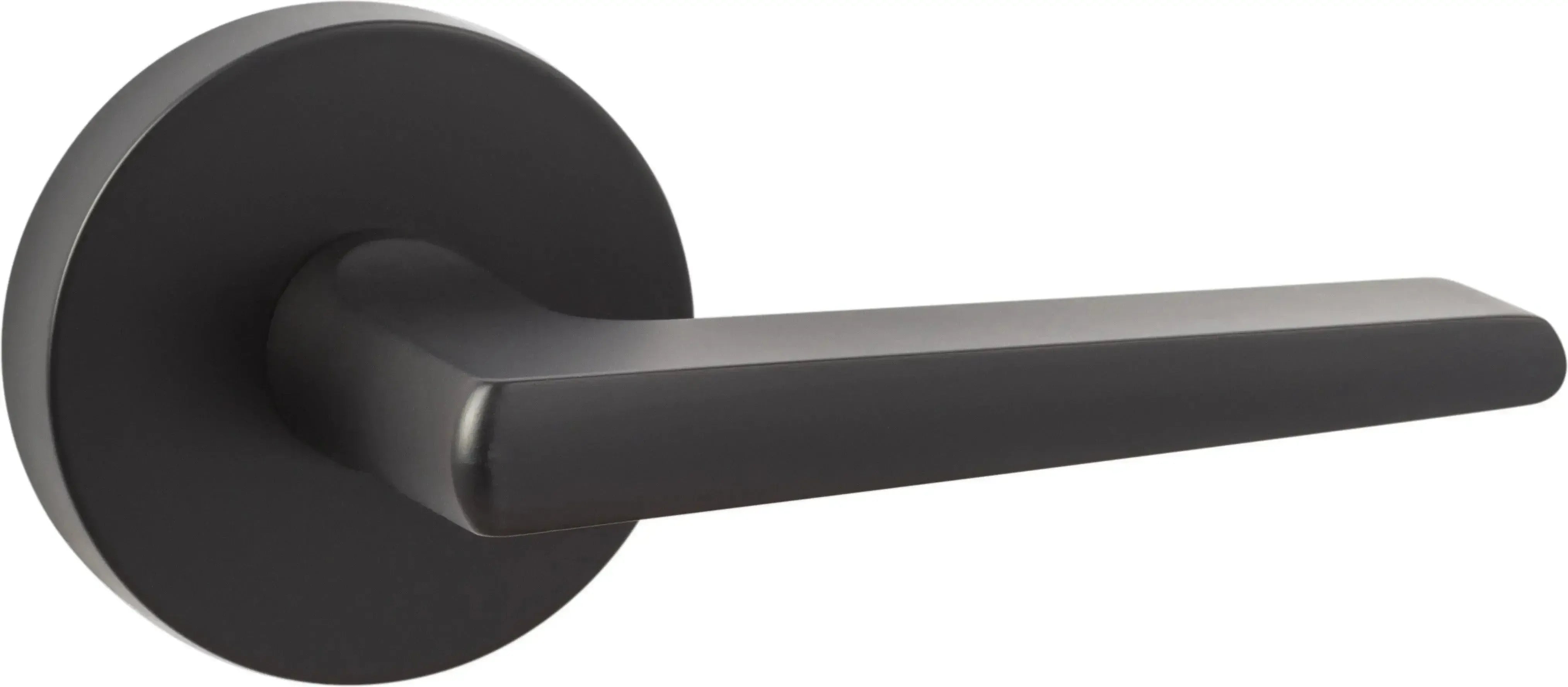

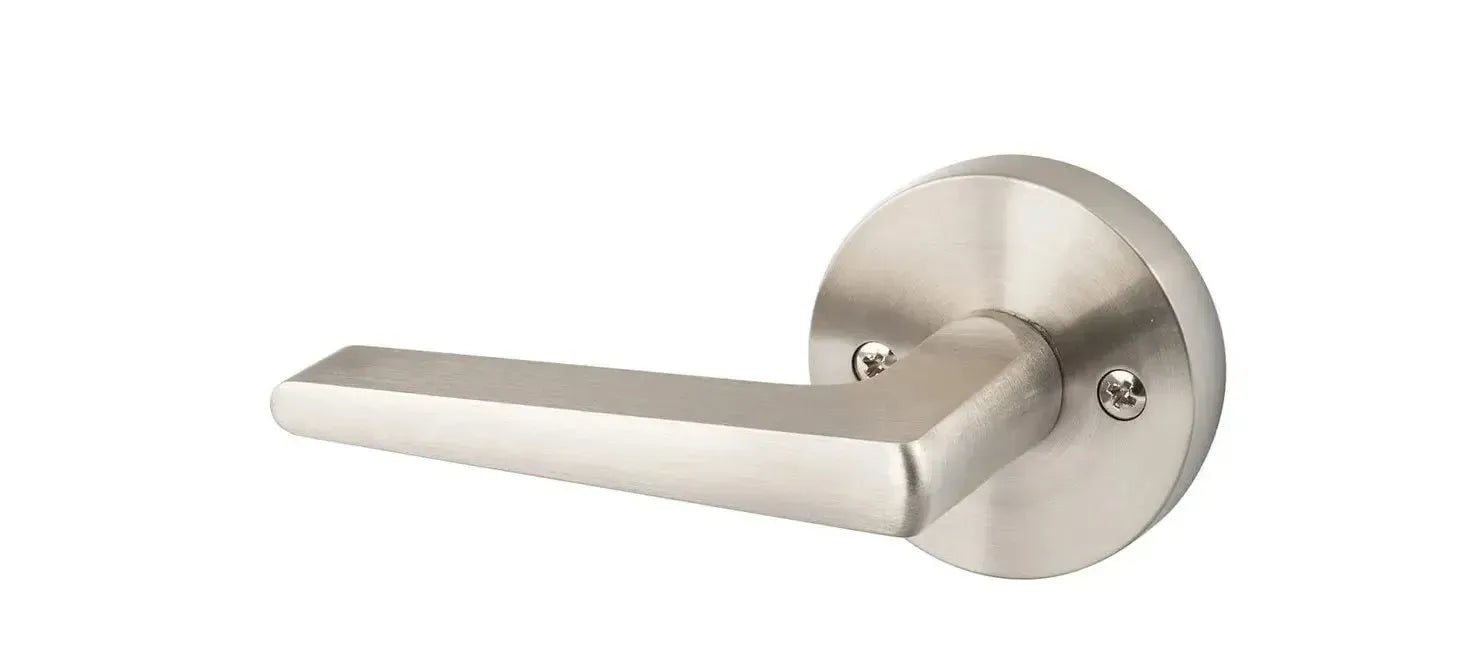

Complete your home with the Basel Lever and discover the beauty of modern door hardware. The round rosette highlights smooth lines and modern design. With a quality that you can feel, this hardware will lift your home to a higher level.

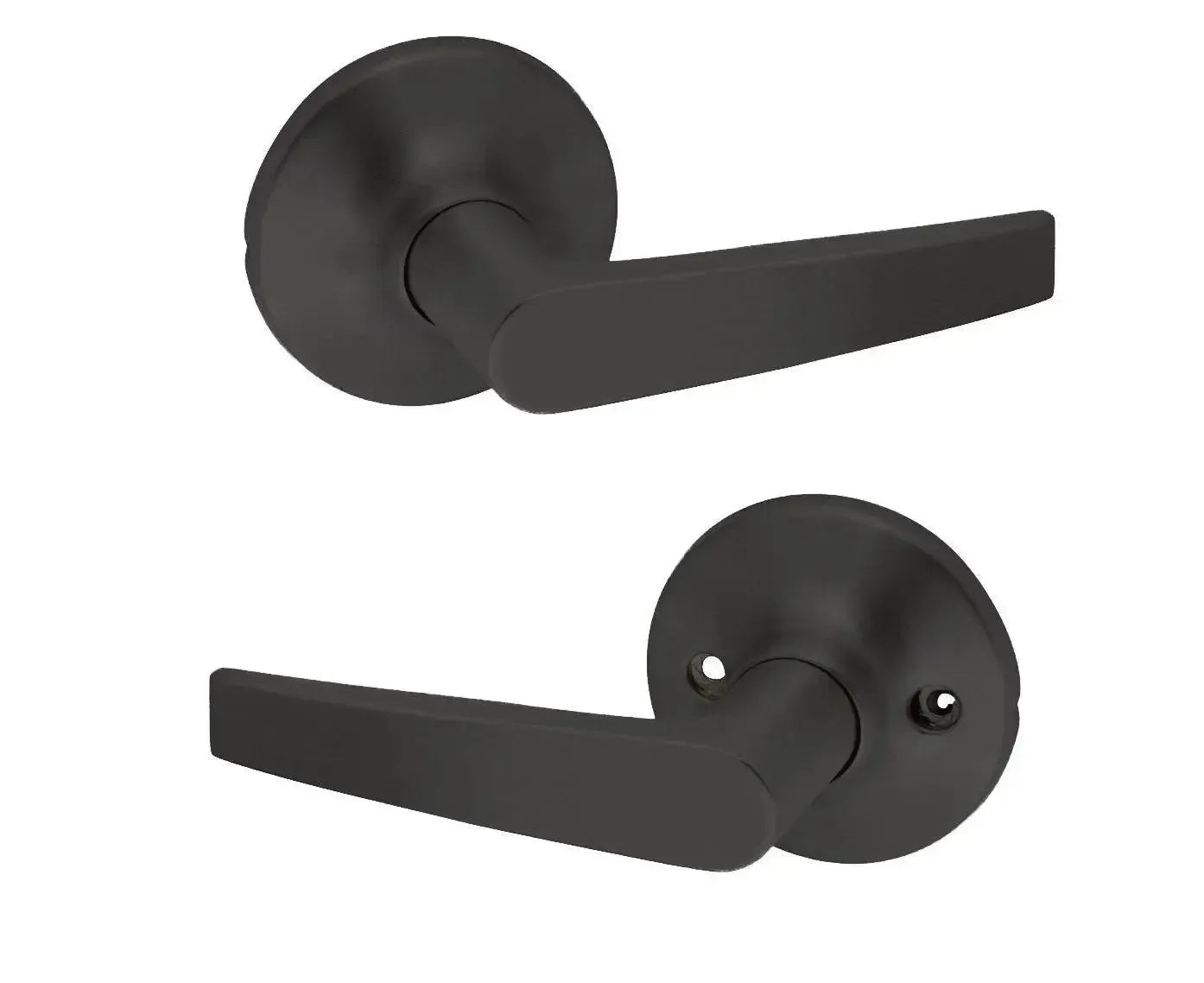

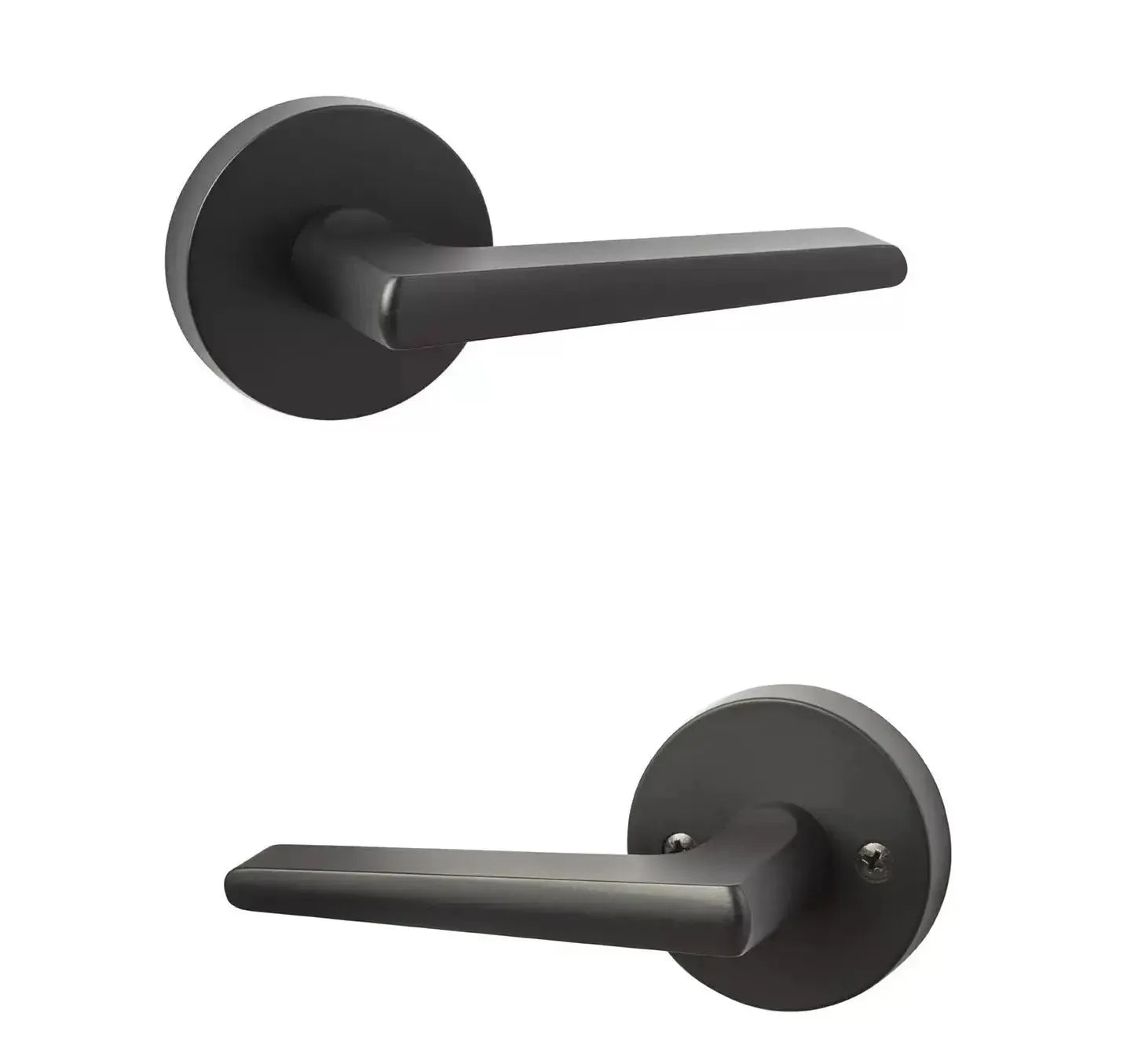

Passage Leverset Features

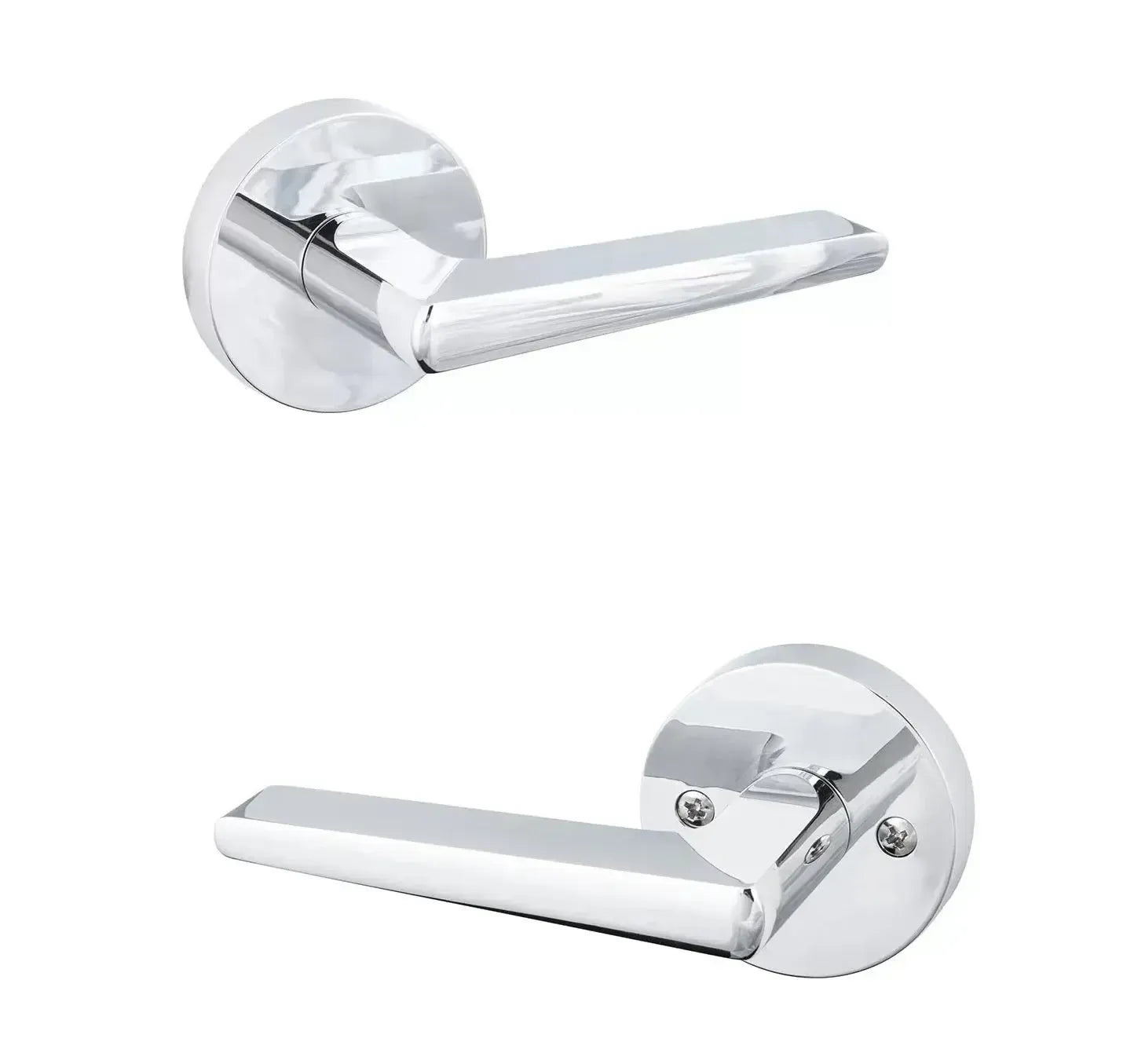

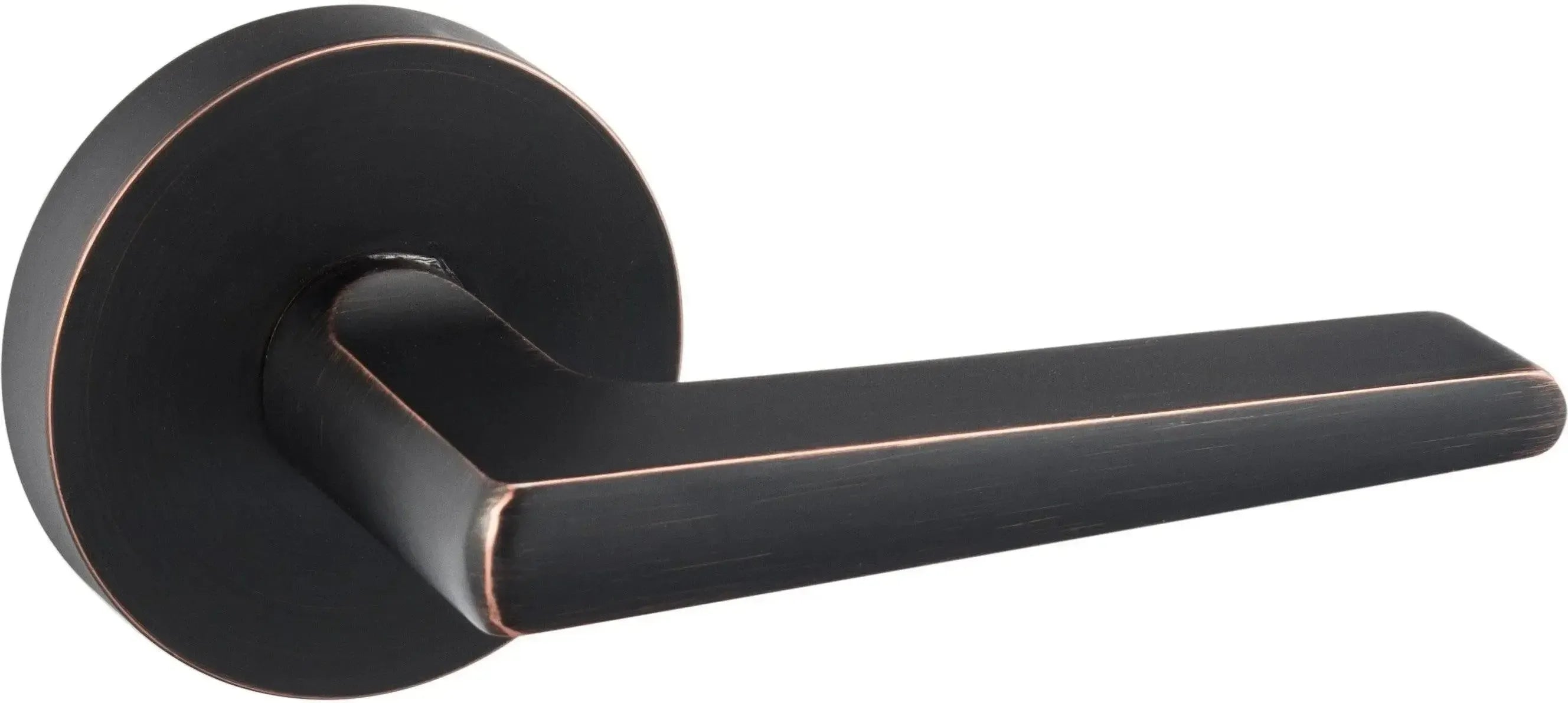

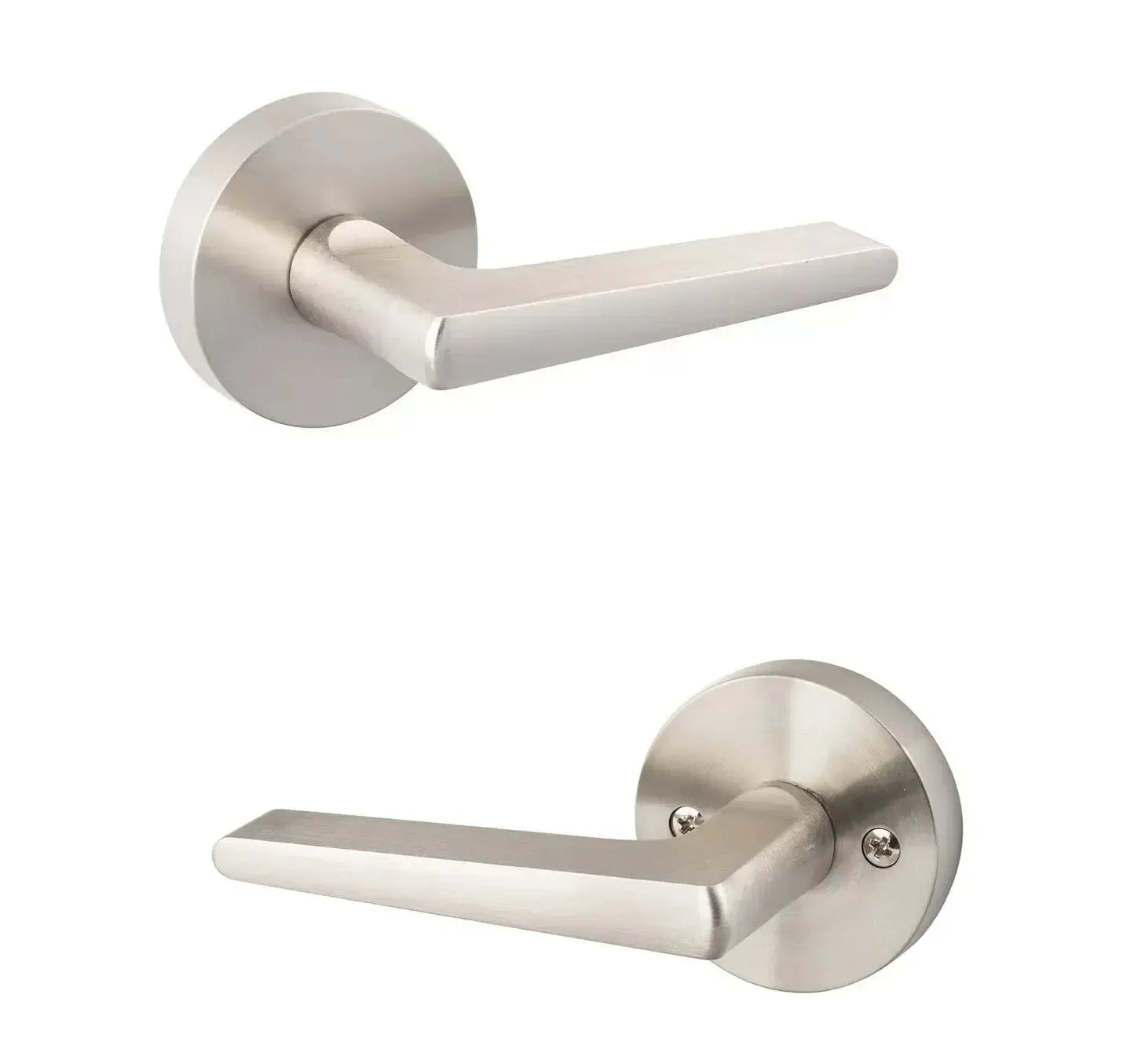

- Passage leversets are ideal for a hall or closet. Both sides are always free
- Non-handed
- Solid metal construction, all-metal parts
- ANSI Grade 3
- 45° lever turn radius
- Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, strike, and installation hardware
- Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
- Fits doors 1⅜″ – 1¾″ (35-45mm) thick

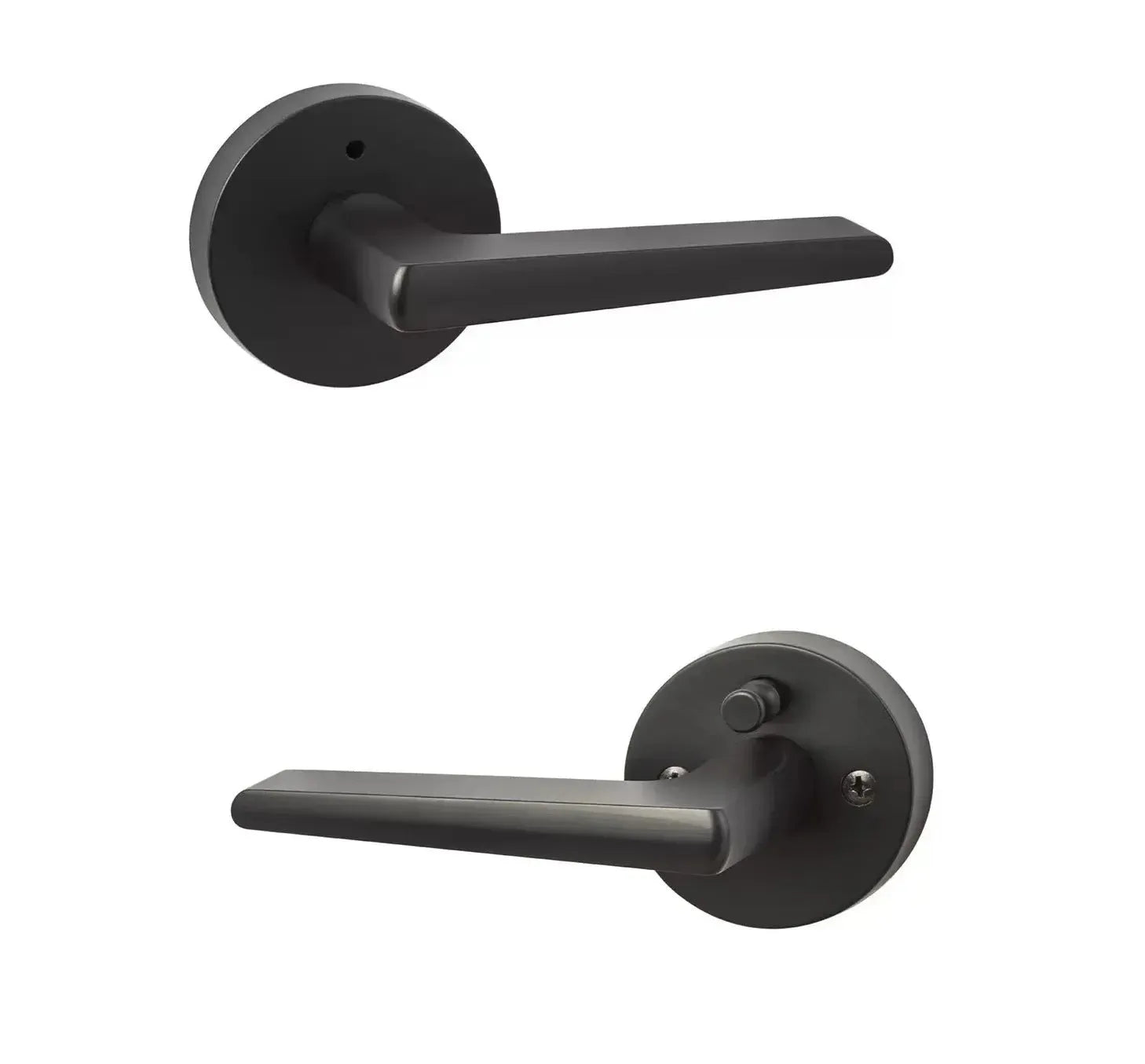

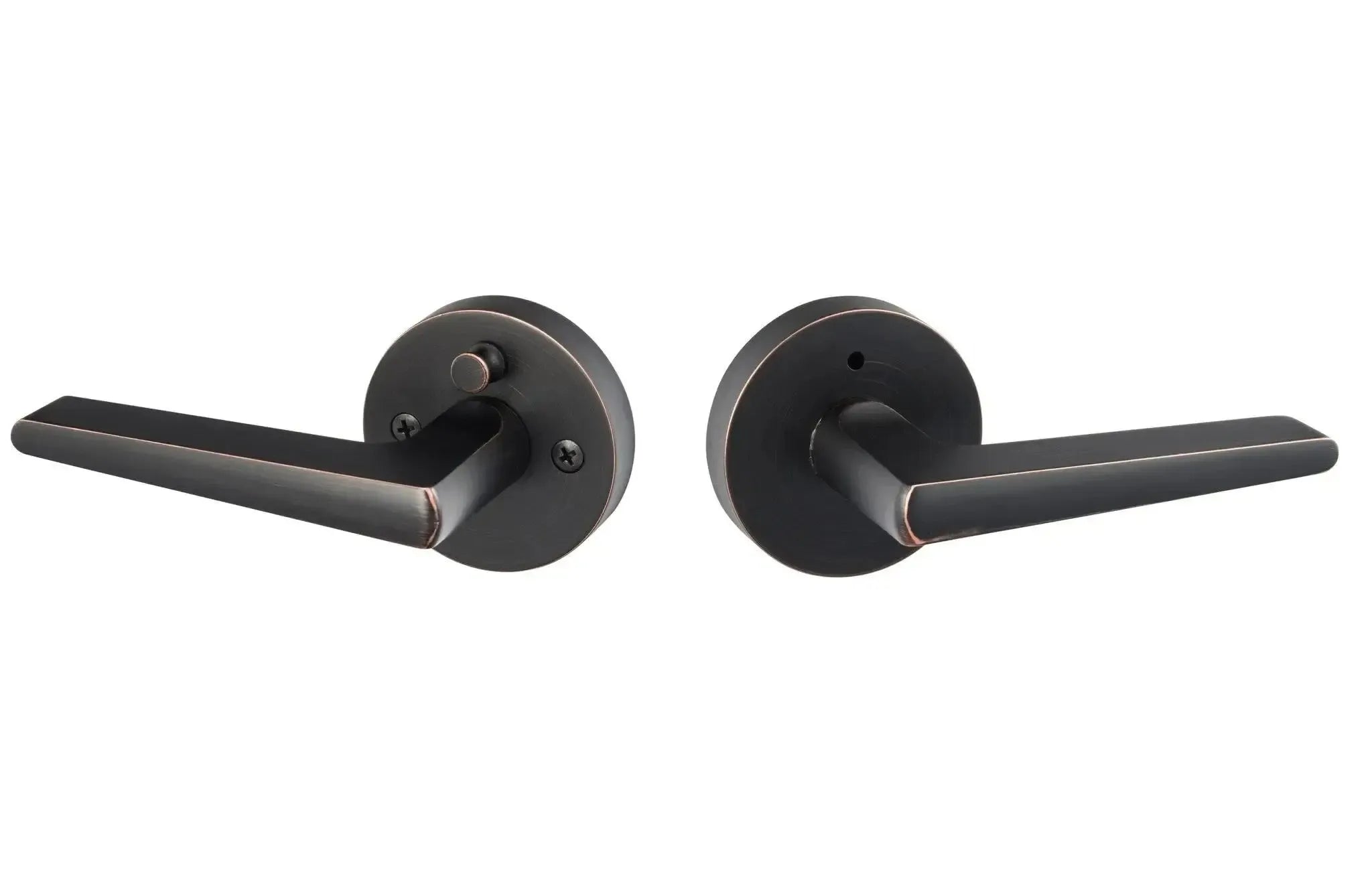

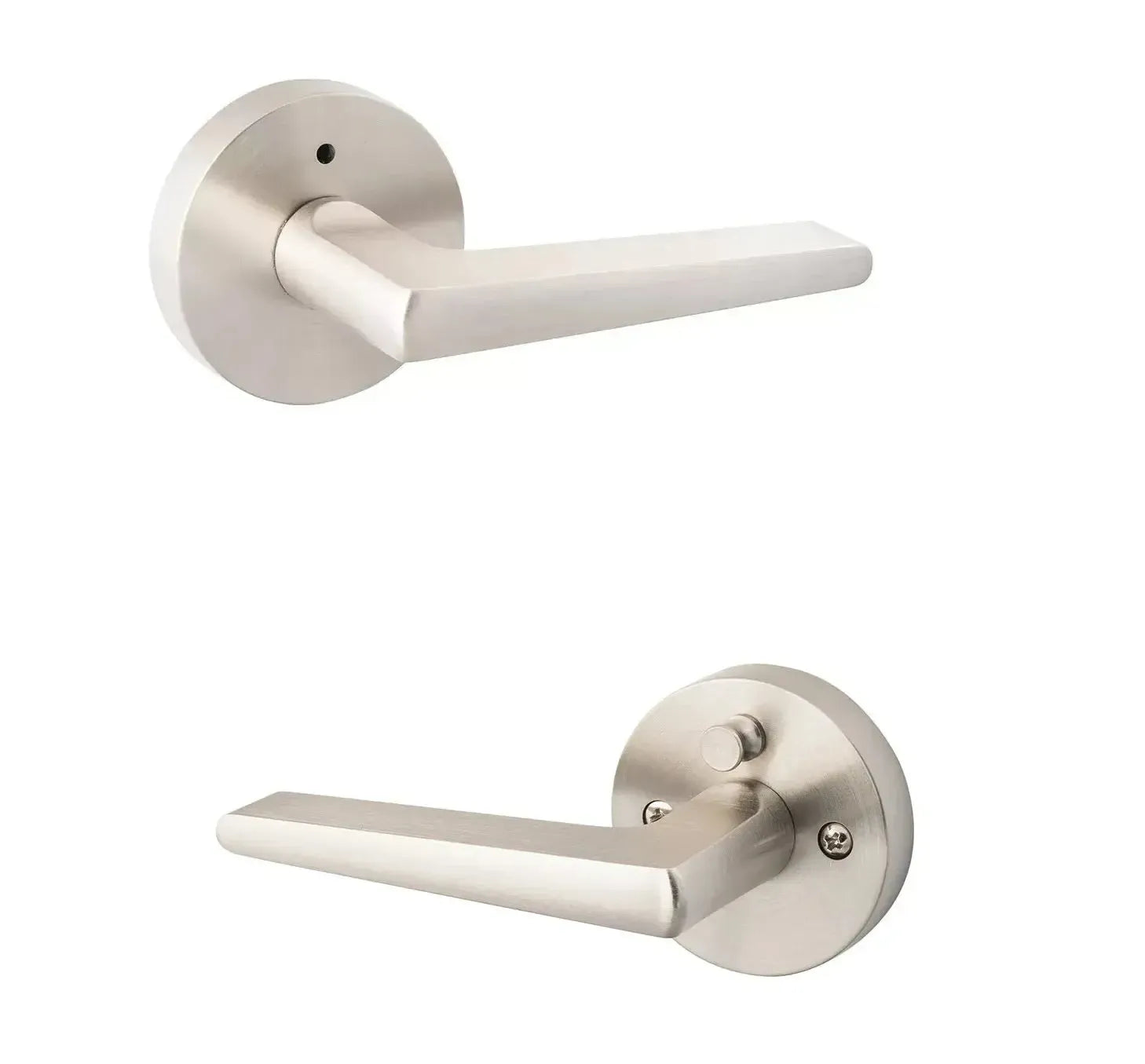

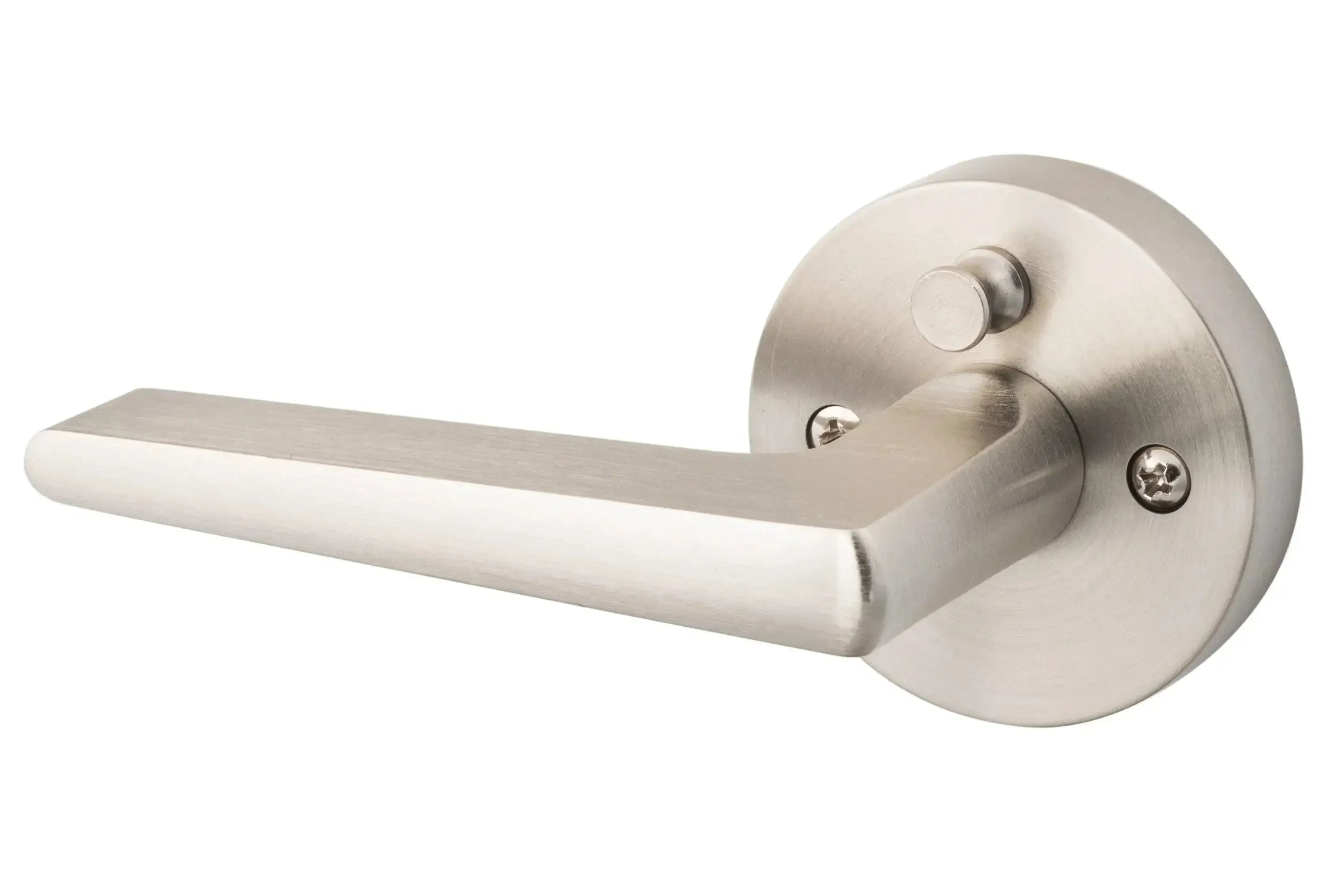

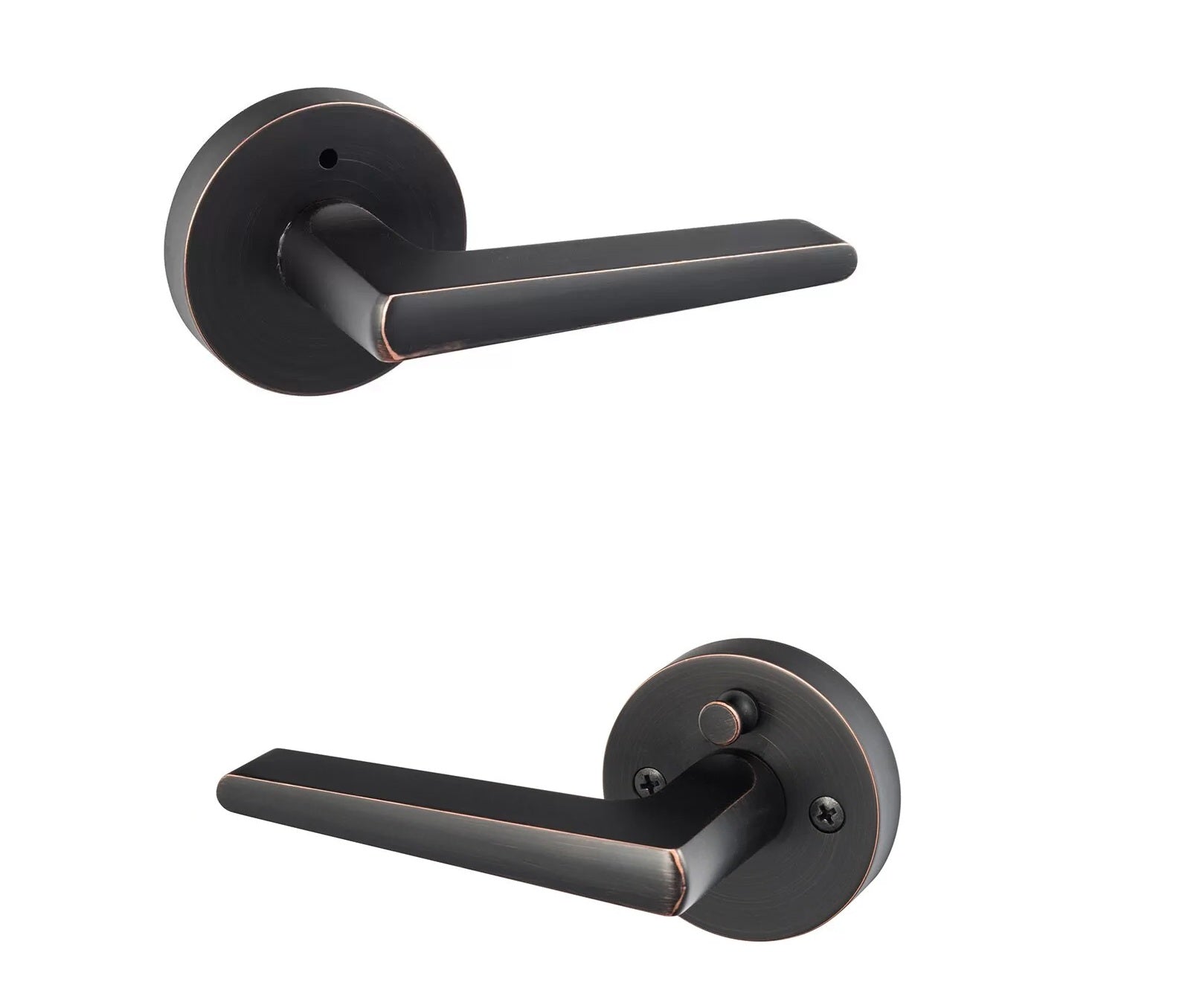

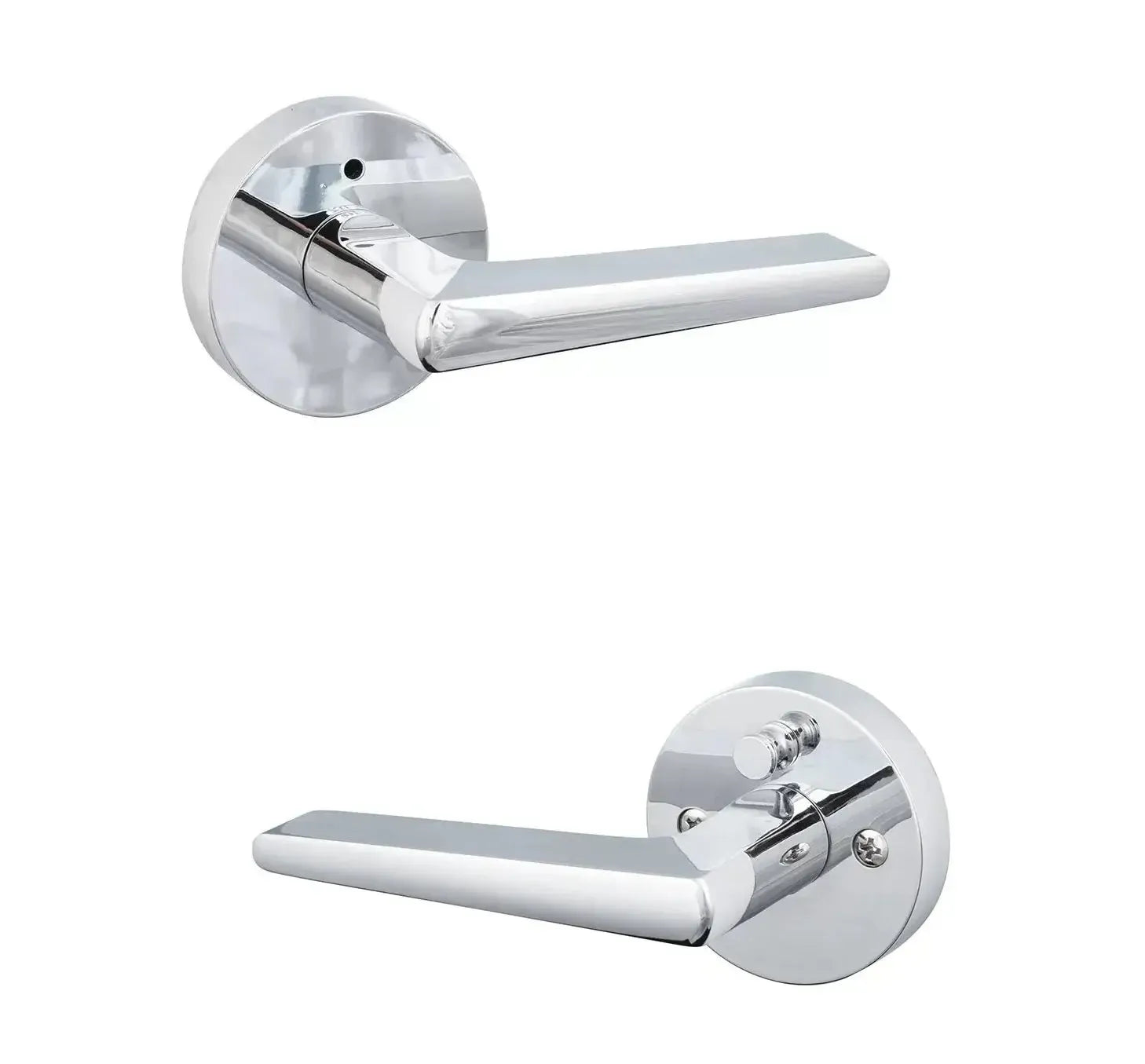

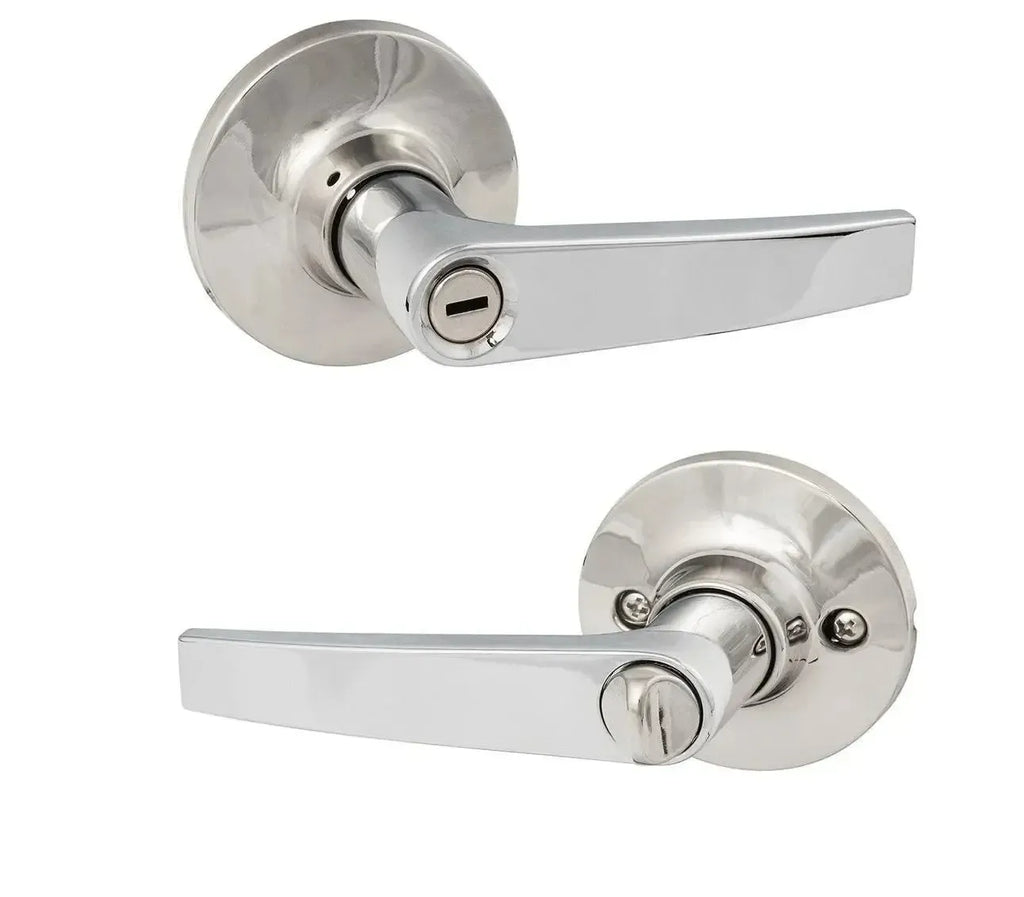

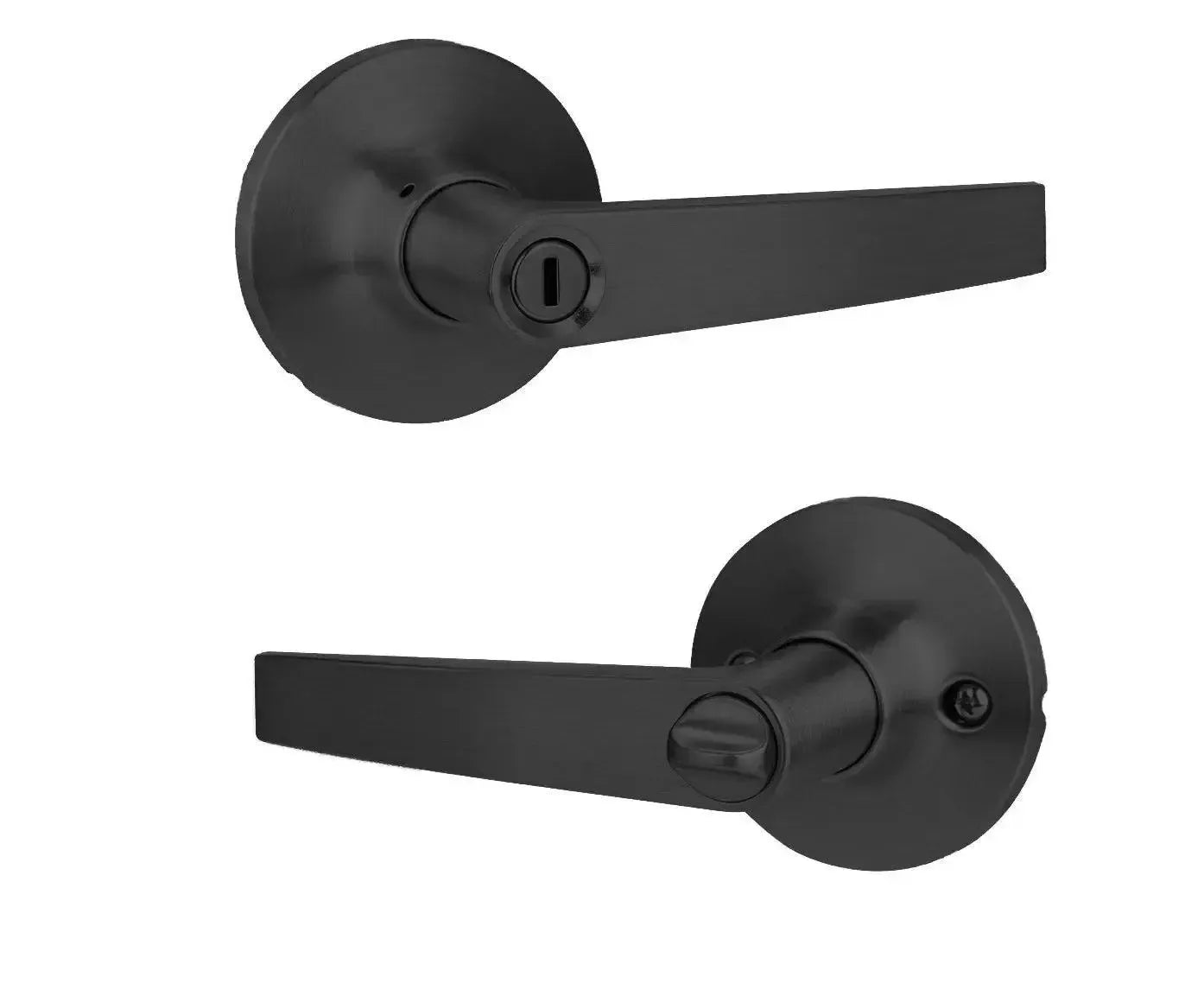

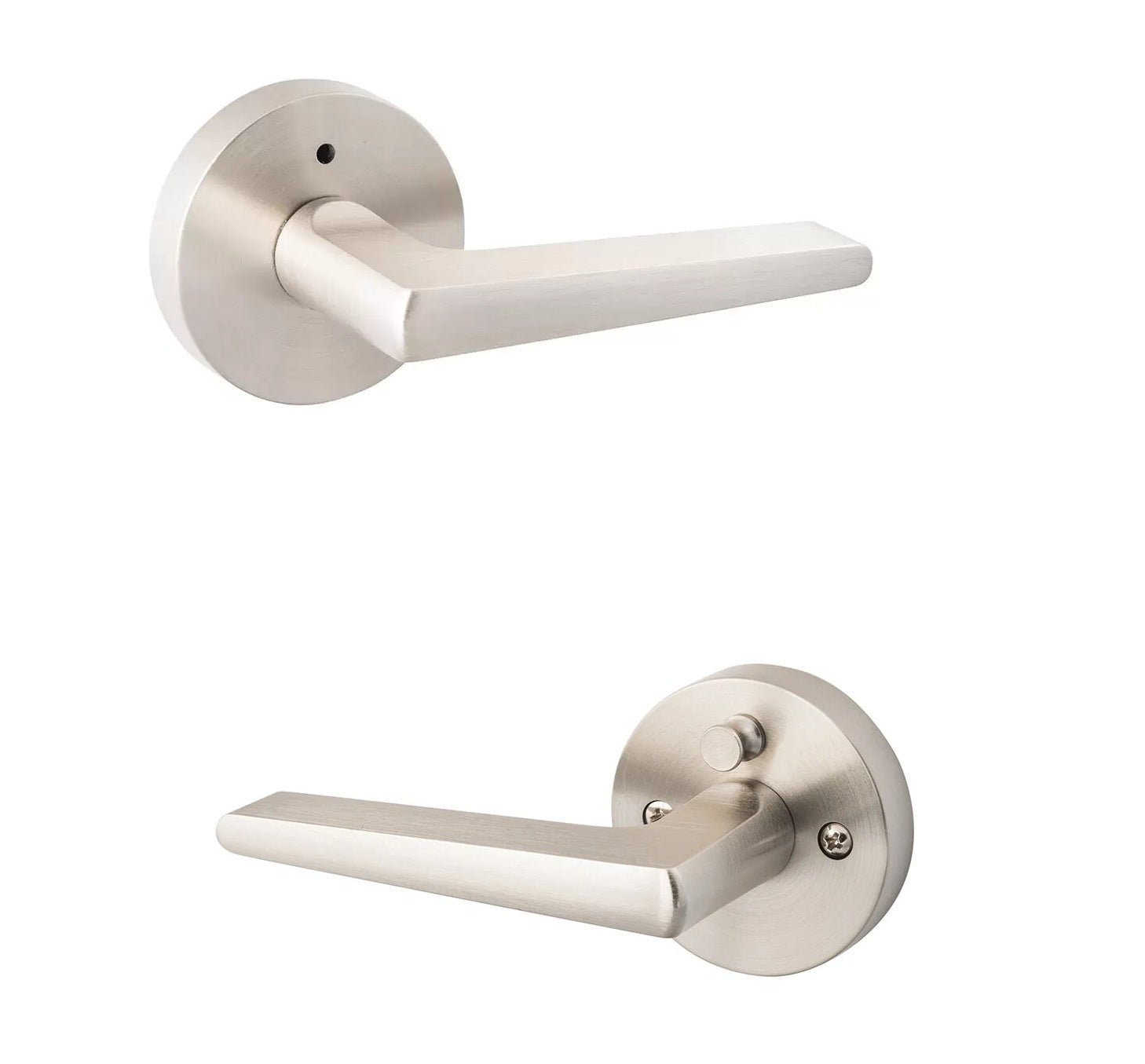

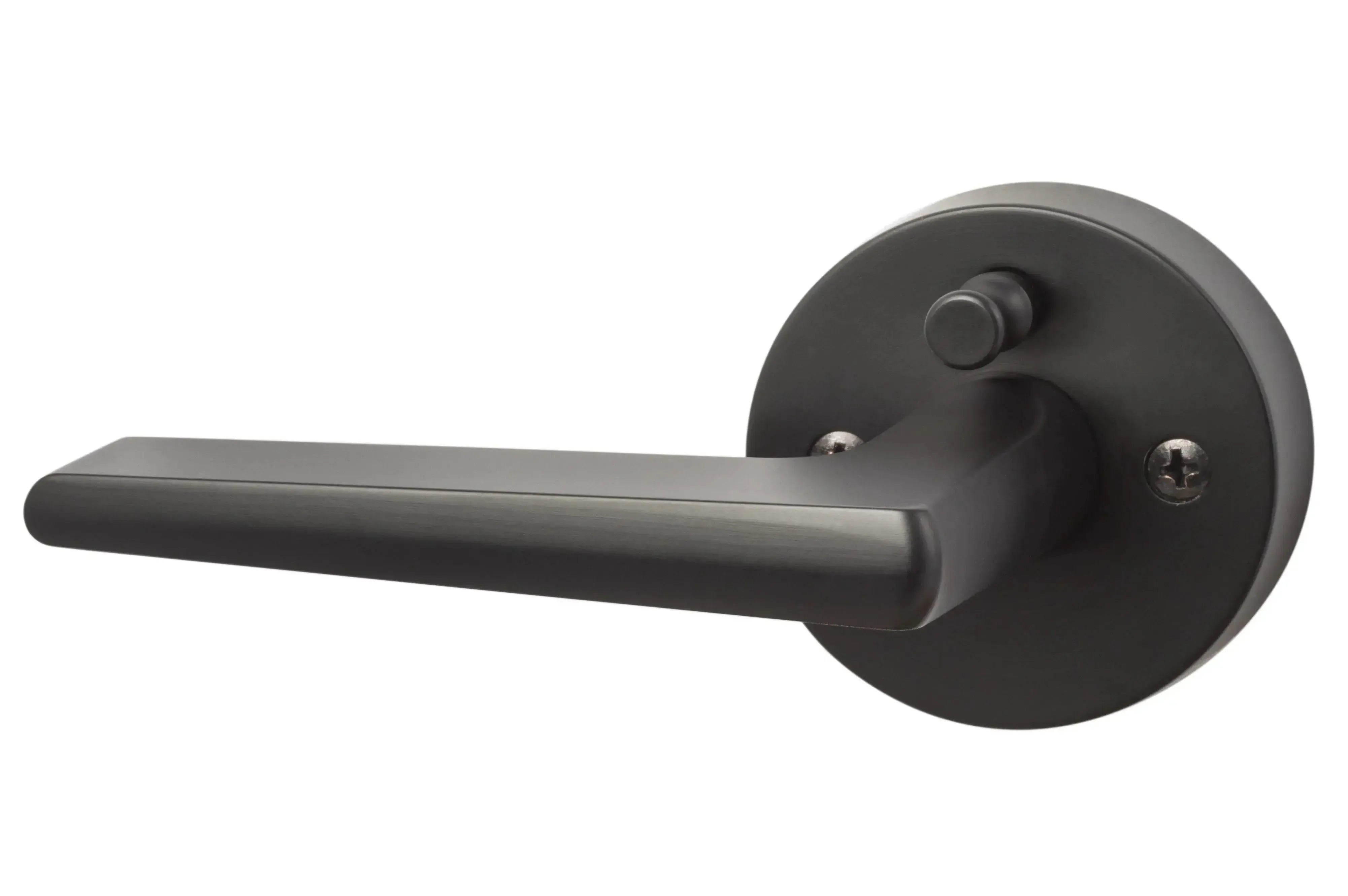

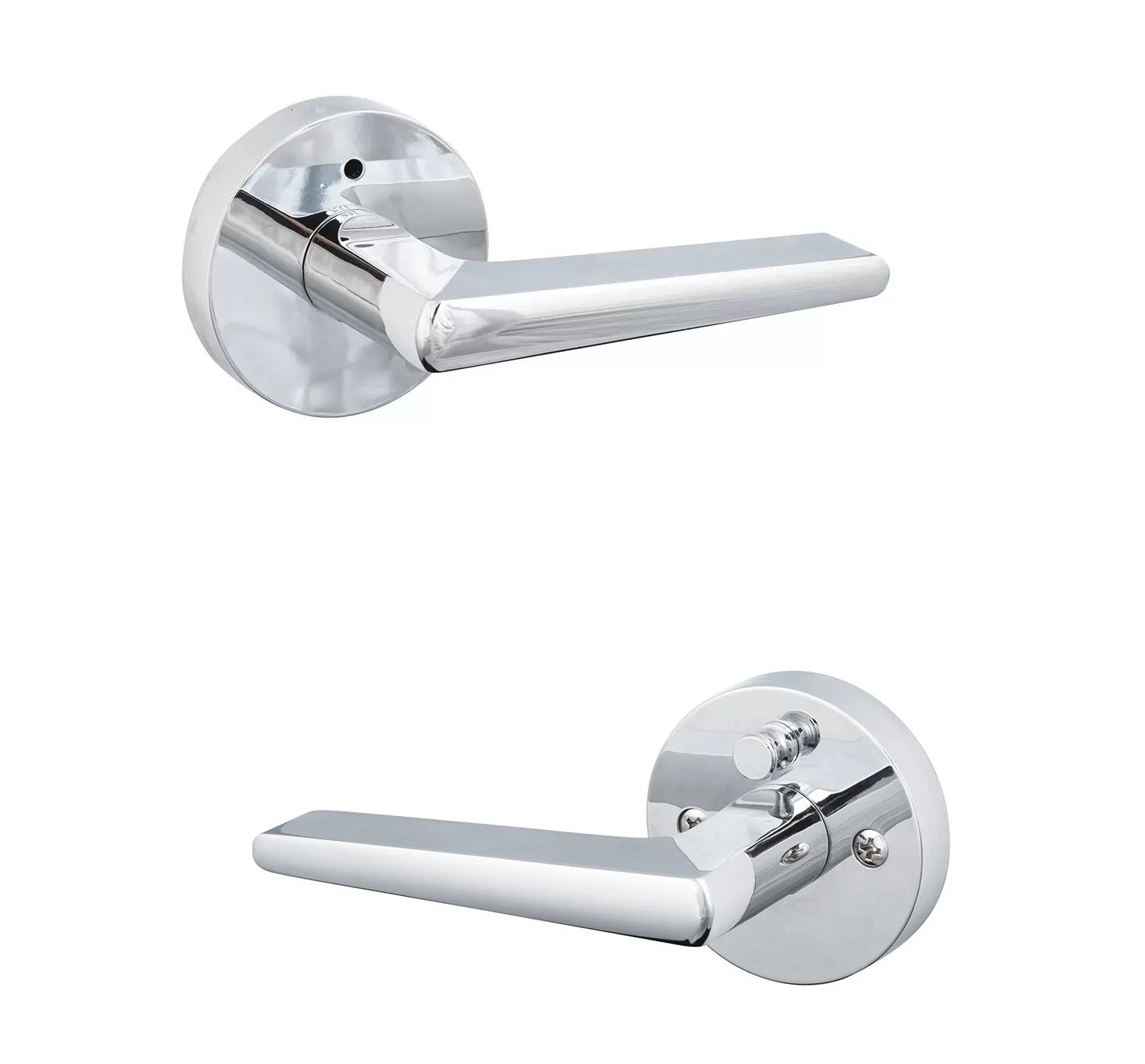

- Privacy levers are ideal for bedroom and bathrooms. They are locked by a push pin and unlocked by push pin, lever turn, or emergency pin outside
- Non-handed
- Solid metal construction, all-metal parts
- ANSI Grade 3
- 45° lever turn radius
- Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, strike, and installation hardware
- Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
- Fits doors 1⅜″ – 1¾″ (35-45mm) thick

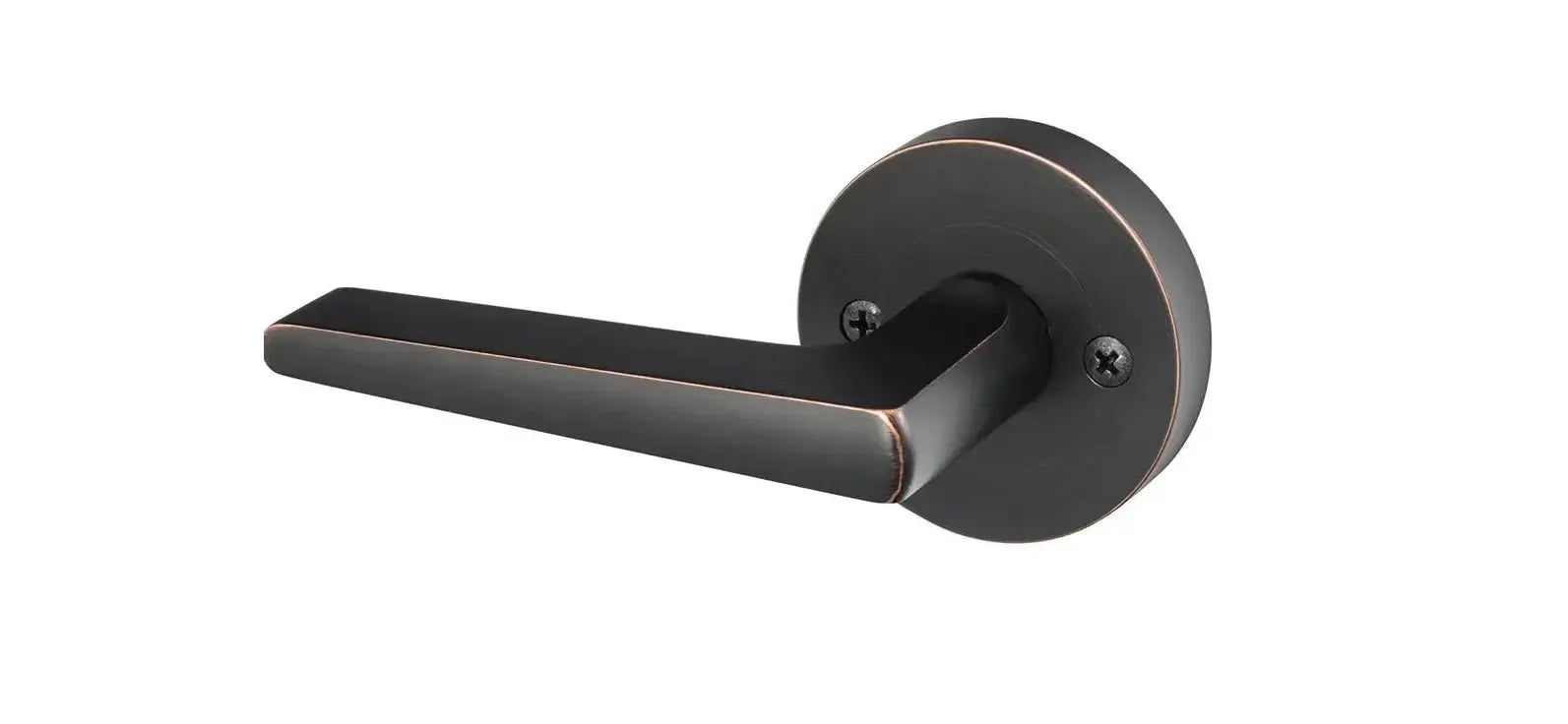

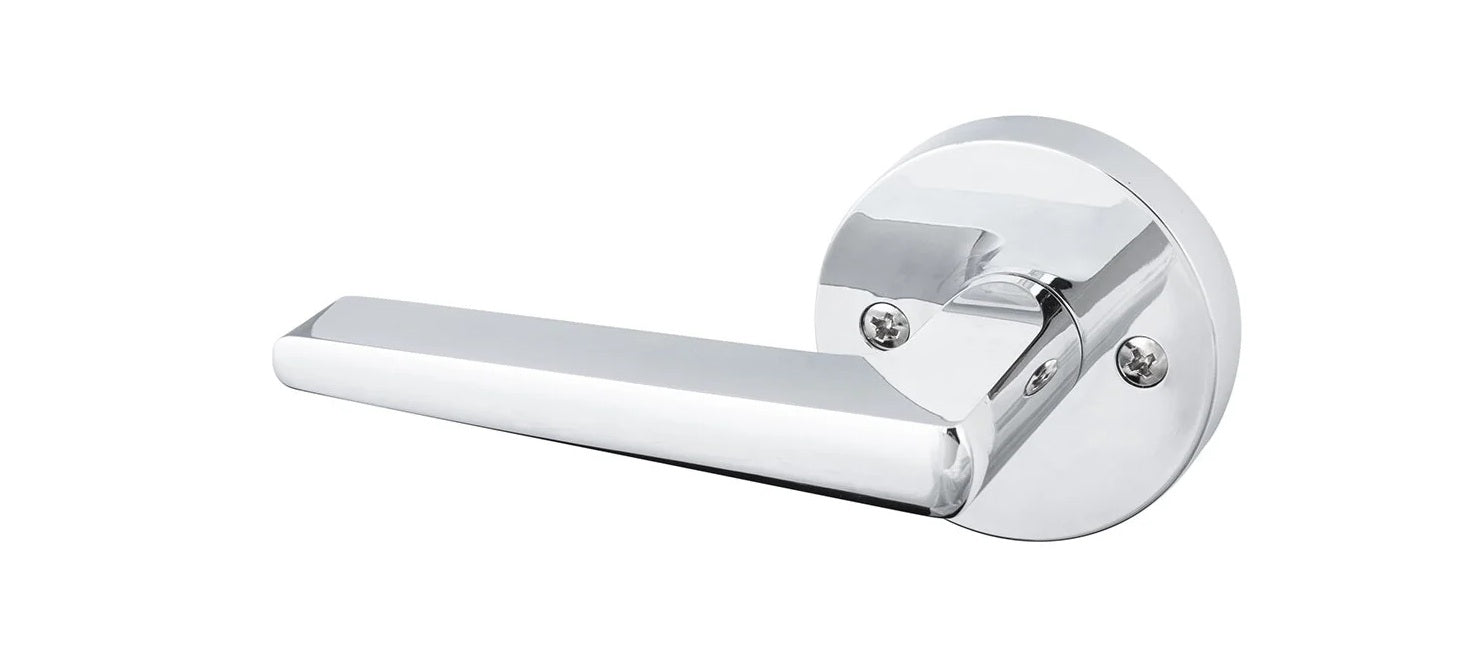

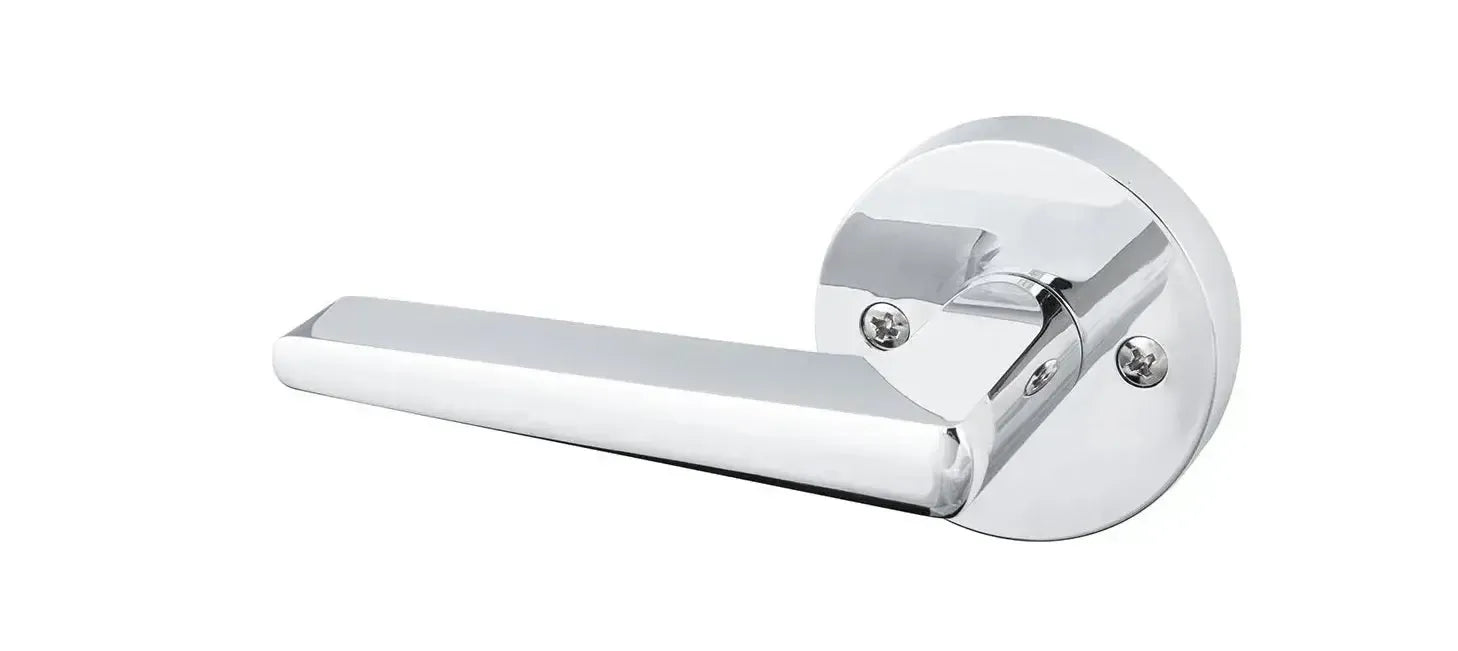

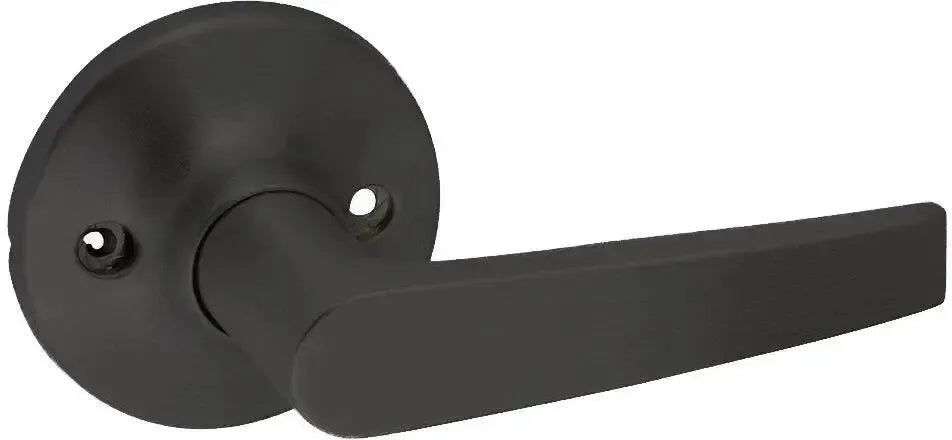

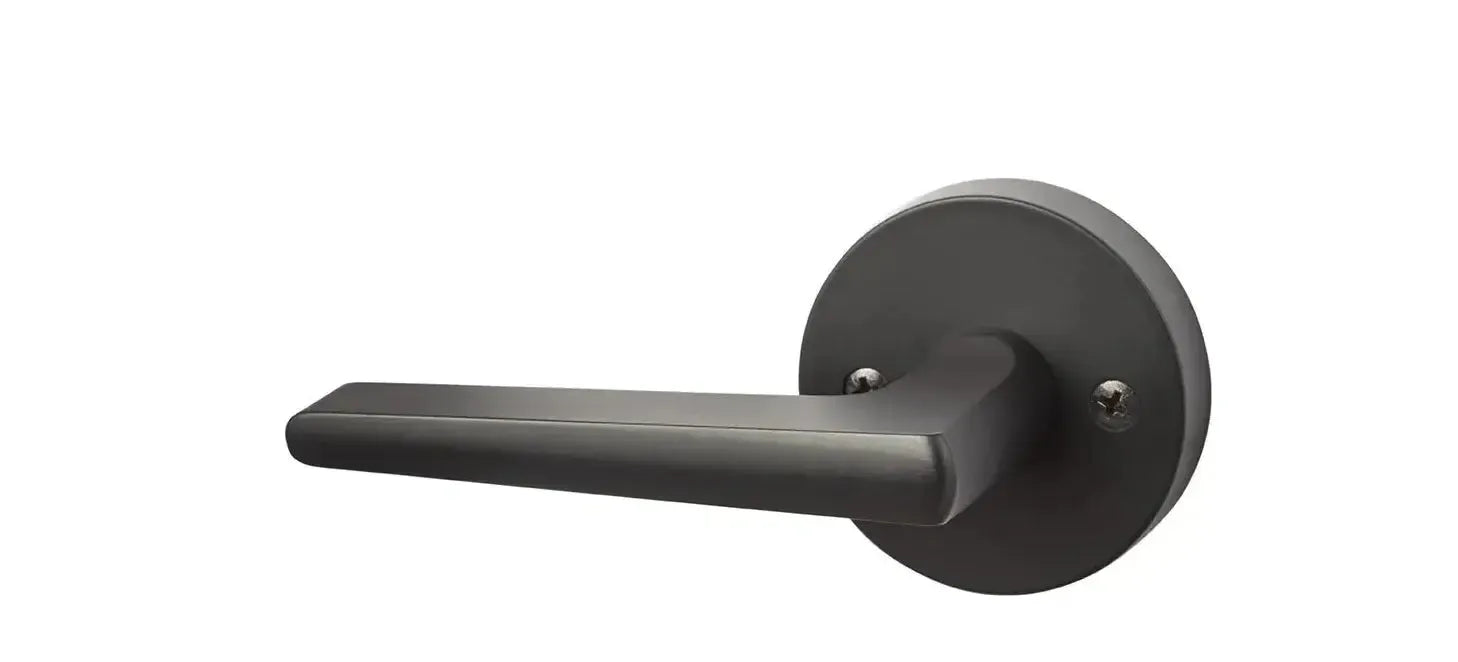

- This is a single-sided, inactive dummy lever
- Dummy lever is surface mounted with two wood screws
- Fits doors 1⅜″ – 1¾″ (35-45mm) thick

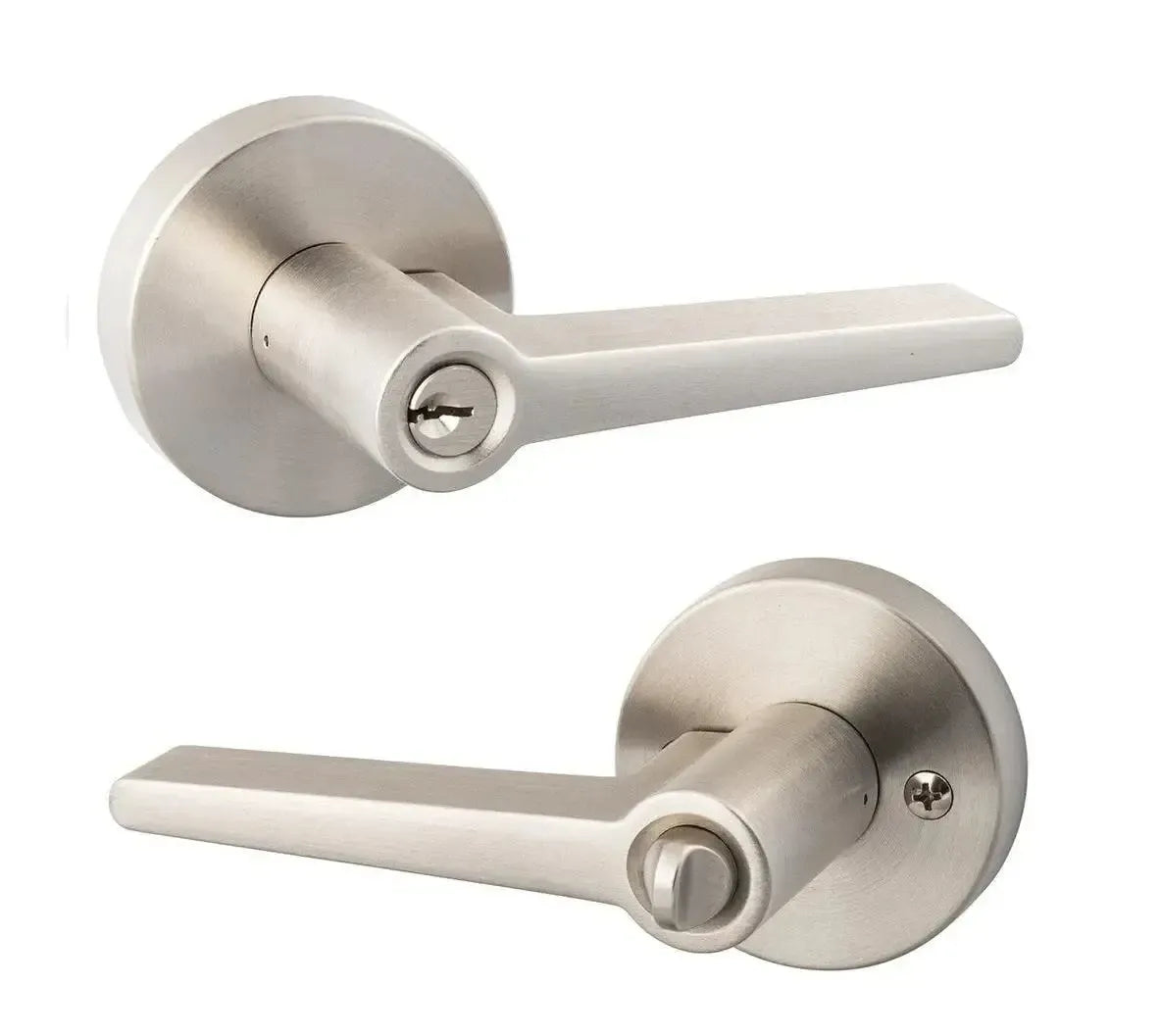

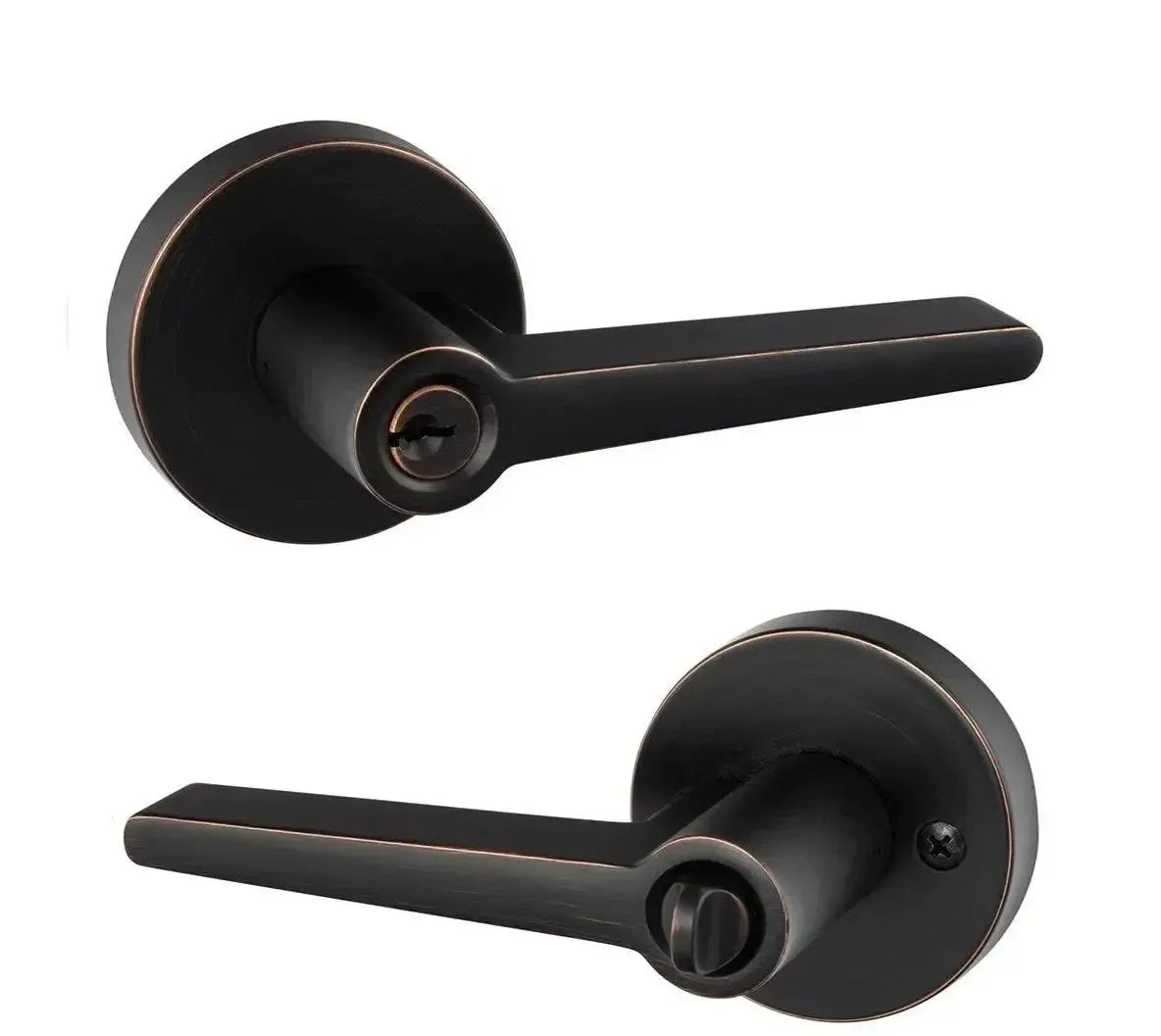

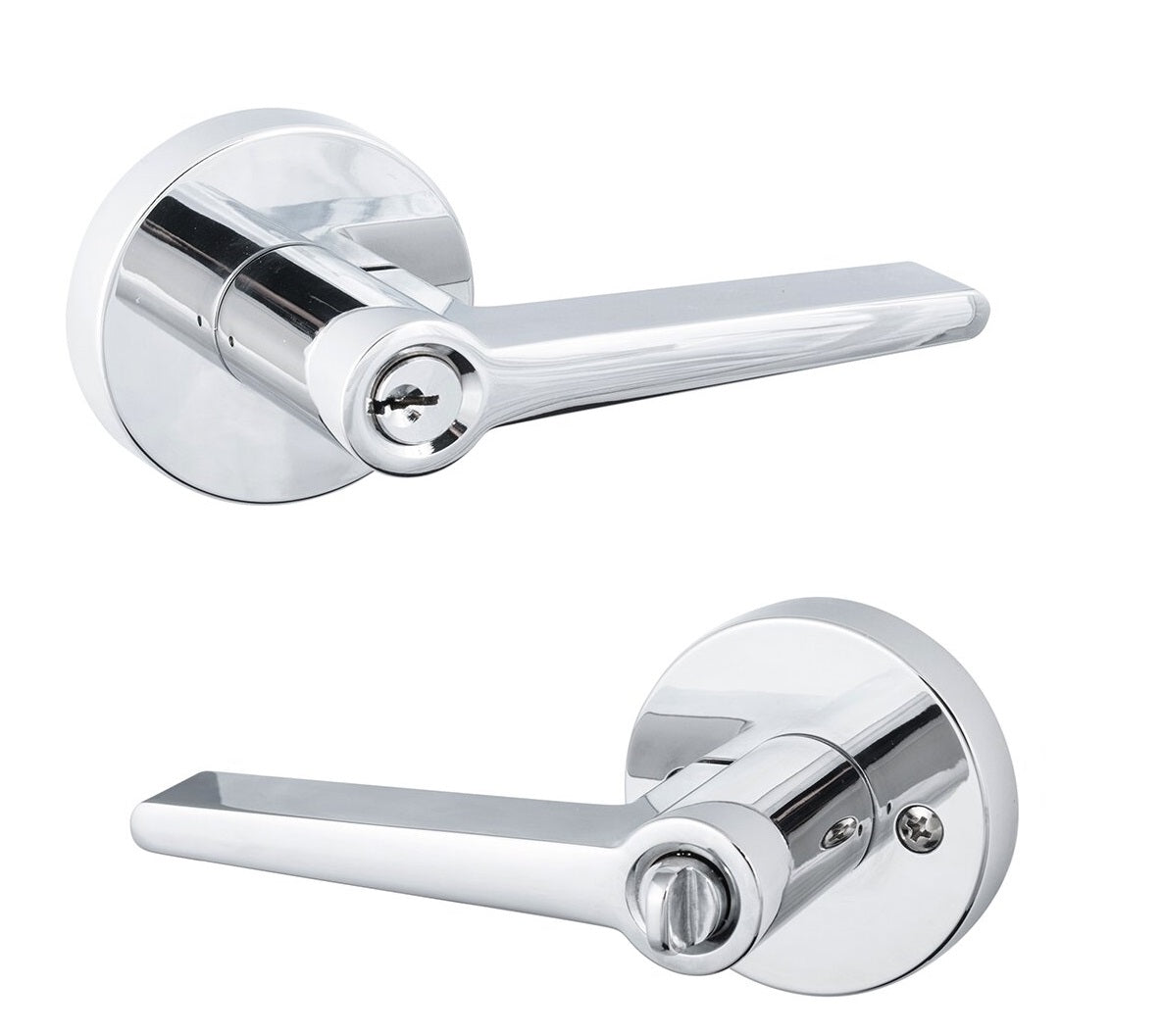

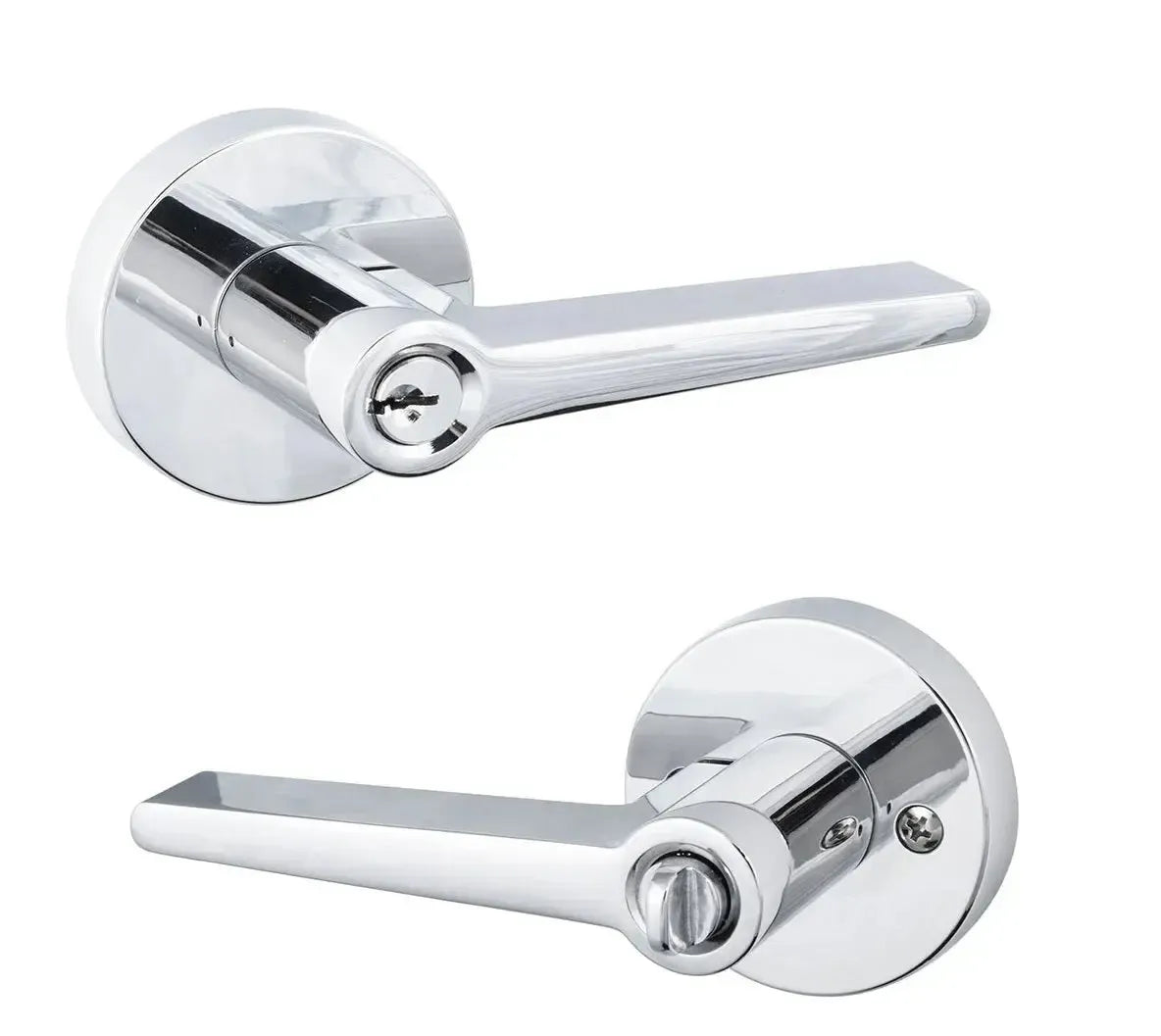

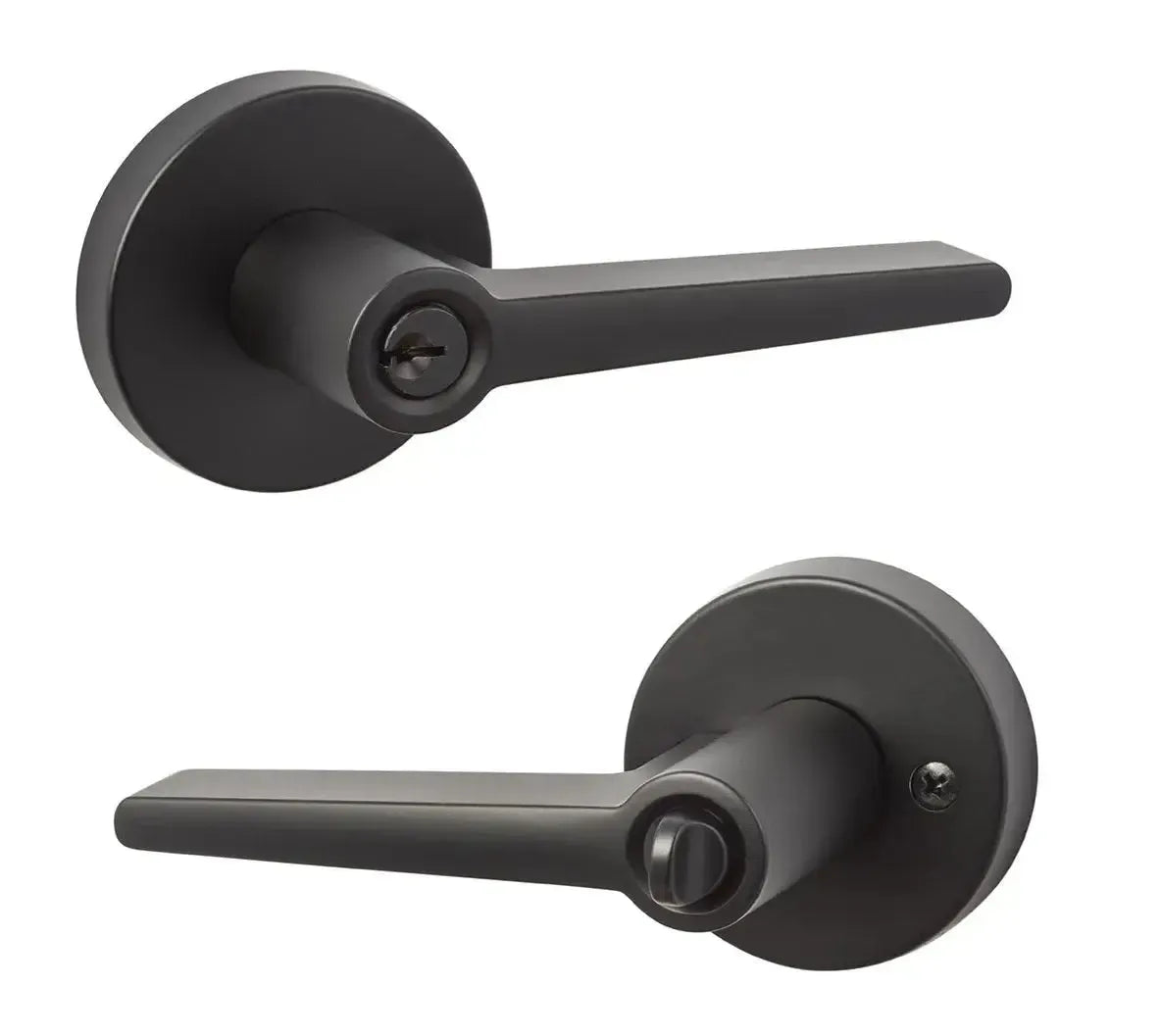

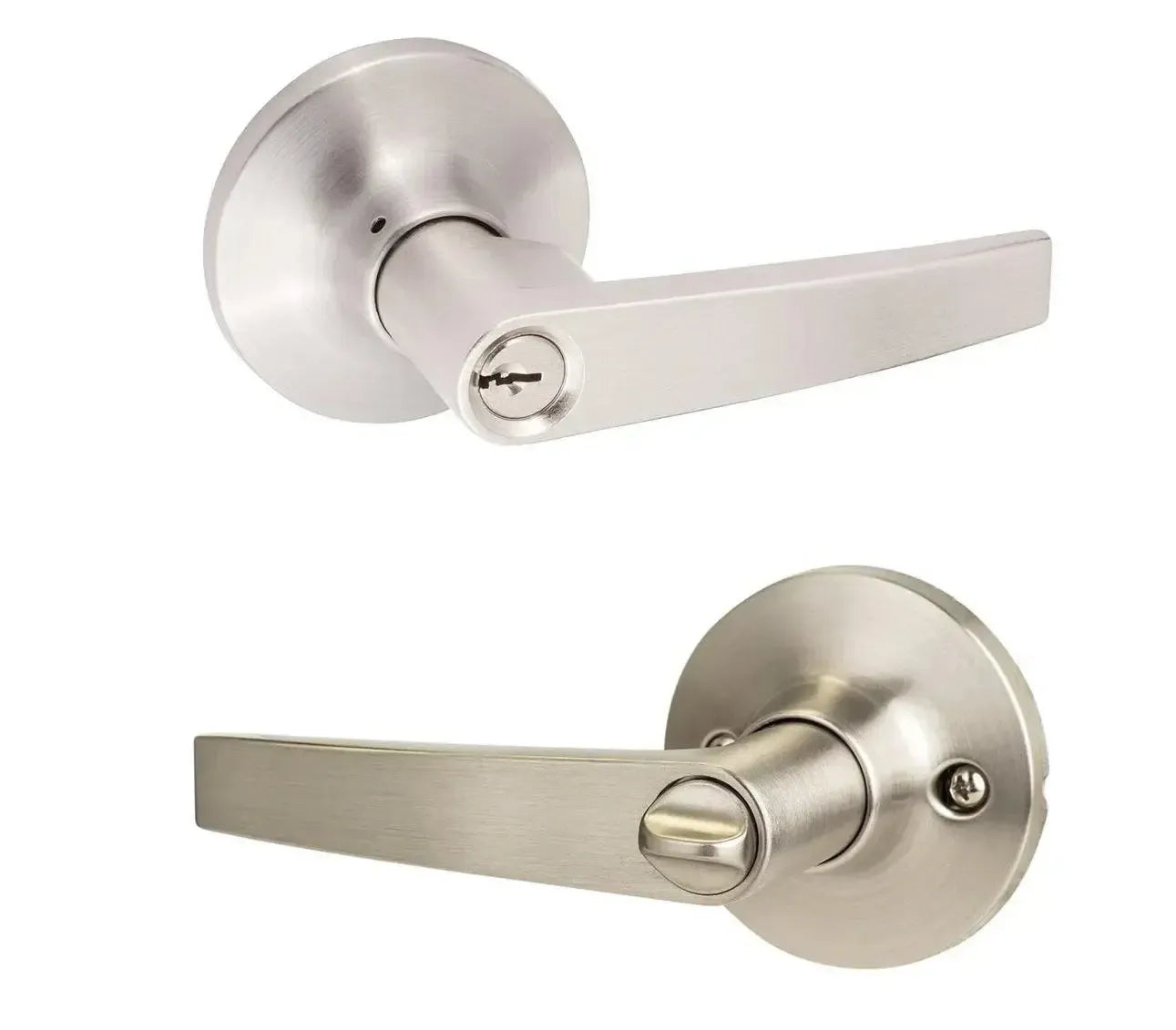

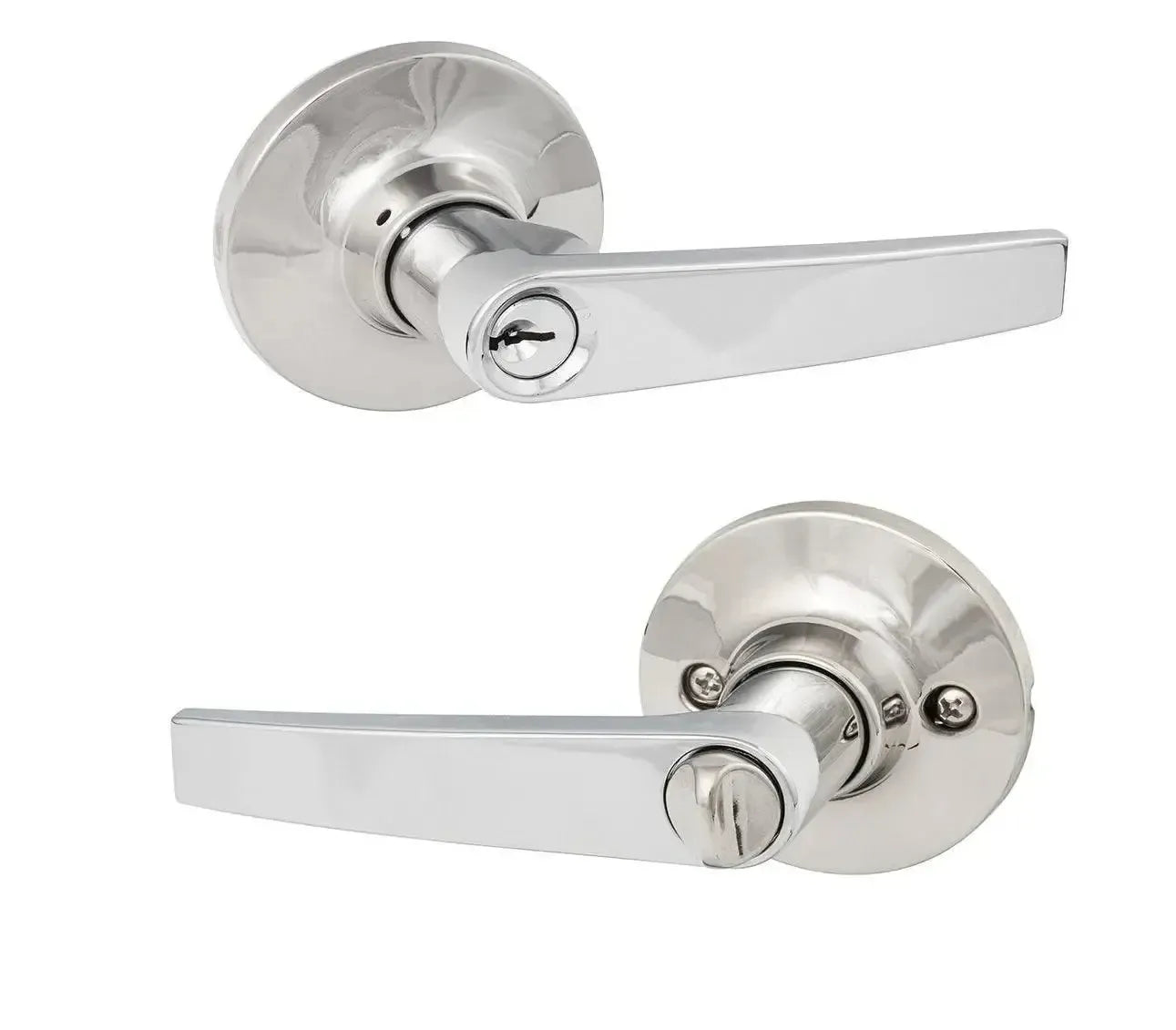

- Entry levers are locked by an inside finger turn or outside key. Unlocked by inside finger turn or outside key
- Reversible Handing
- Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
- Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
- Fits doors 1⅜″ – 1¾″ (35-45mm) thick
Privacy Leverset Features
Single Dummy Lever Features
Keyed Entry Leverset Features
Specifications
- Projection: 2 1/2"
- Length: 4 11/16"
- Height: 2 9/16"
