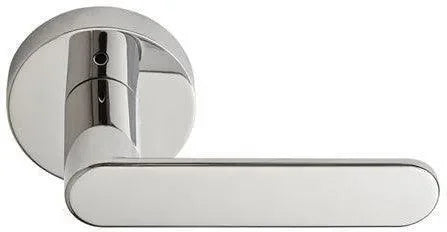

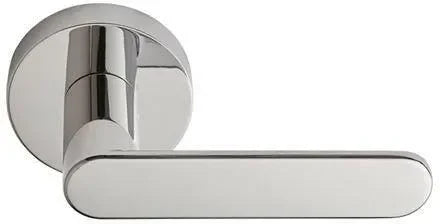

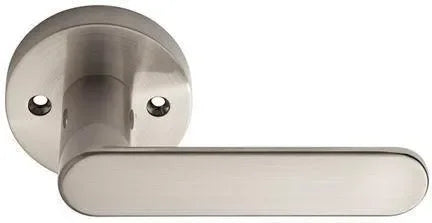

Sleek, smooth, straight and rounded edges, the Westlake Collection offers an excellent choice of design to upgrade the look and feel of your home! Designed with a streamlined handle, this lever adds a contemporary touch that complements a wide range of interior styles. Easy to install, the Westlake lever is available in a variety of finishes to suit your décor.

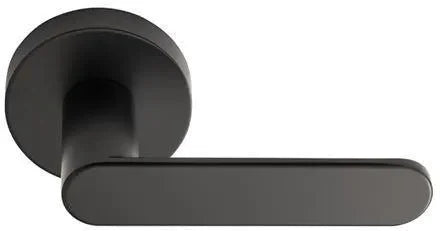

Passage Features
Both levers always free. Ideal for closets or rooms where locking is not needed.
Reversible Handing
All standard installation parts included
Latch: 1/2" throw bolt, 2 3/8" or 2 3/4" backset adjustable. Radius corner face plate standard. Other options available
Strike: Full lip radius corner standard. Other options available
Standard Door Prep: Crossbore 2 1/8", Edge Bore 1", Latch Face 1" x 2 1/4"
Fits 1 3/8" - 1 3/4" Thick Doors

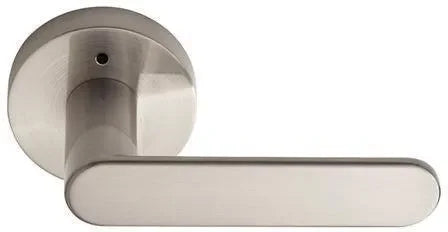

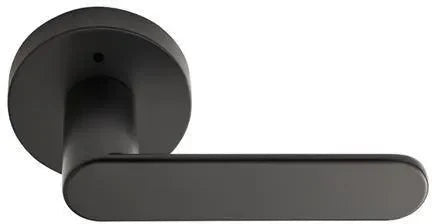

Privacy Features
Outside lever locked by push button inside, inside lever always free. Can also be opened by emergency key outside.
Reversible Handing
All standard installation parts included
Latch: 1/2" throw bolt, 2 3/8" or 2 3/4" backset adjustable. Radius corner face plate standard. Other options available
Strike: Full lip radius corner standard. Other options available
Standard Door Prep: Crossbore 2 1/8", Edge Bore 1", Latch Face 1" x 2 1/4"
Fits 1 3/8" - 1 3/4" Thick Doors

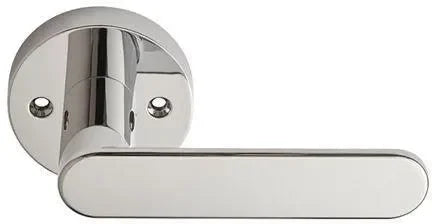

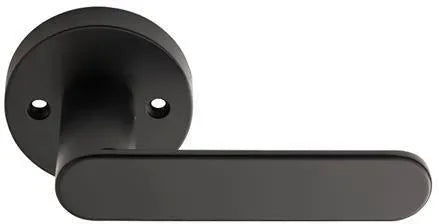

Half Dummy Features
Single fixed lever. For doors where only a pull/push is required
Non-Handed
Surface mounted with two exposed mounting screws. No door prep needed
Fits doors greater than 1"

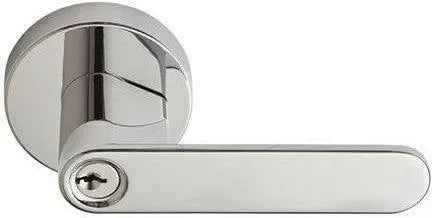

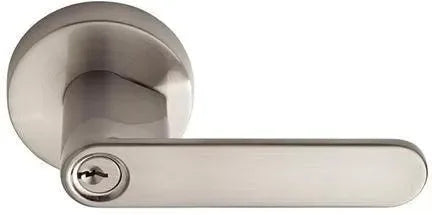

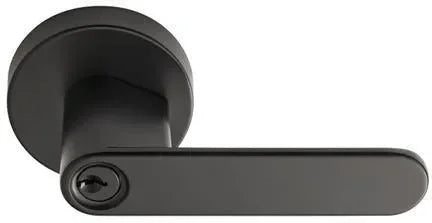

Keyed Entry Features
Locked or unlocked by key outside or turn-piece inside
Reversible Handing
All standard installation parts included
5 pin KW1 keyway
Latch: 1/2" throw bolt, 2 3/8" or 2 3/4" backset adjustable. Radius corner face plate standard. Other options available
Strike: Full lip radius corner standard. Other options available
Standard Door Prep: Crossbore 2 1/8", Edge Bore 1", Latch Face 1" x 2 1/4"
