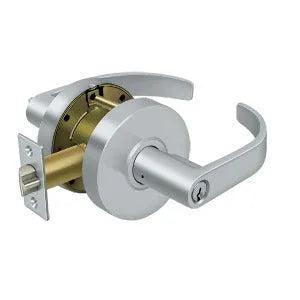

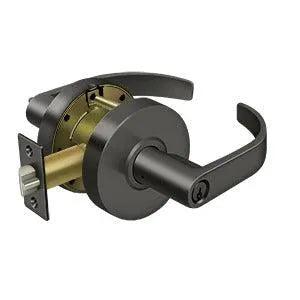

Commercial Entry Standard Grade2 Curved Lever with Cylinder

Features

• Turn / Push-button locking: pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push-button locking (Auto egress function): pushing button locks outside lever until unlocked by key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.
• Strike: ANSI 4-7/8"x 1-1/4" lip-to-center
• Removable Through-bolts
• Steel / Zinc
• Latch: UL Listed w/ 1/2" Throw

Specifications

• Handle Orientation: Universal Handing
• Keyway Type: Schlage C type
• Backset: 2 3/4"
• Door Thickness: 1 3/8"- 2"
