Cortina Lever

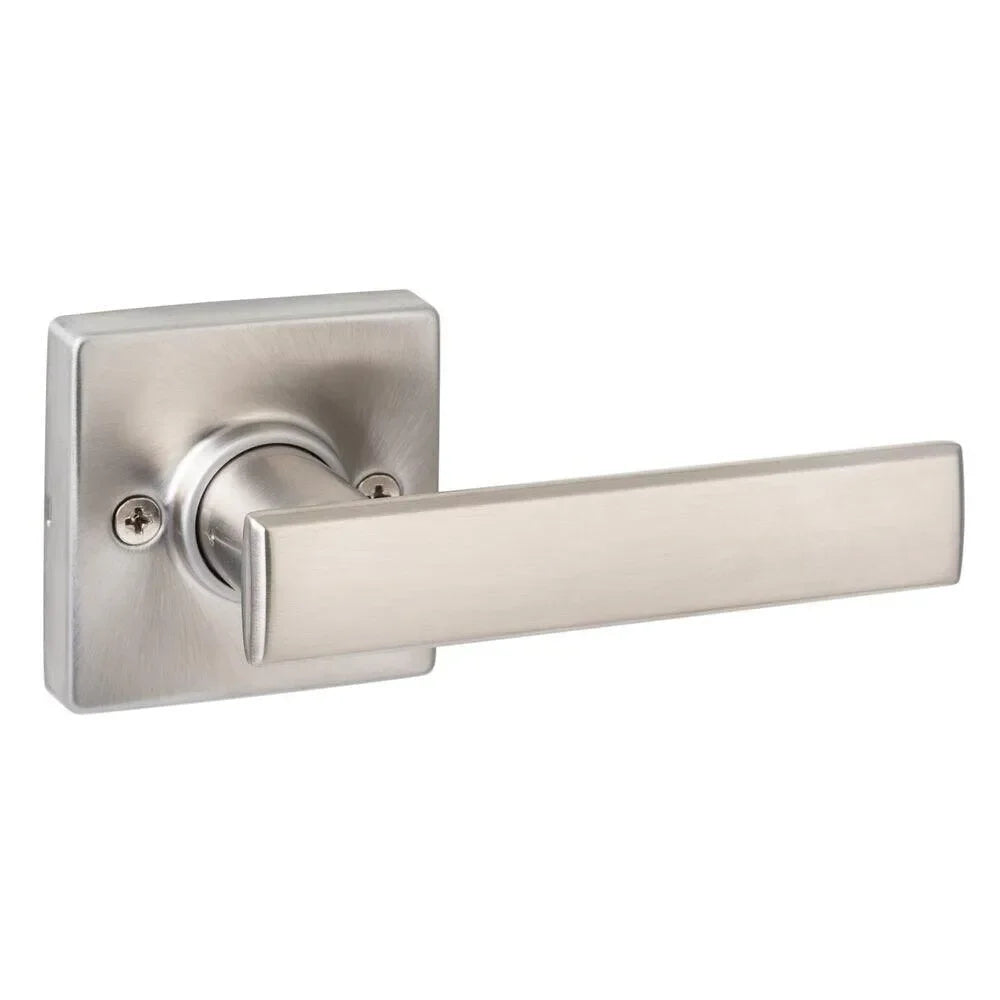

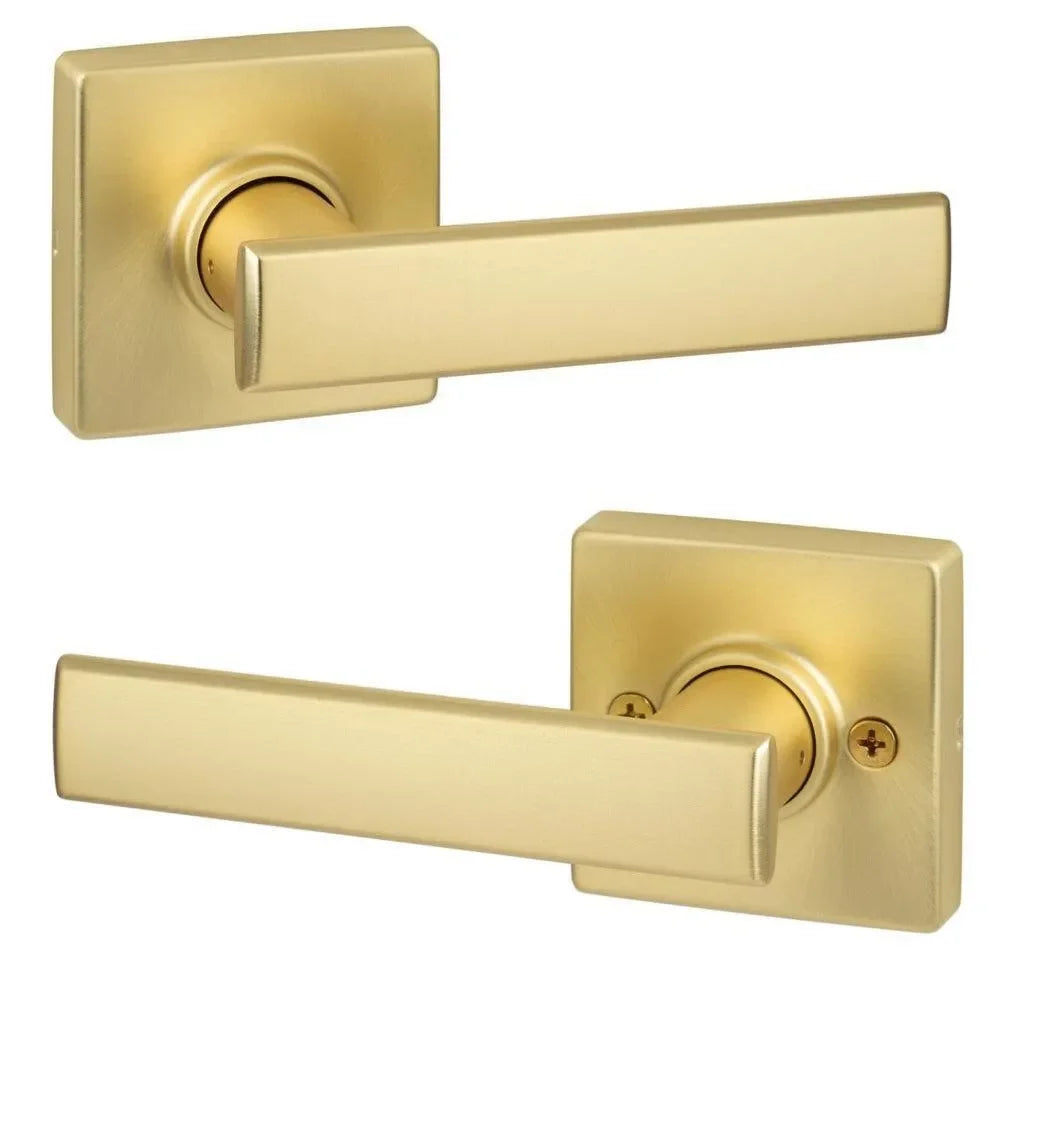

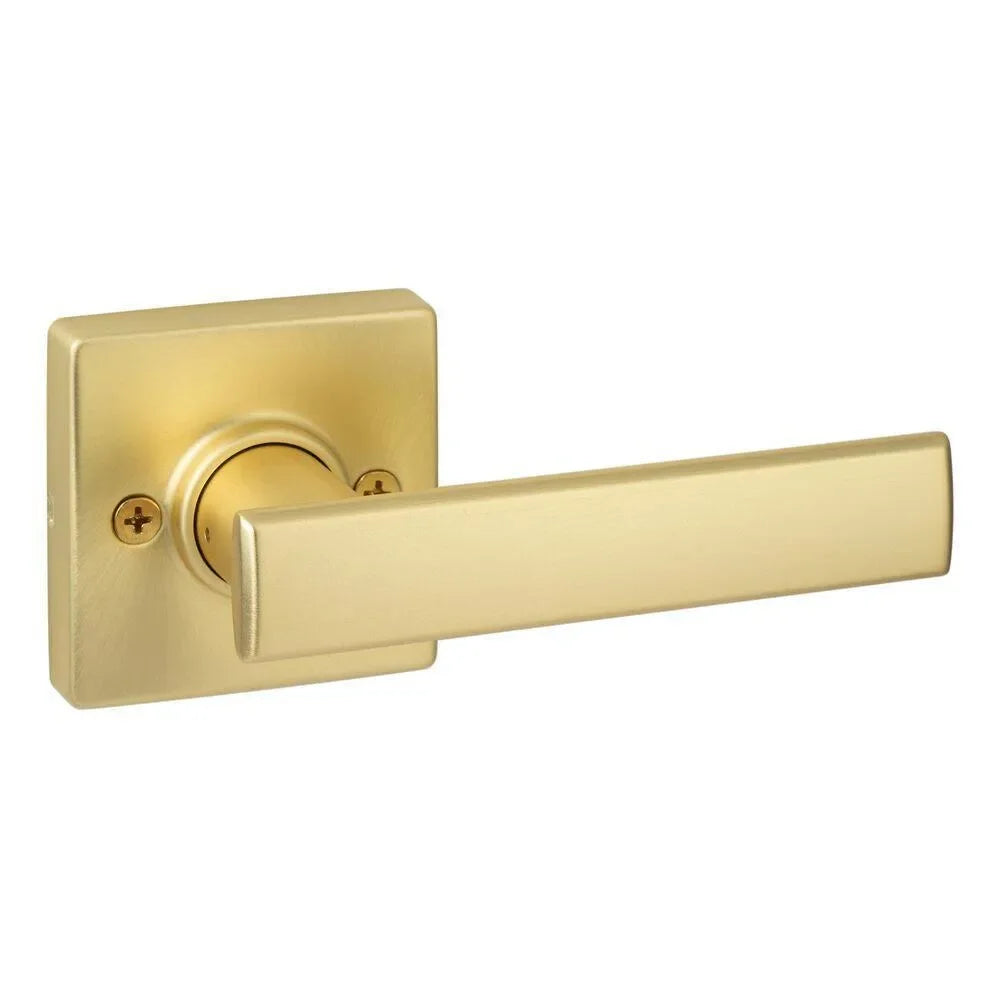

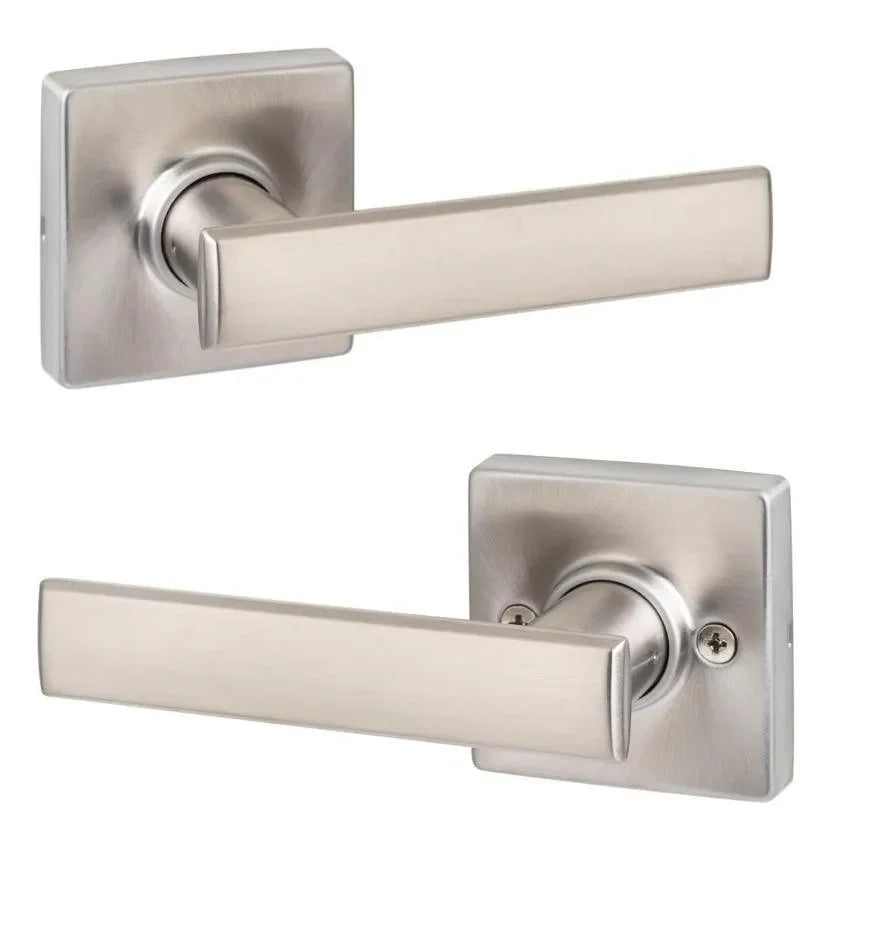

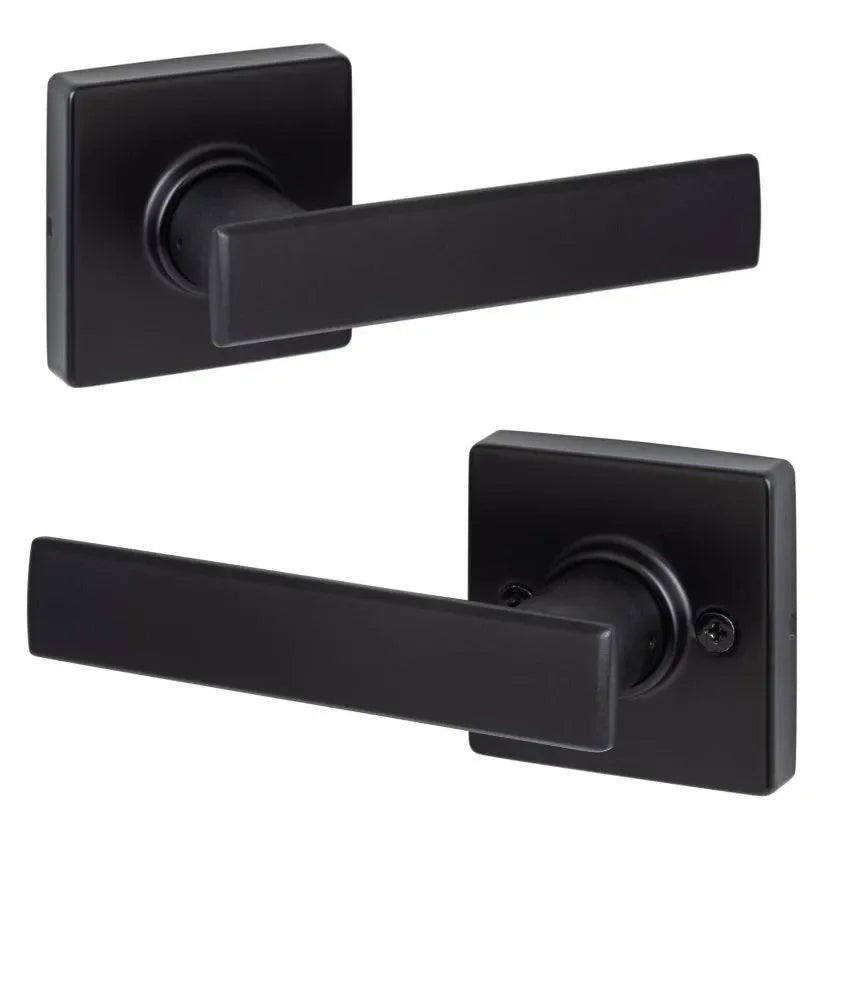

Passage Leverset Features

• Passage levers have both sides that are always free. Ideal for hallways or closets where no locking mechanism is needed.
• Solid die-cast lever
• Reversible Handing
• Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
• Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
• Fits doors 1⅜″ – 1¾″ (35-45mm) thick

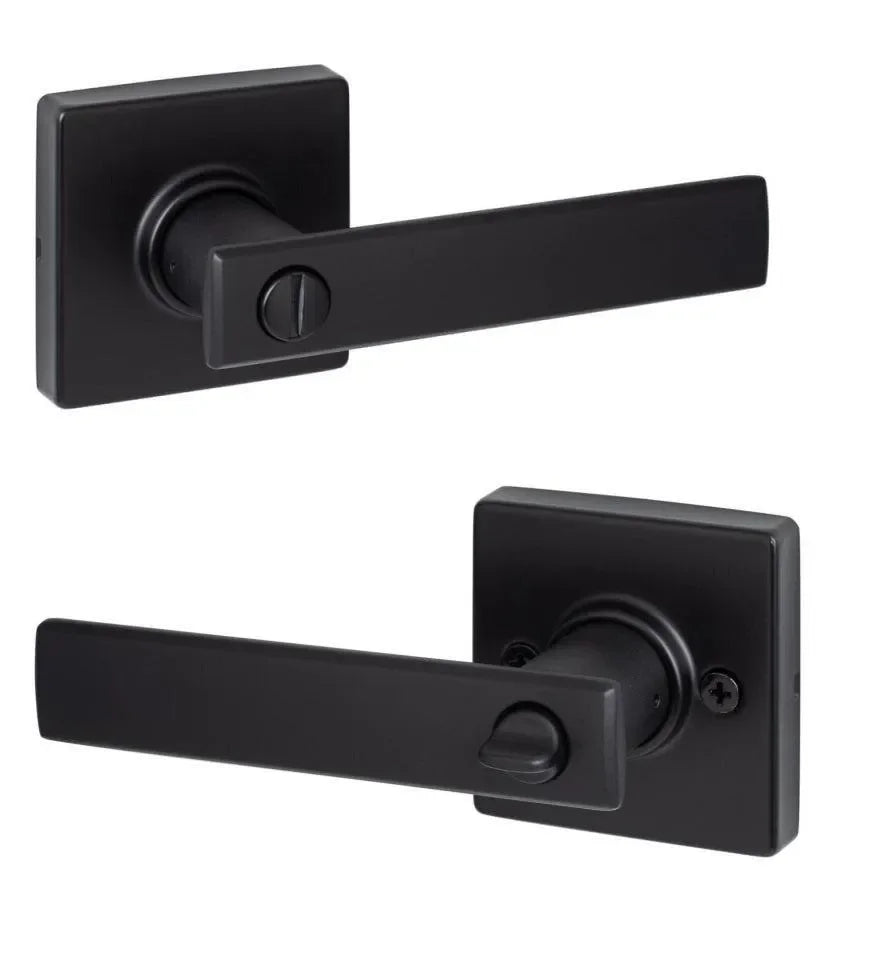

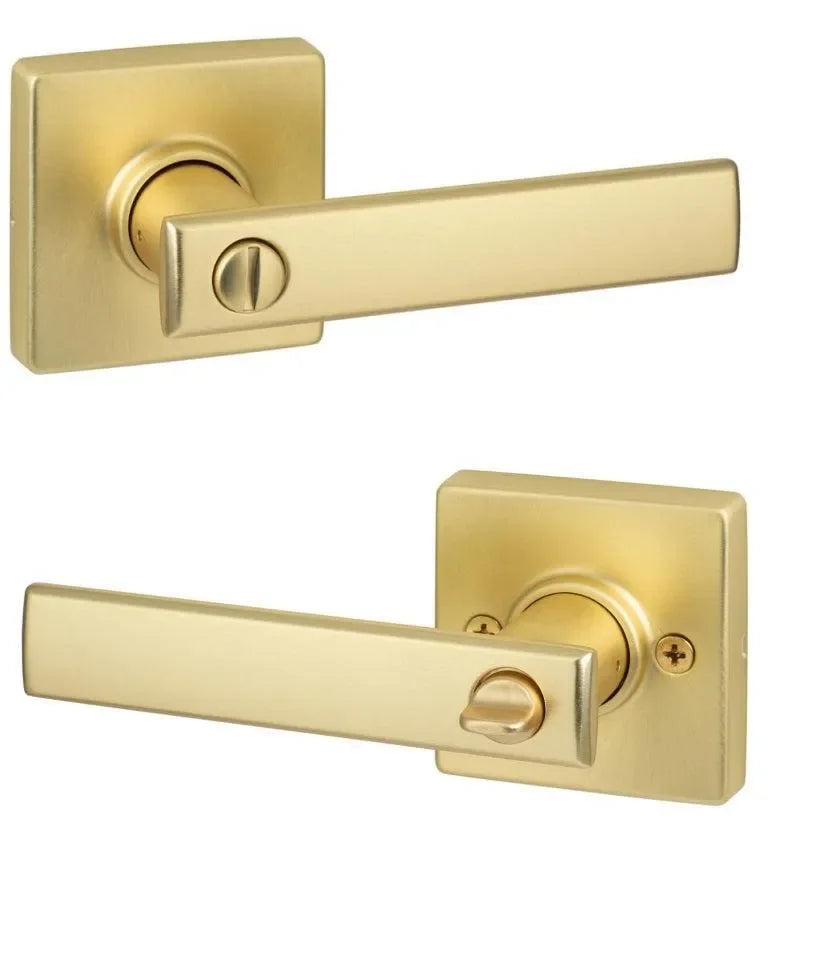

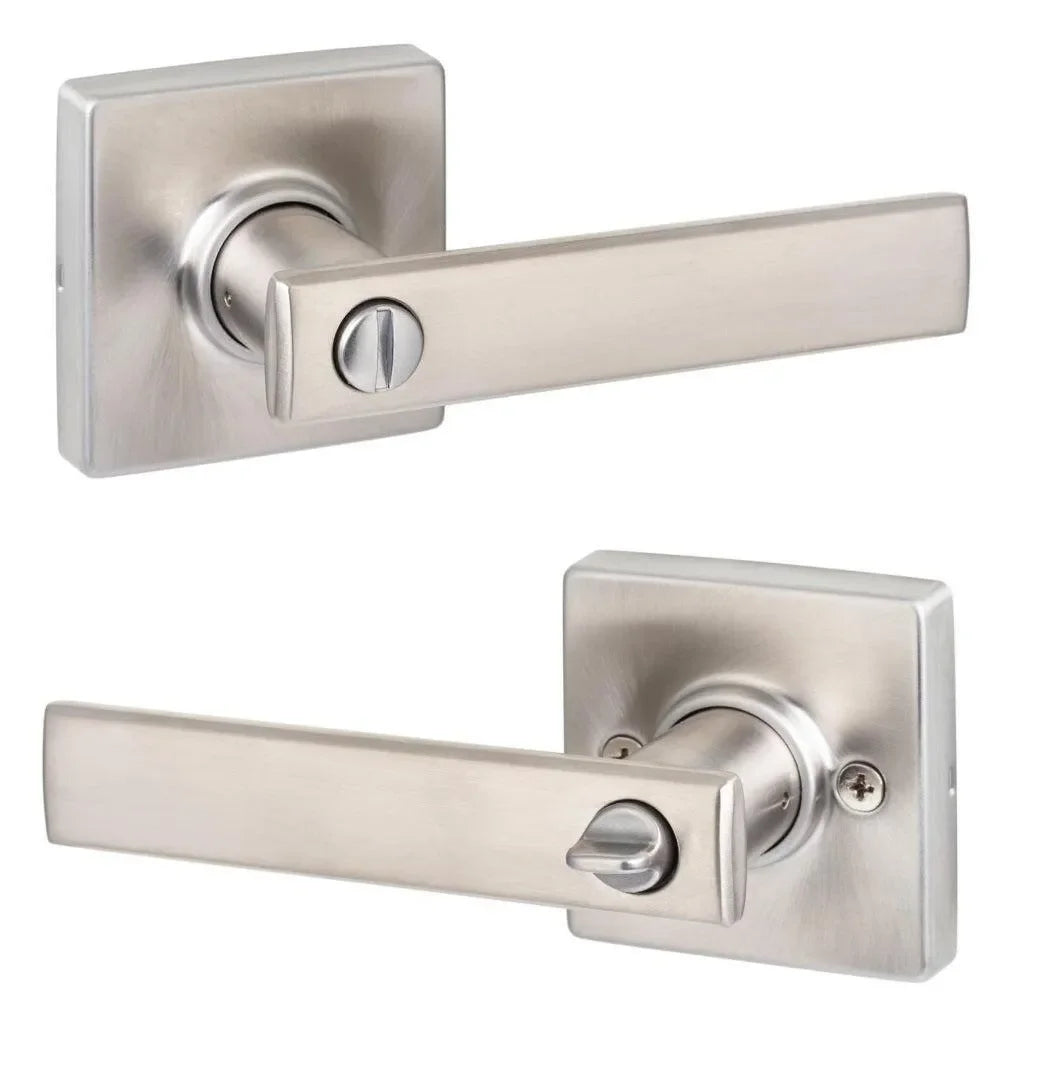

Privacy Leverset Features

• Privacy levers are ideal for bedroom and bathrooms. Locked by finger turn. Unlocked by finger turn or coin slot
• Solid die-cast lever
• Reversible Handing
• Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
• Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
• Fits doors 1⅜″ – 1¾″ (35-45mm) thick

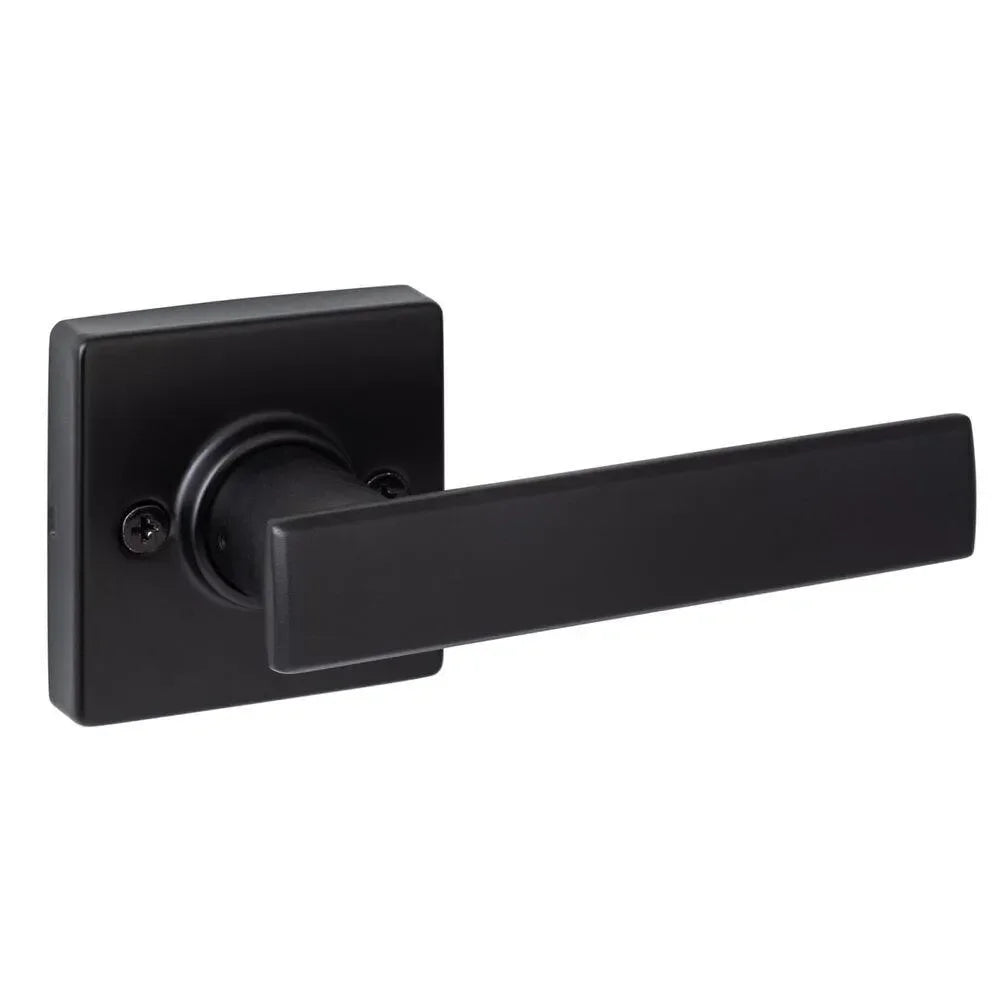

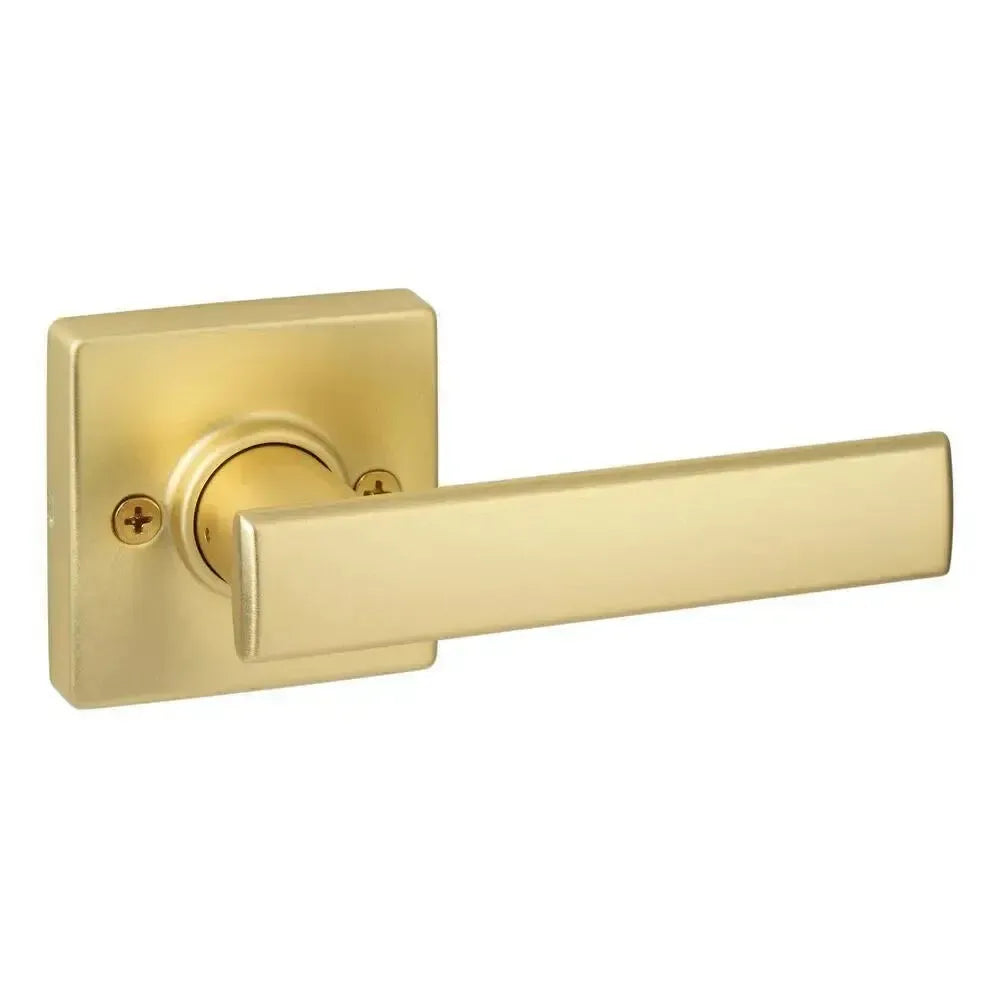

Single Dummy Lever Features

• This is a single-sided, inactive dummy lever
• Dummy lever is surface mounted with two wood screws
• Fits doors 1⅜″ – 1¾″ (35-45mm) thick

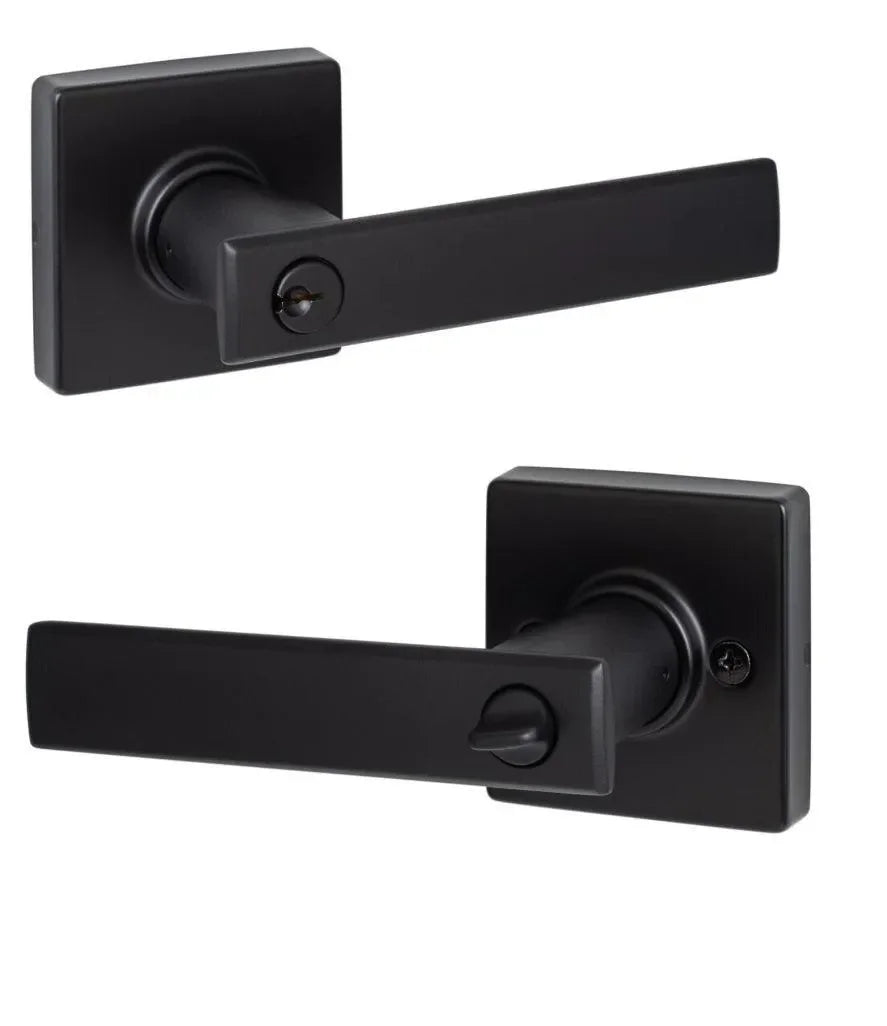

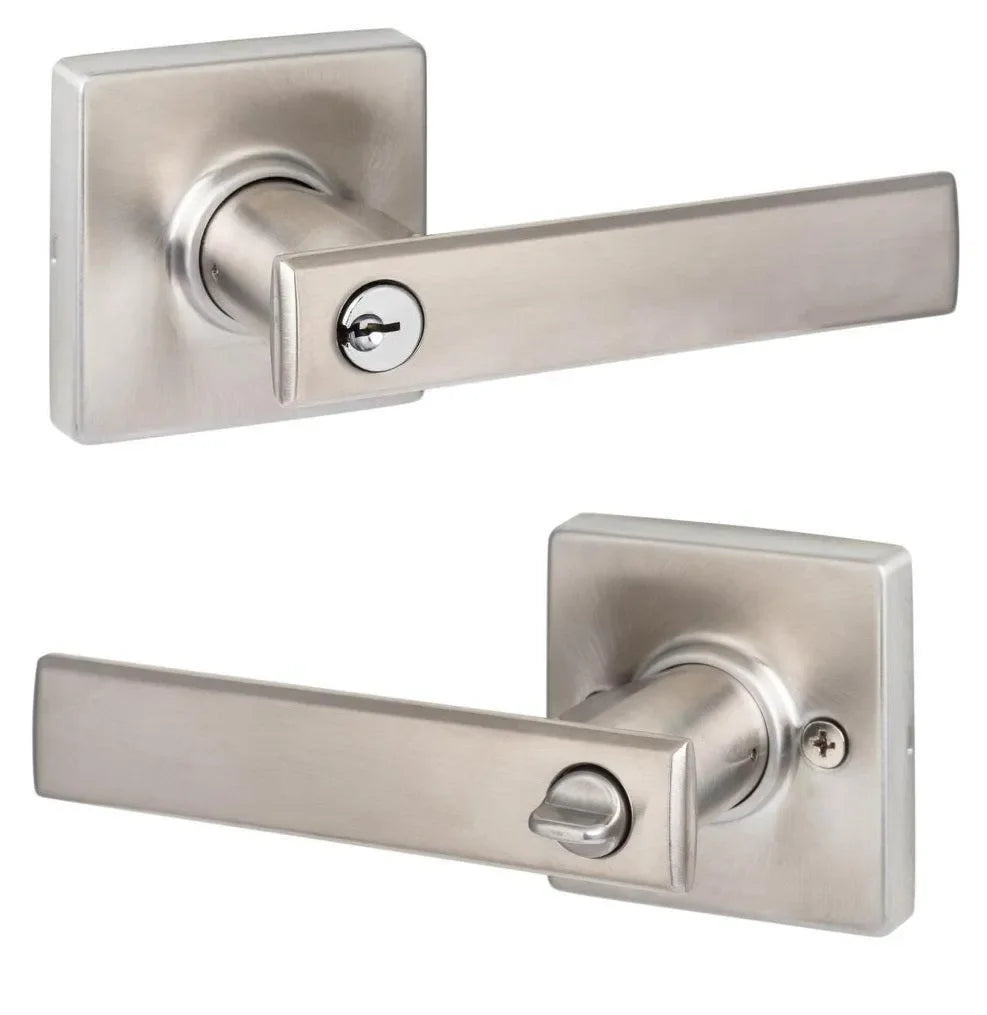

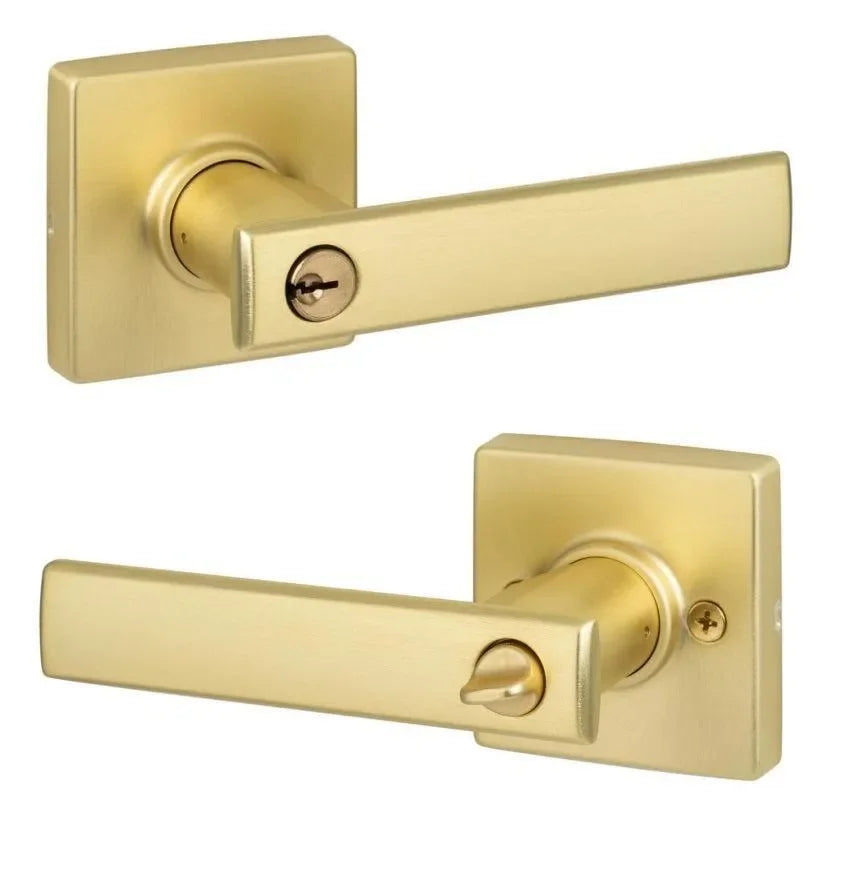

Keyed Entry Leverset Features

• Entry levers are locked by an inside thumb turn or outside key. Unlocked by inside thumbturn or outside key
• Solid die-cast lever
• Reversible Handing
• Includes Adjustable 2-3/8″ – 2-3/4″ (60-70mm) backset, 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
• Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
• Fits doors 1⅜″ – 1¾″ (35-45mm) thick

Specifications

• Projection: 2 3/8"
• Lever Length: 4 7/8"
