Description

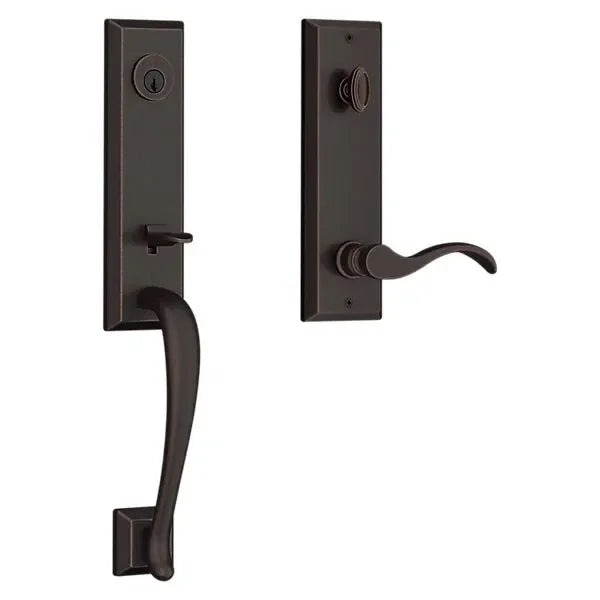

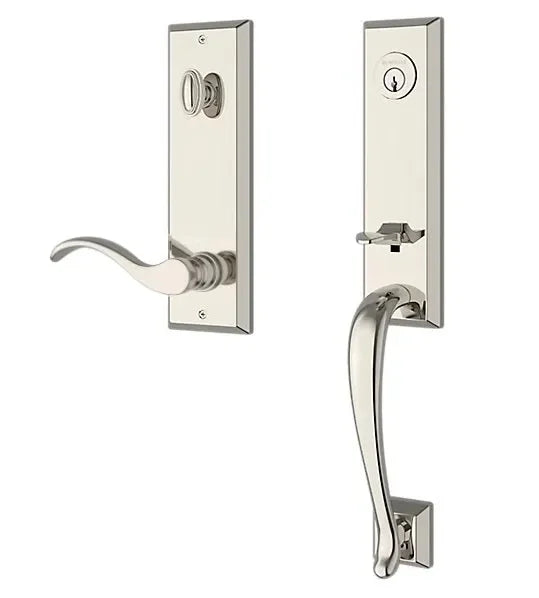

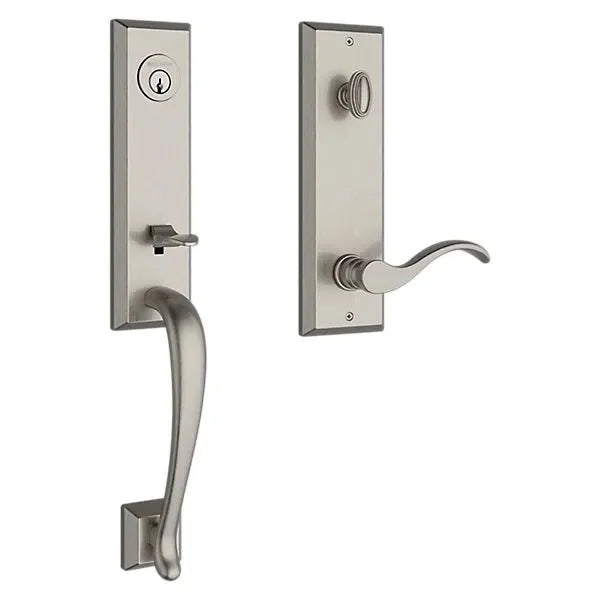

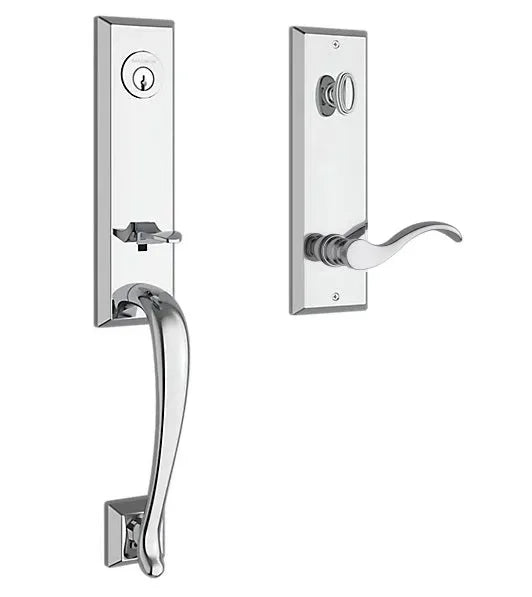

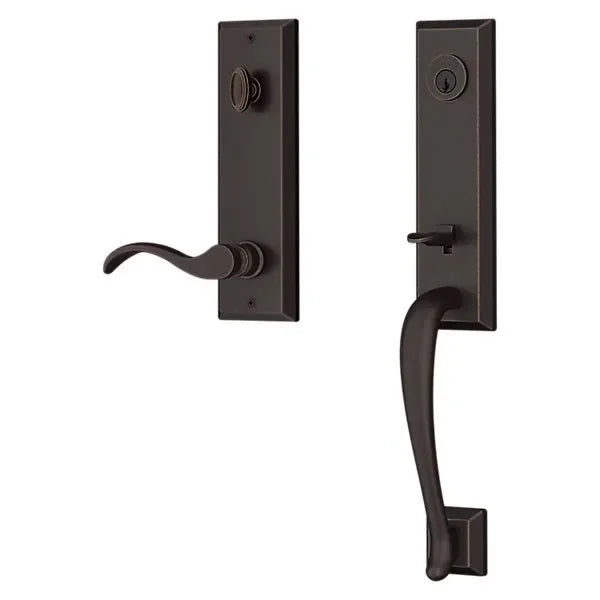

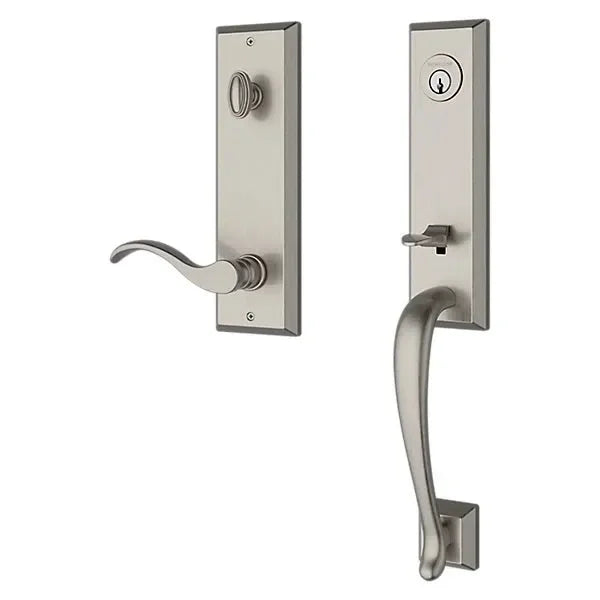

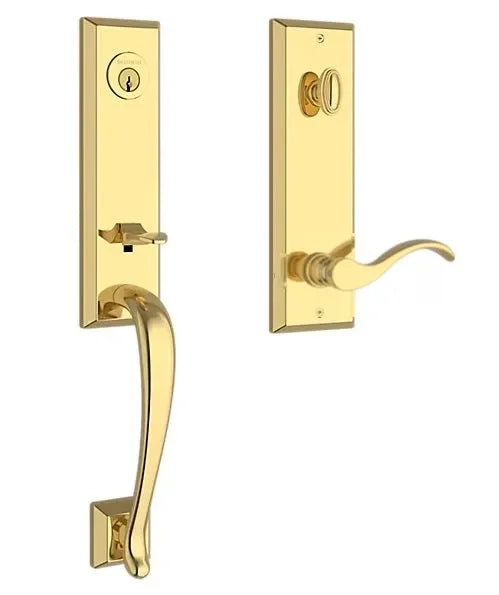

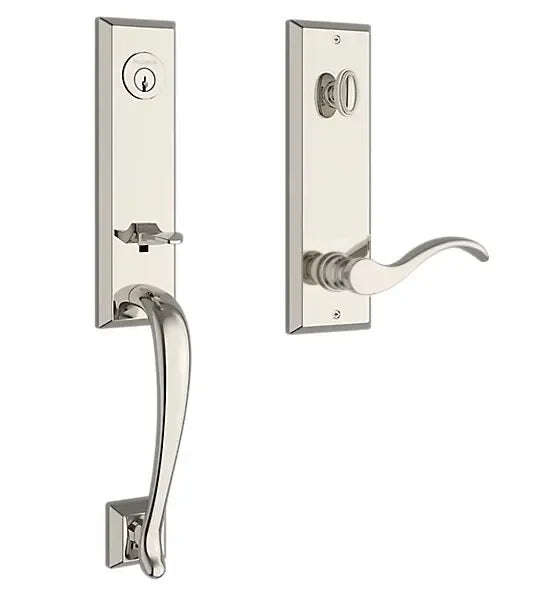

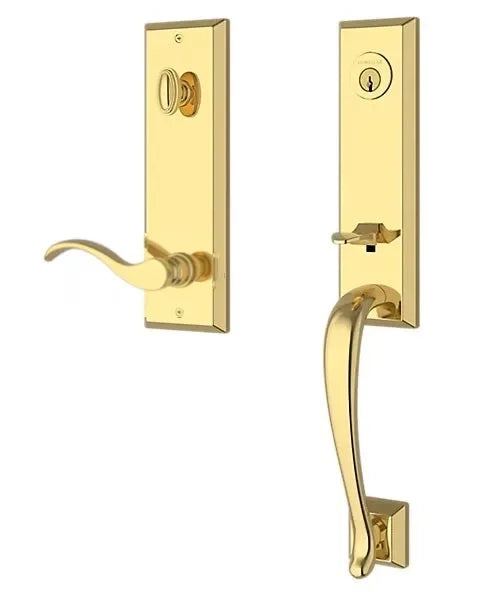

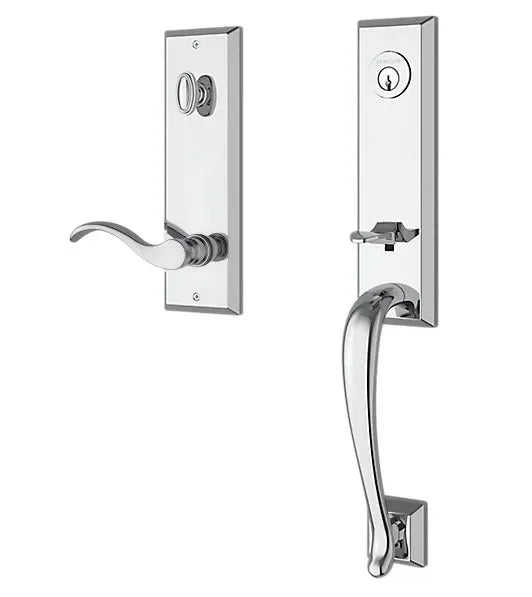

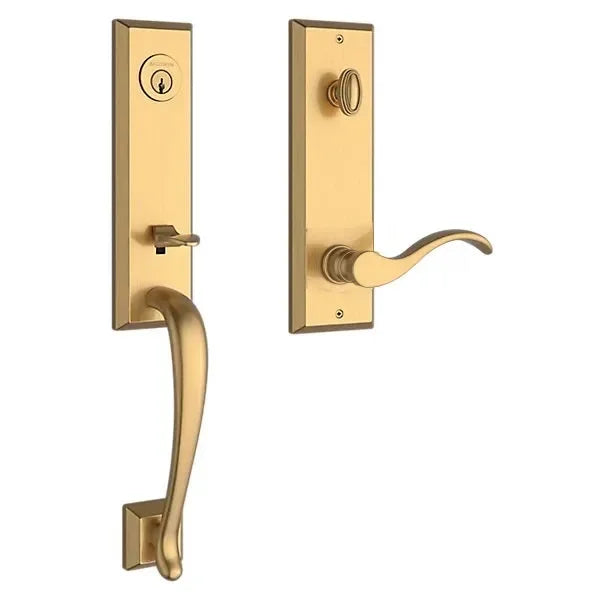

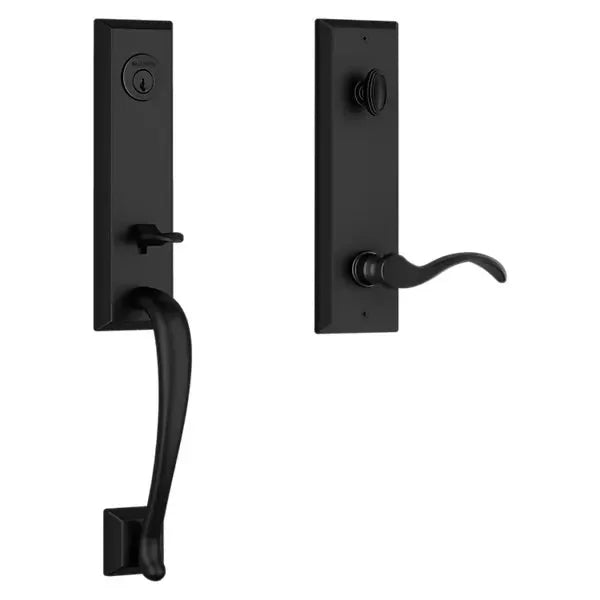

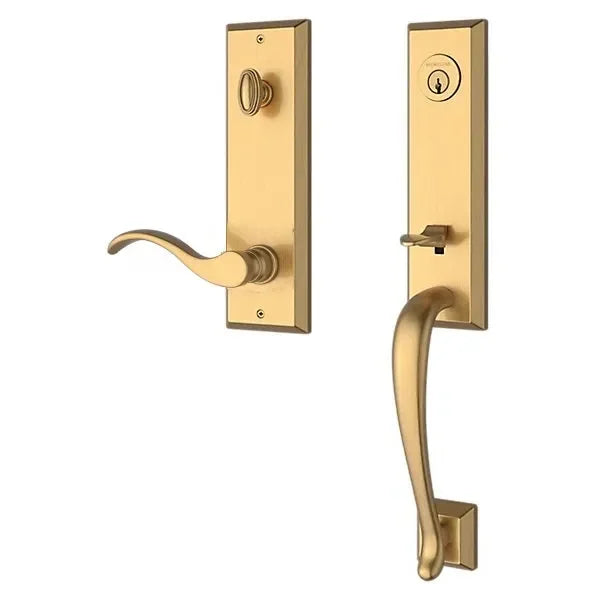

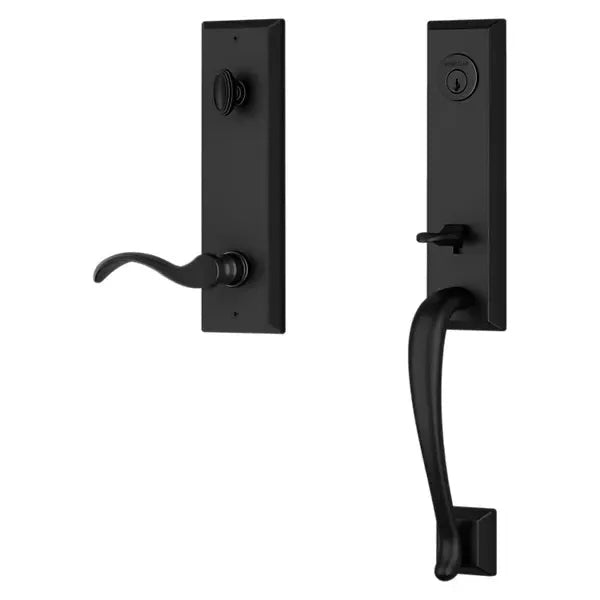

The Baldwin Reserve Emergency Egress Del Mar Handleset with Interior Curve Lever and Square Bevel Rosette combines bold, clean lines with timeless elegance. The square rosette adds a traditional touch, while the gently curved lever softens the look for a balanced design. Built from high-quality materials, it ensures lasting durability and security. A stylish upgrade for any entryway, this handleset is available in multiple finishes to suit your home’s design.
Features
- Traditional Style Handleset
- Emergency Egress: Handleset which retracts the latchbolt and deadbolt simultaneously when the inside knob/lever is turned. Door will remain unlocked unless locked with a key.
- Select Right or Left Handing
- Note: Interior roses have exposed fasteners.
Specifications
- Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Cylinder: Baldwin C-Keyway standard.
- Backset: Adjustable 2-3/8” or 2-3/4”
- Strike: Dual Strike.
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
- Knob/Lever rotates at 55°- 60°
