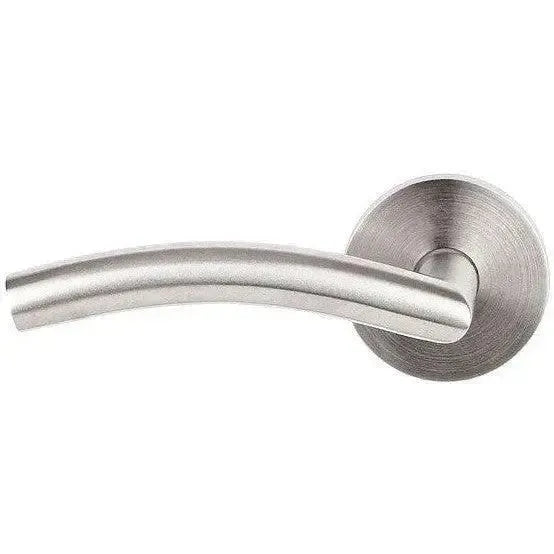

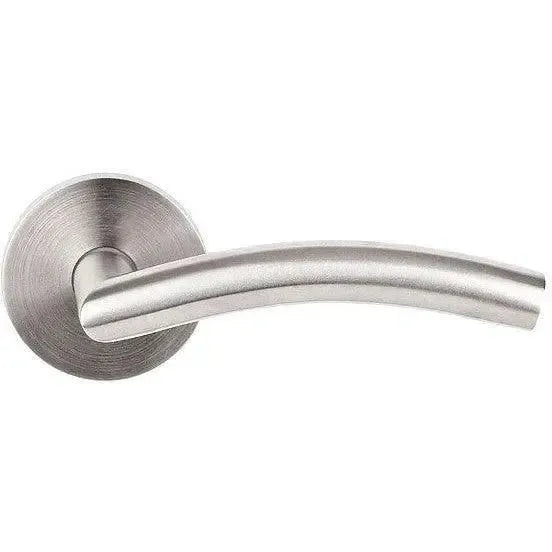

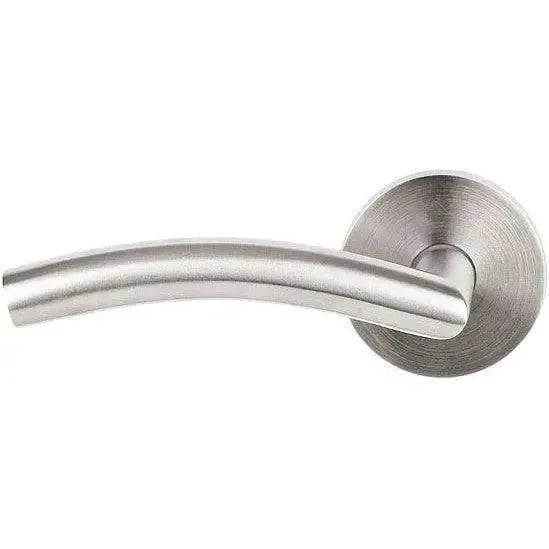

Dresden Lever With Disk Rosette
Passage Features
- Passage levers do not have an internal locking mechanism. To be paired with a deadbolt for an exterior door, or on an interior door that doesn't require privacy. Great for a walk-in linen closet.
- Handing Required For Leversets
- Complete set includes standard rotation latch and strike plate.
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
- Fits doors between 1 3/8” - 2 1/4" thick with a 2 1/8" bore standard door prep.
Privacy Features
- Privacy levers include a locking mechanism, usually in the form of a small push pin lock on the side of the lever. Perfect for use on bedroom and bathroom doors where locking is needed.
- Handing Required For Leversets
- Complete set includes standard rotation latch and strike plate.
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
- Fits doors between 1 3/8” - 2 1/4" thick with a 2 1/8" bore standard door prep.
Dummy Features
- Dummy sets have no latch and require no bore hole. They are surface mounted to the door.
- Often used in conjunction with a passage or privacy set for double or french doors.
- This is a dummy "set" so it comes with both the interior and exterior handles.
Concealed Fastener Features
- Concealed Fastener Mechanism provides a clean look with no visible screws on the rosettes.
- Handing not required
- Leverset supplied with 28º rotation latch and dust box. The 28º latch (vs the standard 45º latch), requires less rotation to disengage the latch and open a door when compared to standard latches.
- Door thickness for CF Mechanism is 1 3/8” to 1 3/4”
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
