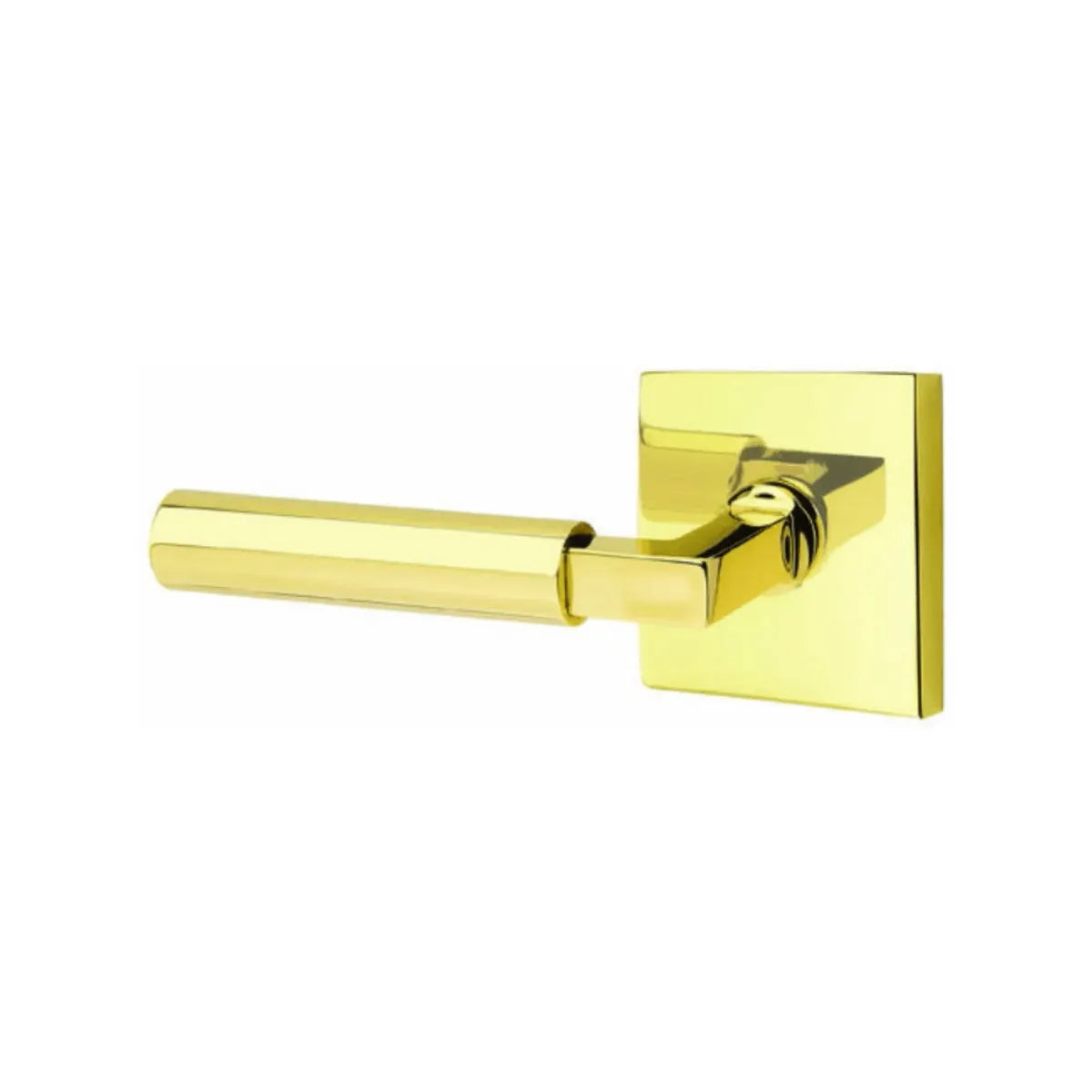

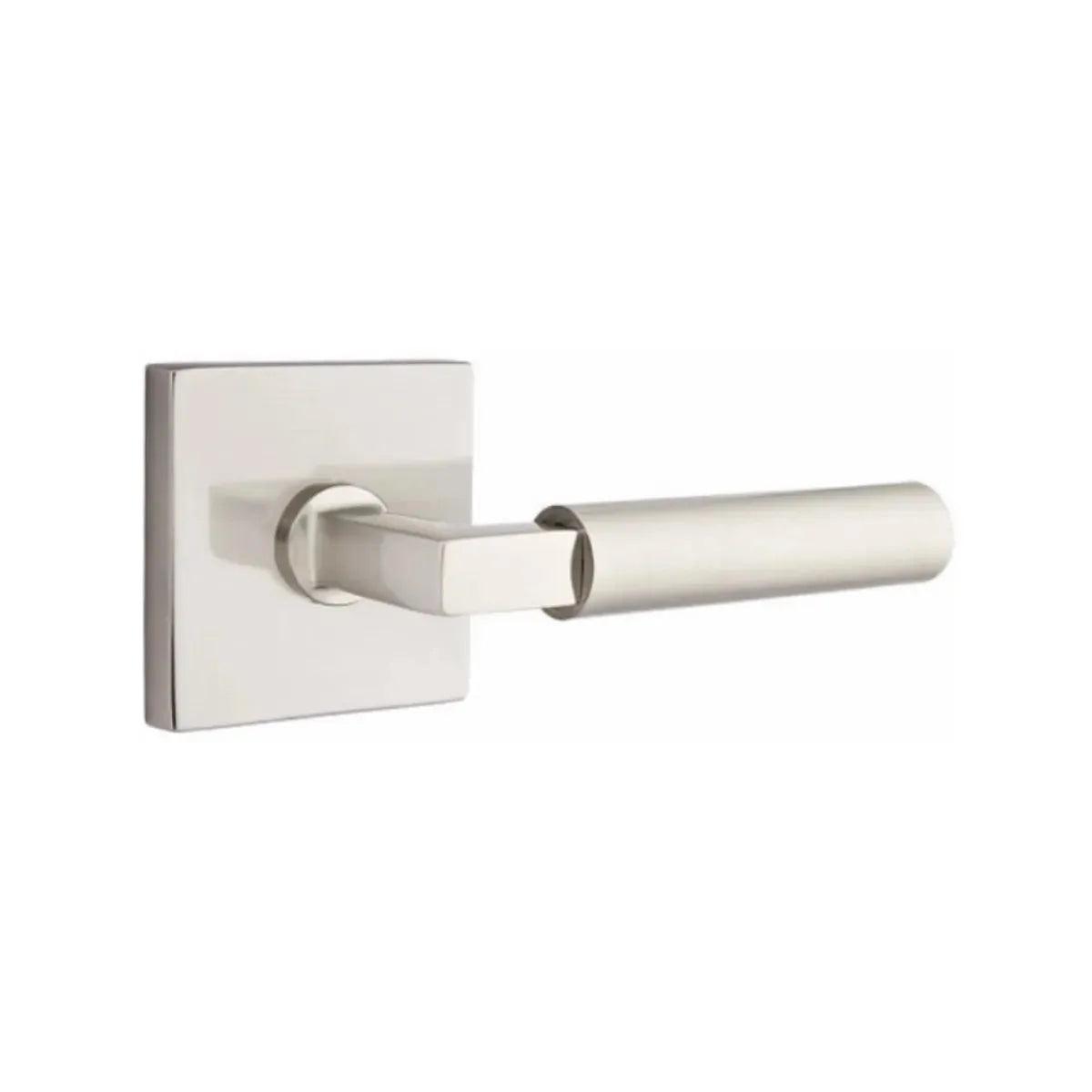

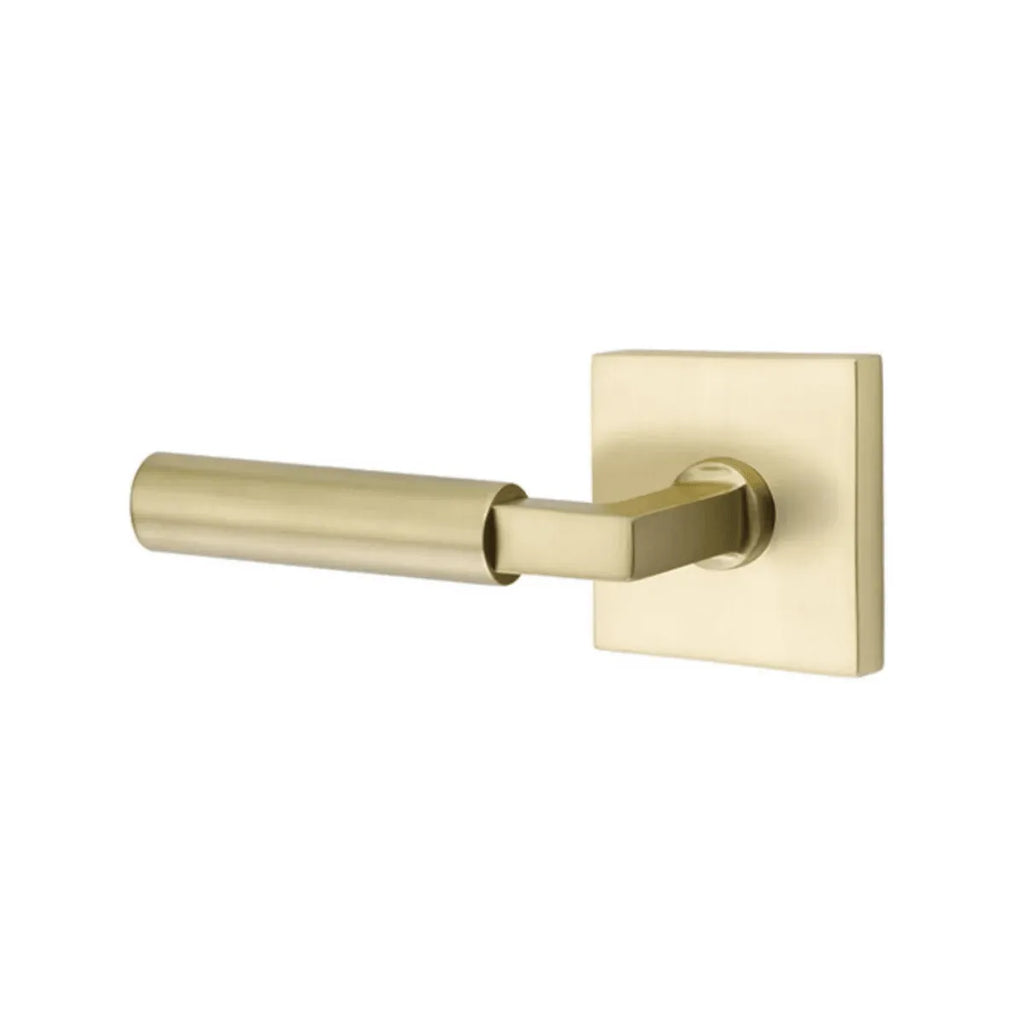

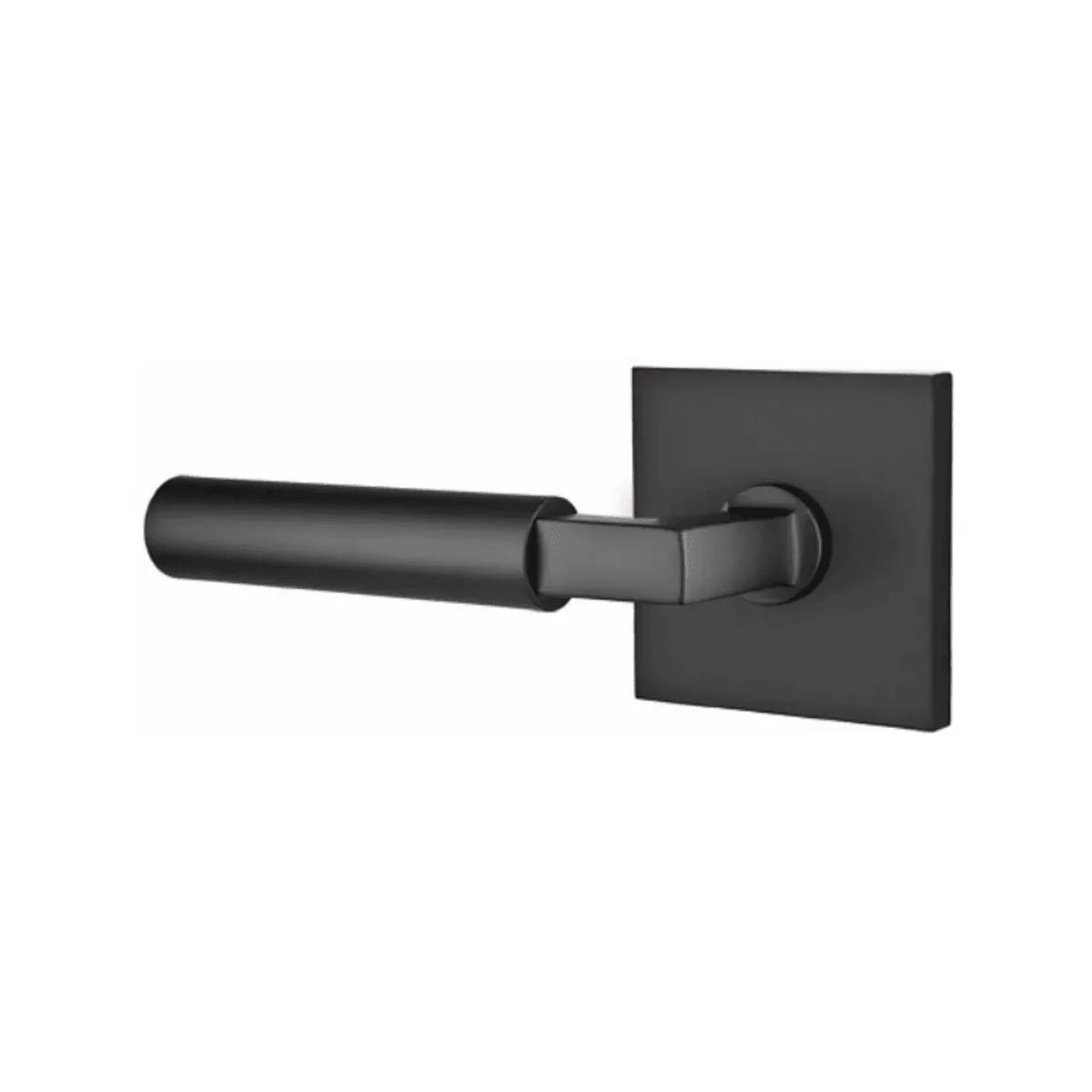

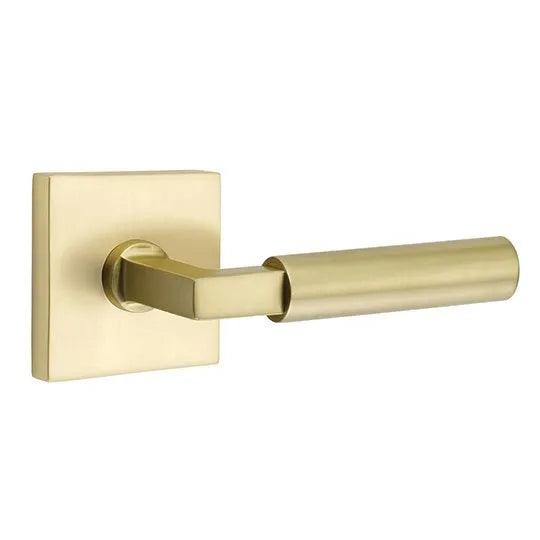

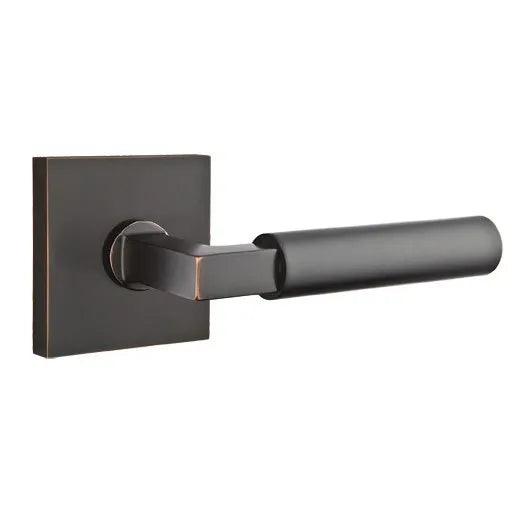

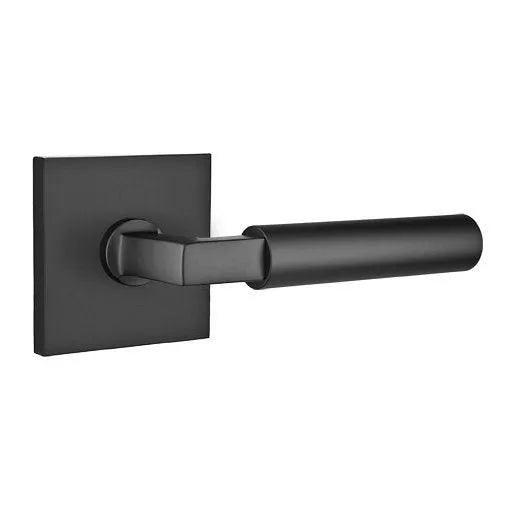

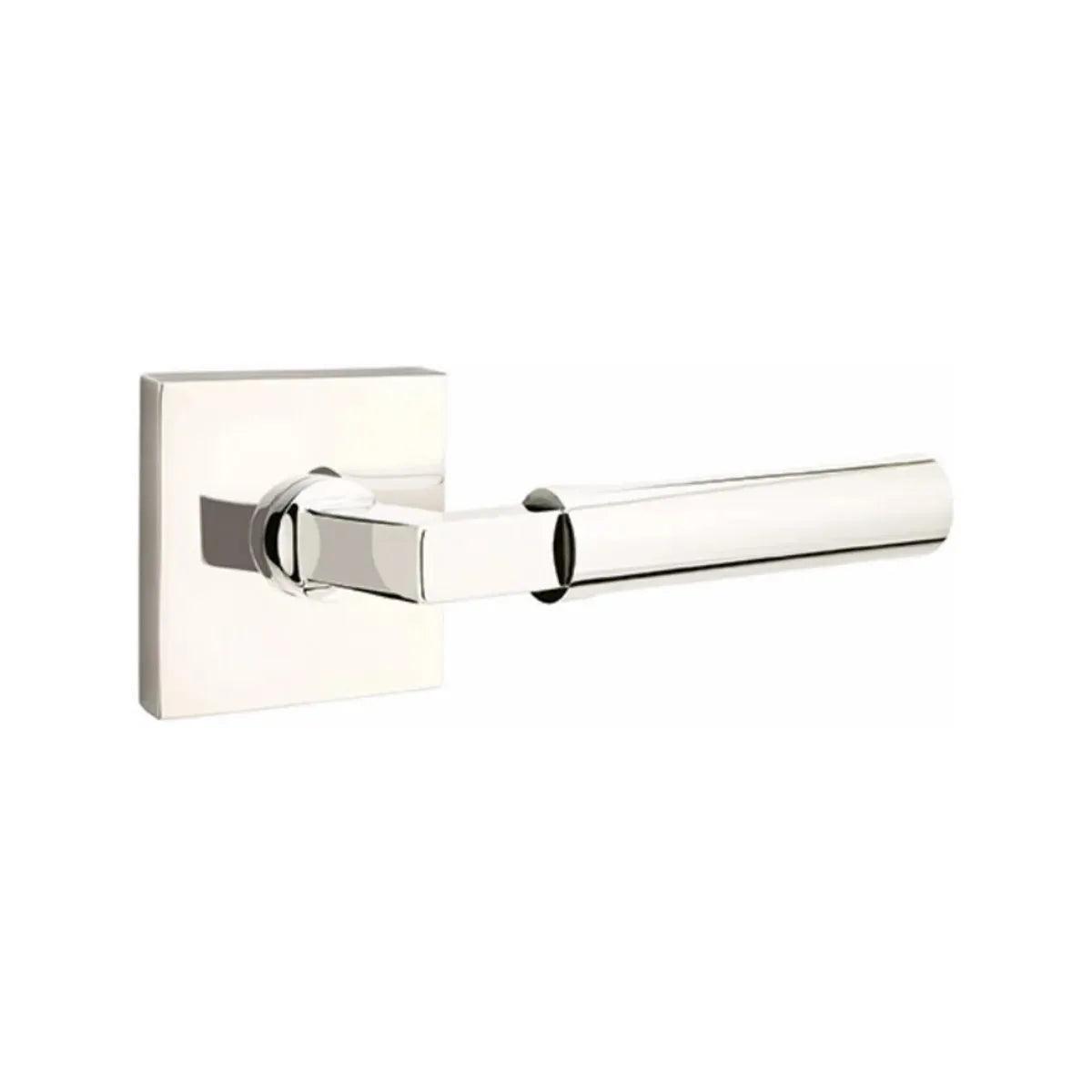

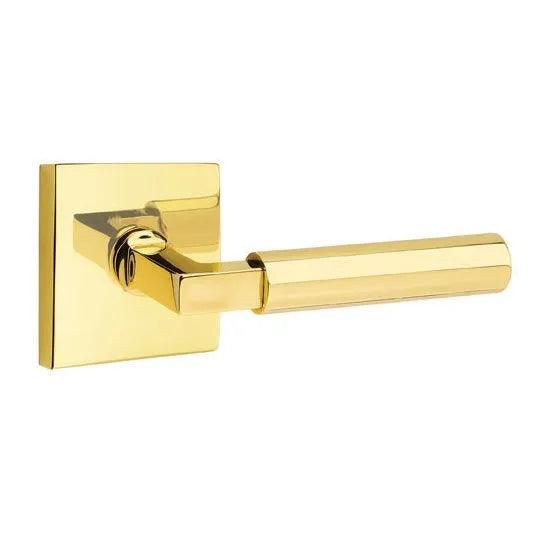

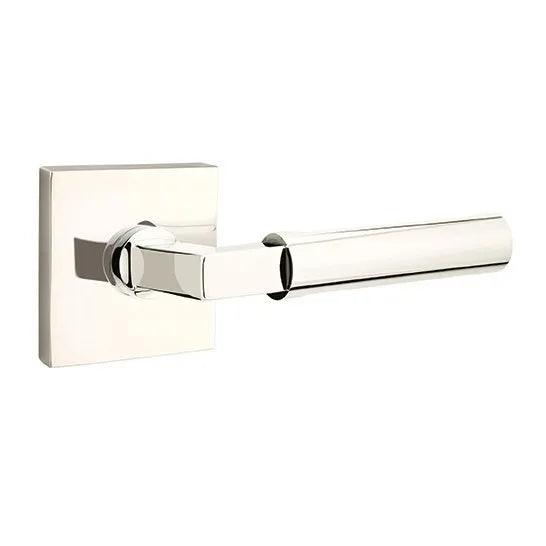

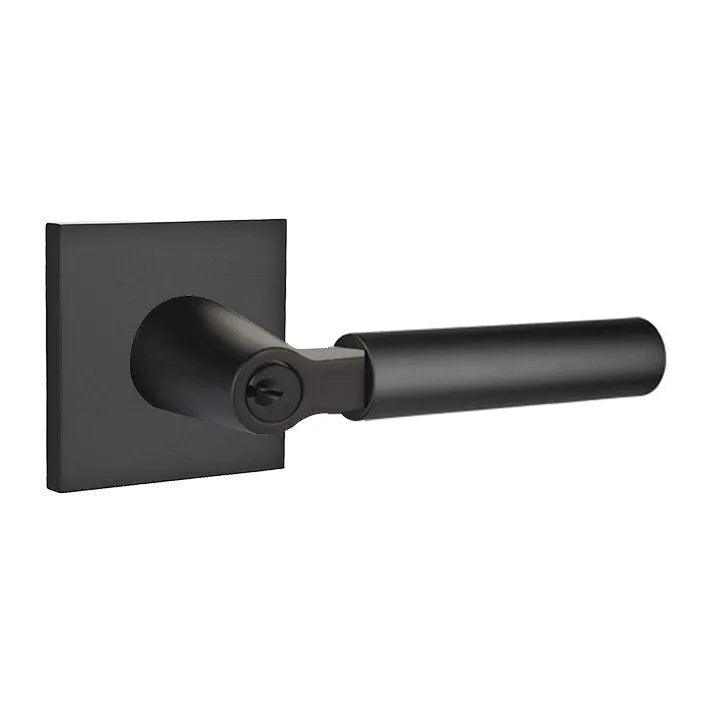

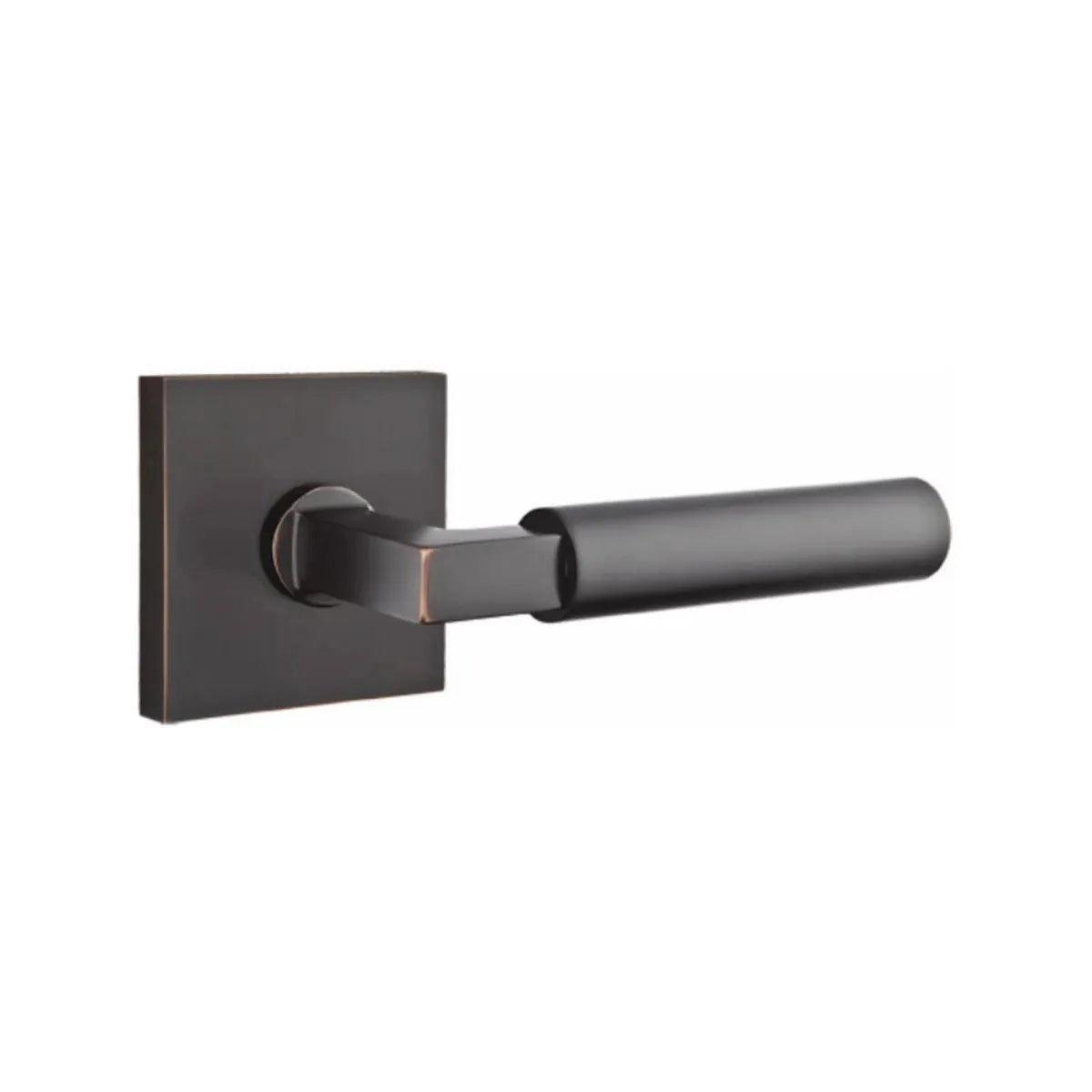

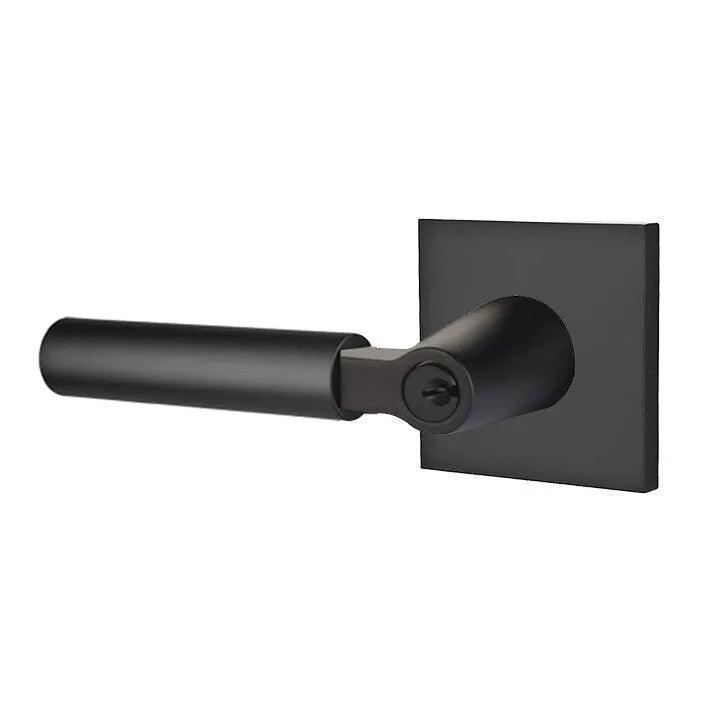

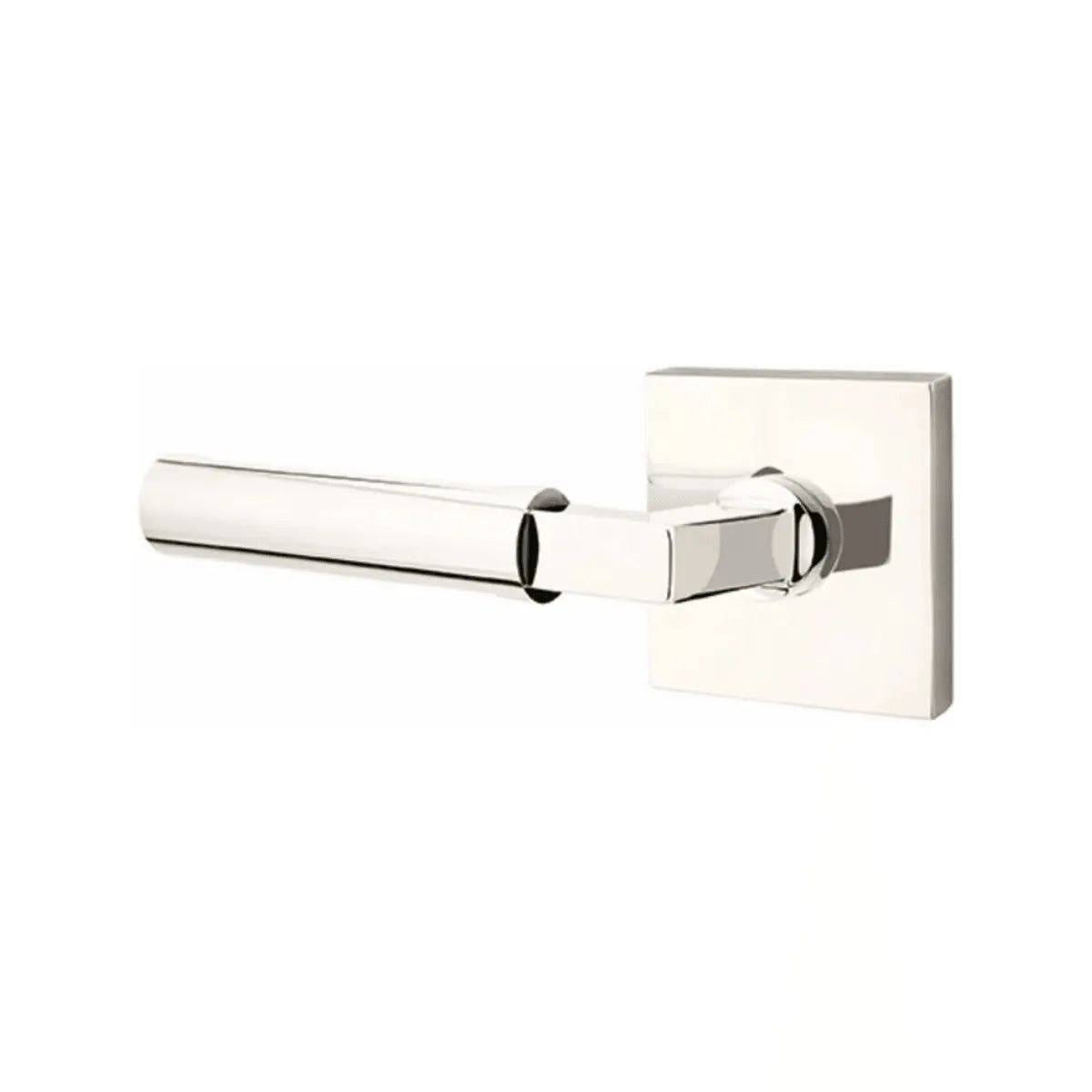

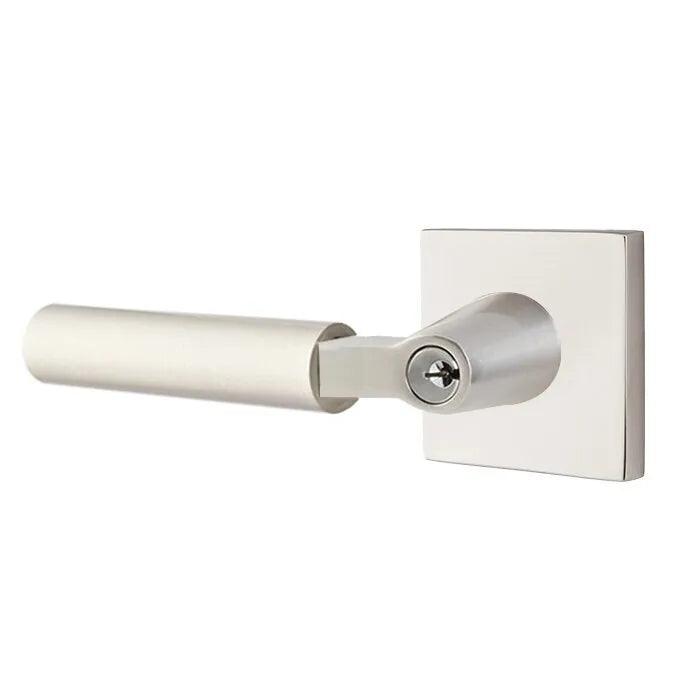

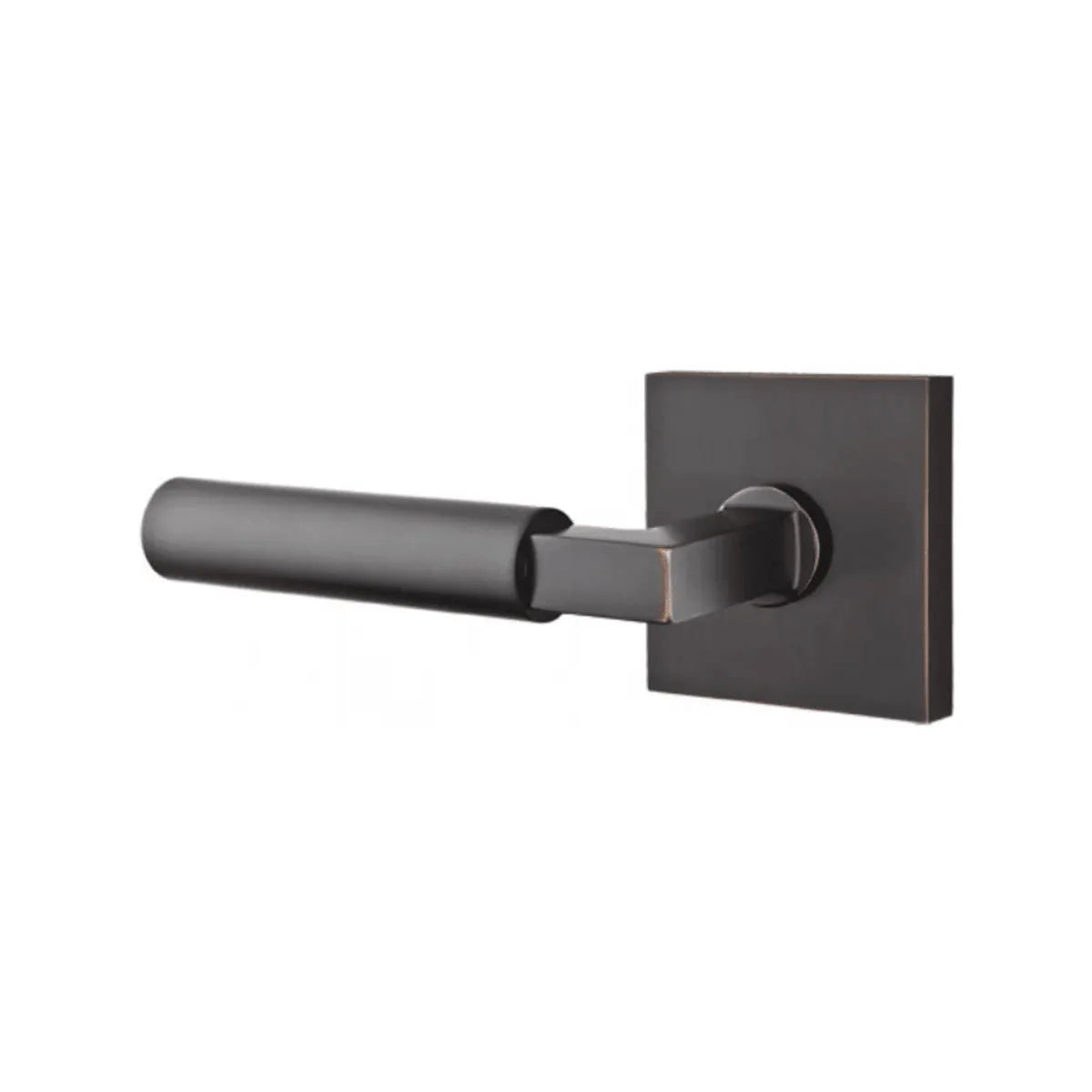

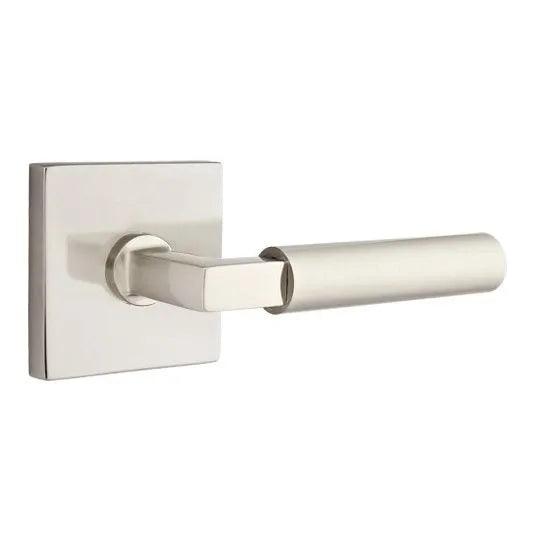

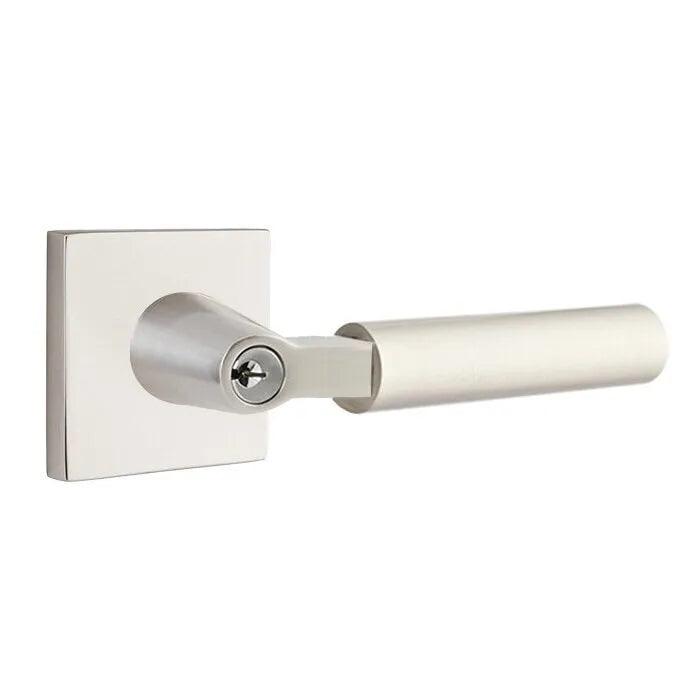

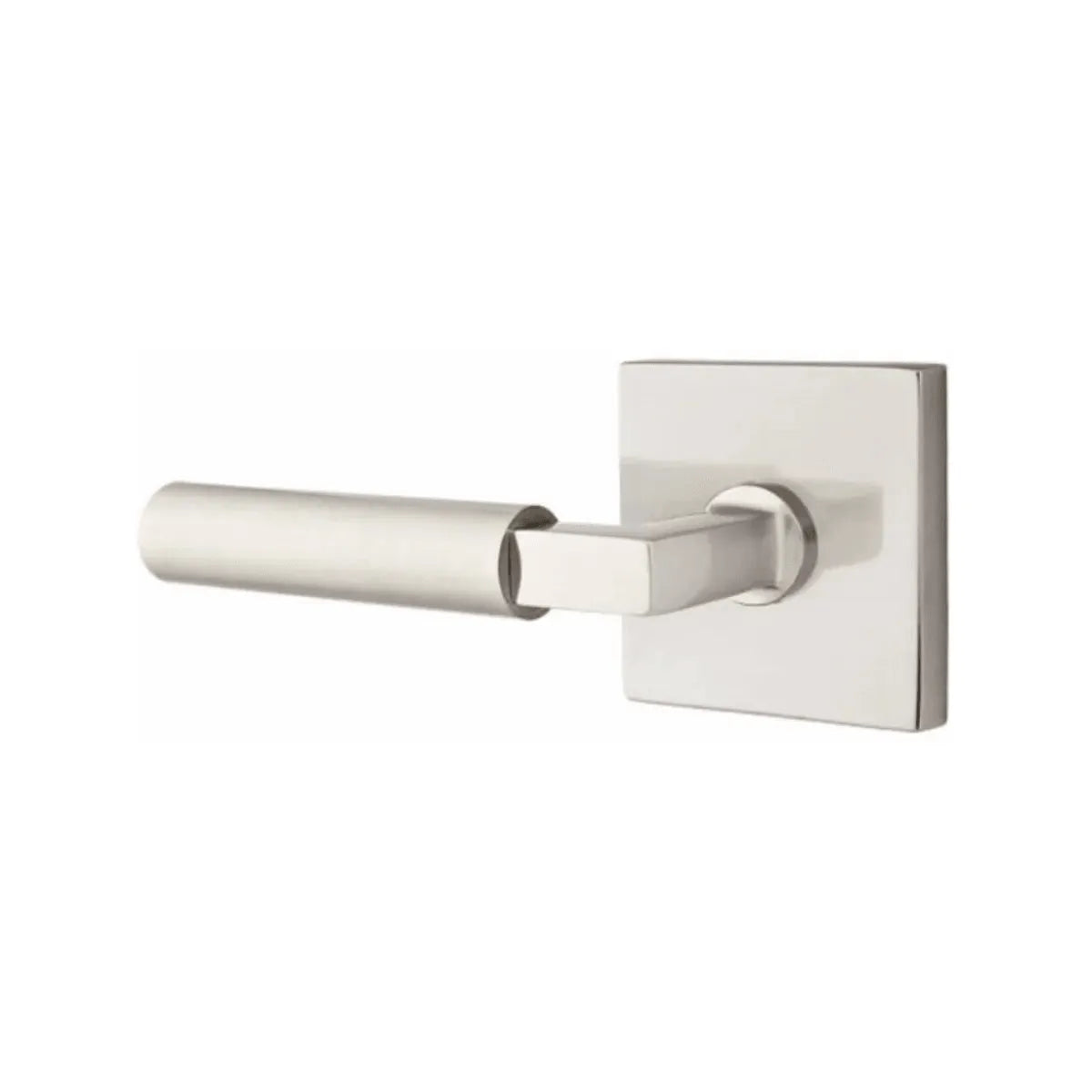

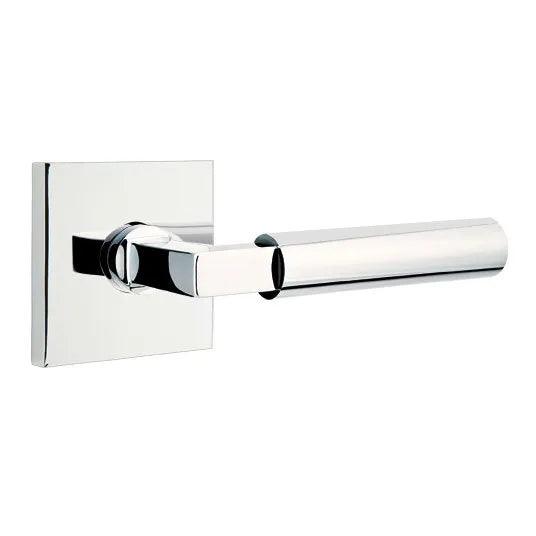

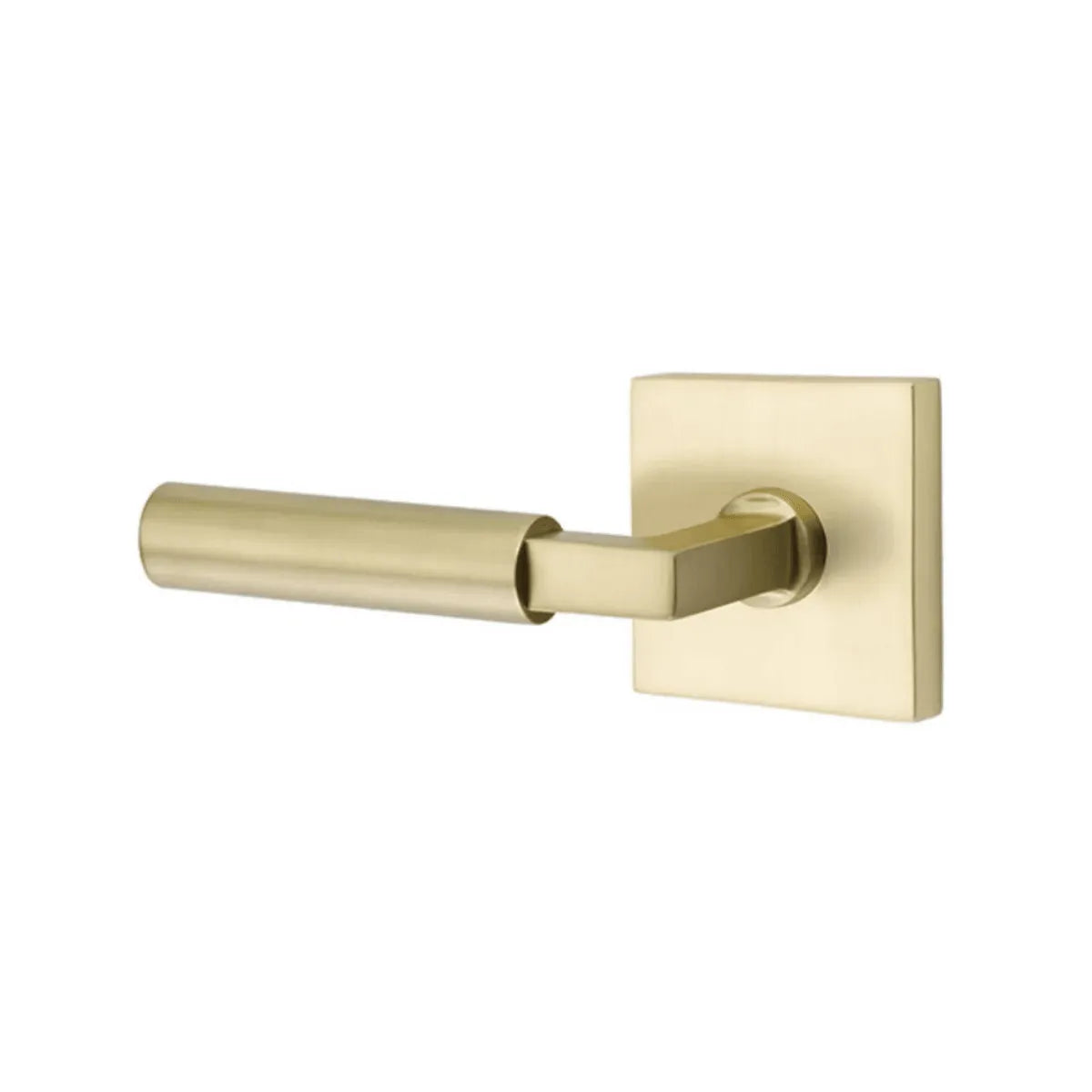

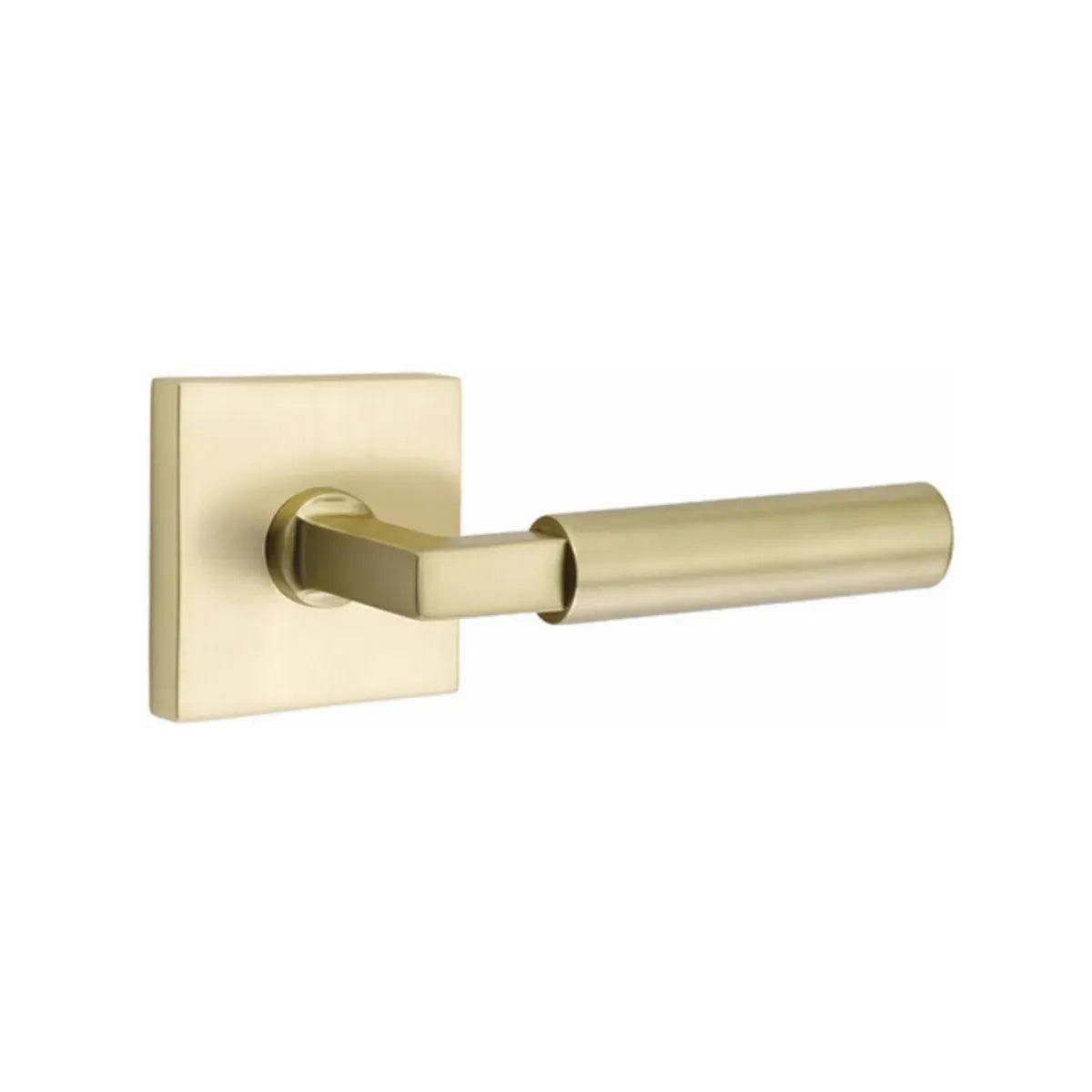

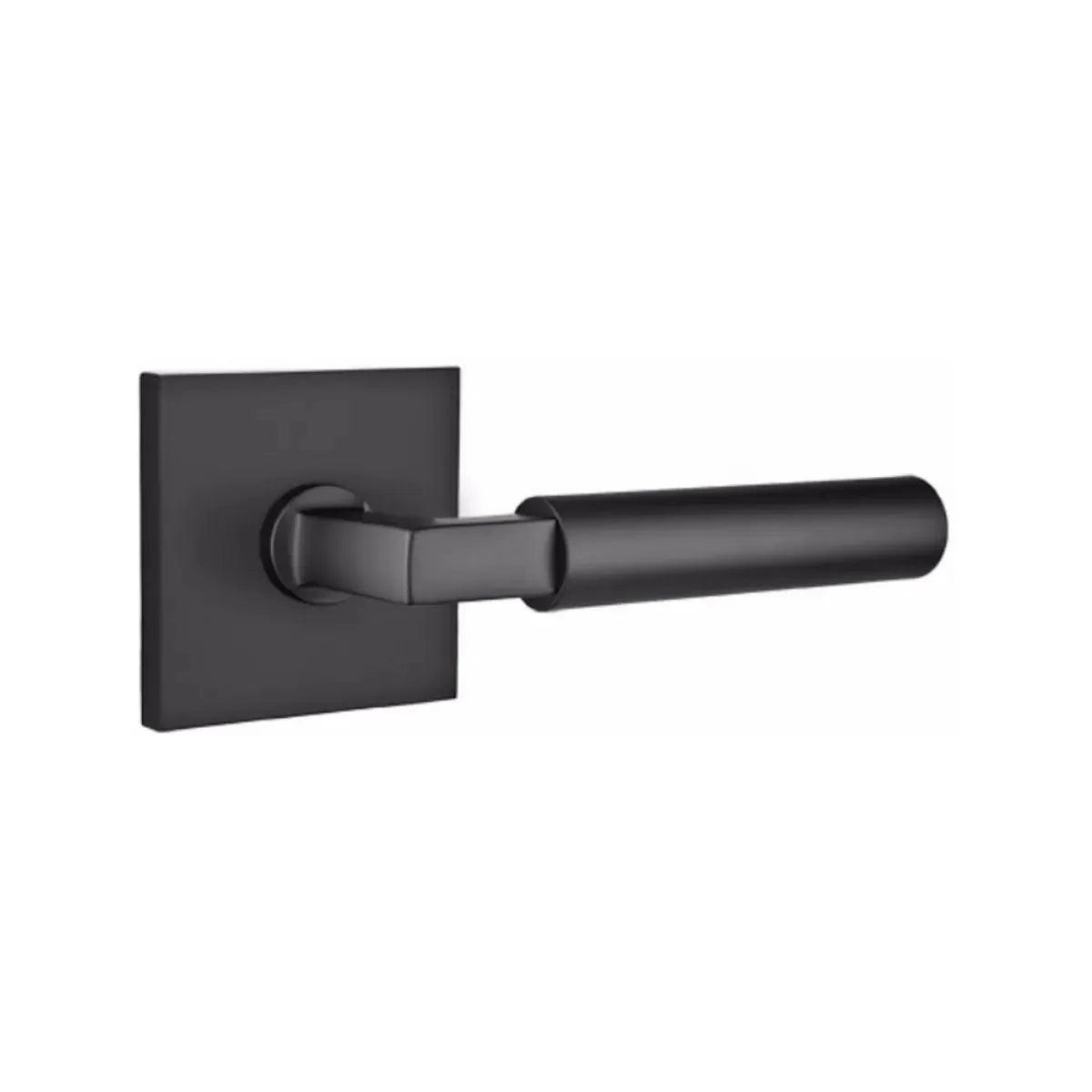

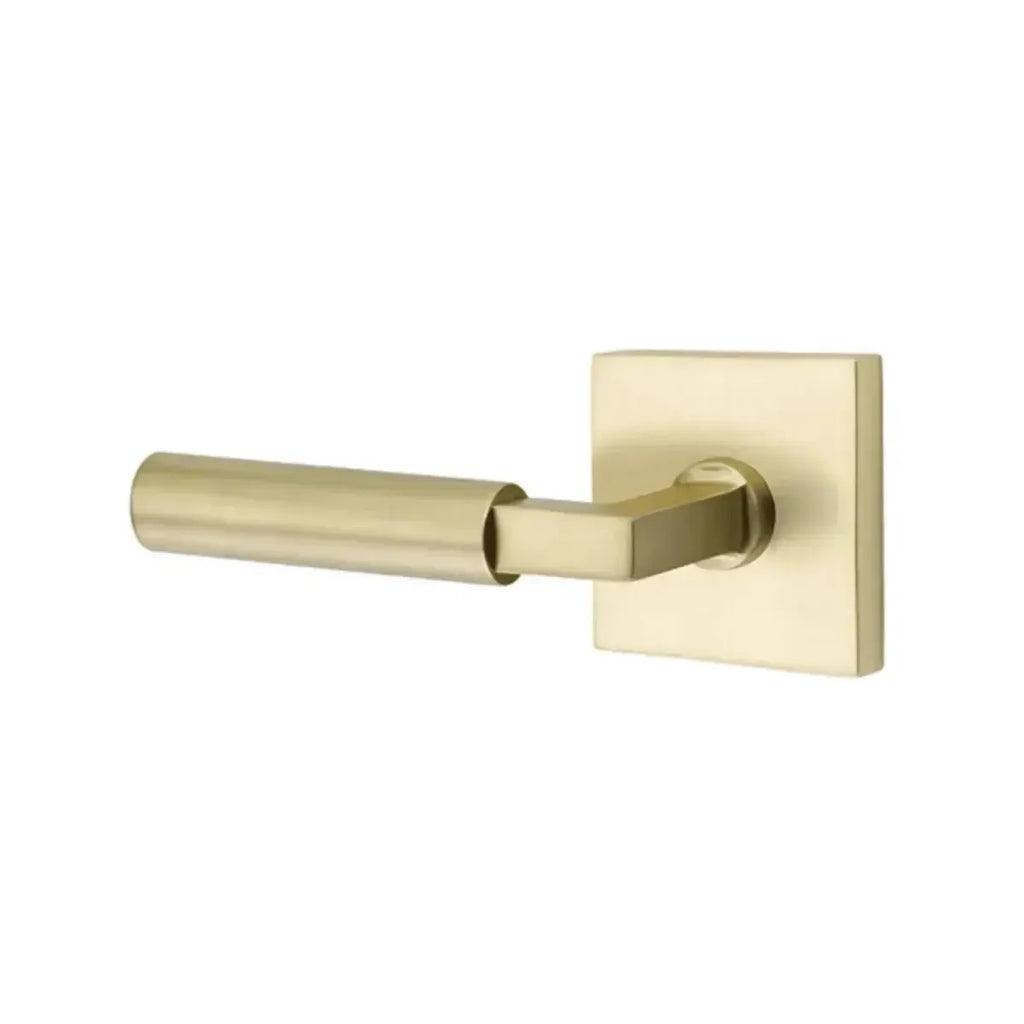

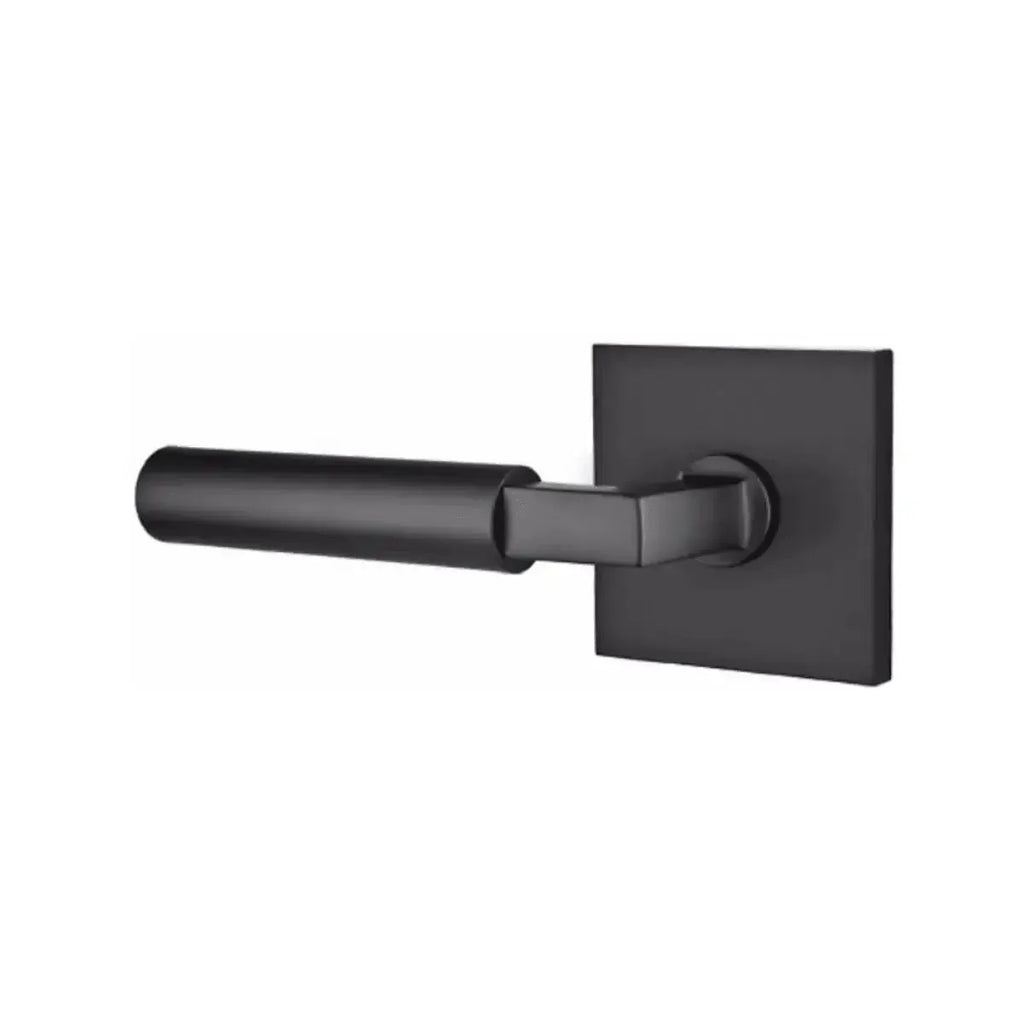

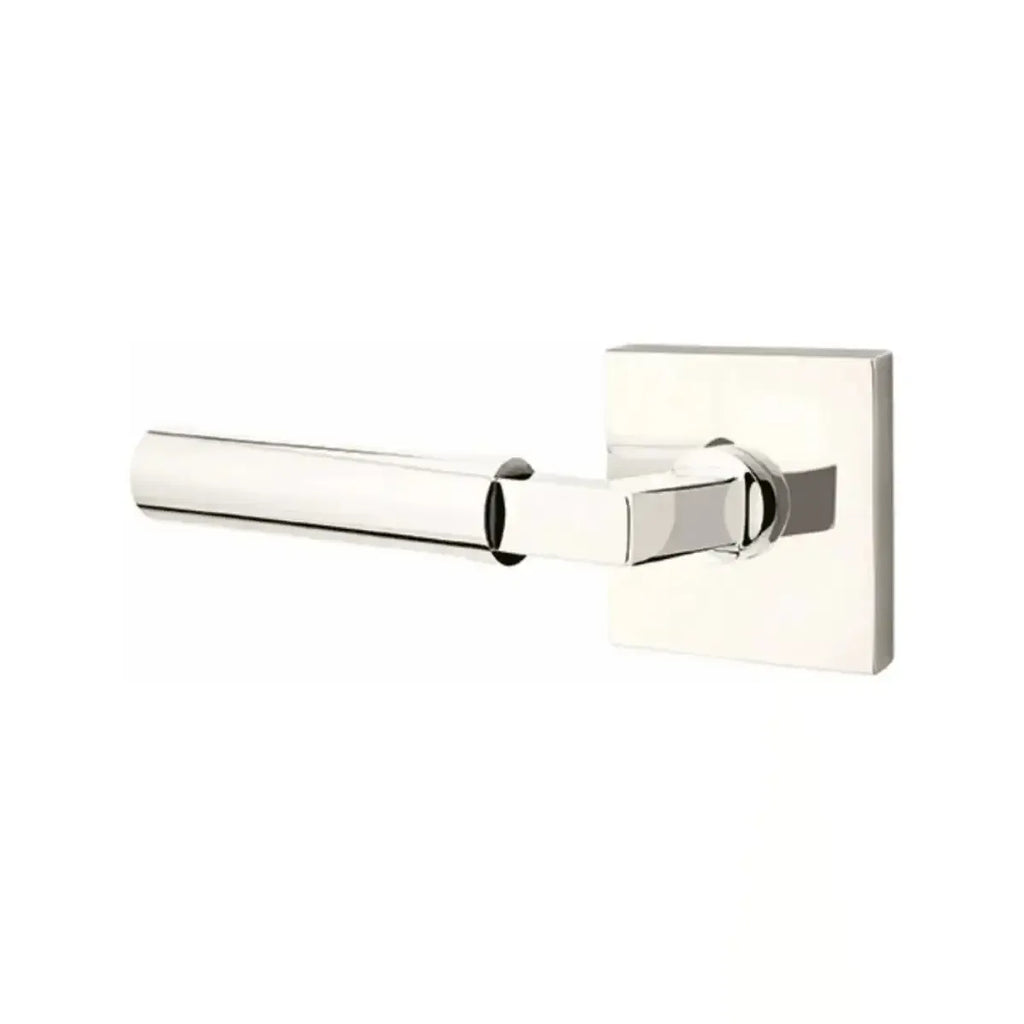

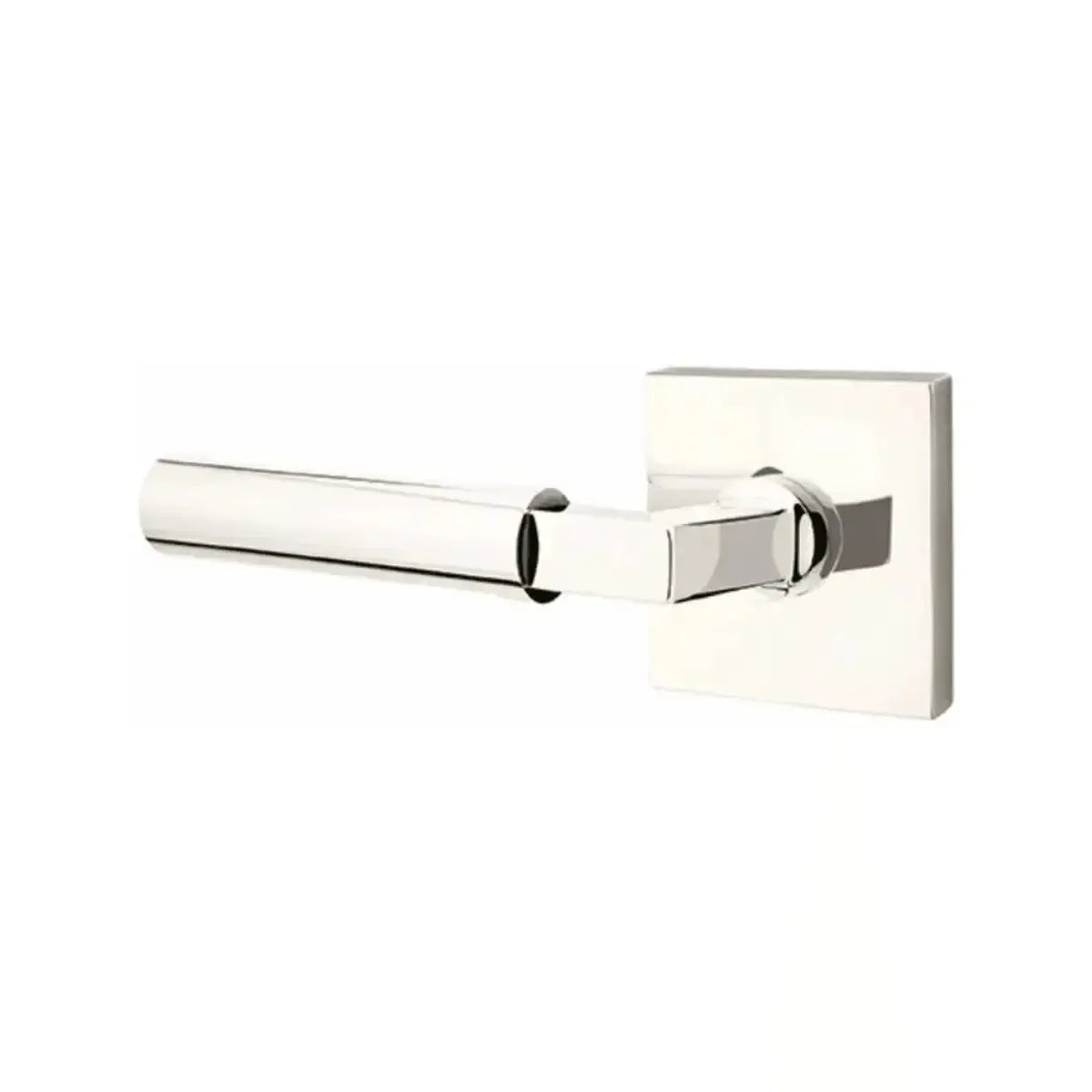

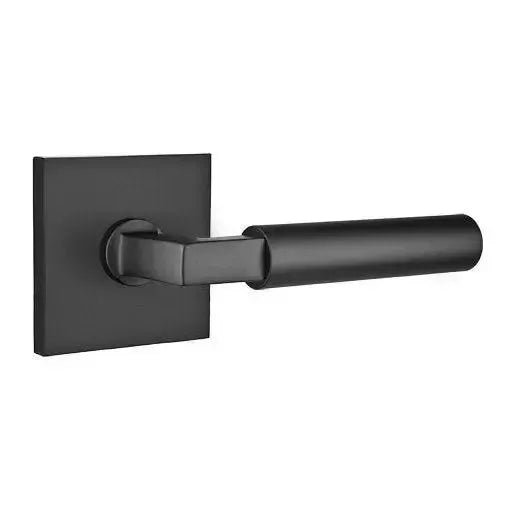

Looking for a bold, contemporary look? The Emtek Hercules Lever with Square Rosette delivers with its striking design. This set pairs the strong, straight lines of the Hercules Lever with the clean geometry of the Square Rosette. Made from solid forged brass for a substantial feel, it's available in popular modern finishes like Satin Brass, Flat Black, and Satin Nickel. This hardware is a perfect choice for bringing a clean, architectural element to any door.
Passage Features
- Passage levers do not have an internal locking mechanism. To be paired with a deadbolt for an exterior door, or on an interior door that doesn't require privacy. Great for a walk-in linen closet.
- Handing Required For Leversets
- Complete set includes standard rotation latch and strike plate.
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
- To order upgrade 28º rotation latch, add product code…
- Fits doors between 1 3/8” - 2" thick with a 2-1/8" bore standard door prep.

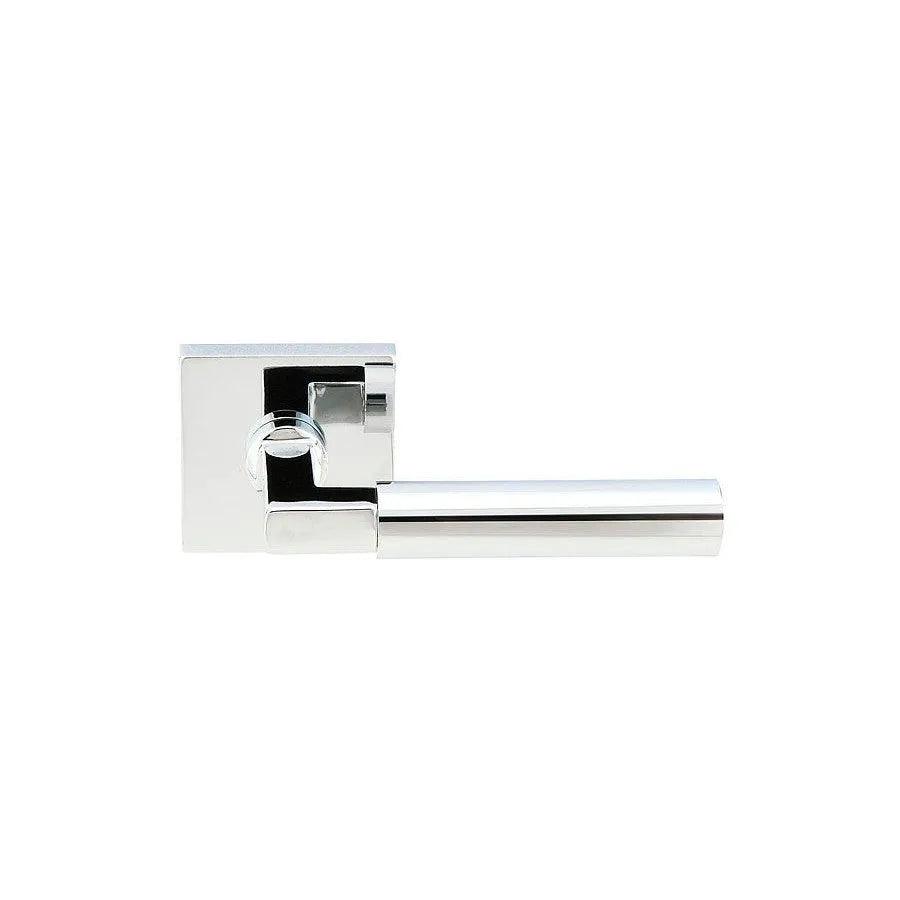

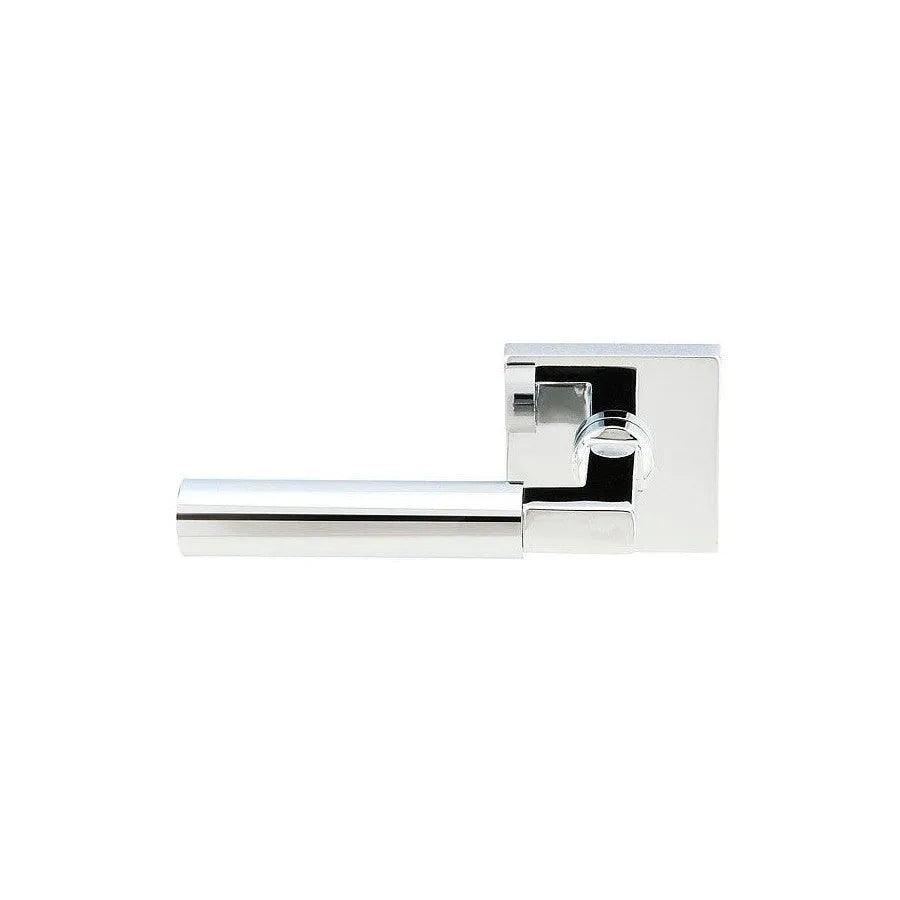

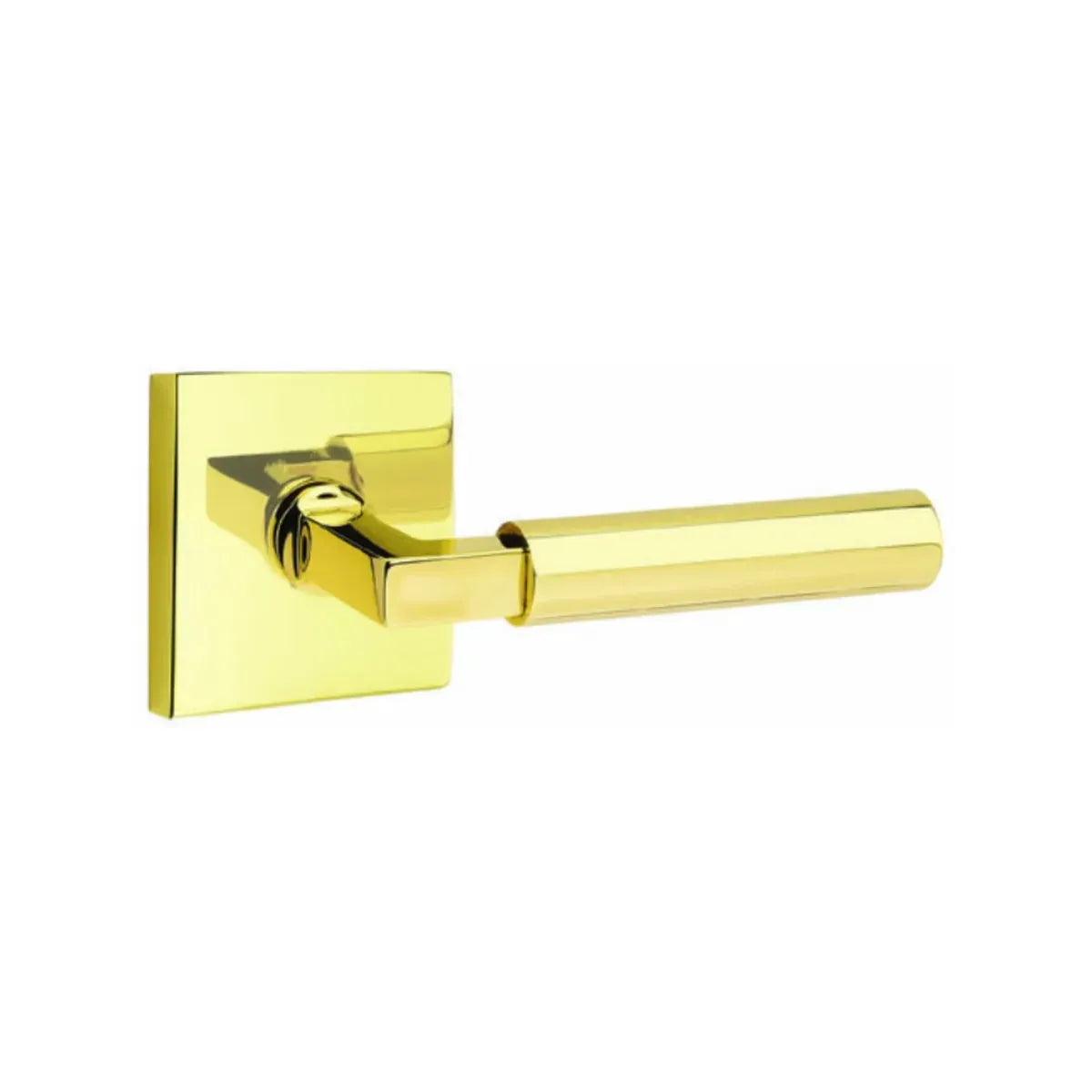

Privacy Features
- Privacy levers include a locking mechanism, usually in the form of a small push pin lock on the side of the lever. Perfect for use on bedroom and bathroom doors where locking is needed.
- Handing Required For Leversets
- Complete set includes standard rotation latch and strike plate.
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
- To order upgrade 28º rotation latch, add product code…
- Fits doors between 1 3/8” - 2" thick with a 2-1/8" bore standard door prep.
Dummy Features
- Dummy sets have no latch and require no bore hole. They are surface mounted to the door.
- Often used in conjunction with a passage or privacy set for double or french doors.
- This is a dummy "set" so it comes with both the interior and exterior handles.

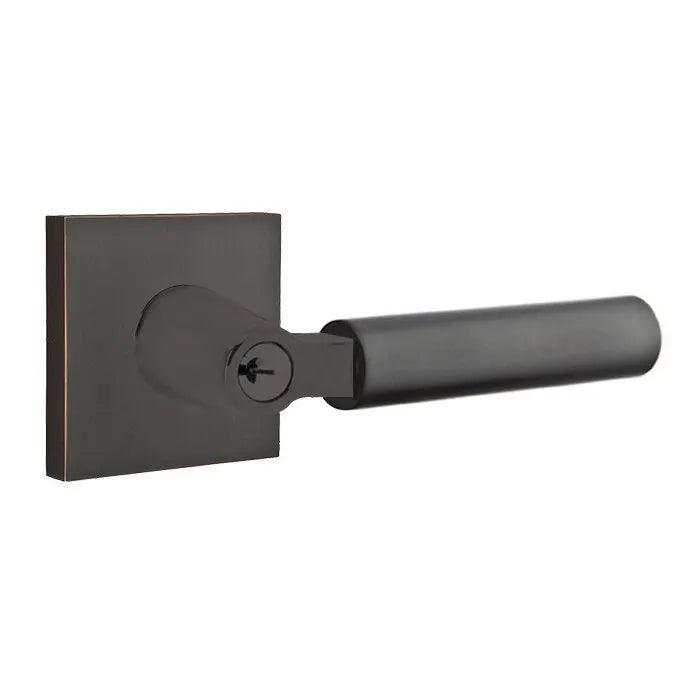

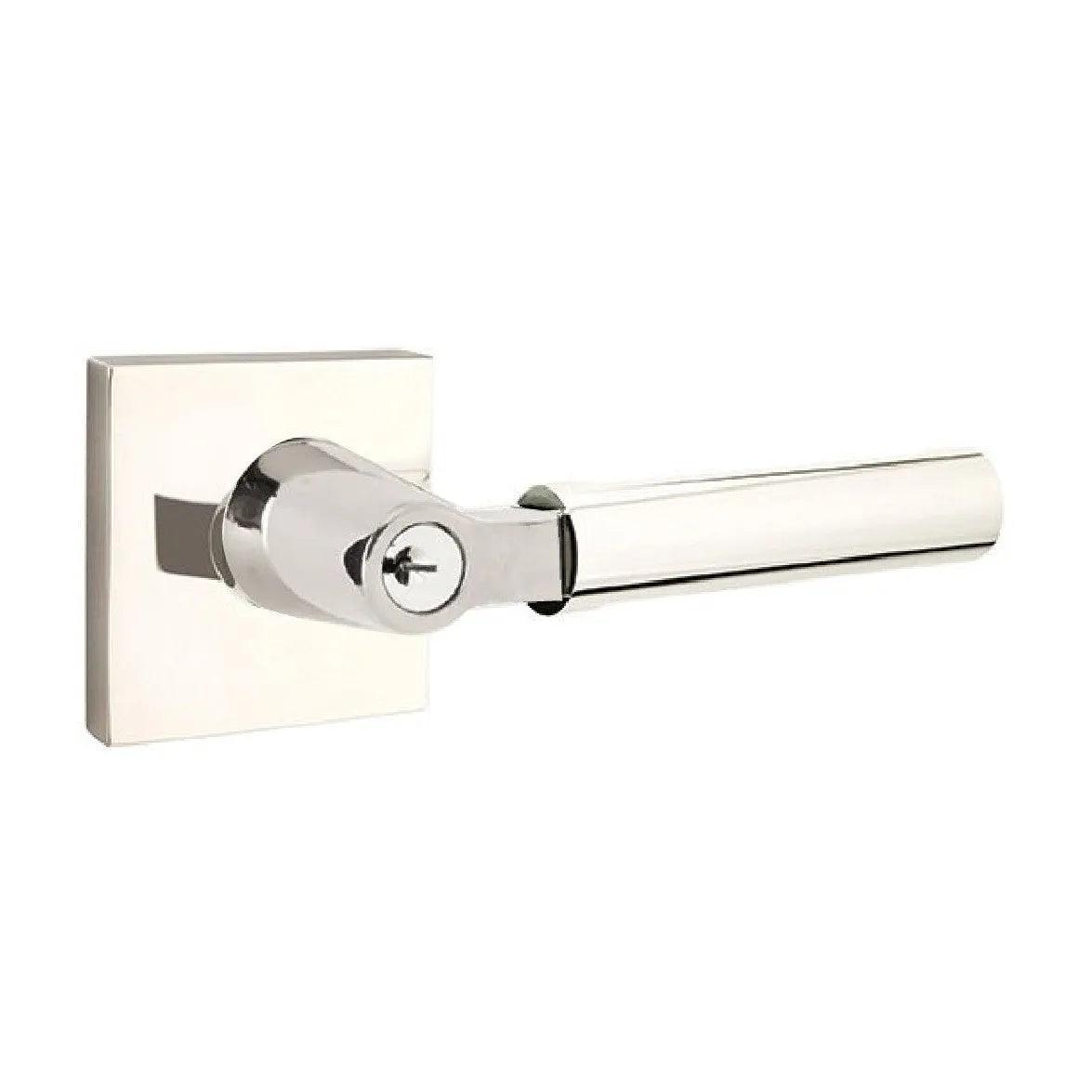

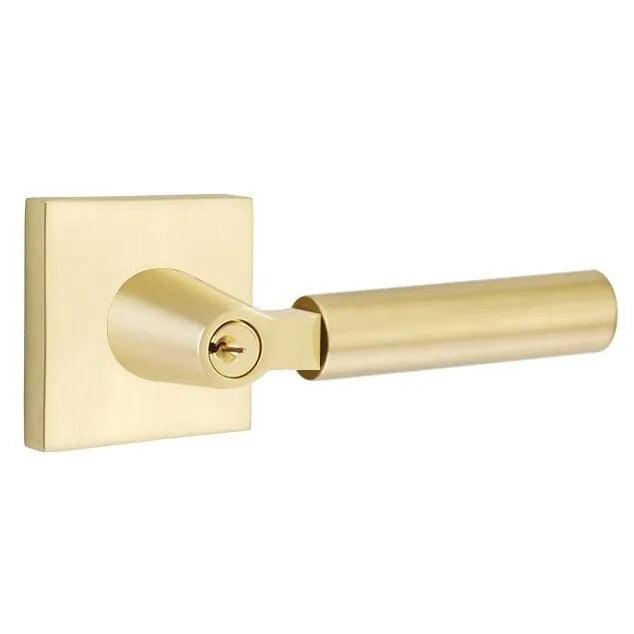

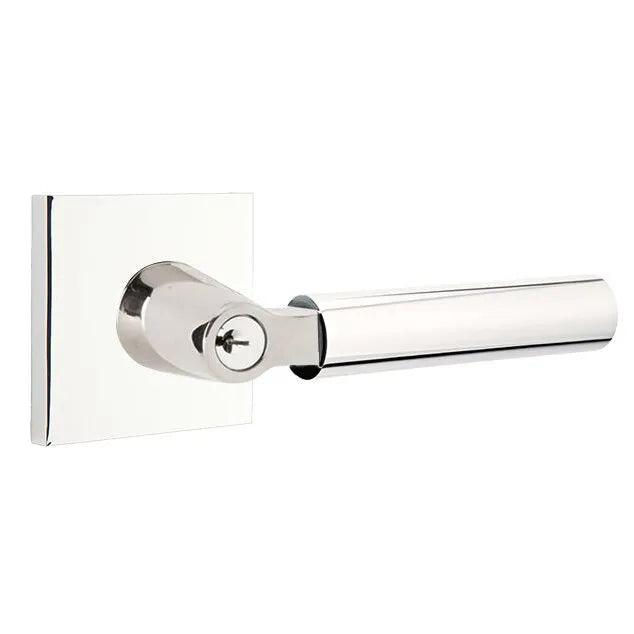

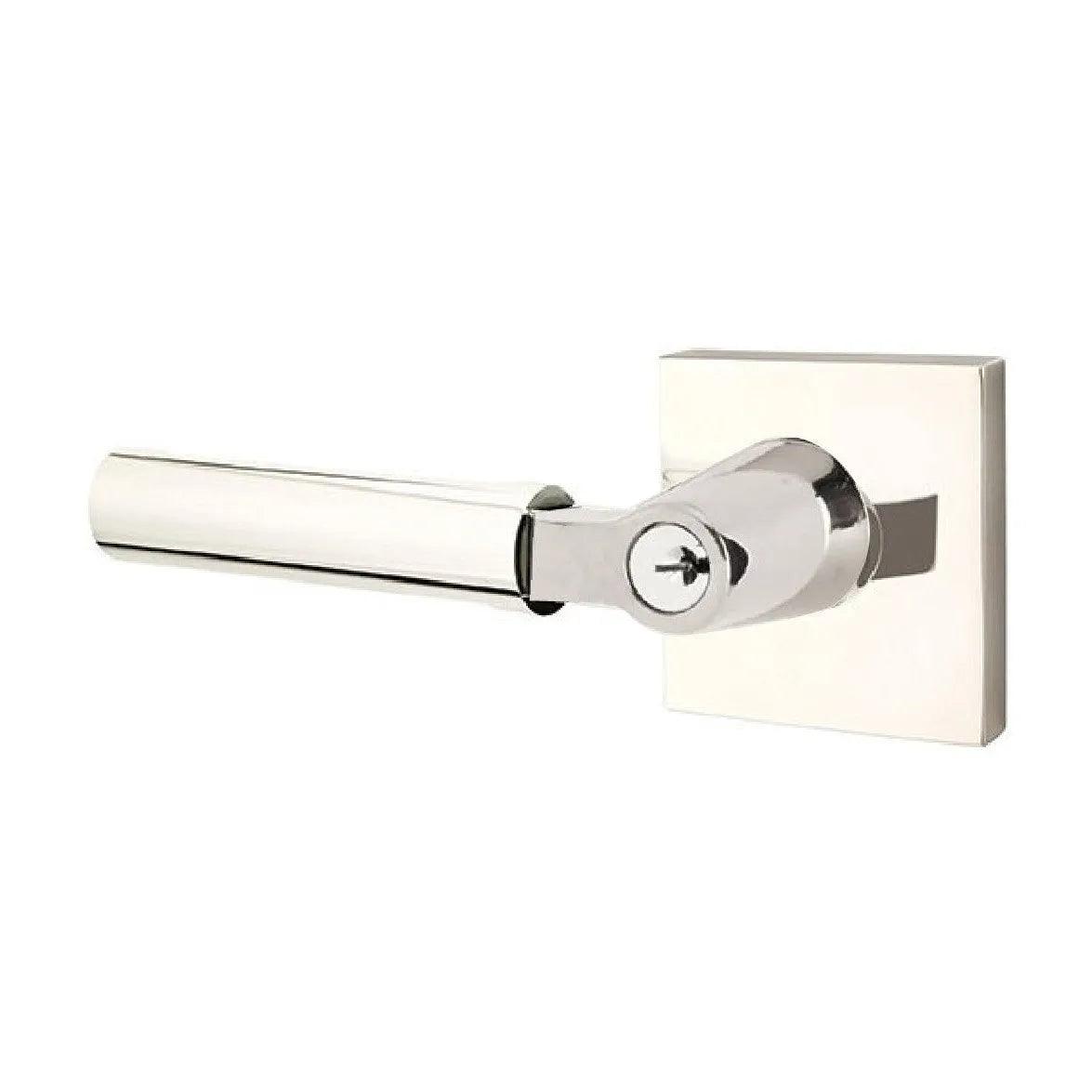

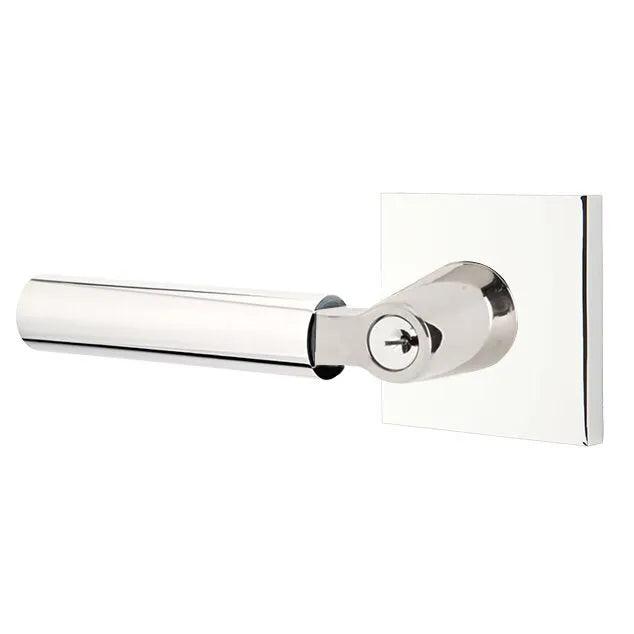

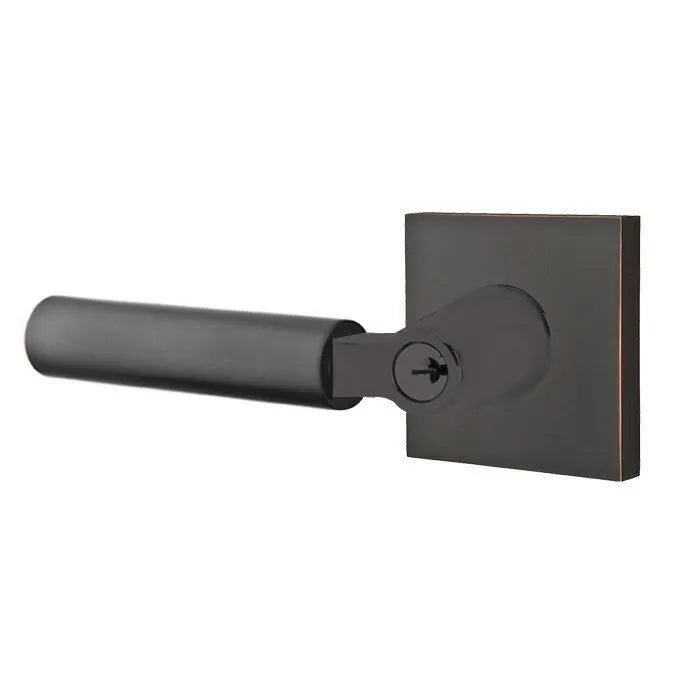

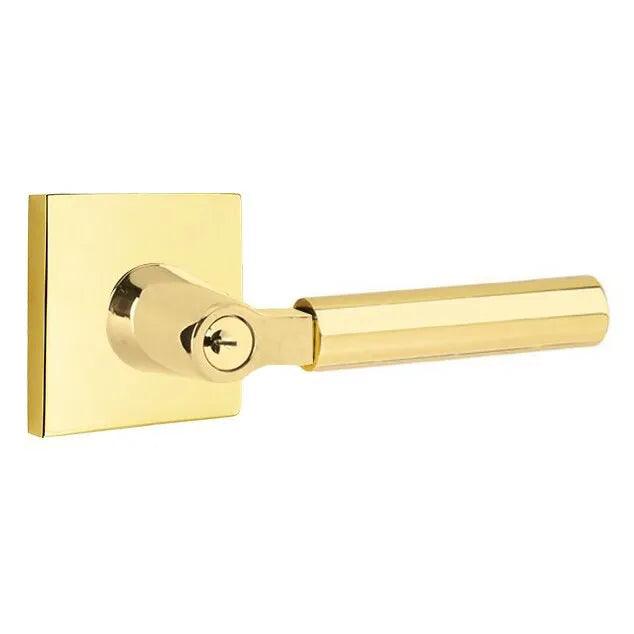

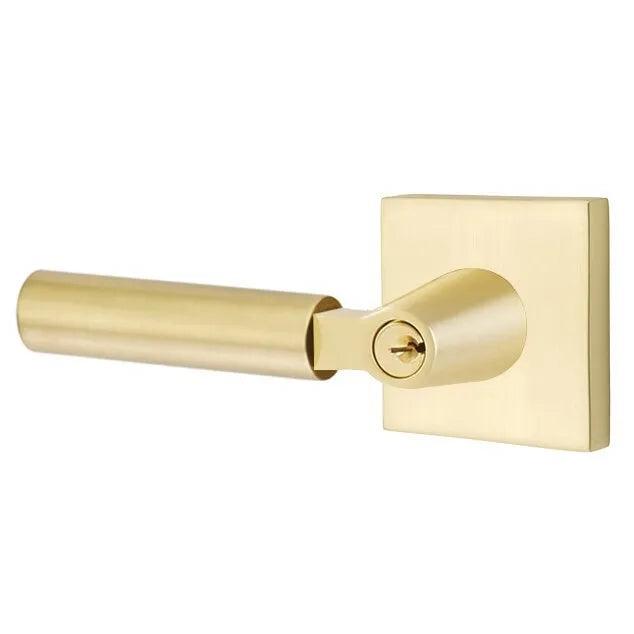

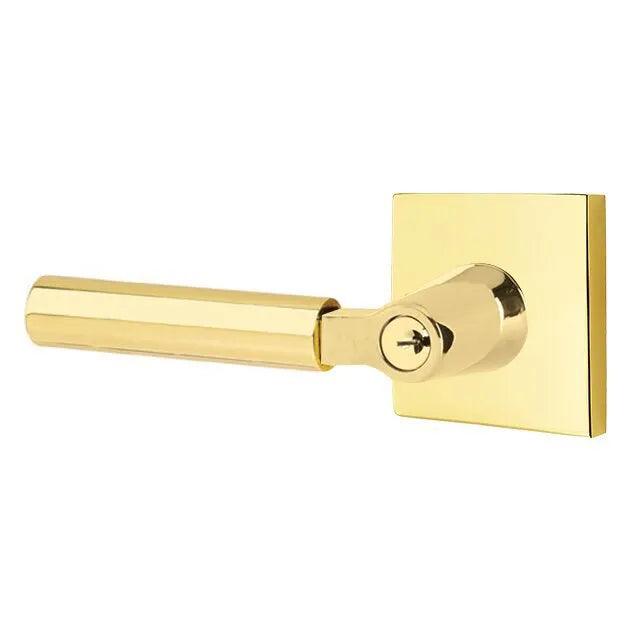

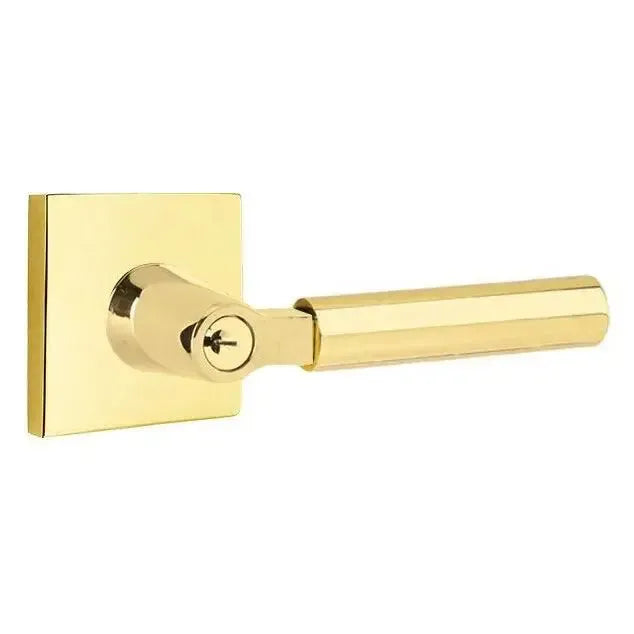

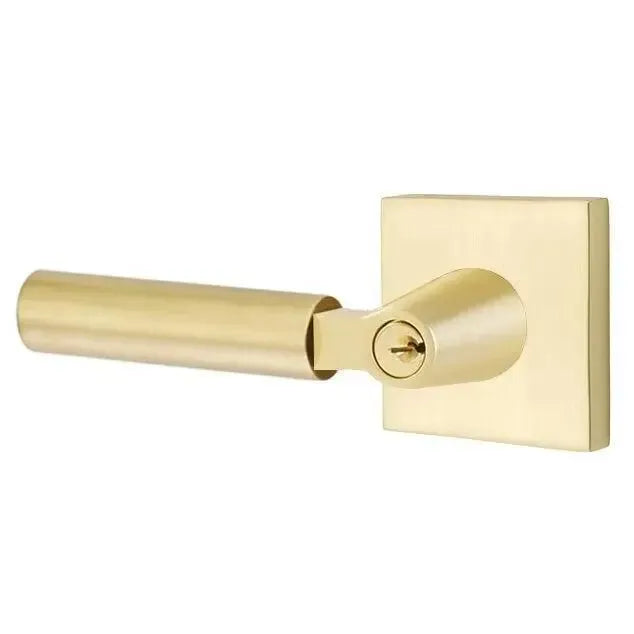

Keyed Entry Features
- Features keyway on the exterior side and thumb turn on the interior.
- Sold as complete set. Includes rosette, latch and strike plate. Standard door prep and installation
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
- Handing required for lever sets
- Schlage C keyway
Concealed Fastener Features
- Concealed Fastener Mechanism provides a clean look with no visible screws on the rosettes.
- Handing not required
- Leverset supplied with 28º rotation latch and dust box. The 28º latch (vs the standard 45º latch), requires less rotation to disengage the latch and open a door when compared to standard latches.
- Door thickness for CF Mechanism is 1 3/8” to 1 3/4”
- Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required.
