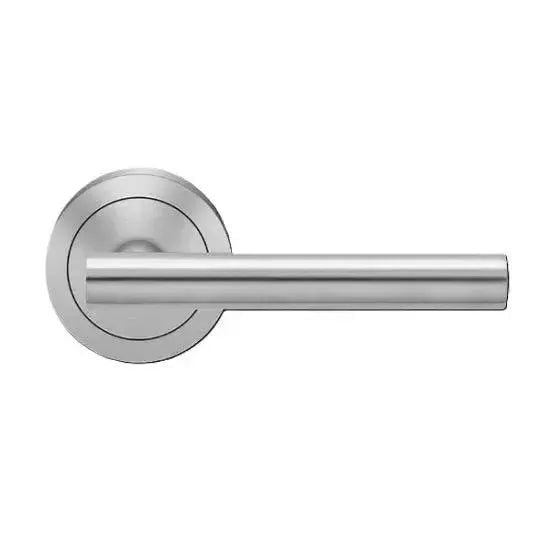

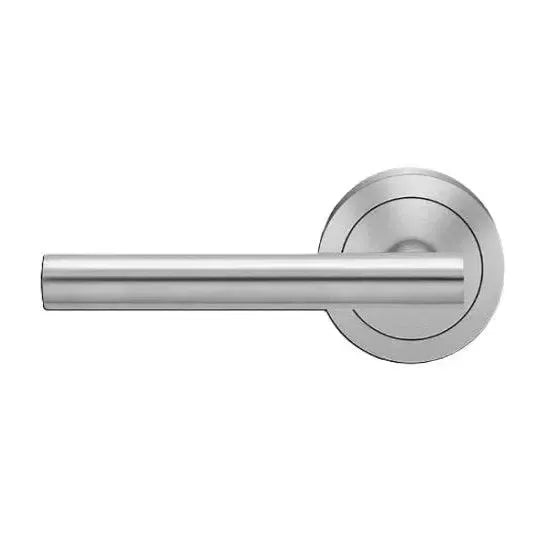

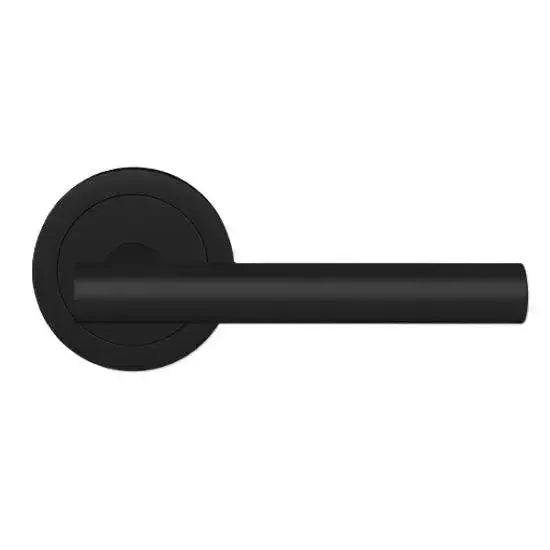

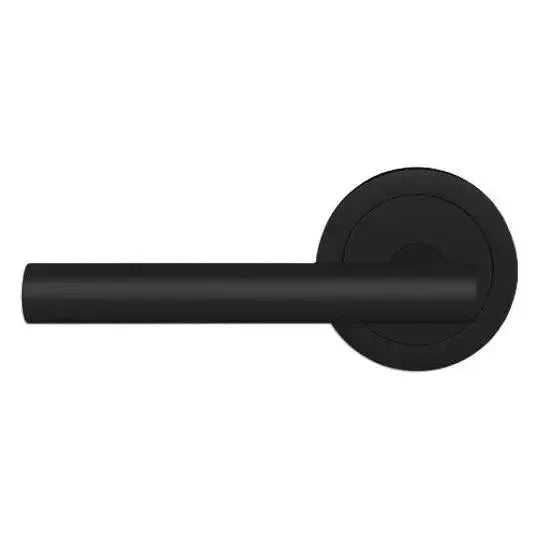

The Karcher Design Manhattan Lever with Round 3 Piece Rosette showcases modern European design with sophisticated dimensional layering. This refined door lever pairs the distinctive Manhattan design with a round 3-piece rosette that adds elegant architectural depth. Built for durability and smooth functionality, it's available in multiple finishes to bring European sophistication and contemporary refinement to modern residential interiors.
Passage Features
- Passage levers do not have an internal locking mechanism.
- Stainless Steel
- Concealed Fasteners
- Non-Handed
- 28˚ latch with attached faceplate. Spring Assisted
- For pre-bored 2 1/8" door prep
- Specify 2 3/8" or 2 3/4" backset
Privacy Features
- Privacy levers include a locking mechanism. Perfect for use on bedroom and bathroom doors where locking is needed.
- Stainless Steel
- Concealed Fasteners
- Non-Handed
- 28˚ latch with attached faceplate. Spring Assisted
- For pre-bored 2 1/8" door prep
- Specify 2 3/8" or 2 3/4" backset
Full Dummy Features
- Complete dummy set
- Stainless Steel
- Concealed Fasteners
- Decorative, non-turning levers
Half Dummy Features
- Select right or left handing
- Stainless Steel
- Concealed Fasteners
- Decorative, non-turning, single dummy lever used on one side of the door
Specifications
- Lever Length: 5 1/2"
- Rosette Diameter: 2 5/8" x 7/16" thick
- Door Thickness: Fits doors 1 3/16" - 1 3/4″ (30-45mm) thick
- ANSI Certification: All lever latchsets meet ADA accessibility requirements
- T and Lip Strikes Included
