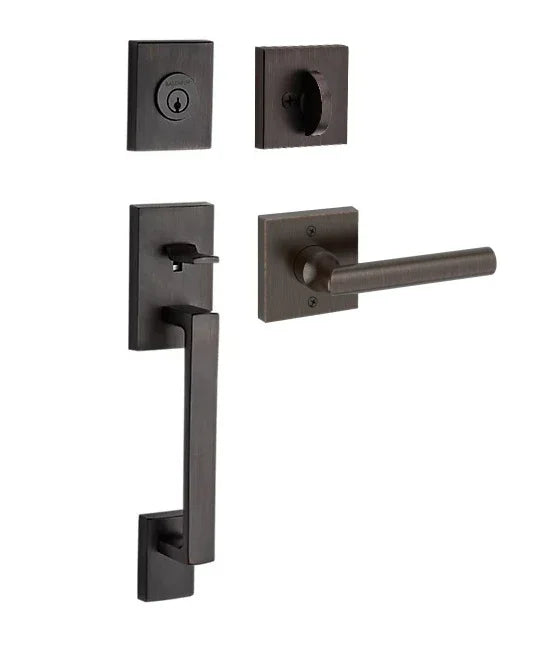

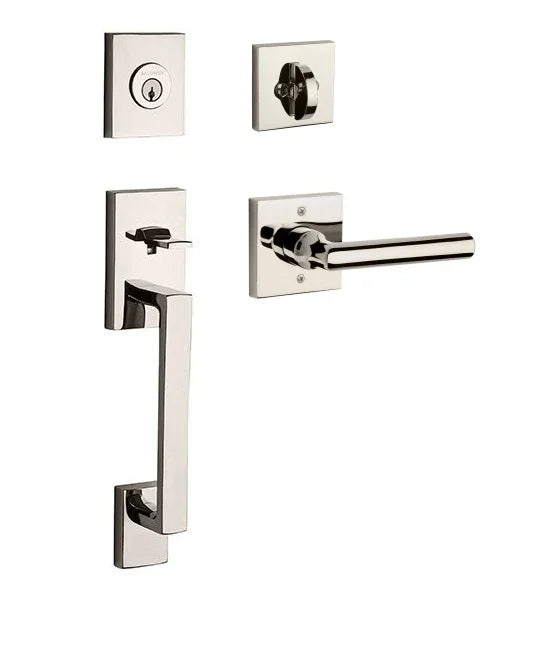

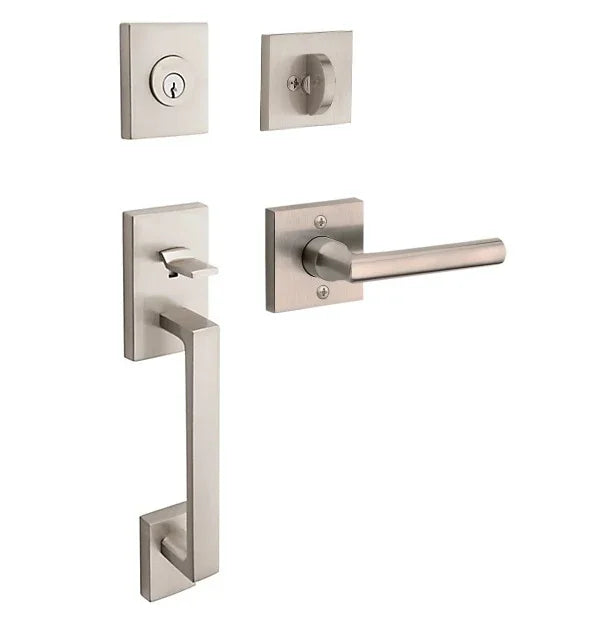

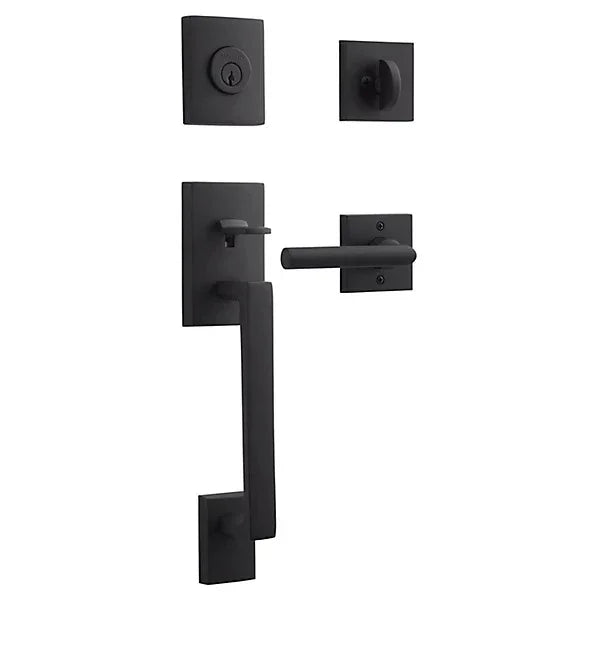

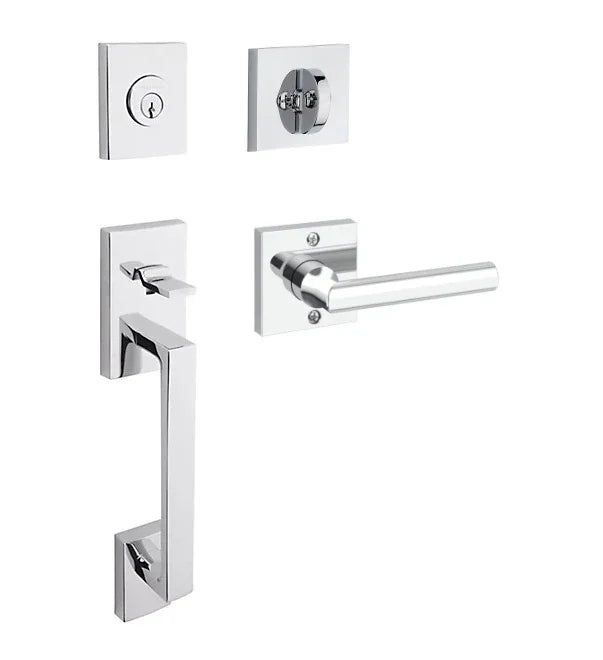

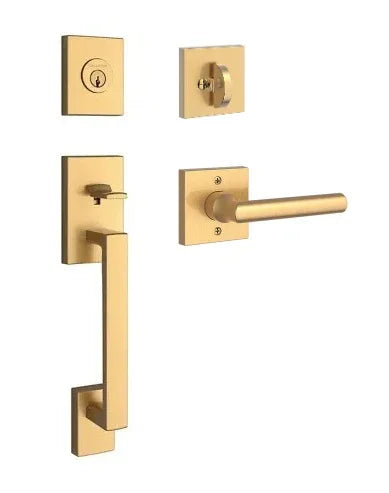

Sleek meets streamlined in the Baldwin La Jolla Handleset with Interior Tube Lever and Contemporary Square Rosette. The tubular interior lever adds a minimalist touch, while the square rosette grounds the design with bold modern geometry. It’s a stylish, no-fuss upgrade that brings both form and function to any modern entryway.
Features
- Contemporary Style Handleset
- Reversible Handing
- Note: Interior roses have exposed fasteners.
Specifications
- Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Cylinder: Baldwin C-Keyway standard.
- Backset: Adjustable 2-3/8” or 2-3/4”
- Front & Latch: 6 Way Adjustable (6L)
- Strike: Dual Strike.
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
- Knob/Lever rotates at 55°- 60°
