Description
Passage Knob Features
- Always unlocked. Latchbolt operated by knob from either side at all times
Specifications
- Handle Orientation: Universal
- Backset: 2 3/4"
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Door Thickness: 1 3/8"-1 3/4"
- ANSI Certification: Grade 2
- Latchbolt operated by knob from either side. Outside knob can be locked by a locking Push-button located inside, can be unlocked from outside with the emergency release or from inside by turning knob or closing door
Specifications
- Handle Orientation: Universal
- Backset: 2 3/4"
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Door Thickness: 1 3/8"-1 3/4"
- Keyway: Schlage C type
- Certifications: Latch: UL Listed w/ 1/2" Throw

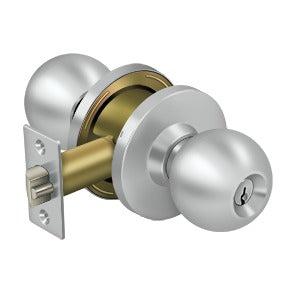

- Turn / Push-button locking: pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Push-button locking (Auto egress function): pushing button locks outside knob until unlocked by key or inside lever is turned. Deadlocking latchbolt operated by inside knob at all times
Specifications
- Handle Orientation: Universal
- Keyway Type: Schlage C type
- Backset: 2 3/4"
- Strike: ANSI 4 7/8" x 1 1/4" lip-to-center
- Door Thickness: 1 3/8"-1 3/4"
- ANSI Certification: Grade 2 Dummy Knob Features

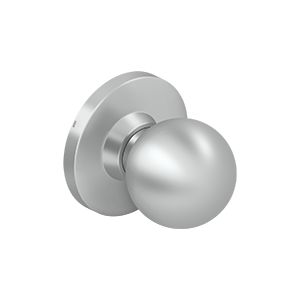

- A dummy knob mounts to one side of a door, does not operate, and is designed for doors that do not have a bore hole. Dummies work well for ball catch doors and other applications where a latch mechanism is not needed and the look of a knob is desired.
- Handle Orientation: Universal
- Includes one dummy knob
Specifications
