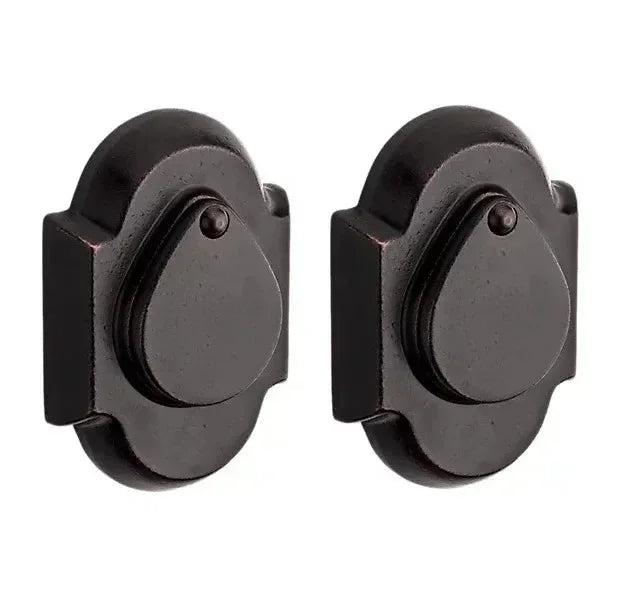

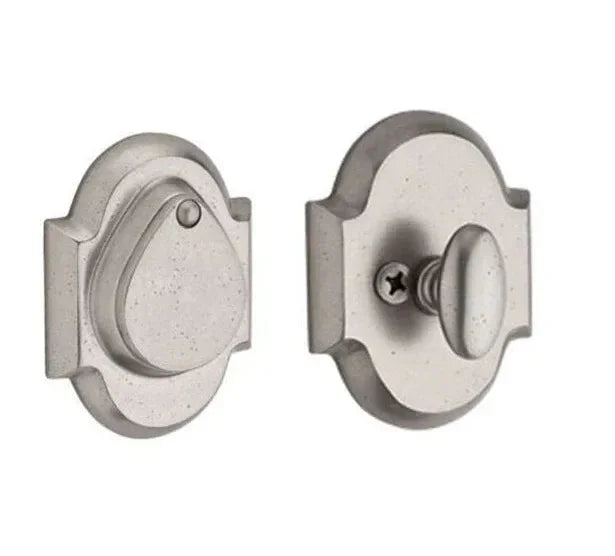

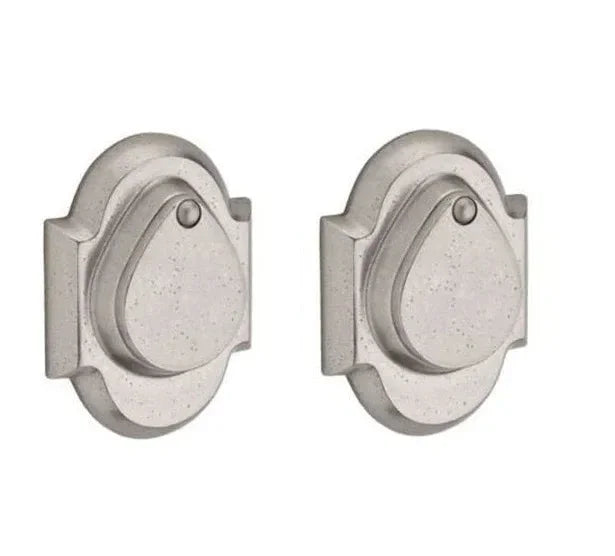

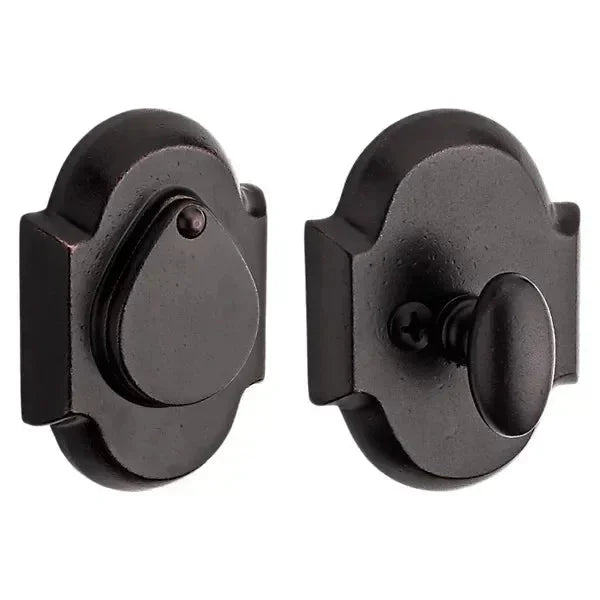

The Baldwin Rustic Arch Deadbolt adds old-world charm with a graceful, arched silhouette that stands out from standard security hardware. Its weathered finish and artisan-inspired design make it a natural fit for traditional, rustic, or Mediterranean-style doors. Strong, secure, and full of character—this is protection with personality.
Features
- The combination of Reserve style and the security of a keyed cylinder, all within the 2 1/8" standard door preparation.
- Locking mechanism functions with turn piece on the interior of the lock
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit. Thin door option not available with rustic deadbolt styles.
- Complete deadbolt set includes everything needed to install the lock onto your door.
- Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
- 2 Keys Included with deadbolt
- Tested to exceed ANSI/BHMA Grade 2 security
- Note: Interior roses have exposed fasteners
Specifications
- Exterior Dimensions: 2 11/16" x 3 5/8"
- Exterior Projection: 1 1/16"
- Interior Dimensions: 2 11/16" x 3 7/16"
- Single Cylinder Interior Projection: 1 7/16"
- Double Cylinder Interior Projection: 1 1/16"
