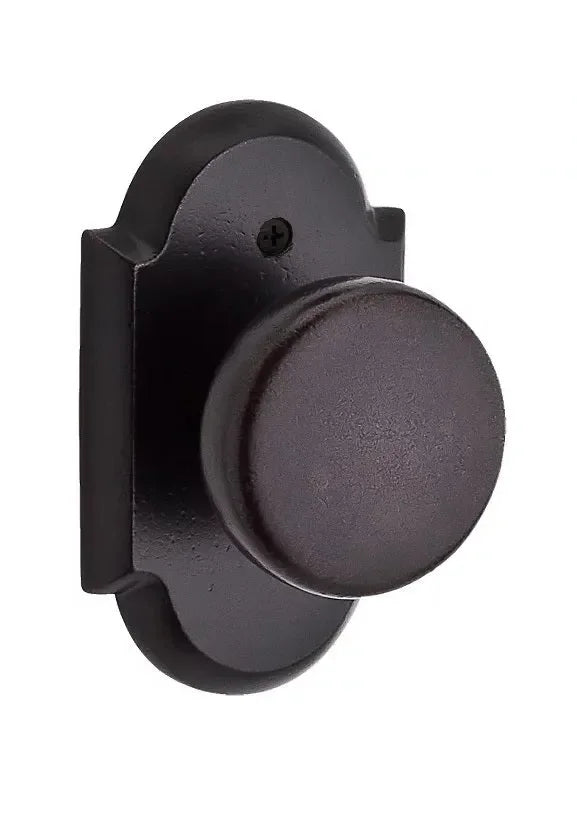

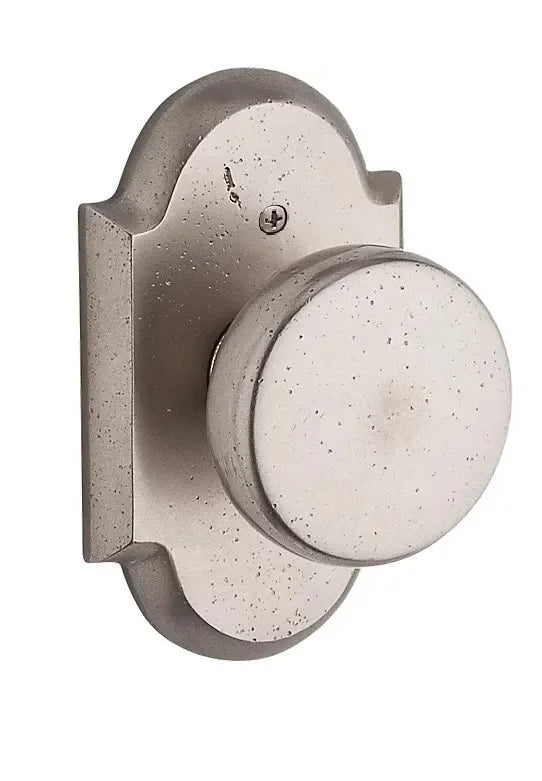

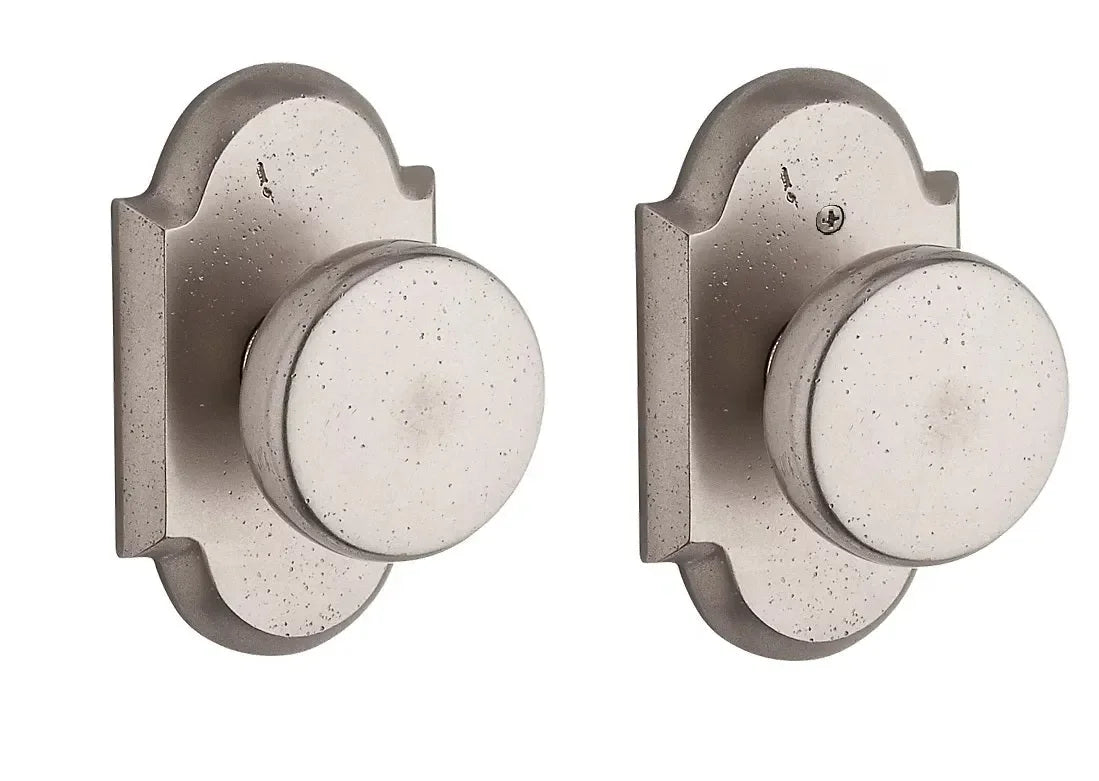

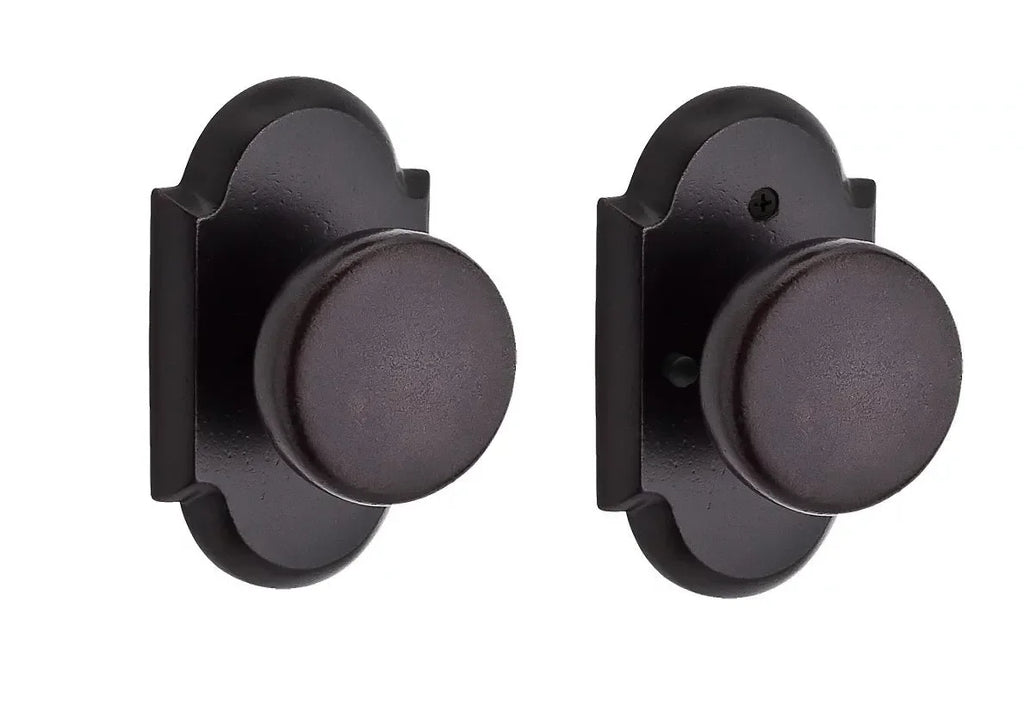

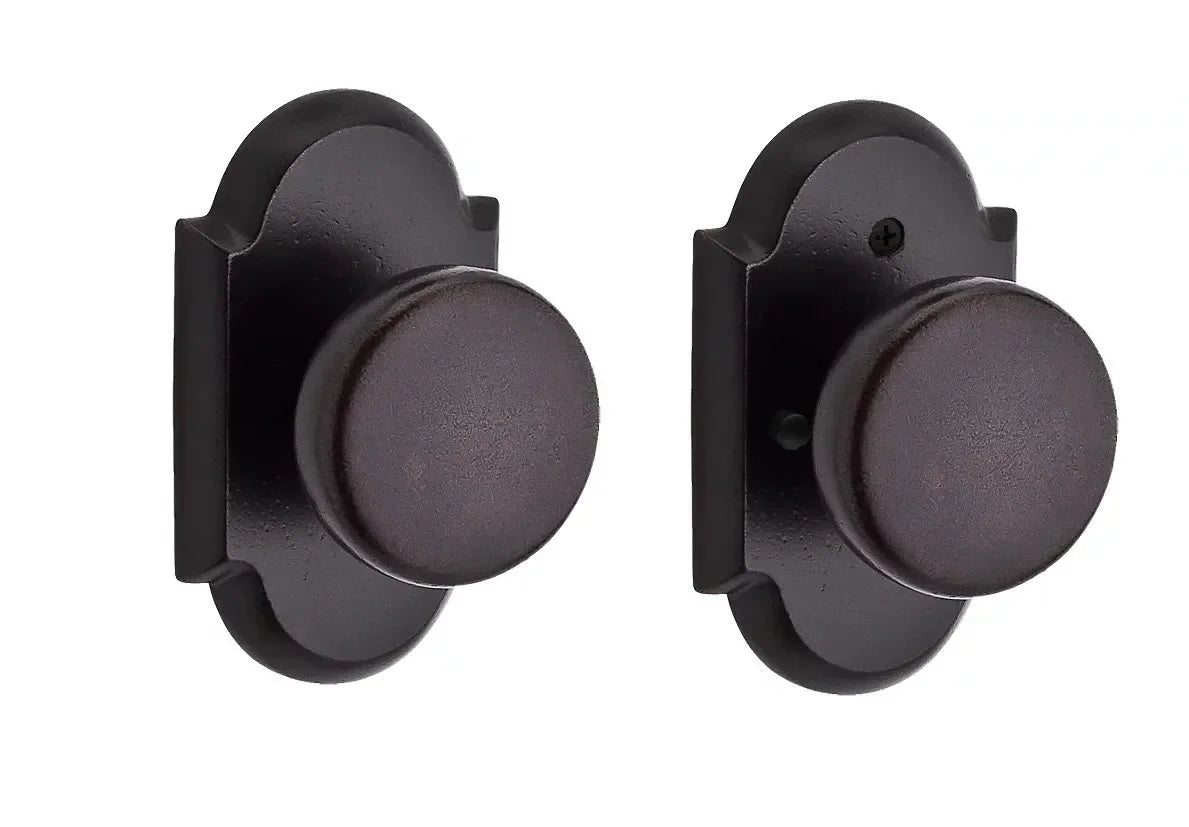

The Baldwin Rustic Knob with Rustic Arch Rosette pairs old-world charm with graceful, arched detailing. Its weathered finish and sturdy construction make it a perfect fit for traditional and rustic-style interiors.
Passage Features
- Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Privacy Features
- Knob set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Handing not required
Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners

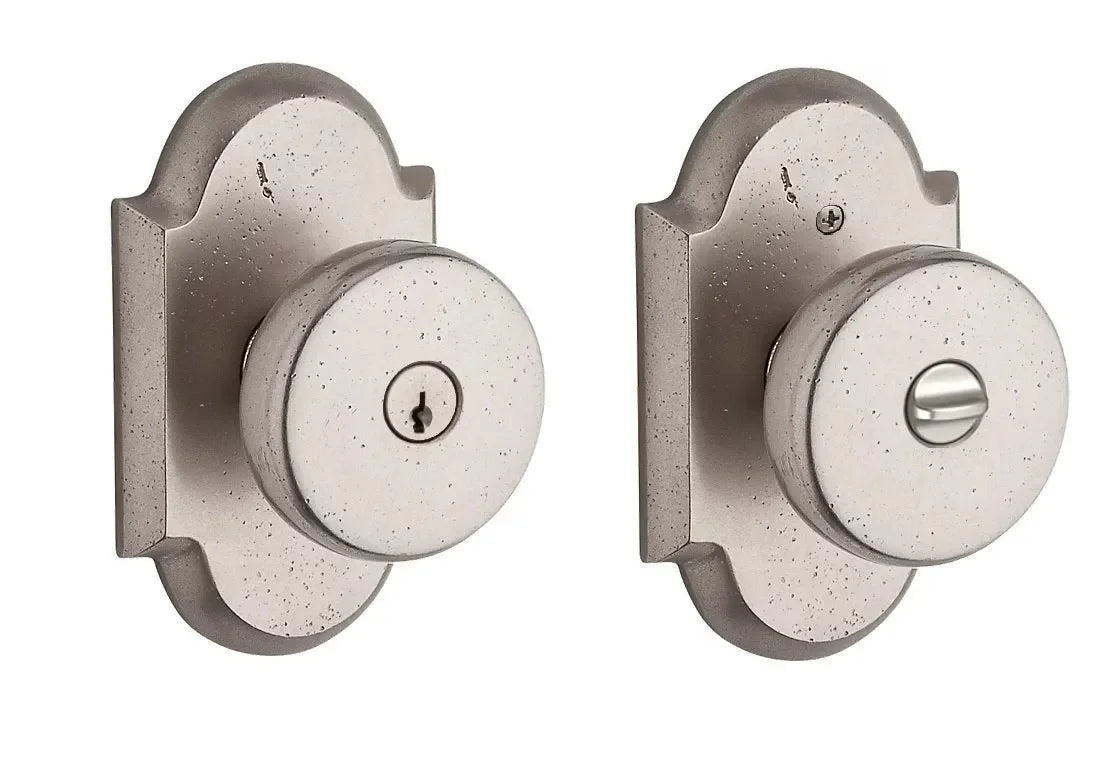

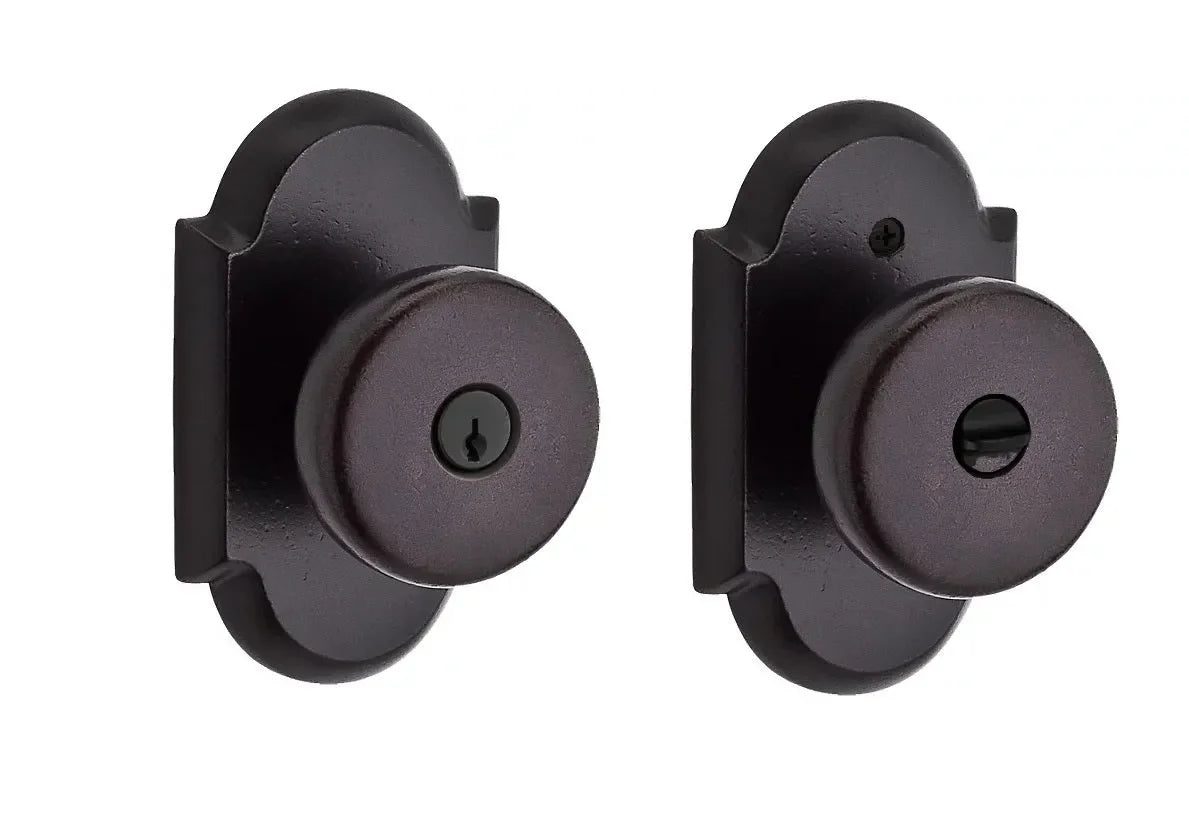

Keyed Entry Features
- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 7/32"
- Keyed Knob Projection: 2 3/16"
- Knob Diameter: 2 11/32"
- Rosette Dimensions: 2 11/16" x 4 1/2"
