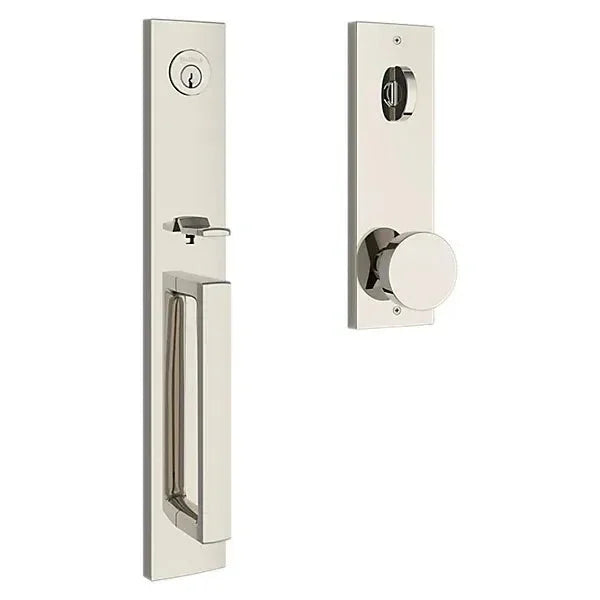

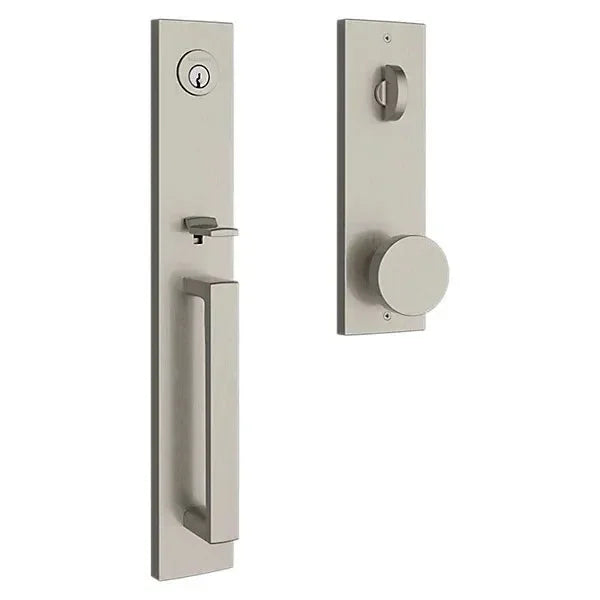

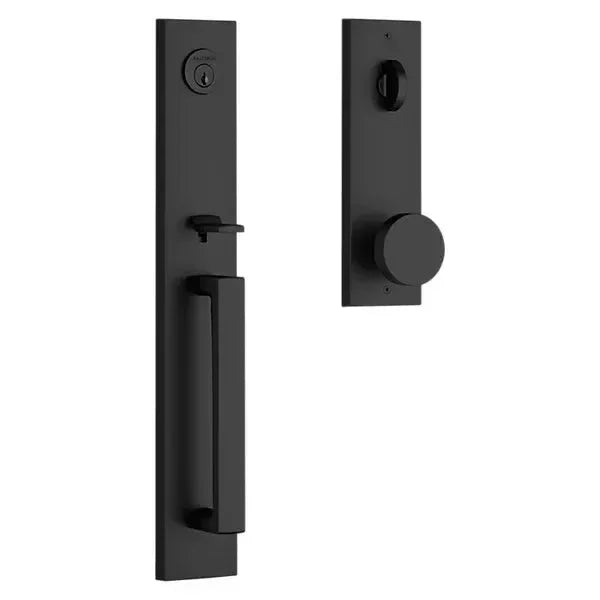

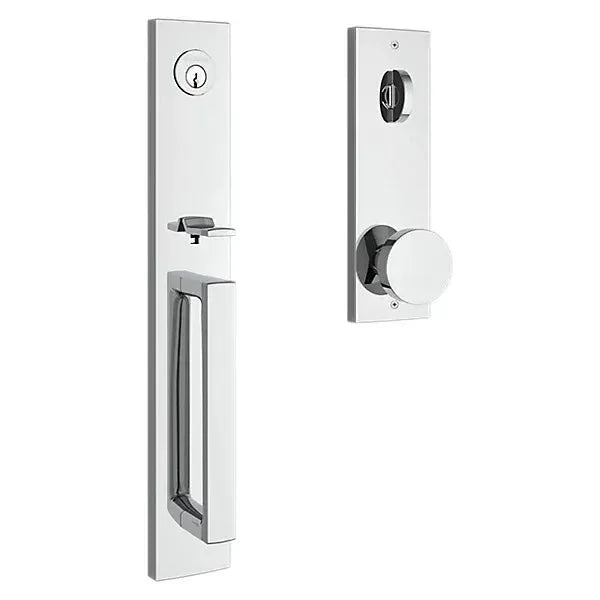

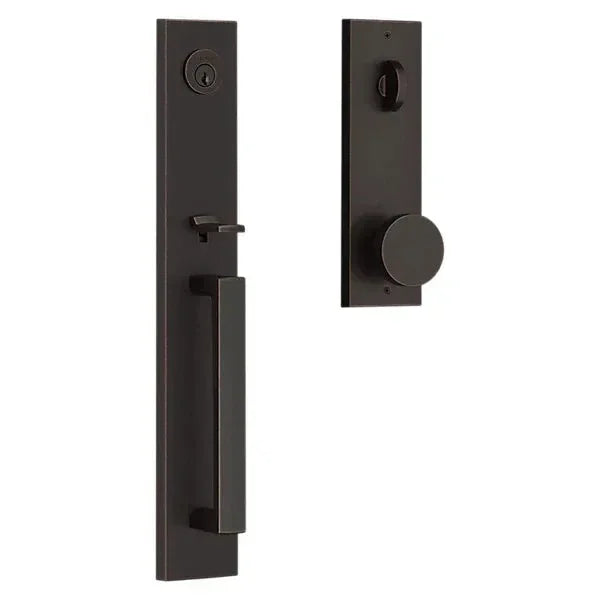

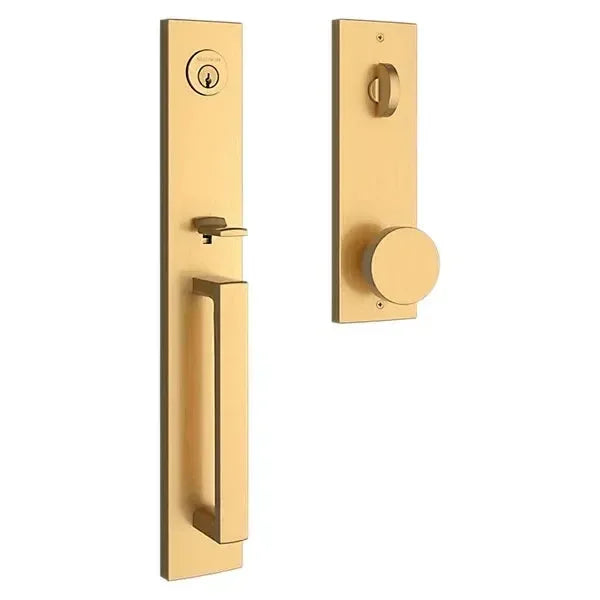

The Baldwin Santa Cruz Handleset with Interior Contemporary Knob and Contemporary Square Escutcheon blends modern architecture with familiar form. The Santa Cruz exterior trim features sleek, vertical lines that complement contemporary entryways. Inside, the contemporary knob offers a smooth, rounded grip that adds comfort and versatility. Paired with a square escutcheon, it maintains a crisp, structured appearance. Crafted with Baldwin’s premium materials, this handleset delivers lasting durability, smooth operation, and secure performance.
Single Cylinder Features
- Contemporary Style Handleset
- Emergency Egress: Handleset which retracts the latchbolt and deadbolt simultaneously when the inside knob/lever is turned. Door will remain unlocked unless locked with a key.
- Handing not required
- Note: Interior roses have exposed fasteners.
Specifications
- Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Cylinder: Baldwin C-Keyway standard.
- Backset: Adjustable 2-3/8” or 2-3/4”
- Front & Latch: 6 Way Adjustable (6L)
- Strike: Dual Strike.
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
- Knob/Lever rotates at 55°- 60°

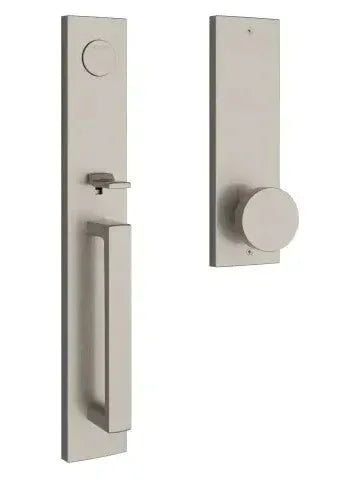

Full Dummy Features

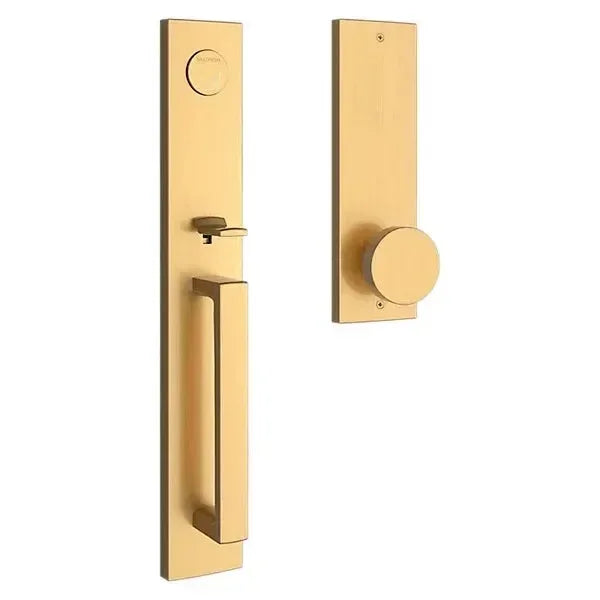

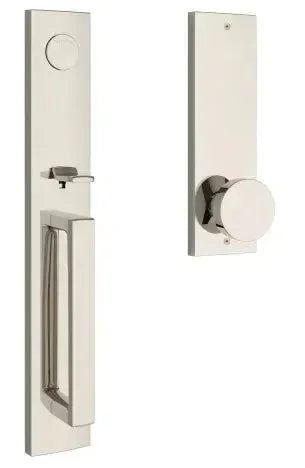

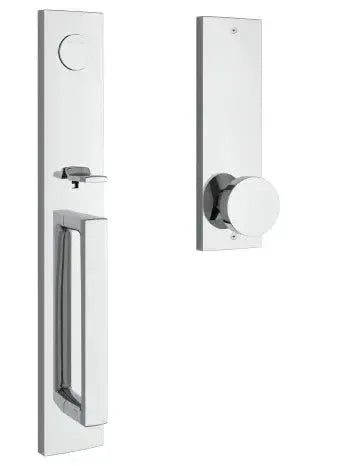

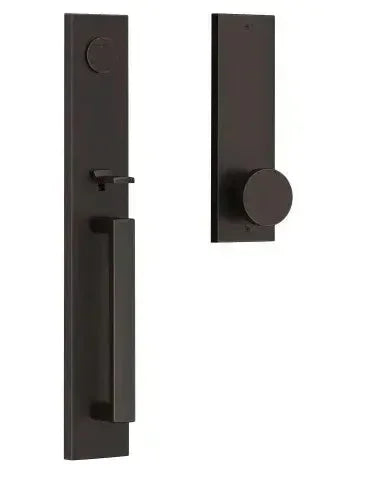

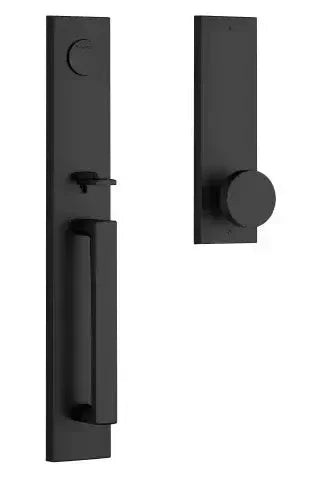

- Dummy handlesets have no latch or locking mechanism but give the appearance of a single cylinder handleset. Typically, dummy handlesets are used as a pull on the inactive side of a double door entry. Pair this with a single cylinder version to make a complete set for a full double door solution. This dummy set comes with both the exterior handleset and the interior.
