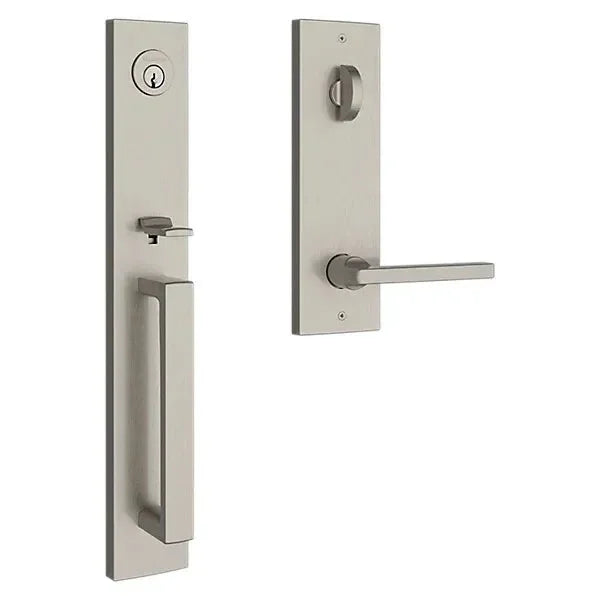

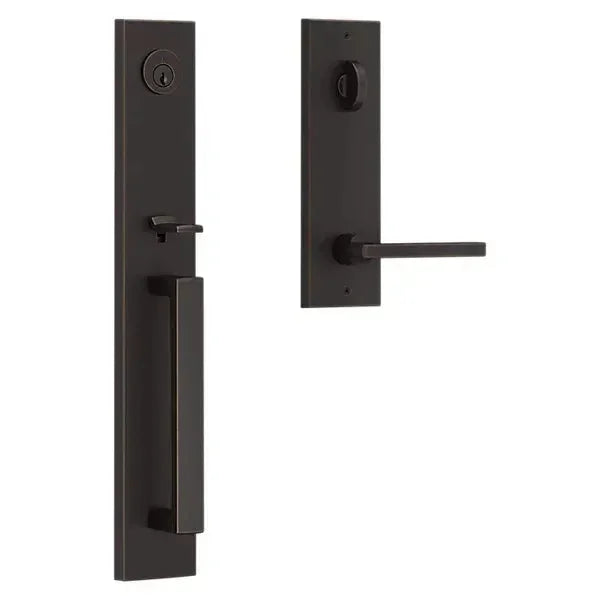

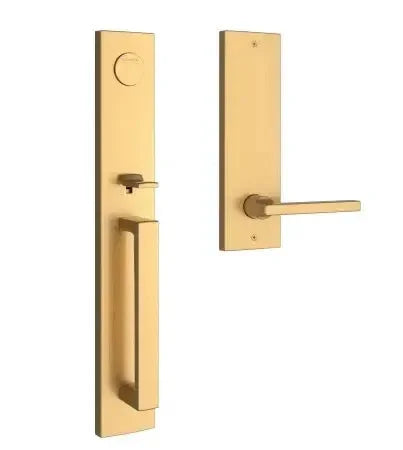

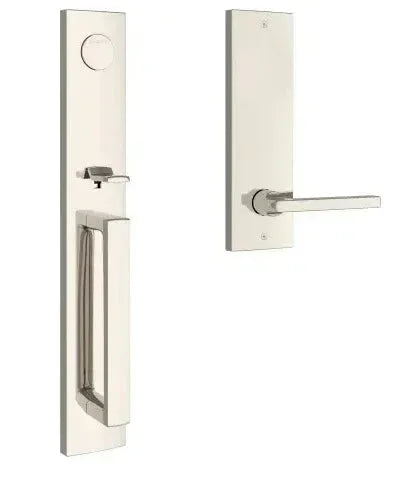

The Baldwin Santa Cruz Handleset with Interior Square Lever and Contemporary Square Escutcheon brings a sleek, modern edge to front door hardware. The Santa Cruz exterior trim features clean, vertical lines that complement contemporary architecture. Inside, the square lever paired with a matching escutcheon reinforces a crisp, geometric design. Built with Baldwin’s premium materials, this handleset delivers smooth operation and long-lasting durability. Ideal for modern homes and updated exteriors, it offers secure performance with a bold, design-forward aesthetic.

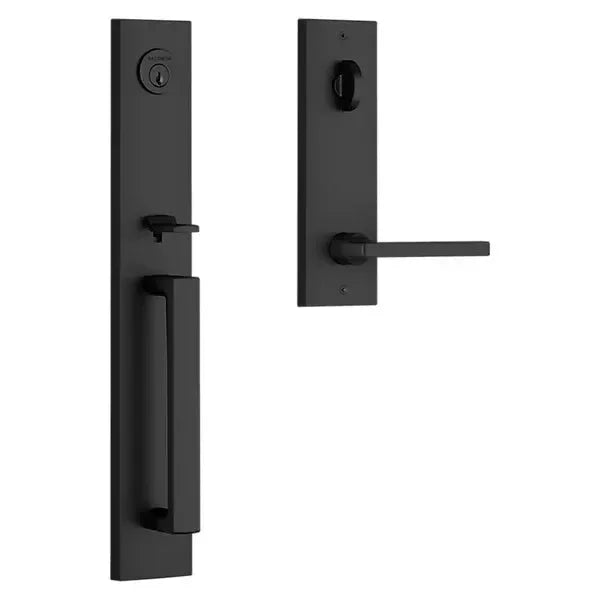

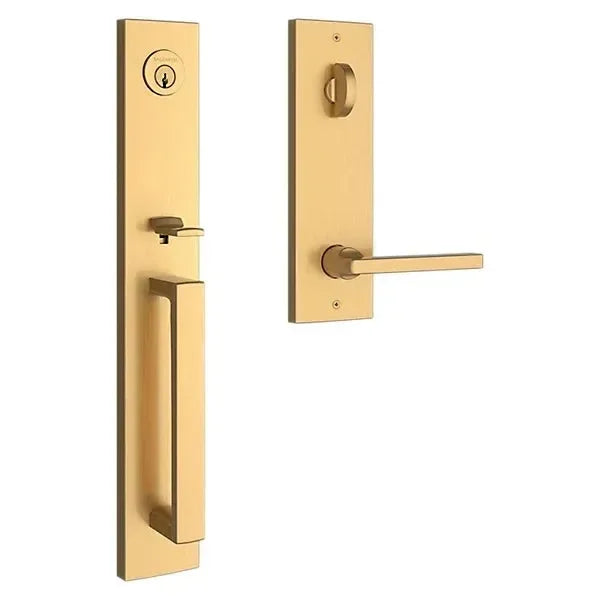

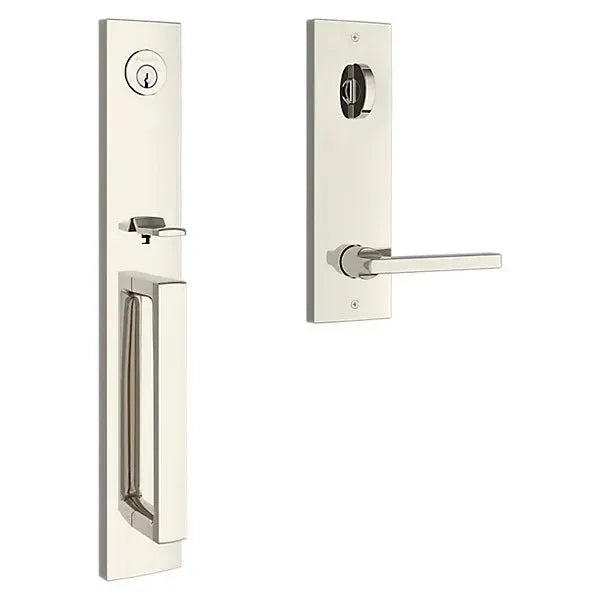

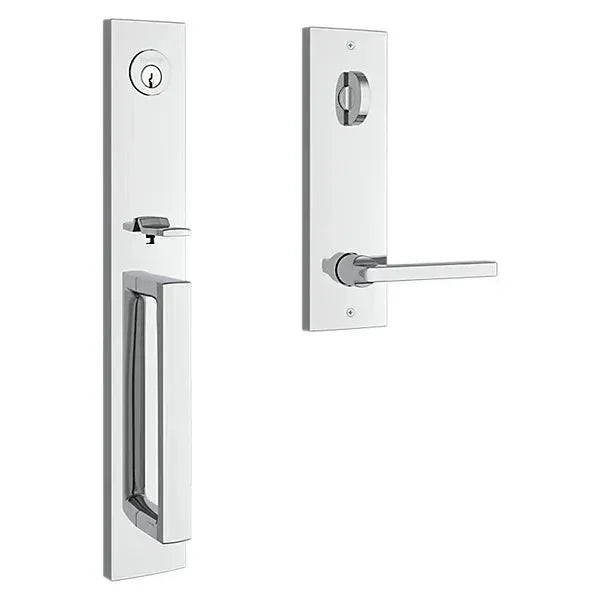

Single Cylinder Features
- Contemporary Style Handleset
- Emergency Egress: Handleset which retracts the latchbolt and deadbolt simultaneously when the inside knob/lever is turned. Door will remain unlocked unless locked with a key.
- Reversible Handing
- Note: Interior roses have exposed fasteners.
Specifications
- Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Cylinder: Baldwin C-Keyway standard.
- Backset: Adjustable 2-3/8” or 2-3/4”
- Front & Latch: 6 Way Adjustable (6L)
- Strike: Dual Strike.
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
- Knob/Lever rotates at 55°- 60°

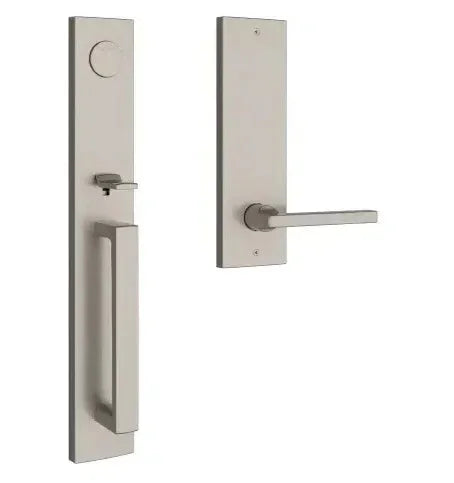

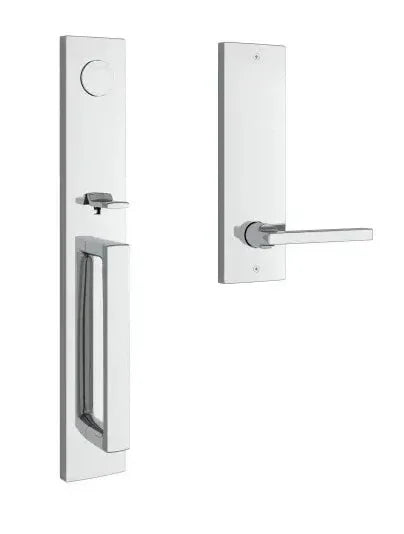

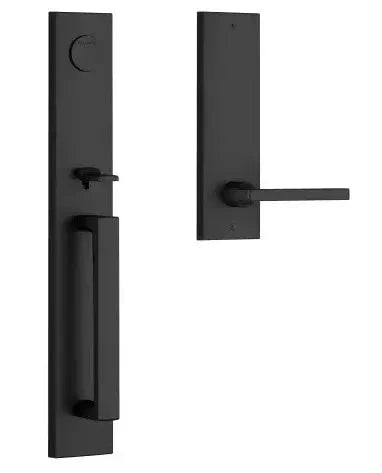

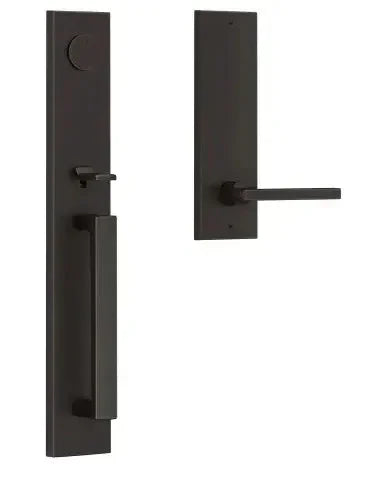

Full Dummy Features
- Dummy handlesets have no latch or locking mechanism but give the appearance of a single cylinder handleset. Typically, dummy handlesets are used as a pull on the inactive side of a double door entry. Pair this with a single cylinder version to make a complete set for a full double door solution. This dummy set comes with both the exterior handleset and the interior.
