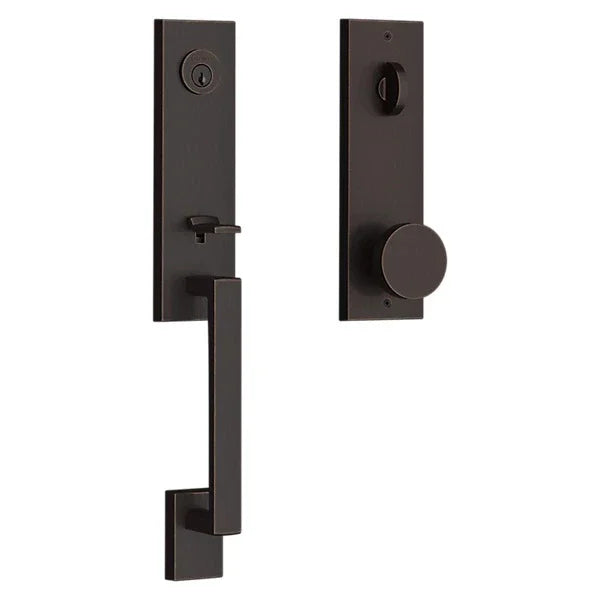

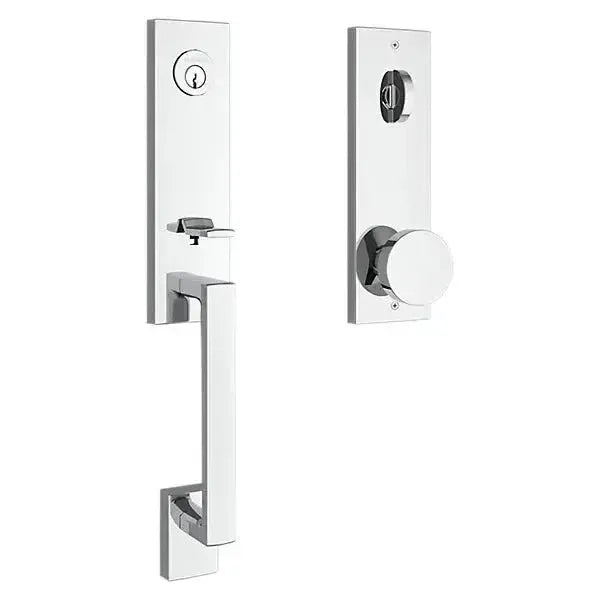

Emergency Egress: Handleset which retracts the latchbolt and deadbolt simultaneously when the inside knob/lever is turned. Door will remain unlocked unless locked with a key.
Handing not required
Note: Interior roses have exposed fasteners.
Specifications
Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
Cylinder: Baldwin C-Keyway standard.
Backset: Adjustable 2-3/8” or 2-3/4”
Front & Latch: 6 Way Adjustable (6L)
Strike: Dual Strike.
Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
Knob/Lever rotates at 55°- 60°

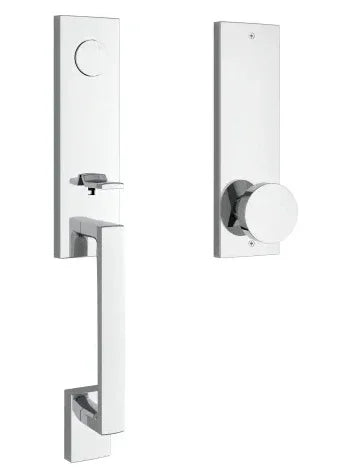

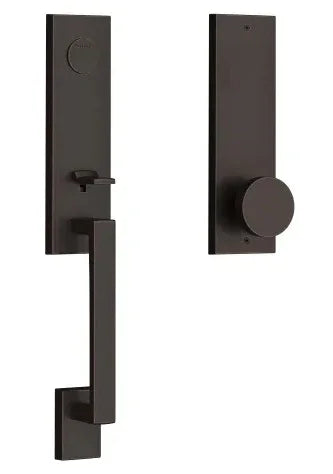

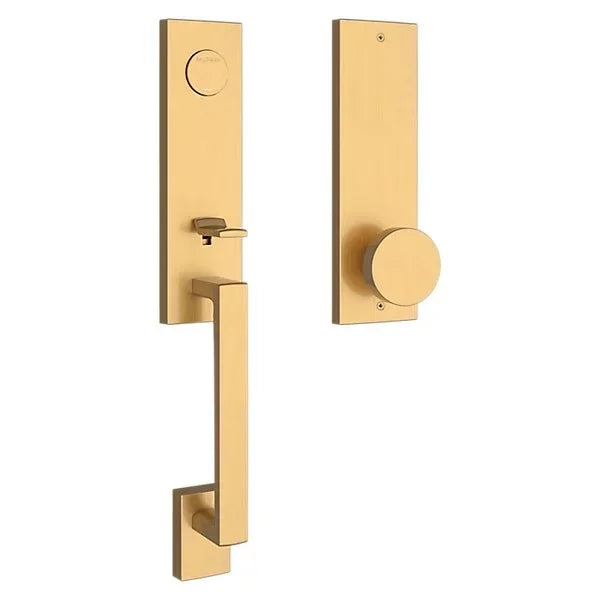

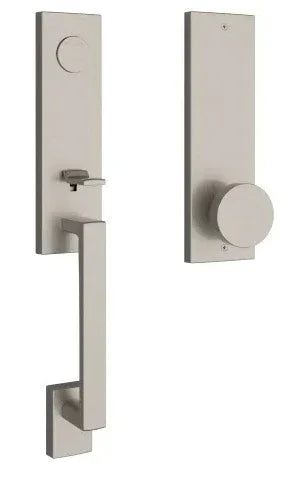

Full Dummy Features

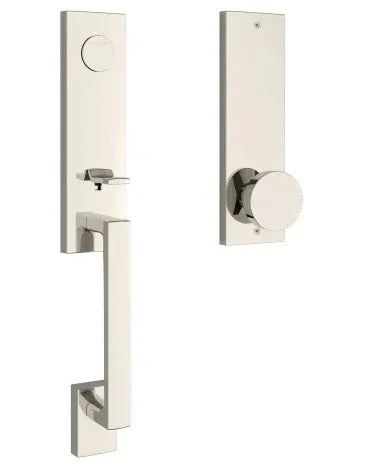

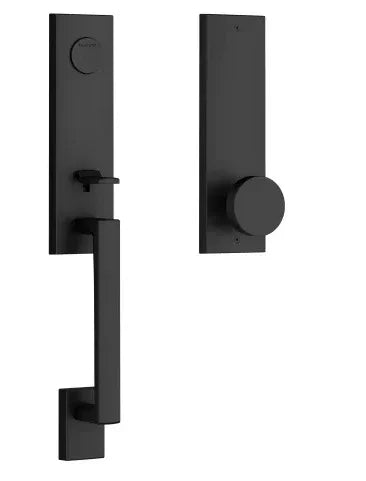

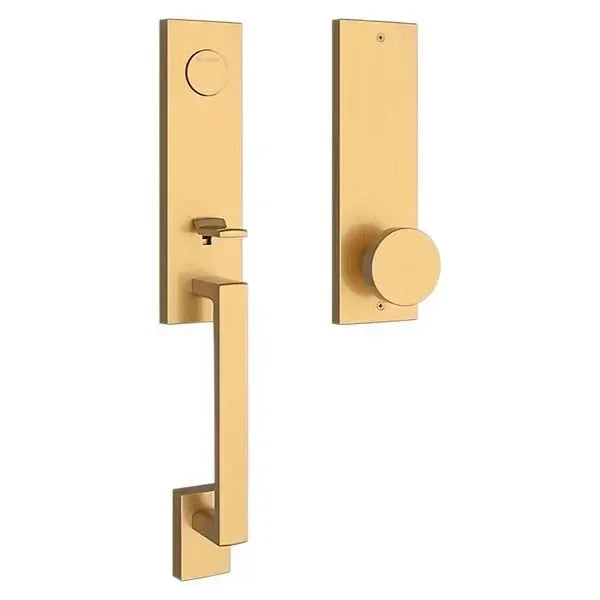

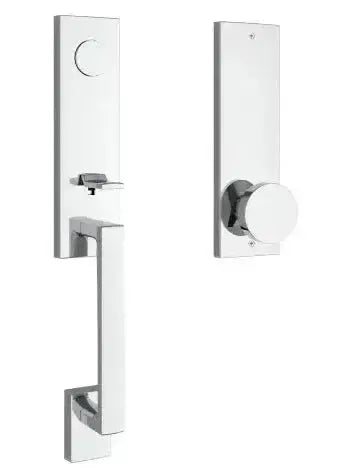

Dummy handlesets have no latch or locking mechanism but give the appearance of a single cylinder handleset. Typically, dummy handlesets are used as a pull on the inactive side of a double door entry. Pair this with a single cylinder version to make a complete set for a full double door solution. This dummy set comes with both the exterior handleset and the interior.
