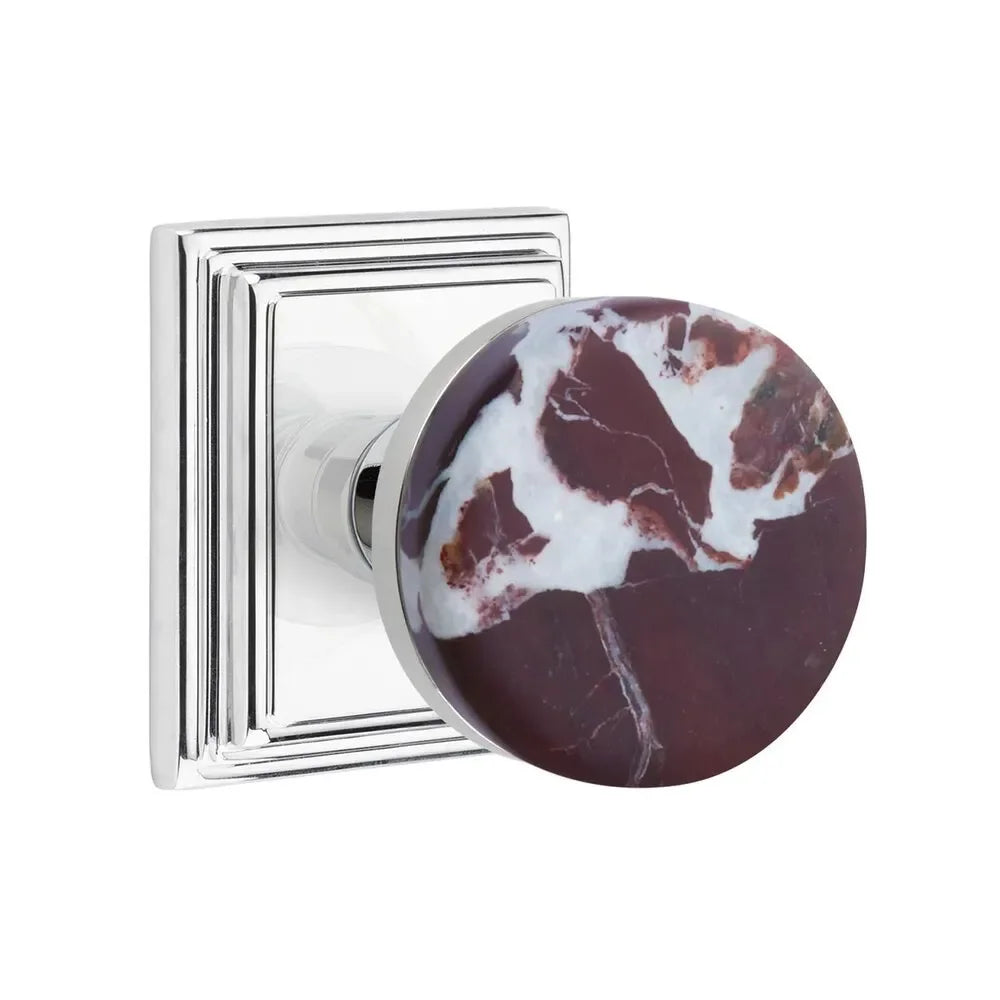

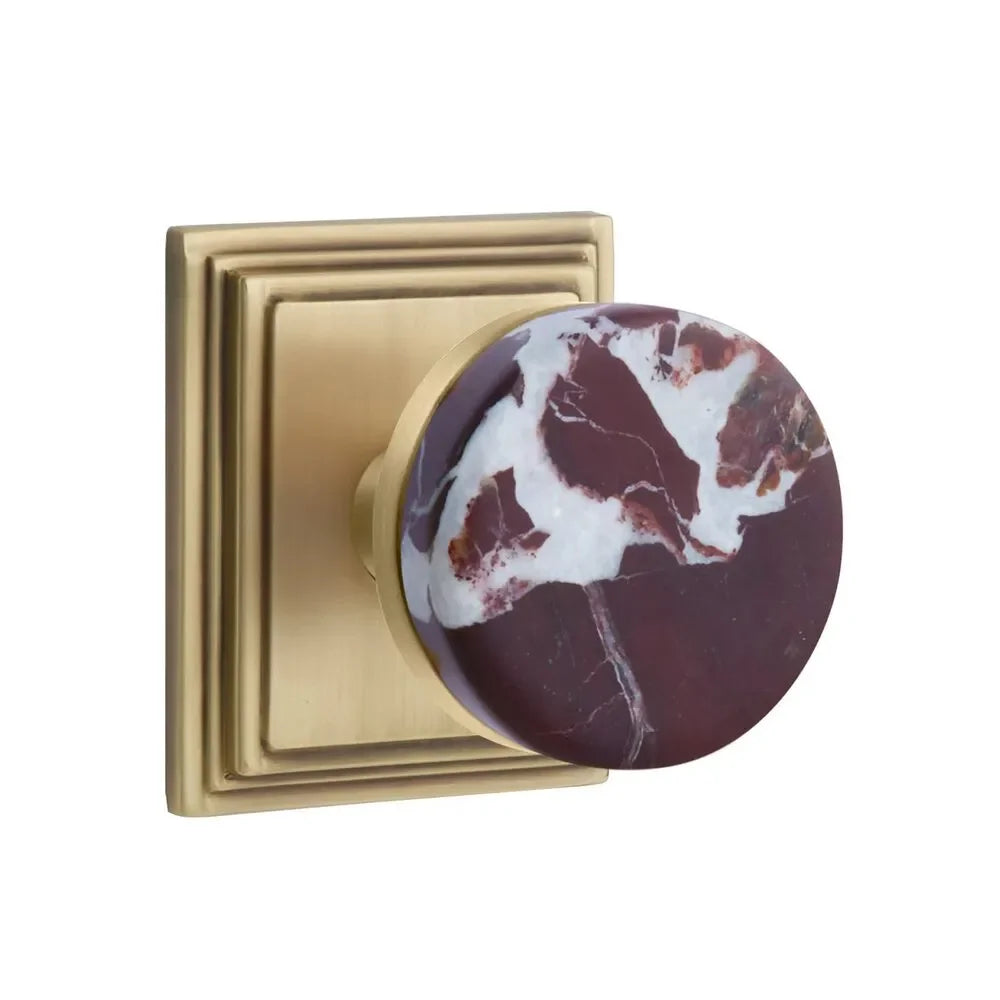

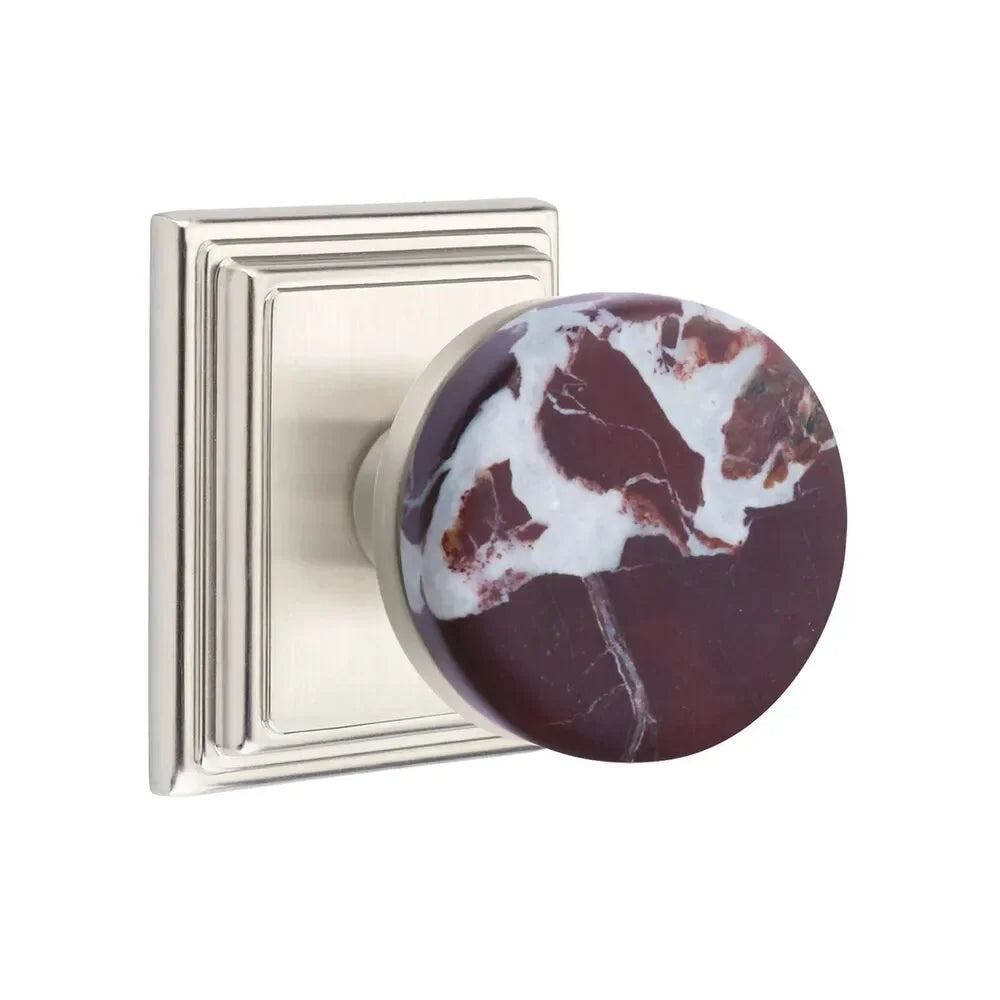

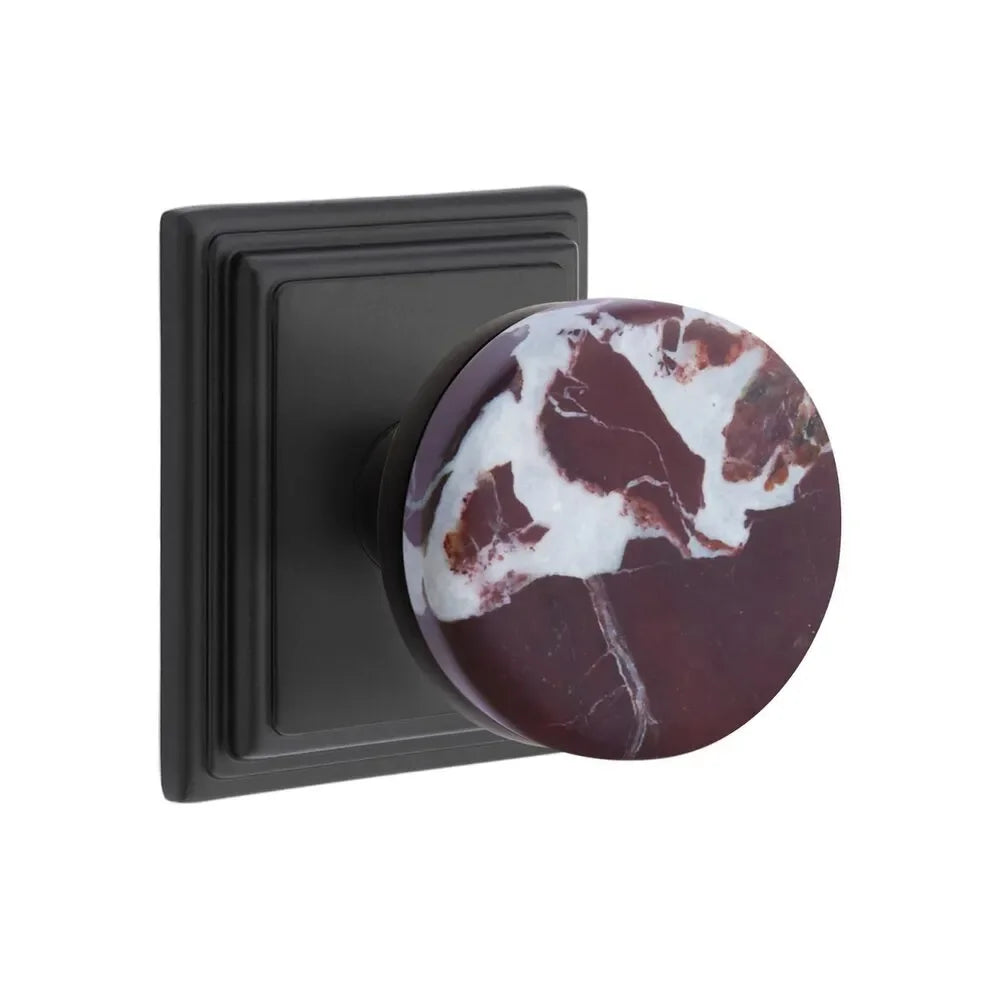

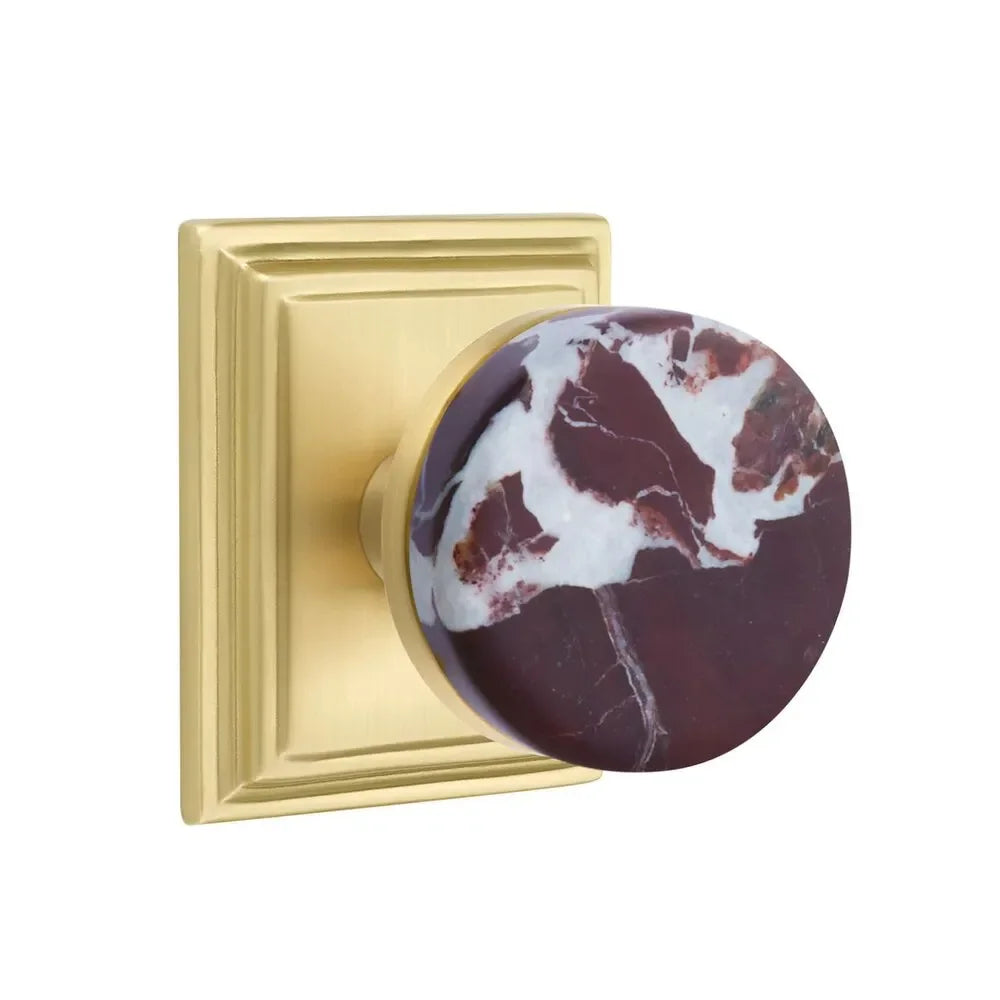

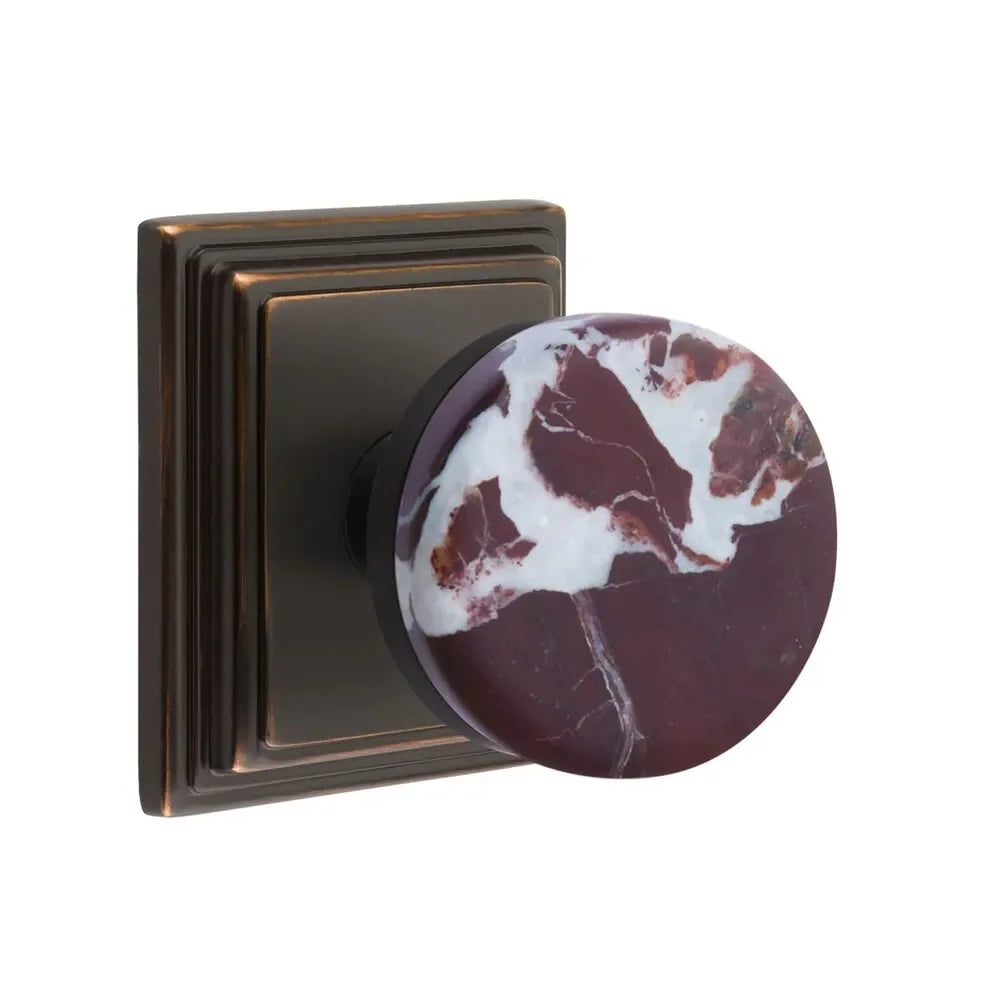

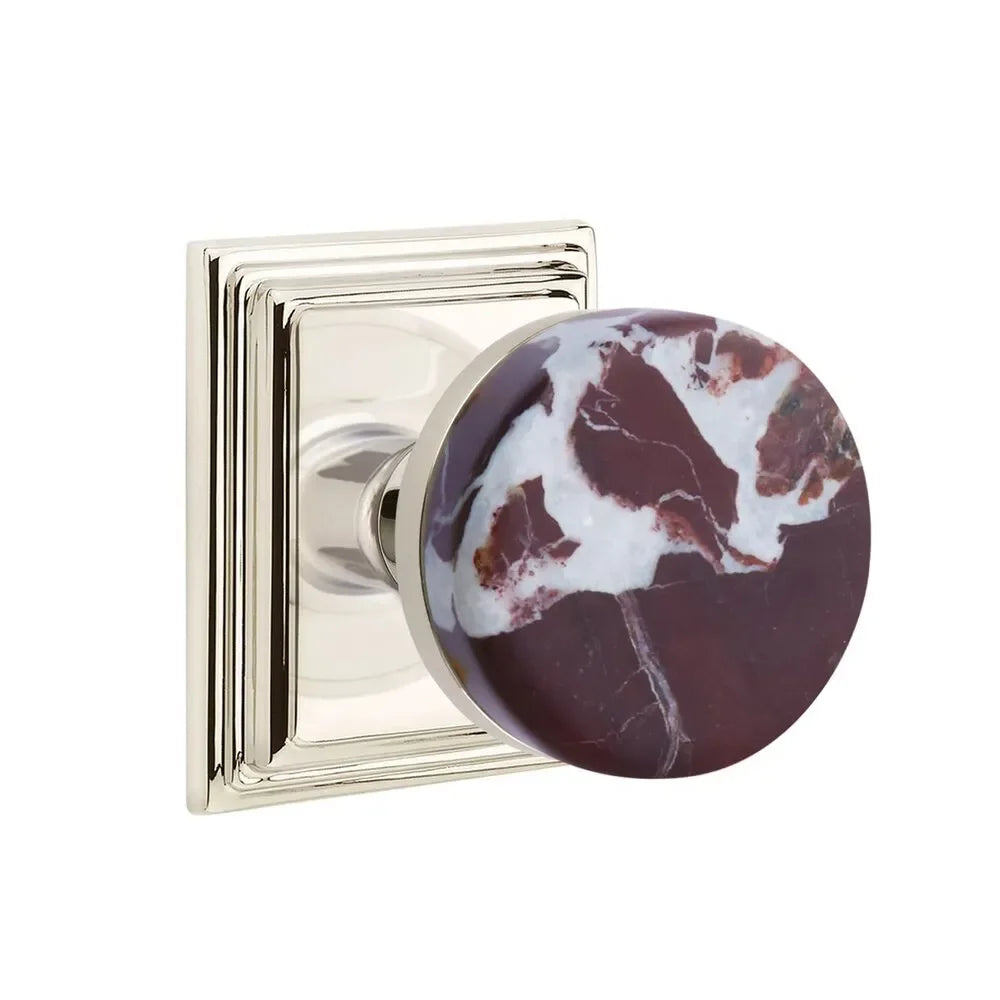

Luxurious natural stone pairs with classic decorative hardware in this elegant knobset designed for traditional interiors. The Conical design features genuine Rosso Levanto marble with distinctive red and white veining shaped into a refined tapered form, mounted on traditional Wilshire rosettes. Emtek's superior craftsmanship ensures each piece showcases unique marble patterns and timeless quality construction, available in multiple finish options.
Specifications
- Knob Diameter: 2 1/4"
- Projection: 2 1/4"
- Wilshire Rosette Dimensions: 2 1/2" x 3" x 7/16"
Passage Features
- Passage knobs do not have an internal locking mechanism. To be paired with a deadbolt for an exterior door, or on an interior door that doesn't require privacy. Great for a walk-in linen closet.
- Handing Not Required
- Backset: Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required
- Complete set includes standard rotation latch, strike plate and dust box. Specify Drive-in latch if required.
- Latches come standard with square corner strike and face plates. Specify radius corners if required.
- Fits doors between 1-1/4” to 2" thick with a 2-1/8" bore standard door prep
Privacy Features
- Privacy knobs include a locking mechanism, usually in the form of a small push pin lock on the side of the knob. Perfect for use on bedroom and bathroom doors where locking is needed.
- Handing Not Required
- Backset: Standard latch is for 2 3/8” backset. Specify 2 3/4” backset if required
- Complete set includes standard rotation latch, strike plate and dust box. Specify Drive-in latch if required.
- Latches come standard with square corner strike and face plates. Specify radius corners if required.
- Fits doors between 1-1/4” to 2" thick with a 2-1/8" bore standard door prep
Dummy Features
- Dummy sets have no latch and require no bore hole. They are surface mounted to the door and have no visible screws on the rosettes.
- Often used in conjunction with a passage or privacy set for double or french doors.
- This is a dummy "set" so it comes with both the interior and exterior handles.
- Door Thickness: Standard Door Thickness: 1 3/8”- 2”
Concealed Fastener Features
- Concealed Fastener Mechanism provides a clean look with no visible screws on the rosettes.
- Handing not required
- Door thickness for CF Mechanism is 1 3/8” to 1 3/4”. Specify if thicker
- Knobset supplied with standard rotation latch and dustbox
