Description

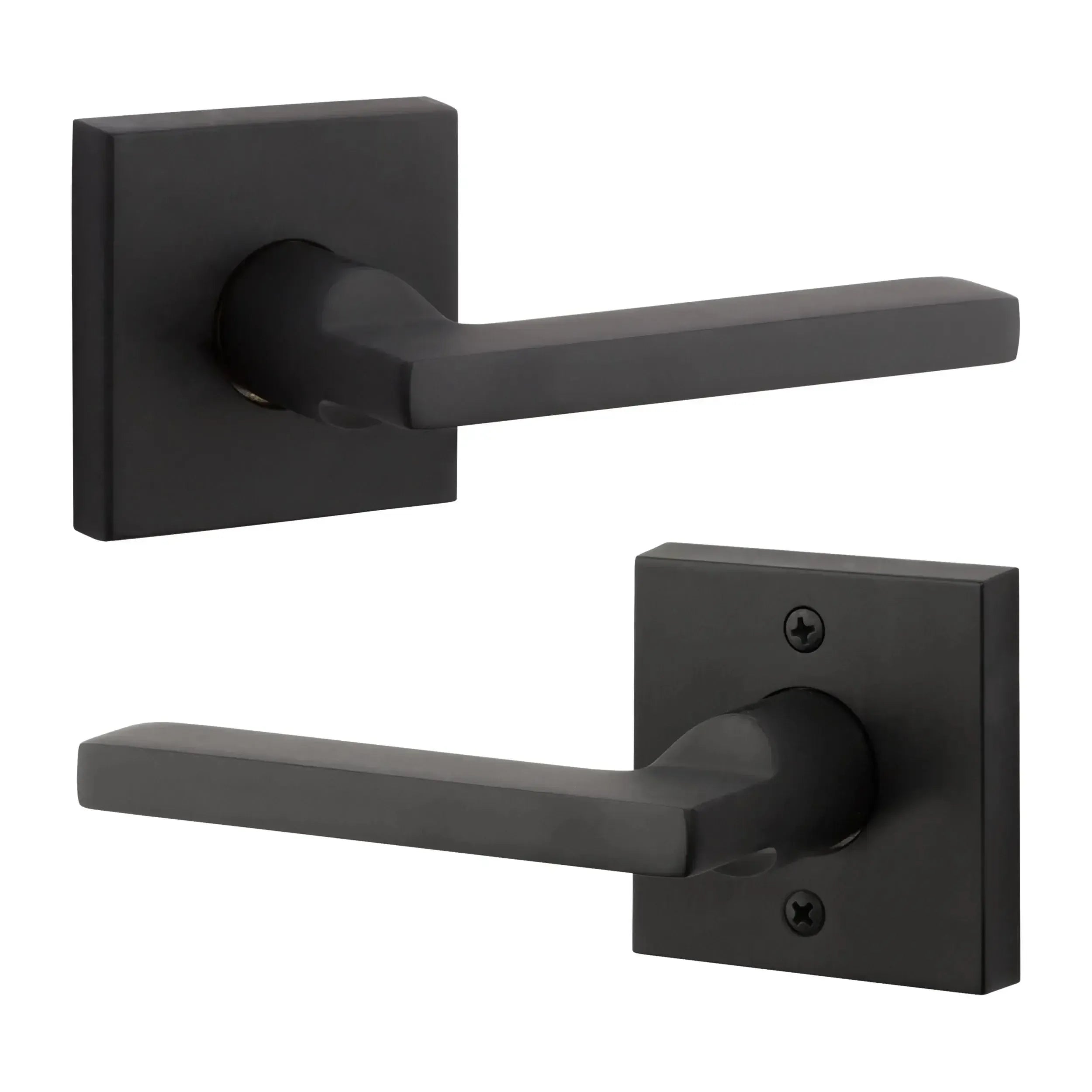

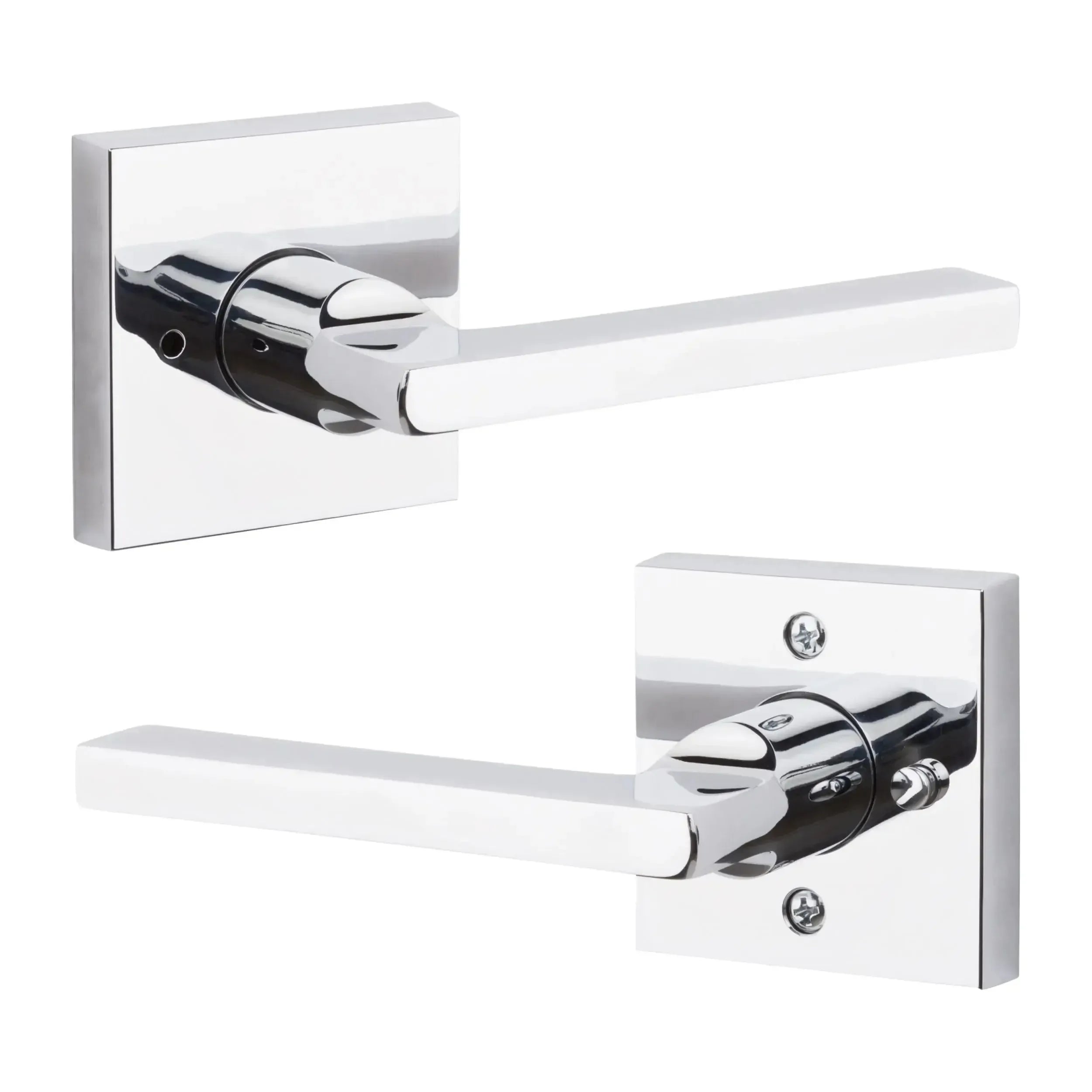

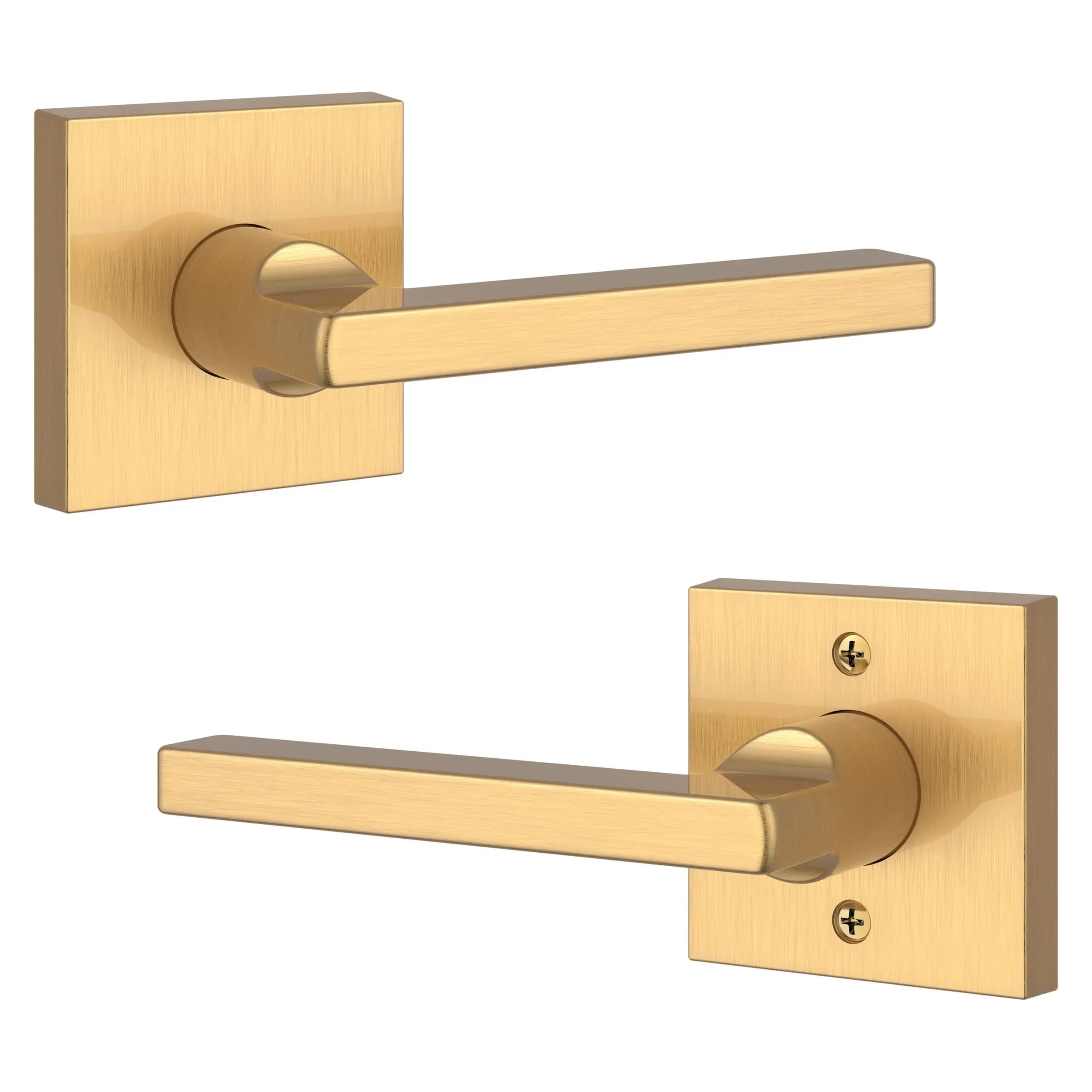

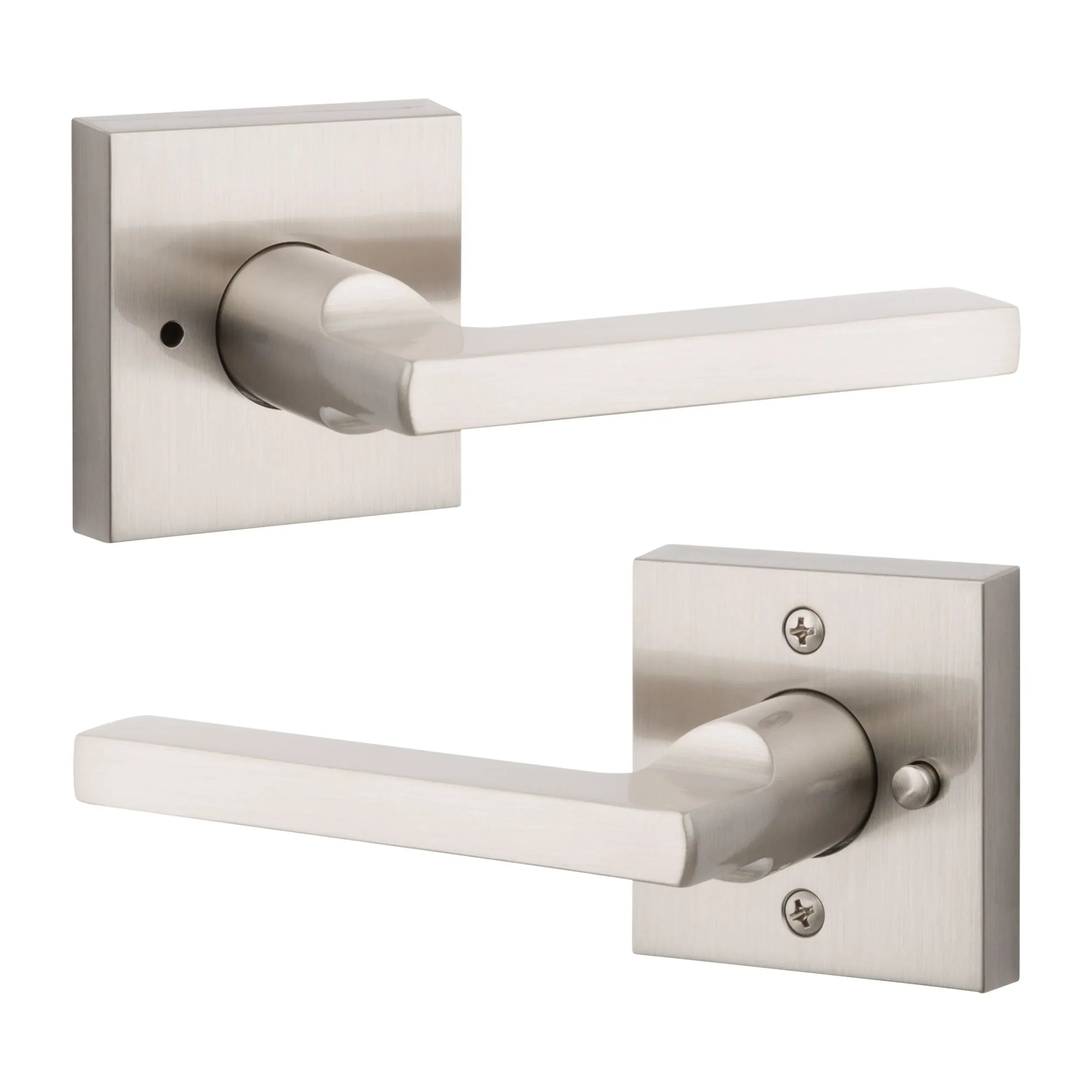

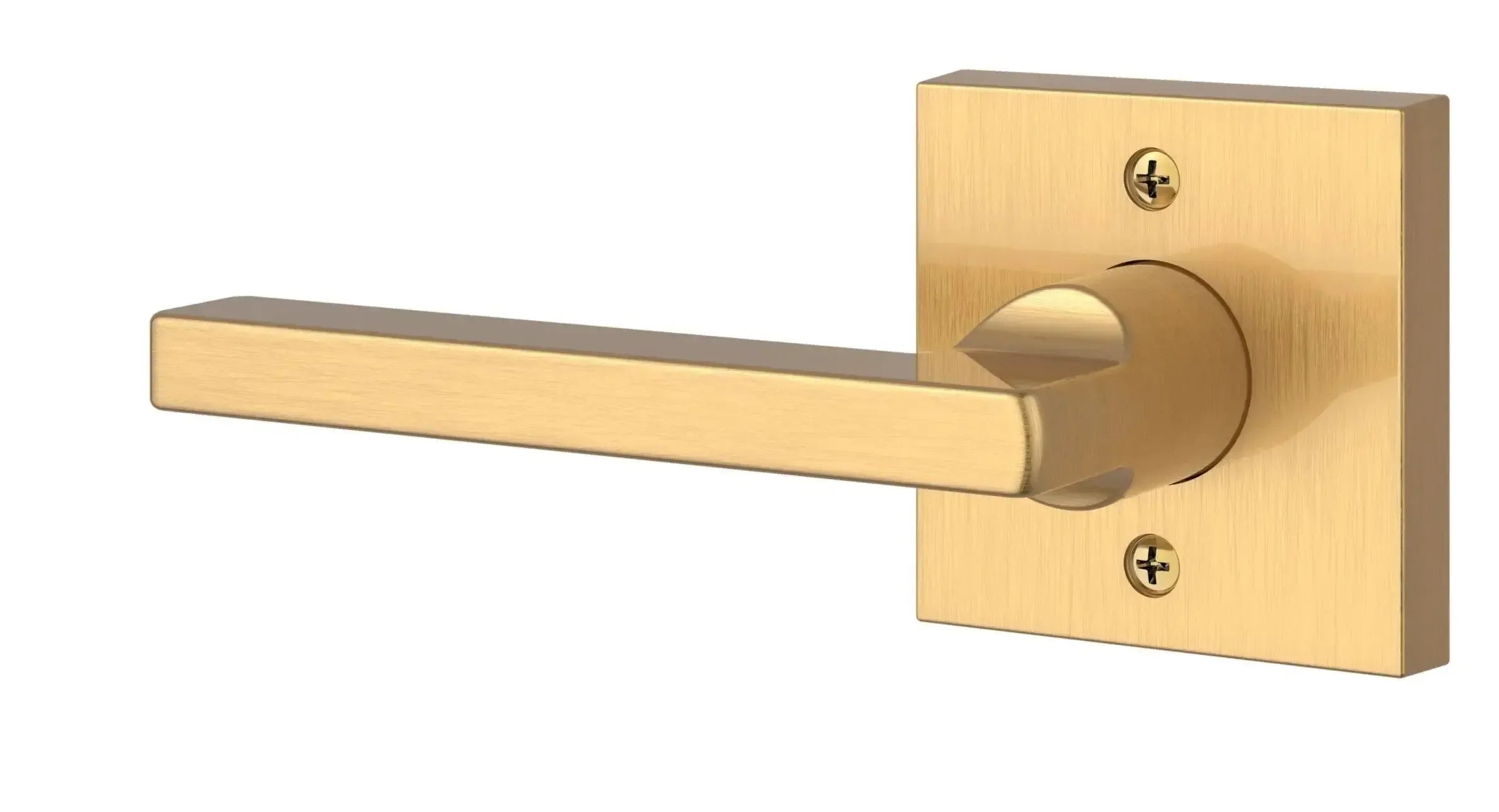

The Baldwin Reserve Square Lever with Contemporary Square Rosette offers a bold, modern aesthetic that enhances any interior space. Crafted from solid forged brass, this lever set ensures durability and a premium feel. Its spring-assisted chassis allows for smooth operation and easy installation, fitting standard 2-1/8" cross bore and 1" edge bore door preparations. Available in functions such as passage, privacy, keyed entry, and dummy, it accommodates various door requirements. The adjustable backset fits both 2-3/8" and 2-3/4" pre-bored doors and suits door thicknesses from 1-3/8" to 2", with options for thicker doors using service part kits. Finishes like Satin Nickel, Polished Chrome, Satin Black, and Venetian Bronze allow for customization to match any décor. With its fusion of sharp lines and refined curves, the Baldwin Reserve Square Lever with Contemporary Square Rosette offers a sophisticated touch to any space.

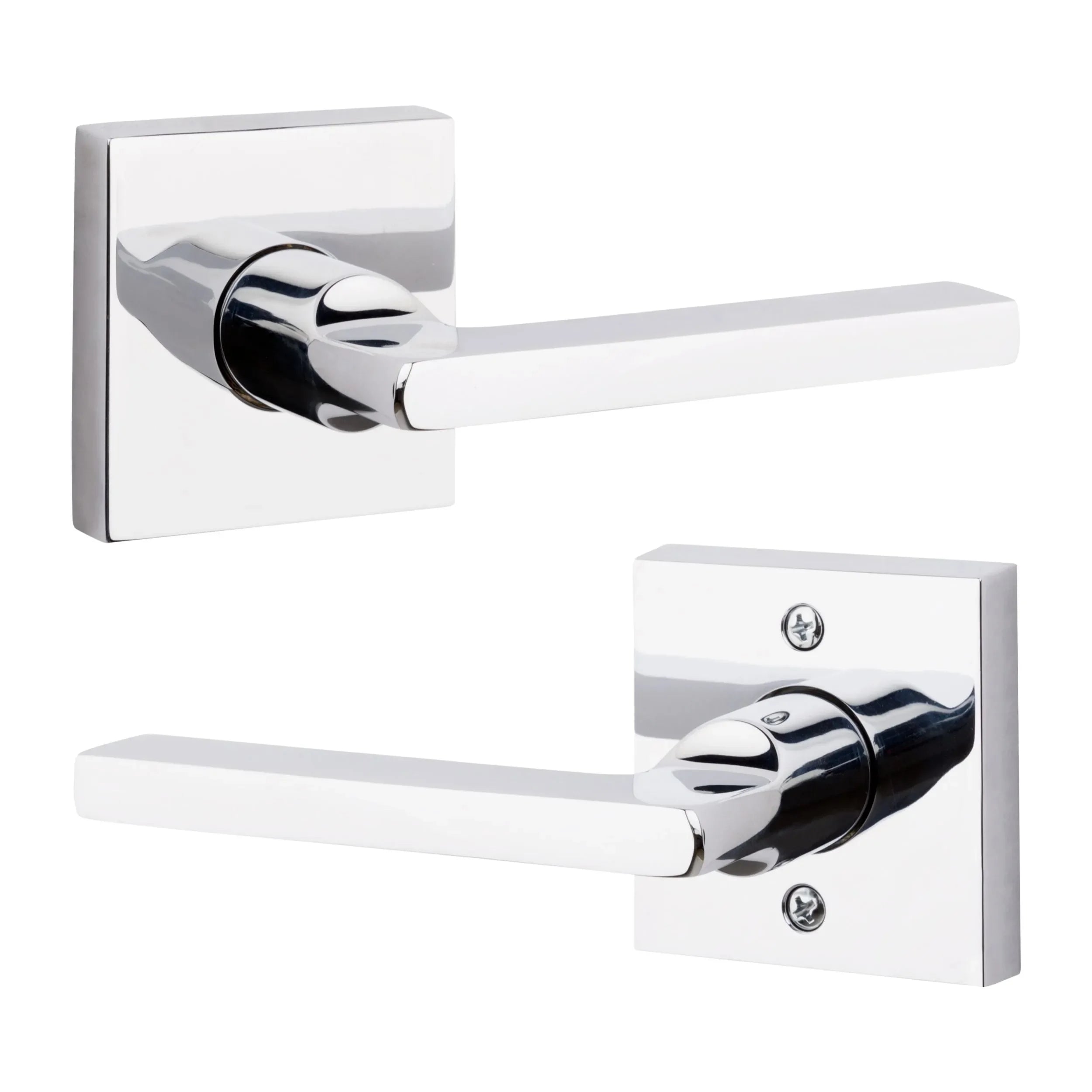

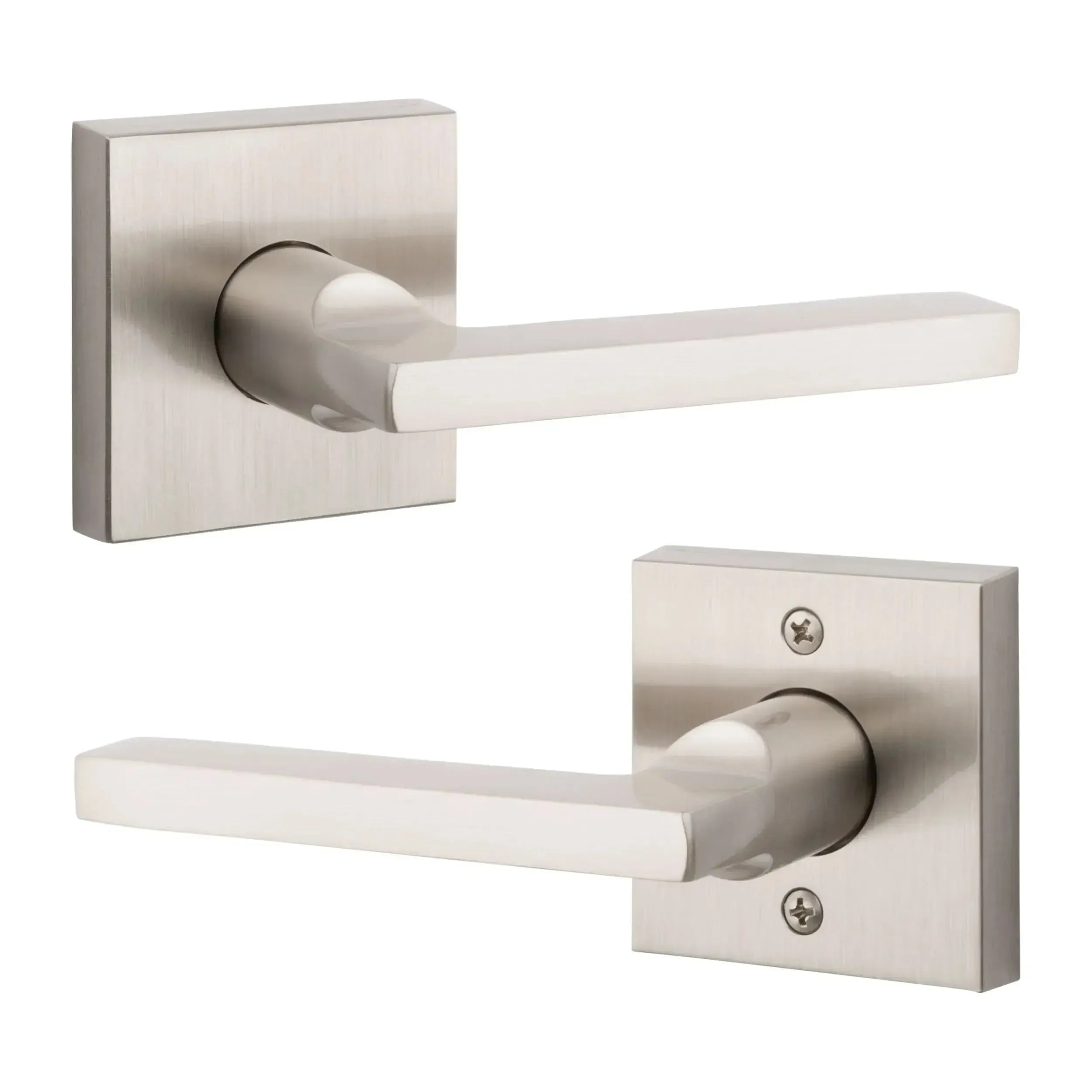

Passage Features

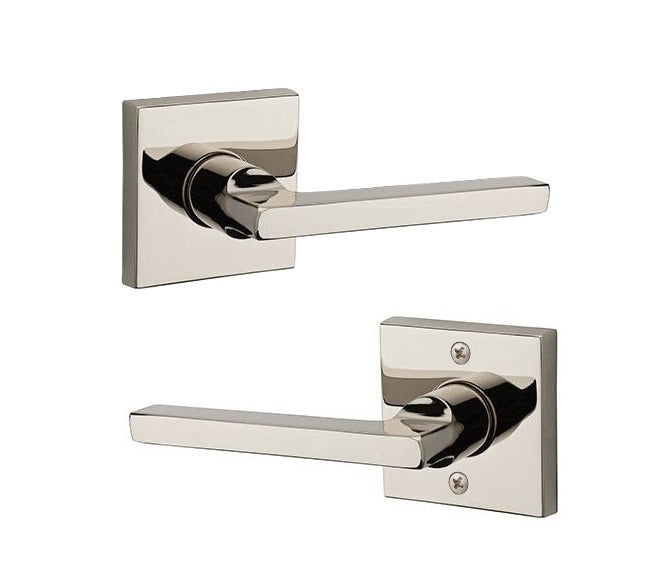

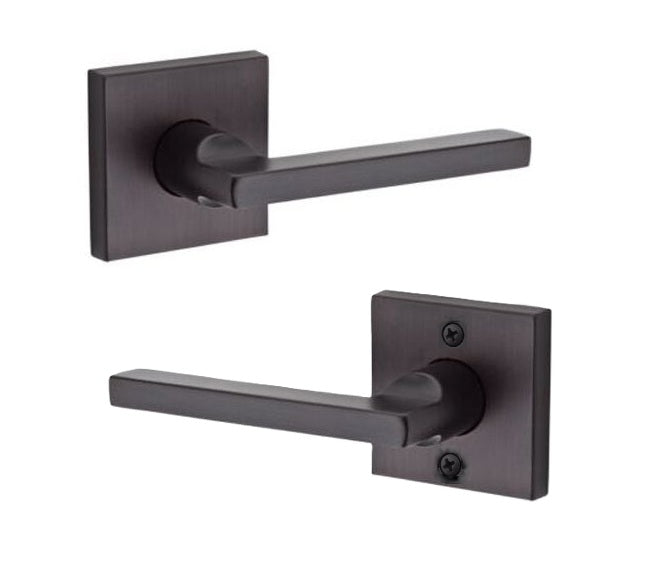

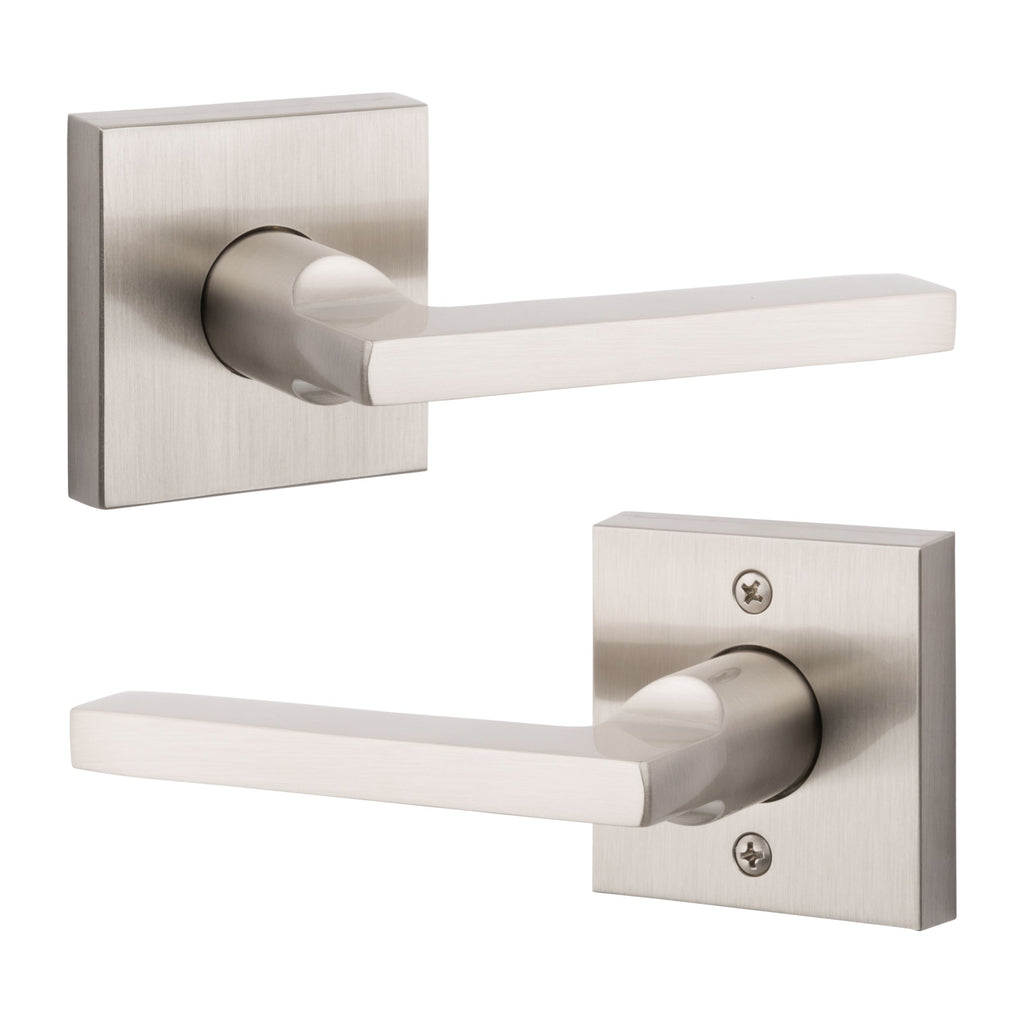

- Lever set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

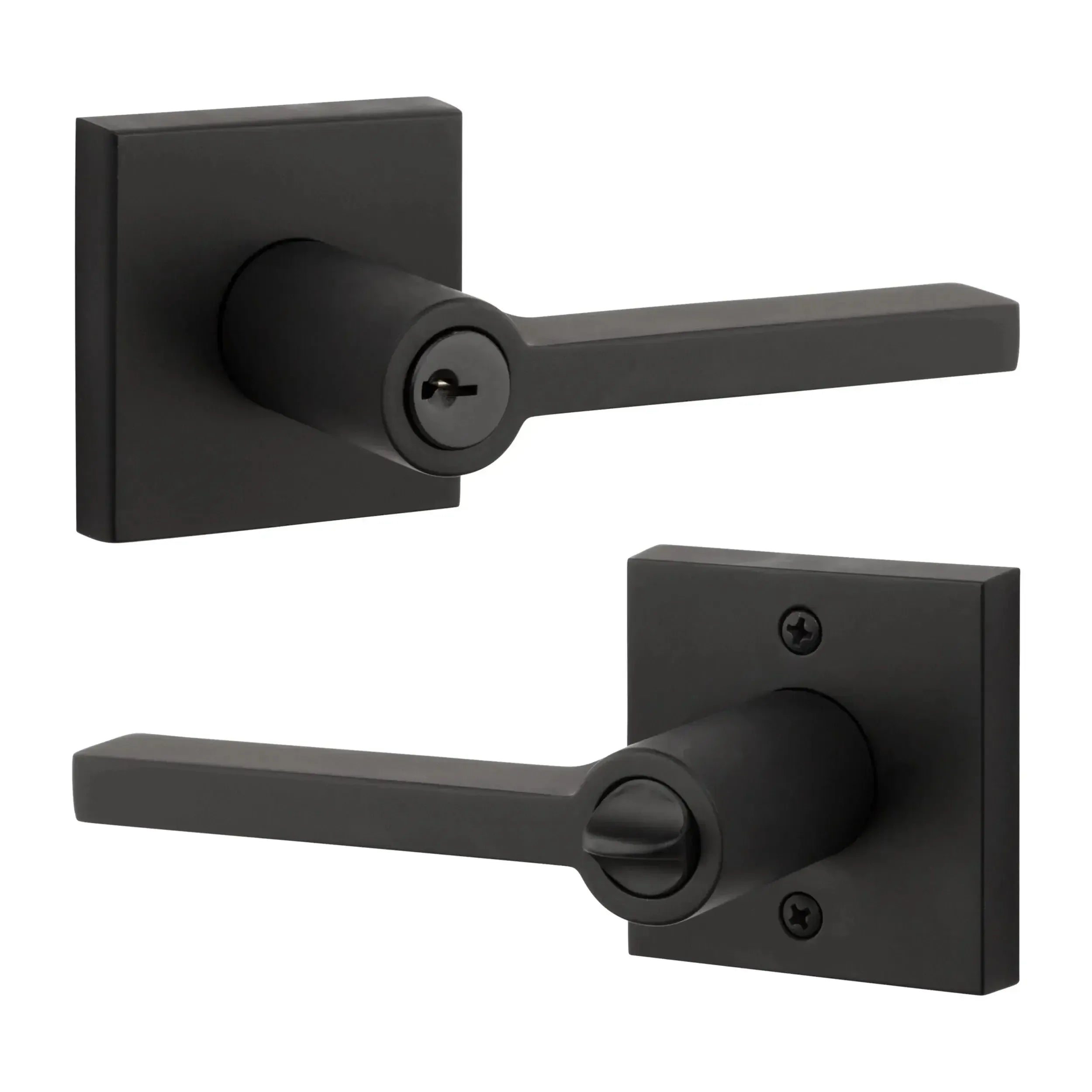

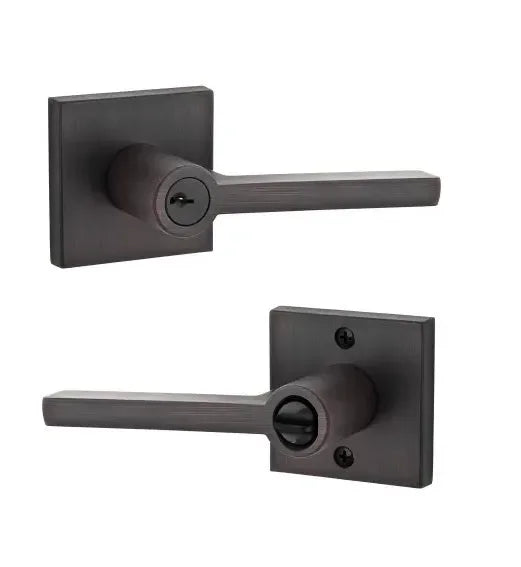

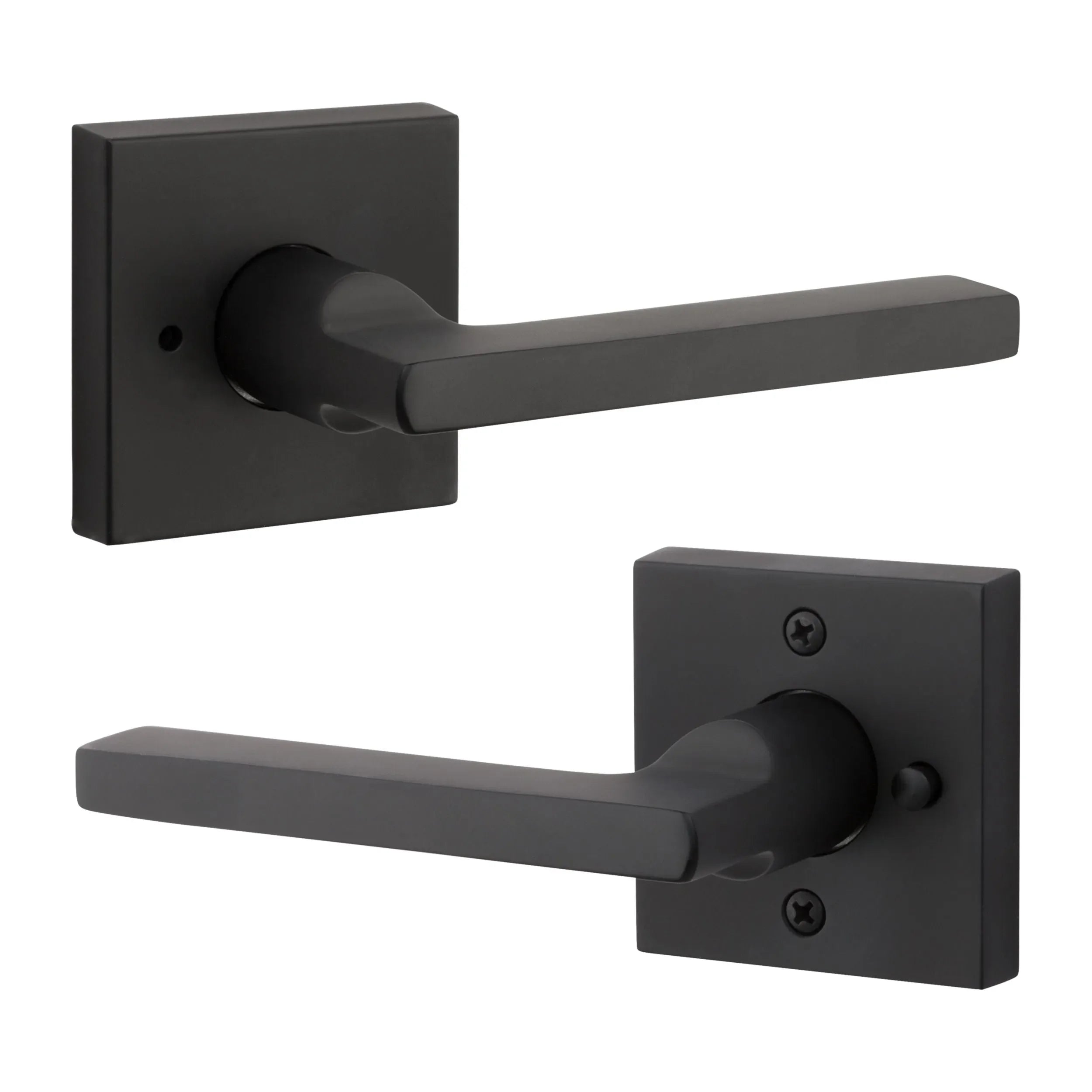

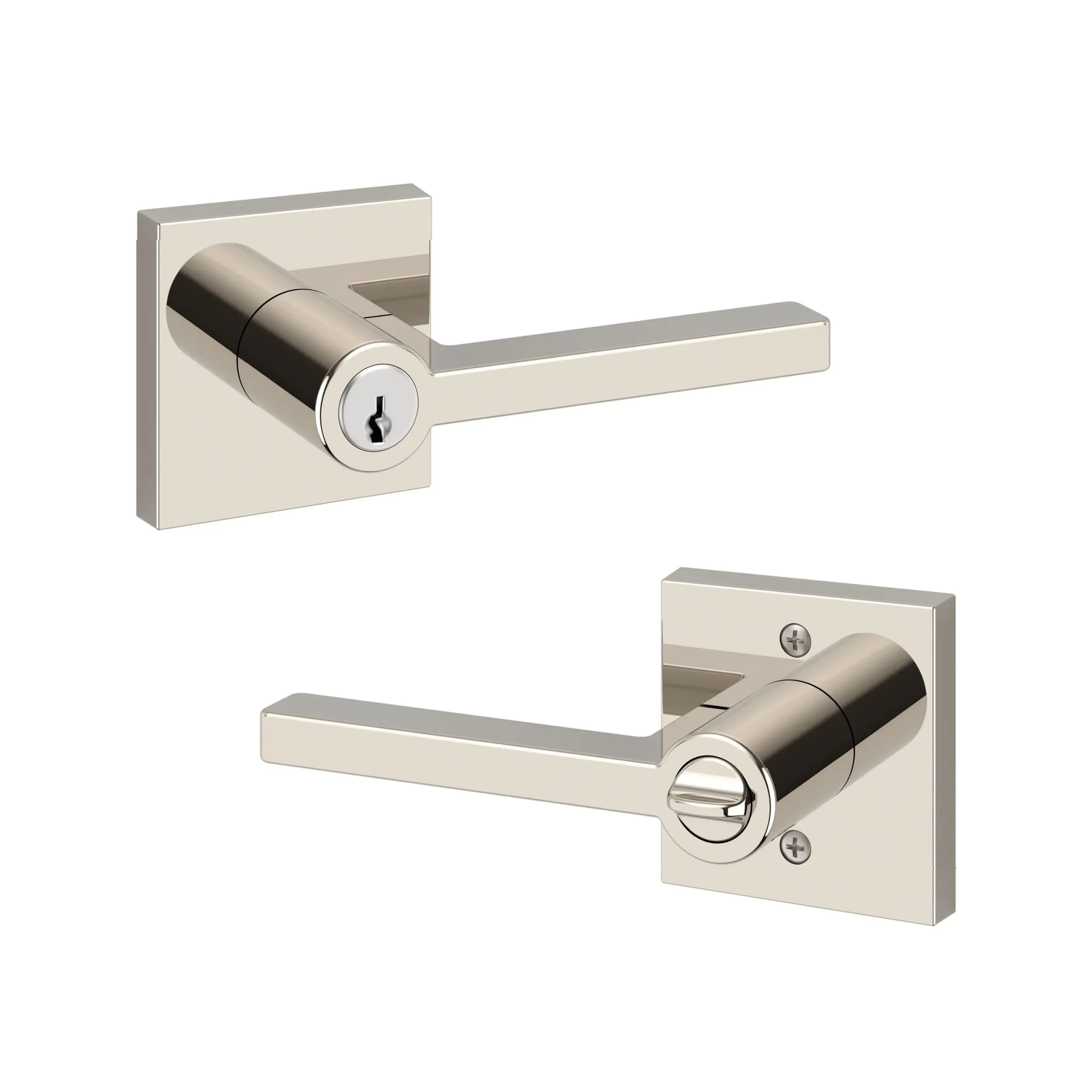

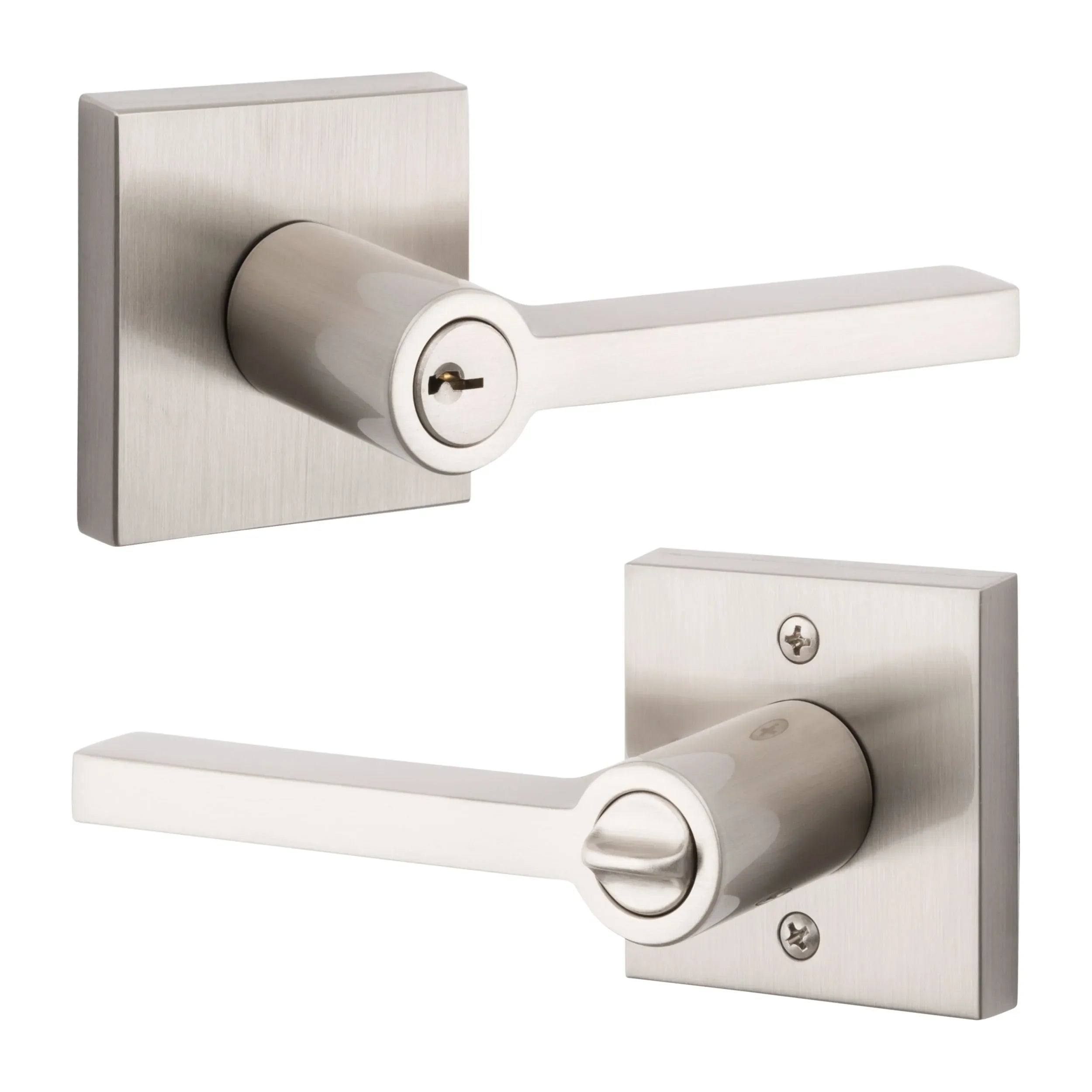

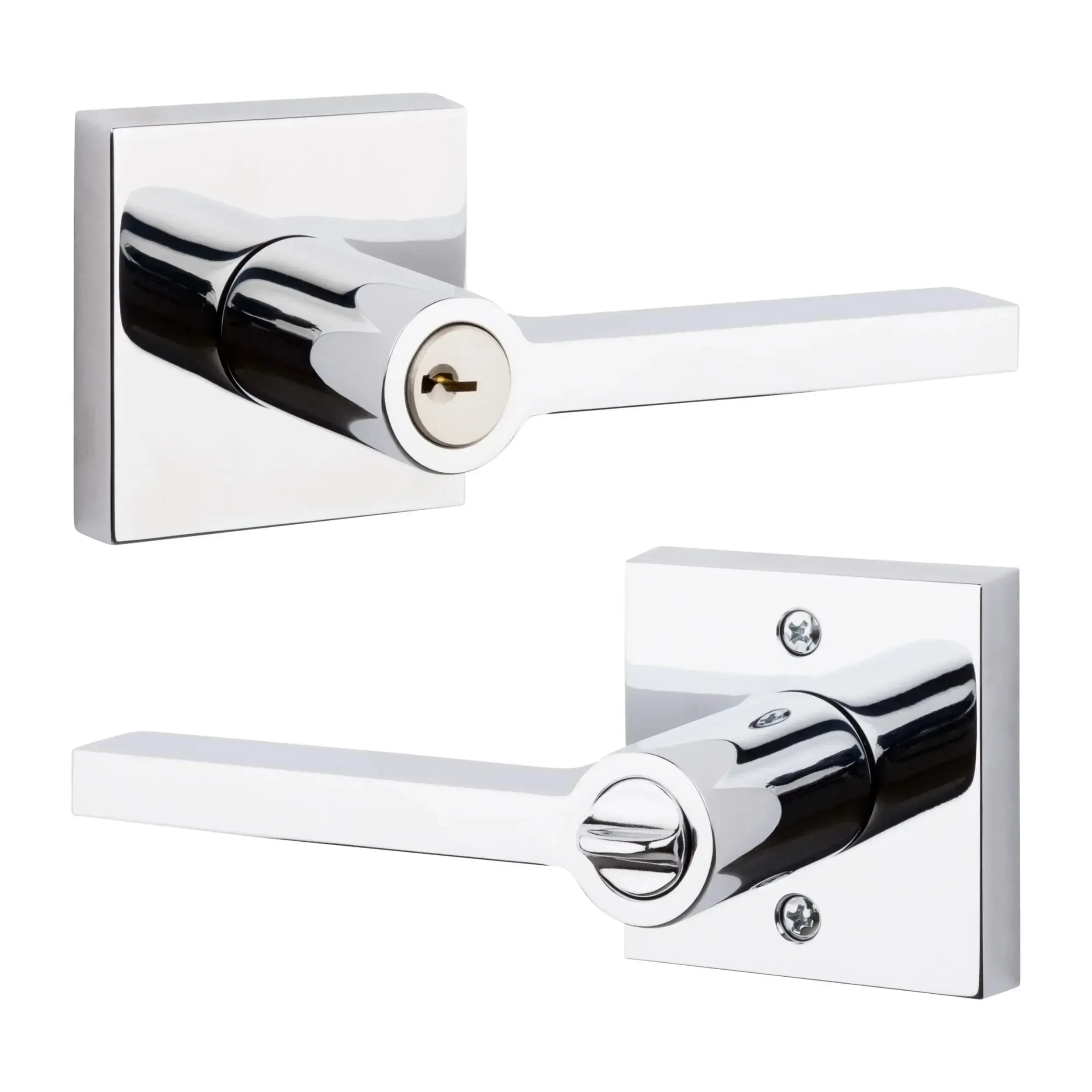

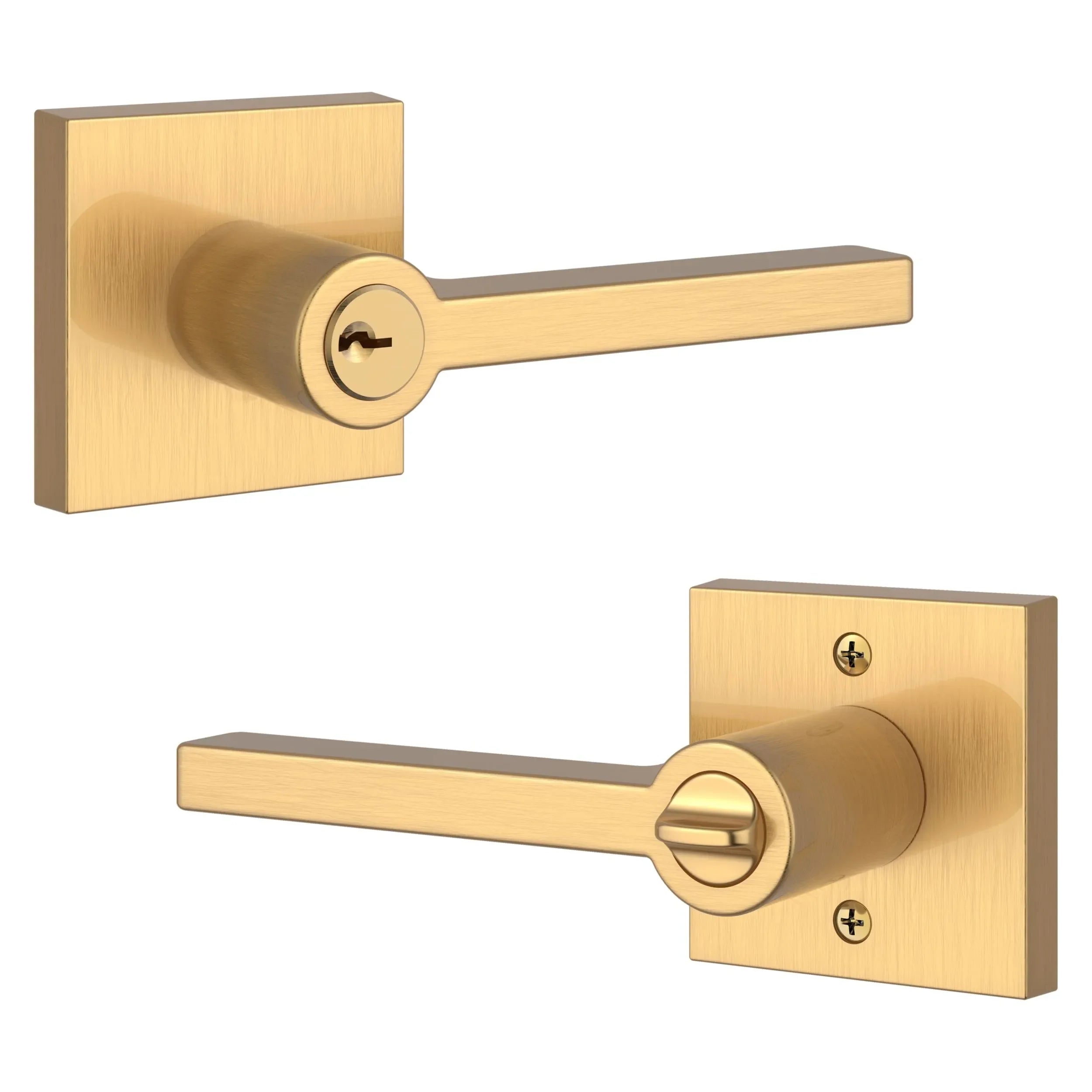

Privacy Features

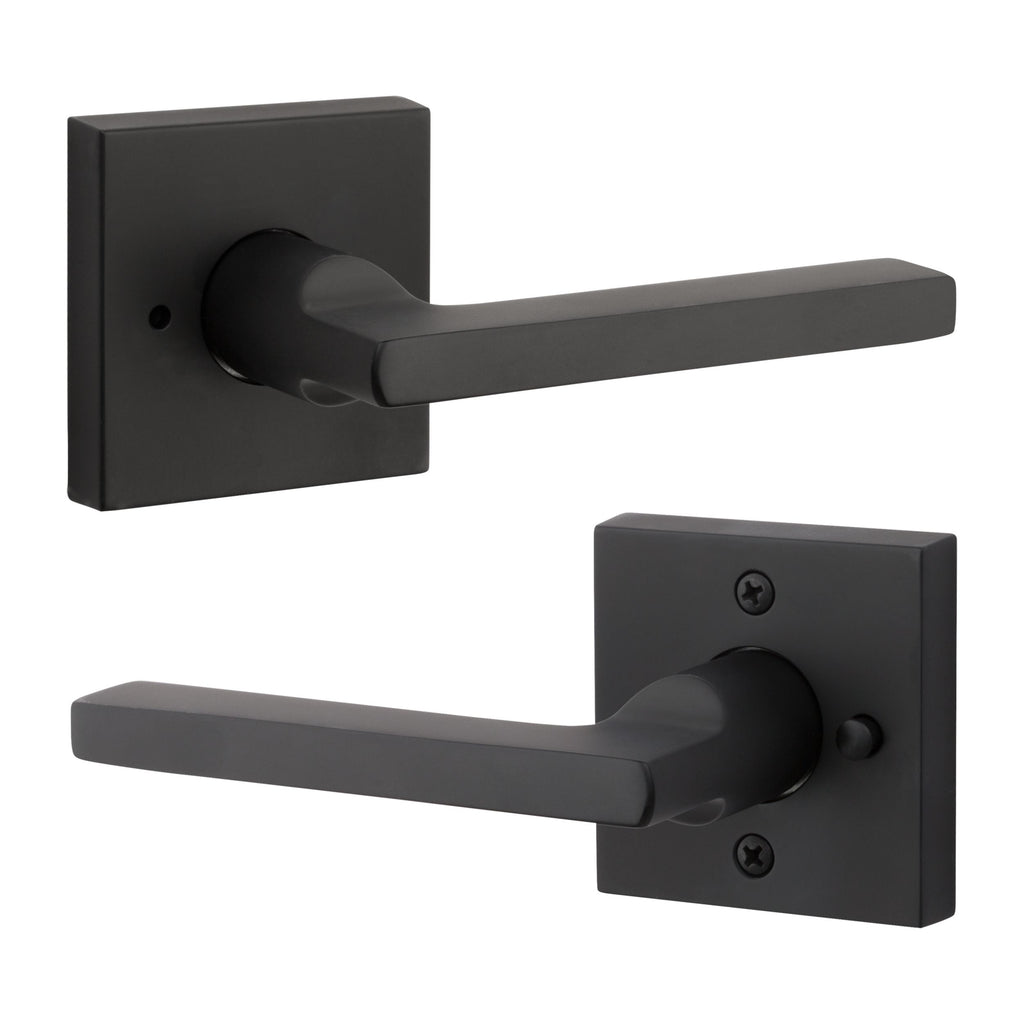

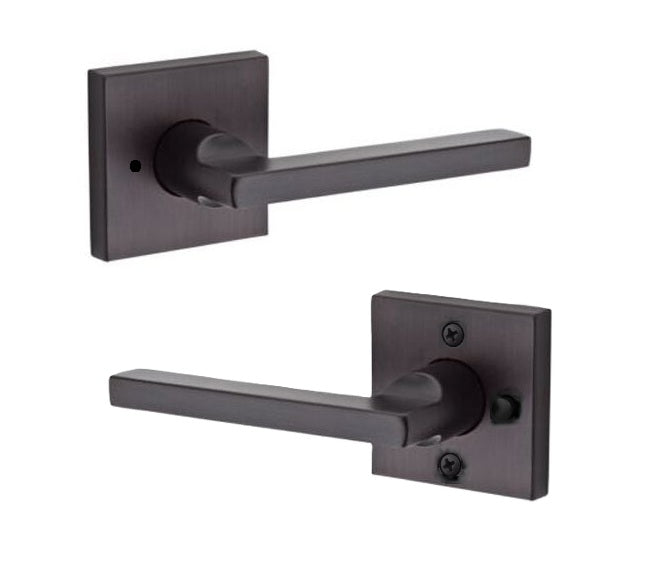

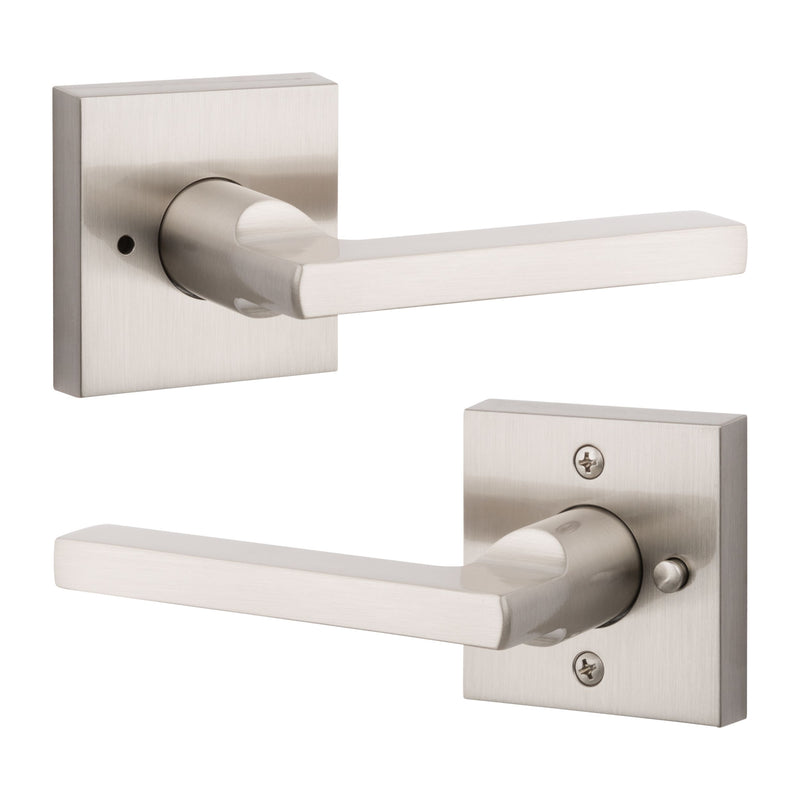

- Lever set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Reversible Handing
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Reversible Handing

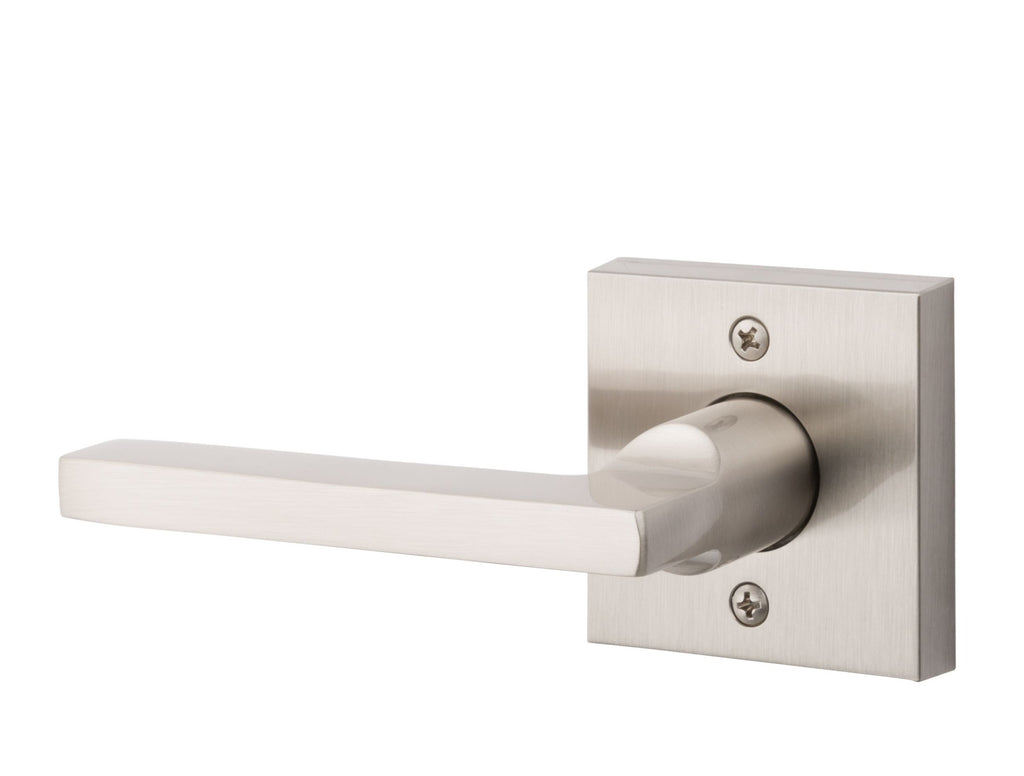

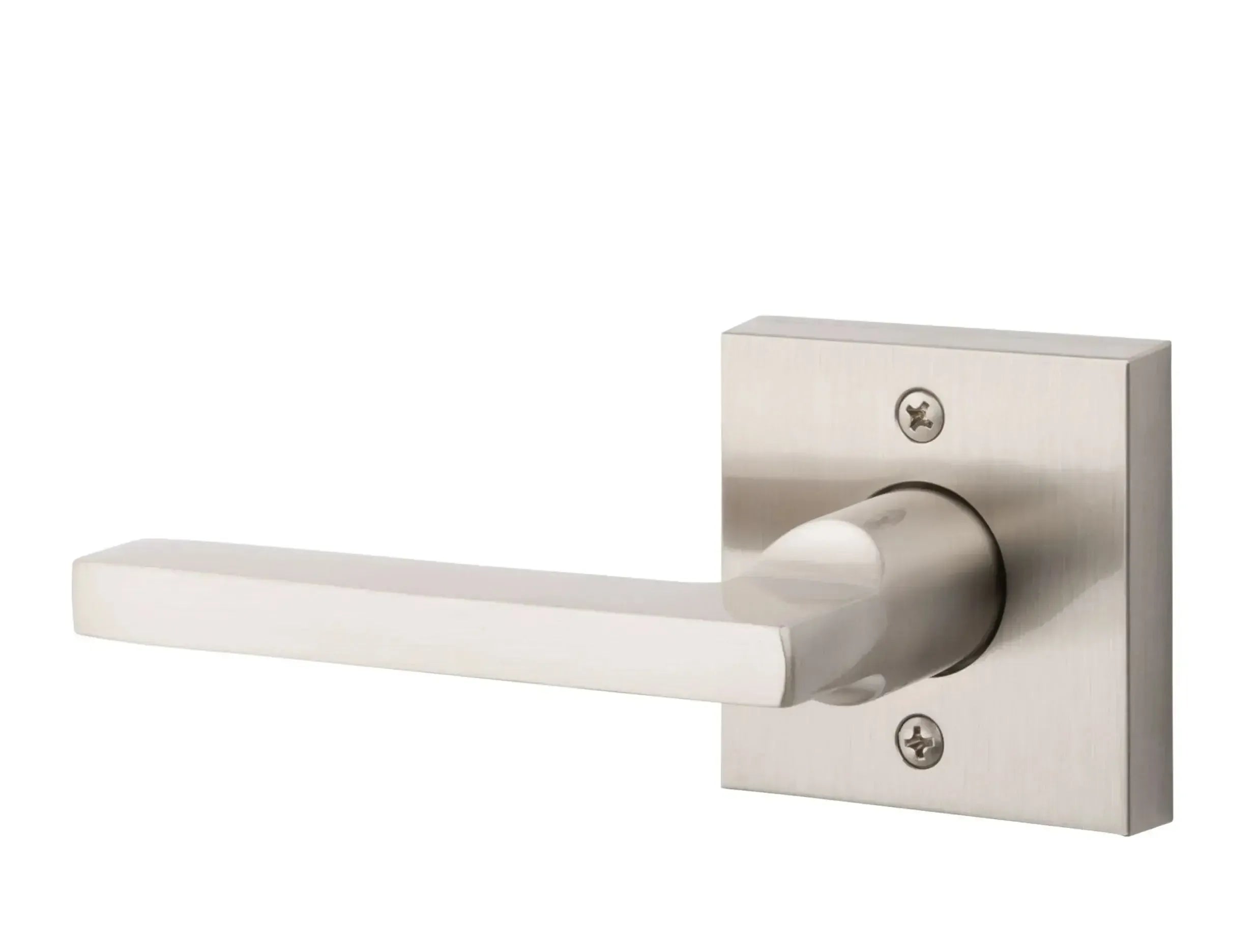

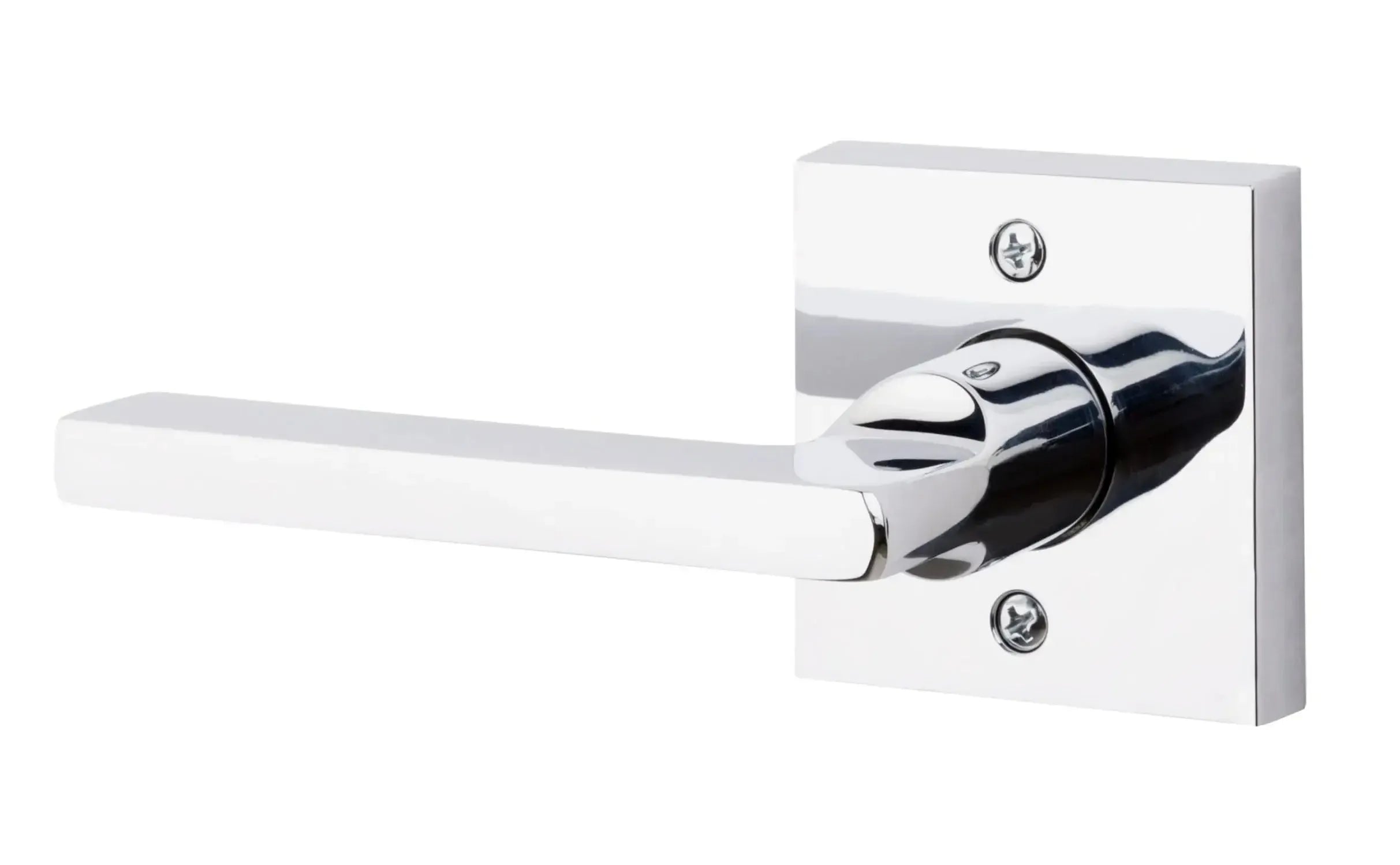

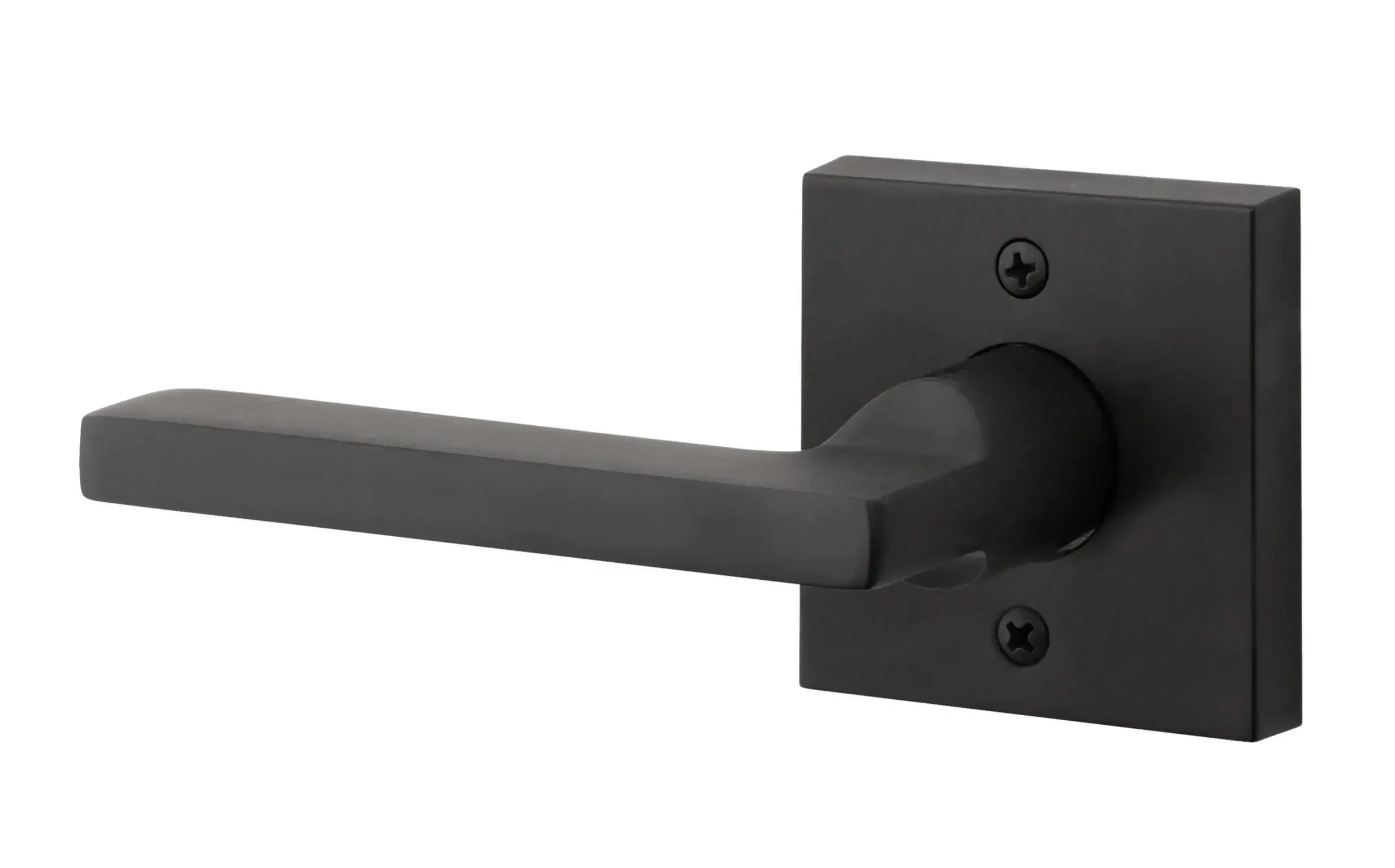

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.

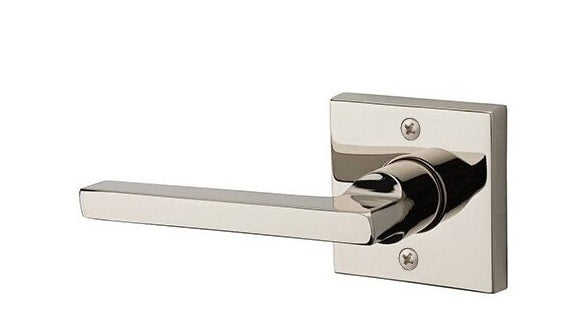

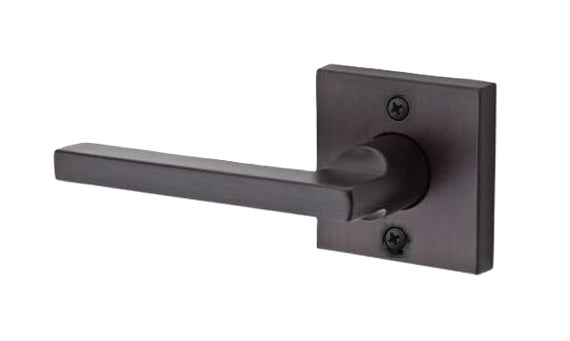

- Half Dummy sets include 1 lever, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners
- Reversible Handing
Specifications
- Projection: 2 3/8"
- Lever Grip: 4 1/4"
- Rosette Dimensions: 2 9/16" x 2 9/16"
