Description

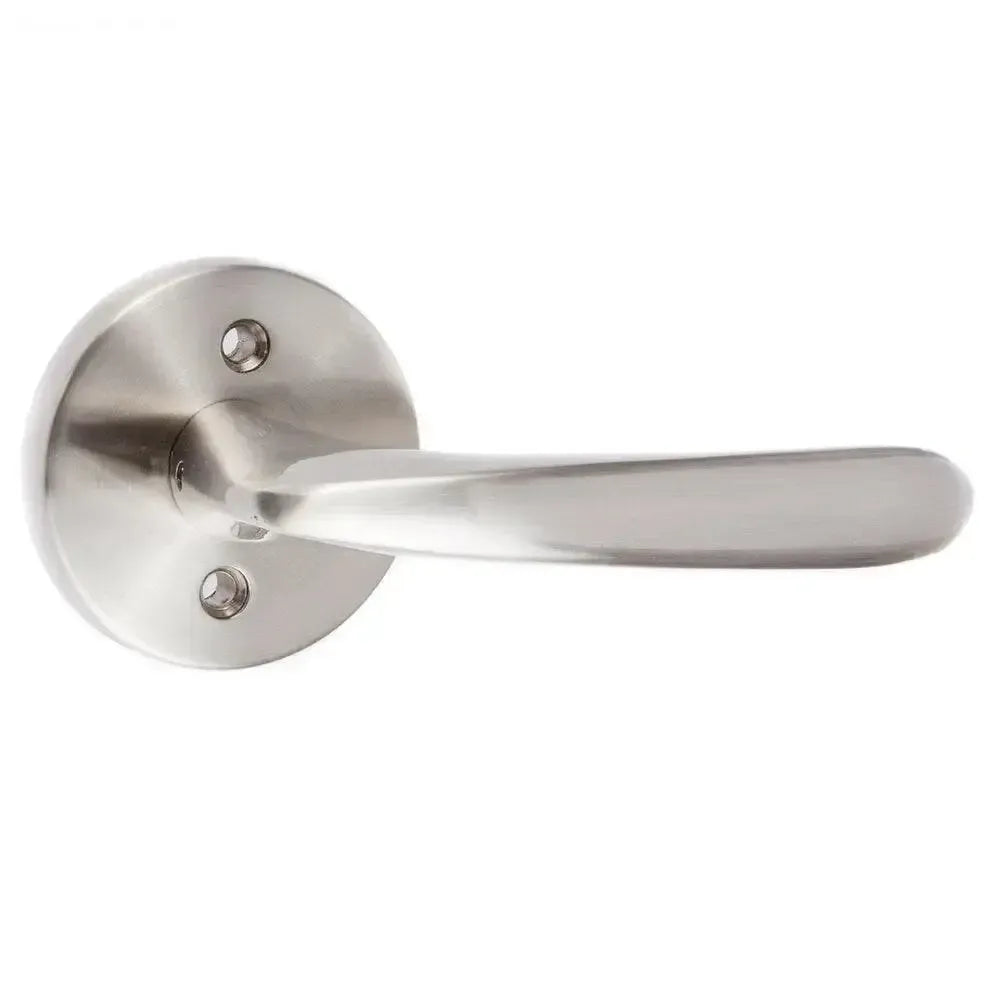

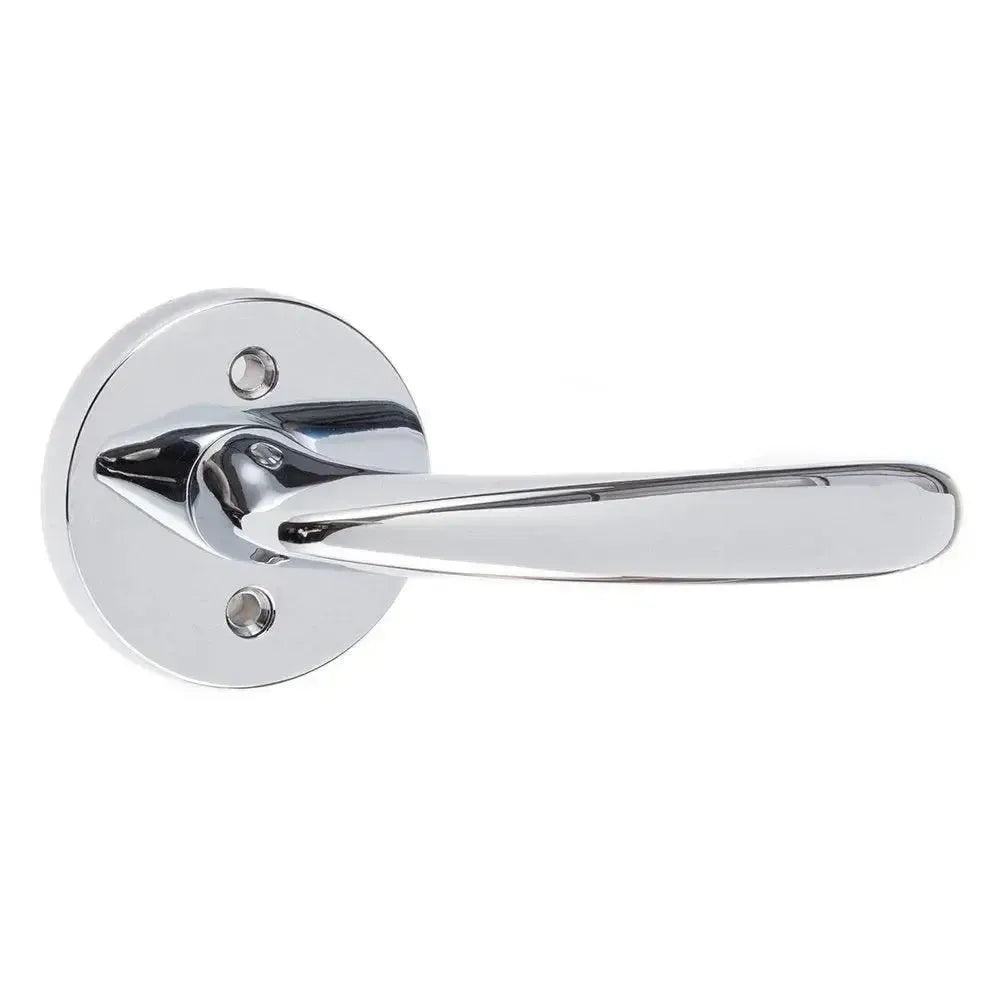

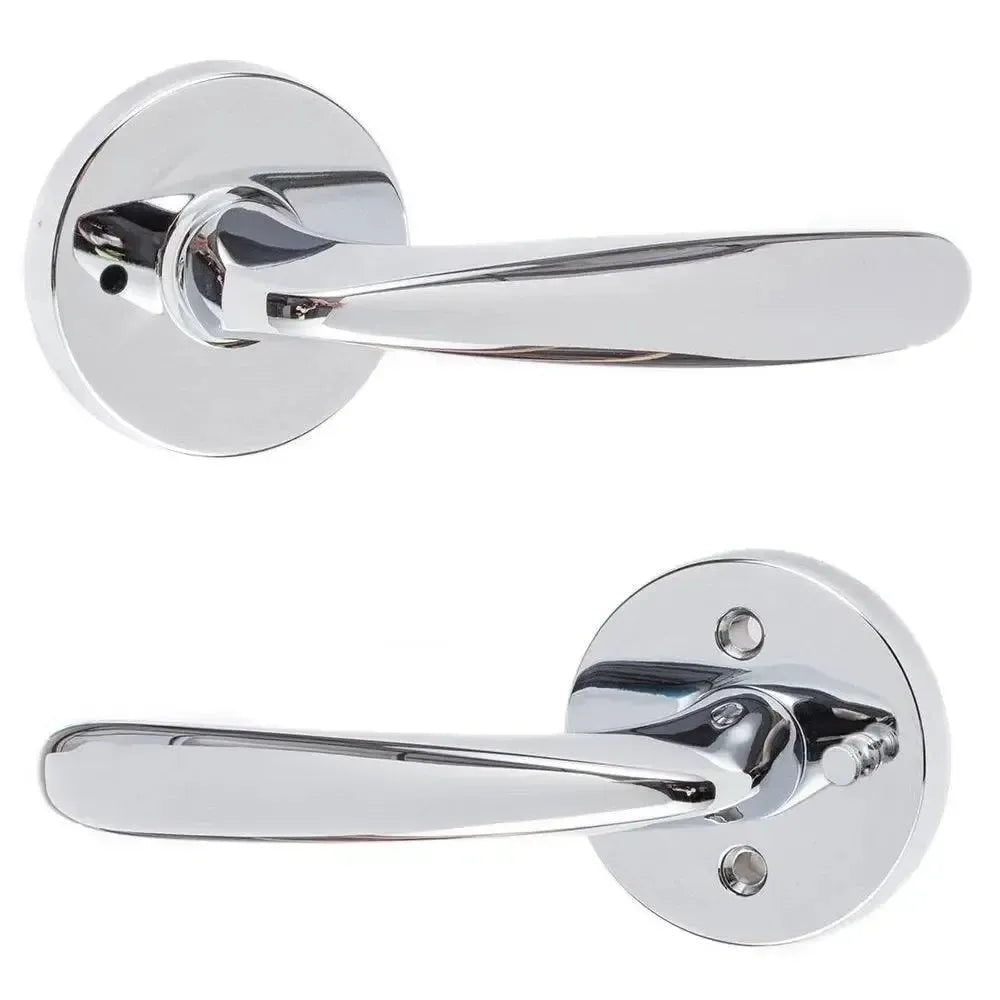

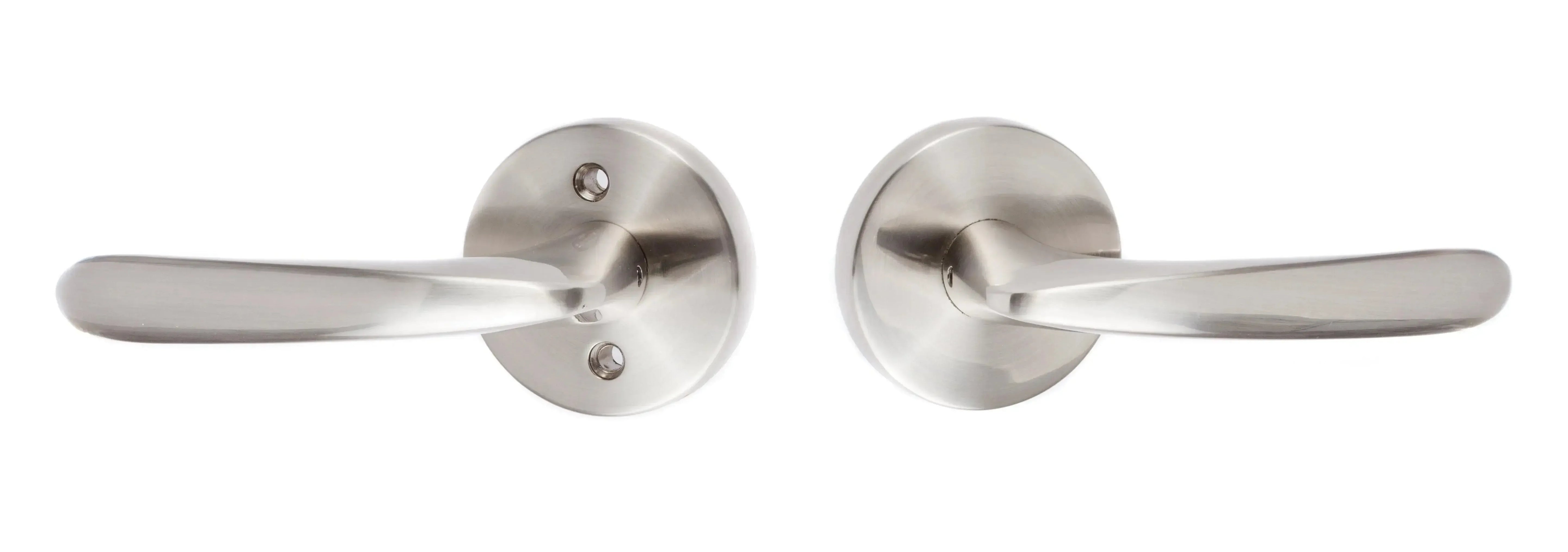

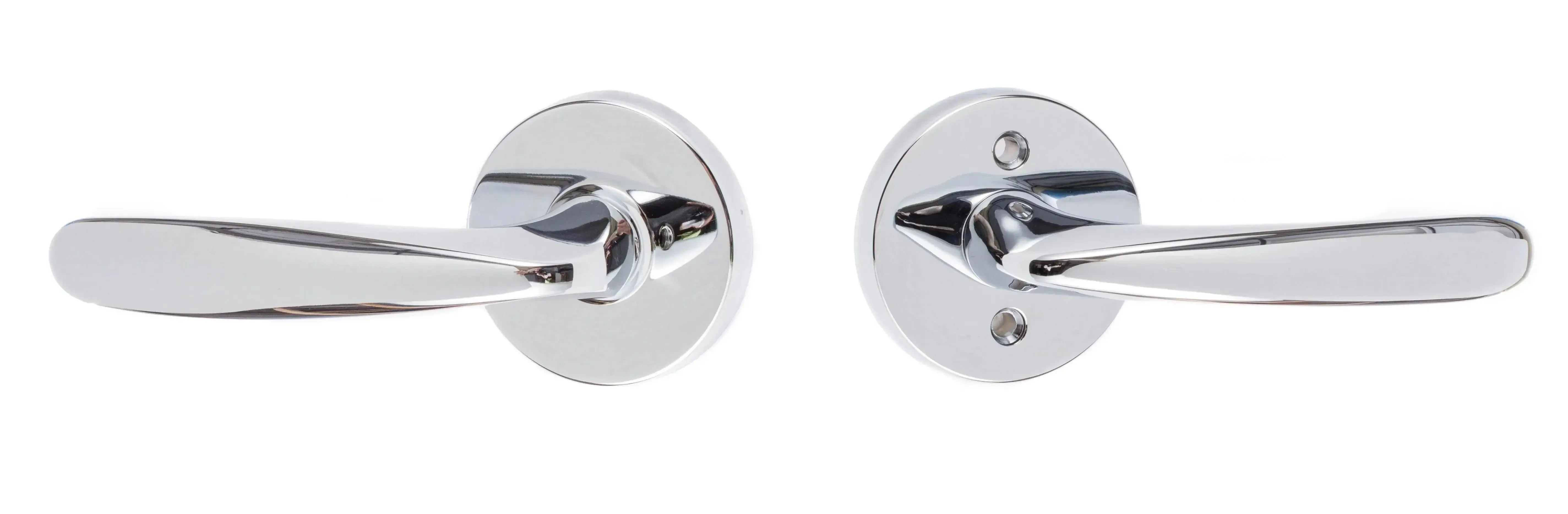

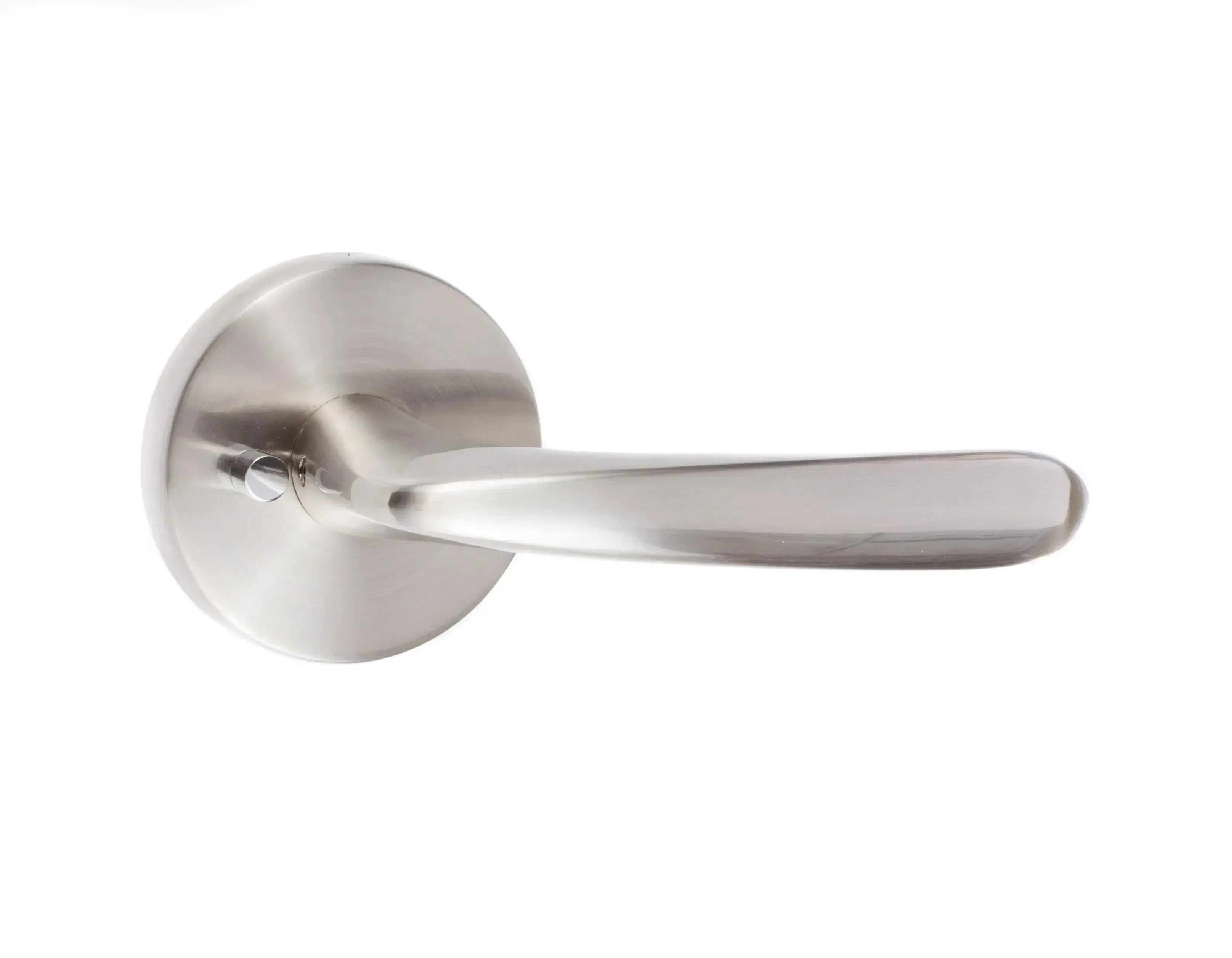

You can now bring a fresh feel to your home with the Torino Lever. With a unique shape and a sturdy, solid metal construction, this lever is designed for both a comfortable grip and a reliable function. The Torino Lever fits well into any space with its timeless design, and is an affordable solution for upscale style and utility.
Passage Leverset Features
- Passage levers have both sides that are always free. Ideal for hallways or closets where no locking mechanism is needed.
- 28° lever turn radius
- Reversible Handing
- Specify 2 3/8" or 2 3/4" (60-70mm) backset - non adjustable
- Includes 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
- Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
- Fits doors 1⅜″ – 2" thick
- Privacy levers are ideal for bedroom and bathrooms. Locked by push pin. Unlocked by push pin, lever turn, or emergency pin outside
- 28° lever turn radius
- Reversible Handing
- Specify 2 3/8" or 2 3/4" (60-70mm) backset - non adjustable
- Includes 2 ¼” x 1” radius corner faceplate, 2 ¼” x 1 ¾” full lip radius corner standard strike, and installation hardware
- Fits all standard door preparations, Crossbore 2 1/8", Edgebore 1"
- Fits doors 1⅜″ – 2" thick
- This is a single-sided, inactive dummy lever
- Dummy lever is surface mounted with two wood screws
Privacy Leverset Features
Single Dummy Lever Features
Specifications
- Projection: 2 3/4"
- Lever Length: 5 1/4"
