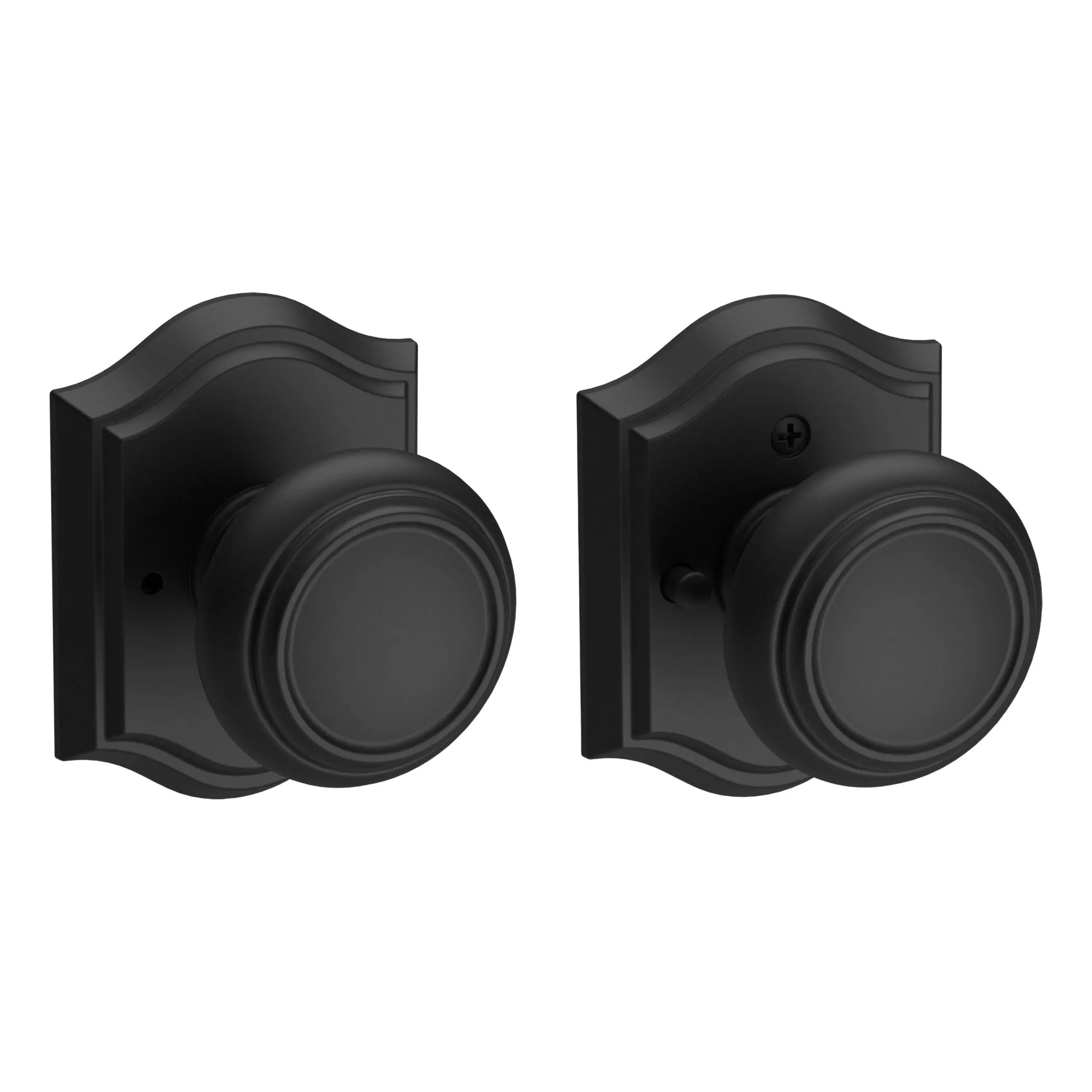

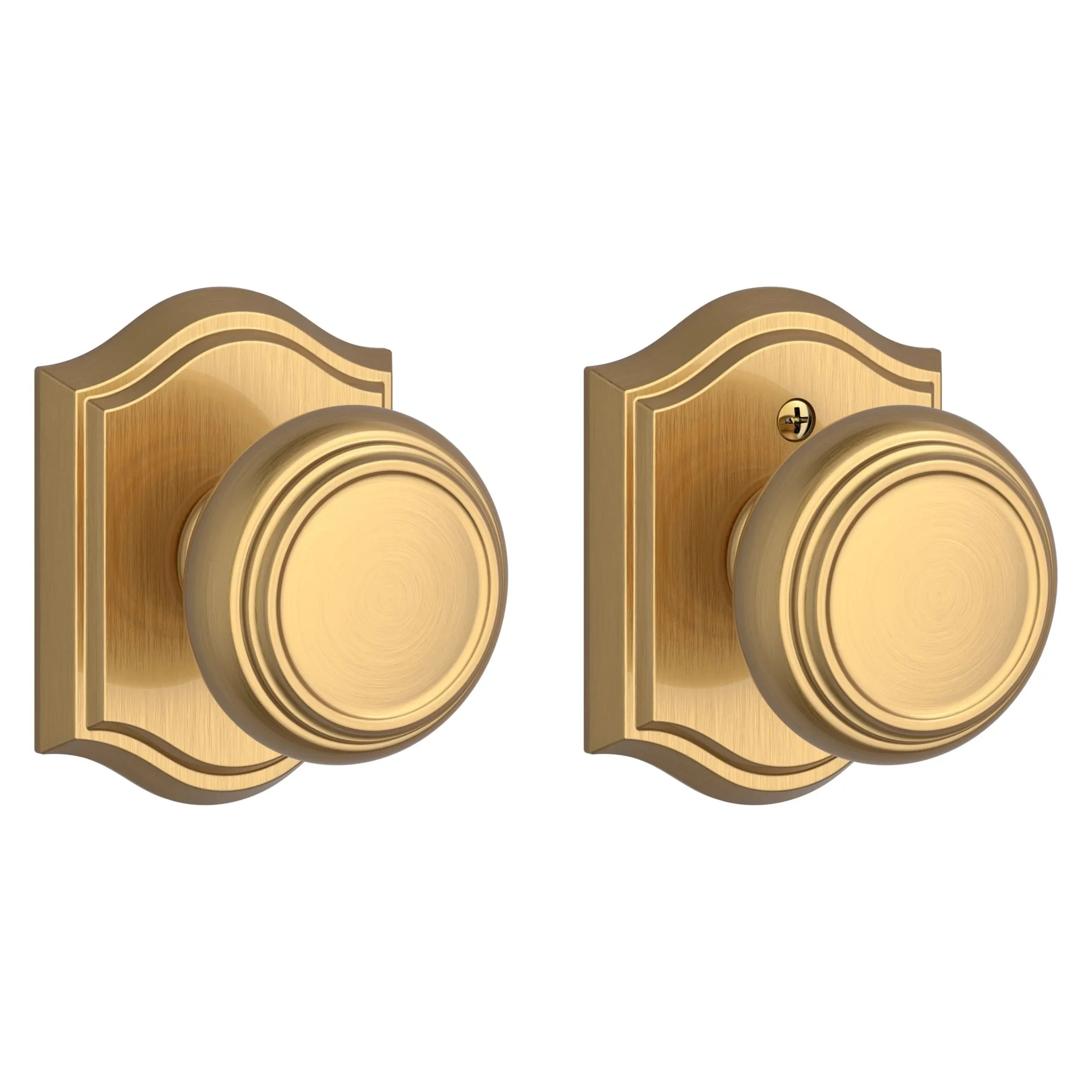

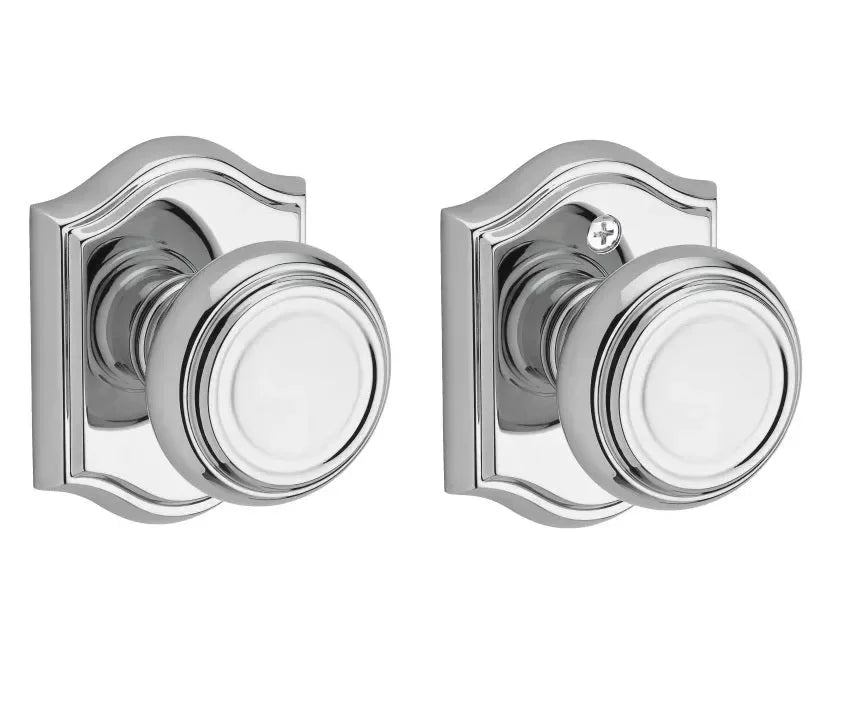

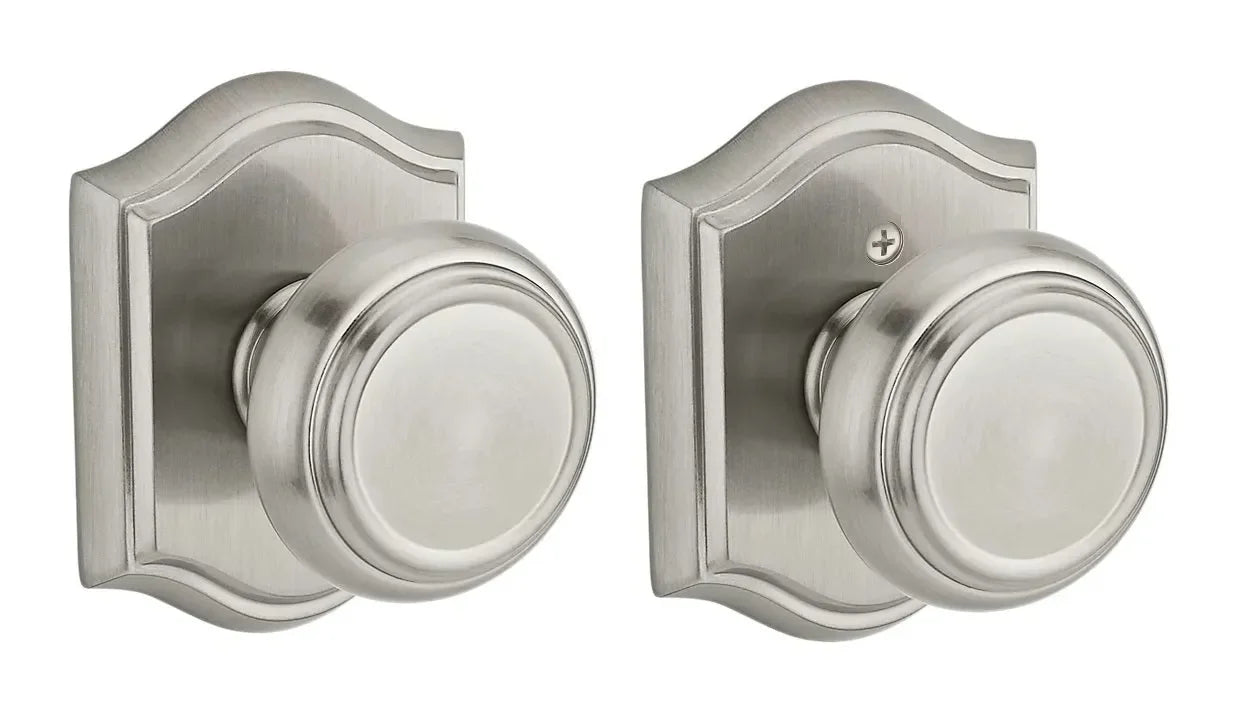

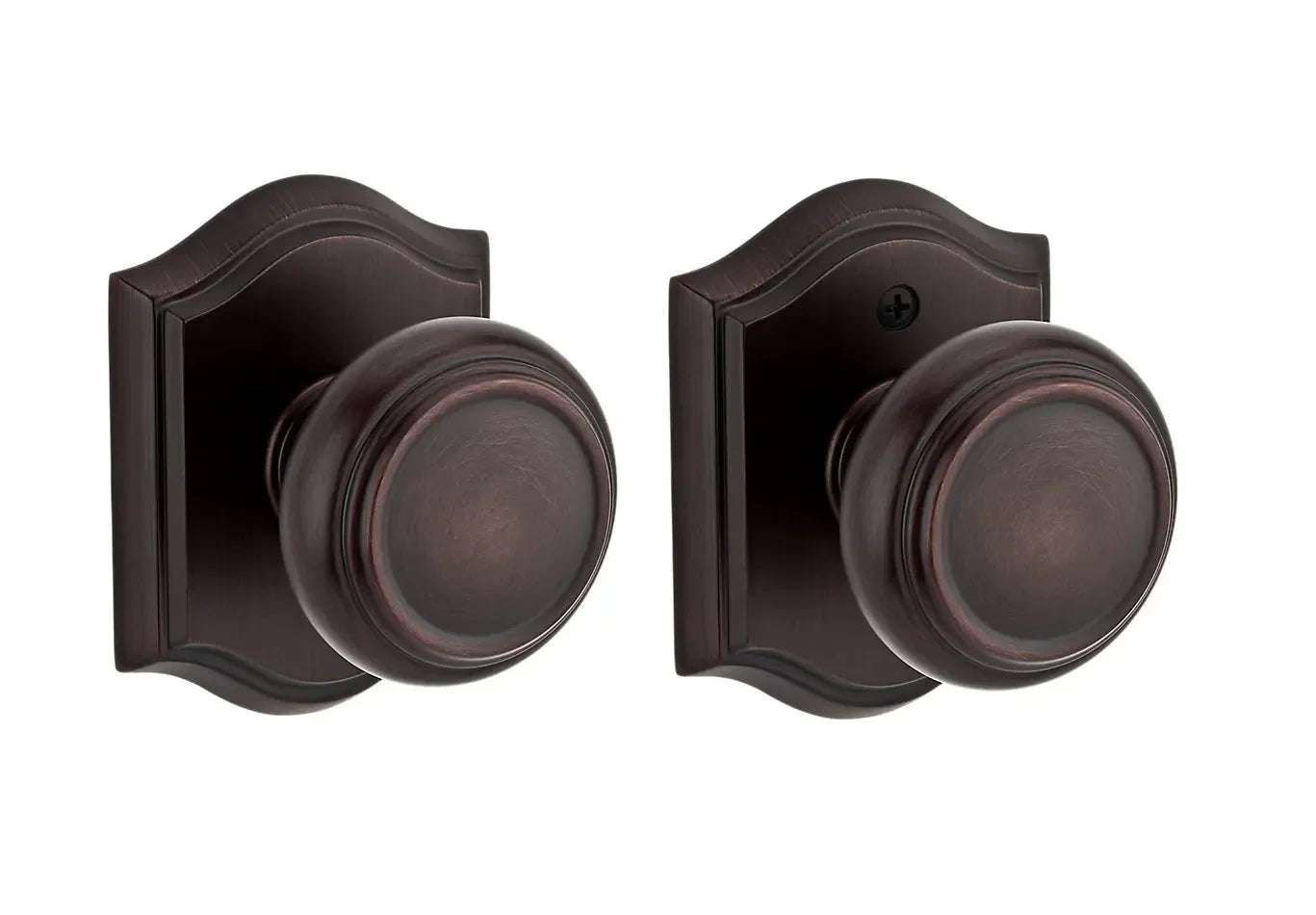

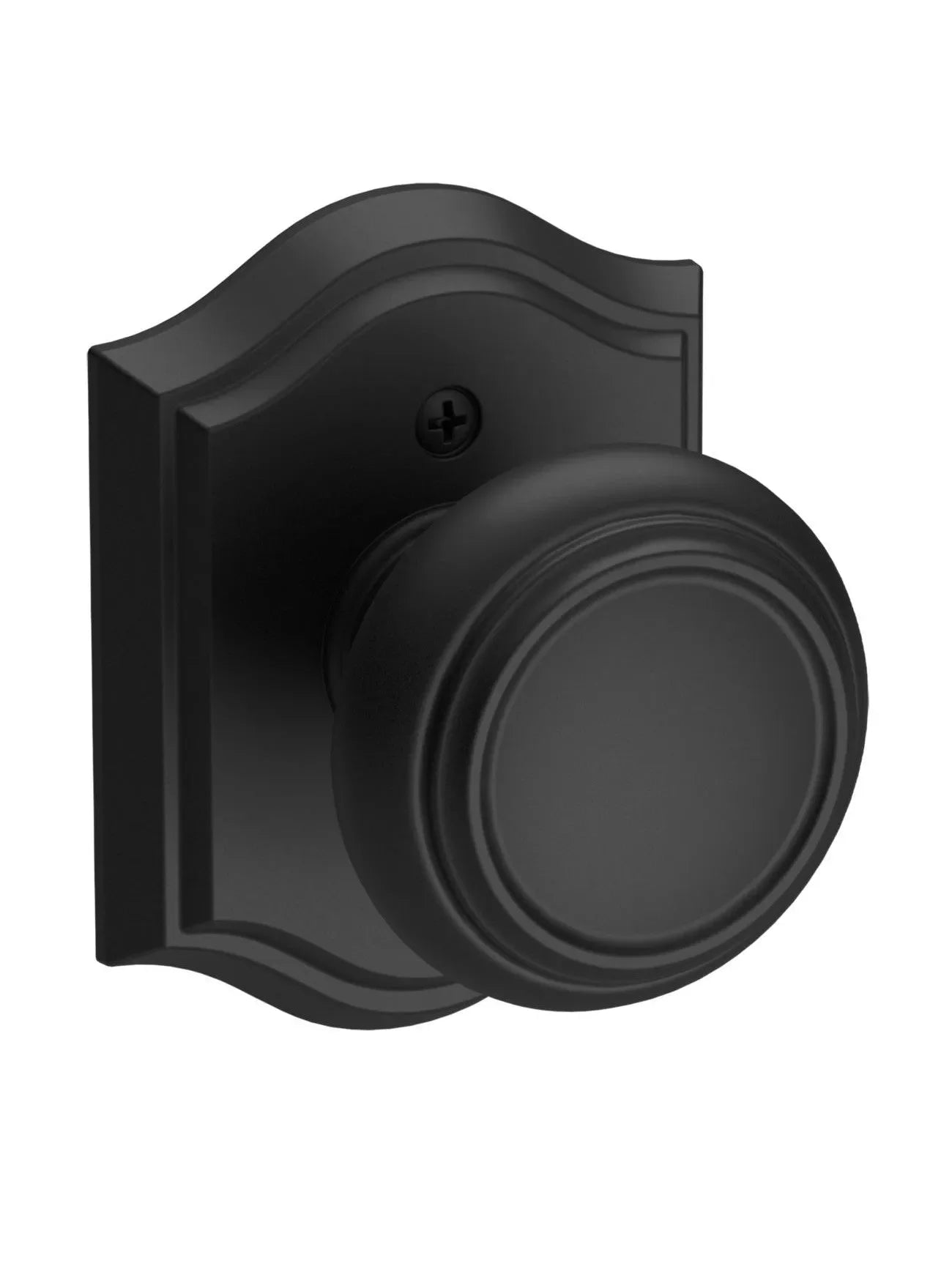

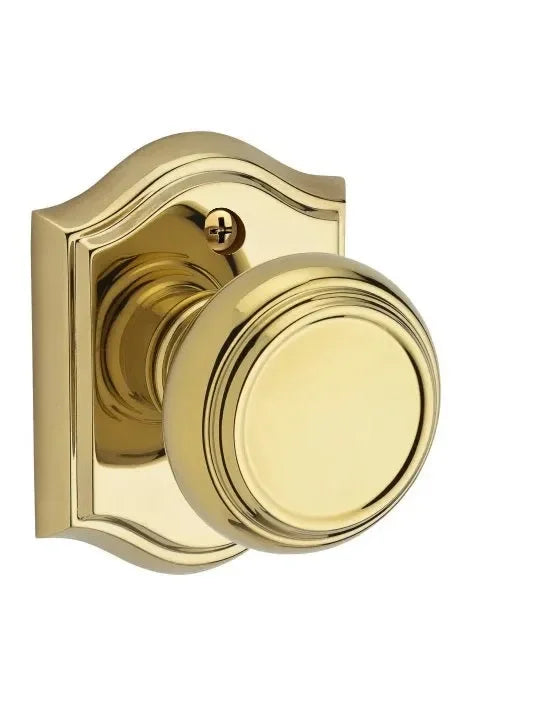

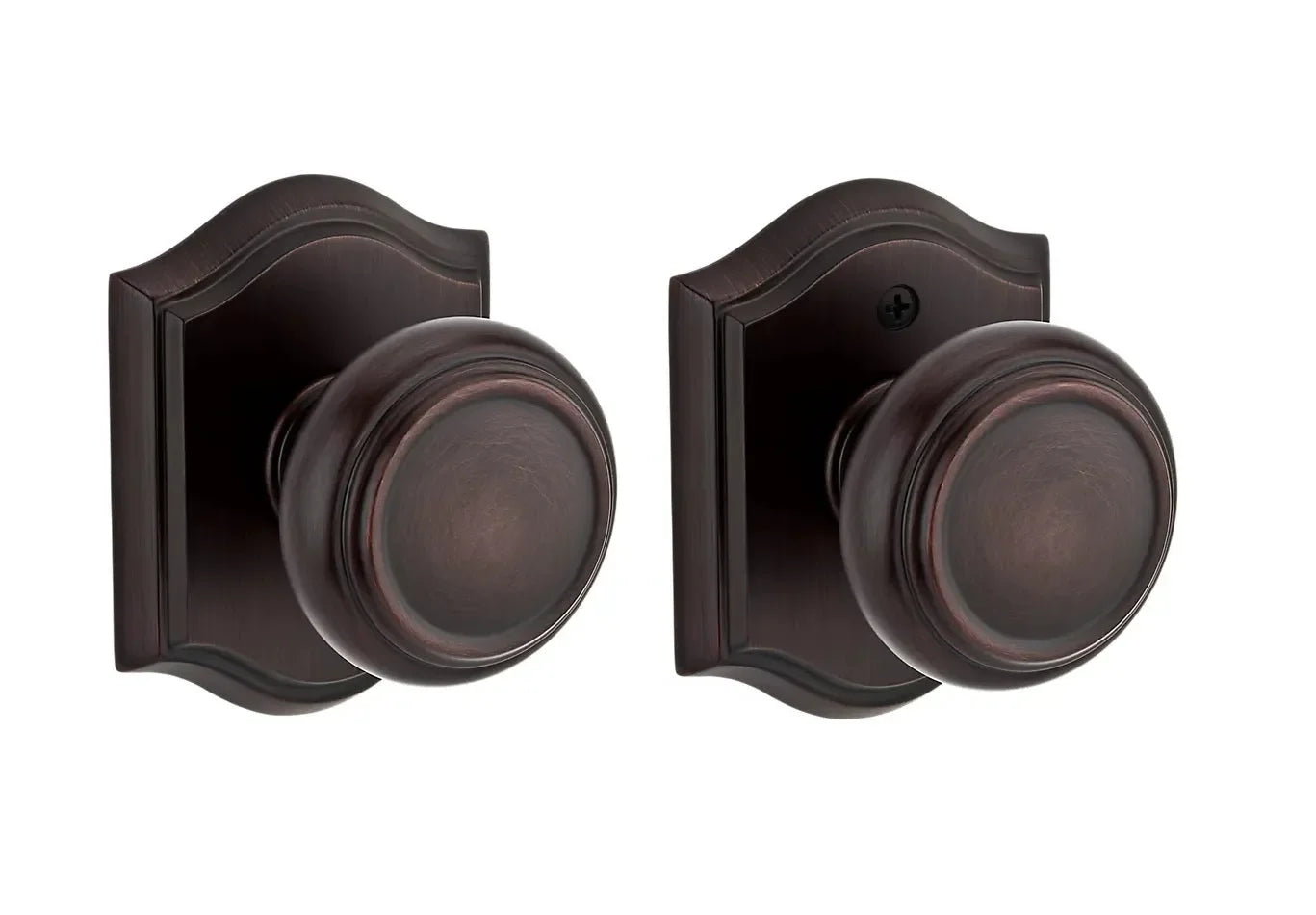

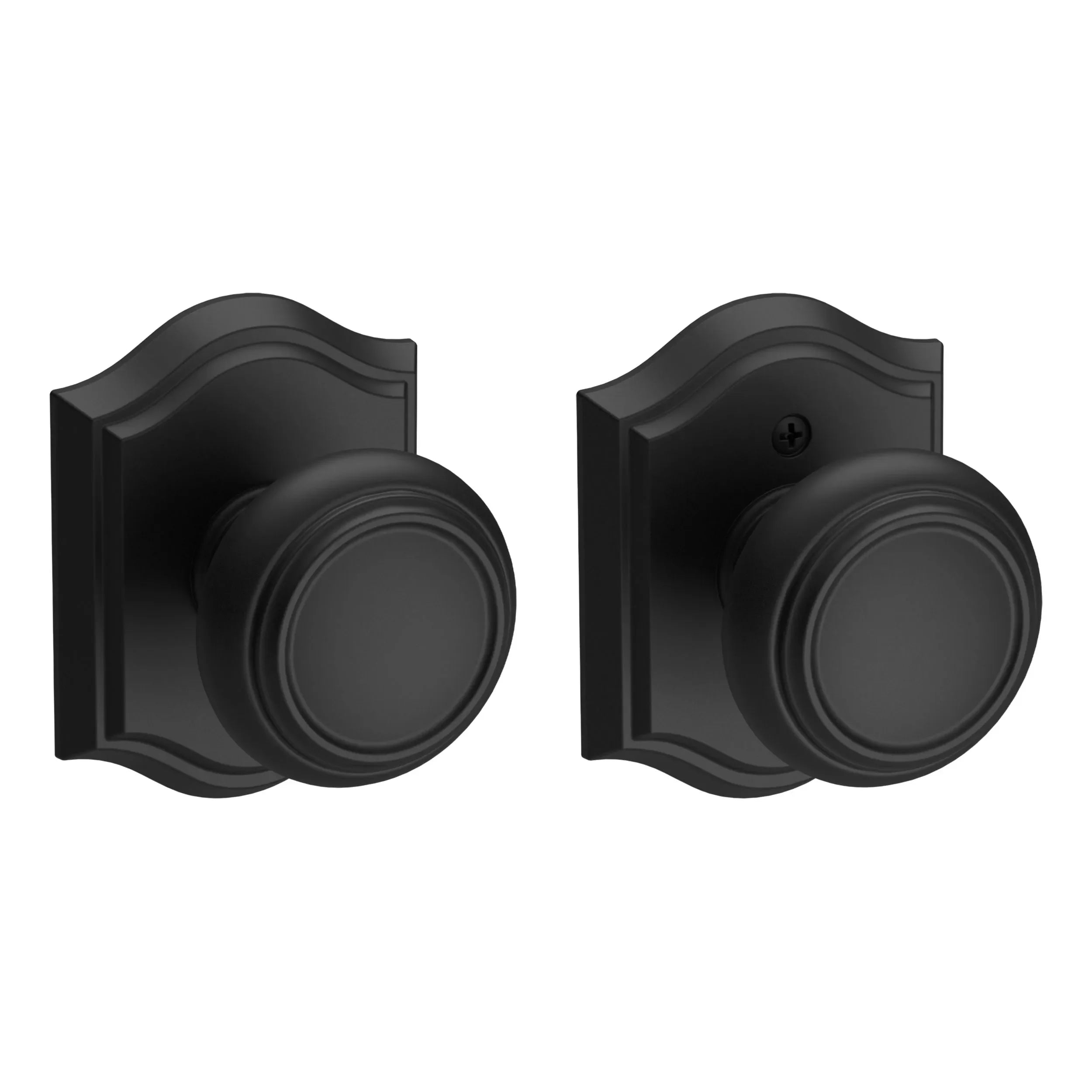

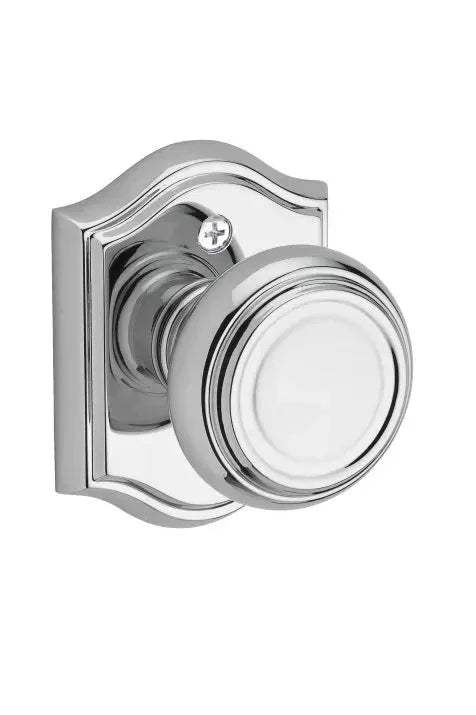

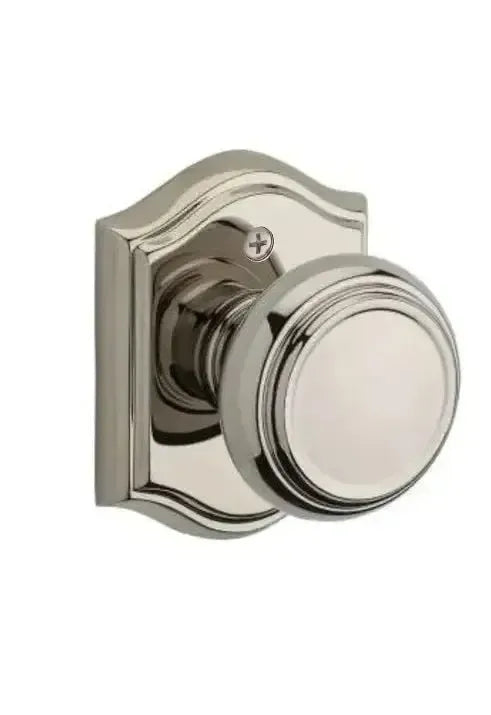

The Baldwin Reserve Traditional Knob with Traditional Arch Rosette offers a timeless blend of classic design and exceptional craftsmanship, making it an ideal choice for traditional and transitional interiors. Crafted from solid forged brass, this knob set ensures durability and a premium feel. The Traditional Arch Rosette adds an elegant touch, enhancing the knob's aesthetic appeal. Available in a variety of finishes, including Polished Brass, Satin Nickel, Venetian Bronze, Polished Chrome, Polished Nickel, and Satin Black, it complements various décor styles. This knob set is offered in multiple functions such as passage, privacy, full dummy, half dummy, and keyed entry, accommodating diverse door requirements. It fits standard door preparations with adjustable backsets of 2-3/8" or 2-3/4" and accommodates door thicknesses ranging from 1-3/8" to 2"; doors up to 2-1/2" thick can be accommodated with an additional service kit. Backed by Baldwin's Limited Lifetime Mechanical Warranty and a 25-Year Finish Warranty, this hardware ensures long-lasting performance and style.

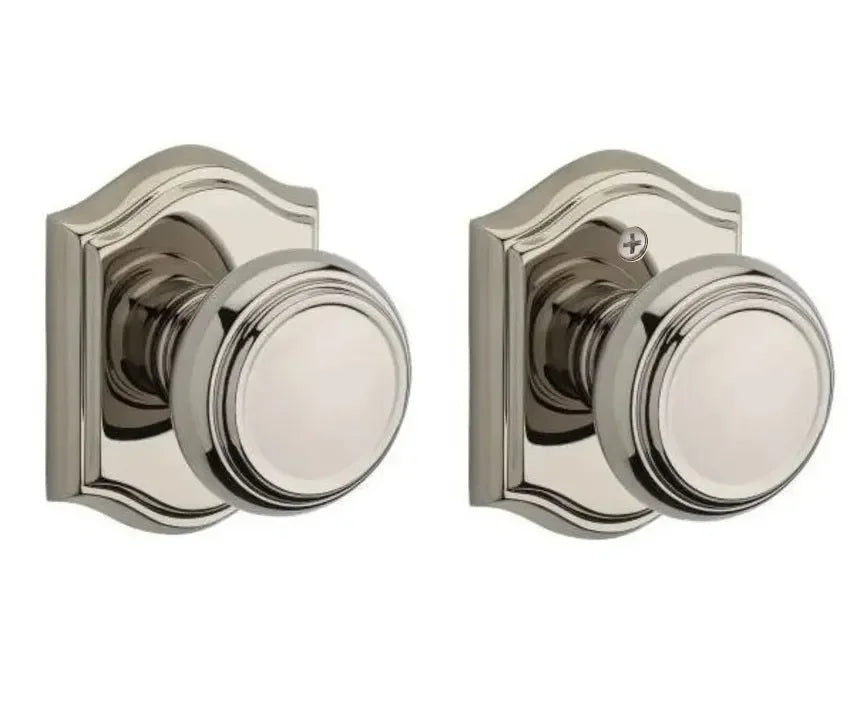

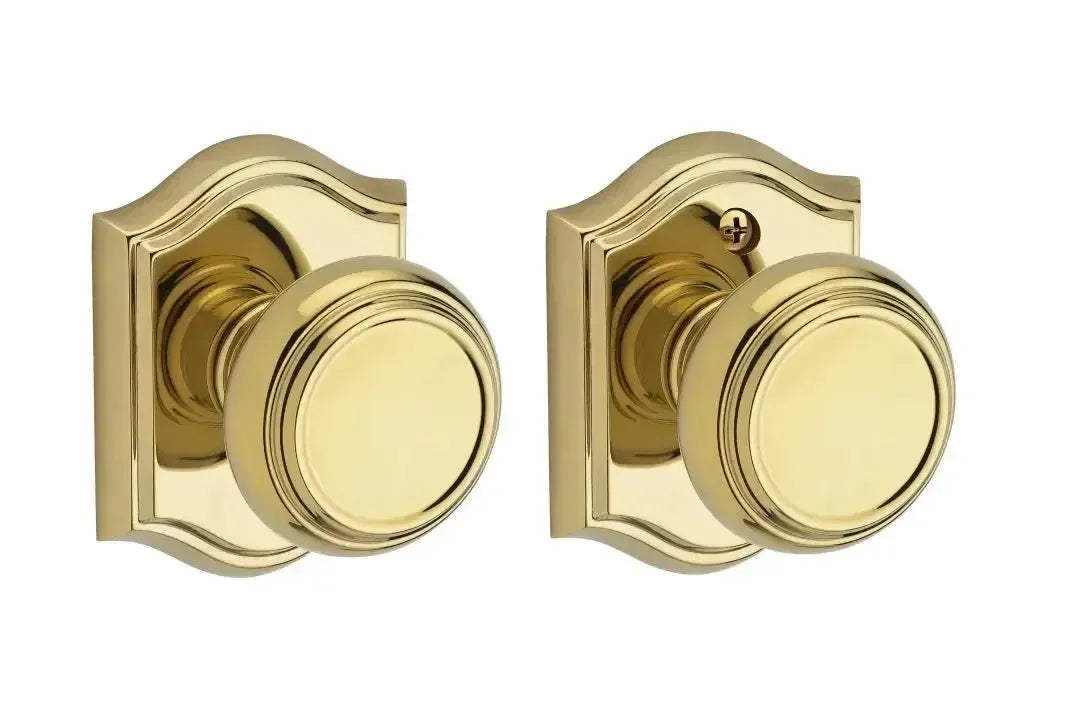

Passage Features
- Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Passage sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners

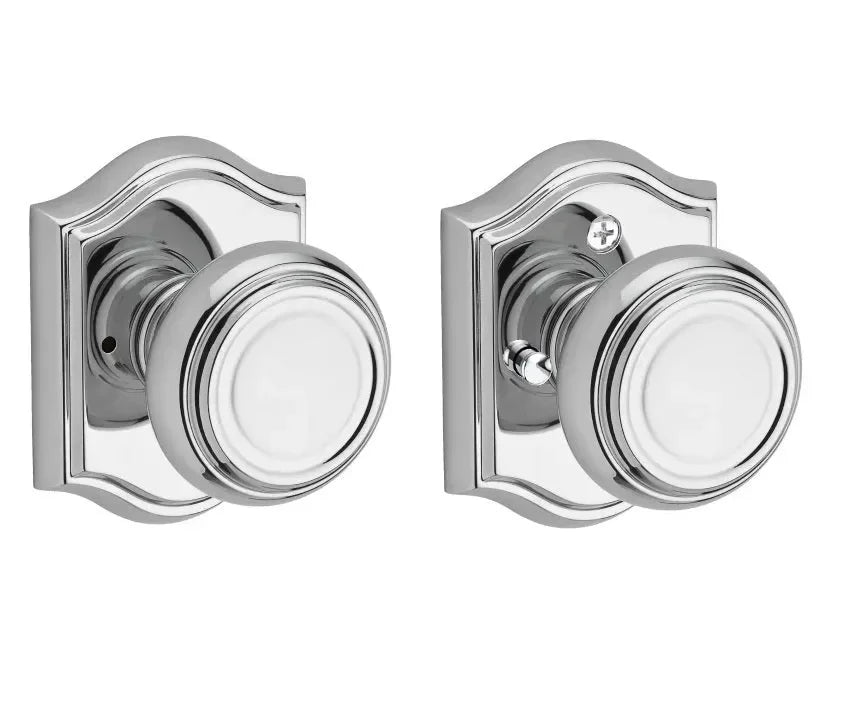

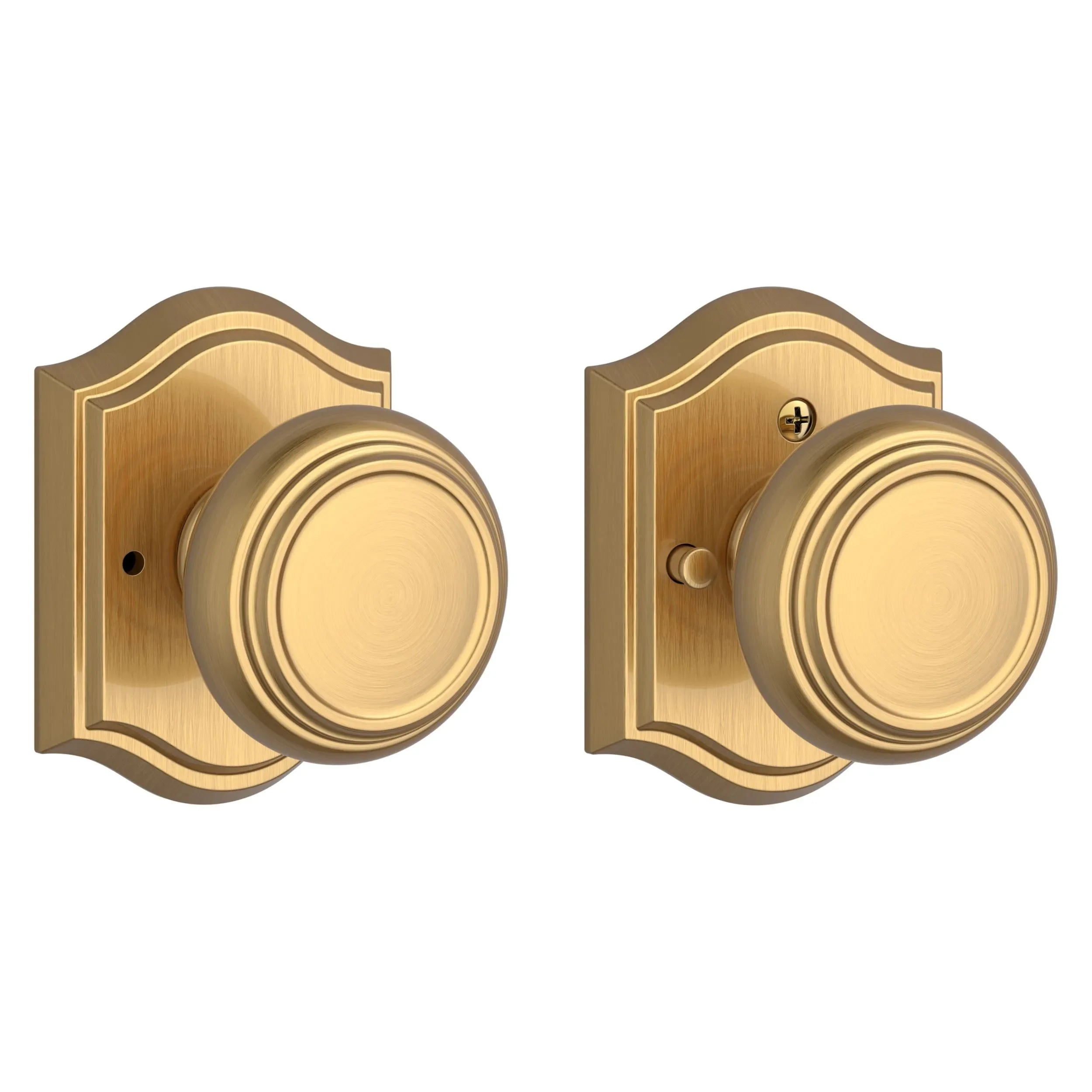

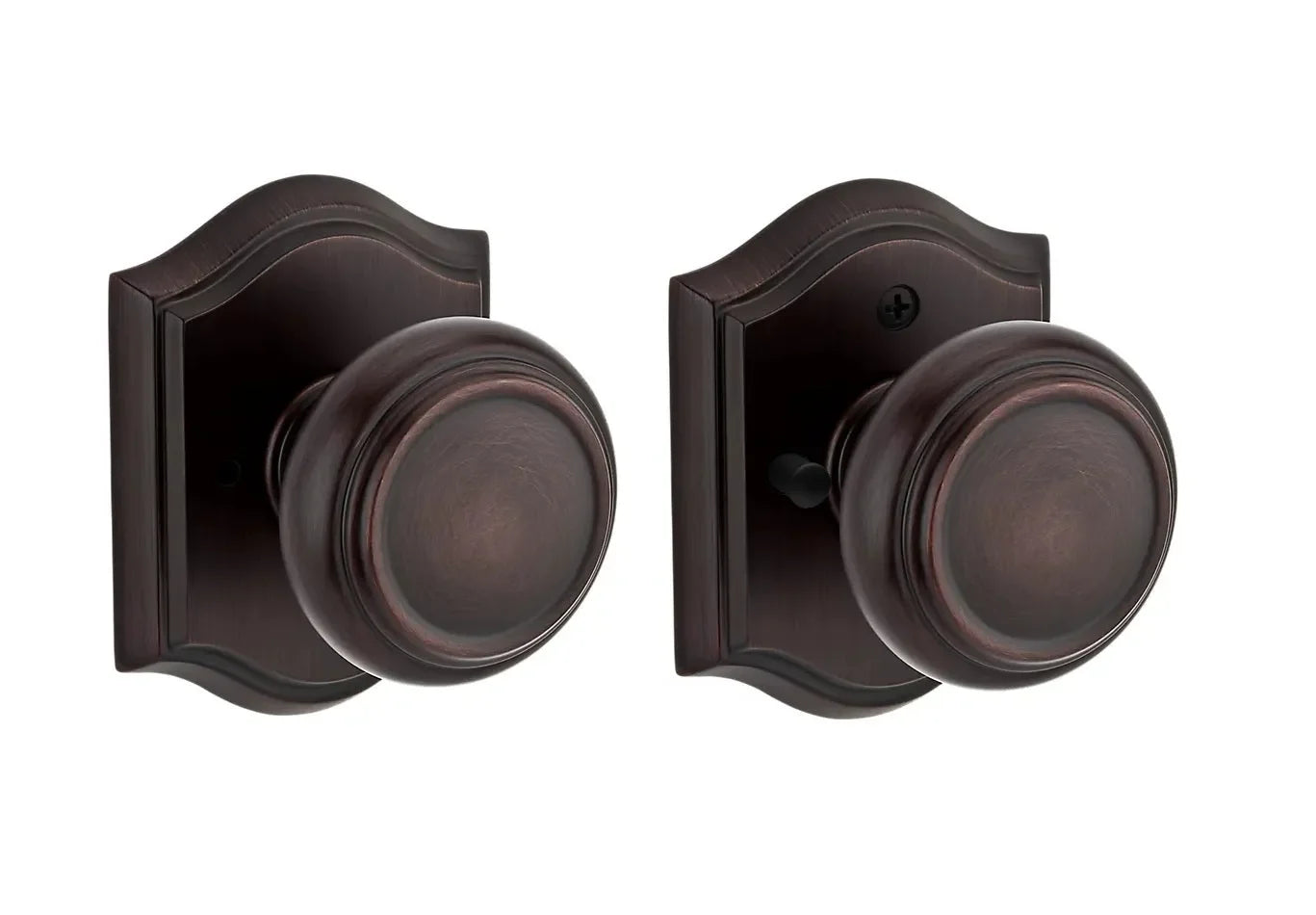

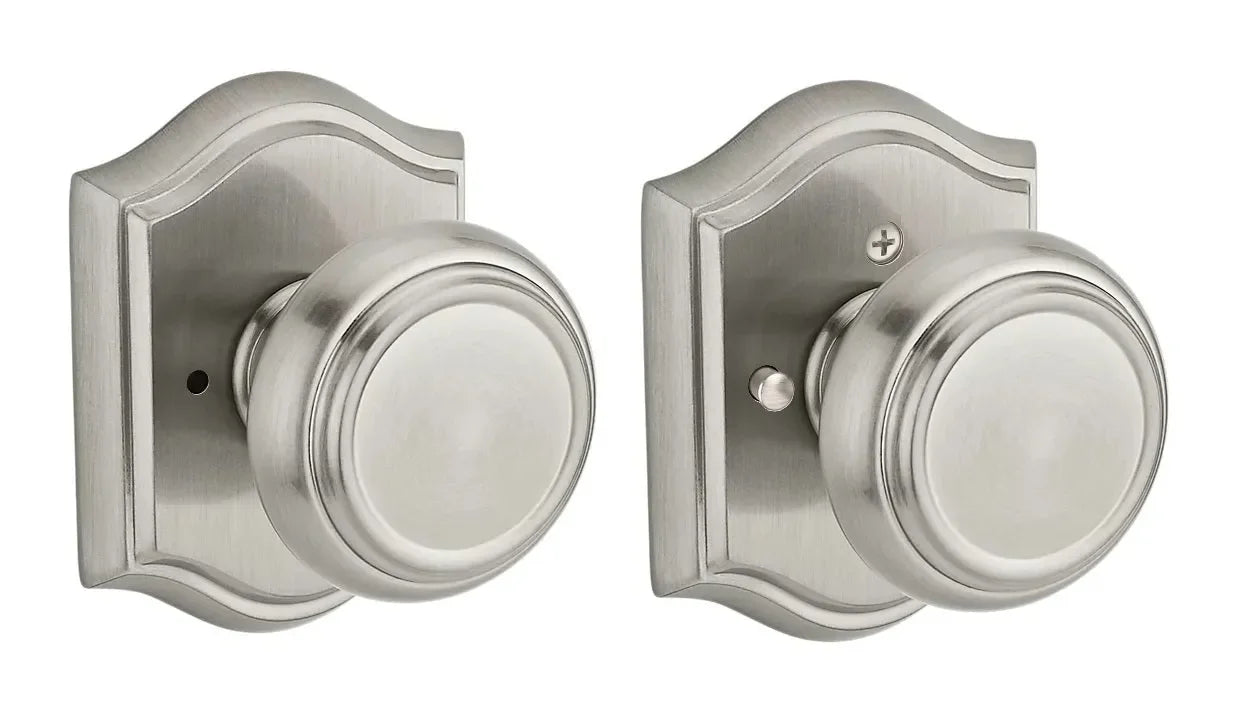

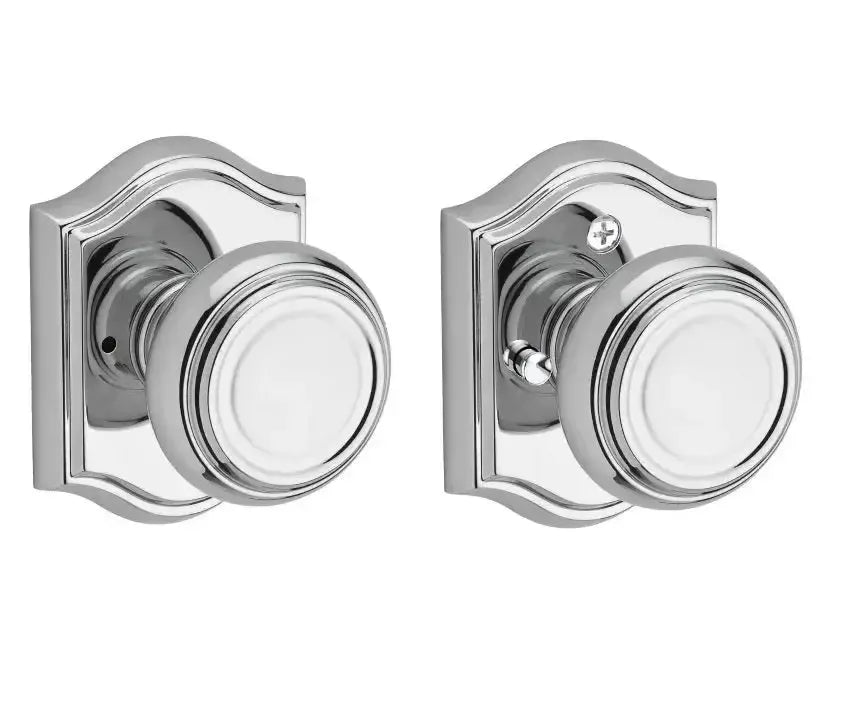

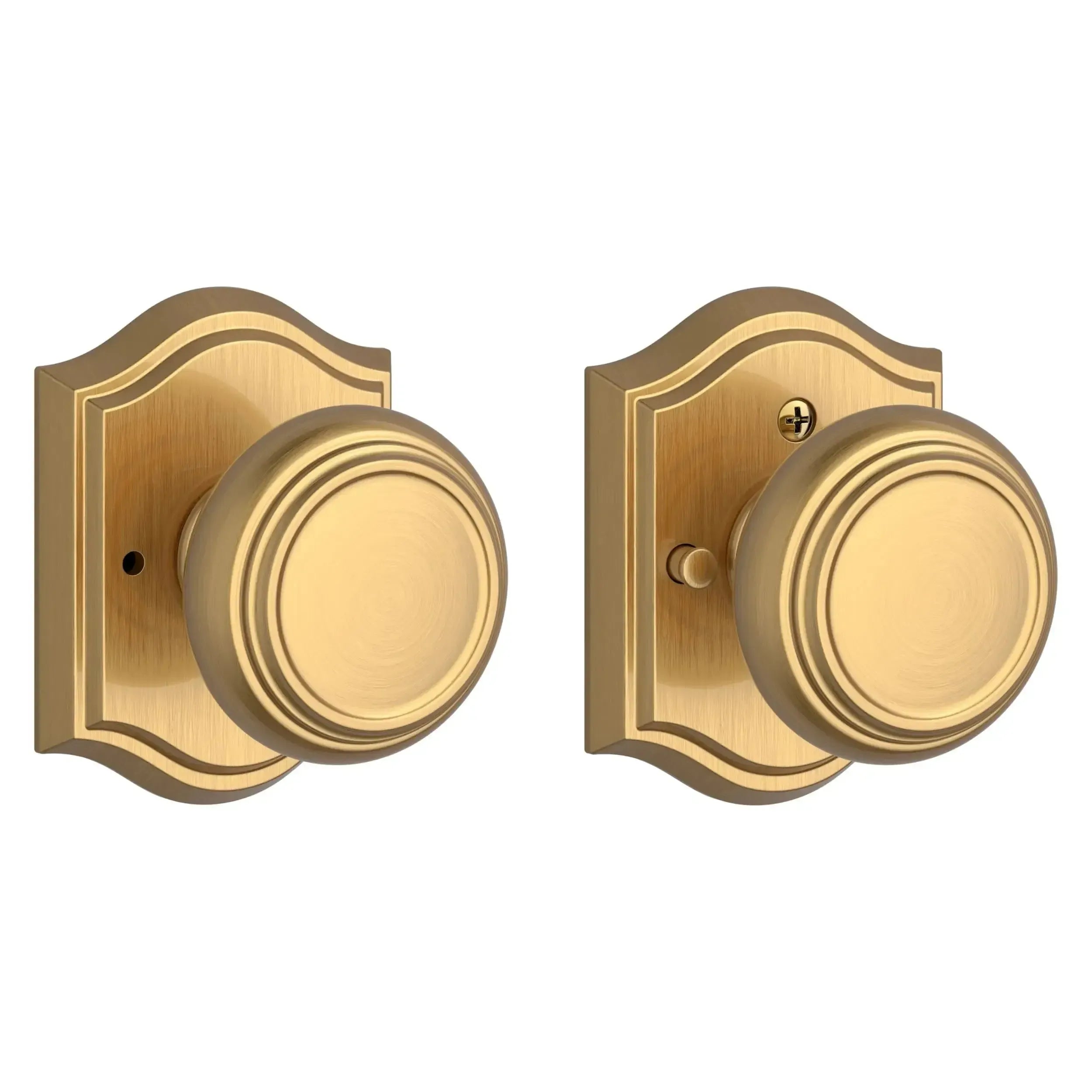

Privacy Features

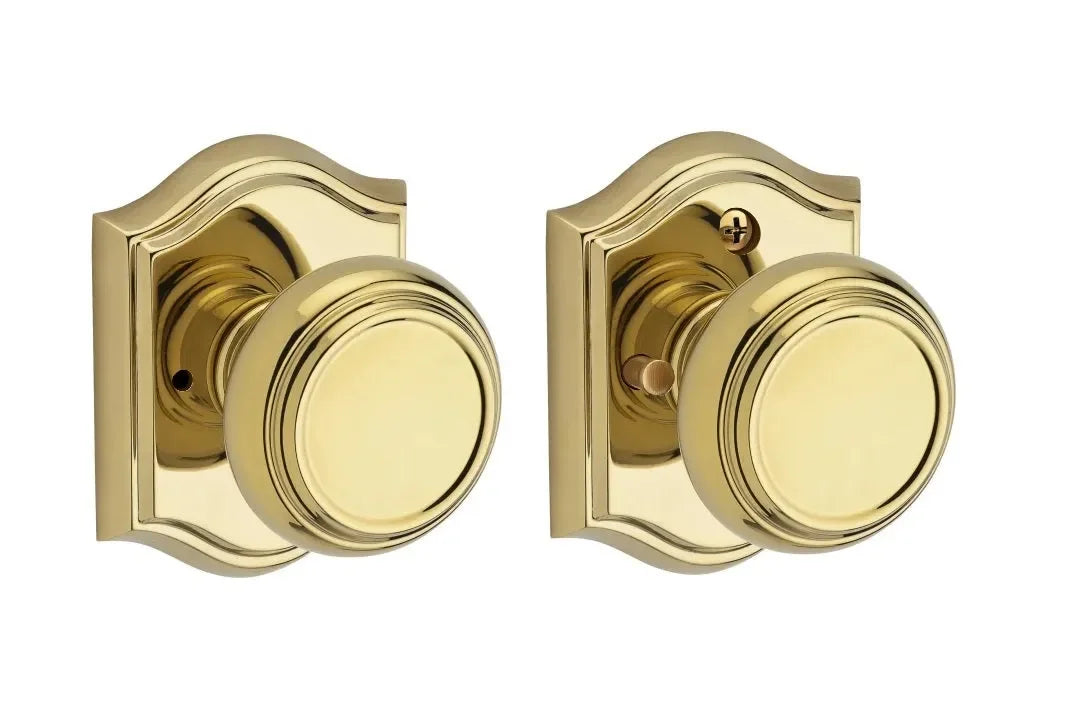

- Knob set paired with roses with a privacy or locking feature to fit the 2 1/8" standard door preparation.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Privacy sets include everything needed to install the lock onto your door.
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Full Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
- Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Note: Interior roses have exposed fasteners
- Handing not required

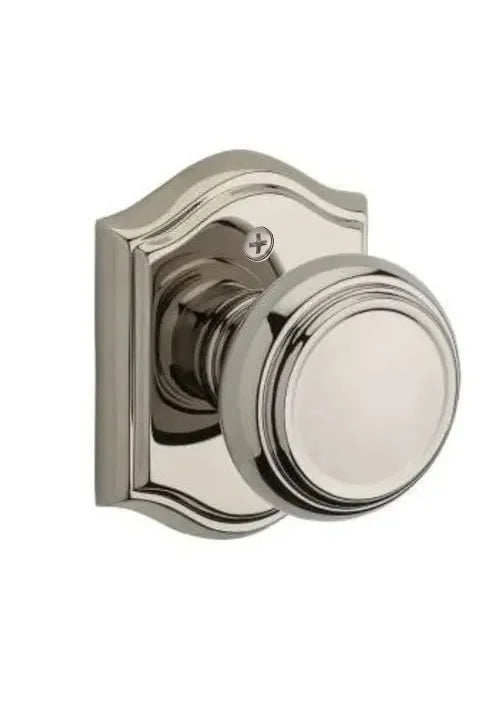

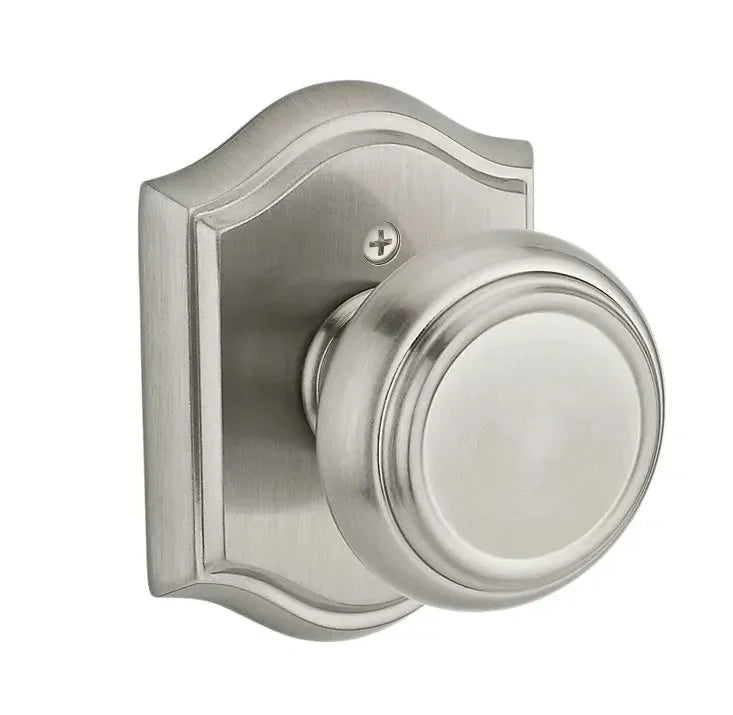

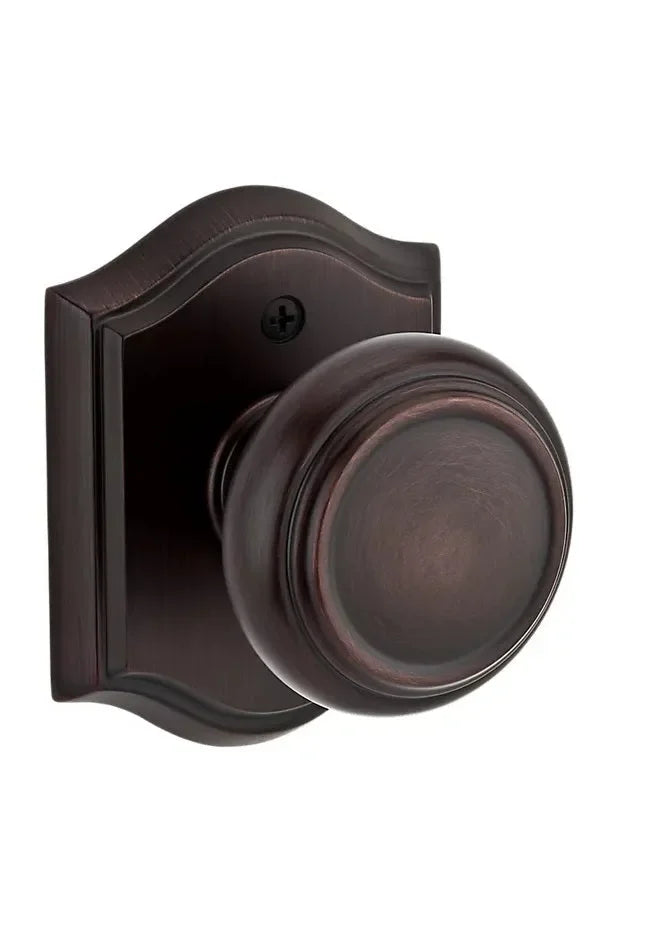

Half Dummy Features
- Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.

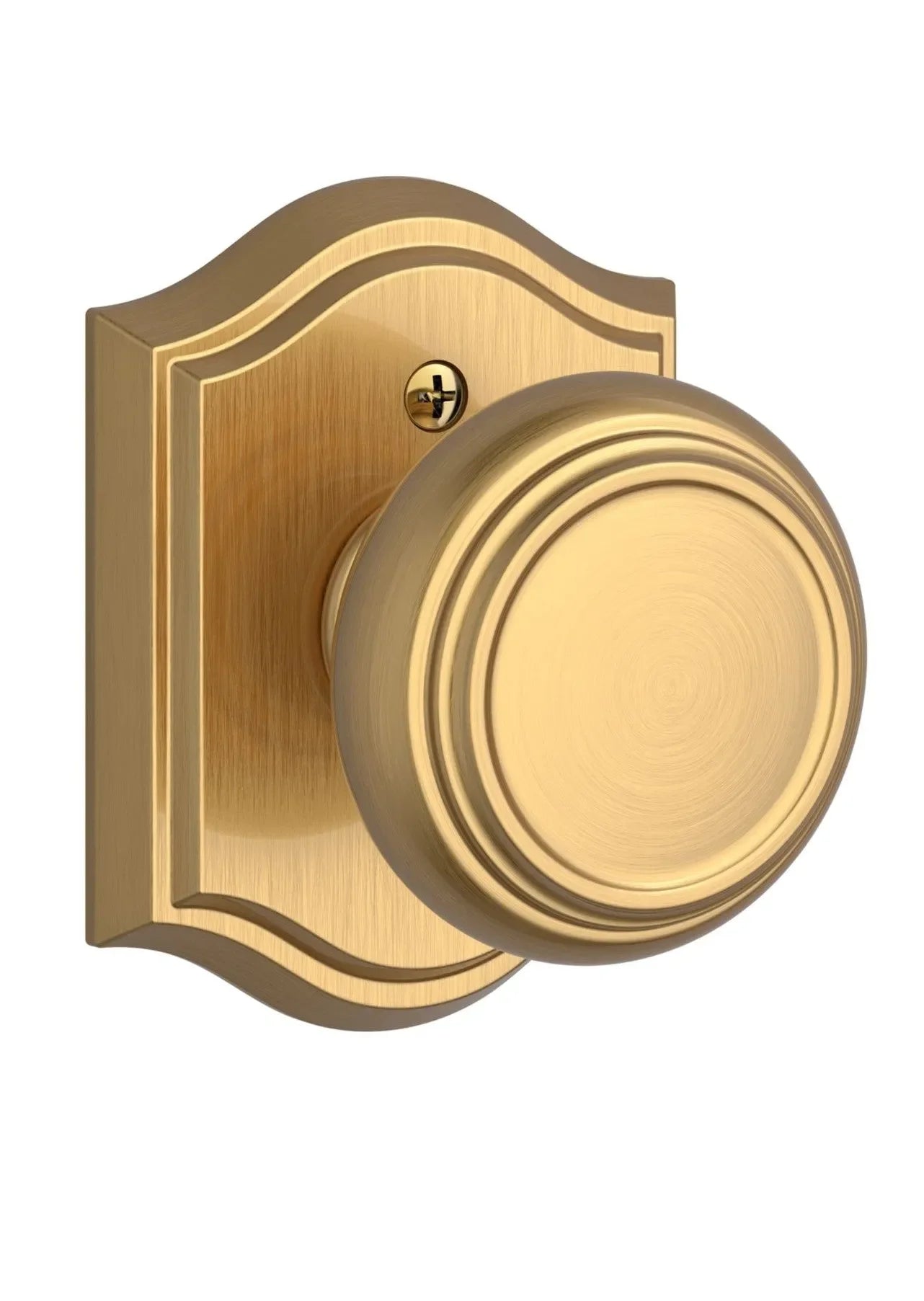

- Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
- Note: Half Dummy roses are surface mounted and have exposed fasteners

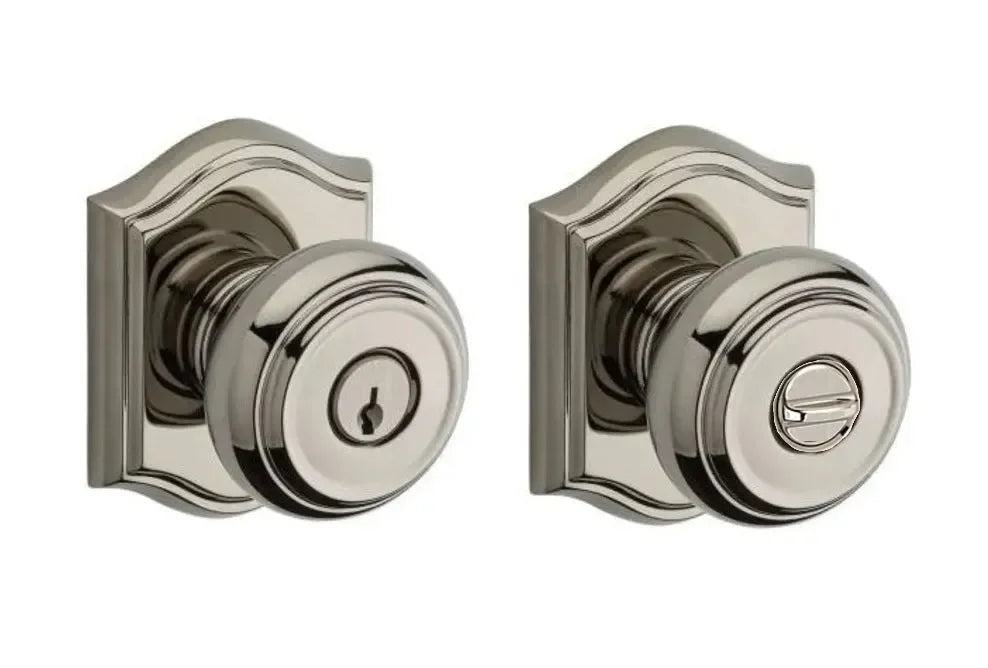

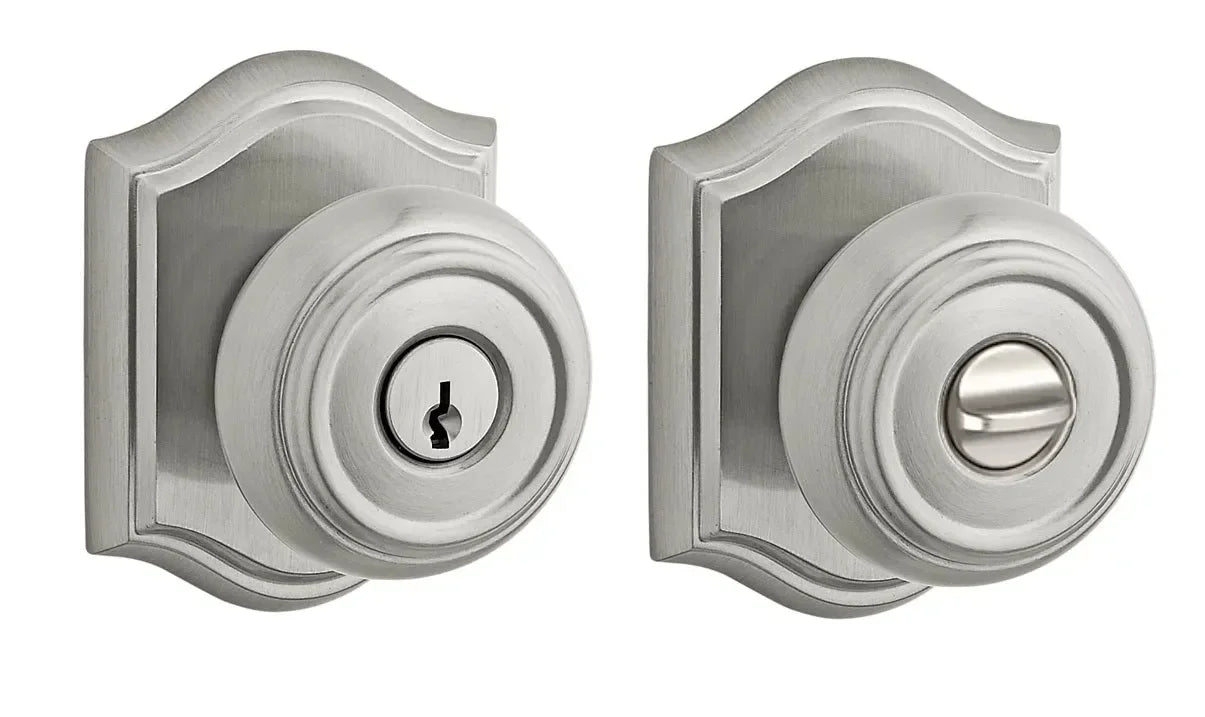

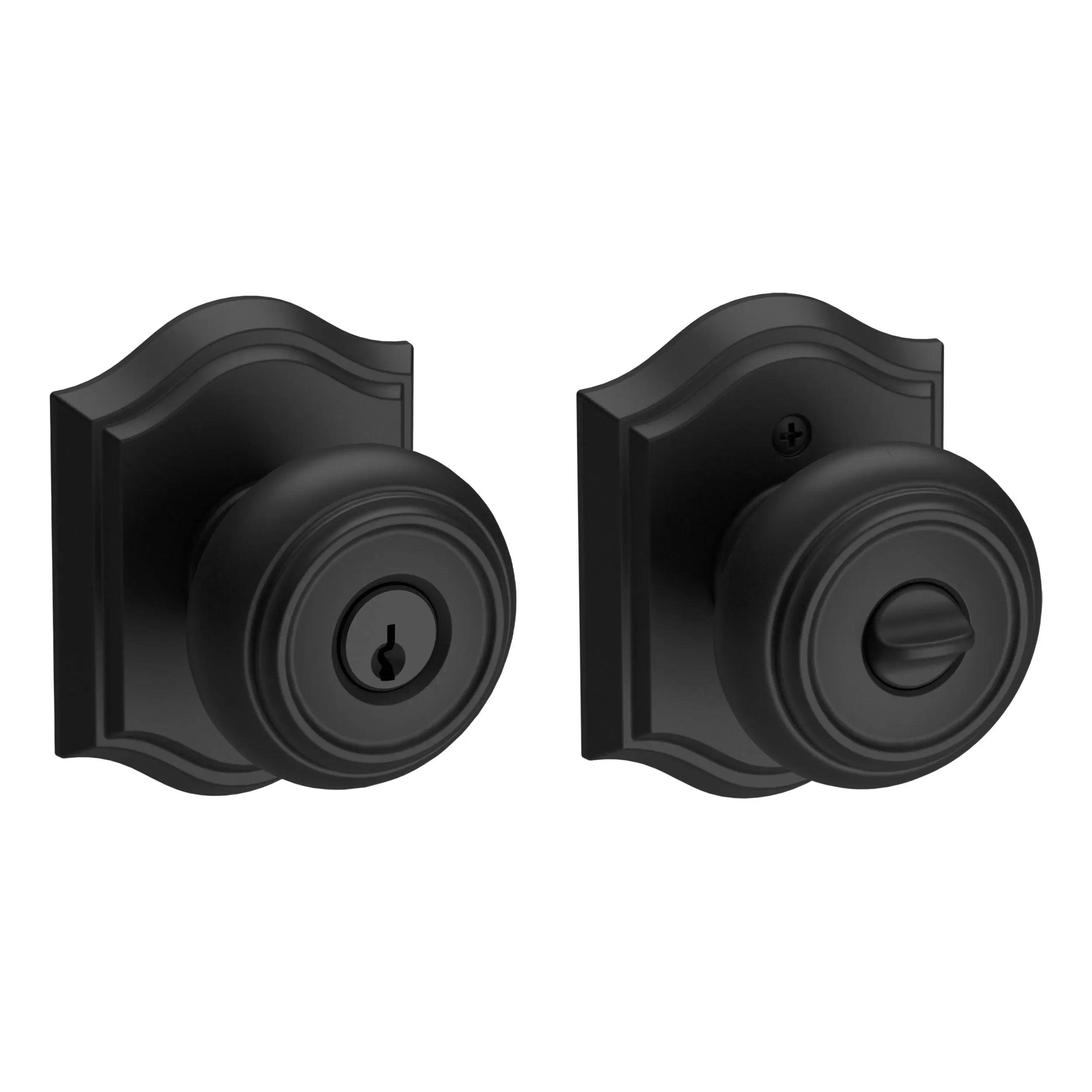

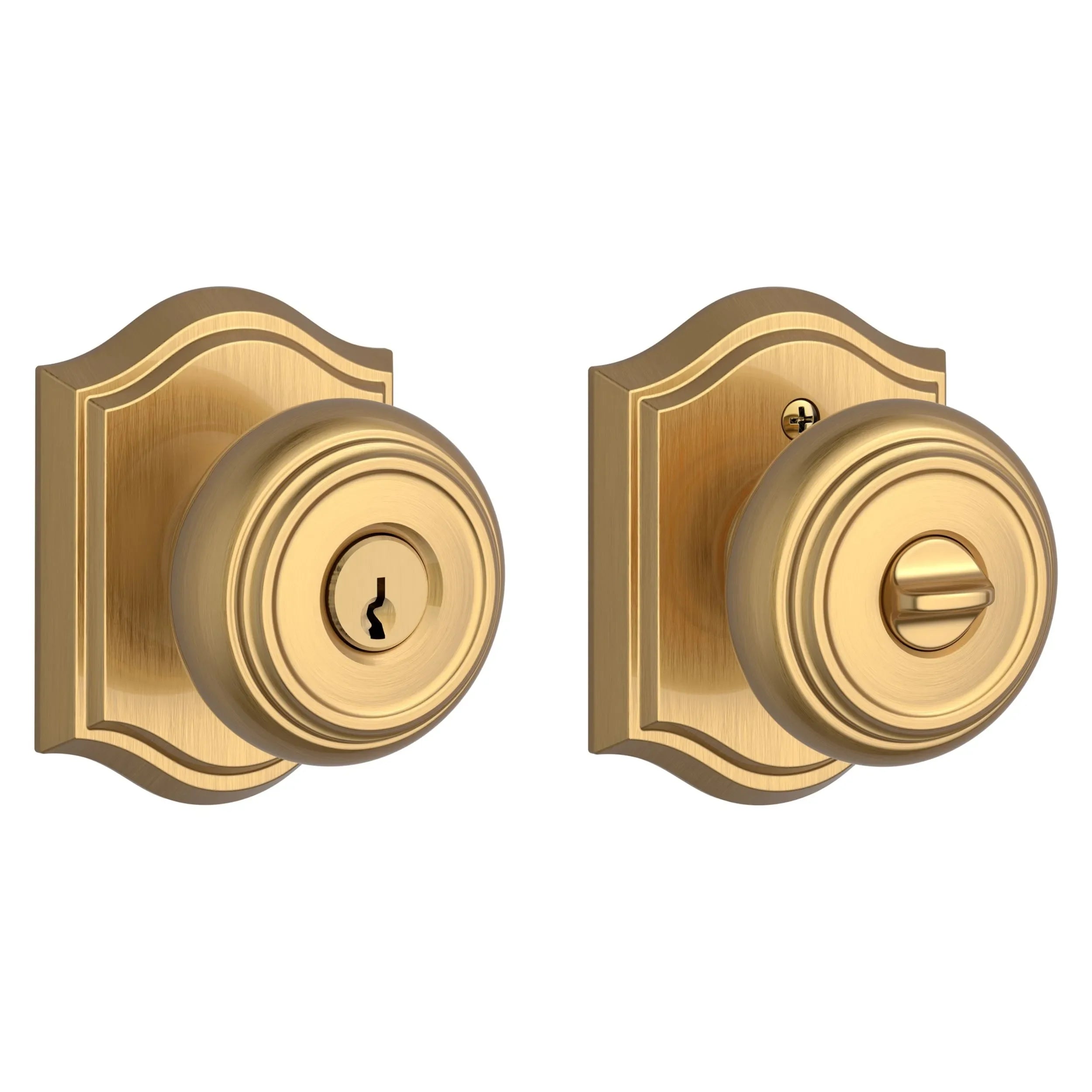

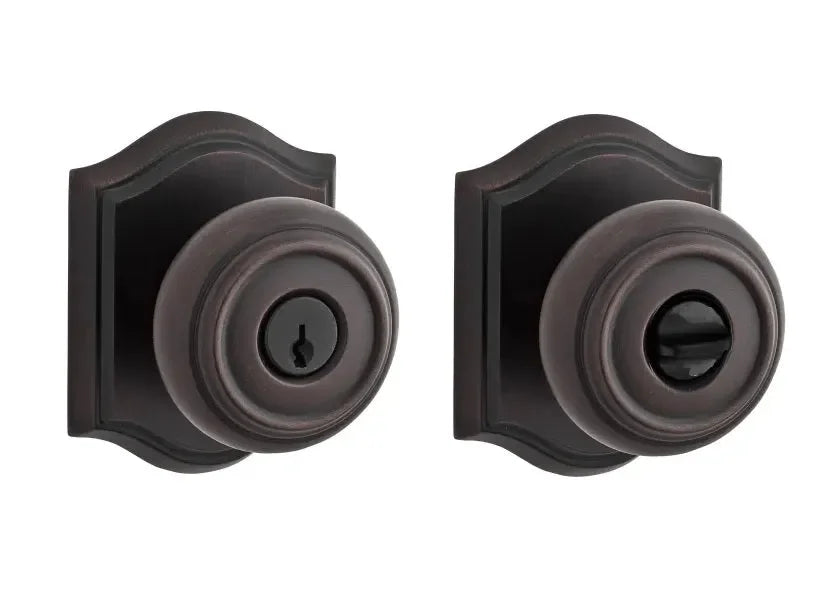

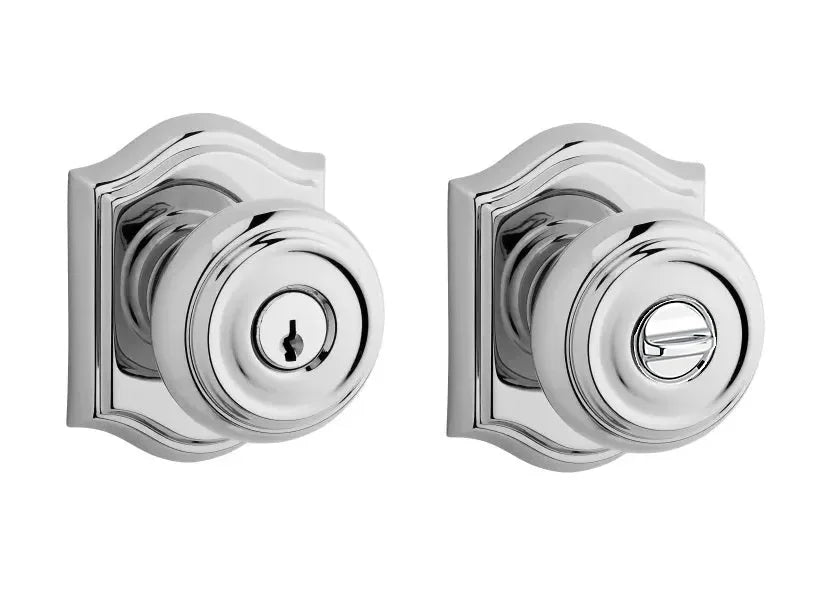

Keyed Entry Features

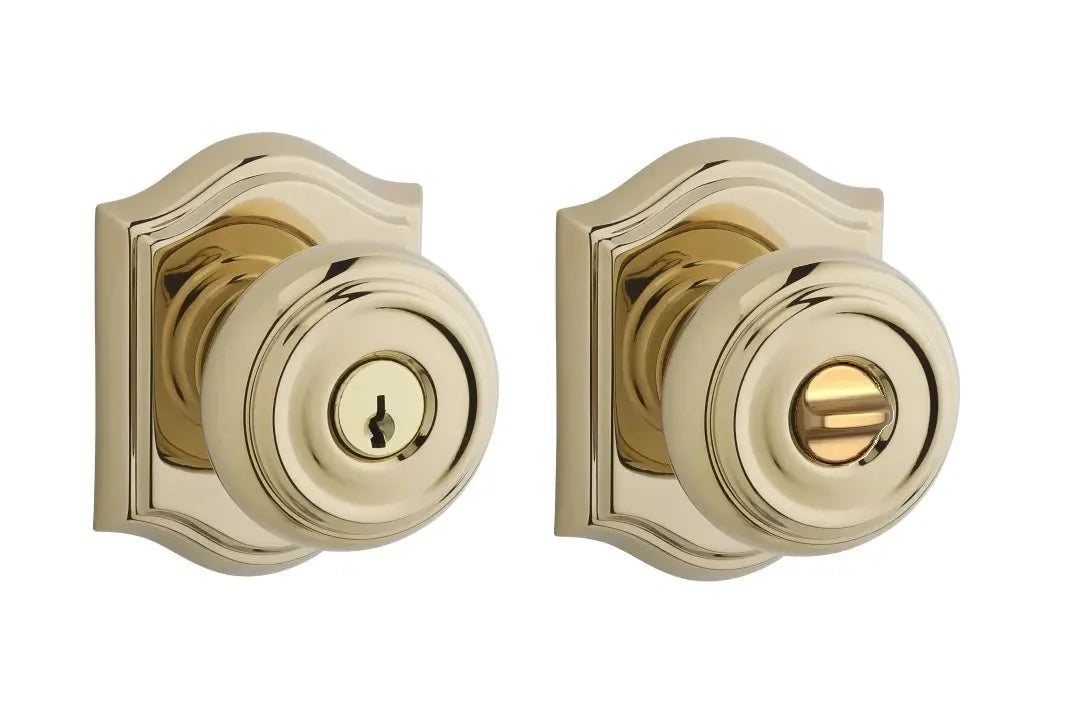

- Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
- Provides the security of a keyed cylinder, all within the 2 1/8" standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: 1/2” passage/privacy/entry function bolt.
- Door Thickness: 1 3/8"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Handing not required
- Knob/Lever rotates at 55°- 60°
- Note: Interior roses have exposed fasteners
Specifications
- Projection: 2 1/4"
- Keyed Knob Projection: 2 3/16"
- Knob Diameter: 2 7/32"
- Rosette Dimensions: 2 21/32" x 3 7/16"
