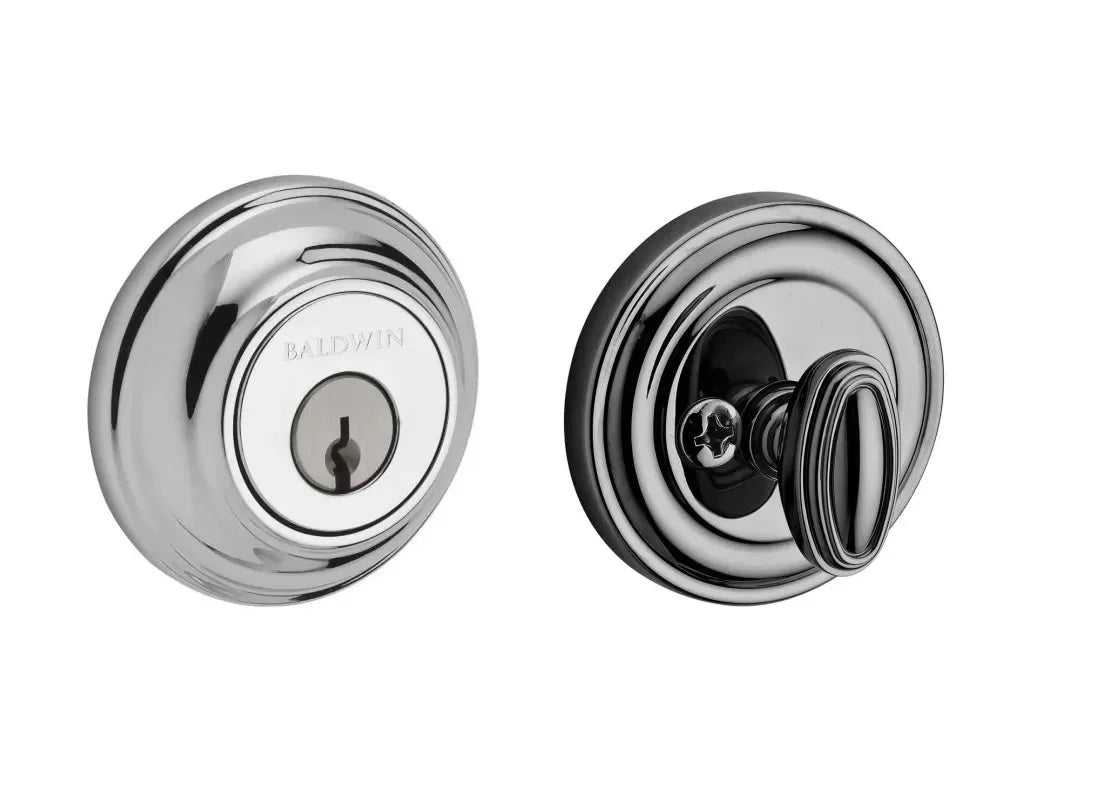

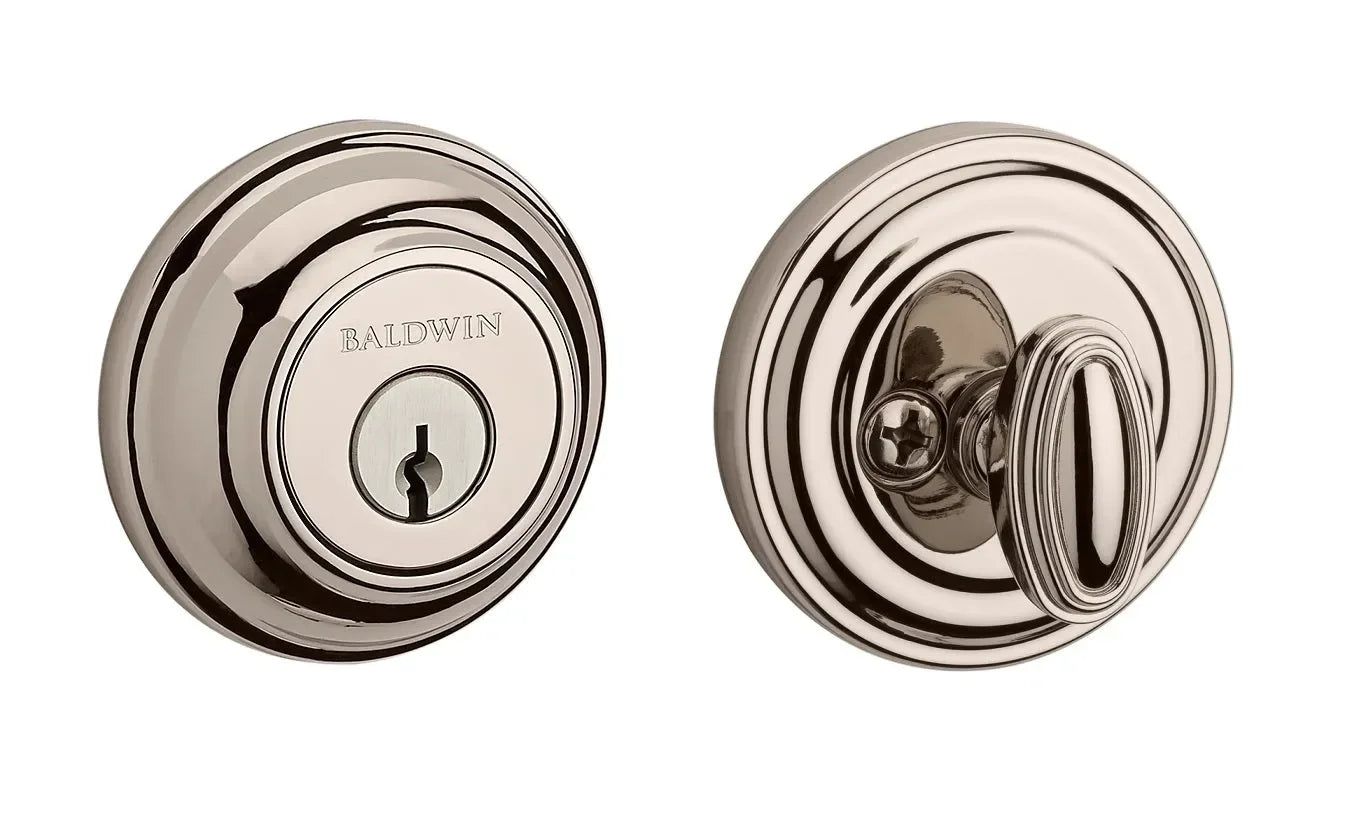

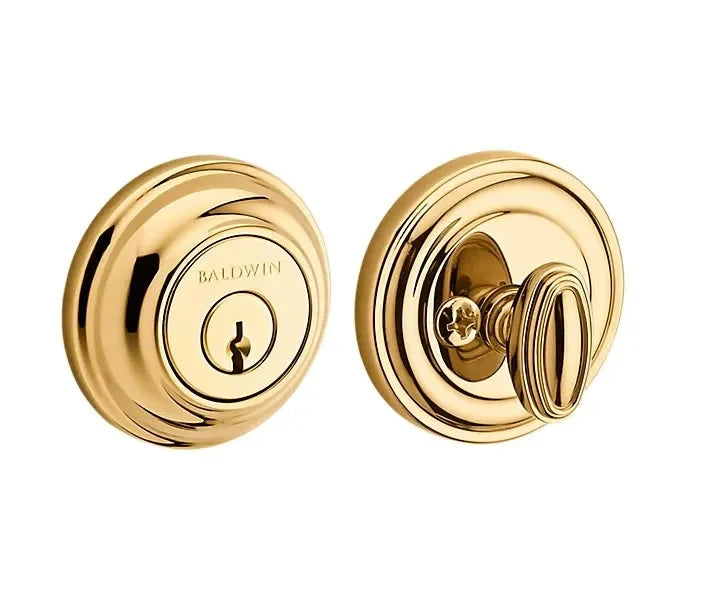

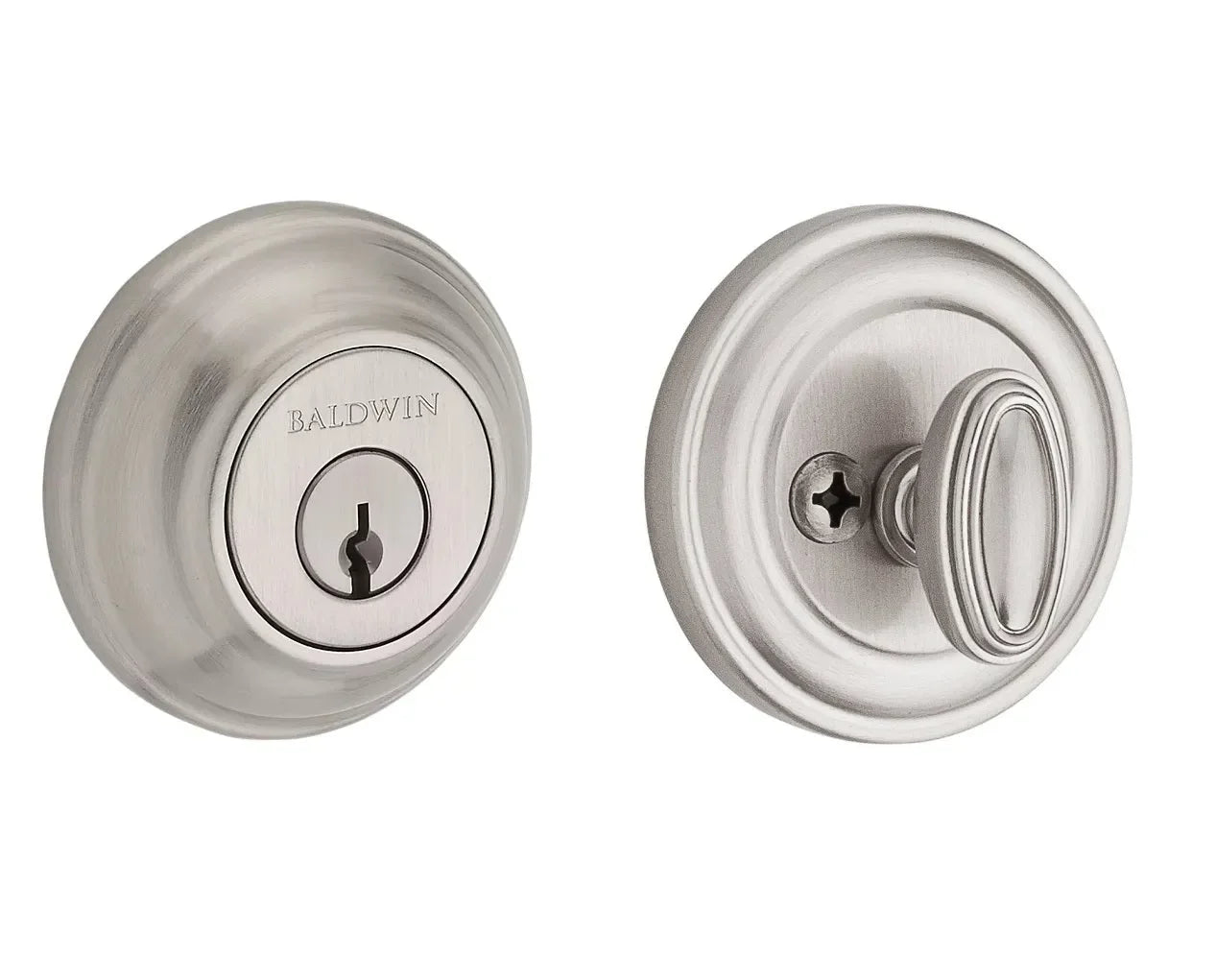

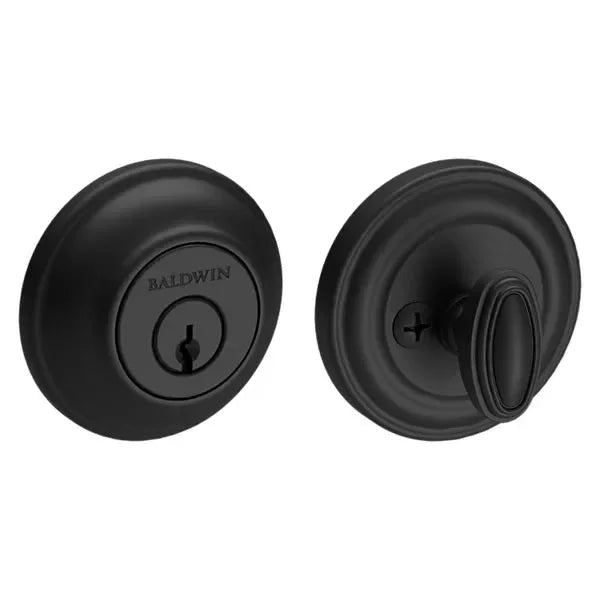

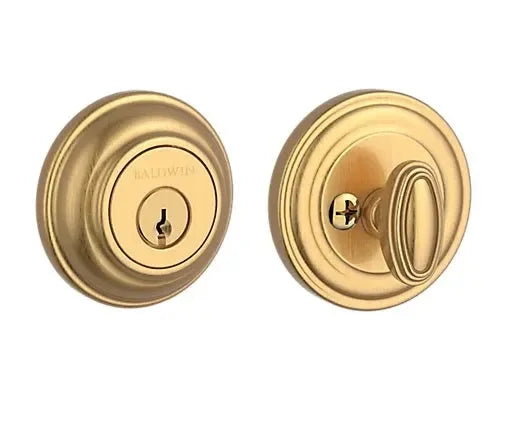

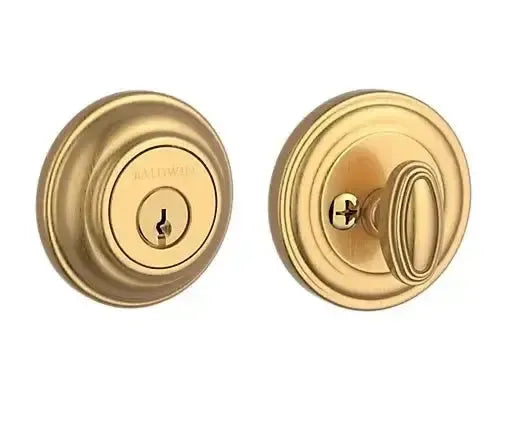

Traditional Round Deadbolt is the perfect residential lock providing security for any home or multi-home exterior door.
Features
- The combination of Reserve style and the security of a keyed cylinder, all within the 2 1/8" standard door preparation.
- Locking mechanism functions with turn piece on the interior of the lock
- Includes a 2 3/8" and 2 3/4" adjustable backset latch and Dual Strike.
- Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch
- Door Thickness: 1 3/4"-2" standard. Up to 2-1/2" thick doors optional through Thick Door Service Part Kit. 1 3/8" to 1 3/4" doors available through Thin Door Service Part Kit.
- Complete deadbolt set includes everything needed to install the lock onto your door.
- Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
- 2 Keys Included with deadbolt
- Tested to exceed ANSI/BHMA Grade 2 security
- Note: Interior roses have exposed fasteners
Specifications
- Diameter: 2 5/8"
- Exterior Projection: 3/4"

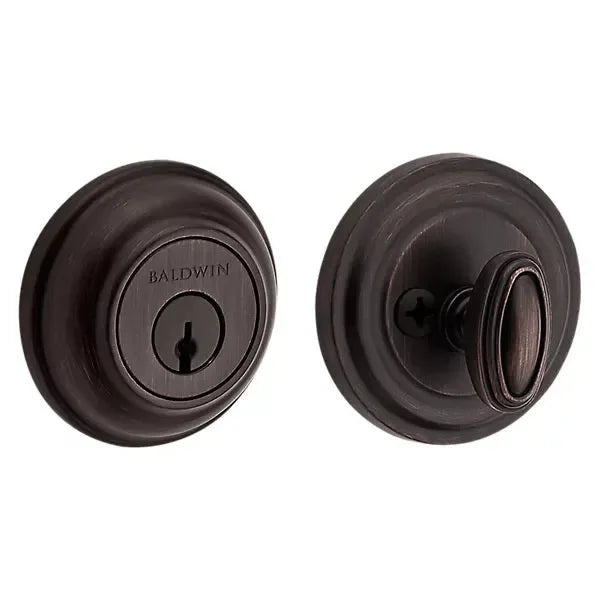

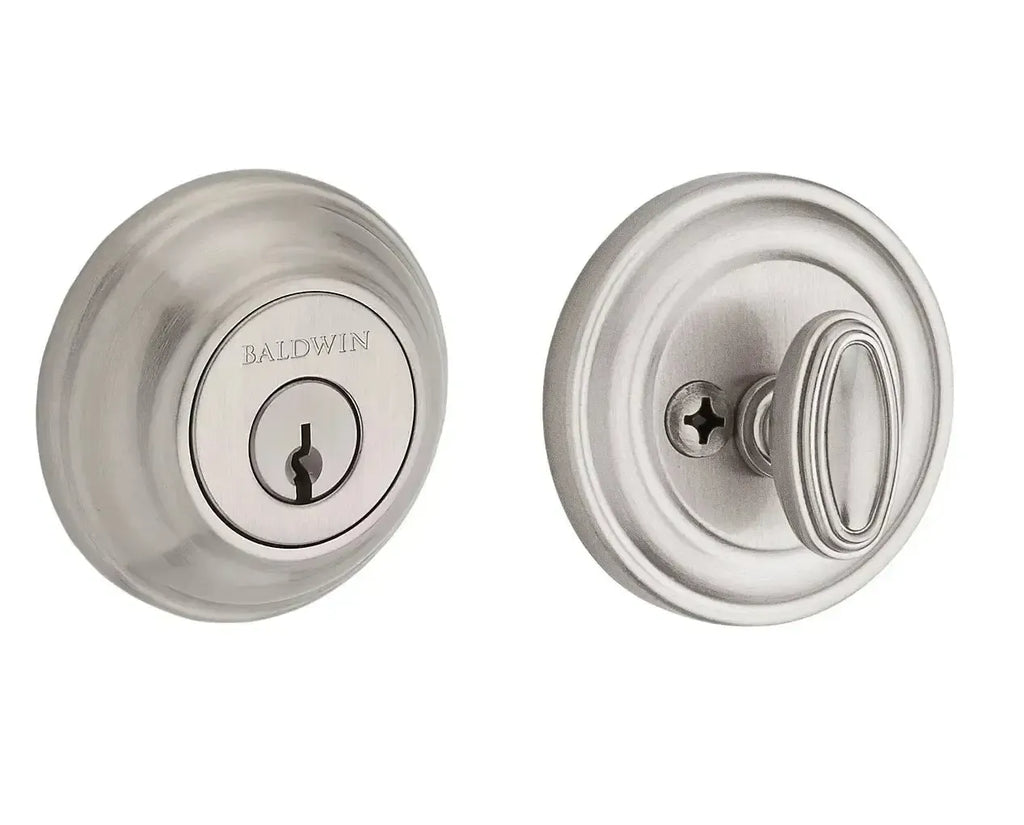

- Single Cylinder Interior Projection: 1 7/16"

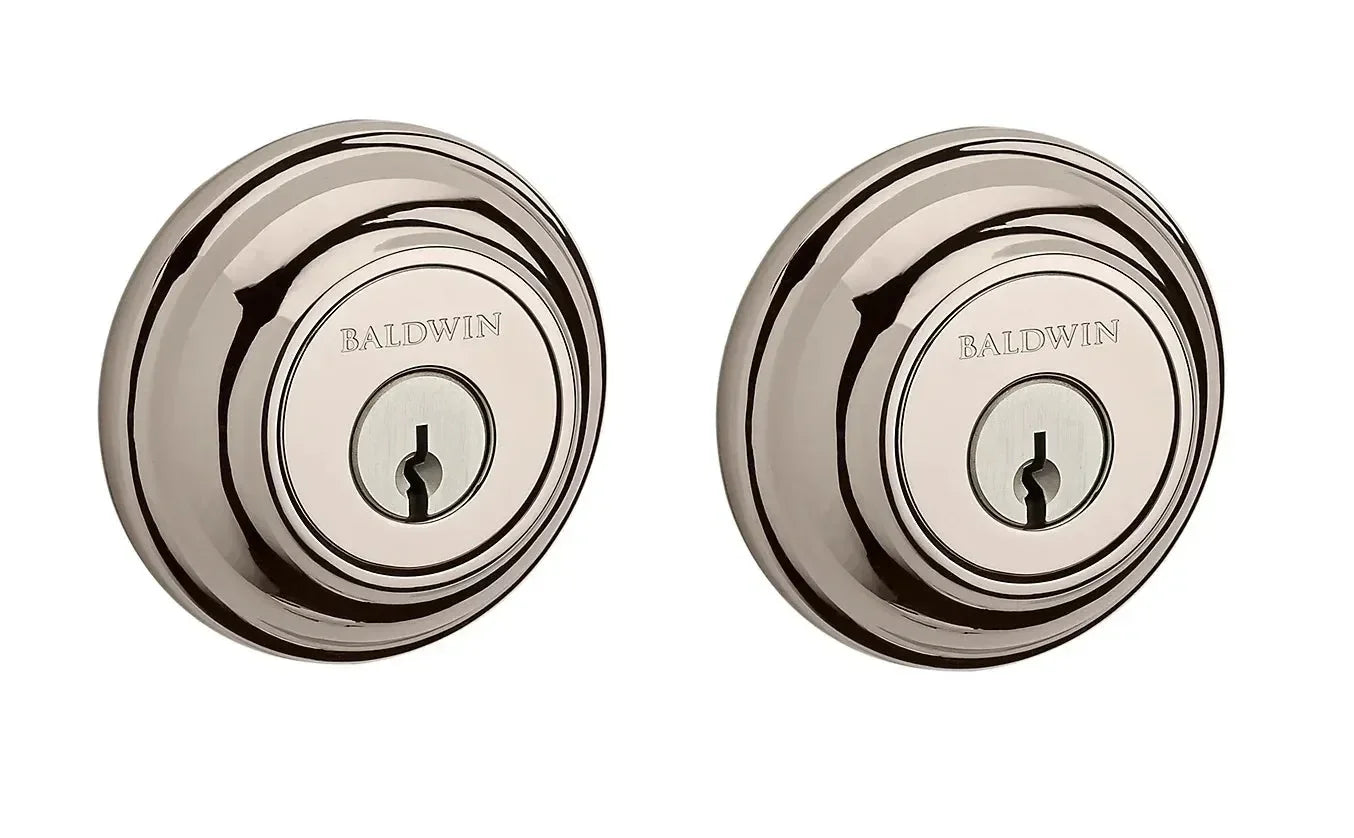

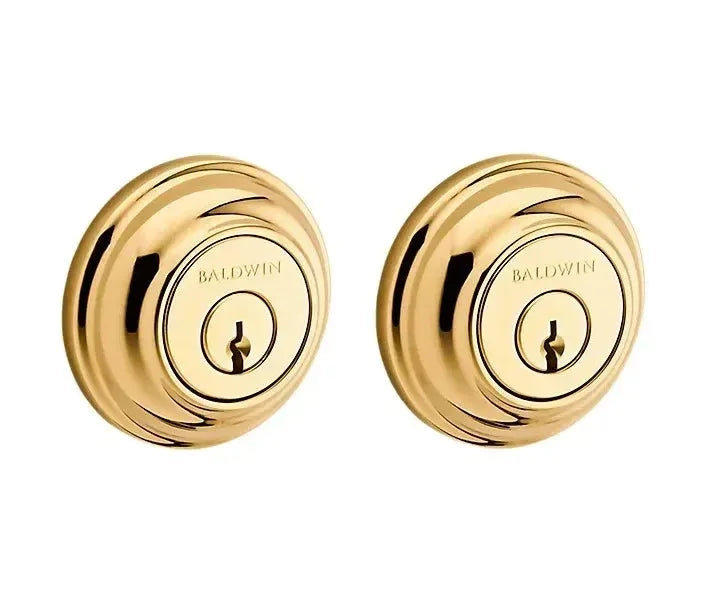

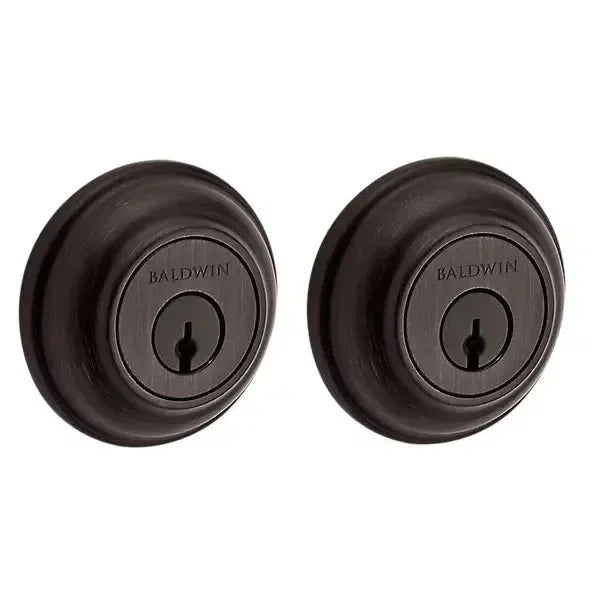

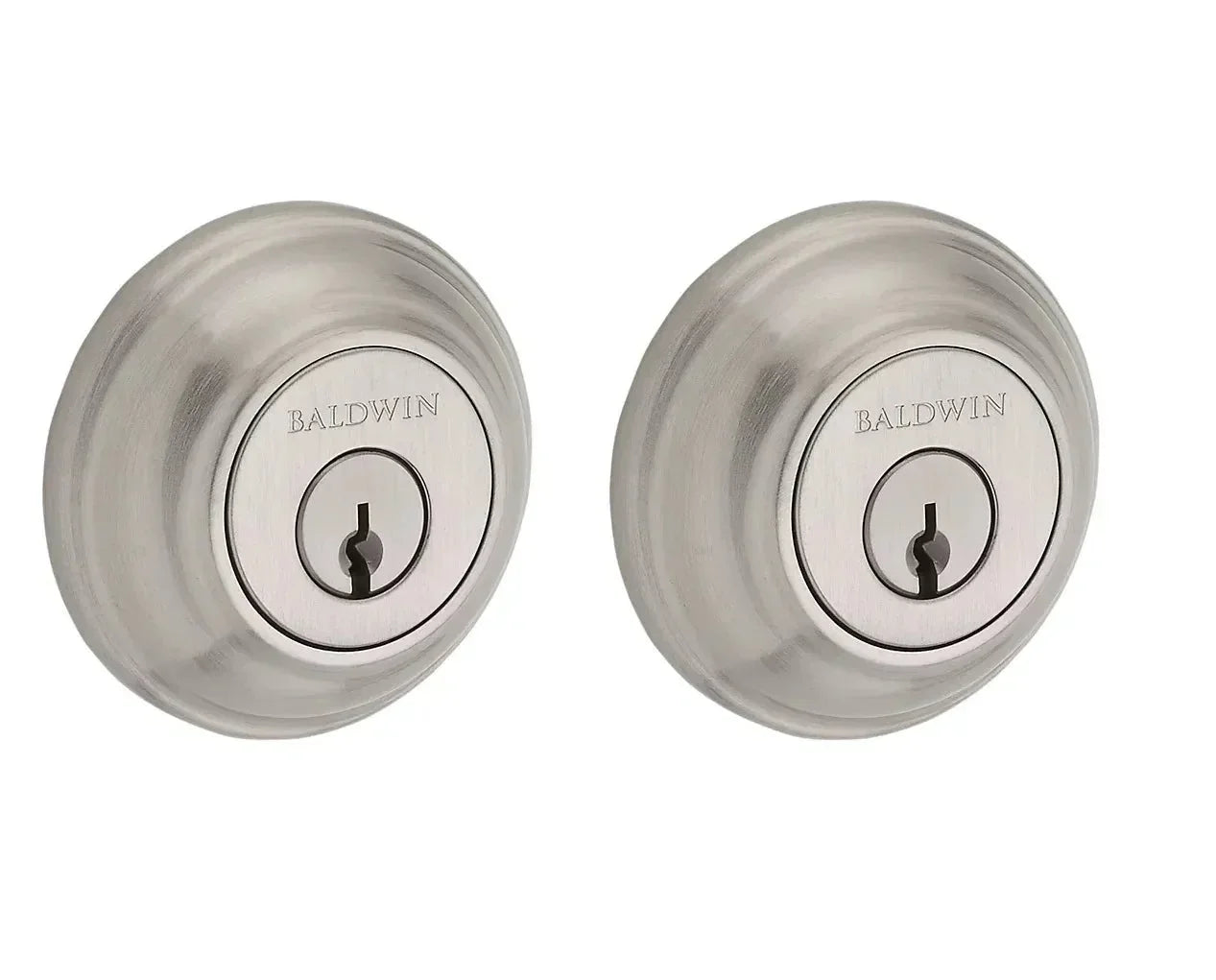

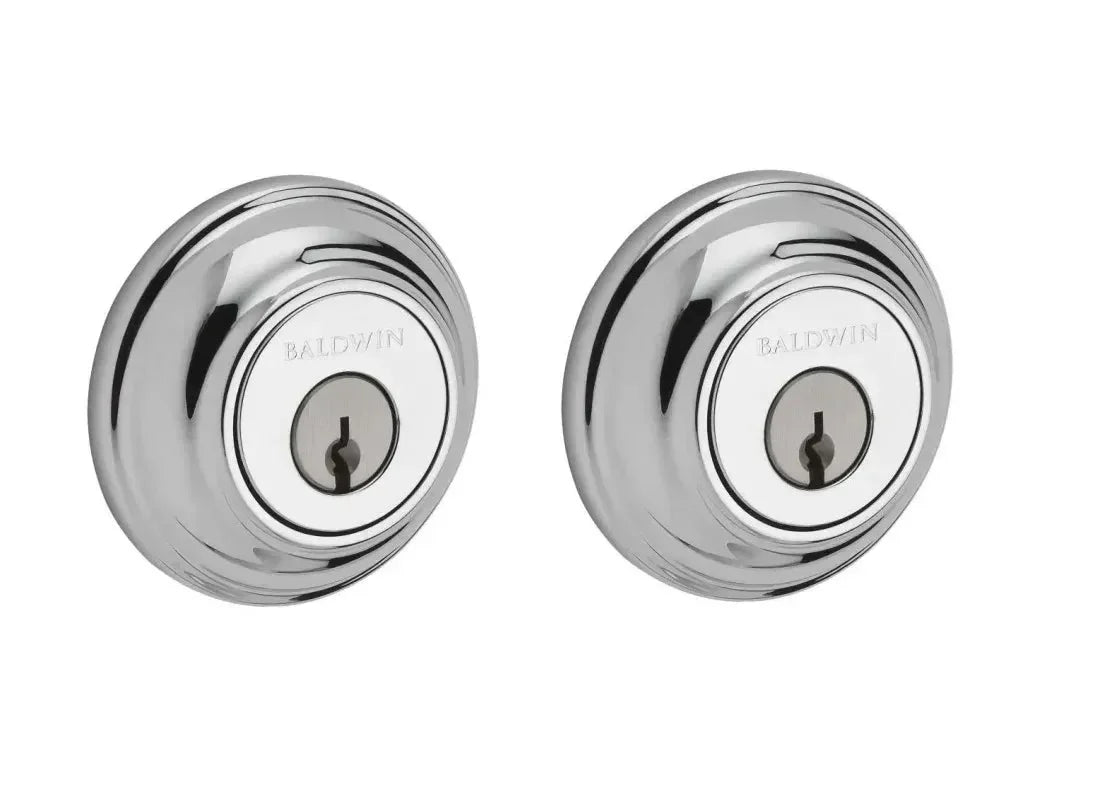

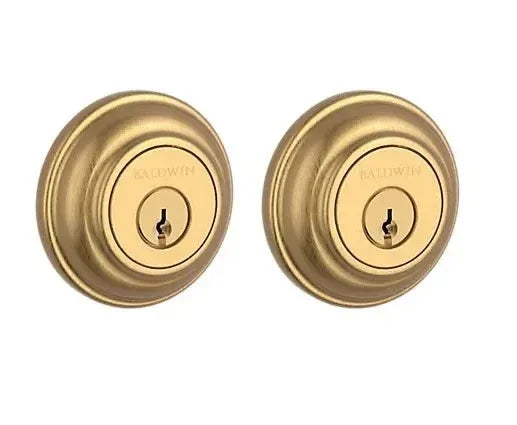

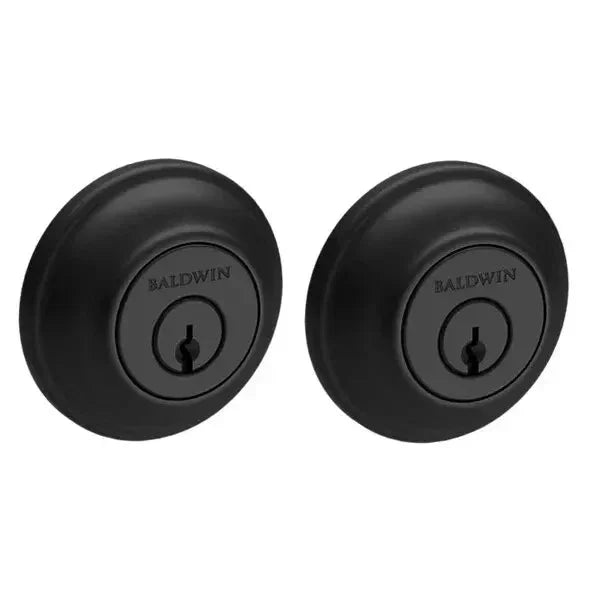

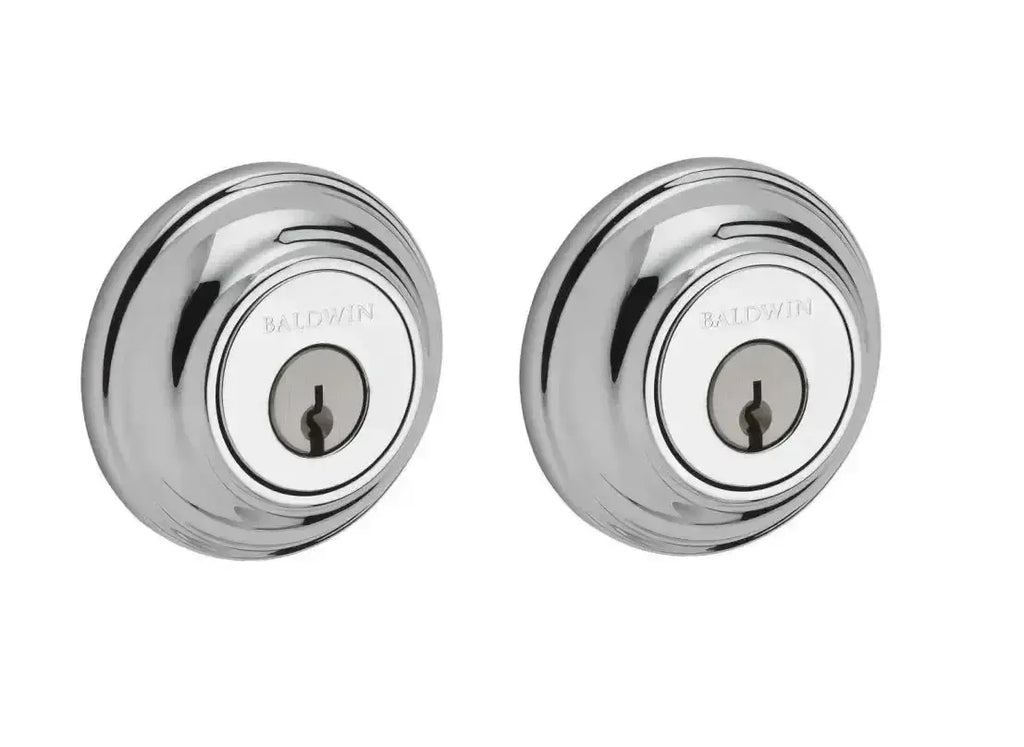

- Double Cylinder Interior Projection: 3/4"
