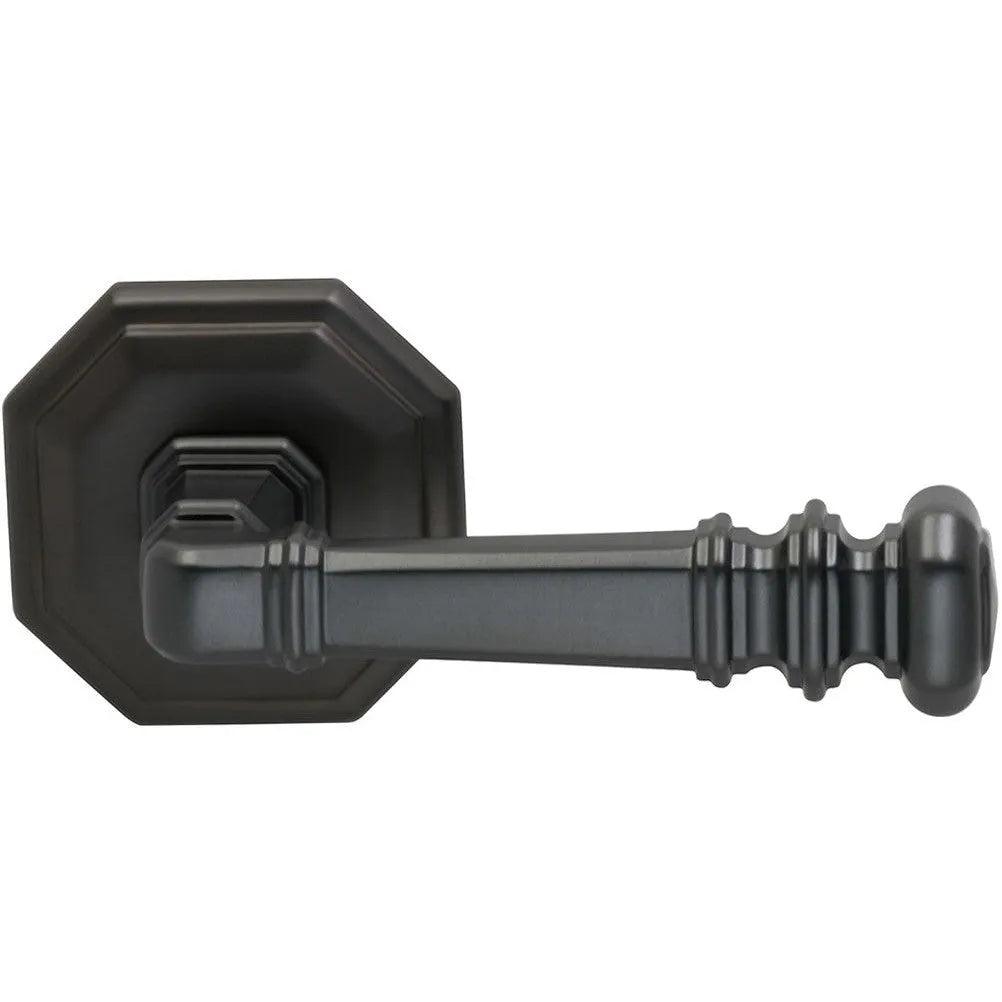

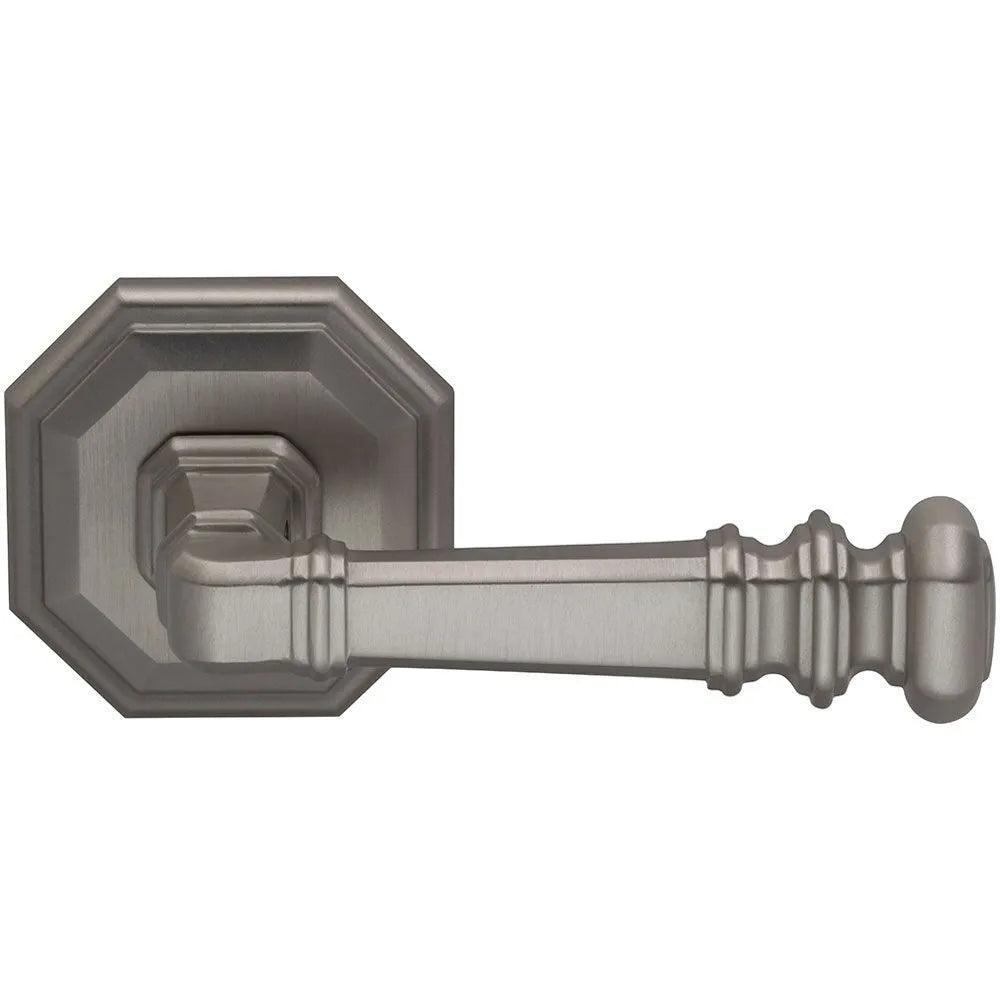

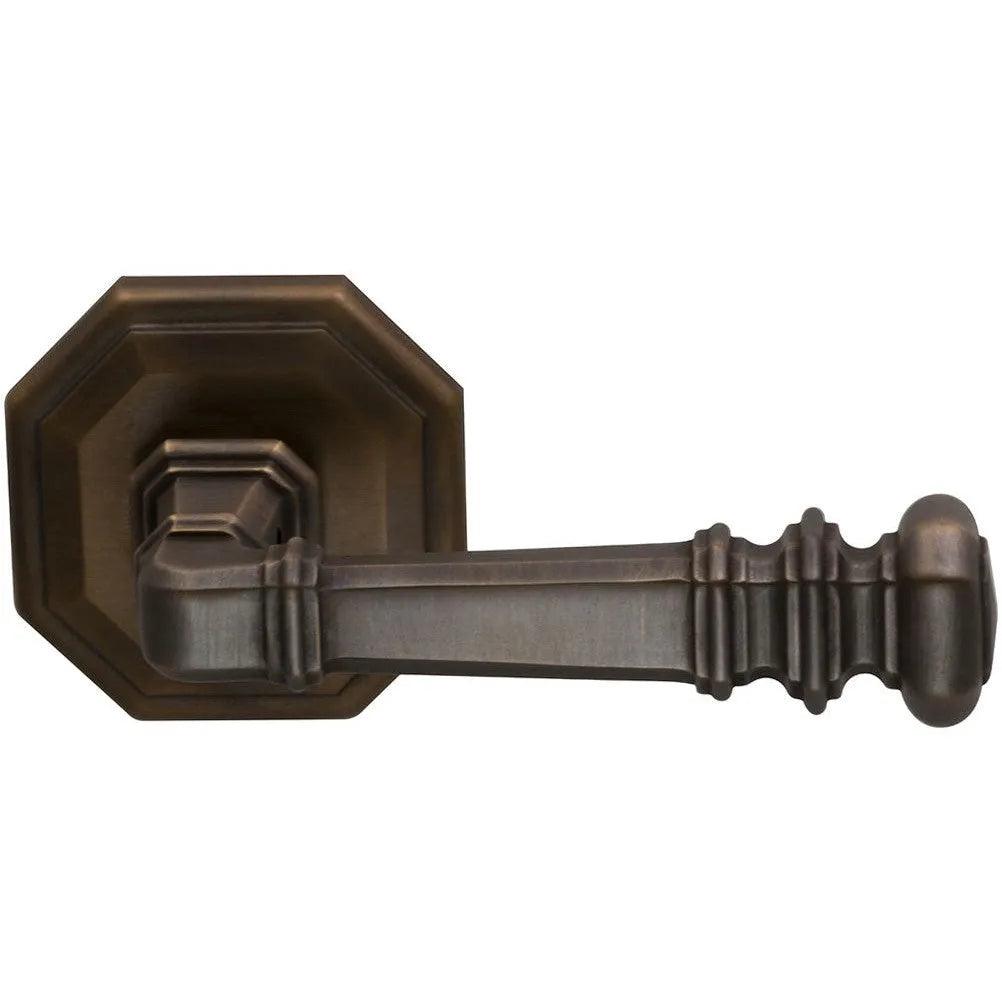

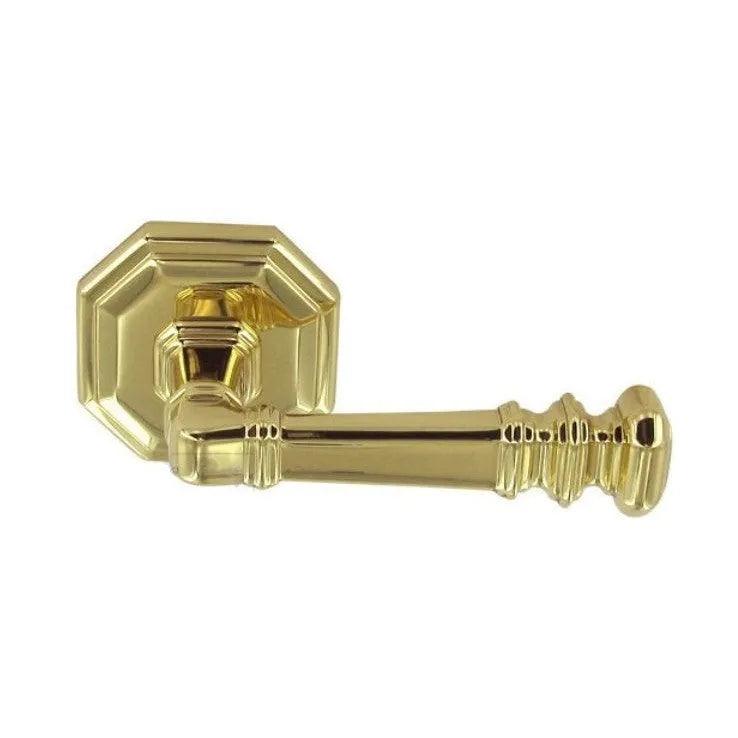

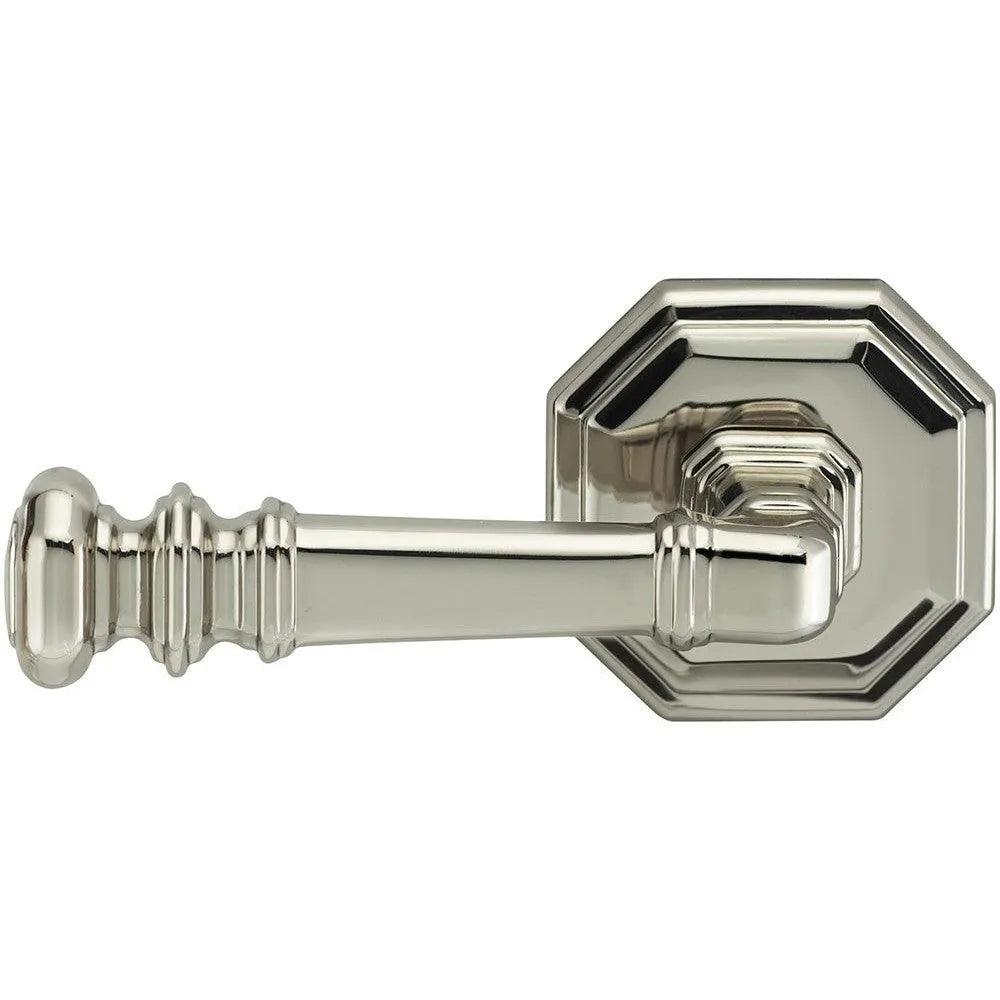

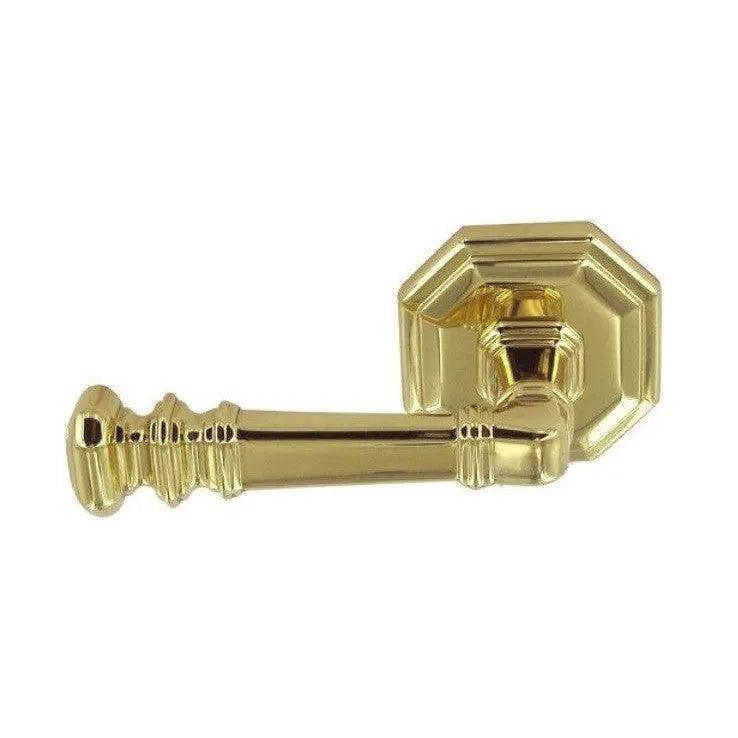

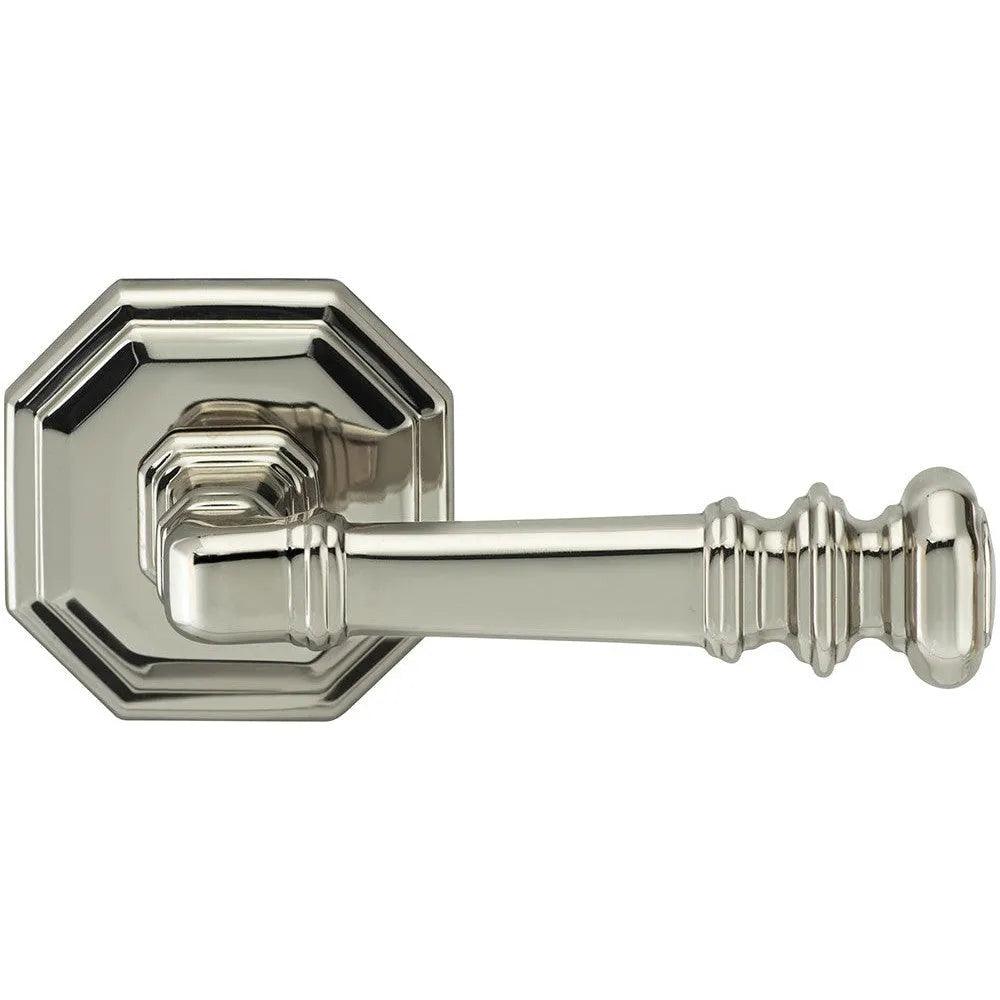

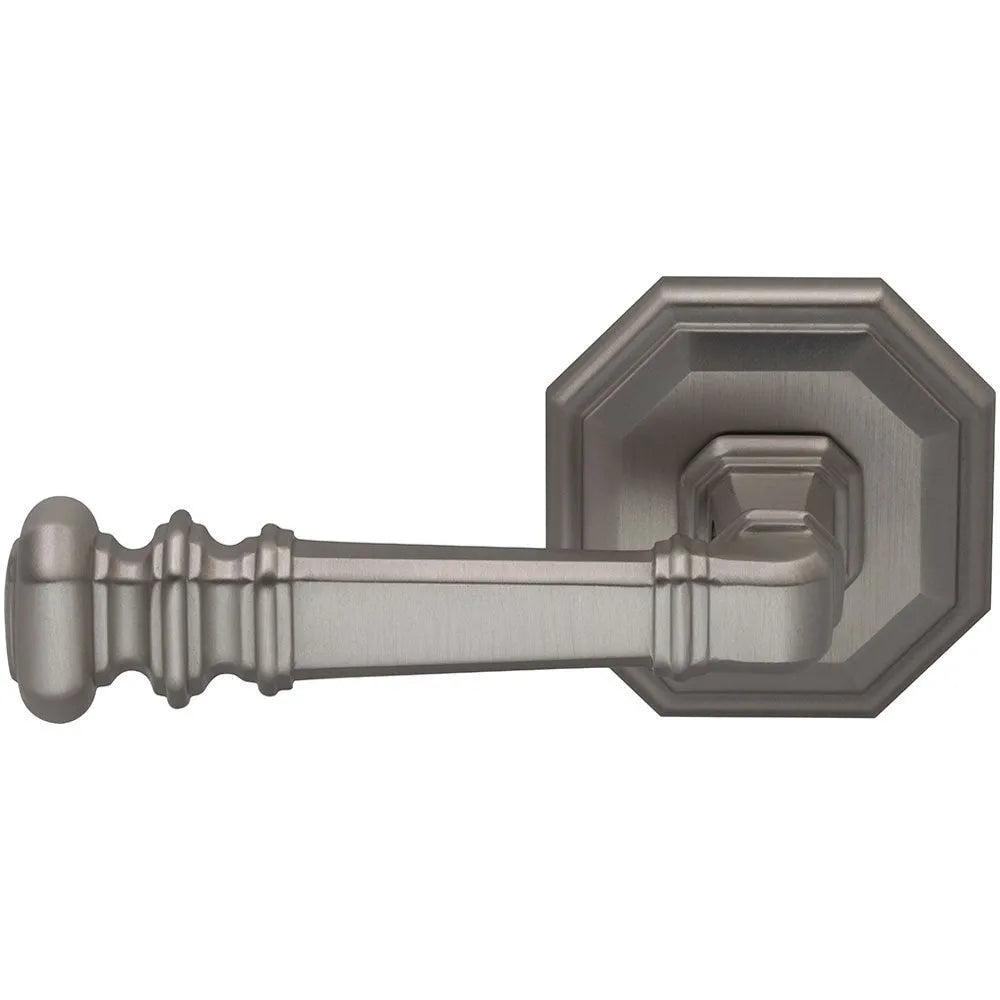

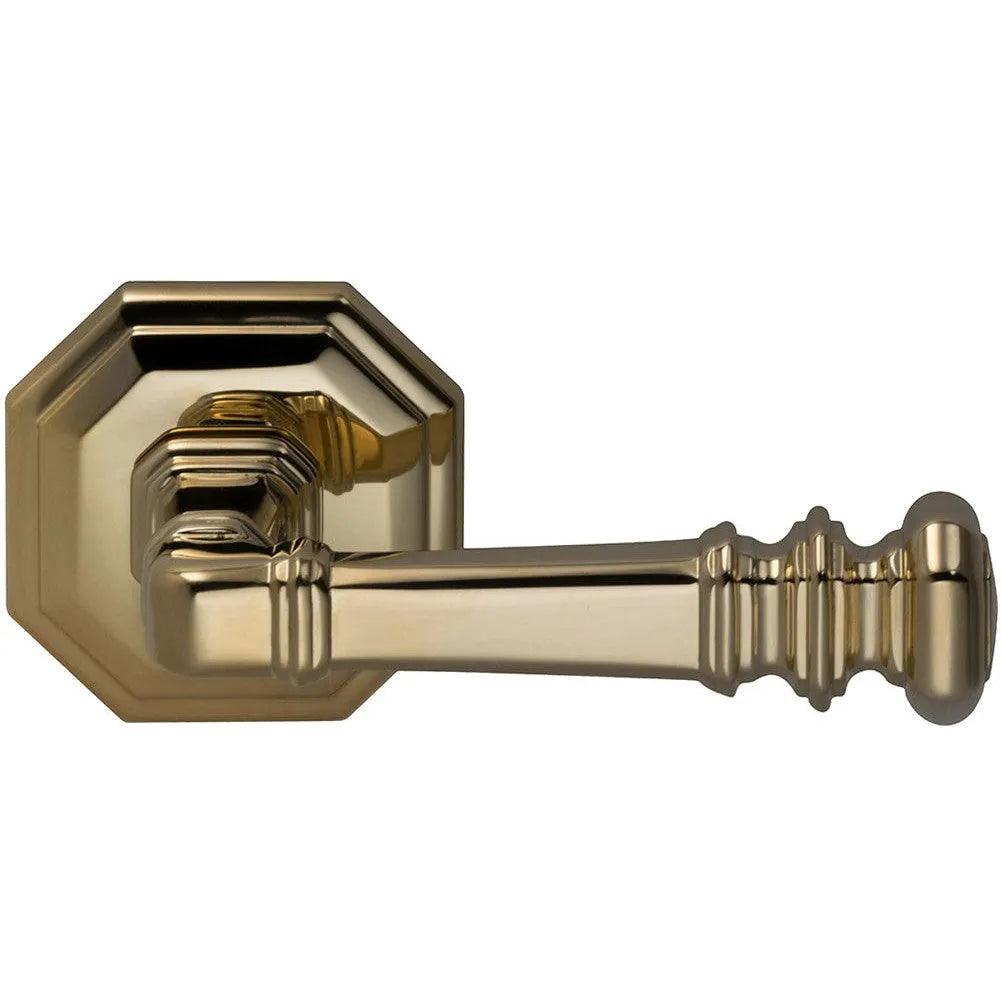

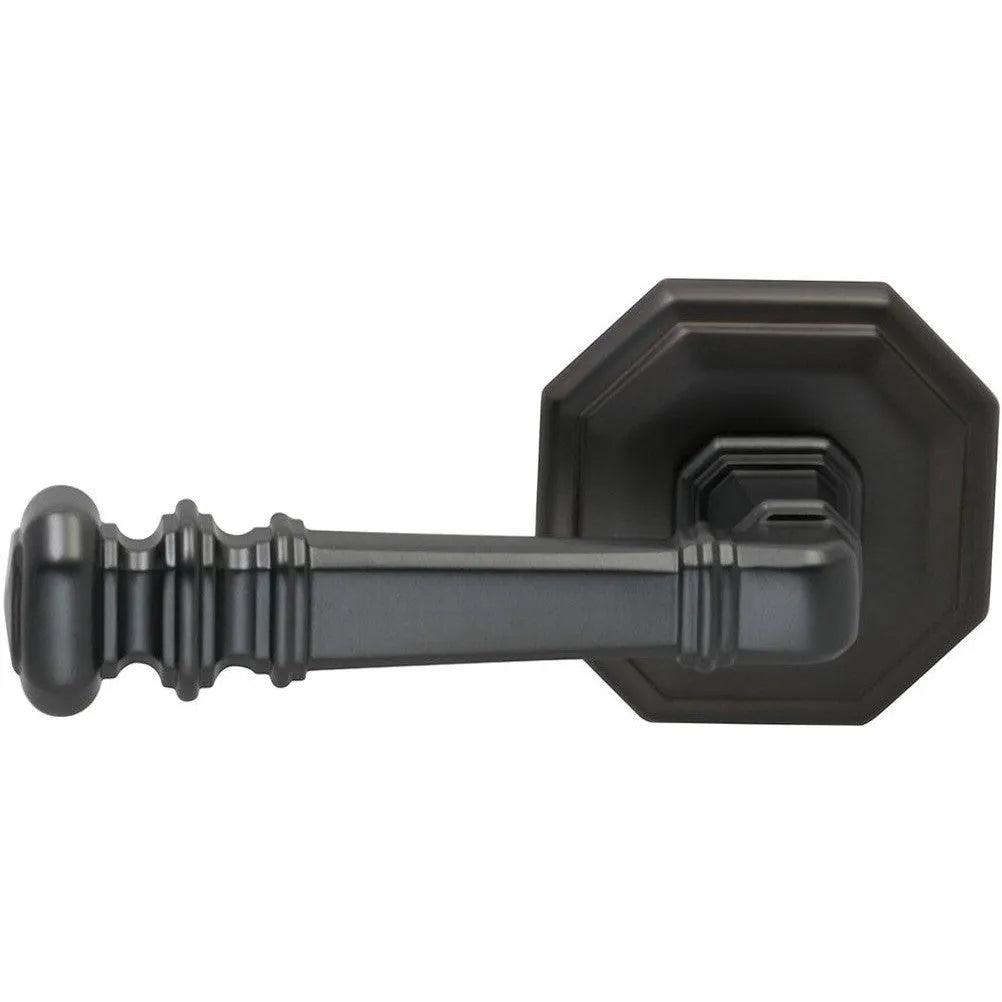

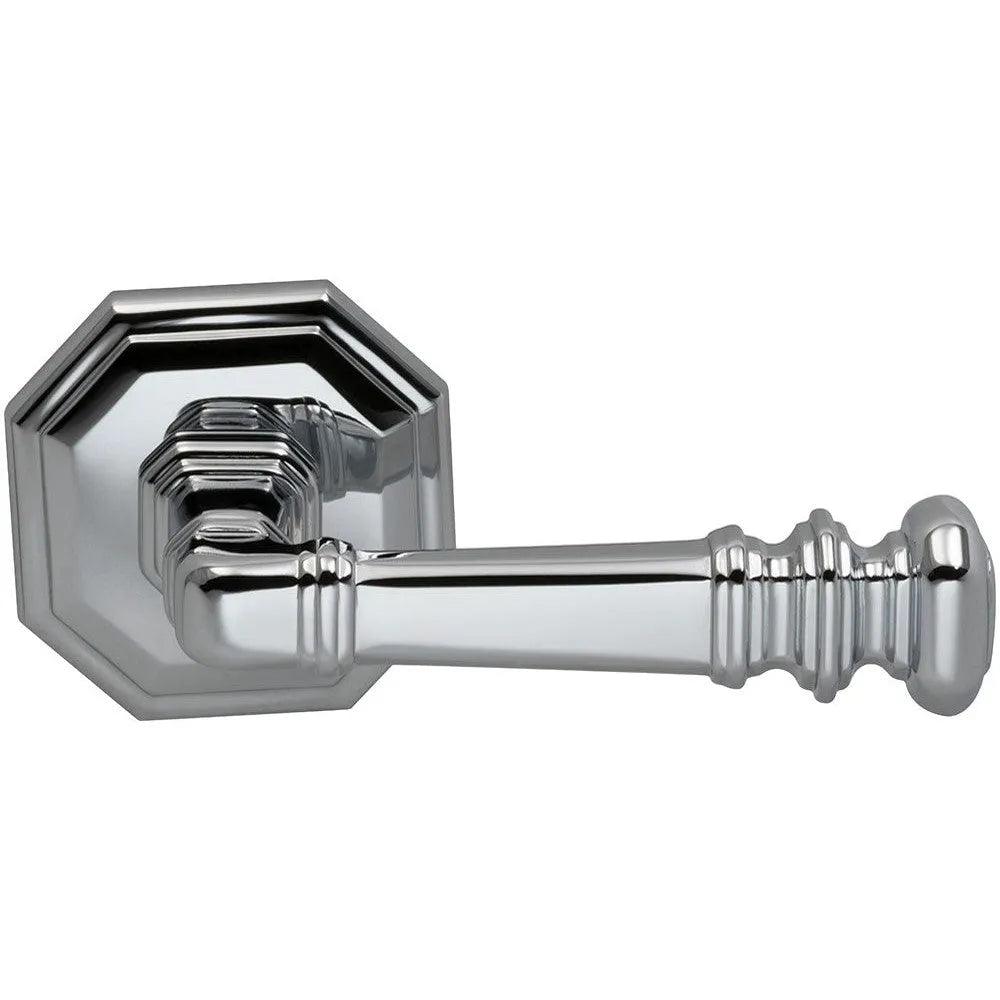

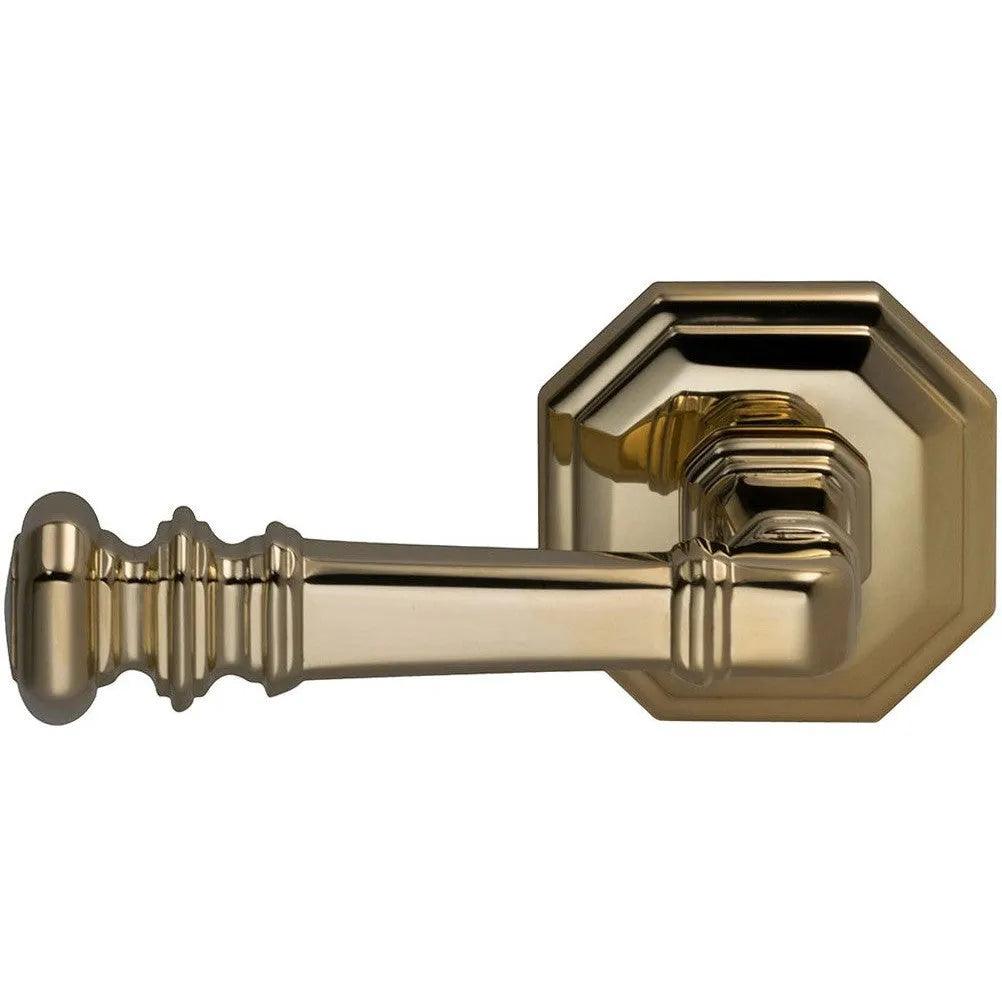

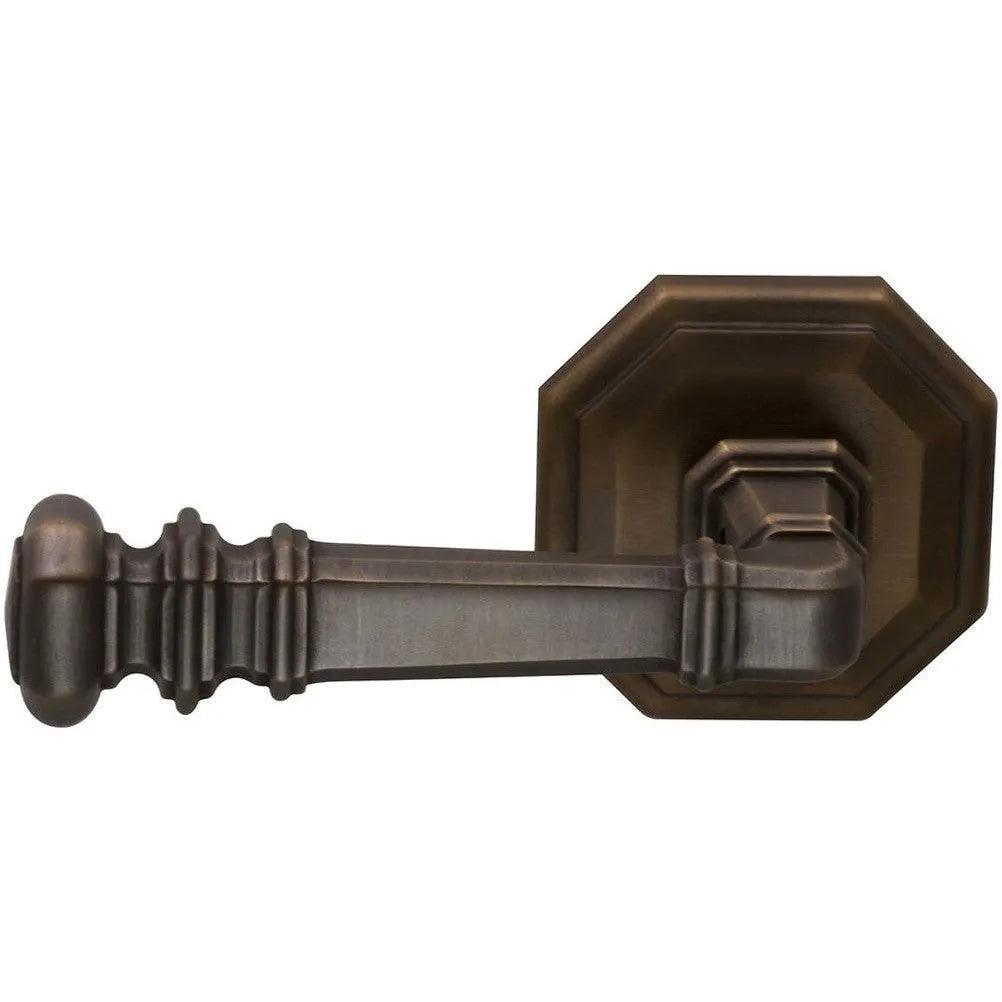

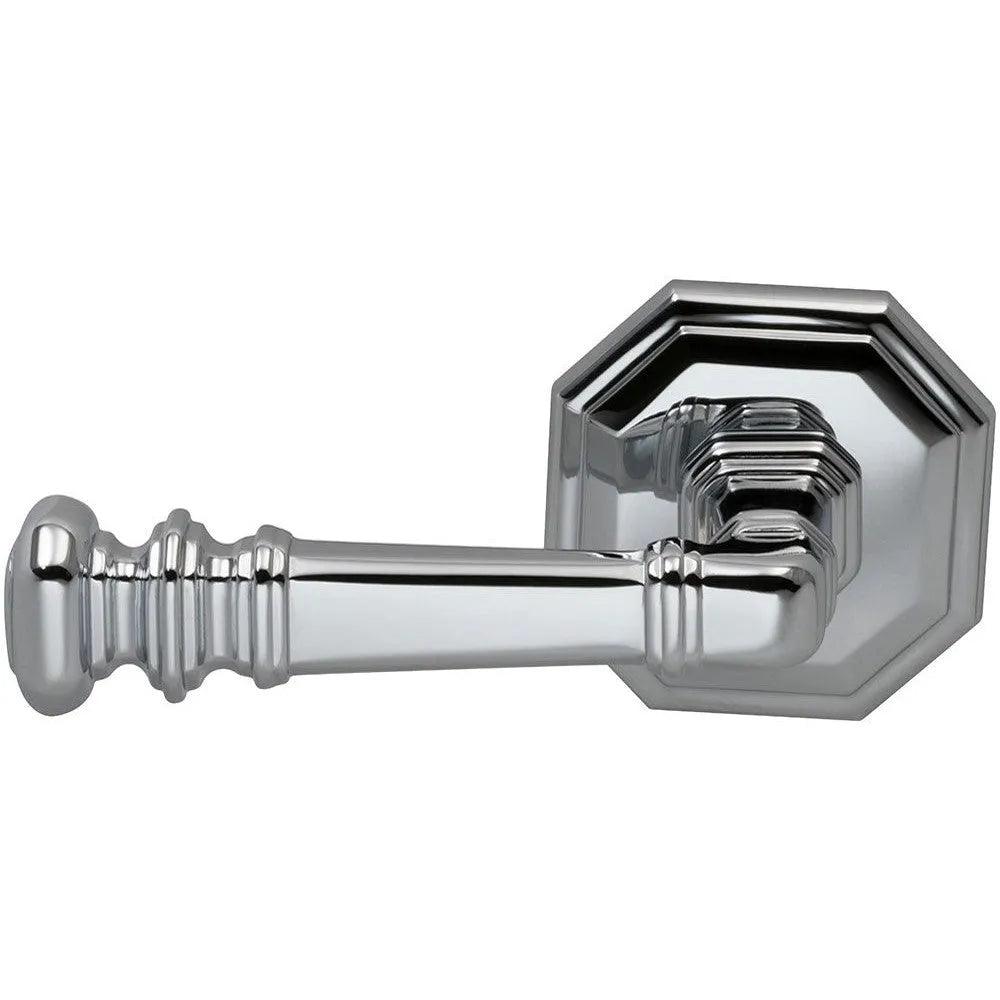

Traditional aesthetic, the 101 lever with Octagonal rosette provides a timeless appeal with its elegant looks and comfortable feel.
Passage Features
Passage Function: Latch operates by knob or lever from either side of door.
Each set consists of solid brass knobs or levers, surface mounted roses, latch, strike, dust box, faceplate, spindle, all necessary mounting screws, installation template, and instructions.
Concealed screw roses are self-aligning, spring-assisted. Fits a 2 1/8" pre-bored door
28 degree lever rotation to retract latch
All lever latchsets meet ADA accessibility requirements
Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
Reversible
Projection: 2 1/2"
Length: 4 5/8"
Height: 2 5/8"
Privacy Features
Privacy Function: Locks by privacy bolt with turnpiece on inside; emergency release on outside privacy rose. For sets with 1 3⁄4" and 2 3⁄16" dia. roses, a separate mortise privacy bolt must be ordered.
Each set consists of solid brass knobs or levers, surface mounted roses, latch, strike, dust box, faceplate, spindle, all necessary mounting screws, installation template, and instructions.
Concealed screw roses are self-aligning, spring-assisted. Fits a 2 1/8" pre-bored door
28 degree lever rotation to retract latch
All lever latchsets meet ADA accessibility requirements
Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
Reversible
Projection: 2 1/2"
Length: 4 5/8"
Height: 2 5/8"
Half Dummy Features
Single Dummy: Trim on one side of door only. Surface mounted. Knob or lever with rose. For dummy pair, order two single dummies.
Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
