Description

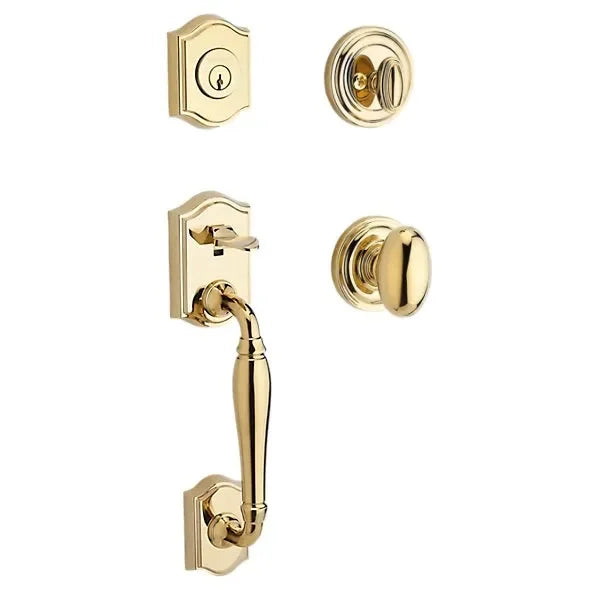

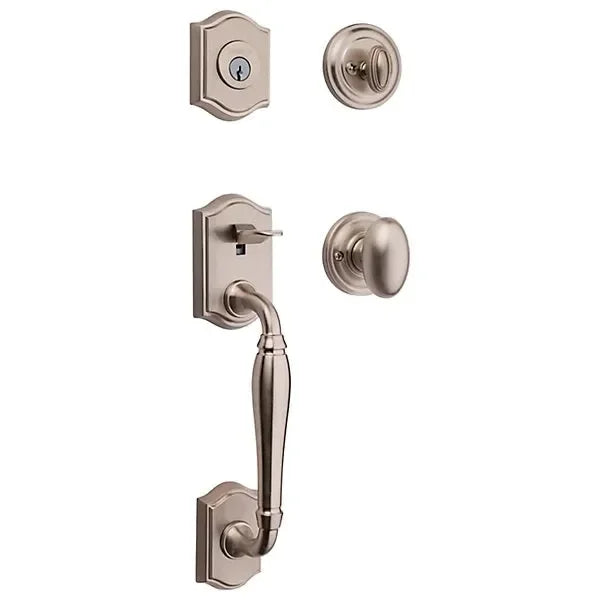

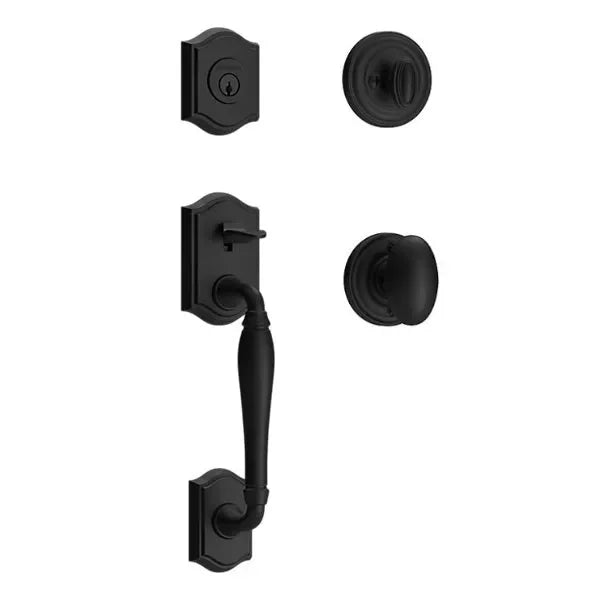

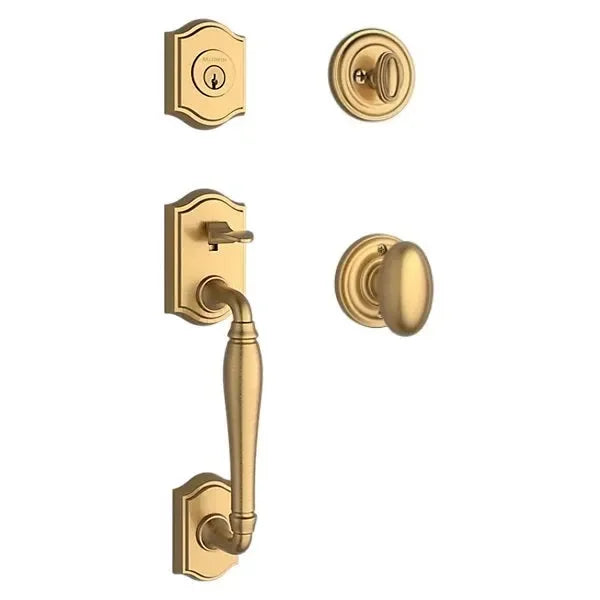

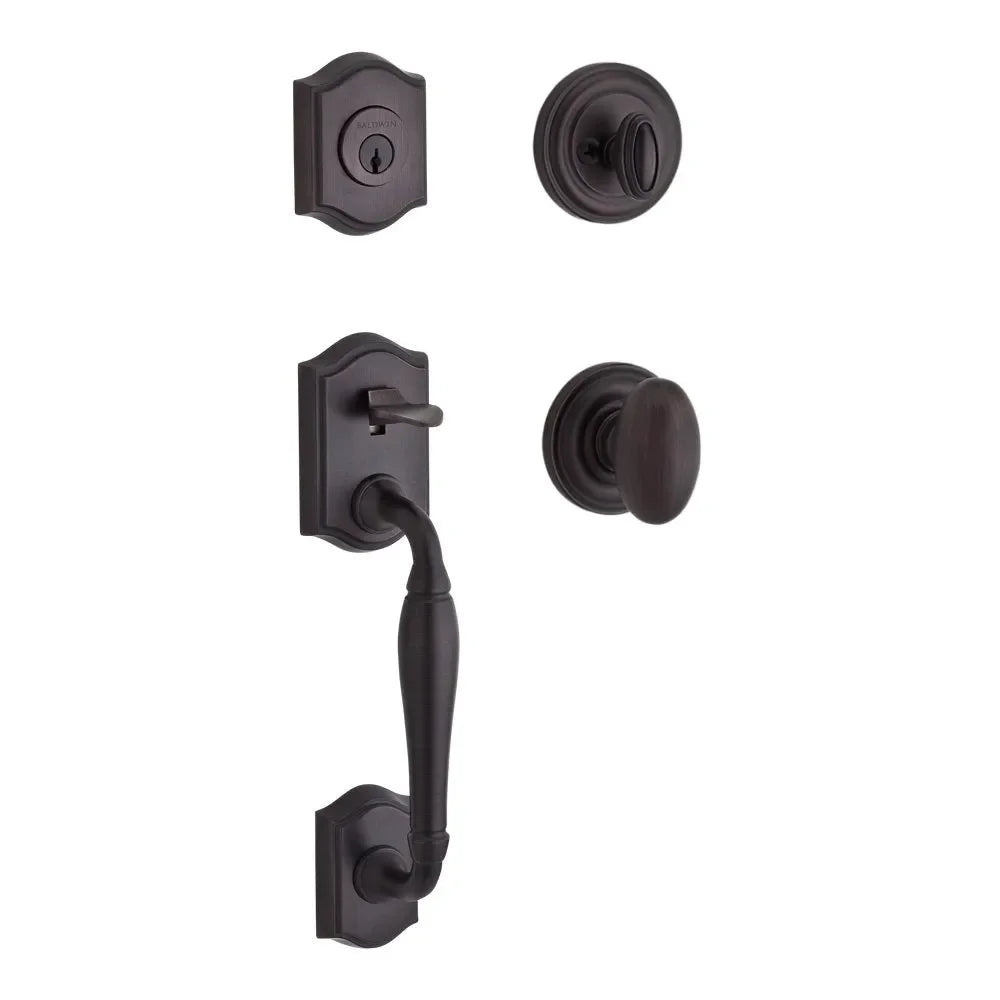

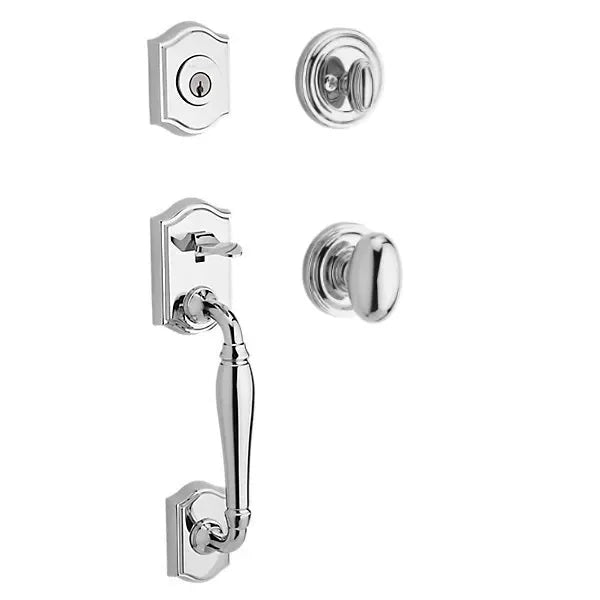

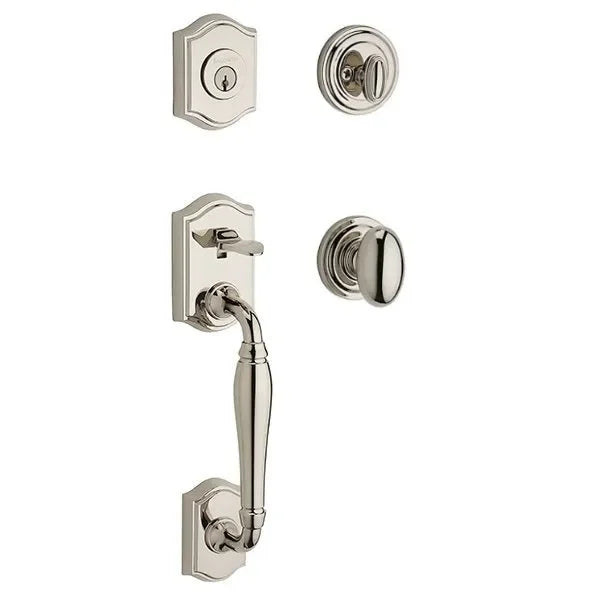

Elegant curves and timeless design define the Baldwin Reserve Westcliff Handleset. The sleek Ellipse knob, with its smooth oval shape, complements the soft, rounded rosette, creating a sophisticated and welcoming entrance. Built from high-quality materials, this handleset provides lasting durability and dependable security, and is available in a range of finishes to enhance your home's unique style.
Features
- Traditional Style Handleset
- *Note: Interior roses have exposed fasteners.
Specifications
- Door Preparation: 2-1/8” Cross Bore for both deadbolt and grip. 1” edge bore for both grip latch and deadbolt latch. 5-1/2” center to center tubular bore.
- Door Thickness: 1 3/4"-2" standard. 1-3/8” to 1-3/4” thin door service part kit available. 2" to 2-1/2" thick doors optional through Thick Door Service Part Kit
- Cylinder: Baldwin C-Keyway standard.
- Backset: Adjustable 2-3/8” or 2-3/4”
- Latch with kit including collar, back plate, and round and square fronts
- Strike: Dual Strike kit that includes both Square Corner & Round Corner Strikes
- Latch Bolt: Deadbolt features 1” throw Brass bolt latch. Grip offers ½” passage/privacy function bolt. Deadbolt tested to exceed ANSI/BHMA Grade 2 security
- Knob/Lever rotates at 55°- 60°
